>DESCRIZIONE DELL'APPARECCHIO

Vedi fig. A

• This appliance's performance and userfriendliness make it suitable for PROFESSIONAL use.
• The steam generator for industrial cleaning is used for the cleaning and disinfecting of any object in an easy and ecological way, without detergents.

> THECNICAL DATA

(see technical data plate)

SYMBOLS

WARNING: It is important to be careful of the following items.

IMPORTANT

LOCKED

OPEN

IF PRESENT

WARNING: do not touch .- a warning label relative to the danger of heat - steam emissions;

WARNING: symbol do not inhale

WARNING: symbol, Danger from hot steam.

- IT IS OBLIGATORY TO WEAR PROTECTIVE GLOVES WHEN USING THE MACHINE

- IT IS OBLIGATORY TO WEAR PROTECTIVE GOGGLES WHEN USING THE MACHINE.

SAFETY PRECAUTIONS

⚠ WARNING: It is important to be careful of the following items.

> WARNINGS

⚠ 01WARNING: This appliance is for outdoor use only.

⚠️02WARNING: Always disconnect the electricity and water supplies on completion of every job.

⚠03WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

⚠05a WARNING: Do not use the machine within range of persons unless they wear protective clothing.

05b - Do not allow other people or animals within a range of 5m when operating the machine.

05c - Always wear suitable protective clothing in order to protect yourself against ricocheting parts.

05d - Do not touch the plug and the appliance with wet hands or when barefoot.

05e - Wear safety goggles and non-slip rubber footwear.

• IT IS OBBLIGATORY TO WEAR PROTECTIVE GLOVES WHEN USING THE MACHINE.
• IT IS OBBLIGATORY TO WEAR PROTECTIVE GOGGLES WHEN USING THE MACHINE.

⚠️06WARNING: Do not direct the nozzle toward mechanical parts containing lubricant grease, as the grease will dissolve and spread over the surrounding ground. Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be deadly dangerous.

07WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be persons, animal, live electrical or the machine itself.

⚠08WARNING: High pressure hoses, fittings and couplings are important for the safety

of the machine. Use only hoses, fittings and couplings recommended by the manufacturer. (it is extremely important to protect these components against damage by avoiding their improper use and protecting them against bending, knocks and scratches).

⚠11WARNING: Switch the appliance off completely (master switch on (0)OFF) whenever it is left unattended.

⚠ 12WARNING: Every machine is tested in its operating conditions, so it is normal for a few drops of water to be left inside it.

⚠️13WARNING: Take care not damage the electric cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

⚠ 14WARNING: Appliance with fluid under pressure. Keep a firm hold on the gun and be prepared to take the kickback pressure. Only use the high pressure nozzle provided with the appliance.

⚠ 16WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

⚠ 17WARNING: Children should be supervised to ensure that they do not play with the appliance.

⚠ 18WARNING: Never start this appliance without first completely unwinding the high-pressure hose.

⚠ 19WARNING: When winding and unwinding the pipe take care not to cause this appliance to overturn.

⚠️ 20WARNING: Before unwinding or winding the hose, switch the machine off and release the pressure in the hose itself (switching off).

⚠️21WARNING: Risk of explosion — Do not spray flammable liquids.

⚠️22WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.

⚠️23WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.

⚠️24WARNING: High pressure cleaners shall not be used by children or untrained personnel.

⚠ WARNING: Water that has flown through backflow preventers is considered to be non-potable.

⚠️ XX WARNING: the machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance and when replacing spare parts

⚠️ XJ WARNING: If an extension cord is used, the plug and socket must be of watertight construction.

⚠ XY WARNING: Inadequate extension cords can be dangerous.

⚠ WARNING: It is absolutely forbidden to use the machine in potentially explosive environments or areas.

WARNING:

- NEVER EVER TOUCH THE MACHINE WITH WET HANDS OR BARE FEET.

- NEVER PULL THE POWER SUPPLY CABLE OR MACHINE IN ORDER TO DISCONNECT THE PLUG FROM THE SOCKET.

- IF DURING FUNCTIONING THE POWER SUPPLY RUNS OUT, FOR SAFETY REASONS, TURN THE MACHINE OFF.

⚠ K1 All the maintenance and adjustment activities described in this handbook must be carried out only after stopping the machine (main switch turned to off) and disconnecting the power cord, if not clearly indicated that the operation must be carried out when the machine is on.

⚠ K2 All the adjustment and activities that are not described in this handbook must be carried out by qualified and skilled operators to avoid any accident or damage to the machine and to the operator.

⚠️ K3 Carefully read this operating handbook before use. It provides important information about a safe installation, use and maintenance of the machine.

⚠ K4 The non-compliance with the safety measures may entail serious injuries to the operator and damages to the machine.

⚠️ K5 Carefully keep this handbook for consultation purposes up to the machine final dismantling. The use and maintenance activities must be carried out correctly; otherwise, the builder cannot be held responsible for the damages to

EN

people, animals or things deriving from the non-compliance with the following instructions.

⚠️ K6 Check that both the machine and its components are undamaged when unpacking them. Contact your reseller in case of doubts.

⚠️ K7 Make sure that the rating corresponds to the factory power line before energising the machine.

⚠️ K8 De-energise the machine before any cleaning or maintenance activity.

⚠️ K9 Never leave the machine energised if unused. Turn the main switch off.

⚠️ K10De-energise the machine in case of failure and / or troubles. Do not tamper with its controls and equipment. Just contact the authorised after-sales service points for servicing purposes and always order original spare parts.

⚠ K11 The draining and loading pipes, the safety sheaths and the solenoid valves must not be cut and tampered with. De-energise the machine in case of damages

⚠️ K12 Any use of the machine other than the one it has been built for represents an anomalous condition and can cause serious damages to the operating means and entail a serious risk for the operator using it.

⚠️ K13 Never remove or hide the warning labels applied to the machine.

⚠ K14 The same instructions are valid for various models; some details may differ according to the machine model.

⚠ K15 Never touch or start the machine with wet hands or bare feet;

⚠️ K16 Remove the casings and the doors of the electric boards only once the machine has been stopped and de-energised;

For fire-prevention purposes:

⚠️ K18 Keep all inflammable or combustible products away from the equipment area.

K19 Obviously, the above-mentioned instructions are not sufficient to prevent all sorts of accidents; therefore, the user will have to be cautious.

⚠ K20 The machine must not be modified or changed in any way without the builder's written authorisation.

⚠ WARNING: We recommend the use of demineralized water.

⚠ WARNING: Never use the power cable or the gun cable to move it.

> SAFETY DEVICE

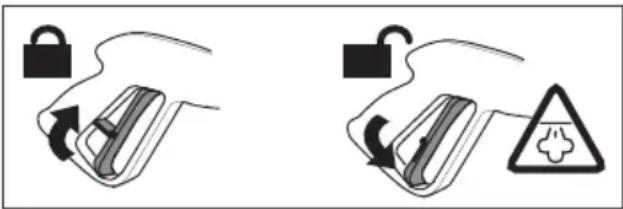

⚠ WARNING: the gun is fitted with a safety catch. Whenever use of the machine is

interrupted it is important to operate the safety catch to prevent accidental activation of the jet.

Diagram illustrating two methods of removing a car, showing lock and switch states with warning symbols

Safety features:

• Safety valve
• Manostat
• Thermostat
• Pump with a by-pass valve or stopping device.

> STABILITY

⚠ WARNING: The machine must be always kept on horizontal bases, in a safe and stable way.

> WATER SUPPLY

Water supply collection

Water supply from the water main

• Connect a supply hose (not included) to the water inlet of the unit and to the water supply.
• Open the water supply.

WARNING: (symbol) machine not suitable for connection to the potable water mains.

The cleaner can only be connected to the water mains if the water mains is separated by a backflow preventer. Make sure that the hose is at least ∅ 13mm-1/2 inch and that it is reinforced.

⚠ WARNING: Water that has flown through backflow preventers is considered to be nonpotable.

IMPORTANT: Only clean or filtered water should be used for intake. The delivery of the water intake tap should be equal to the double of the maximum pump range.

• Maximum intake water temperature: 40°C
• Max inlet water pressure: 1Mpa
  Place the machine as close to the water supply system as possible.

Failure to comply with the above conditions causes serious mechanical damage to the pump and the loss of warranty cover.

Water supply from the water tank build-in

- Switch off the unit.

⚠ WARNING: We recommend the use of demineralized water.

> ELECTRICITY SUPPLY

- The appliance's electrical connection must comply with the IEC 60364-1 standard.

IMPORTANT: Before connecting the appliance, make sure that the nameplate data are the same as those of the electrical mains and that the socket is protected by a differential security breaker with tripping sensitivity below 0.03 A - 30 ms.

- If the appliance's plug is not compatible with the socket, have the socket replaced with another of suitable type by professionally qualified staff.

- Never use the appliance in ambient temperatures below 0^ C if it is equipped with a PVC (H VV-F) cable.

⚠ XY WARNING: Inadequate extension cords can be dangerous.

⚠️XJ WARNING: If an extension cord is used, the plug and socket must be of watertight construction.

Information for supply may also be obtained from the plug manufacturer.

230-240V 400-415V

3G 2,5 mm2 4G 2,5 mm2

max 20 m max 30 m

USAGE

> UNPACKING

Remove the upper and the lower hooks retaining the cardboard box to the pallet, take the cardboard box off, place two wheels of the machine on ground and withdraw the pallet.

> Machine handling and transport

• Always use the handle supplied to move the machine.
  ⚠️ WARNINGS Never move the machine by using the power cable or steam hose.

Symbolic illustration of crossed-out road signs with arrows, no text or numbers present

Silhouette of a shopping cart with an arrow indicating direction (no text or symbols)

> MACHINE DESCRIPTION

see fig.A

① Water tank
② Handle
③ Diesel tank
④ Electric cable
⑤ Water inlet
⑥ Joint with filter

see fig.B

⑦ dry steam / wet steam adjuster
⑧ Pressure gaugesteam
⑨ Main switchON/OFF
⑩ Boiler switch
⑪ Thermo regulator display

• Temperature indicator
• Indicates "H2O" when water is missing from the tank.
• Indicates "GAS" when diesel is missing from the tank.

⑫ + temperature adjuster

⑬ - temperature adjuster

⑭ Steam/water outlet

see fig.C

⑰ Steam gun
⑱ Steam accessory
⑲ Steam hose
⑮ Steam outlet valve
⑯Drain hose valve

EN

> POSITIONING OF THE CHIMNEY FOR INDOOR APPLICATION

(see fig. M)

⚠ WARNING: In case of operation indoors, adequate ventilation and gas venting must be assured.

Sometimes a chimney is necessary to remove the exhausts from the pressure cleaner.

This problem hasn't to be faced when the machine operates outdoor, but when it's installed indoor, the following recommendations must be followed:

- The chimney path must be always in ascent, straight vertical if possible, and preferably not exceeding a 5 m lenght.

- The exit of the chimney must be sheltered to avoid the dripping of rain and to allow the exhaust flow.

- The chimney section A must be 3 times the outlet chimney of the machine B and at distance of at least 20 cm.

It must be underlined that the above recommendations are extremely important to prevent the condensate from back dripping into the machine. The exausts contain sulphuric acid, condensating at a temperature of approximately 180°C. The condensation shall be avoid, but in any case the condensate from chimney shall not enter the machine.

The non observance of these recommendations may lead to the damage of the machine.

CHIMNEY SECTION: 3 times the area of chimney Chimney pipe diameter = 150 mm.

CHIMNEY SECTION FOR 2 BOILER: 6 times the area of chimney.

Chimney pipe diameter = 225 mm.

> INSTALLATION AND START-UP

IMPORTANT: The machine installation environment should be kept at between 10°C and 35°C.

vedi fig. C

- Connect Steam hose ⑲ to gun and to steam outlet ⑭,

- turn up the safety catch fig. D.

- then open the steam tap ⑮

WARNING: Danger from hot steam.

> FUELLING

DIESEL

(see fig. A) 181

Fill the tank with the fuel indicated on the technical data plate (Diesel)

In order not to damage the fuel pump, ensure that the tank never empties while running.

⚠ WARNING: Use of unsuitable fuel may result in dangerous situations.

WATER

(see fig. A)

see section on "WATER SUPPLY"

> TEMPERATURE ADJUSTMENT

(see fig. B)

Adjust the temperature by means of the thermo regulator ⑪ situated on the control panel.

This machine is equipped with an electronic thermo regulator to check and adjust the boiler temperature as well as the pressure from min. 5 bar to max.

10 bar.

- Connect the plug to the power socket.

- When turning the unit on, the display shows the temperature reading in the boiler.

Adjust the temperature as follows:

- Hold the (+) and (-) buttons pressed simulta - neously for a few seconds;

- Press the (+) button to increase the temperature, or the (-) button to decrease it.

It is essential that the thermo regulator is set to 190^ C in order to be able to work at 10 bar.

TABLE OF COMPARISON BETWEEN DEGREES CENTI-GRADE AND STEAM PRESSURE EXPRESSED IN BAR

°C bar

1525

1596

1657

1708

1759

180 10

WARNING:

- The machine is pre-set at the max temperature of 190^ C.

- For any adjustment, timing or replacement action not described in this handbook, contact qualified personnel at the er or resale outlet.

- Adjustments can be made to adapt the machine to various production requirements.

> STEAM AND WATER OUTPUT ADJUSTMENT

(see fig. B)

Adjust the steam and water output by using the two knobs situated on the left hand side of the machine ⑦.

wet steam ;

dry steam ;

⚠ WARNING :

• For any subsequent adjustment, setting or replacement of parts not foreseen in this manual, please contact qualified personnel at the manufacturer or resale outlet.
• Before carrying out any replacement, ensure that the main switch is in the (0) OFF position.

> START-UP

Description of the start sequence

After carrying out all the connections and preventative inspections described in the previous chapters, start the machine according to the following instructions:

- Before starting the generator, fill the tanks with DIESEL up to the set level.

1) Press the main switch situated on the control panel to the (1) ON ⑨
2) Press the BOILER ON button situated on the control panel to (1) ⑩.
3) Keep the trigger pressed
- If the display show H2O, it means that there is no water in the tank. Fill the tank (see "Filling the tanks with water")

> MACHINE STOP (AT END OF WORK)

At the end of the work shift, stop the machine in the following way:

1) Press boiler switch button to (0) OFF ⑩
2) Press main switch to (0) OFF⑨.
3) Unplug the machine from the electrical power supply.

Boiler drain

Follow the instructions below:

- A few minutes before the end of the work shift,

turn off the boiler by pressing the BOILER START luminous green push-button, continuing to use the steam gun until the pressure gauge indicates a value of 0-1 bar ;

(see fig. E)

- Carefully open the boiler drain cock ⑯, situated on the machine and drain all the water from the boiler into a suitable container;

WARNING: Danger from hot steam.

⚠ WARNING:

⚠ V15 While the machine is functioning, it is strictly forbidden to remove safety devices set by the Manufacturer for the purpose of protecting the operator against incidents.
- Only skilled and qualified operators must use the machine.
- Avoid aiming the steam lance towards personnel or delicate objects such as plastic, crystal or other materials which may melt or deteriorate with contact to steam at 180^ C.
- Never leave the machine unattended.
- Always remove the power supply from the machine before filling the tanks.

CARE AND MAINTENANCE

SCHEDULED MAINTENANCE PLAN

Visit website and download the scheduled maintenance plan.

IMPORTANT: Before doing any work on the cleaner, discharge the pressure and disconnect the electricity and water supplies.

SEE ROUTINE MAINTENANCE TABLE

WARNING

Before any maintenance or replacement activity, remember to:

• stop the machine (MAIN SWITCH turned to OFF)
• unplug it.
  ⚠️K1 Maintenance, replacement or servicing activities described in this handbook must be entrusted only to skilled operators familiar

EN

with the technology used on the machine.

⚠️K2 Consult qualified personnel at the manufacturer or sales outlet for any adjustment, tuning or replacement actions not included in this manual.

Machine general cleaning

Once a week, remove all the dust from the machine using compressed air.

Clean the machine body externally with suitable detergents.

⚠ WARNING:

Always wear protective gloves when cleaning the machine.

TROUBLESHOOTING

(see table)

⚠️22WARNING: To ensure machine safety, use only original spare parts supplied or approved by the manufacturer.

WARRANTY CONDITIONS

All our machines are subjected to strict tests and are covered against manufacturing defects in accordance with applicable regulations. The warranty is effective from the date of purchase.

The following are not included in the warranty: - Parts subject to normal wear. - Rubber parts,

charcoal, filters and the accessories and optional accessories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or improper use and installation failing - The warranty shall not cover any cleaning operations to which the operative components may be subjected, such as clogged nozzles and filter blocked due to limestones.

DISPOSAL (WEEE)

As the owner of electrical or electronic equipment, the law (in accordance with the EU Directive 2012/19/EU on waste from electrical and electronic equipment and the national laws of the EU Member States that have implemented this Directive) prohibits you from disposing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities. The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of. Disposing of the product in the environment can cause great harm to the environment itself and human health.

The symbol in the figure indicates the urban waste containers and it is strictly prohibited to dispose of the equipment in these containers. Non-compliance with the regulations stipulated in the Directive 2012/19/EC and the decrees implemented in the various EU Member States is administratively punishable.

OPERATION MACHINE PART PERIODICITY
1 Boiler cleaning 1 Remove limestone from the boiler1 Clean the water level sensors		1 Every year1 Every three months	Authorized After Sales Service
2 Visual checks 2 Machinery + gun 2 Every week			The user
3 Cleaning the burner	3 Ignition electrodes, Diesel nozzle 3 Every year		Authorized After Sales Service
4 General cleaning 4 External cleaning 4 Every week			The user

	TROUBLES CAUSES SOLUTIONS
1	THE GENERATOR PRESSURE DOES NOT INCREASE	1- Pressure switch1-Burner1-Resistance temperature detector PT100	1-Check the pressure switch1-Check electrodes, diesel nozzle1-Check that the temperature is at least 150°C	- Authorized After Sales Service- The user- The user
2	THE PUMP CANNOT RUN2.1 It loads no water2.2 Sound allarm	2.1 The water tank is empty2.1 Pump2.1 Clogged filter2.1 Water level sensors2.2 Lack of water in the tank2.2 Check the electronic level2.2 water solenoid valve	2.1 Fill the tank2.1 Replace the pump2.1 Clean the filter2.1 Clean the water level sensors2.2 Fill the tank2.2 Replace the solenoid valve2.2 Check and eventually replace it	- The user- Authorized After Sales Service- The user- The user- Authorized After Sales Service
3	THE SAFETY VALVE OPENS REPEATEDLY3.1 It keeps on loading water	3.1 Boiler water level probe3.1Pressure switch3.1Safety valve	3.1 Clean the water level sensors3.1Replace the pressure switch and check that the connection discharging tube is free from incrustations.3.1Replace the safety valve	- Authorized After Sales Service- Authorized After Sales Service- Authorized After Sales ServiceThe safety valve can be replaced only by or qualified service center.Safety valve replacement must be set at 12 bar and be accompanied by certified PED as provided for category IV

INDICATIONS GÉNÉRALES

> UTILISATION PRÉVUES

Diagram showing two hand positions with lock and switch symbols, one indicating clockwise rotation and the other indicating clockwise rotation.

Symbolic illustration of crossed-out electrical circuit lines with no text or labels

Silhouette of a shopping cart with an arrow indicating direction (no text or symbols)

> DESCRIPTION DU L'APPAREIL

voir fig. A

CONDITIONS DE GARANTIE

Diagram illustrating two methods of removing a device, showing lock and switch states with a warning symbol.

⚠️ACHTUNG: Beveiligingen:

- Sicherheitsventil

Crossed road sign with no text or symbols

Simple line drawing of a shopping cart with an arrow indicating direction (no text or symbols)

Diagram showing two hand positions with lock and switch symbols, one indicating clockwise rotation and the other indicating clockwise rotation.

Pure electrical circuit lines without any symbols

Simple line drawing of a shopping cart with an arrow indicating direction (no text or symbols)

Safety warning symbol showing a lock, switch, and hazard symbol with a cross

Crossed construction symbols including a crane and pump, with no text or labels

Silhouette of a shopping cart with an arrow indicating direction (no text or symbols)

Diagram showing two hand positions with lock and switch symbols, one indicating clockwise rotation and the other indicating clockwise rotation.

⚠️ ВНИМАНИЕ:

Pure electrical circuit lines without any symbols

Simple line drawing of a shopping cart with an arrow indicating direction (no text or symbols)

> ОПИСАНИЕ МАШИНЫ

см. рис. А
