SS-8965 - Portable speaker Sogo - Free user manual and instructions

Brand	Sogo
Model	SS-8965
Product type	Portable speaker with Bluetooth, FM radio, microphone and guitar inputs
Output power	30W x 2 RMS (600W PMPO)
Speakers	2 built-in speakers
Bluetooth version	5.3
Bluetooth range	≤ 10 meters
Battery capacity	11.1V / 4000mAh, built-in Li-ion
Battery life	Approximately 6 hours (at 50% volume)
Charging time	2.5 hours
Power supply	100-240V / 50-60 Hz (40W)
Auxiliary input	3.5 mm AUX jack
Microphone jack	6.3 mm (jack)
Guitar jack	6.3 mm (jack)
USB port	Up to 32 GB (MP3 playback)
FM radio	Yes, with wired antenna and 30 presets
TWS (True Wireless Stereo) function	Yes, allows connecting two speakers
LED lighting	6 disco light modes, adjustable
Equalizer	FLAT, POP, CLASSIC, JAZZ, ROCK
Bass control	EX-BASS button to boost bass
Maintenance and cleaning	Clean with a soft, dry cloth; avoid abrasive cleaners
Safety	Do not expose to water, do not open, unplug during storms
Spare parts and repairability	Built-in battery not user-replaceable; contact customer service
General information	Made in China, imported by Sanysan Appliances S.L. (Spain)

Frequently Asked Questions - SS-8965 Sogo

How to charge the Sogo SS-8965 speaker?

Turn off the speaker, plug the supplied power cord into a wall outlet and connect it to the charging input. The indicator turns red during charging and green when the battery is full (approximately 2.5 hours). Do not charge for more than 4 hours.

How to connect my phone via Bluetooth?

Press the FUNC/TWS button until Bluetooth mode is selected (the screen shows 'bt'). Enable Bluetooth on your phone and search for 'SOGO SS-8965'. Select it to pair. If a code is requested, enter '0000'.

Can I use the speaker with a guitar?

Yes, plug your guitar into the dedicated 6.3 mm jack. Use the MIC/GTR button to select guitar volume and turn the MIC/GUITAR knob to adjust the level.

How to listen to FM radio?

Press FUNC/TWS to switch to FM mode. Insert the wired antenna into the FM jack on the back. To tune, use the TUN.+ or TUN.- buttons. For automatic search, hold down one of these buttons.

How to use the TWS function (two speakers)?

Connect your phone to the first speaker (main unit). Turn on the second speaker in Bluetooth mode. On the main unit, hold down the FUNC/TWS button. The two speakers will automatically connect and play sound in stereo.

How to adjust microphone echo?

Hold down the EQ/ECHO button until 'EC' is displayed. Then turn the MIC/GUITAR knob to increase or decrease the echo effect.

What to do if the speaker does not turn on?

Make sure the battery is charged. Plug in the power supply and wait a few minutes. If the problem persists, contact customer service.

How to clean the speaker?

Use a soft, dry cloth. For stains, a slightly damp cloth. Never use abrasive products, alcohol, or ammonia.

Can I use the speaker while it is charging?

It is not recommended to use the speaker while charging, as this may reduce battery life. Turn it off before connecting the charger.

How to reset the speaker?

There is no specific reset. You can turn the speaker off and on. If problems persist, disconnect the power and wait a few minutes before trying again.

USER MANUAL SS-8965 Sogo

EN Instructions for use

FR Mode d'emploi

Download your manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. SYMBOL DEFINITIONS

1

2

3

1- DANGER: Indicates an imminently dangerous situation. 2- WARNING: Indicates a potentially dangerous situation. 3- CAUTION: Indicates a potentially dangerous situation. Also warns against unsafe practices.

3. SAFETY INSTRUCTIONS FOR THE USER

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Do not place or operate the Bluetooth speaker near water sources. Always place the appliance on a flat and even surface.
• The unit must be used only for its intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be used in household and similar applications.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Restrictions on use to avoid personal injury

Do not place or operate this appliance near water sources.

Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates, ovens, or electric burners) or open flames.

Do not leave the power cord hanging from sharp edges and keep it away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

Never use accessories that are not recommended by the manufacturer.

The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock, or injury to persons.

- When removing the plug from the wall outlet, always pull on the plug itself, not the cable or the appliance.

- To avoid electric shock, ensure your hands are dry before plugging in or unplugging the device.

- Do not use the device with wet hands, on damp floors, or in humid conditions, as there is a risk of electric shock.

- Never immerse the appliance or the plug in water or any other liquid. If the appliance falls into water, disconnect it from the mains immediately and have it inspected by an authorized service agent before reuse.

- Do not use the appliance if it has been dropped, shows visible signs of damage, or has a leak.

- Do not use the appliance if the cable or plug is damaged. If the cord is damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons to avoid hazards.

- In case of malfunction or any damage, return the appliance to the nearest authorized service facility for examination, repair, or adjustment.

Restrictions on use with children and the elderly

- Children should be supervised to ensure they do not play with the appliance.

• Keep the appliance and its cord out of reach of children. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• Do not allow children to use the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Instructions to follow when using the appliance
• Do not leave the speaker charging longer than recommended by the manufacturer, as this may damage the battery or the speaker itself.
• Do not use the speaker while it is charging, as this may also damage the speaker.
• This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
• NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit's casing as this could result in a fatal electric shock.
• Don't mount this product on a wall or ceiling.
• Do not place the unit near TVs, speakers and other objects that generate strong magnetic fields.
• Do not leave the unit unattended when it is in use. NOTE: To disconnect the system completely if it not to be used for a long time, remove the AC power plug from the wall outlet.
• Do not drop, disassemble, deform, modify or insert any objects into holes of the speaker as it may result the product damage.
• Do not clean the product with alcohol, ammonia-based cleaners and abrasive cleaners.
• Do not place this product in to contact with any sharp objects as this may cause scratches and operating damage.
• Do not attempt to replace the product battery, it is built-in and is not user changeable.
• In case of speaker malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair or adjustment. Keep the speaker away from direct sunlight, fire, or other high voltage equipment. WARNING: the device might get warm during charging. Always ensure the speaker is turned off when you plug and unplug the

device. If the device is not turned off you might damage the speaker or injure yourself.

- Place the unit where there is good ventilation. Place the system on a flat, hard and stable surface. Do not expose to temperatures above 40°C. Allow at least 30 cm clearance from the rear and the top of the unit and 5 cm from each side.

- Press the buttons of the unit gently. Pressing them too hard can damage the unit.

• Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with dry cloth only.

- Unplug the product during lightning, storms or when it will not be used for long periods of time.

- Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas.

- Dispose of the product and the product's battery in accordance with local laws and regulations.

- Dispose of used batteries in an environmentally responsible manner.

4. TECHNICAL SPECIFICATIONS:

Output power: 30W x 2 RMS power (600W PMPO)

Sound sensitivity: 94.7dB ± 3dB

Frequency response: 87.5Hz – 108MHz.

Distortion: 1%.

Bluetooth version: V5.3

Bluetooth range: ≤ 10m.

Bluetooth pairing name: SOGO SS-8965.

USB memory supported: 32 GB

Battery capacity: 11.1V / 4000mAh.

Battery type: Built-in rechargeable battery.

Power cord: 100-240V / 50-60 Hz.

Power consumption: 40 W

Standby power consumption: <0.5 W

Working Time: 6 hrs (Max)

Charging time: 2.5 hrs.

Slot: AUX, USB, MIC jack, Guitar jack.

Connection: FM / Bluetooth / Auxiliary input

Microphone jack 6.3mm

Guitar Jack 6.3mm

AUX in jack 3.5mm

5. PRODUCT AND ACCESSORIES INFORMATION:

The box of this product contains: Speaker, Power cord, Instructions manual, Microphone, Warranty card.

Speaker

Instruction Manual

Microphone

6. PRODUCT AND PANEL OVERVIEW:

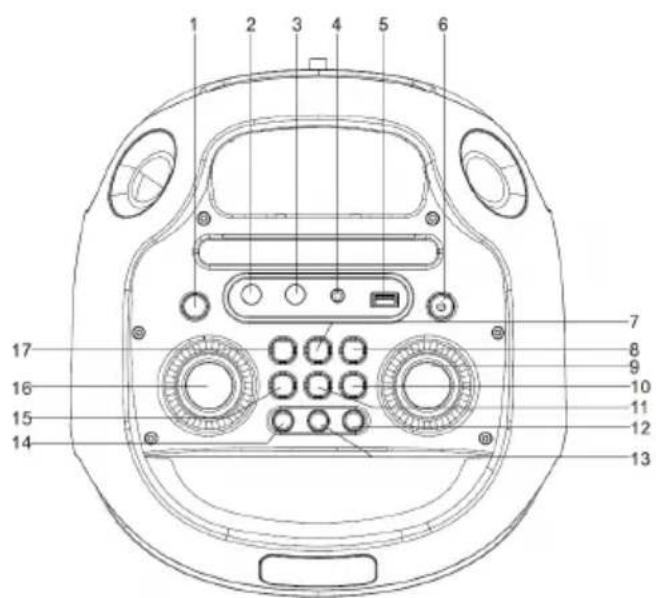

Top view:

This panel is located on the top part of the speaker, with multiple buttons and functions we can manage multiple things from here.

1- Ex-Bass Button: Press this button to increase the bass effect.

2- 6.3mm MIC JACK: This is provided to connect the wired microphone.

3- 6.3mm Guitar Jack: This speaker has Guitar Input, with the help of this input option, we can connect the guitar to the speaker and play our own creations.

4- 3.5mm AUX in Jack: With the help of Auxiliar cable, you can connect any device like Radios, Cell phone, MP3 player or any other device and enjoy the content of your own choice.

5- USB Port: This speaker supports 32 GB USB pen drive. Once we insert the USB card into the slot, we can listen the music and songs saved in the USB pen drive.

6- STANDBY Button: Press and Hold the STANDBY button to turn ON/OFF the device.

7- MIC/Guitar Button: Press this button to select the MIC volume or to select Guitar Volume.

8- 10/M./FOLD. + Button: Press this button to tune to the next preset station. It is also provided to change the preset memory number. Press this button also to skip forward 10 tracks at once. In case of multiple folders stored in the USB drive, Press and hold this button to skip forward a folder.

9- Volume Knob: Rotate this knob to adjust the unit volume when it is connected with a Bluetooth device or in AUX mode.

10- PUN.+ Button: Tune to the next FM channel by pressing this button. Press and hold this button also to start auto tunning. This button is also used to tune to the next station that you want to save as a preset(e.g., 93.1). To select a desired track in forward direction, press this button until the desired track appears on the display. Press and hold this button while playing any track to go forward to a specific / desired passage of the current track. When the desired passage is displayed on the display, release the button. While searching for a specific track in a folder, press this button to select the next track.

11-PAIR/SCAN Button: Press and hold this button to scan for stations within reception range and save them to preset memory automatically. Press this button also if you want to pause or resume the playback. The playing time will flash on the display.

12- FUNC./TWS Button: If you want to change the functional mode of the speaker, press this button repeatedly to choose between BLUETOOTH/RADIO/AUX/USB function.

13- LIGHT/M./P-Mode Button: This speaker comes with 6 flashing modes for the DISCO LED lights. Press this button to choose the lighting mode you want. To turn OFF the lights, press this button until "LOFF" shows on the display. To save a station as Preset memory, press and hold this button until 'P-01' flashes on the display to indicate that you are saving the station as Preset Memory. Press and hold LIGHT/M./P-Mode Button to finish saving the station (e.g., P01 is now set to 93.1). For Repeat function, press and hold this button, the display will show "ALL" and all the tracks on the USB will be played over and over again. This button is also used to repeat the current folder again and again by pressing and holding this button. For the function of Random play, press and hold this button until "RAN" shows on the display and then random play will start from the next track automatically. To cancel repeat play, press and hold this button until "OFF" shows on the display.

14- EQ/ECHO Button: For echo adjustment of Microphone, press and hold this button until "EC" shows, then rotate the MIC/Guitar knob to increase or decrease the echo effect. For equalizer function, press this button to select the best option you like from FLAT, POP, CLASSIC, JAZZ and ROCK.

15- RUN.- Button: Tune to the previous FM channel by pressing this button. Press and hold this button also to start auto tuning. This button is also used to tune to the previous station that you want to save as a preset (e.g., 93.1). To select a desired track in back direction, press this button until the desired track appears on the display. Press and hold this button while playing any track to go backward to a specific / desired passage of the current track. When the desired passage is displayed on the display, release the button. While searching for a specific track in a folder, press this button to select the previous track.

16- MIC/Guitar Volume Knob: To adjust the volume of Guitar / Microphone, rotate this knob accordingly to your desired level of volume. In the EQ/ECHO mode, rotate this knob to adjust the echo effect according to your comfort level.

17- 10/M./FOLD. – Button: Press this button to tune to the previous preset station. It is also provided to change the preset memory number. Press this button also to skip backward 10 tracks at once. In case of multiple folders stored in the USB drive, press and hold this button to skip backward a folder.

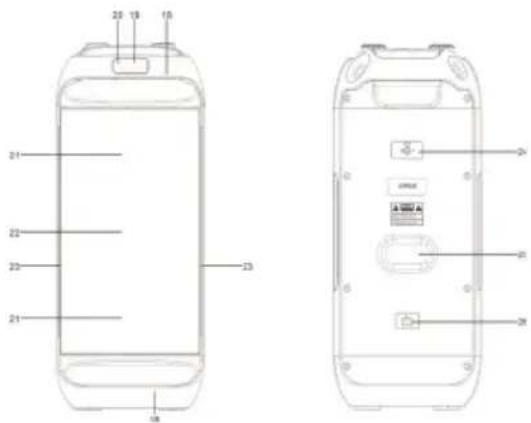

Front and Back view:

18- Handle: This speaker comes with a handle for easy portability. 19- LED Display: The display shows information about functional modes, sound settings, track number, etc. 20- Charging Indicator: When the device is plugged in with the charging cord, the indicator turns RED. When the battery is fully charged, the indicator turns GREEN. 21- Speakers: The device is equipped with 2 speakers for the best audio experience. 22- Speaker Grill: The grill protects the speaker output area from physical damage. 23- Decoration Light: These lights flash as colorful disco lights according to any of the 6 flashing modes. 24- FM antenna jack: Insert the wired antenna into the FM socket on the rear cabinet while in FM mode. Extend the wired antenna to its full length for the best FM signal reception. 25- Ventilation Hole: The ventilation hole is provided for heat dissipation of the device. 26- AC socket: Plug the AC power cord into this socket to supply power to the device. After the device is fully charged, unplug the power cord from this socket to use the device on battery mode.

Bluetooth Speaker Functions:

Before starting, make sure to fully charge the speaker battery before first use, as this enhances the battery's lifespan.

Turning ON/OFF: After charging the battery, press and hold the STANDBY button to turn the device ON/OFF. Note: In USB/Bluetooth/AUX mode, if the unit is providing the main function for about 15 minutes, it will automatically switch to standby mode. Press and hold the STANDBY button to turn it ON again.

How to connect the device with the Bluetooth speaker?

Press the FUNC/TWS button to switch to Bluetooth function; the display will show "bt" at high speed. Turn on Bluetooth on your electronic device that you want to connect. Make sure your device is visible to nearby devices. Search for the Bluetooth pairing name "SOGO SS-8965" on your device screen, and once it appears, press it to connect with the speaker. If a password is required, enter "0000". The "bt" sign will show steadily to indicate the connection is complete. Bluetooth works best within 10 meters range in open space.

Setting the Function Mode:

To change function modes, press the FUNC./TWS button repeatedly to choose between BLUETOOTH/RADIO/AUX/USB functions.

TWS functioning:

This speaker model has a function known as TWS (True Wireless Stereo). With this function, you can connect 2 speakers at the same time to the same device without any wired connection. This function enhances the sound level and helps cover a large area for parties and functions. If you have 2 speakers, connect your electronic device to one of the units via Bluetooth. This unit will become the master unit.

Turn on the second unit and switch to Bluetooth mode. Press and hold the "FUNC/TWS" button on the master unit, then these two units will connect automatically with a sound indicating that the connection is done and the master unit will show "tS r" and the second unit will show "tS L" then these two units will become as a stereo output. Now you can enjoy the music and sound with more enhanced quality. After these both units have become as a stereo unit, you can control Equalizer, Volume, Play/Pause, Next and Previous track, Bass and light adjustment from both of the units.

To disconnect the stereo mode, press and hold FUNC/TWS button on any of the units to disconnect the TWS stereo mode. To disconnect the Bluetooth from the mobile, press and hold the PLAY/PAUSE/PAIR/SCAN button on the Master unit.

Aux-In / Line-in:

With the help of Aux-In input you can connect all the musical devices such as Radios, Laptops, Televisions, and all the devices, which doesn't have Bluetooth connection function. Press the FUNC. /TWS button to select the "AUX" mode. Connect your audio device to the AUX IN jack on the top panel of the unit with an AUX IN cable (audio cable is not included). Rotate the VOL. knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level. With the help of device, you can play the music and songs of your choice. You can control the playback with your audio device.

Music with the help of USB operation:

This speaker has USB slot with the help of which, you can listen the music saved in your pen drive. To play the speaker in the USB mode, press the FUNC./TWS Button on the unit to select USB mode. Plug the USB pen drive to the USB port. Playback will start automatically from Track 1. In this mode, with the help of PLAY/PAUSE/SCAN button, music can be played or paused at any time and with the ◀◀/TUN.+ or ▶▶/TUN.- buttons, you can switch between the tracks until the desired track is appeared on the display.

To search for a particular passage in the currently playing track, press and hold ◀◀/TUN.+ or ▶▶/TUN.- button to scan the current playing track at high speed until desired point (passage) appears, then release the button for normal playback mode.

If your desired track is more than 10 tracks ahead or back from the current track, press the 10/FOLD./M.+ or 10/FOLD./M.- button to move 10 tracks forward or backward respectively. Then press ◀◀/TUN.+ or ▶▶/TUN. – to select the desired track. If the USB contains more than 1 folder, press and hold 10/FOLD./M.+ or 10/FOLD./M.- button each time to skip forward / backward a folder, then press ◀◀/TUN.+ or ▶▶/TUN. – to select the desired track.

Note: The USB port is intended for data transfer only, other devices cannot be used with this USB connection. The use of USB extension cords is not recommended. Don't plug the USB from the unit when playing or reading the USB device.

FM Radio mode:

After turning the Bluetooth speaker ON, press the FUNC/TWS button to select FM mode. The display will show FM and the radio frequency.

Note: The wired antenna is packed with the power cord as a separate accessory. Insert the wired antenna into the FM socket on the rear cabinet when listening to the radio, and extend the wired antenna to its full length for the best reception.

Tuning to a Radio Station:

If you know the radio station frequency you want to tune to directly, tune a station by pressing the ◀/TUN.+ or ▶/TUN.- button repeatedly. The station frequency will be shown on the display.

Press and hold the ◀/TUN.+ or ▶/TUN.- button to start tuning; tuning stops automatically when a station is received.

Auto Preset Memory / Scan:

To scan for stations within reception range and save them to preset memory automatically, press and hold the PLAY/PAUSE/PAIR/SCAN button. After the unit finishes scanning, it will automatically tune to preset number 1 (P01). To tune to a preset station:

1- Press the 10/M./FOLD.+ button to tune to the next preset station. 2- Press the 10/M./FOLD.- button to tune to the previous preset station.

Manual Preset Memory Operation:

1- Use the ◀/TUN.+ or ▶/TUN.- button to tune to the station you want to save as a preset (e.g., 93.1). 2- Then press and hold the LIGHT/M./P-Mode button. "P01" will flash on the display to indicate that you are saving the station as Preset Memory 01 (to change the preset memory number, press the 10/FOLD./M+ or 10/FOLD./M- buttons). 3- Press and hold the LIGHT/M./P-Mode button to finish saving the station (e.g., P01 is now set to 93.1). 4- To save another station, repeat steps 1 to 3. You may save up to 30 FM stations.

Flashing Light:

There are 6 flashing modes for the DISCO LED lights. Press the LIGHT/M./P-Mode button to choose between the light modes. To turn off the light, press the LIGHT/M./P-Mode button until "LOFF" is shown on the display.

Adjustment of the Volume:

Unit volume: Rotate the VOLUME knob on the unit to increase or decrease the music volume.

Microphone Volume: Press the MIC/GTR button to choose the microphone volume, which shows "IU" and then rotate the MIC/GUITAR volume knob to increase or decrease the microphone volume.

Guitar volume: Press the MIC/GTR button to choose guitar volume, which shows "9U" and then rotate the MIC/GUITAR volume knob on the unit to increase or decrease the guitar volume.

BASS Adjustment: Press the EX BASS button on the speaker to achieve extra bass effect.

Equalizer(EQ) Function: This speaker has a built-in equalizer system. Press the EQ/ECHO button on the unit to select a setting that best matches your choice from FLAT, POP, CLASSIC, JAZZ and ROCK.

Microphone Echo Adjustment: Press and hold the EQ/ECHO button, which shows "EC" sign on the display and then rotate the MIC/Guitar volume knob to increase or decrease the echo effect. MIC Jack / Guitar Jack Operation:

Microphone / Guitar input is available in all the modes.

This speaker has a 6.3mm Microphone / Guitar input option available with the help of which, you can connect microphone / guitar. Press the MIC/GTR button to choose microphone/guitar volume, which shows "IU" or "9U" and then rotate the MIC/GUITAR volume knob on the speaker unit to increase or decrease the microphone/guitar volume. Press and hold EQ/ECHO button, which shows "EC" and then rotate the MIC/GUITAR volume to increase or decrease the echo effect.

Repeat Play:

You can play one track or all the tracks on the USB repeatedly.

To repeat a Single Track: Press and hold LIGHT/M./P-Mode button on the unit, then the display will show "ONE" and the current track will be played over and over again.

To repeat all the Tracks: Press and hold LIGHT/M./P-Mode button on the unit, then the display will quickly show "ALL" and all the tracks on the USB will be played again and again.

To repeat the Folder(only for USB which contains more than 1 folder): Press and hold LIGHT/M./P-Mode button on the unit until "FOLD" shows up on the display, then the current folder will be played again and again.

Random Play:

Press and hold LIGHT/M./P-Mode button on the unit until the "rAn" shows on the display, random play will start from the next track automatically.

7. CHARGING INSTRUCTIONS

Charging Instructions:

This unit has a built-in battery and to charge it, a power cord is provided. In order to charge the battery, turn the unit OFF and insert the power cord into an electrical wall outlet and connect it via the charging slot of the speaker. The indicator light will turn RED, indicating that the unit is charging.

Approximate charging time is 2.5 hours. Once the battery is fully charged, the indicator will turn GREEN. To extend battery life, make sure not to charge it for more than 4 hours.

Note: Play time depends on the type of music and volume. With 50% volume and normal music or sound, it works for approximately 5.5 hours.

The built-in battery is not replaceable. Do not remove or replace it on your own. In case of any issue, take it to an authorized service center to get it repaired. Also, make sure that at the time of charging, the battery charging cord input must be dry. Do not use the speaker while charging as it might reduce its power.

8. CLEANING AND MAINTENANCE

While cleaning the product, just use a soft or dry cloth, and in case of severe stains, use a damp cloth. Do not use abrasive cleaners, as they can damage the paint, plastic, or even the speaker itself. Keep it away from sunlight and do not keep it in a hot and humid atmosphere. Make sure to remove the power adapter cable and keep it in a cool and dry place.

9. DISPOSAL OF ELECTRONIC GOODS

DISPOSAL OF BATTERY OPERATED UNITS

Do not dispose of battery-operated units as normal rubbish; always recycle them in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby big supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

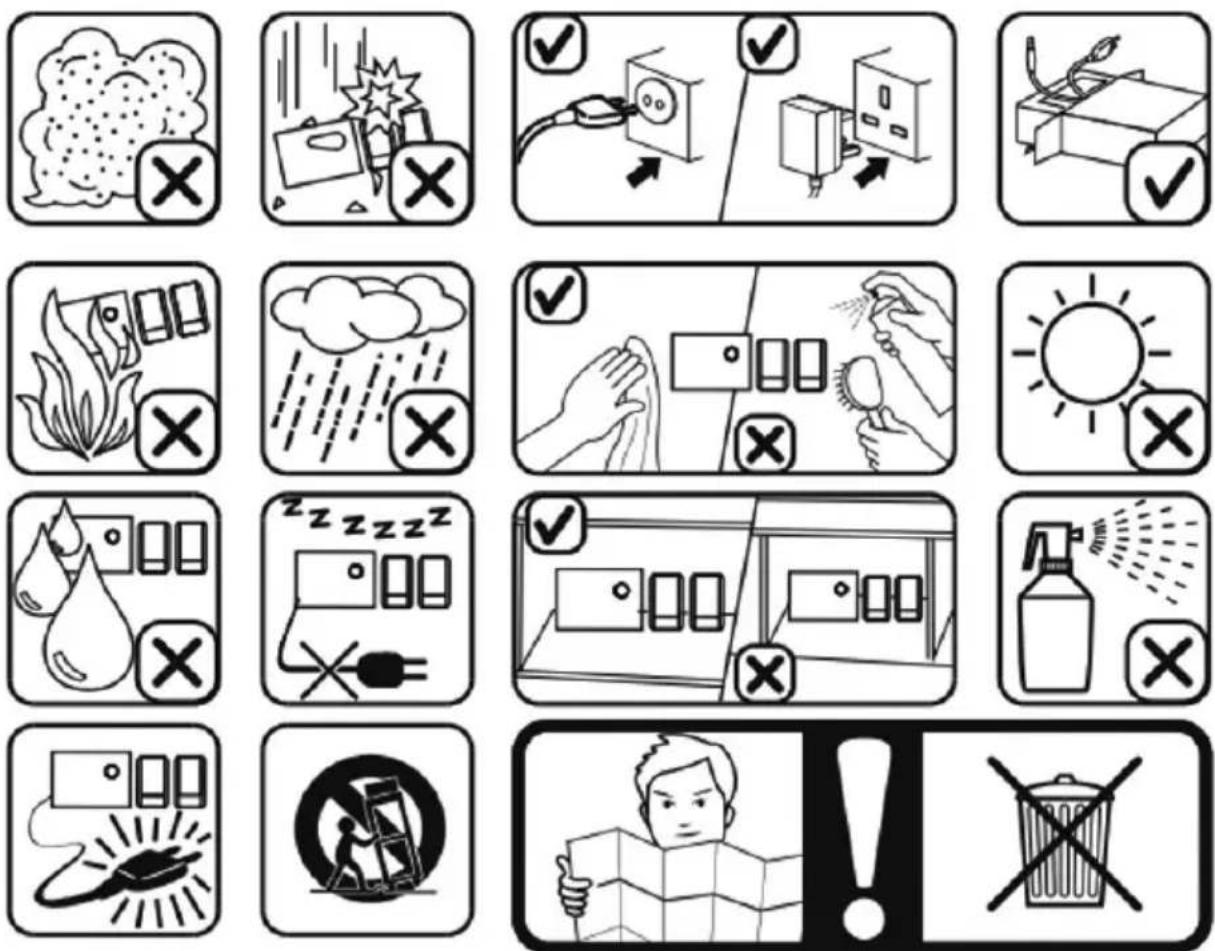

In use, please pay attention to the following items:

IMPORTANT:

Bluetooth-Version: V5.3

18- Handle: This speaker comes with a handle for easy portability of the device. 19- LED screen: The screen is used to display various information about functional modes, sound settings details, and track numbers, etc. 20- Charging indicator: When the device is connected to the charging cable, the indicator will light up RED. When the battery is fully charged, the indicator turns GREEN. 21- Speakers: The device comes equipped with 2 speakers for the best audio experience. 22- Speaker grille: The grille is designed for the safety of the speaker output area to protect the speakers from the risk of physical damage. 23- Decorative light: These are lights that flash as DISCO multicolored lights according to any of the 6 flashing modes. 24- FM antenna socket: Insert the wire antenna into the FM socket on the back of the housing while in FM mode. Extend the wire antenna to its full length to get the best FM signal reception. 25- Ventilation opening: The ventilation opening is used to dissipate heat from the device. 26- a power supply for the device. After the device is fully charged, disconnect the power cable from this socket to use the device in battery mode.

Bluetooth speaker functions:

30W x 2 RMS power (600W PMPO)

94.7 dB ± 3dB

87.5Hz - 108MHz.

1%

V5.3

≤ 10m.

SOGO SS-8965.

32 GB

11.1V / 4000mAh.

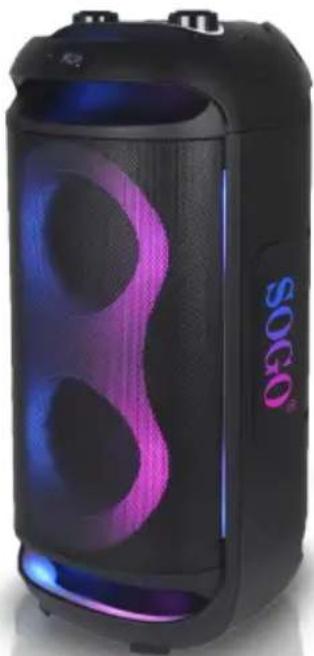

6. PRODUCT SUMMARY AND PANELS:

Top view:

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This device complies with EU RED Directive 2014/53/EU related to Health and Safety from usage of Radio spectrum in household electronic equipment.

Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
