USER MANUAL SS-7750 Sogo

QR code image containing encoded data, no visible human-readable text

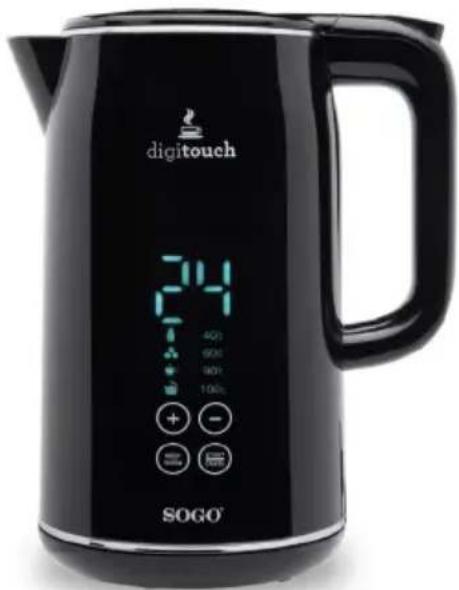

digitouch 24 40Ω 60Ω 90Ω 100Ω + - SOGO®

QR code image containing encoded data, no visible human-readable text

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

Labeled diagram of a kettle with numbered parts for identification

5. INSTRUCCIONES DE USO

23 40°C 60°C 90°C 100°C + - KEEP STOPP DOWN

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Safety instructions for the user

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use.
• Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may
  • damage the appliance.
• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance
• falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
  • Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with re-duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

Instructions to follow when using the appliance

• Your supply socket must be properly earthed.
• Clean the water container before the first usage.
• During use, the product must be located in a position, which is not easily reached by children, and the cover should be securely closed to avoid spillage of boiling water.
• This product should only be used to boil water. Please do not boil other liquids such as milk and coffee.
• Fill with water according to the pre-set water level with minimum level at "MIN" and maximum level at "MAX".
• Switch off and unplug from the outlet before filling, emptying or cleaning, or when not in use.
• If the kettle is overfilled, boiling water may be ejected.
• Do not operate or place any part of this appliance on or near hot surfaces (such as gas or electric burner or in a heated oven).
• Avoid touching the surface of the hot kettle, use the handle and knobs.
• To avoid possible steam damage, do not face the spout when operating the kettle.
• If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.

• To avoid scalding, always ensure the lid is correctly positioned before operation.

• Scalding may occur if the lid is removed while heating.

• Carefully open the lid when it is hot.
• Extreme caution must be used when moving the kettle containing hot water. Never lift the kettle by its lid. Always use the body handle.
• Do not switch your kettle on if it is empty.
• To protect from electrical hazard, do not immerse this kettle, power base or cord set in any liquid.
• To protect against fire, do not operate it in the presence of explosive and/or flammable fumes.
• Should you accidentally allow the kettle to operate without water; the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.
• Avoid spillage on the connector.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

1. TECHNICAL SPECIFICATIONS

Voltage Power	Frequency Capacity
AC220-240V	1850 - 2200W 50-60Hz	1.7L

4. PARTS DESCRIPTION

1. Spout
2. Kettle Body
3. Base
4. Digital control panel
5. Handle
6. Lid button
7. Lid

Labeled diagram of a watermelon pitcher with numbered parts for identification

5. INSTRUCTIONS FOR USE

23 40°C 60°C 90°C 100°C + - STOP STOP START STOP CLOSE

The display shows the real time temperature and the 40^ C, 60^ C, 90^ C and 100^ C setting lights will be on. The default temperature for the kettle is already set on to the 100^ C and then program on 100^ C starts flashing. To select any another option kindly press “+” or “-” During the temperature selection process, the selected temperature light keep flashing and the other light stays on.

Working temperature	Main function of the temperature levels display
Note	In all cases and situations of uses of warm and hot water mentioned below, the water must be transferred in a safe way to another container. And then the water can be used for the purpose you require. For example, do not dip the baby bottle directly into the kettle when temperature reaches 40°C even if you have switched off the kettle
40°C	This temperature function can be used to warm baby milk. Note: Do not warm the milk directly, use the warm water at this temperature to warm milk in baby bottle
60°C	This temperature function can be used to brew the honey. Note: Use the warm water to brew the honey at this temperature
90°C This temperature function can be used to make the tea and infusions.
100°C	This is the normal temperature to fully boil the water

KEEP WARM: After temperature selecting, press" keep warm" button, the display will only show the selected temperature and light will be turned on.

The kettle starts working, After the water boils to the selected temperature, there will be a long-beep and it will automatically enter into keep warm stage. After 4-hours of keeping warm, the buzzer will beep 3 times, all the lights will off to end the keep warm stage, the kettle go into standby stage.

"START-STOP": After temperature selecting, press" START-STOP" button, the display will only show the selected temperature and the selected light on only. The kettle starts working, After the water is boiled to the selected temperature, the buzzer will beep 3 times, all the lights will go off, the kettle enters into standby mode.

BEFORE USING YOUR KETTLE

If you are using the kettle for the first time, it is recommended that you should clean your kettle before use by boiling the water and then discarding twice with max. quantity. Wipe the surface with a damp cloth.

NOTE: The max capacity of kettle is 1.7L.

BOIL-DRY PROTECTION

Should you accidentally let the kettle operate without water, the function of boil-dry protection will automatically switch off the power. If this occurs, allow the kettle to cool prior to filling with cold water before re-boiling.

USING YOUR ELECTRIC KETTLE

1. Place the kettle on the flat surface.

2. To fill the kettle, remove it from the power base and remove the lid handle to open the lid, then fill the kettle with the desired amount of water and close the lid. The water level must be within the Min and

the Max level. Too little water will cause the kettle switching off before the water has boiled.

NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before plugging the power outlet.

1. Position the kettle on the power base.

2. Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scald, besides, don't open the lid while the water in the kettle is hot.

1. The kettle will not re-boil until the switch is pressed again. The kettle may be stored on the power base when not in use.

NOTE: Always disconnect the power supply when not use.

- Position the kettle base on a dry and flat surface and away from any potential heat source.

- Unwind the length of cord required to reach the mains electrical outlet. Ensure the cord does not hang over the work surface edge

- Remove the kettle from the base

- Open the lid. Fill the kettle with cool water, between the MIN and MAX markings located inside the kettle.

- Close the lid and place the kettle back onto its base. Make sure that the lid is securely closed before boiling. Note: Always remove the kettle from its base before filling. Do not fill the kettle above the MAX mark or below the MIN mark on the water gauge.

- Plug the kettle into the mains electrical outlet.

- Press the power switch and its indicator will light up, and then the kettle starts to boil the water. Once you have made your touch-control selection as mentioned above in to the control description, the kettle will sound with notification tone, indicating that the selected function is about to start.

Once kettle arrives its selected temperature it starts heating the water and once finished kettle switch off automatically.

Note:

1. When the kettle enters into temperature selection stage, if there is no operation within 1 minute, the buzzer will sound 3 times, All lights will go off, and the product enters the standby state.

2. The display should always display the real-time temperature after power on.

3. The default selection is 100^ C after power on;

4. After entering the working state, you can only exit the program by pressing the "START-STOP" key.

- There will be ± 5^ tolerance different from the setting temperature.

- During operation, the digital display will illuminate with real time temperature and count up as the water temperature increases.

The digital display will also countdown in real time as the water temperature decreases.

NOTE: Ensure that switch is free of obstructions and the lid is firmly closed, the kettle will not turn off if the switch if be constrained or if the lid is opening.

- The kettle will switch off automatically and the indicator will turn off once the water has boiled. If necessary, it will take you 30 seconds to wait before pressing the power switch again to re-boil the water. You may shut off the power by directly lifting the kettle from the power base at any moment to stop boiling process.

- Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scalding, besides, don't open the lid while the water in the kettle is hot.

- The kettle will not re-boil until the switch is pressed again. The kettle may be stored on the power base when not in use.

NOTE: Always disconnect from the power supply when not in use.

NOTE: You can stop the kettle boiling or keep warm process at any time by pressing the START-STOP button

- Should you lift the kettle from its base during a functions cycle and place it back on to the base the kettle will enter standby mode and not resume the pre-selected function cycle. The screen will display the real temperature of the water on the digital tube. Please do not add water into the kettle during a boiling or keep warm cycle. Always ensure to remove the kettle from the base before pouring.

- When the water has boiled (without using the keep warm cycle) the kettle will enter standby mode and its display will turn off approximately 30 seconds. To activate the appliance, press any button.

6. CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet and cool it down completely before cleaning.

1. Never immerse the kettle, power cord or power base in water, or allow moisture to contact with these parts.
2. Wipe the appearance of body with a damp cloth or cleaner, never use a poisonous cleaner.
   ⚠️CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle to prevent the gloss loss.
3. When not use or storage, the power cord may be wound under the power base.

REMOVAL OF MINERAL DEPOSITS

Your kettle should be periodically descaled as the mineral deposits in tap water may form scale on the bottom of kettle so as to cause the operation less efficiency. You can use the commercially available de-scaler and follow the instructions on the package of de-scaler. Alternatively, you may follow below instructions using the white vinegar.

1. Fill the kettle with 3 cups of white vinegar, then adding water to the amount so as to cover the bottom of kettle completely. Leave the solution in the kettle overnight.
2. Then discard the mixture in the kettle, then filling the kettle with clean water to the maximum position, boiling and then discard the water. Repeat several times until the odour of vinegar has been flushes away. Any stains remaining inside the spout can be removed by rubbing with a damp cloth.

PORTANT:

Labeled diagram of a watermelon pitcher with numbered parts for identification

5. MODE D'EMPLOI

23 40°C 60°C 90°C 100°C + - KEEP DAWN START LEMON

Labeled diagram of a watermelon pitcher with numbered parts for identification

Labeled diagram of a kettle with numbered parts for identification

Labeled diagram of a watermelon pitcher with numbered parts for identification

5. ISTRUZIONI PER L'USO

23 40°C 60°C 90°C 100°C + - WHIP WHIP WHIP

Labeled diagram of a watermelon pitcher with numbered parts for identification

5. NÁVOD K POUŽITÍ

23 40°C 60°C 90°C 100°C + - KEEP START WHIP

Labeled diagram of a kettle with numbered parts for identification

5. INSTRUKTIONER TIL BRUG

23 40°C 60°C 90°C 100°C + - GREEN MERRY CORN ROLL

Labeled diagram of a beer mug with numbered parts for identification

5. NAVODILA ZA UPORABO

23 40°C 60°C 90°C 100°C + - KEEP START PRESS

Labeled diagram of a beer mug with numbered parts for identification

5. UPUTE ZA UPORABU

23 40°C 60°C 90°C 100°C + - Control Control

Labeled diagram of a kettle with numbered parts for identification

5. INSTRUKCJA OBSŁUGI

23 40°C 60°C 90°C 100°C + - OFF ON/OFF ON/OFF

USUWANIE ZŁÓŻ MINERALNYCH

Labeled diagram of a watermelon pitcher with numbered parts for identification

5. INSTRUCTIUNI DE UTILIZARE

23 40°C 60°C 90°C 100°C + - NEW MINDING ONIONAL CABBAGE

Labeled diagram of a kettle with numbered parts for identification

Labeled diagram of a watermelon pitcher with numbered parts for identification

5. INSTRUCCIONS D'ÚS

23 40°C 60°C 90°C 100°C + - HOT DOOR START

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
