SS-5785-R - Kettle Sogo - Free user manual and instructions

Product type	Electric kettle
Brand	Sogo
Model	SS-5785-R
Capacity	1.8 L
Power	1850 - 2200 W
Voltage / Frequency	220 - 240 V ~ 50 Hz
Maximum water level	1.8 L
Minimum water level	0.5 L
Automatic shut-off function	Yes, after boiling
Overheat protection	Yes
Swivel base	Yes, with power cord
Removable filter	Yes, snap-in filter
Water level indicator	Water level window
Power indicator	Yes
On/Off switch	Yes, with safety lid lock
Body material	Plastic and stainless steel (estimated)
Lid type	With safety lock
Cleaning and maintenance	Do not immerse in water; descaling recommended with vinegar
Safety	Automatic shut-off, dry boil protection, non-slip base
After-sales service	www.sogosat.com / [e-mail] / 0034 902 222 161
Warranty	Contact after-sales service

Frequently Asked Questions - SS-5785-R Sogo

How to use the Sogo SS-5785-R kettle?

Place the kettle on a flat, dry surface. Open the lid by pressing the safety lock, fill with water between the MIN (0.5 L) and MAX (1.8 L) levels. Close the lid, place the kettle on the base, plug in and press the switch to the 'I' position. The indicator lights up. The kettle turns off automatically at boiling.

How to clean the kettle?

Unplug and let cool. Never immerse the base or body in water. Clean the exterior with a damp cloth. The removable filter can be cleaned separately. For descaling, use diluted vinegar: fill halfway, add two tablespoons of vinegar, boil, let sit for a few minutes, then rinse thoroughly.

What is the capacity of the kettle?

The maximum capacity is 1.8 liters (MAX level). The minimum level is 0.5 liters. Do not exceed the MAX level to avoid boiling water splashes.

Does the kettle turn off automatically?

Yes, the kettle is equipped with automatic shut-off as soon as the water reaches boiling point. It also has overheat protection if it is turned on empty.

Can you heat liquids other than water?

No, this kettle is designed only for heating water. Do not use for milk, coffee, or other liquids, as this could damage the appliance.

How to descale the filter?

Remove the filter from the kettle (snap-in). Let it soak in diluted vinegar for a few hours, then rinse thoroughly with clean water. Repeat if necessary.

What to do if the kettle does not turn on?

Check that the kettle is correctly positioned on the base, that the plug is properly inserted, and that the switch is in the 'I' position. If the problem persists, contact after-sales service.

Can I use the kettle with an extension cord?

Using an extension cord is not recommended. If necessary, ensure it is suitable for the appliance's power (1850-2200W) and fully unwound to avoid overheating.

How to maintain the kettle to extend its lifespan?

Descale regularly (every month or depending on water hardness). Do not use abrasive products. Store the kettle in a dry place after use. Do not leave stagnant water inside.

Where to find spare parts?

Contact Sogo after-sales service by email ([e-mail]) or phone [phone]). You can also visit the website www.sogosat.com.

USER MANUAL SS-5785-R Sogo

Stainless Steel Water Kettle 1.8 L

This instruction manual can also be downloaded from our web page www.sogo.es

When using your kettle, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully and thoroughly before any operation of the kettle.
2. Close supervision is necessary when any appliance is used by or near children.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Before connecting the kettle, check whether the voltage indicated on the appliance (underside of kettle and base unit) corresponds with the mains voltage in your home. If this is not the case, contact your dealer and do not use the kettle.
5. Your supply socket must be properly earthed.
6. Clean the water container before the first usage.
7. During use, the product must be located in a position which is not easily reached by children, and the cover should be securely closed to avoid spillage of boiling water.
8. This product should only be used to boil water. Please do not boil other liquids such as milk and coffee.
9. Fill with water according to the pre-set water level with minimum level at "MIN" and maximum level at "MAX".
10. Switch off and unplug from the outlet before filling, emptying or cleaning, or when not in use.
11. If the kettle is overfilled, boiling water may be ejected.
12. Do not operate or place any part of this appliance on or near hot surfaces (such as gas or electric burner or in a heated oven).
13. Do not let the cord hang over the edge of a table or a counter. Do not let the cord touch hot surfaces.
14. Never yank on the cord as this may damage the cord and eventually cause a risk of electric shock.
15. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
16. Avoid touching the surface of the hot kettle, use the handle and knobs.
17. To avoid possible steam damage, do not face the spout when operating the kettle.
18. If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.
19. To avoid scalding, always ensure the lid is correctly positioned before operation.
20. Scalding may occur if the lid is removed while heating.
21. Carefully open the lid when it is hot.
22. Extreme caution must be used when

moving the kettle containing hot water.

Never lift the kettle by its lid. Always use the body handle.

1. Do not switch your kettle on if it is empty.
2. To protect from electrical hazard, do not immerse this kettle, power base or cord set in any liquid.
3. To protect against fire, do not operate it in the presence of explosive and/or flammable fumes.
4. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;

-farm houses;

– by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments.

1. Unplug the product after use. Clean the product with dry cloth after cooling down and store it in a proper location.
2. This product is not designed for any other uses other than those specified in this booklet.
3. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

1. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children aged less than 8 years. 32.Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

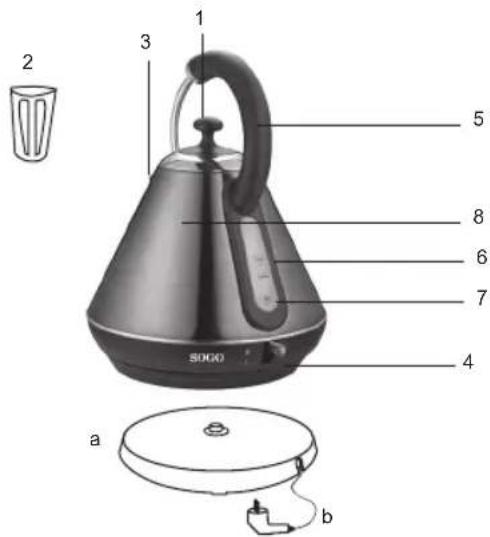

PART IDENTIFICATION

1. Lid
2. Snap-in Filter
3. Spout
4. On / Off Switch
5. Handle
6. Max Water Level 1.8 Liter
7. Min Water Level 0.5 Liter
8. Water Level Window

a. Base

b. Power Cord & Plug

BEFORE USING

Read the important safeguards and Caution.

Fill kettle up to the MAX WATER MARK and let the water boil, pour the water, cool the kettle and repeat for at least 3 times before using.

HOW TO USE

1. Place the water kettle upright on a dry, sturdy and flat surface.
2. Remove the kettle from the base. Open the lid by pressing the safety lock of the lid. Fill the kettle with fresh water through the spout, making sure that the water level passes the minimum level (0.5 Litre) and does not exceed the maximum level (1.7 Litre). Before closing the lid and placing it back on the base, ensure that the kettle has not yet been switched on ("I" position).
3. Dry the water on the bottom of the body if it is wet, then place the kettle securely

back on the base. Insert the plug into a suitable socket and switch the kettle to the "I" position. The power indicator will be on.

1. After reaching the boiling point, the kettle will shut off automatically by the safety cut-out function.
2. To pour hot water, remove the container from the base, ensure the lid remains closed while pouring out the water.
3. You may also shut the kettle off at any time by pressing the "on/off" switch to the "0" position. After the boiling is finished, allow the kettle to cool down for 15 minutes before refilling with cold water.

CLEANING

DO NOT IMMERSE IN WATER!

Warning:

• Kettle, snap-in filter, and base are NOT dishwasher-safe. Always unplug the appliance from the power outlet and allow it to cool down before cleaning.
• Do not use descaler, steel wool, or abrasive cleaner to clean the appliance.

Descaling the kettle

Please follow all instructions on descaling products carefully.

1. Fill the kettle with water up to half of the maximum level; add about two tablespoons of vinegar into the water.
2. Switch the kettle on and let the solution reach boiling point.
3. Leave the solution in the kettle for a few minutes.
4. Empty the kettle, wash it with clean water.
5. After rinsing, fill the kettle with clean water and bring to the point of boil for one more time.
6. If limescale is still present in the kettle, repeat this process.
7. Remove it for the kettle and soak it in diluted vinegar for a few hours, then rinse thoroughly with clean water. Repeat the procedure if necessary.

TECHNICAL SPECIFICATION:

Model No.: SS-5785

Voltage / Frequency:

220 - 240V ~ 50Hz

Power Consumption: 1850 - 2200W

Capacity: 1.8 L

IMPORTANT SAFETY MEASURES

INSTRUCTION MANUAL

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DECLARATION OF CONFORMITY

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
