Product type	Portable Bluetooth speaker
Brand	Sogo
Model	SS-8782
Output power	15 W RMS (300 W PMPO)
Sound sensitivity	≤85 dB
Frequency response	100 Hz - 18 kHz
Distortion	≤1 %
Bluetooth version	5.3
Bluetooth range	10 meters
Bluetooth pairing name	SOGO SS-8782
Max supported USB/TF memory	64 GB
Battery capacity	7.4 V / 2400 mAh
Battery type	Built-in lithium-ion
Power adapter	DC 9 V, 1.5 A
Working time	3 to 5 hours (at 50% volume)
Charging time	2 to 4 hours
IP protection	IPX4 (splash resistant)
Power supply	9 V / 1.5 A power adapter or internal battery
Main functions	Bluetooth, TWS, FM radio, karaoke (wired microphone included), recording, USB/TF player, AUX input, RGB LED lighting, EQ equalizer (Flat, Classic, Rock, Pop, Jazz)
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive cleaners. Disconnect before cleaning.
Safety	Do not immerse in water. Keep out of reach of children. Disconnect during storms. Use only on a flat, stable surface.
Spare parts and repairability	No user-serviceable parts. Built-in battery not replaceable. Contact an authorized service center for repairs.
General information	Household use. Compliant with European directives (RED 2014/53/EU, Low Voltage, EMC, Ecodesign). Made in China. Imported by Sanysan Appliances S.L, Spain.

Frequently Asked Questions - SS-8782 Sogo

How to connect my smartphone to the Bluetooth speaker?

Turn on the speaker with the On/Off button at the back. Activate Bluetooth on your smartphone and search for devices. Select SOGO SS-8782 from the list. The connection is established automatically. Next time, connection will be automatic if Bluetooth is enabled.

How to charge the speaker?

Turn off the speaker. Plug the provided power adapter (DC 9V, 1.5A) into the DC 9V input at the back and into a wall outlet. The red indicator shows charging. It turns green when fully charged (about 2 to 4 hours). Do not charge for more than 5 hours continuously.

What to do if the speaker does not turn on?

Check that the battery is charged. Plug in the power adapter and try turning on. If it still does not turn on, check that the On/Off button is pressed correctly. Contact customer service if the problem persists.

How to use the FM radio?

Turn on the speaker. Press the Mode button (or on the remote) until you enter FM mode. Briefly press Play/Pause to start automatic station search. Use the Previous/Next buttons to navigate between saved stations. For better reception, plug an AUX cable (not connected) into the AUX input; it acts as an antenna.

How to connect two speakers in TWS?

Turn on two identical speakers (same model). On one of them, press and hold the Play/Pause button until the TWS connection is established. Both speakers will play the same sound simultaneously. To disable TWS, press and hold the button again.

How to record voice with the microphone?

Insert a USB drive or TF card into the speaker. Connect the wired microphone to the designated input. Turn on the speaker. Press and hold the REC button (3 seconds) to start recording. Press again to stop. The recording will be saved to the drive/card.

How to change the LED lighting mode?

Press and hold the Mode/LED button to cycle through the different lighting modes (multicolor rings, single-color flashing, etc.). You can turn off the lights by continuing to press until they go out.

How to use the AUX input?

Connect an AUX cable (not included) from your device (phone, computer) to the AUX input at the back of the speaker. The AUX mode activates automatically. Use your device to control music. Volume can be adjusted with the speaker's wheel.

How to clean the speaker?

Disconnect the speaker and use a soft, dry cloth to wipe the surface. For stubborn stains, you can slightly dampen the cloth. Never use abrasive cleaners, alcohol, or ammonia. Avoid getting water into the openings.

What are the equalizer modes and how to access them?

The speaker has 5 equalization modes: Flat, Classic, Rock, Pop, and Jazz. Use the EQ button on the remote to switch between modes. The adjustment applies in real time to the current music.

USER MANUAL SS-8782 Sogo

EN Instructions for use

FR Mode d'emploi

Download your manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

AUX-IN / LINE-IN

BATTERY CHARGING

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. SYMBOL DEFINITIONS

1

2

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

3

1- DANGER: Indicates an imminently dangerous situation. 2- WARNING: Indicates a potentially dangerous situation. 3- CAUTION: Indicates a potentially dangerous situation. Also warns against unsafe practices.

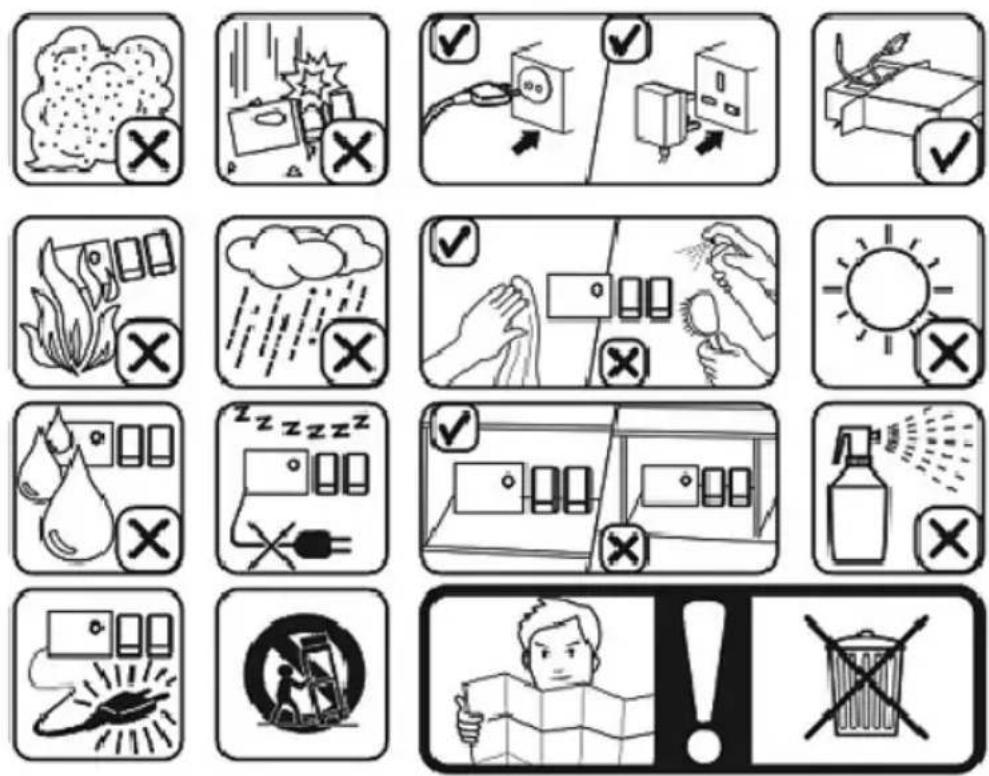

3. SAFETY INSTRUCTIONS FOR THE USER

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Do not place or operate the Bluetooth speaker near water sources. Always place the appliance on a flat and even surface.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• This appliance is intended to be used in household and similar applications.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

- The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

- The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Restrictions on use to avoid personal injury

- Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates, ovens, or electric burners) or open flames.

- Do not leave the power cord hanging from sharp edges and keep it away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock, or injury to persons.

- When you want to remove the plug from the wall outlet, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- To avoid electric shock, make sure your hands are dry before plugging or unplugging.

- Do not use the device with wet hands, on damp floors, or when the atmosphere is humid; there is a risk of electric shock.

- Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage, or if it has a leak.

- Do not use the appliance if the cable or plug is damaged. In case the cord is damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons in order to avoid hazard.

- In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair, or adjustment.

Restrictions on use when used with children and elders

- Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance and its cord out of the reach of children. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow children to use the appliance.
• Appliances can be used by children aged 8 years and above and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Instructions to follow when using the appliance

• Do not leave the speaker charging longer than recommended by the manufacturer, as this may damage the battery or the speaker itself.
• Do not use the speaker while it is charging, as this may also damage the speaker.
• This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
• Never let anyone, especially children, push anything into holes, slots, or any other openings in the unit's casing, as this could result in a fatal electric shock.
• Do not mount this product on a wall or ceiling.
• Do not place the unit near TVs, speakers, and other objects that generate strong magnetic fields.
• Do not leave the unit unattended when it is in use.

Note: To disconnect the system completely if it is not to be used for a long time, remove the AC power plug from the wall outlet.

• Do not drop, disassemble, deform, modify, or insert any objects into holes of the speaker, as this may result in product damage.
• Do not clean the product with alcohol, ammonia-based cleaners, or abrasive cleaners.
• Do not place this product in contact with any sharp objects, as this may cause scratches and operational damage.
• Do not attempt to replace the product battery; it is built-in and is not user-changeable.
• In case of speaker malfunction, or if it has been damaged in any manner, return it to the nearest authorized service facility for examination, repair, or adjustment. Keep the speaker away from direct sunlight, fire, or other high-voltage equipment.

WARNING: The device might get warm during charging. Always ensure the speaker is turned off when you plug and unplug the

device. If the device is not turned off, you might damage the speaker or injure yourself.

• Place the unit where there is good ventilation. Place the system on a flat, hard, and stable surface. Do not expose to temperatures above 40°C. Allow at least 30 cm clearance from the rear and the top of the unit and 5 cm from each side.
• Press the buttons of the unit gently. Pressing them too hard can damage the unit. Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with a dry cloth only.
• Unplug the product during lightning, storms, or when it will not be used for long periods of time.
• Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas.
• Dispose of the product and the product's battery in accordance with local laws and regulations.
• Dispose of used batteries in an environmentally responsible manner.

4. TECHNICAL SPECIFICATIONS

Output power: 15W RMS power (300W PMPO)

Sound sensitivity: ≤85dB

Frequency response: 100Hz - 18kHz

Distortion: ≤1%

Bluetooth version: 5.3

Bluetooth range 10 meter

Bluetooth pairing name SOGO SS-8782

USB & TF max. memory supported 64 GB

Battery capacity 7.4V / 2400 mAh

Battery type Li-ion

Power Adaptor

Working time

Charging time

Slot

Connection

DC 9V, 1.5A

3 - 5 hrs (Max)

2 - 4 hrs

SD card / USB(64GB), Microphone

Bluetooth / Auxiliar input

This product complies with EU regulation 2023/826 under directive 2009/125/EC on the Eco design requirements.

Power consumption in off mode: 0.0W

Power consumption in standby mode: <0.5W

Time after which the product enters into off mode: 0 min

5. PRODUCT AND ACCESSORIES INFORMATION

The box of this product contains 1 Bluetooth speaker, Instruction manual, Charging adapter, 1 Remote control and 1 Wired microphone.

Bluetooth speaker

Charging adapter

Instruction manual

Remote control

Wired Microphone

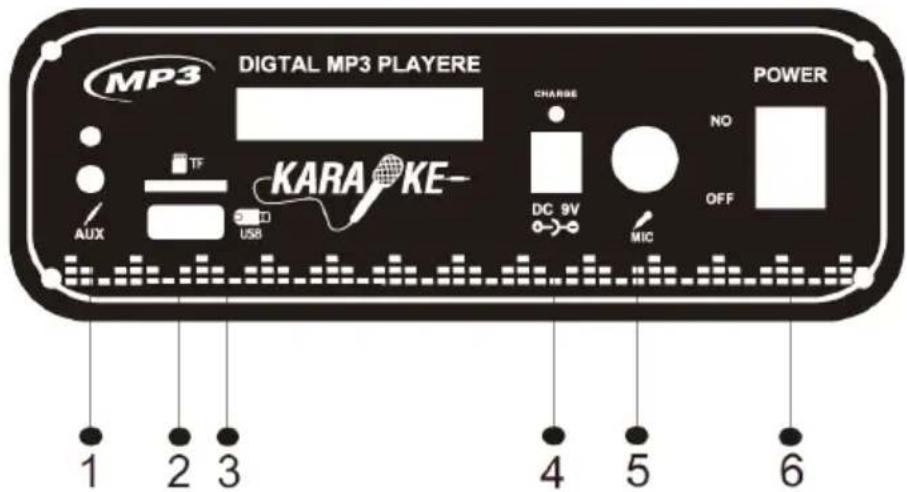

6. PRODUCT AND PANEL OVERVIEW

BACK PANEL

1: Line/AUX input: with the help of an auxiliary cable, you can connect any device such as MP4, radios or other devices and enjoy the content. 2: USB port: supports 64 GB USB card. 3: TF card: supports memory cards up to 64 GB. 4: DC 9 V input: to connect the power adapter to charge the speaker. 5: Wired microphone input: Used to connect the wired microphone and to use the speaker for the karaoke function. 6: Power on/off: This button turns the unit on and off. 7. Mode / LED

Short Press: Bluetooth / FM / AUX mode: When we switch on the speaker it automatically enters into Bluetooth mode as default mode. With the help of this button, we can change it into FM or Aux mode.

Long Press: This speaker has an attractive feature of RGB flashing lights that automatically follow the musical beats. There are multiple light functions, and with the help of the LED light button, any lighting function can be set or chosen as needed and as per preference.

1. Previous Song/Previous Channel:

Short Press: To move to the previous song or channel, hold the button and press it once, and it will move to the previous song. Similarly, keep pressing the button until you get the desired song from the playlist.

Long Press: Eliminates the original sound.

1. Play/Pause: Short press to play or pause. Long press for TWS pairing: The play/pause button can be used to turn on the music and stop it. The same button can be used to put the unit into TWS pairing mode. In TWS pairing mode, two units of the same model can be connected to a single device, which helps enhance the sound power as well.
2. Next Song/Next Channel:

Short Press: To move to the next song, hold the button and press it, and it will move to the next song. Similarly, keep pressing the button until you get the desired song from the playlist. Long press: Microphone Priority.

1. Music Volume: This rotating knob helps increase and decrease the music volume. Rotating it clockwise increases the volume, and counterclockwise decreases it.
2. REC: Press and hold for 3 seconds to record. Press the REC button to repeat it.
3. "-": To decrease the volume.
4. Menu Key: Music Treble Volume, Bass Volume, Microphone Volume, Reverb Volume.
5. "+": To increase the volume.

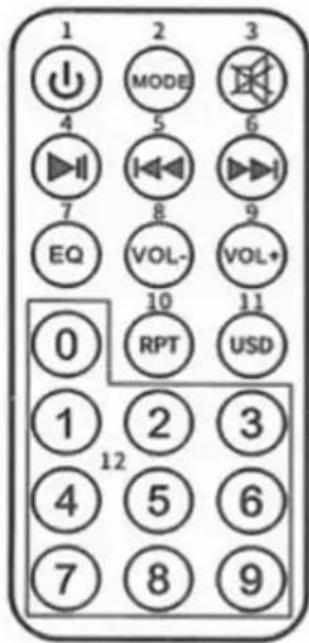

REMOTE CONTROL BUTTONS OVERVIEW

1. Power / Standby: With the help of this button, the unit can be switched on and put into standby mode. To switch it off permanently, you need to switch it off using the button located on the back part of the speaker.
2. Mode conversion (Media Player/AUX/FM): Audio switch mode (Memory card or TF card mode): This speaker works in multiple modes, including Bluetooth mode, Auxiliary, FM, USB drive, and Micro TF card mode.

Bluetooth mode is the default mode. When the speaker has no memory card inserted, it operates only in the default mode. However, when a memory card or USB drive is inserted, it automatically switches to Memory SD card or USB drive mode. This button helps to change and select the mode.

Bluetooth to Auxiliary or FM mode.

1. Mute: To mute or unmute the speaker sound.
2. Play/Pause: This button plays or pauses the music in any mode. In FM mode, a short press moves to the next saved channel. Pressing this button once in FM mode starts searching for different FM channels and saves them automatically.
3. (Fast rewind): In Bluetooth audio mode, this button moves to the previous song or video. In FM mode, it moves to the previous channel for manual search.
4. (Fast forward): In Bluetooth audio mode, this button moves to the next song or video. In FM mode, it moves to the next channel for manual search.
5. EQ: This unit has a built-in equalizer system. Press the EQ button on the remote to select a setting that best matches the music style: FLAT, CLASSIC, ROCK, POP, and JAZZ. In Bluetooth audio mode, a short press changes the song equalizer.
6. Vol- (Volume down): To reduce the volume.
7. Vol+: To increase the volume.
8. RPT: With this button, you can listen to your favorite song multiple times without getting tired.

11 USB/SD: To switch between USB and Micro SD modes.

1. 0-9 numbers: Directly select a channel that has been saved in the speaker system.

BLUETOOTH SPEAKER FUNCTIONS

Before starting

Make sure to fully charge the speaker's battery before first use, as this enhances battery lifespan. The default mode is Bluetooth mode; you can later switch to any other mode using the mode button.

IPX4 PROTECTION:

This unit is equipped with IPX4 protection, meaning it is protected against water splashes. While using it, ensure that the button panel is kept away from direct water contact, and also make sure the charging input does not get wet.

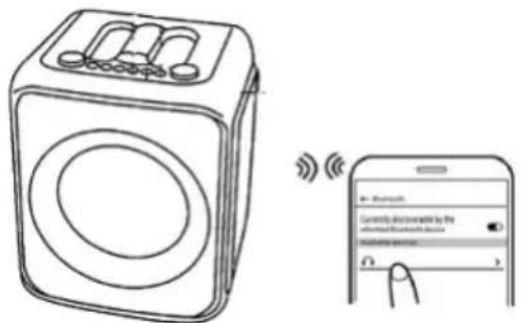

HOW TO CONNECT A DEVICE TO THE BLUETOOTH SPEAKER?

To connect your electronic device, turn on the speaker using the On/Off button located on the back panel. The speaker will automatically enter pairing mode. Also, enable Bluetooth on your device and make sure it is visible to nearby devices.

Search for the Bluetooth pairing name SOGO SS-8782 on your device's screen. Once it appears, press it to connect to the speaker and wait until the connection is established.

Once your device is connected to the speaker, the RGB lights start to move fast. Now you can play any music or song on your device to listen through the Bluetooth speakers. With the help of the Play/Pause button, you can play and stop the music anytime. With the Prev. and Next buttons, you can choose songs from the song list.

NOTE: Once your device is connected to the Bluetooth speaker, there is no need to reconnect it. Whenever you turn on the Bluetooth of your device, it will automatically connect to the speaker.

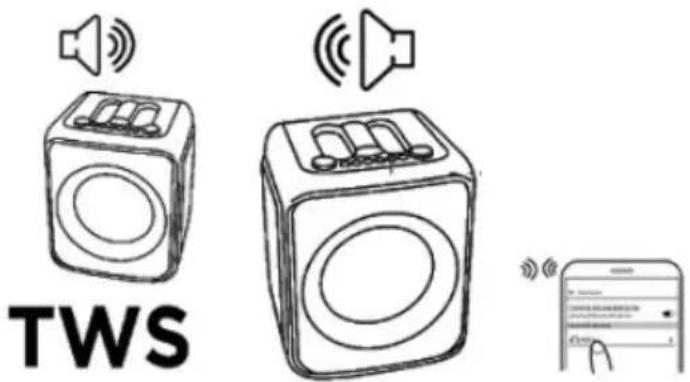

TWS FUNCTIONING:

This speaker model has a special function known as TWS (True Wireless) function. With this function, you can connect 2 speakers at the same time to the same device without any wired connection.

This function helps to enhance the sound level and also helps to cover a large area for parties and functions.

To turn on the TWS function, switch on two identical speakers of the same model.

Press and hold the play button for a long period (long press), and in no time both speakers will be connected to the device.

Now you can enjoy music and songs with enhanced quality.

NOTE: To use the TWS function, make sure both speakers are of the same model and also have the same Bluetooth pairing name.

AUX-IN / LINE-IN

With the help of the Aux-In input, you can connect all musical devices such as radios, laptops, televisions, and all devices that do not have Bluetooth connection function.

To connect the devices, you need an audio cable. Connect one end to the speaker's Aux-in and the other end to the device you need to connect, and the device will automatically connect to the speaker.

Aux-In mode is automatic. Once you insert the auxiliary cable, the speaker automatically enters this mode.

With the help of the device, you can play music and songs.

NOTE: In this mode, all functions are controlled by the external device.

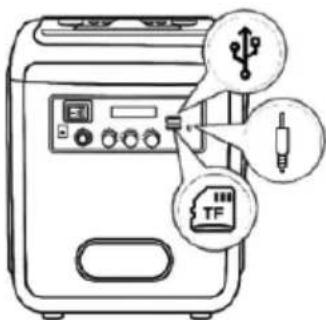

MUSIC WITH THE HELP OF USB DRIVE AND MICRO TF / SD CARD:

This speaker has USB and Micro TF card slots. With the help of these slots, you can listen to music saved on your pen drive or memory card.

To play the speaker in USB drive mode or TF card mode, first switch on the speaker using the power button located on the back panel.

Insert the USB pen drive or micro-SD card into the corresponding slots. For this mode, there is no need to select the mode; just by inserting the USB card or micro-SD card, the speaker automatically starts playing the saved music.

In this mode, you can play or pause music at any time using the Play button, and you can switch songs using the Previous and Next buttons.

The song list is saved on the external memory cards.

NOTE: Make sure that while you insert the USB drive or Micro SD card, the speaker must be in Bluetooth mode.

FM MODE:

Press the power button to switch on the speaker, and with the help of the Mode button, you can switch from Bluetooth mode to FM mode.

Press the "Play" button, and the speaker will automatically start searching for different FM channels. Once it receives a signal from a channel, it will save it automatically.

Once all FM channels are saved, you can search for your favorite FM channels using the Previous/Next buttons and listen to the music.

NOTE: In FM mode, to get a better FM signal, please insert the audio cable into the Aux-in input; it works as an antenna.

RECORDING FUNCTION:

To use the recording function, make sure that the speaker has a USB pen drive or TF card inserted. Turn on the speaker and plug in the microphone. Once the microphone is connected, your device is ready to record your voice.

Press the REC button to start the recording procedure, and use the same button to stop the recording.

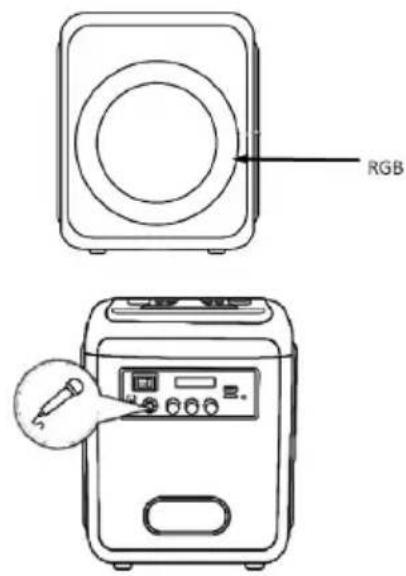

RGB LED LIGHT FUNCTION

The default light color is multiple colors moving rings. These colored light rings are located in the front part of the speaker and handle of the speaker. The rings continue moving with the changing colors. While pressing the first time the single color rings appears and keep changing colors automatically. Pressing the button again the single color rings revolve and constantly changes the color, so this way there are multiple-colored rings options which keep changing and flashes as per music beat. Also, you can turn off the light by keep pressing until it turns off on its own.

MICROPHONE CONNECTION

This speaker has microphone input available and with the help of that you can connect microphone provide with the speaker unit. With the help of rotating Mic volume knob, you can increase or decrease the volume.

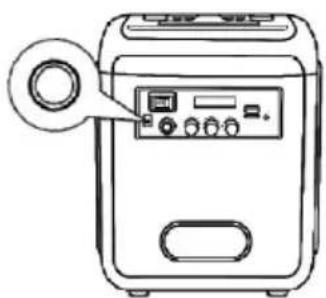

7. CHARGING INSTRUCTIONS

This unit has inbuilt battery and to charge it this unit is provided with power adaptor of 9V, 1.5A.

In order to charge the battery turn off the unit and insert the power adaptor in electrical wall outlet, and connect it with the help of charging slot of the speaker. The indicator light will turn Red and it means unit is charging.

Approx. charging time is 4-5 Hours, once the battery get fully charged, the indicator light turn into green light.

To extend the battery life, make sure do not charge it more than 5 hours at a time.

NOTE: Play time depends on the type of music and volume, with 50% volume and normal music or sound it works approx. 5 hours.

Inbuilt battery is not replaceable, do not remove it or replace it on your own and in case of any issue take it to the authorized service center to get repair. Also make sure at the time of charging the battery charging adaptor input must be dry.

Do not use the speaker while in charge as it might reduce the life of battery.

8. CLEANING AND MAINTENANCE

While cleaning the product, just use soft or dry cloth and in case of severe stains use the damp cloth. Do not use abrasive cleaners, as it can damage the paint, plastic or even the speaker itself. Keep it away from sun light and do not keep it in hot and humid atmosphere. Make sure to remove the power adaptor cable and keep it in cool and dry place.

9. DISPOSAL OF ELECTRONIC GOODS

DISPOSAL OF BATTERY OPERATED UNITS

Do not dispose of battery-operated units as normal rubbish; they should always be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby large supermarkets, electronics or electro-domestic products stores, or malls that have these types of facilities available.

In use, please pay attention to the following items:

IMPORTANT:

TWS OPERATION:

AUXILIARY INPUT / LINE INPUT

LED RGB LIGHTING FUNCTION

DISPOSAL OF BATTERY-POWERED DEVICES

AUXILIARY INPUT / LINE INPUT

TWS FUNCTION:

AUX INPUT / LINE INPUT

AUX-IN INPUT / LINE INPUT

TWS FUNCTION:

AUX-IN INPUT / LINE-IN

MICROPHONE CONNECTION

DISPOSAL OF BATTERY UNITS

DC 9V, 1.5A power adapter

TWS FUNCTIONING:

AUX-IN / LINE-IN

MICROPHONE CONNECTION

DISPOSAL OF BATTERY-POWERED UNITS

TWS OPERATION:

AUX-IN / LINE-IN

MICROPHONE CONNECTION

DISPOSAL OF BATTERY UNITS

TWS FUNCTIONING:

AUX-IN / LINE-IN

MICROPHONE CONNECTION

This speaker has an available microphone input, and with its help you can connect a microphone to the speaker unit.

DISPOSAL OF BATTERY UNITS

Do not dispose of battery-powered units as ordinary waste; always recycle them properly and in accordance with local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins that can be found in any nearby large supermarket, electronics or electrical household products store, or shopping centers that have such facilities.

TWS FUNCTIONING:

AUX INPUT / LINE INPUT

RGB LED LIGHTING FUNCTION

DISPOSAL OF BATTERY-POWERED DEVICES

TWS FUNCTIONING:

AUX-IN / LINE-IN

RGB LED LIGHTING FUNCTION

DISPOSAL OF BATTERY-POWERED UNITS

TWS WORKS:

AUX-IN / LINE-IN

SD/USB slot (64GB), MICROPHONE

Auxiliary input/Bluetooth

BLUETOOTH SPEAKER FUNCTIONS

BEFORE STARTING, MAKE SURE TO FULLY CHARGE THE BATTERY OF

HOW TO CONNECT THE DEVICE WITH THE BLUETOOTH SPEAKER?

TWS OPERATION (WIRELESS MODE CONNECTION):

AUX-IN / LINE-IN

MICROPHONE CONNECTION

BATTERY CHARGING

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU RED Directive 2014/53/EU related to Health and Safety from usage of Radio spectrum in household electronic equipment.

Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
