USER MANUAL SS-3685 Sogo

Black SOGO 360° hair dryer with attached cable (no visible text or symbols on device body)

SECADOR Y PLANCHA DE PELO HAIR DRYER & STRAIGHTENER SÈCHE-CHEVEUX ET FER À LISSER SECADOR E ALISADOR DE CABELO HAARTROCKNER UND HAARGLÄTTER ASCIUGACAPELLI E PIASTRA PER CAPELLI

Caution: please read and preserve these important instructions

Prohibition sign with a diagonal line crossing over a building icon, indicating no prohibition or caution.

PELIGRO

Illustration of a black handheld hair dryer with yellow motion arrows indicating airflow or vibration (no text or symbols)

Twist to open nozzle vents for 360° Mode

Close-up of a black handheld device with blue internal structure and yellow circular motion arrows, enclosed in a dashed circle (no text or symbols)

Twist to Close nozzle vents for classic mode

Woman using a hairdryer, holding a black object (no visible text or symbols)

Use of the hair dryer in a 360 mode

2 x REVESTIMIENTO DE CERÁMICA\*\*\*\*

This instruction manual can also be downloaded from our web page www.sogo.es

When using electrical appliance, especially when children are present, basic safety precautions should always be followed, including the following:

Safety Instructions:

1. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by manufacturer, its service agent or hazard.
4. WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

5. When the hairdryer is used in a bathroom unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off:
   For additional protection, the installation of a residual current device (RCD) having a rated residual operation current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

6. This hair dryer if it can be fitted on the wall then it should be fitted away and out of reach of persons who are taking a bath or washing themselves

READ ALL INSTRUCTIONS BEFORE USING KEEP AWAY FROM WATER

Prohibition sign with a diagonal line crossing over a landscape icon, indicating no protection or waste.

DANGER

As with most electrical appliances, electrical parts are electrically live even when the switch is off:

To reduce the risk of death by electrical shock:

1. Always "unplug it" immediately after using.

2.Do not use while bathing.

1. Do not place or store appliance where it can fall or be pulled into a tub or sink.

2. Do not place in or drop into water or other liquid.

3. If an appliance falls into water, “unplug it” immediately. Do not reach into the water.

WARNING

To reduce the risk of burns, electrocution, fire or injury to persons:

1. This appliance should never be left unattended when plugged in.

2. Close supervision is necessary when this appliance is used by, on., or near children or invalids.

3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

4. If the supply cord is damaged, it must be replaced by the manufacturer or its service avoid a hazard.

5. Never operate this appliance if it has a damaged cord or plug, if it is not working property, or if it has been dropped, damaged, or dropped into water. Return the appliance to a service center for examination and repair.
6. Keep the cord away from heated surfaces. Do not wrap the cord around the appliance.
7. Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair and the like.
8. Never use while sleeping.
9. Never drop or insert any object into any opening or hose.
10. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
11. Do not use an extension cord with this appliance.
12. Do not direct hot air toward eyes or other heat sensitive areas.
13. Attachments may be hot during use. Allow them to cool before handling.
14. Do not place appliance on any surface while it is operating.
15. While using the appliance, keep your hair away from the air inlets.

16. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

17. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

1. Keep the appliance and its cord out of reach of children aged less than 8 years.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly away from the air inlets.

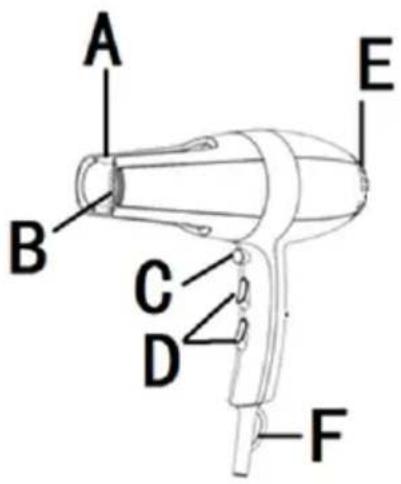

DESCRIPTION

A. Rotating Nozzle Vents
B. 2X Even-Heat Ceramic-Coated
Airflow Outlet Vents
C. Cool shot button
D. 3 Heat/2 Speed Settings
E. Air Inlet Cover
F. Hanging Ring

A B C D E F

IMPORTANT: ALWAYS TURN OFF DRYER BEFORE TWISTING NOZZLE TO OPEN FROM CLASSIC MODE:

Close-up of a black handheld hairdryer with yellow motion arrows indicating airflow or movement (no text or symbols)

Twist to open nozzle vents for 360° Mode

Close-up of a black handheld device with yellow motion arrows indicating flow or movement (no text or symbols)

Twist to Close nozzle vents for classic mode

Person styling hair with a hairdryer, no visible text or symbols

Use of the hair dryer in a 360 mode

2XCERAMIC COATING\*\*\*\*

Ceramic coating helps reduce damage from over-styling with even heat distribution that penetrates hair quickly and dries from the inside out.

Professional-quality AC motor lasts up to 3 times longer than traditional dryers

Twist 2-IN-1 CUSTOMIZED AIRFLOW TECHNOLOGY

Powerful, fast salon results and 70 percent more coverage. Dries larger sections of hair at a time

Naturally smooths the hair cuticle for increased shine, 60 percent faster drying and less damage.

HOW TO OPERATE

To use the dual airflow 360 Mode, open the dryer nozzle vents by rotating nozzle 90 degrees to the left or right until it locks into its open position. The internal ceramic coated drying vents should be fully revealed along the sides of the nozzle (see Image C).

To use dryer in Classic Mode, close the dryer nozzle vents by twisting or rotating it left or right until it locks. The nozzle vents should be closed, appearing as traditional dryer (see image D).

360 DRYING AND STYLING TIPS

• For 360 SURROUND Drying, use the dryer with the nozzle vents open. To open nozzle Vents, see instructions in the HOW TO OPERATE THE 360 SURROUND DRYER section. (see image C).
• Gently towel-dry hair to remove excess water. Comb through hair to detangle.
• You can use larger sections at a time. Experiment with how much hair you dry at a time to achieve desired end results.
• Starting as close to the scalp as possible, gently insert ample section of hair into the 360 drying vents. Hair should hang down freely through the open nozzle vents. Hold the ends of the sectioned hair. Ideal drying is achieved by moving dryer up and down to the length of the hair.
• Repeat until the sectioned hair is dried.

• To dry the back of your head (for medium to longer hair) section the hair in the middle and pull to the front and follow the same steps detailed above. Refine your technique by experimenting with how you section your hair.

• Easily switch to Classic Mode as another option to dry the back of your head.

• To get closer to the roots, gently bring the dryer to the scalp and angle dryer slightly upward. (see image E).
• It is gentle on curls. Controlled airflow keeps curls in place for natural curls.
• For more precise styling and for use with a brush, convert dryer to Classic Mode by twisting Nozzle vents. For conventional drying, follow tips below.

CONVENTIONAL DRYING AND STYLING TIPS

• Close nozzle vents for conventional drying and styling.
  • Gently towel-dry hair to remove excess water. Comb through hair to detangle.
• Start with a quick initial drying. Set dryer to the best heat and speed settings for your hair type. Flip hair forward and dry the under-layers first.
• DO NOT concentrate airflow on any one area for an extended period of time.
• When hair is almost completely dry, lower heat and speed setting and style hair as desired.
• Press the Cold Shot Button to set the style with a cold flow of air once the desired style is achieved for long-lasting results.
• When drying is complete, wait for the appliance to cool before storing it. DO NOT wrap the cord around the dryer. Use the practical Hanging Ring This keeps the cord from tangling and wearing prematurely.

REMOVABLE END CAP AND FILTER

• Clean the Removable End Cap and Mesh Filter at least once every three months to extend motor life.
• To remove the Removable End Cap, make sure unit is unplugged, then turn the end cap counterclockwise to unlock and pull it away from the dryer by pressing on the tabs.

NOTE: Mesh Filter should detach with end cap, but may slip out during end cap's removal.

• Dust off removable End Cap and Mesh Filter to remove any buildup.
• To replace the end cap, align the tabs of the end cap with the slots on the back of the dryer. Push the end cap onto the dryer and turn clockwise to lock it in place.

NOTE: Place filter inside end cap before reattaching end cap to dryer.

DO NOT OPERATE DRYER WITHOUT MESH FILTER.

USER MAINTENANCE INSTRUCTIONS

This appliance is equipped with a thermostat that may cycle OFF or cause the heaters to turn off if the temperature exceeds comfort level due to partially blocked air inlet or outlet openings. In the event that the appliance stops or releases only cool air during use, turn off the switches and allow the appliance to cool down, at which time the most at will automatically reset. During use, DO NOT block the air openings. When using this appliance near water (e.g. bathrooms), the use of an electrical outlet protected by a Ground Fault Circuit Interrupter is recommended.

MAINTENANCE

Your appliance is virtually maintenance-free. No lubrication is needed. Keep heated surfaces clean and free of dust, dirt, and hair spry. If cleaning becomes necessary, unplug the appliance from the power source and wipe the exterior with a damp cloth. If the cord becomes twisted, untwist prior to use.

Additional Cleaning Instructions

Dust and lint can be removed from air intake openings with a small brush or vacuum cleaner brush attachment. DO NOT allow moisture or additional debris to enter the unit while cleaning. Wipe the outer parts of the dryer with a towel.

WARNING: If any malfunction occurs, do not attempt to repair it.

This appliance has no user-serviceable parts.

TECHNICAL SPECIFICATION:

Model: SS-3685

Voltage / Frequency: 220-240V\~ 50/60Hz

Power: 2000W

PRÉCAUTIONS DE SÉCURITÉ UTILISATEUR

Prohibition sign with no symbolic meaning, featuring a lightning bolt over water and diagonal line

DANGER

Illustration of a black handheld device with yellow and blue motion arrows indicating airflow or movement (no text or symbols)

Close-up of a black handheld device with a blue cable and yellow motion arrows indicating rotation (no text or symbols)

Person styling hair with a curling iron, no visible text or symbols

No sign depicting a construction or hazard symbol (no text present)

PERIGO

Close-up of a black handheld hair dryer with orange filter and yellow motion arrows indicating airflow (no text or symbols)

Close-up of a black handheld device with a blue internal component, circled in yellow and dotted (no text or symbols)

Person styling hair with a hairdryer (no text or symbols visible)

Close-up of a black handheld hairdryer with yellow motion arrows indicating airflow or movement (no text or symbols)

Close-up of a black handheld device with yellow and blue airflow indicators, enclosed in a dashed circular border (no text or symbols)

Person styling hair with a curling iron, no visible text or symbols

Prohibition sign with a diagonal line and document icon, indicating no prohibition or rejection

Close-up of a black hair dryer with orange filter and yellow motion arrows indicating airflow (no text or symbols)

Close-up of a black handheld device with a blue internal component, enclosed in a dashed circular border (no text or symbols visible)

Person styling hair with a black iron, wearing a black top (no text or symbols visible)

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2 46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
