SS-3665-P - Dryer Sogo - Free user manual and instructions

Product type	Professional hair dryer
Brand	Sogo
Model	SS-3665-P
Power supply	220-240 V ~ 50 Hz
Power	1800 W
Motor type	DC motor
Dimensions (approx.)	25 cm (length) x 20 cm (height)
Weight (approx.)	300 g
Number of speeds	2 (High, Low)
Number of temperature settings	3 (Cool, Warm, Hot)
Ionic technology	Yes (emits ions for softer hair)
Cool shot function	Yes (button to interrupt heat)
Removable filter	Yes (cleanable rear inlet grille)
Included accessories	Concentrator nozzle, diffuser
Cord length	Approximately 2 m
Maintenance	Clean the filter regularly; wipe the housing with a damp cloth
Safety	Overheat protection (thermostat); automatic shut-off in case of problem
Standards	Compliant with CE, Low Voltage Directive 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU, Ecodesign 2009/125/EC
Repairability	No user-serviceable parts; contact customer service
Origin	Made in China, designed by Sogo according to European standards
Customer service	www.sogosat.com / [e-mail] / 0034 902 222 161

Frequently Asked Questions - SS-3665-P Sogo

Why does my Sogo SS-3665-P hair dryer emit a burning smell during first use?

This is normal. During the first few minutes, a slight burning smell may occur due to initial heating of components. It will disappear after a few uses.

How to clean the filter of the Sogo SS-3665-P?

Unplug the device and let it cool down. Turn and remove the rear inlet grille, take out the filter, then remove accumulated hair and dust. Never use a tool to clean the filter.

Can I use my Sogo hair dryer in the bathroom?

Yes, but with caution. Unplug it after use as water poses a risk even when off. For added safety, install a residual current device (RCD) of max. 30 mA.

How to activate the ionic function on the SS-3665-P?

The ionic function is activated automatically when the device is turned on. You do not need to activate it manually. Ions help reduce frizz and make hair softer.

What to do if the hair dryer stops heating?

Check that the heat selector is not set to 'Cool'. If the problem persists, the safety thermostat may have cut off heating due to overheating. Let the device cool down for 15 minutes, then try again.

Can I use an extension cord with the SS-3665-P?

No, using an extension cord is not recommended. Plug the cord directly into a suitable wall outlet (220-240 V).

How to use the cool shot function?

Press the 'Cool shot' button (usually located on the handle) to stop the heat while the fan continues running. Release to return to heat. This helps set a hairstyle or cool down hair.

Is the motor of the SS-3665-P noisy?

The DC motor is designed to be quieter than traditional motors, but the noise level remains normal for an 1800 W hair dryer. If the noise becomes abnormal, check that the filter is not clogged.

What accessories are included with the Sogo SS-3665-P?

The box includes a concentrator nozzle for precise drying and a diffuser for curly or wavy hair. They attach to the air outlet of the device.

How to contact Sogo customer service?

You can contact customer service by email: [e-mail], by phone at 0034 902 222 161, or via the website www.sogosat.com.

USER MANUAL SS-3665-P Sogo

Gray SOGO 1800W hair dryer with black handle and black buttons (no visible text or symbols on body)

Professional Hair Dryer

Caution: please read and preserve these important instructions

ref. SS-3665-P

SS-3665-G

SS-3665-R

Instructions for use

CAUTION

Please read these instructions fully before use and preserve them for future reference.

This instruction manual can also be downloaded from our web page www.sogo.es

READ ALL INSTRUCTIONS BEFORE USING KEEP AWAY FROM WATER

DANGER

- As with most electrical appliances, electrical parts are electrically live even when the switch is off:

To reduce the risk of death by electrical shock:

1. Always "unplug it" immediately after using.
2. Do not use while bathing.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.
5. If an appliance falls into water, “unplug it” immediately. Do not reach into the water.

WARNING

- To reduce the risk of burns, electrocution, fire, or injury to persons:

1. This appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used by , on., or near children or invalids.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working property, or if it

has been dropped, damaged, or dropped into water. Return the appliance to a service center for examination and repair.

1. Keep the cord away from heated surfaces. Do not wrap the cord around the appliance.

2. Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked.
   Keep the air openings free of lint, hair, and the like.

3. Never use while sleeping.

4. Never drop or insert any object into any opening or hose.

5. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

6. Do not use an extension cord with this appliance.

7. Do not direct hot air toward eyes or other heat sensitive areas.

8. Attachments may be hot during use. Allow them to cool before handling.

9. Do not place appliance on any surface while it is operating.

10. While using the appliance, keep your hair away from the air inlets.

11. This appliance is for use on a circuit having a nominal rating of 220-240V and is factory equipped with a specific electric cord and plug to permit connection to a proper electric circuit.

Make sure that the appliance is connected to an outlet having the same configuration as the plug.

No adapter should be used with this appliance. Do not modify the plug provided; if it will not fit the outlet, have the proper outlet installed by a

qualified electrician. If the appliance must be reconnected for use on a different type of electric circuit, the reconnection should be made by qualified service personnel.

1. Never use the extension cords
2. The appliance has no user serviceable parts.
3. If the cord of a hand-supported appliance is twisted, to untwist the cord before use.

IMPORTANT SAFETY INSTRUCTIONS

- When using electrical appliance, especially when children are present, basic safety precautions should always be followed, including the following:

Safety Instructions:

1. This appliance is not intended for use by person with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.

3. If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

1. When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off:

For additional protection, the installation of a residual current device (RCD) having a rated residual operation current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

1. This hair dryer if it can be fitted on the wall then it should be fitted away and out of reach of persons who are taking a bath or washing themselves.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
4. Keep the appliance and its cord out of reach of children.
5. Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

RATED PARAMETERS

Voltage / Frequency: 220-240V \~ 50Hz,

Power: 1800 W

Motor Type: DC

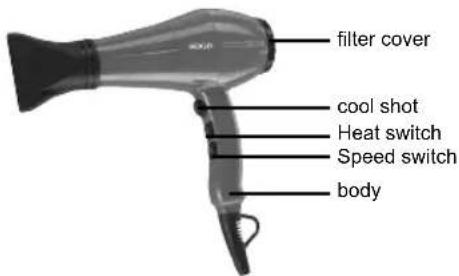

KNOW YOUR HAIR DRYER

HOW TO USE

The heat button selects the air temperature: cold, hot or very hot

The speed button turns the hair dryer on or off and selects the fan speed: *low or #high.

FIRST TIME USE

Important: During the first minutes of using for the first time, you may note fumes and a slight smell. This is normal and need not cause concern.

IONIC:

The ionic will output together with the air. With this function, your hair will be more beautiful and softer.

OPERATION

1. Fully unwind the mains cable.
2. If required fit on a nozzle or a diffuser.
3. Adjust to the desired heat setting and blowing strength. The heat switch will work when the speed switch is working.
4. Press the speed button to turn on the hair dryer selecting the speed as required.
5. The thermostat will be in action to prevent dangerous overheating when the motor has problem.

HINTS AND TIPS

1. Wash and condition hair as you would normally.
2. Ensure hands are dry and hair is not dripping wet.
3. Always blot hair dry with a towel to remove excess moisture.
4. If desired, attach the Concentrator to the nozzle of the hairdryer.
5. As a general guide use higher heat / speed settings for initial drying, rough drying and thicker heavier hair. Use lower settings for finer hair, to complete your style and for more precise control.
6. Never put the hairdryer down on soft furnishings, bedding or close to a wall or other surface. Never

cover the hairdryer.

CLEANING AND MAINTENANCE

1. Switch the hairdryer off, unplug from the mains and allow to cool fully.
2. Wipe over the casing using a soft damp cloth (If necessary a little washing up liquid may be used). Do not immerse the unit in water or any other liquid.
3. Remove and wash the concentrator in warm soapy water.
4. Ensure all parts are dried thoroughly with a soft towel before reusing.
5. Do not use harsh abrasives or cleaners.
6. This appliance is fitted with a rear filter mesh. To prevent ingress of hair, dust or fluff and it MUST be kept clean. Regularly clean the internal filter, by twisting and removing the rear inlet grille. Withdraw the filter and remove any build up of hair and dust.
7. If you have long hair or use high amounts of styling products, clean the filter regularly i.e. at least once a month.
8. Never attempt to clean the filter by inserting an implement.

STORAGE

Ensure the hairdryer is completely cool and dry. Do not wrap the supply cord around the appliance. Store in original box in a cool, dry place.

COOL SHOT:

With this switch it is possible to interrupt the heating process so that the air can be mixed according to individual requirements.

Mode d'emploi

ATTENTION:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
