USER MANUAL SS-3670 Sogo

1. Important Note P. 11
2. Symbol definitions P.11
3. Safety instructions for the user P.11

I. General precautions during the use of electrical equipment P. 11-12
II. Restrictions on use to avoid personal injury P.12-13
III. Product use restrictions due to poor condition or breakdown P.13
IV. Restrictions on use when used with children and elders P.14
V. IMPORTANT WARNING P. 14-15
VI. Instructions to follow when using the device P.15-16

1. Technical specifications P. 17
2. Parts description P. 17
3. Instructions for use P. 17-18
4. Cleaning and maintenance P. 18
   8.Declaration of conformity P.54
5. Responsibility for disposal, details of the manufacturer and after-sales service P. 55

INDICE

• Always read the instruction book carefully before using.
  This manual can be downloaded from our web page www.sogo.es
• Keep these instructions for future reference.

2. Symbol definitions

1- Important information and useful hints on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before

plugging in the appliance.

Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
- Close supervision is necessary when any appliance is being used by or near children.
- Before cleaning or storing your appliance, always unplug the appliance from the power supply.
- The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

II. Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

• To avoid electric shock, make sure your hands are dry before plugging or unplugging.

• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

V. 1 IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does

not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow when using the device

• This appliance works with high temperature, therefore during the use always hold it by the handle and use extreme caution.
• Do not use the dryer inside a bathroom, shower, sauna, etc.
• Never use hairspray with the dryer on ionization.
• Keep away the small objects or mini particles away from the dryer, to prevent to be sucked in through the protection grid.
• Do not leave the device exposed to the weather (rain, sun, frost...)
• Do not use while bathing.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, "unplug it" immediately. Do not reach into the water.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Never use while sleeping.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

• Do not direct hot air toward eyes or other heat sensitive areas.

• Attachments may be hot during use. Allow them to cool before handling.

• Do not place appliance on any surface while it is operating.
• While using the appliance, keep your hair away from the air inlets.
• This hair dryer if it can be fitted on the wall then it should be fitted away and out of reach of persons who are taking a bath or washing themselves.
• When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off: For additional protection, the installation of a residual current device (RCD) having a rated residual operation current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Danger! Risk of electrocution! Make sure that no objects such as hair clips or hair pins are inserted into the appliance. These can cause a short circuit.
  WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

READ ALL INSTRUCTIONS BEFORE USING KEEP AWAY FROM WATER

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
220-240V	2000 W	50 – 60Hz

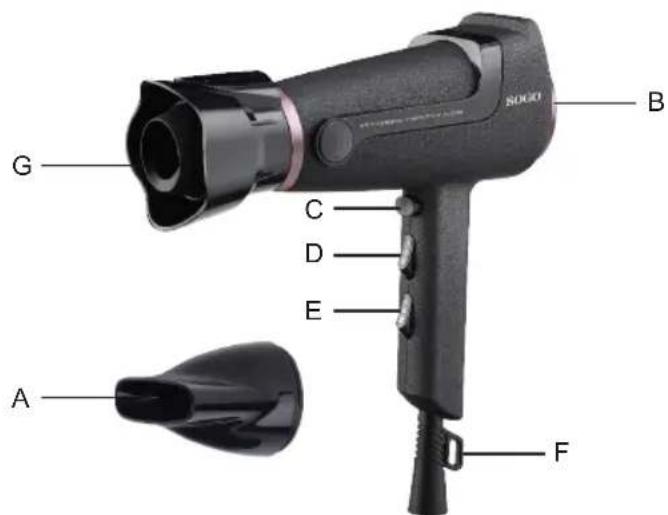

5.PARTS DESCRIPTION

A. Concentrator Nozzle
B. Detachable Air Inlet Cover
C. Cool Air Shot
D. Switch (A)
E. Switch (B)
F. Hanging loop
G. Diffuser

6. INSTRUCTIONS FOR USE

This air dryer has 2 buttons, which helps you to manage the air flow and temperature setting.

Air flow settings:

As this hair dryer has 2 different air flow setting low and High, so with the help of these settings, you can choose most appropriate setting as per your need and requirement. With part E (switch B) you can manage air flow setting from low to high and the same button helps you to switch off the hair dryer.

• With the help of bottom button, you can turn off the hair dryer and also select the air flow setting from Low to High.

Temperature setting:

With the help of temperature setting button, you can change the temperature according to your need. Them temperature setting changes from Low, to high including medium temperature setting. With part D (switch A) temperature can be managed.

• With the help of top button, you can select the temperature as per requirement from Low, Medium and High temperature settings.

OPERATION

1. Fully unwind the mains cable.
2. If needs fit on a nozzle.
3. Choose the desired heat setting and air flow setting.

Note: Using for The First Time

It is normal that during the first few minutes of use while using it for the first time, you may note fumes and some kind of odour, but after using it for a while it disappears.

Cool Air shot button:

This hair dryer model has been provided with cool air shot button, as its name suggests it release cool air instead of hot air. It is one of the compulsory tools to do hair styling and this function helps in quickly cool down of hairs and keep it in style for long period of time.

• When this button is pressed while the hair dryer is working, the hot air cools down.
• Once the button is released, the appliance returns to a hot air flow at the selected level.

How and when to use:

You can use this button while curling your hair. So, in order to give curl your hairs and to make it long lasting, firstly blow dry your hair with a round brush in sections and every time when one section gets dry, use this button as the final step to set your curls and keep pressed until your hair gets set and this process will keep the style for long period of time.

Air-Wave Diffuser: This hair dryer includes a special new kind of diffuser, which rotates itself when the hair dryer is in a working mode. The main function of this diffuser is to avoid throwing same amount of air at one place. It is designed in such a wave, that the air is blown out in a wave pattern. This helps to avoid burns and damaging of hairs.

Hands Free Frame

This hair dryer has provided with a hands-free frame, you can keep this hair dryer on a flat surface facing upwards towards the user and this allows you to hair dry your hairs without holding the it in your hands. Hair drying with the help of hands-free frame helps you to dry your hairs faster.

Off function.

You can turn off the hair dryer at any time just by pressing speed button to off position.

Automatic safety cut off system

This hair dryer has built in automatic safety cut off system. In case of overheating of the appliance this system helps to shut down it and prevent from damaging of appliance and any user personal injury.

Once the appliance automatically shuts off, unplug the appliance from the mains of wall outlet and let it cool and once get cools you can use it again.

7. CLEANING AND MAINTENANCE

This hair dryer model is maintenance free.

There is not any need of lubrication or any cleaning liquids.

Always make sure to keep the appliance clean for proper operation.

To avoid overheating make sure to keep the hair intakes unblocked and unclogged.

This appliance should be stored in a safe, cool and dry place.

Keep it out of reach of children.

In case the dryer stops working, cause of any reason turn it off and let it cool for few minutes, before turning it on again.

1. IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical. Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

15/83110

DECLARATION DE CONFORMIDADE

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
