USER MANUAL SS-16037 Sogo

• Always read the instruction book carefully before using.
  This manual can be downloaded from our web page www.sogo.es
• Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER

• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Do not use or store the appliance outdoors.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• Do not place or operate this appliance near water sources.

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result

in fire, electric shock or injury to persons.
- Always place the appliance on to the flat and even surface.
- Do not use the appliance for any other purpose than described in this manual.
- Do not let the appliance operate unattended.
- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
- Make sure your hands are dry before plug or unplugging.
- Do not use the appliance with wet hands, on moist floor or when the ambience is humid.
- The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
- While using the appliance, make sure that the power cord must not be caught or crushed.
- Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
- Never use methylated spirits or other solvents to clean the appliance.
- Do not use the appliance to vacuum liquids.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children should be supervised to ensure that

they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

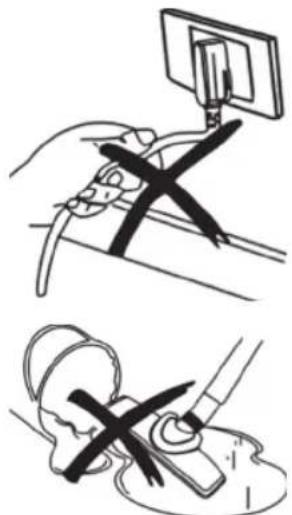

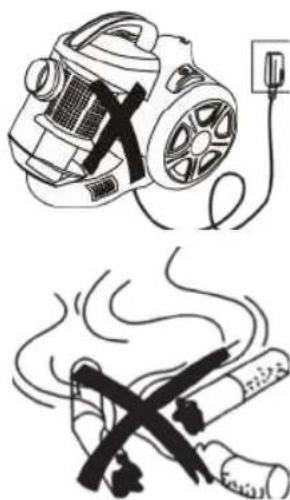

For safety, please comply with following instruction:

Do not remove the plug by pulling the cable or appliance itself.

Do not use the appliance on wet surfaces.

Do not run the appliance over the power cable.

Do not use the appliance to vacuum lighted matches, cigarette ends or hot ash.

Do not obstruct the air intake or outlet vent.

Do not use the appliance to vacuum needles drawing pins or string.

Don't place it near the heat source.

TECHNICAL FEATURES

Model Voltage / frequency Power
SS-16037 220	-240V~ 50/60Hz 700W

Dust container capacity	Suction Power	Airflow Noise Level		Electrical consumption	Cable Length
2L 18kpa 1.2m		3/min <80db 28kwh/year		4M

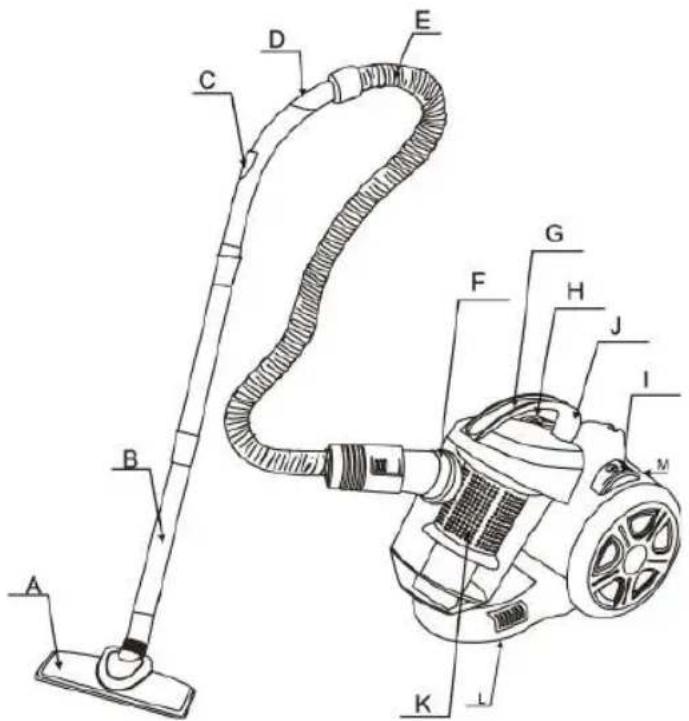

DESCRIPTION

A. Floor Brush
B. Tube
C. Airflow Control
D. Hose & Tube connector
E. Hose
F. Hose Connector
G. Handle

H. Power Button
1. Cord rewind button
J. Dust Cup Clip
K. Filter
I. Plastic protection part 1
M. Plastic protection part 2

In order to avoid any scratch to the floor make sure to remove the plastic protection parts (L and M) before using vacuum cleaner.

WARNING

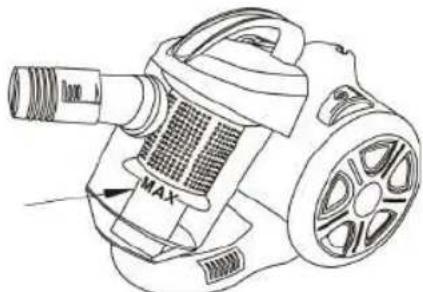

When you observe that the dust container is full with the dust, so to before filling it to the max level, stop working, switch off the appliance and empty the trash before suing it again.

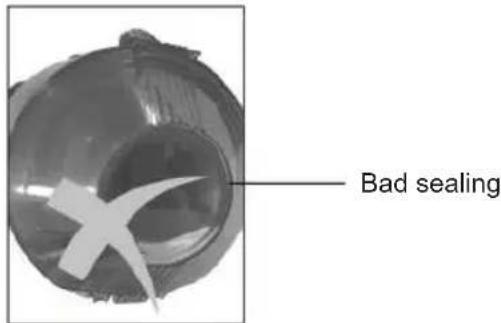

Make sure that the rubber seal is well place before using the appliance. Follow the pictures given blow and make sure it has sealed well, as the improper sealing might cause the dust leakage and burn the motor.

CORRECT ERROR

ASSEMBLING THE VACUUM CLEANER

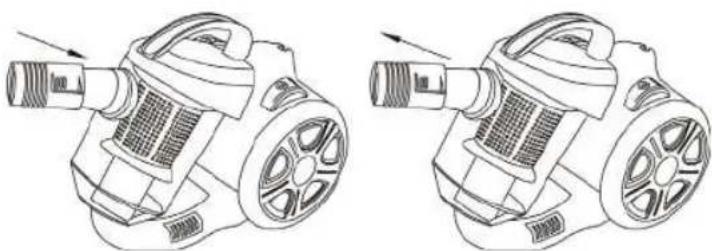

Insert the hose to the air inlet and move clockwise until a clicking sound is heard.

Fitting the extension tubes and accessories.

1) Fitting the extension tube to the handle.
2) Fitting the extension tubes.
3) Fitting the accessories to the extension tube.

INSTRUCTION FOR USE

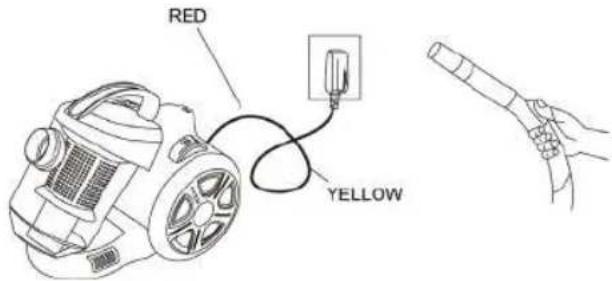

1. Before using the appliance, unwind length of cable and insert the plug into the power socket. Do not extend the cable beyond the RED mark. To rewind the power cable press the rewind button with one hand, and guide the other hand to ensure that it does not whip causing damage.
2. Press the ON/OFF button to switch the appliance ON. Fitting the extension.

USING THE CLEANING ACCESSORIES

Main brush for hard floors and for carpets.

Narrow nozzle

For cleaning radiators: corners, edges, drawers etc.

Small brush

For cleaning curtains, shelves, books, inlaid furniture, lamps and other delicate objects.

AFTER USE

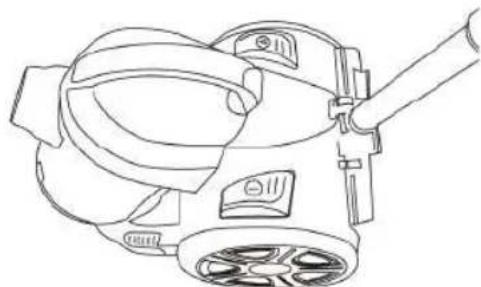

Press the on/off witch, to stop the appliance function, remove the plug from the wall outlet and press the cord rewind button to roll back the cable.

Note: if you find that the power cable is not being rolled back completely, pull out some part of the cable and do the rewinding process by pressing the rewind button and keep repeating until the whole cable rewind completely.

And then you can store it in a cool and dry place.

REPLACING THE DUST CUP

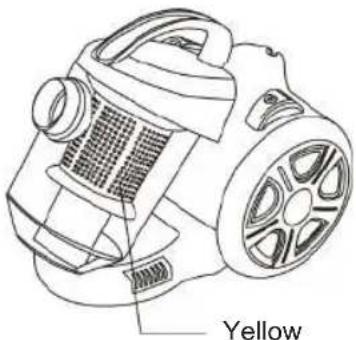

When the dust reaches to the max level in the dust-cup, it means dust cup is full. At this moment, dust-cup should be emptied or multi cyclonic plastic filter should be washed.

Open the dust cup as shown in the picture.

Clean the dust

Lift the foam cover and take out the dust cup.

Take out the foam from the dust cup.

Clean off the dust inside the dust cup.

Clean the foam

Remove the foam when it gets dirty.

Clean it with the help of water and dry it thoroughly before using it again.

Clean the multi cyclonic filter

Make sure to wash the multi cyclonic filter every now and then to use properly vacuum cleaner.

When you find that multi cyclonic filter is full of dust remove it and wash it properly.

Make sure to wash the strainer as well.

Note: Do not wash the filter in the washing machine or dry with the help of electrical heater / hair dryer, it might destroy the filter. Let it dry naturally.

Do not use the petrol, or abrasive liquids for cleaning purpose. Clean it with warm water and soft soap liquid.

IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034 902 222 161
