USER MANUAL FMA 36 WCR FRANKE
FMA 36 WCR
EN Installation and user manual Wine cooler
Cleaning and maintenance....14
Troubleshooting 14
Support 15
Before the installation and use of the appliance, carefully read the supplied instructions.
Always keep the instructions with the appliance for future reference.
To prevent danger stemming from instability of the device, you must fasten it in place, following the assembly instructions strictly.
Whenever moving or transporting the device, keep it in a vertical position.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
⚠️ Cleaning and user maintenance shall be made by the user and not by children without supervision!
⚠️ Young children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
DANGER: risk of entrapment of children. Before throwing away the old refrigerator or freezer:
- Remove the doors.
- Leave the shelves in place so that children cannot easily climb inside.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
Do not let children play with the appliance.
Children shall not carry out cleaning and user maintenance of the appliance without supervision.
⚠️ Keep all packaging away from children and dispose of it appropriately.
This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.
⚠️ Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
This refrigerating appliance is not suitable for freezing foodstuffs.
There is no difference in consumption between the possible configuration of the shelves/basket.
Setting the fridge to a lower temperature (higher thermostat setting) will result in longer foodstuffs maintaining.
There are no most appropriate compartments of the appliance where specific types of food need to be stored. The appliance is not big enough to take into
account different temperature distribution inside of it.
After installing the device, ensure the power cable and socket are easy to reach. If it is not possible to reach the power cable and socket, ensure that the plug is connected to a circuit breaker.
Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
⚠️ Keep the ventilation openings on the casing of the device free.
Do not use mechanical devices, or any means not suggested by the manufacturer, to speed up defrosting.
Do not damage the coolant circuit.
⚠️ Contact the after sales service to replace the LEDs.
Do not stare at operating lamp. It may be harmful to the eyes.
The cable must not be bent or crushed.
The cable must be checked on a routine basis and replaced only by authorised technicians.
The power supply cable is of a Y type. Contact the after sales service to replace it.
Do not use electrical equipment inside the wine compartments, unless they are of a kind suggested by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The Manufacturer shall not be liable if any of the above rules are not complied with.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Risk of fire and electrical shock or fire.
Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level environmental compatibility. This gas is flammable.
If damage occurs to the refrigerant circuit, make sure that there are no flame and sources of ignition in the room. Ventilate the room.
Do not let hot items touch the plastic parts of the appliance.
Do not store flammable gas and liquid in the appliance.
Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
Do not touch the compressor or the condenser. They are hot.
The device is a wine cooler. It is only intended for storing wine. ⚠️ Only store wine in unopened bottles. The wine cooler is not suitable for cooling foods. Do not store any perishable food in the wine cooler. The fridge is not intended to be brought into contact with food. The fridge is not intended for the storage of medicines.
NOTE: Condensating moisture on glass doors.
When the ambient humidity is above 65% in 25 °C ambient temperature, moisture condense on the glass door.
Disposal
The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.
This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.
The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.
Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
Energy saving tips
Do not open the door frequently or leave it open longer than absolutely necessary.
Installation
Positioning and connection
Installation, electrical connections and repairs must be carried out by a qualified technician.
Unpacking

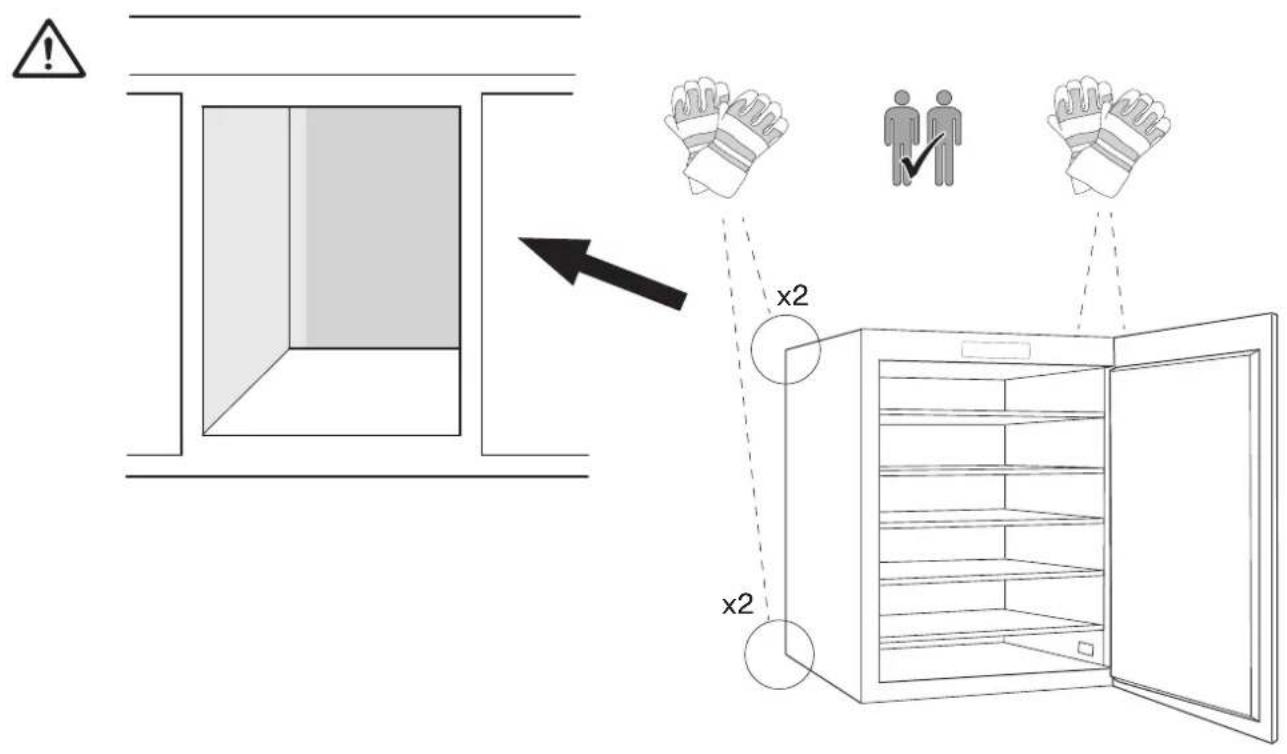

Unpack the device immediately and make sure it has not been damaged during transport. Should it be damaged, do not connect, and get in touch with the Dealer.
Carefully remove the protections and the adhesives, open the door and make sure all the components are present.
Take out the power supply cable.
Positioning
Position the device in a well ventilated area, not damp and free (avoid cabinets with closed walls).
Keep the device away from heat sources.

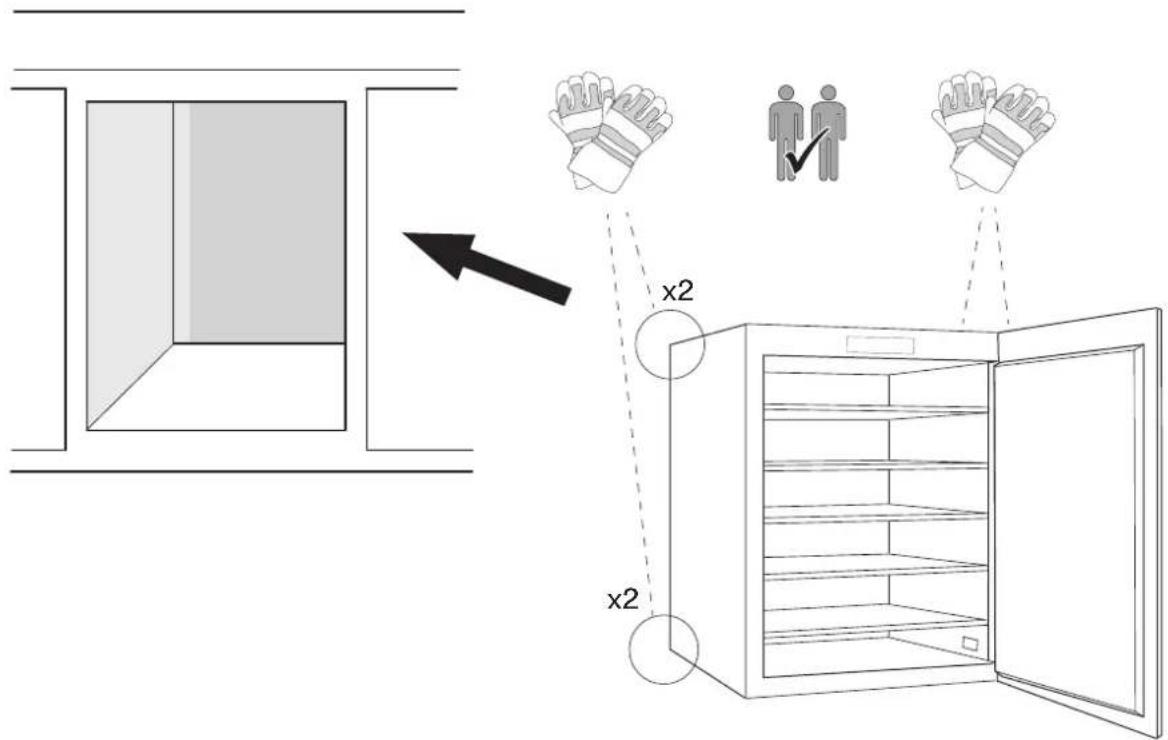

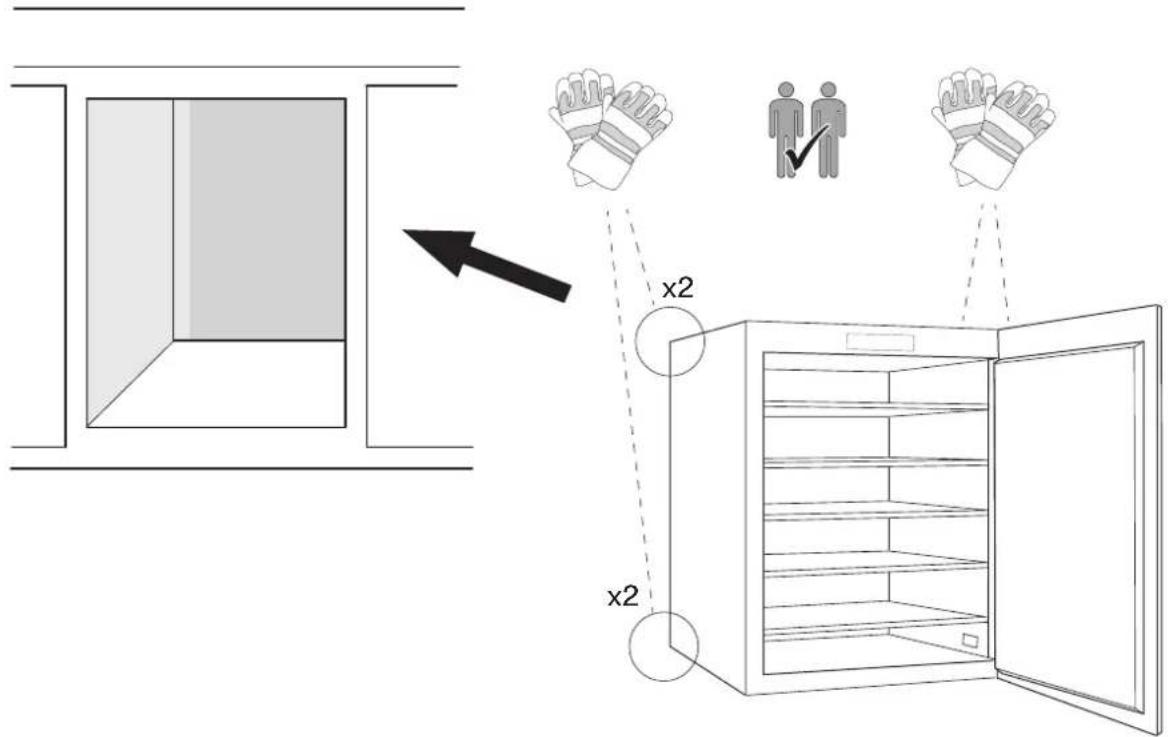

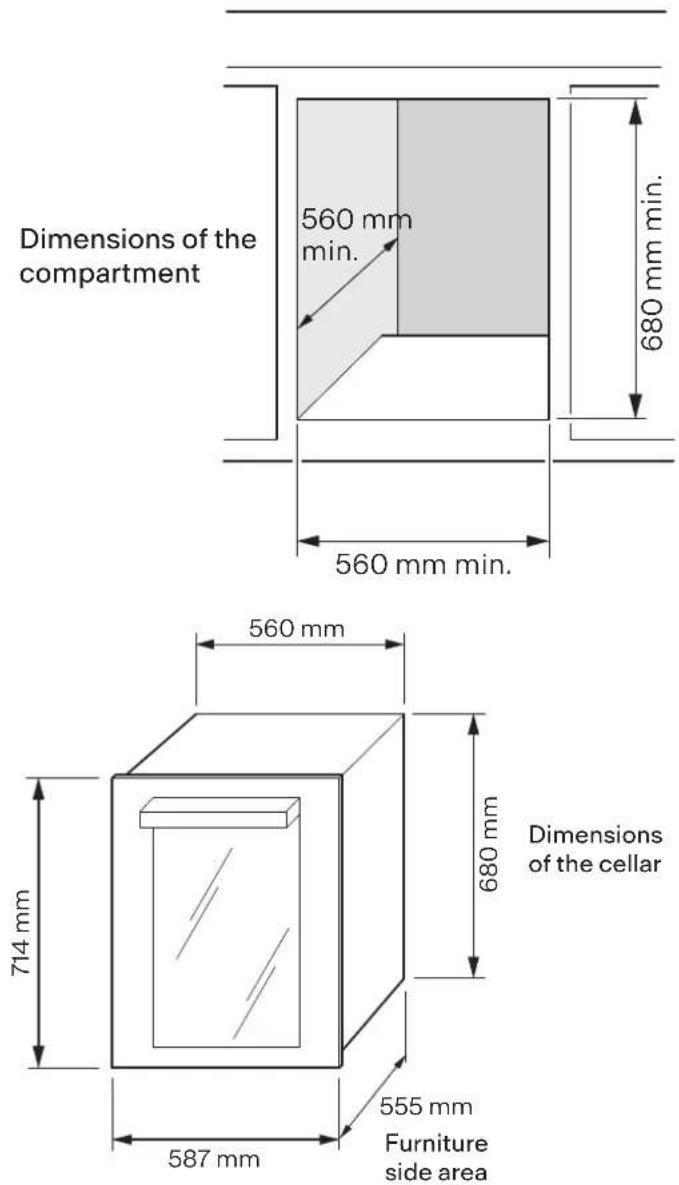

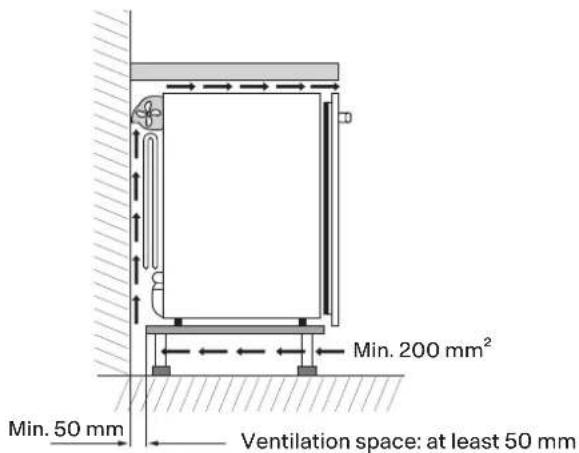

Make sure the minimum distances between the device and the walls of the room where it is placed are kept, in order to ensure perfect ventilation of the device.
See figure.
Wiring connection
After transport, stand the device vertically, and wait for at least 3 hours before connecting it to the wiring system. Before putting the plug into the power socket, make sure that:
- the socket is earthed and according to legal regulations;
- the socket is able to hold up to the maximum power load of the machine, indicated on the Data Sheet table or on the feature plate to the bottom right (see Overview);
- the power supply voltage falls within the range indicated on the Data Sheet table or on the feature plate to the bottom right (see Overview);
- the power socket is compatible with the plug of the device. Otherwise, replace the socket or the plug; do not use extensions or multiple sockets.
CONTROL PANEL
Operations

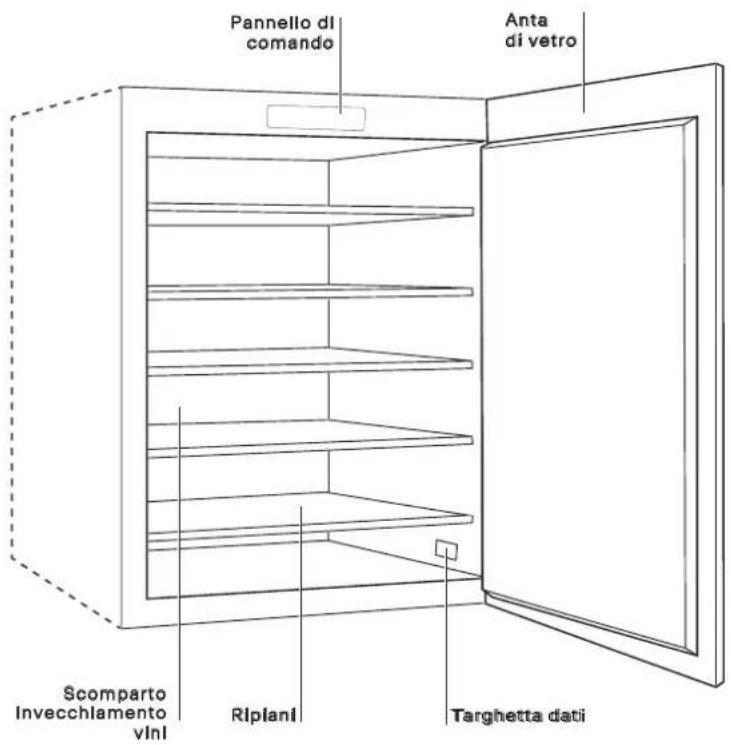

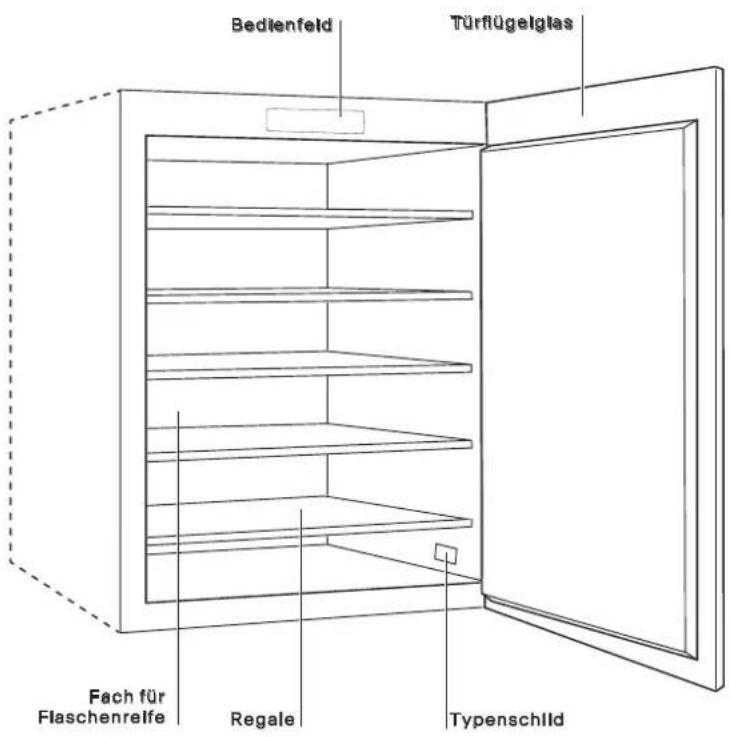

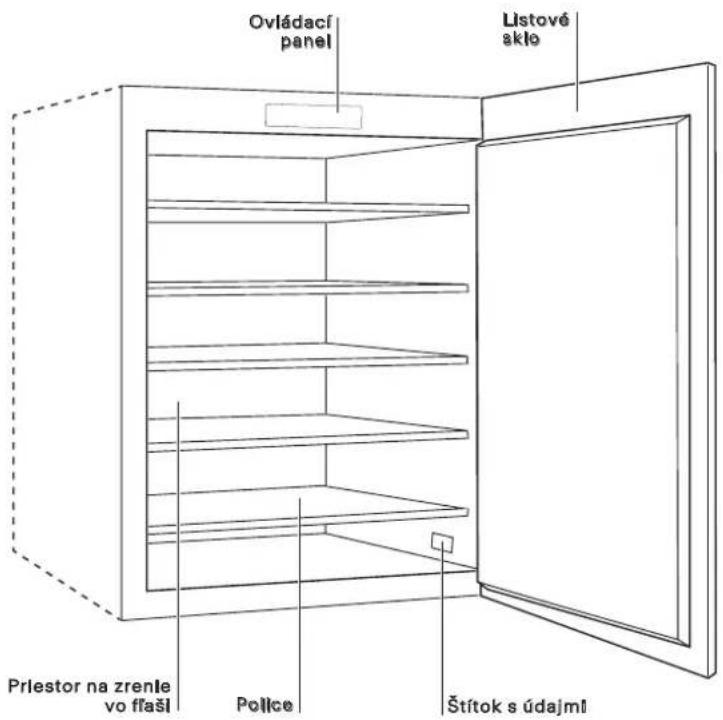

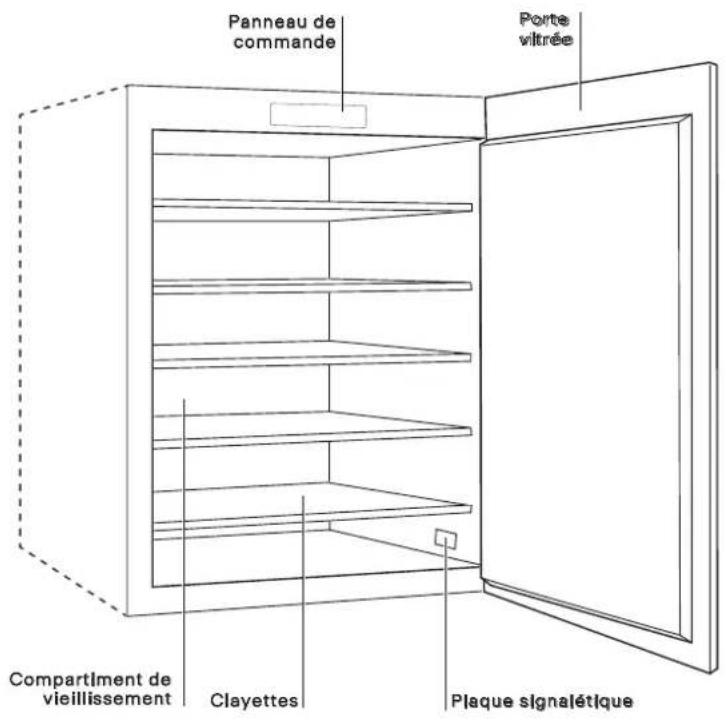

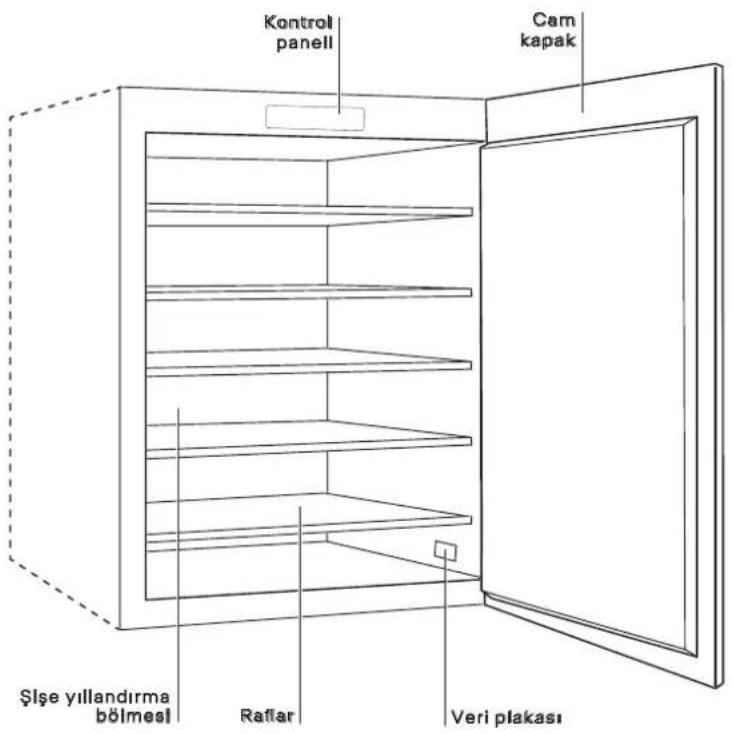

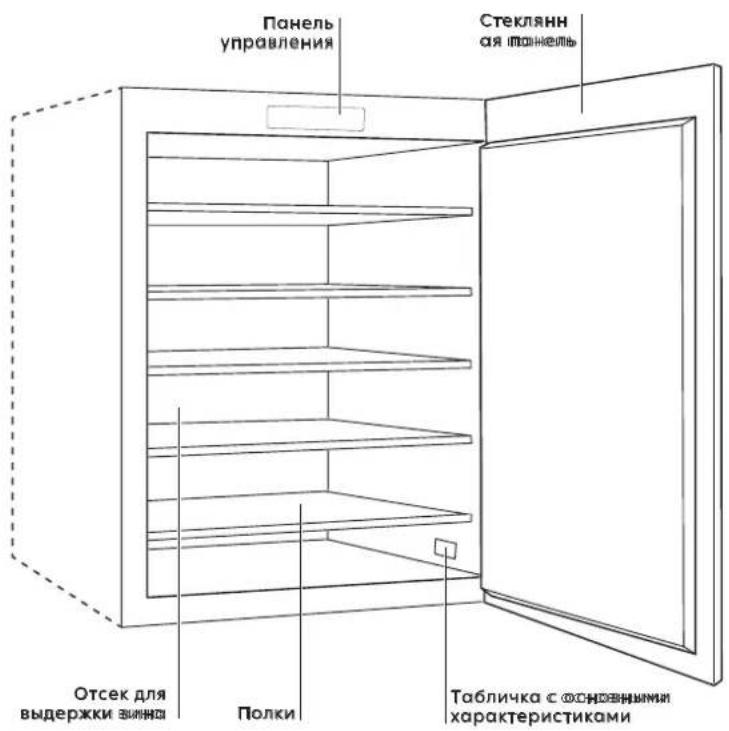

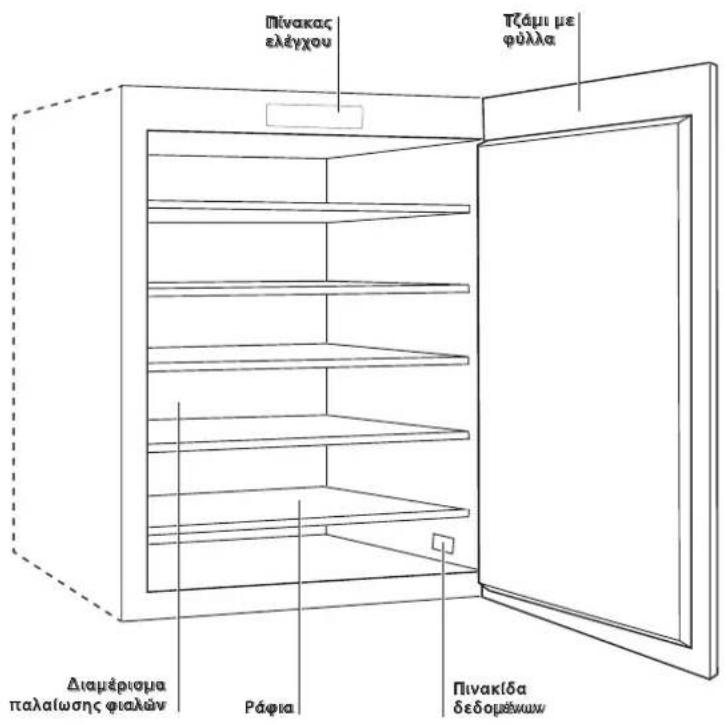

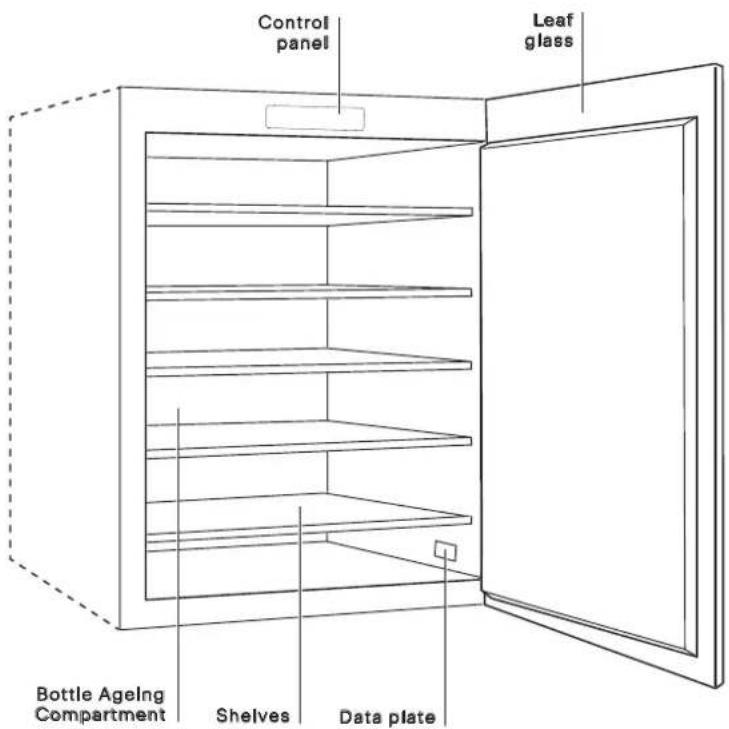

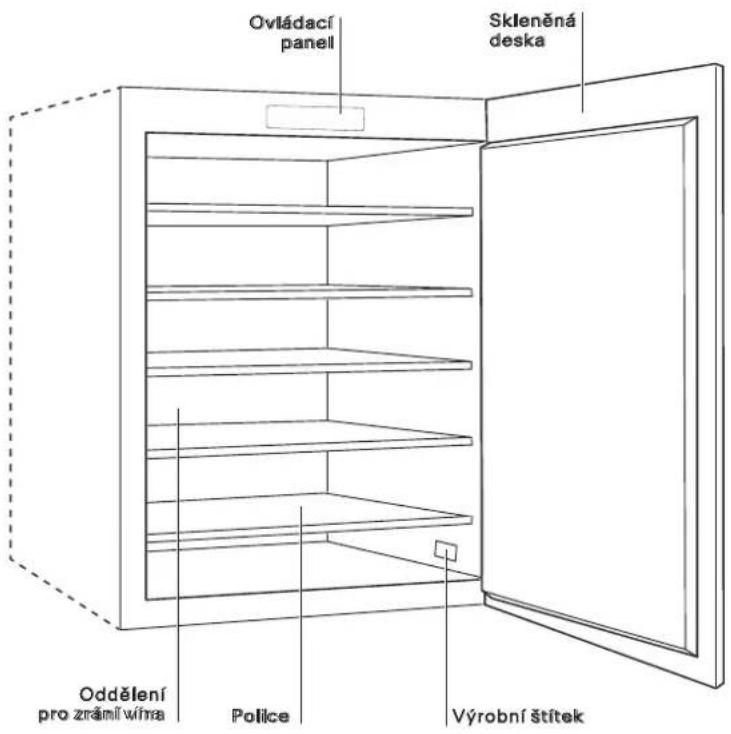

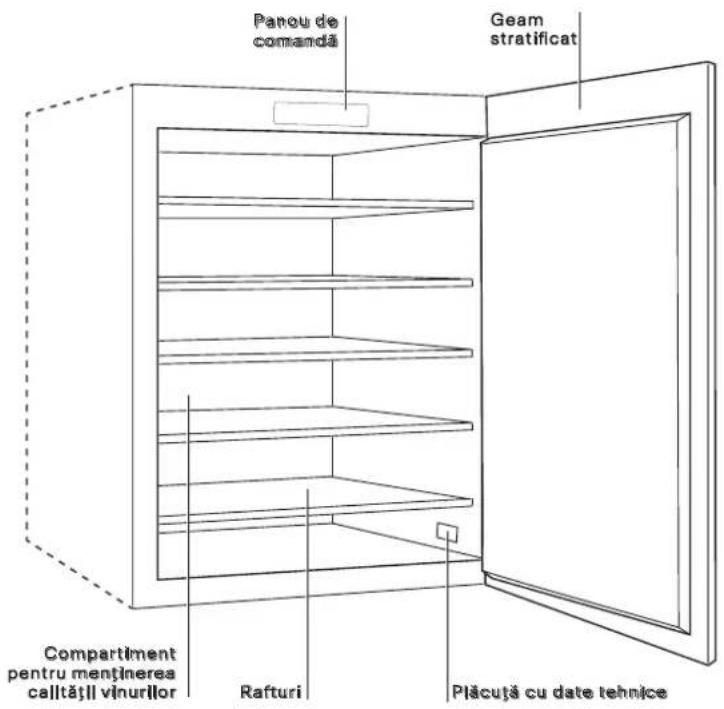

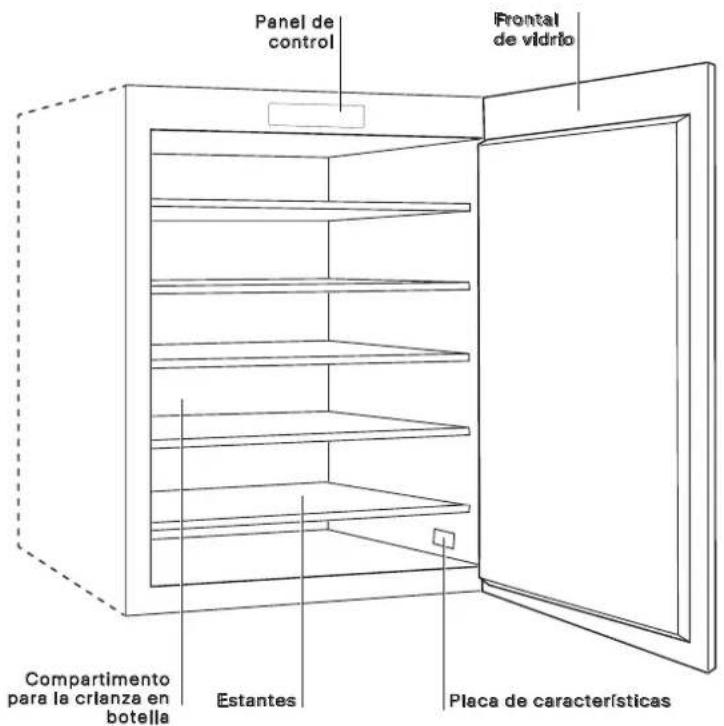

Bottle ageing compartment
The ageing compartment's main function is that of guaranteeing that your wines are preserved in optimal conditions.
The wine cellar's temperature was factory pre-set at 15°C, a temperature that is considered optimal for most wines.
Wine has a complex nature and it derives from a long and slow process. In order to best express its attributes, very specific conditions are necessary.
All wines are preserved at the same temperature, but, depending on their different characteristics, wines are served and tasted at very different temperatures.
Therefore, just as for manufacturers' wine cellars, for your new appliance, the absolute temperature value is not important for preserving your wine. Rather, the constant temperature through time is important. Wine preservation is ideal at any temperature, as long as that temperature does not vary.
Manual temperature control
Should you need to adjust the temperature inside the wine cellar, follow the instructions below:
- When you plug in your wine cellar, the display shows the temperature that has been set.
- Press the button (see Control Panel) for one second. The temperature will begin to blink.
- Press the + or - buttons until you reach the desired temperature.
- Wait 5 seconds for the temperature to stop blinking.
- Wait until the wine cellar reaches its temperature before you place the wine bottles inside.
The inside light does not go on (or it goes off temporarily) when the inside temperature goes over 24°C. This allows you to reach the pre-set temperature more quickly.
This appliance is intended to be used exclusively for the storage of wine.
The appliance is recommended to be used at 18°C for maintaining red wine, 8°C for white wine, or 12°C as an average temperature for both red and white wine. The temperature may be adjusted for wine that requires particular maintaining temperature.
Operation of a cellar with a double or a single temperature zone
The cellar has been set up to work with two temperature zones, or, depending on the customer's needs, with a single temperature zone.
To operate at dual temperature, place the black bottle holder grill on the guides of the fourth shelf (counting from the top), then set the desired temperature for the upper area. Note that the temperature of the lower area, once the desired temperature is reached, will be about 6 degrees Celsius higher than the set temperature (the lower area temperature cannot be set separately).
Note: To preserve wines properly, we suggest setting the top compartment thermostat to 7°C (serving temperature for white wines), thus obtaining 14°C to 15°C in the bottom compartment.
For single temperature zone operation, remove the black bottle holder grill and replace it with the accessory grid (of the same kind as the other wood-colored ones already installed). We suggest keeping the unused grid in a dry and cool place to prevent damage from humidity or other atmospheric agents, as this would make it unusable in the future.
Temperature control
Top area
The temperature of the top area can be seen at any time on the control display.
Bottom area
To set the temperature of the bottom area, press the button for one second. The temperature of the bottom area will be displayed for three seconds (shelves 5 and 6).
If there is a single temperature zone, you only need to look at the temperature shown on the control display, without pressing any button.

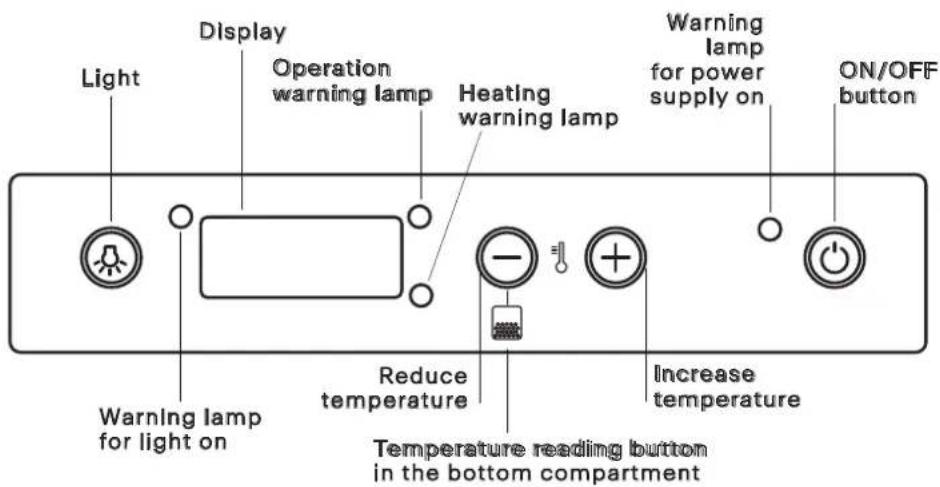

Figure: Control Panel
Hints and tips
Normal operating sounds
The following sounds are normal during operation:
- A faint gurgling and bubbling sound from coils when refrigerant is pumped.
- A whirring and pulsating sound from the compressor when refrigerant is pumped.
- A sudden cracking noise from inside the appliance caused by thermal expansion (a natural and not dangerous physical phenomenon).
- A faint click noise from the temperature regulator when the compressor switches on or off.
Hints for energy saving
- Do not open the door frequently or leave it open longer than absolutely necessary.
Taking out the wooden shelves

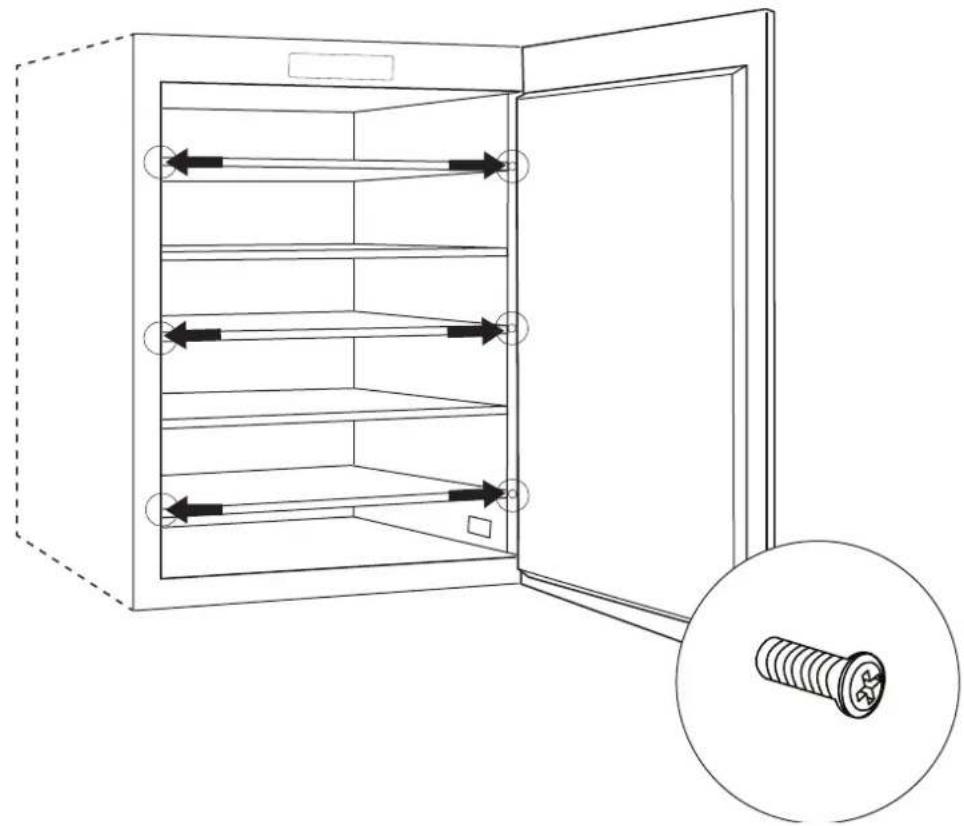

Take the shelves out slowly, pulling them towards yourself until the end of their stroke. Take out or put back the bottles and then push the shelf back in until it stops at the back.
Should you want to take the shelf out completely in order to make a different layout for storing the bottles, pull the shelf firmly towards yourself. Remember to take off the bottles before doing so.
Under no circumstance must you take out more than one sliding shelf at a time.
Stocking the wine bottles
Standard 36-bottle stock
The 36-bottle stock (for standard, mixed, and renana bottles) is recommended for wines that need to be visible and easily removed.
STANDARD
36 Bottles
(100% lying down)
5 shelves
Position each bottle into the slots on the 5 wooden shelves. 6 bottles can be placed on the bottom of the wine cellar.
We suggest you place the Renana bottles onto the lower shelf and the bottom of the wine cellar because they have been specially designed to hold larger bottles.
Champagne bottle stock
Champagne bottles are larger than standard bottles. They must be placed onto the base of the wine cellar, which can hold up to 5.
If you want to stock more than 5 Champagne bottles in your wine cellar, remove the 5th shelf and stock the bottles in two rows (placing the bottles in the second row between those on the bottom row). This will hold up to 9 bottles.
Some stocking configurations
PRESERVATION
44 Bottles
(100% lying down)
1 shelf
SERVICE
42 Bottles (50% lying down, 50% standing)
3 shelves
4 rows
MAXIMUM STOCK
46 bottles (48% lying down, 52% standing)
1 shelf
4 rows
The wooden shelf can safely hold up to 22 bottles.
Cleaning and maintenance
Care and cleaning
Regularly clean the inside and outside of the refrigerator using only warm water and a neutral detergent.
After washing, rinse with clean water and dry thoroughly with a soft cloth.
Do not use the following: special glass and mirror cleaning products, liquid, powder, or spray detergents, alcohol, ammonia, or abrasive products.
If you are not using the minibar, we suggest cleaning it well inside and leaving the door ajar to ventilate the interior.
Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
This appliance contains hydrocarbons in the cooling unit. Only a qualified person must perform maintenance and recharging of the unit.
Regularly examine the drain of the appliance and, if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.
The interior of the wine cooler should be cleaned regularly to avoid odor.
Check the door gasket regularly to make sure there are no debris.
Please turn off the power before cleaning, remove all shelves, drawers, etc.
Clean the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
Rinse and dry thoroughly.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Service
In the event of failure or a technical fault, make sure that:
- the plug is correctly plugged into the mains socket;
- the mains voltage corresponds to the voltage shown on the TECHNICAL DATA table;
- the temperature adjusting knob is not in the position "0";
- the fridge is not near sources of heat or exposed to sunlight;
- the refrigerator is installed in such a way, to respect the ventilation openings.
To repair the appliance, contact an Authorized Service Centre. Use original spare parts only.
If the refrigerator still does not work please contact an Authorized Service Centre or refer to the contacts in our website www.indelb.com
Please note that self-repair or nonprofessional repair can have safety consequences and might void the guarantee.
The following spare parts will be available for 7 years after the model has been discontinued:
- thermostats, temperature sensors, printed circuit boards, light sources, door handles, door hinges, trays and baskets. Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models. Door gaskets will be available for 10 years after the model has been discontinued.
If you need to order a spare part, please contact an Authorized Service Centre or refer to the contacts on the website www.indelb.com
Troubleshooting
If you notice that your wine cooler is not working properly, check the following list before you call your Service Centre.
| Problem Possible causes/Solutions | |
| The compressor does not work | The plug is not plugged into the wall-outlet or not enough to make contact. Or, there could be a power failure in your home.The wall-outlet is not in working order. Plug the wine cellar into another wall-outlet to check. |
| The compressor never stops Contact the Service Centre. | |
Any work that is done to the wine cellar should be performed by your authorized local Service Centre.
Short term faults, such as power failure, will not compromise the wines. It is only when working faults are left unsettled for a long time that the wine may suffer.
Support
In case of any operation problems, contact a Franke Technical Service Centre.
Never use the services of unauthorised technicians.
When contacting our Service Centre, please state the codes provided on your product's identification plate.
- the type of fault
- the appliance model (Art./Cod.)
- the serial number (S.N.)
This information is given on the data plate (see Overview).
You must also have proof of purchase if you are still within the warranty period.
![CE EAC [↓ ⊖ ]](/content/2026/04/721069/images/39b233c84e2394dc9e91f7c8e688a2e545d8dfd74d497e973d77c90478724e92.jpg)
Table of Contents
STANDARD
36 bottles
(100% lying)
5 shelves
STORAGE
44 bottles
(100% lying)
1 shelf
SERVICE
MAXIMUM
STOCK CAPACITY
WWW.FRANKE.COM
© Franke Technology and Trademark Ltd., Switzerland
Table of contents
!
Overview
STANDARD
36 bottles
PRESERVATION
44 bottles
SERVICE
MAXIMUM STORAGE
© Franke Technology and Trademark Ltd., Switzerland
Index
STANDARD
36 bottles
STORAGE
44 bottles
SERVICE
42 bottles
MAXIMUM STORAGE
46 bottles
© Franke Technology and Trademark Ltd., Switzerland
Index
!
General information
STANDARD 36 bottles (100% lying down) 5 shelves
WWW.FRANKE.COM
© Franke Technology and Trademark Ltd., Switzerland
Index
Remove the wooden shelves
°C as
STANDARD
36 bottles
(100% lying down)
5 shelves
STORAGE
44 bottles
(100% lying down)
1 shelf
SERVICE
42 bottles
MAXIMUM LOAD
46 bottles
WWW.FRANKE.COM
© Franke Technology and Trademark Ltd., Switzerland
PROTUPA
36 bottles
(100% lying down)
5 shelves
MAINTENANCE
44 bottles
(100% lying down)
1 shelf
SERVICE
42 bottles
(50% lying down,
50% upright)
3 shelves
4 rows
MAXIMUM STOCK
46 bottles
(48% lying down,
52% upright)
1 shelf
4 rows
STANDARD
36 bottles
(100% lying down)
5 shelves
STORAGE
44 bottles
(100% lying down)
1 shelf
SERVICE
42 bottles
(50% lying down,
50% standing up)
3 shelves
4 rows
MAXIMUM STOCK
46 bottles
(48% lying down,
52% standing up)
1 shelf
4 rows
!
STANDARD
36 bottles
MAINTENANCE
44 bottles
SERVICE
42 bottles
MAXIMUM STOCK
46 bottles
STANDARD
36 bottles
STORAGE
44 bottles
MAINTENANCE
42 bottles
(50% stored
MAXIMUM STOCK
46 bottles
(48% stored
WWW.FRANKE.COM
© Franke Technology and Trademark Ltd., Switzerland
Table of Contents
Overview
STANDARD
36 bottles
(100% horizontally arranged)
5 shelves
STORAGE
44 bottles
(100% horizontally arranged)
1 shelf
SERVING
42 bottles
(50% lying down,
50% standing up)
3 shelves
4 rows
MAXIMUM STORAGE
46 bottles
(48% lying down,
52% standing up)
1 shelf
4 rows
© Franke Technology and Trademark Ltd., Switzerland
Contents
STANDARD
36 bottles
(100% lying down)
5 shelves
STORAGE
44 bottles
(100% lying down)
1 shelf
SERVICE
42 bottles
(50% lying down,
50% standing)
3 shelves
4 rows
MAXIMUM STOCK
46 bottles
(48% lying down,
52% standing)
1 shelf
4 shelves
- appliance model (Art./Cod.)
STANDARD
36 bottles
(100% horizontal)
5 shelves
PROTECTION
44 bottles
(100% horizontal)
1 shelf
SERVICE
42 bottles
(50% horizontal,
50% vertical)
3 shelves
4 rows
MAXIMUM STOCK
46 bottles
(48% horizontal,
52% vertical)
1 shelf
4 rows
STANDARD
36 bottles
STORAGE
44 bottles
MAINTENANCE
42 bottles (
50% stored
horizontally,
50% vertically)
3 shelves
4 rows
MAXIMUM STOCK
46 bottles
(48% stored
horizontally,
52% vertically)
1 shelf
4 rows
WWW.FRANKE.COM
4 rows
WWW.FRANKE.COM
Service
Connecting the appliance
Positioning and connecting the appliance
- FMA 36 WCR
- NOTE: CONDENSATING MOISTURE ON GLASS DOORS
- DISPOSAL
- PACKAGE INFORMATION
- ENERGY SAVING TIPS
- INSTALLATION
- POSITIONING AND CONNECTION
- UNPACKING
- POSITIONING
- WIRING CONNECTION
- OPERATIONS
- BOTTLE AGEING COMPARTMENT
- MANUAL TEMPERATURE CONTROL
- OPERATION OF A CELLAR WITH A DOUBLE OR A SINGLE TEMPERATURE ZONE
- TEMPERATURE CONTROL
- TOP AREA
- BOTTOM AREA
- HINTS AND TIPS
- NORMAL OPERATING SOUNDS
- HINTS FOR ENERGY SAVING
- TAKING OUT THE WOODEN SHELVES
- STOCKING THE WINE BOTTLES
- STANDARD 36-BOTTLE STOCK
- CHAMPAGNE BOTTLE STOCK
- SOME STOCKING CONFIGURATIONS
- CLEANING AND MAINTENANCE
- CARE AND CLEANING
- SERVICE
- TROUBLESHOOTING
- SUPPORT
- TABLE OF CONTENTS
- OVERVIEW
- INDEX
- GENERAL INFORMATION
- REMOVE THE WOODEN SHELVES
- CONTENTS
- CONNECTING THE APPLIANCE
- POSITIONING AND CONNECTING THE APPLIANCE
Brand : FRANKE
Model : FMA 36 WCR
Category : Refrigerator
