USER MANUAL CPG75SQGX CANDY

INSTALLATIONS" "© DE

1.1. Bulding In 1.2. Suitable Location

2. Electrical Connection (For U.K. On

2.1. Electrical Connection . 2.2. Gas Connection (For UK. Only). 2.3. Adapting The Hob To Different Types 2.4. Regulating The Minimum Flame.

3. Use Of Hob - User Instru

3.1. Using The Gas Burner

4. Maintenance and Cleaning

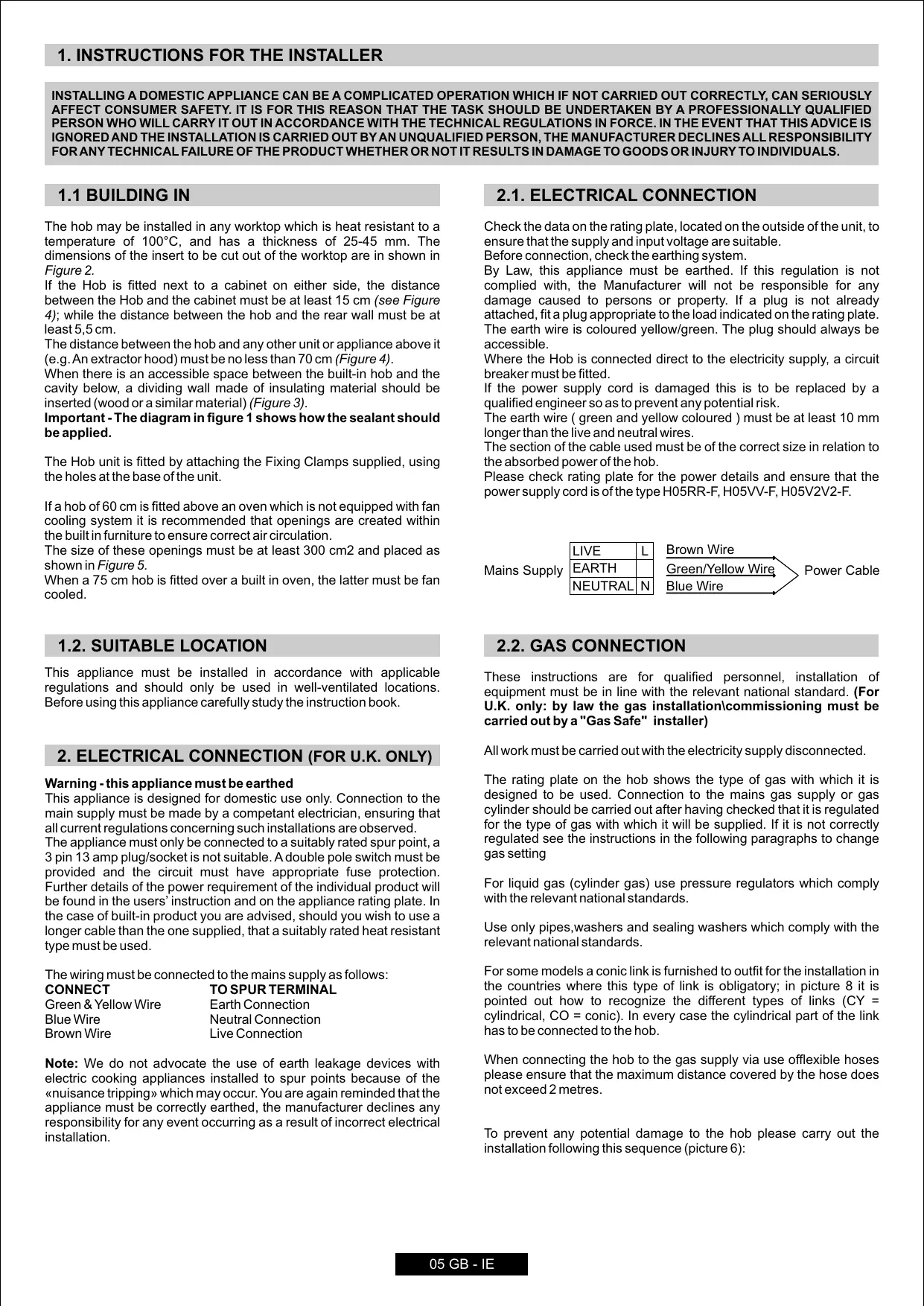

The hob may be installed in any worktop which is heat resistant to a temperature of 100°C, and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in Figure 2. H the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least 15 cm (see Figure 4); while the distance between the hob and the rear wall must be at least5,5cm. The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be noless than 70 cm (Figure 4). When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3). Important - The diagram in figure 1 shows howthe sealant should be applied. The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes atthe base ofthe unit If a hob of 60 cmis fitted above an oven which is not equipped with fan cooling system it is recommended that openings are created within the builtin furniture to ensure correct air circulation. The size of these openings must be at least 300 cm2 and placed as shownin Figure 5. When a 75 cm hob is fitted over a built in oven, the latter must be fan cooled. 1.2. SUITABLE LOCATION This appliance must be installed in accordance with applicable regulations and should only be used in wel-ventilated locations. Before using this appliance carefully study the instruction book.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning -this appliance must be earthed This appliance is designed for domestic use only. Connection to the main supply must be made by a competant electrician, ensuring that all current regulations concerning such installations are observed. The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socketis not suitable. À double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users’ instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used The wiring must be connected tothe mains supply as follows:

CONNECT TO SPUR TERMINAL

Green & Yellow Wire Earth Connection Blue Wire Neutral Connection Brown Wire Live Connection Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded thatthe appliance must be correctiy earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation. 2.1. ELECTRICAL CONNECTION Checkthe data on the rating plate, located on the outside ofthe unit, to ensure thatthe supply and input voltage are suitable. Before connection, checkthe earthing system. By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fita plug appropriate to the load indicated on the rating plate The earth wire is coloured yellowigreen. The plug should always be accessible. Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted. If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk. The earth wire ( green and yellow coloured ) must be at least 10 mm longer than the live and neutral wires. The section of the cable used must be ofthe correct size in relation to the absorbed power ofthe hob. Please check rating plate for the power details and ensure that the power supply cord is ofthe type HOSRR-F, HOSWV-F, HOSV2V2-F. LIVE L] Brown Wire Mains Supply [EARTH Green/Yellow Wire NEUTRAL[N] Blue Wire Power Cable 2.2. GAS CONNECTION These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For UK. only: by law the gas installation\commissioning must be carried out by a"Gas Safe" installer) Allwork must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylnder should be carried out after having checked thatitis regulated for the type of gas with which it will be supplied. If it is not correctiy regulated see the instructions in the following paragraphs to change gas setting For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards. Use only pipes,washers and sealing washers which comply with the relevantnational standards. For some models a conic link is furnished to outfit forthe installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob. When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does notexceed 2 metres. To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):

1)Asillustrated, assemble parts in sequence: A: 1/2 Male Adaptor Cylindirical B: 1/2 Seal C: 1/2 Female Gas Adaptor Conical-Cylindirical or Cylindirical-Cylindirical 2)Tighten the joints with the spanner, remembering to twist the pipes into position. 3)Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe. IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged.

Warning: Ifgas can be smeltin the vicinity of this appliance turn offthe gas

supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

2.3. ADAPTING THE HOB TO DIFFERENT

To adapt the Hob for use with different types of gas, carry out the following instructions: «remove the grids and burners “insert on hexagonal spanner (7 mm) into the burner support (Figure

-Ünscrew the injector and replace it with one suitable for the gas to be used (see gas type table)

2.4. REGULATING THE MINIMUM FLAME

After lighting the burers, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure). Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst tuming it anticlockwise increases the flow — Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob. When the gas supply available is LPG -the screw to set the idle flame must be tumed (clockwise) to the end stop. When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which ithas been regulated.

3. USE OF HOB - USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use, This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision orinstruction concerning use ofthe appliance by a person responsible fortheir safety. Children should be supervised to ensure thatthey do not play withthe appliance

3.1. USING THE GAS BURNER

To ignite the burners, place a lighted taper close tothe burner, press in and turn the control knob anti-clockwise. Ifthe burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape. For appliances fitted with electronic ignition carry outthe following

• push in and tum the knob anticlockwise to the ignition symbol. + ignite the bumer by pressing the sparker button. For hobs fitted with automatic ignition simply push in and turn the knob totheignition symbol. The ignition system will continue to generate sparks as long as the control knob is being pressed. Ithe burner has not ignited within 5 seconds, turn the knob to the O position and repeatthe operation For models fitted with a safety tap (which cuts-offthe flow of gas ifthe fiame is accidentally extinguished) the burners are ignited and described above, but care mustbe taken Prior to switching on the gas hob ensure that the burners and burner caps are correctiy placed within their position. GENERAL ADVISE For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A. Burner Type 9 pan / pot (cm) AUX Auxiliary Burner 12-18 SR Semi Rapid Burner 18-24 R Rapid Bumer 24-26 UR _ Ultra Rapid Burner 24-28 QC Double Ring Burner 24-28 Table A For smaller containers the gas burner should be regulated so that the flame does not overlap the base ofthe pan. Vessels with a concave or convex base should not be used

WARNING: If a flame is accidentally extinguished, turn the knob

to the off position and do not attempt to re-ignite if for at least 1 minute. If over the years the gas taps become st to turn it is necessary to lubricate them. Such operation must be carried out only by qualified Service Engineers. 06 GB-IE

Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply. Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections. “WARNING” - Do not use a steam cleaner to clean the hob. When cleaning the enamelled, vamished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution. The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace. is importantthe Burners are replaced correctly. Chromed grids and burners Chromed grids and burners have a tendency to discolour with use. This does notjeopardize the functionality ofthe hob. Our After Sales Service Centre can provide spare parts if required.

Before calling out a Service Engineer please check the following +thatthe plugis correctly inserted and fused: +thatthe gas supply is notfaulty. Ifthe fault cannot be detected Switch off the appliance and call the After Service Centre. DO NOT

6. PROTECTION OF THE ENVIRONMENT

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could M ctervise be caused by inappropriate waste handling ofthis product The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109. C Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequentamendments. The Manufacturer will not be responsible for any inaccuracy resulting from printing ortranscript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejiudice to the characteristics relating to safety or function. TAMPER WITH THE APPLIANCE. Table 1
