USER MANUAL Comfort 40.4 E AL-KO

Comfort 41.1 E Comfort 40.4 E

Inhaltsverzeichnis

Deutsch 8

English....21

Nederlands 33

Français....46

Español 60

Italiano....74

Slovenščina 87

Hrvatski....99

Српски....111

Polski....124

Česky 138

Slovenská 150

Magyar 163

Dansk 176

Svensk....188

Norsk 200

Suomi 212

Eesti 224

Lietuvių 236

Latviešu 248

Român 261

български 274

Русский 288

Україна....302

© 2024

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

01 1 2 3 4 5* 6 7 8 9 10 *: only Comfort 40.4 E

02 ① ② a ③ ∅4,8 x 13 b 03 ① ② ③ 2x 35 mm 25 mm 2x 2x ④ ⑤

04 ② b ↓ ③ a ↓ b 1 ④ 2x c

05 ① a a ②

06 a 1 1 2x Ø3,5 x 14

07 1 2 3 4 5 6 a b c

08 ① a b ②

09 ① a ① b

10 ① ② a ③ Comfort 40.4 E

11 Comfort 40.4 E a 1 CLICK

12 b Comfort 40.4 E ① a ② ③

13 ① ② a ③ ④

14 ① b ③ a ②

	Comfort 34.4 E Comfort 40.4 E
	114055 114056
	ca. 115 x 40 x 100 cm ca. 130 x 45 x 105 cm
	ca. 15,4 kg ca. 19,2 kg
	ca. 37 l ca. 43 l
	2,8 - 6,8 cm
	34 cm 40 cm
	112566	112567
	1200 W 1400 W
	2950 min-1+/-100
	230 V~ / 50 Hz
	IPX4
	Protection class II (i.e. enhanced or double insulation)
	-	X
	L_pA = 77,1 dB(A), K = 3,0 dB(A) L	_pA = 84,5 dB(A), K = 3,0 dB(A)

Comfort 34.4 E Comfort 40.4 E

Measured: LwA = 88,57 dB(A), K = 0,66 dB(A) Guaranteed: LwA = 96 dB(A)

Measured: LwA = 95,23 dB(A), K = 0,62 dB(A) Guaranteed: LwA = 96 dB(A)

Left handle: a_hv = 2,224 m/s^2 , Right handle: a_hv = 2,414 m/s^2 , K = 1,5 m/s²

Left handle: a_hv = 2,019 m/s^2 , Right handle: a_hv = 2,175 m/s^2 , K = 1,5 m/s²

1 About these operating instructions...... 21

1.1 Symbols on the title page 21

1.2 Legends and signal words...... 22

2 Product description 22

2.1 Designated use.... 22

2.2 Possible foreseeable misuse.... 22

2.3 Residual risks 22

2.4 Safety and protective devices...... 22

2.5 Symbols on the appliance.... 22

2.6 Product overview (01).... 23

2.7 Scope of supply 23

3 Safety instructions.... 23

3.1 General electrical machine safety warnings 23

3.1.1 Work area safety 23

3.1.2 Electrical safety 23

3.1.3 Personal safety.... 24

3.1.4 Electrical machine use and care . 24

3.1.5 Service 25

3.2 Lawnmower safety warnings ..... 25

3.3 Vibration load.... 25

3.4 Noise pollution 26

4 Assembly.... 26

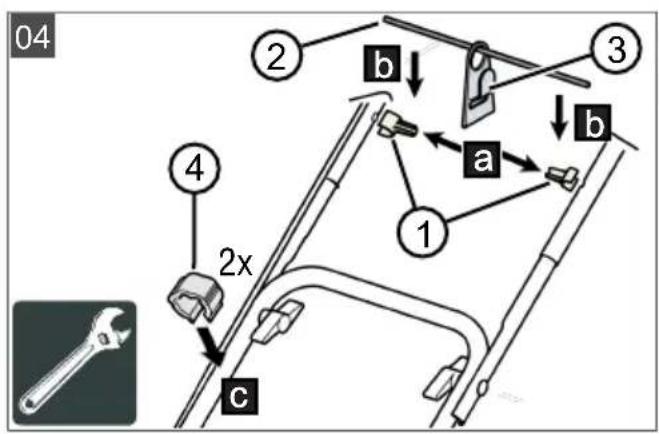

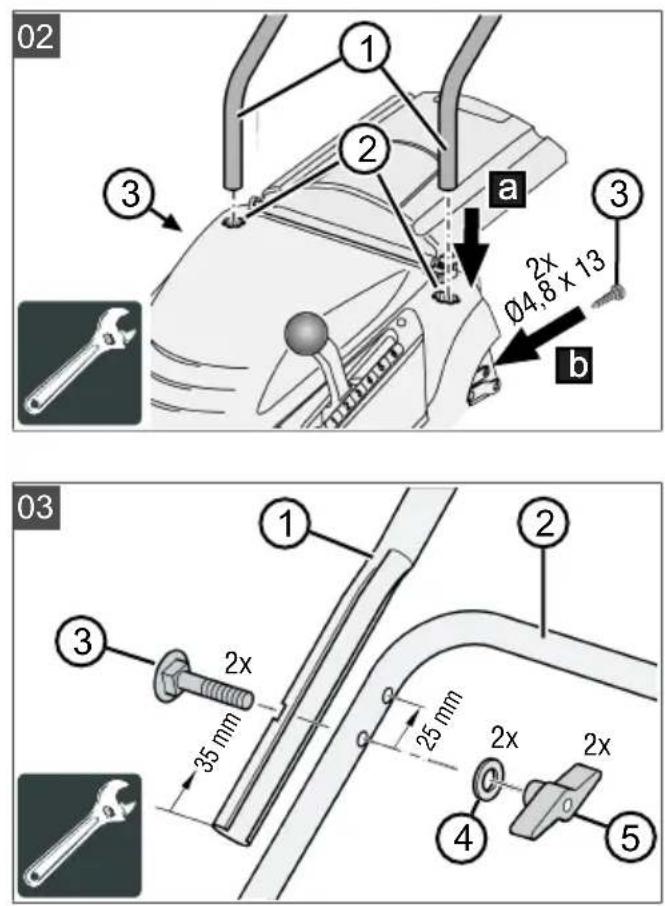

4.1 Installing the handlebars (02 - 04) .... 26

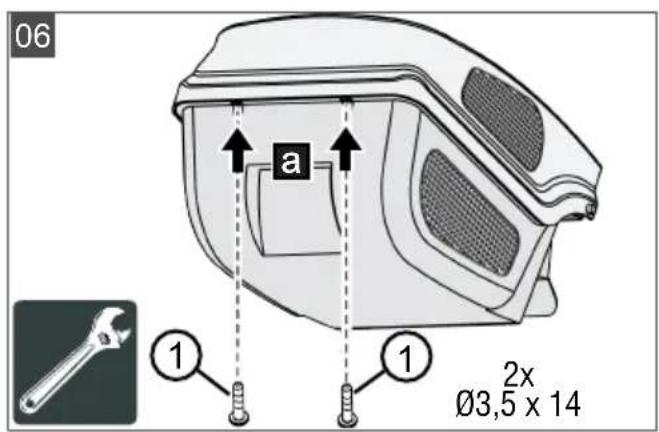

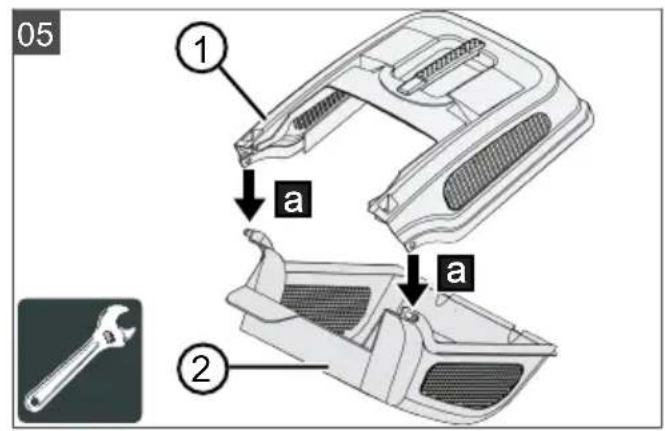

4.2 Installing the grass catcher (05, 06)... 27

5 Start-up 27

5.1 Providing the mains cable and checking the mains connection.... 27

6 Operation 27

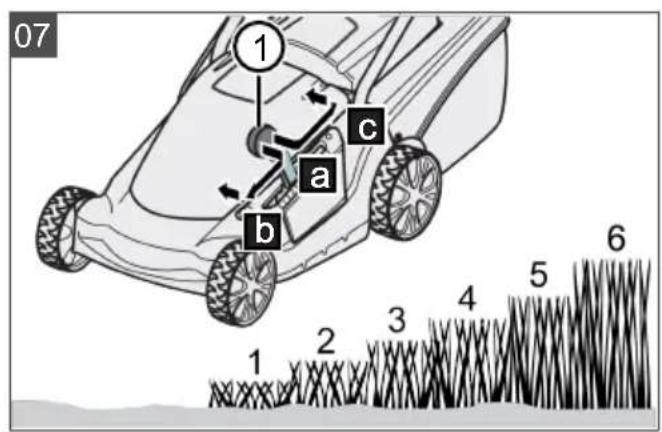

6.1 Setting the cutting height (07)...... 27

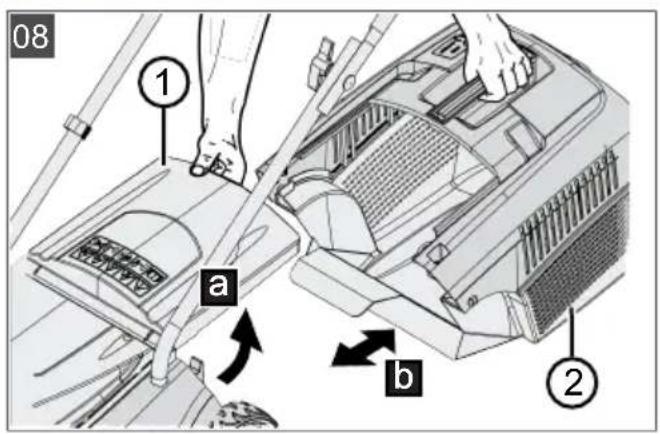

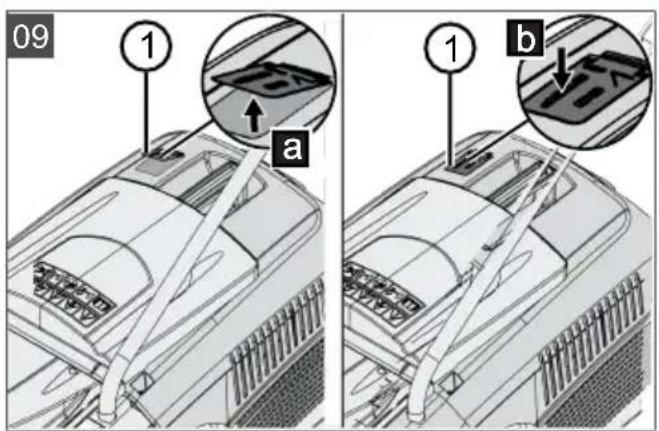

6.2 Mowing with grass catcher (08, 09)... 28

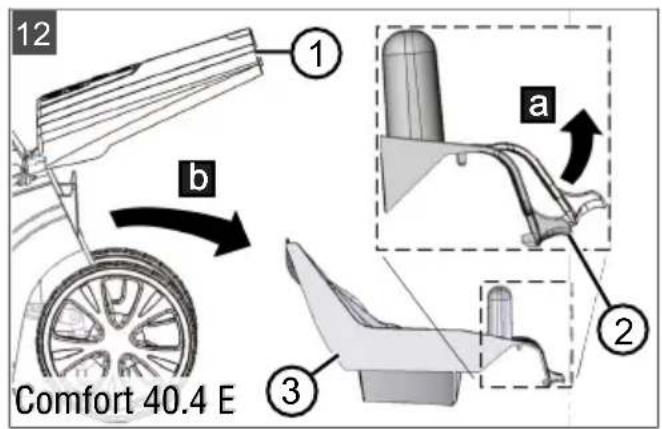

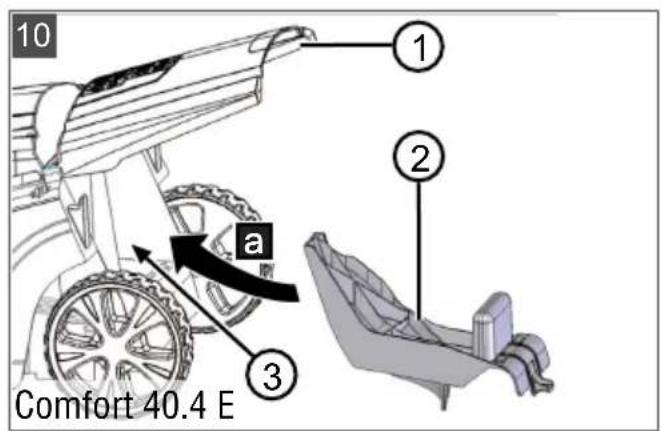

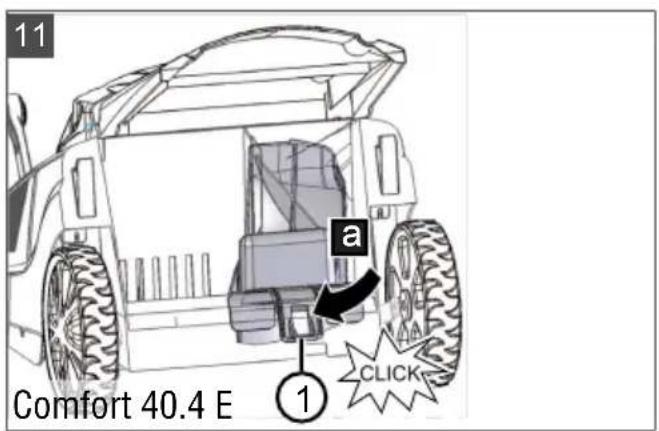

6.3 Mulching with mulching insert (10–12) ^* 28

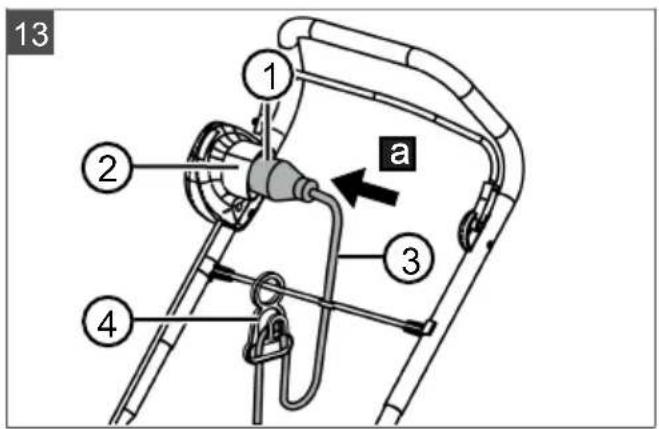

6.4 Establishing the mains connection (13) 28

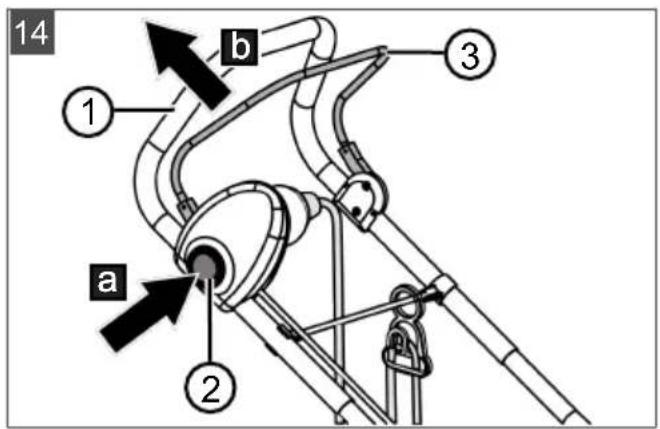

6.5 Starting and stopping the mower mechanism (14).... 28

7 Work instructions 29

8 Maintenance and care 29

8.1 Regular maintenance work 29

8.2 Cleaning the appliance and mower mechanism.... 30

8.3 Checking and renewing the cutting blade 30

8.4 Repair work 30

9 Help in case of malfunction 30

10 Transport 31

11 Storage.... 31

12 Disposal.... 31

13 After-Sales/Service.... 32

14 Information on the Declaration of Confor- mity 32

15 Warranty.... 32

1 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.

- Keep these operating instructions in a safe place at all times so that they can be consulted if you need any information about the appliance.

■ Only pass on the appliance to other persons together with these operating instructions.

■ Comply with the safety and warning information in these operating instructions.

1.1 Symbols on the title page

Symbol Meaning

It is essential to read through these operating instructions carefully before start-up. This is essential for safe working and trouble-free handling.

Symbol Meaning

Operating instructions

To avoid electric shock, do not damage or cut the power cable!

1.2 Legends and signal words

⚠️ DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.

WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.

CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT! Denotes a situation which can result in material damage if not avoided.

NOTE Special instructions for ease of understanding and handling.

2 PRODUCT DESCRIPTION

This documentation describes electric lawn mowers with grass catcher. Some models are also suitable for mulching.

Identify your model based on the product images and the description of the different options.

2.1 Designated use

This appliance is intended for the mowing of lawns and may only be used on dry grass.

This appliance is intended solely for use in non-commercial applications. Any other use as well as unauthorised conversions or modifications are regarded as contrary to the intended use and will result in voiding of the warranty as well as loss of conformity; the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

2.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

• Do not use the appliance in the rain or on wet grass.
  There must be no foreign objects on the area to be mowed, e.g. stones, pieces of wood, bottles.
  ■ Installed safety devices must not be removed or bypassed, e.g. by tying the operator presence control to the handlebar.

2.3 Residual risks

Even during correct use of the appliance, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the appliance:

■ Throwing out of cuttings, soil and small stones.
■ Inhalation of cuttings particles if no breathing protection is worn.
■ Lacerations from reaching into the rotating cutting blade.

2.4 Safety and protective devices

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

Operator presence control

The appliance is equipped with an operator presence control. In an emergency, simply release the operator presence control. The motor and mower mechanism are stopped.

Start button (on the handlebar)

To be able to switch on the motor using the operator presence control, the start button must be pressed beforehand.

Baffle

The baffle offers protection against e.g. material particles and stones which can be flung out.

2.5 Symbols on the appliance

Symbol Meaning

Pay special attention when handling this appliance!

Symbol Meaning

Read the operating instructions before starting operation!

Danger of electric shock if the mains cable is damaged!

Warning – Keep the supply cord away from the blades!

Risk of objects being thrown out! Warning – Beware of thrown objects – Keep bystanders away!

Risk of injury!

Warning – Keep hands and feet away from the blades!

Warning – Remove plug from mains before maintenance or if cord is damaged!

The appliance is protected against splashing water.

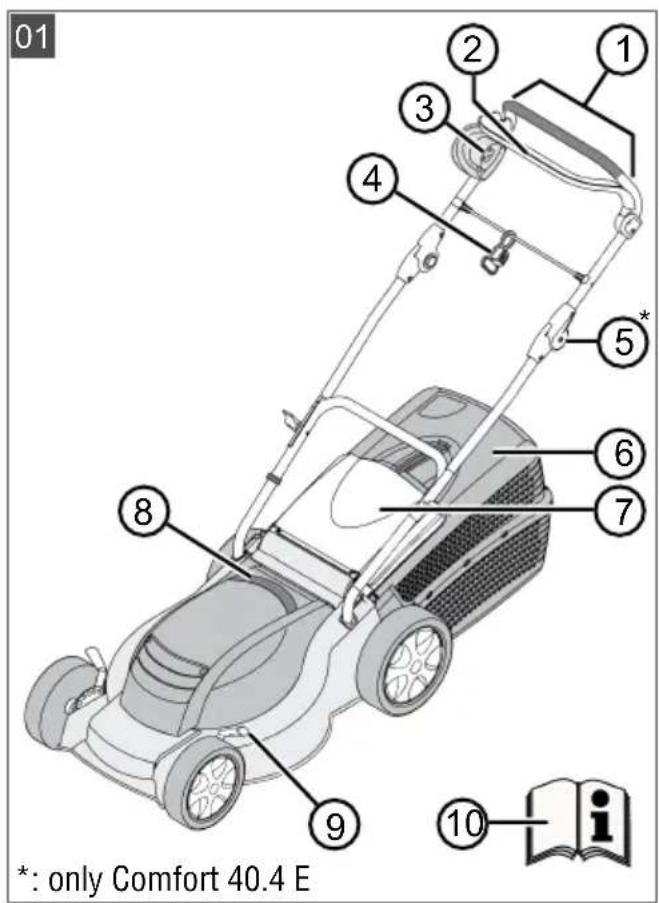

2.6 Product overview (01)

No. Component

1 Handlebar with gripping surface

2 Operator presence control

3 Switch/plug combination

4 Cable strain relief bracket

5 Ergonomic height adjustment*

6 Grass catcher with handle

7 Baffle

8 Front carry handle

9 Cutting height adjustment

10 Operating instructions

*: only Comfort 40.4 E.

2.7 Scope of supply

The items listed here are included in the standard scope of supply. Check that all items are present:

• Operating instructions
  Upper brace
  Lower brace
  Grass catcher upper part
  ■ Grass catcher lower part
  ■ Bag with nuts and bolts
  ■ Cross-strut with strain relief bracket
  Cable clips (2x)

3 SAFETY INSTRUCTIONS

3.1 General electrical machine safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

■ Save all warnings and instructions for future reference.

The term "machine" in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.

3.1.1 Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate machines in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.

3.1.2 Electrical safety

The machine plug must fit into the plug socket. Never modify the plug in any way. Do not use adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not operate the lawnmower in rain or wet conditions. This may increase the risk of electric shock.
• Do not abuse the mains cable. Never use the mains cable for carrying, pulling or unplugging the machine. Keep mains cable away from heat, oil, sharp edges or moving parts. Damaged or entangled mains cables increase the risk of electric shock.
• When operating a machine outdoors, use an extension lead suitable for outdoor use. Use of an extension lead suitable for outdoor use reduces the risk of electric shock.
  If operating a machine in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3.1.3 Personal safety

■ Stay alert, watch what you are doing and use common sense when operating a machine. Do not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine. Carrying machines with your finger on the switch or energising machines that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles. A careless action can cause severe injury within a fraction of a second.

3.1.4 Electrical machine use and care

• Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
• Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machines. Such preventive safety measures reduce the risk of starting the machine accidentally.
  ■ Store idle machines out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate the machine. Machines are dangerous in the hands of untrained users.
• Maintain machines and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machines.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ■ Use the machine, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the machine for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slip-

pery handles and grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.

3.1.5 Service

■ Have your machine serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the machine is maintained.

3.2 Lawnmower safety warnings

• Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
  ■ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
  ■ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
  ■ Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
  Before use, check the supply cord and any extension cord for signs of damage or aging. Do not use the lawnmower if the cord is damaged or worn. If the cord is damaged or worn during use, switch off the lawnmower and do not touch the cord before disconnecting it from the supply. A damaged supply cord or extension cord may result in electric shock, fire and/or serious injury.
• Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
• Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
• Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
  ■ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the

chance of injury to the feet from contact with the moving blade.

■ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
- Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
- Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
■ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
- Keep the supply cord away from the cutting blades. A damaged supply cord may result in electric shock, fire and/or serious injury.
- Switch off and remove plug from mains if the cord is entangled or damaged. Entangled or damaged cords can increase the risk of electric shock.
- Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
- When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the power cord is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.

3.3 Vibration load

Vibration total values and noise emission values

The declared vibration total values and noise emission values have been measured according to a standardised test method and can be used to compare one power tool with another.

The declared vibration total values and noise emission values can also be used for an initial assessment of the exposure.
The vibration total values and noise emission values may differ from the given value during actual use of the power tool, depending on how the power tool is used.
Adhere the safety measures according to the safety chapter. Try to keep the vibration load as low as possible. Exemplary measures to reduce vibration are the wearing of gloves when using the tool and the limitation of working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and those in which it is switched on but runs without load).

Danger due to vibration

The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the following influencing factors before or during use:

Is the appliance being used as intended?
Is the material being cut or processed in the proper manner?
Is the appliance in a proper condition of use?
Is the cutting tool properly sharpened or is the correct cutting tool installed?
Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appliance?

■ Only operate the tool at the motor speed required for the respective work. Avoid using the maximum speed in order to reduce noise and vibrations.

The noise and vibrations of the tool may increase due to improper use and maintenance. This leads to health damage. In this case, immediately switch off the tool and have it repaired by an authorised service workshop.

The degree of stress due to vibration depends on the work to be performed or on the use of the tool. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vibration over the entire working time.

■ Extensive use of the tool exposes the operator to vibrations, which can lead to circulatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If

any symptoms of "white fingers" occur, immediately consult a physician. These symptoms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increases at low temperatures.

Take long breaks during your working day so you can recover from the noise and the vibrations. Plan your work in such a way that the use of appliances that generate strong vibrations is spread over several days.
If you notice an unpleasant sensation or discoloration of the skin on your hands when using the tool, stop work immediately. Take sufficient work breaks. Without sufficient breaks, a hand/arm vibration syndrome can occur.
- Minimise your risk of being exposed to vibrations. Maintain the tool according to the instructions in the operating instructions.
If the tool is used frequently, contact your dealer to purchase anti-vibration accessories (e.g. handles).
- Avoid working with the tool at temperatures below 10 °C. Define how the vibration load can be limited in a work plan.

3.4 Noise pollution

A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods. Observe rest periods as necessary and restrict the duration of the work to a minimum. For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.

4 ASSEMBLY

WARNING! Danger if assembly is not carried out completely! Use of an incompletely assembled device can result in serious injury.

■ Only use the device when it is fully assembled!
■ Before switching on, check that all safety and protective devices are in place and functioning correctly!

4.1 Installing the handlebars (02 - 04)

Installing the lower brace (02) on the housing

1. Push lower brace (02/1) into the housing holes (02/2) as far as it will go (02/a) and screw in a ∅4.8 x 13 screw (02/3) on each side (02/b).

Install the upper brace (03) the lower brace

1. Fasten upper brace (03/1) to lower brace (03/2) using screw (03/3), washer (03/4) and wing nut (03/5) on both sides.

Install retaining parts on the braces (04)

1. Attach brackets (04/1) for cross strut (04/2) on both sides (04/a).
2. Push strain relief bracket (04/3) onto the cross strut.
3. Insert the cross strut together with the strain relief bracket into the brackets (04/b).
4. Attach the two cable clips (04/4) to the brace as required (04/c).

4.2 Installing the grass catcher (05, 06)

Assemble the grass catcher parts (05)

1. Push upper part (05/1) onto the pins of lower part (05/2) of the grass catcher (05/a).

Secure the grass catcher parts (06)

1. Fold the two parts of the grass catcher together and insert two screws ∅3.5 x 14 (06/1) (06/a).

5 START-UP

5.1 Providing the mains cable and checking the mains connection

Heed the safety instructions for the mains cable (see chapter 3.1.2 "Electrical safety", page 23).

Requirements for the mains cable

Provide a mains cable that complies with the following requirements:

■ 3 conductors with a minimum cross-section of 2.5 mm (i.e. with protective conductor)
■ Maximum length of 40 m
■ Spray water protected (protection category IP44)
■ Suitable for outdoor use (H05RN-F quality, i.e. rubber hose cable)

Requirements for the mains connection

■ Use a fuse with at least 10 A tripping current.
■ Use residual current device with a tripping current of 30 mA or less.

6 OPERATION

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Before switching on, check that all safety and protective devices are in place and functioning correctly!

WARNING! Risk of injury. Unintentional switching on can lead to serious injuries.

■ Each time before work breaks and maintenance work: Switch off the appliance and disconnect the mains plug from the mains power supply.

WARNING! Risk of injury in abnormal operating conditions. Immediately stop the lawn-mower and remove the power plug from the socket. Then check whether all moving parts are completely stationary:

■ After hitting a foreign object: Check the lawnmower for damage and repair it. Only then switch the lawnmower on again and put it into operation.
If the lawnmower vibrates abnormally: Check the lawnmower immediately for damage. Replace or repair damaged parts. Look for loose parts and reattach them.

IMPORTANT! Hazard to damage the appliance. If the cutting blade jams, the motor may be overloaded.

■ Clean the mower mechanism after each use.
■ Set a higher cutting length.
- Cut taller grass and thicker vegetation gradually.

6.1 Setting the cutting height (07)

CAUTION! Danger of lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Only adjust the cutting height when the motor is switched off and the mower mechanism is stationary.

1. Pull lever (07/1) outwards to disengage it (07/a) and hold.

■ For short grass, push the lever towards the front wheel (07/b).
■ For longer grass, push the lever towards the grass catcher (07/c).

1. Release the lever and push slightly forwards or back until it engages at the required level.

6.2 Mowing with grass catcher (08, 09)

Hooking in the grass catcher

1. Make sure that the appliance is switched off and the mower mechanism has come to a standstill.
2. Removing the mulching insert (see chapter 6.3 "Mulching with mulching insert (10–12)*", page 28).
3. Raise baffle (08/1) (08/a).
4. Hook the grass catcher (08/2) into the holders (08/b).
5. Release the baffle.

Fill level indicator (option)

The fill level indicator (09/1) is pressed upwards by the air stream when mowing (09/a). If the grass catcher is full, the fill level indicator presses against the grass catcher (09/b). The grass catcher must be emptied.

Unhooking and emptying the grass catcher

CAUTION! Danger of lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Only remove the grass catcher when the mower mechanism has stopped.

1. Make sure that the appliance is switched off and the mower mechanism has come to a standstill.
2. Raise baffle (08/1) (08/a).
3. Lift the grass catcher (08/2) out of the holders and take off to the rear (08/b).
4. Empty the grass catcher.
5. Clean the air outlet holes of the fill level indicator.
6. Hook in the grass catcher again (see above).

6.3 Mulching with mulching insert (10–12)\*

* on Comfort 40.4 E only.

When mulching, the cuttings are not collected but remain on the lawn. The mulch protects the ground from drying out and supplies it with nutrients. The best results are achieved through regularly cutting back by approx. 2 cm. Only new grass with soft leaf tissue rots quickly.

■ Grass height before mulching: max. 8 cm
■ Grass height after mulching: min. 4 cm

NOTE Adjust the stepping speed of the mulching, do not go too quickly.

Installing the mulching insert (10, 11)\*

1. Switch off the appliance and disconnect the mains plug from the mains.
2. Remove the grass catcher.
3. Lift the baffle (10/1) and insert the mulching insert (10/2) in the discharge channel (10/3) (10/a). The interlock (11/1) must engage (11/a).

Removing the mulching insert (12)\*

1. Switch off the appliance and disconnect the mains plug from the mains.
2. Raise the baffle (12/1).
3. Release the locking mechanism (12/2) on the mulching insert (12/a).
4. Pull out (12/b) the mulching insert (12/3).

6.4 Establishing the mains connection (13)

1. Firmly plug socket (13/1) of the mains cable into plug (13/2) on the handlebar (13/a).
2. Secure mains cable (13/3) in cable strain relief bracket (13/4) so that it cannot be pulled off the plug.

The loop of the mains cable must be long enough for the cable strain relief bracket to slide from one side to the other.

6.5 Starting and stopping the mower mechanism (14)

Start the mower mechanism on level ground and not in long grass. The ground must be free of foreign objects such as stones, etc. Do not lift or tilt the appliance to start it.

NOTE Permitted operating position: You stand behind the lawnmower and hold the handlebar with both hands.

Starting the mower mechanism

1. Stand at the operating position and grasp the handle surface of the handlebar (14/1).
2. Press the start button (14/2) and hold (14/a).
3. Pull the operator presence control (14/3) towards the handlebar (14/b). The motor and mower mechanism are started.
4. Release the start button and keep holding the operator presence control.

NOTE The safety handle/operator presence control does not lock in place. Hold it firmly against the handlebar during the entire working period.

Stopping the mower mechanism

1. Release the operator presence control. It automatically returns to its starting position.
2. Wait for the mower mechanism to come to a standstill.

CAUTION! Danger of cuts and lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Wait until the mower mechanism has stopped.
Before all maintenance and care work: Switch off the appliance and wait until the mower mechanism has stopped. Disconnect the mains plug from the mains power supply.

7 WORK INSTRUCTIONS

Observe the safety instructions!

i NOTE Comply with the local regulations as to when a lawnmower may be operated.

• Watch out for objects in the grass and remove them from the working area.
  ■ Mow only when visibility is good.
  ■ Mow only with a sharp cutting blade.
  ■ Steer the appliance only by the handlebar.
  ■ Move the appliance only at walking speed.
  ■ Always move the appliance across the slope. Do not mow up or down the slope, or on slopes with a gradient of more than 10^ . Exercise particular care when changing the working direction.
  ■ Start mowing as close as possible to the power socket.
  ■ Always route the extension lead over the section of lawn already mowed.

Cutting speed

The cutting speed or the area that can be mowed depends on the characteristics of the lawn. Factors such as the length of the grass, the grass density, the selected cutting height and wet grass affect the cutting speed.
To optimise the cutting speed, we recommend that you mow the lawn frequently, set a high cutting height and move the appliance at walking speed.

Tips for mowing

- Maintain a constant cutting height of 3–5 cm; do not mow the lawn to less than half its original height.

• Do not overload the lawn mower! If the motor speed drops noticeably because of long, thick grass, increase the cutting height and mow in several passes.
  The wind and sun can dry out the lawn after mowing so it is better to mow in the late afternoon.
  During phases of strong growth, mow twice a week; during dry periods, increase the intervals between mowing accordingly.

8 MAINTENANCE AND CARE

⚠️ DANGER! Risk of injury or death due to improper maintenance. Maintenance work carried out by unqualified persons and the use of non-approved spare parts can result in serious injuries and even death during operation of the appliance.

• Do not remove or deactivate any safety installations.
  ■ Use only approved OEM spare parts.
  ■ Ensure through regular and proper maintenance that the appliance is in a clean and functional condition at all times.

WARNING! Risk of injury during maintenance work. Improper maintenance can result in serious injury and damage to the appliance.

■ Disconnect the appliance from the mains before starting maintenance work.
■ Have repairs to the appliance carried out only by qualified companies.

WARNING! Risk of injury from electric shock. A defective power cord or an defective interconnection cord can result in serious injuries due to electric shock.

■ To avoid safety risks, always have defective cables replaced by the manufacturer or a service center.

8.1 Regular maintenance work

■ Make sure that all nuts, bolts and screws are tightened and the appliance is in a safe working condition.
- Check the grass collector regularly for correct operation and wear.

8.2 Cleaning the appliance and mower mechanism

IMPORTANT! Danger from water. Water in the appliance causes short-circuits and destroys electrical components.

■ Do not spray the appliance with water.
■ Only use a broom or a brush for cleaning.

1. Stop the motor.
2. Disconnect the mains plug from the mains.
3. Remove the grass catcher.
4. Fold down the handlebar.
5. Tilt the appliance and clean the mower mechanism.

8.3 Checking and renewing the cutting blade

Recommended cutting blades: see technical data.

WARNING! Severe injuries due to blade parts being flung out. A worn, cracked or damaged cutting blade can break, and its parts can become dangerous projectiles.

■ Regularly check the cutting blade for damage.
- Do not use the lawnmower if the cutting blade is worn or damaged.
- Have blunt or damaged cutting blades sharpened or replaced only by one of the manufacturer's service centres or an authorised specialist company.
- When servicing the cutting blade to be aware that, even though the power source is switched off, the cutting blade can still be moved.
- Be careful during adjustment of the machine to prevent entrapment of the fingers between moving cutting blades and fixed parts of the machine.

■ To avoid vibrations, the cutting blade and blade bolt must always be replaced together.
■ Resharpened cutting blades must be balanced. Unbalanced cutting blades cause strong vibrations and damage the appliance.
■ The cutting blades and motor shaft must not be aligned!
■ Warning! Do not insert the blade reversely.
■ After maintenance work on insulated parts (e.g. replacement of the cutting blade), an insulation protection check must be carried out in accordance with VDE Directive 701.

8.4 Repair work

WARNING! Risk of injury during repair work. Improper repairs can lead to serious injuries and damage to the appliance.

■ Have repair work performed by the manufacturer's service centres and authorised specialist companies only!

In the following cases, contact one of the manufacturer's service centres:

■ Motor no longer starts.
■ Appliance has run onto an obstacle.
■ Cutting blade and/or motor shaft are bent.
■ Appliance vibrates and does not run smoothly.
■ Mains cable or mains plug are damaged.

9 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury. Sharp-edged and moving appliance parts can lead to injury.

■ Always wear protective gloves during maintenance, care and cleaning work!

NOTE For malfunctions that are not listed in this table or that you cannot resolve yourself, please contact our customer service.

Malfunction Cause Remedy
Motor does not start.	Cutting blade is blocked.	■ Clean the discharge channel and housing. The cutting blade must rotate freely. ■ Start the lawn mower on short grass.
	Cables or switches are defective.	Do not operate the appliance! Contact one of the manufacturer's service centres.
	Mains cable is defective. Replace the defective mains cable.
Engine loses power.	Cutting blade is blunt. Have the cutting blade sharpened at one of the manufacturer's service centres.
	Too much grass in the discharge channel or housing.	Clean the discharge channel and housing.Correct the cutting height.
Motor stops during mowing.	Motor is overloaded. Switch off the lawn mower, set down on level ground or short grass and restart.
	Grass is wet. Allow the lawn to dry.
Grass catcher is not filled sufficiently	Grass catcher is clogged. Clean the grid of the grass catcher.
	Too much grass in the discharge channel or housing.	Clean the discharge channel and housing.Correct the cutting height.
	Cutting blade is blunt. Have the cutting blade sharpened at one of the manufacturer's service centres.
	Cutting height is too low. Increase the cutting height.

10 TRANSPORT

IMPORTANT! Risk of damage to the mower mechanism. At the lowest cutting height, the mower mechanism can be damaged by driving over steps, edges or kerbs.

■ Set the cutting height to the highest level for transport.

1. Stop the mower mechanism and wait until it has come to a standstill.
2. Set the highest cutting height.
3. Empty the crass catcher.
4. Unplug the mains cable

Transporting the lawnmower between two working areas

To move, tilt the appliance onto its rear wheels if necessary.
■ Use the front carrying handle to carry the appliance. If necessary, unhook the grass catcher box and carry it separately.

Transporting the lawnmower in a vehicle

■ Fold down the handlebar.
- Secure the appliance in the vehicle against falling over and sliding.
- Secure the appliance against impacts from loose objects.
■ Do not place objects on the appliance.

11 STORAGE

■ Thoroughly clean the appliance after each use and – if present – attach all covers.
■ Perform the required maintenance works.

■ Store the appliance in a dry, lockable place out of the reach of children.

1. Empty the grass catcher.
2. Switch off the appliance and disconnect from the mains power supply!
3. Set the cutting height to the highest level.
4. Allow the motor and the entire appliance to cool down.
5. Thoroughly clean the appliance.
6. Apply a thin coat of oil or silicon to all metal parts for corrosion protection.
7. Fold down the handlebar.
8. Store the appliance in a dry, clean location protected from frost. Cover with a breathable tarpaulin to protect against dust. Do not use plastic film in order to avoid the accumulation of moisture.

CAUTION! Risk of injury. If the appliance is accessible to children and unauthorised persons during storage, this can result in injury.

■ Store the appliance out of the reach of children and unauthorised persons.

12 DISPOSAL

Information on the German Electrical and Electronic Equipment Act

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately!

- Owners or users of electrical and electronic appliances are obliged by law to return them after use.

The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.

Electrical and electronic appliances can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) if dealers are obliged to take them back or offer this voluntarily.

These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

13 AFTER-SALES/SERVICE

In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. These can be found on the Internet at:

www.alko-garden.com/service-contacts

Further information on spare parts can be found at:

www.alko-garden.com/spareparts

14 INFORMATION ON THE DECLARATION OF CONFORMITY

We hereby declare, as the exclusively responsible party, that this product in its marketed form meets the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. The Declaration of Conformity forms part of the operating instructions and is included with the machine.

15 WARRANTY

We will remedy any material or manufacturing defects discovered in the device during the statutory period of limitation for claims for defects by repair or replacement at our discretion. The period of limitation is determined in each case by the law of the country in which the device was purchased.

Our warranty promise applies only if:

■ These operating instructions are observed
■ The device is handled correctly
■ Original spare parts have been used

The warranty does not include:

■ Paint damage attributable to normal wear
■ Wear parts that are marked with a box xxxxxx (x) on the spare parts card

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
■ Use for other than the intended purpose

The warranty period commences with the purchase by the first end user. The date on the proof of purchase is decisive. In the event of a warranty claim, please contact your dealer or the nearest authorised customer service centre with this declaration and the original proof of purchase. This declaration does not affect the purchaser's statutory claims for defects against the vendor.

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING Inhoudsopgave

2 PRODUCTOMSCHRIJVING

8 VEDLIKEHOLD OG PLEIE

Imported by: AL-KO Gardentech UK Ltd, Murray way, Wincanton, Somerset, BA9 9RS / UK | [phone]

[e-mail] | www.alko-garden.uk
