USER MANUAL HJS-MS20 MSW

MSW Production Product Name: Hydraulic Cylinder Fusier H107-045-8193 Cement: No. 1000000000000000000000000000000000000000000000000000000000000000000 CE Production Test: Sears No. 2024 Manufacturer: Puganda Hydrogen Co., Ltd. Product Name: No. 107-045-8193 Cement: No. 107-045-8193 Puls. Pressure: 760 lb. ©2024

Close-up of a metallic mechanical component with threaded and threaded ends (no visible text or symbols)

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description Parameter value
Product name Hydraulic cylinder
Model	MSW-HJS-MS20
Capacity max loading [ton] 20
Max pressure [bar] 700
Dimensions [width * length * height; mm] 80*140*55
Weight [kg] 2.8

Description

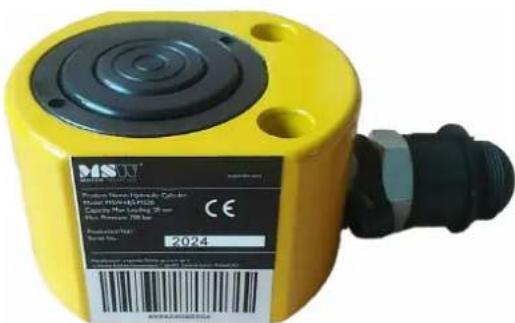

MOSV MOSV® Product Name: MOSV® Product ID: MOSV-0150 Capacity: Max Loading: 30 mm Max. Minimum: 700 bar Release Date: 2024 Product name: MOSV® Product ID: MOSV-0150 Copyright © 2024

This product is designed to lift, support, and apply controlled force, making it ideal for various applications in the power, chemical, mechanical, and industrial sectors.

Note: This product is not suitable for automotive use.

This product must be used in conjunction with a hydraulic pump, as standalone use will not provide sufficient pressure for normal operation.

Note: The pump is not included in the product packaging.

Each hydraulic cylinder is sold individually and is not part of a set.

Model Variations:

• The 10T and 20T models consist of two sections.
- Models 30T and above consist of three sections.

Hydraulic Pump Compatibility:

• The 10T/20T models require the MSW-HPM-01 hydraulic pump.
  • The 30T/50T/100T models can be used with either the MSW-HPM-01 hydraulic pump or an electric pump.

The user is liable for any damage resulting from unintended use of the device.

Parameter of the connector

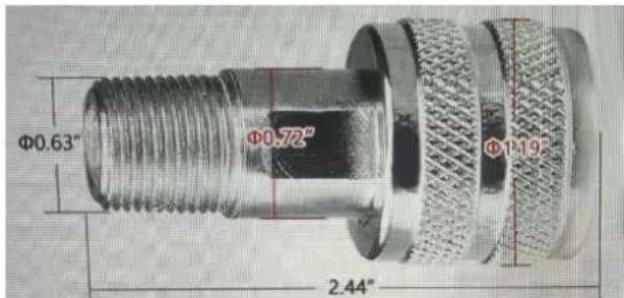

Φ0.63" Φ0.72" Φ1.19" 2.44"

ZG 3/8" female connector on the pump

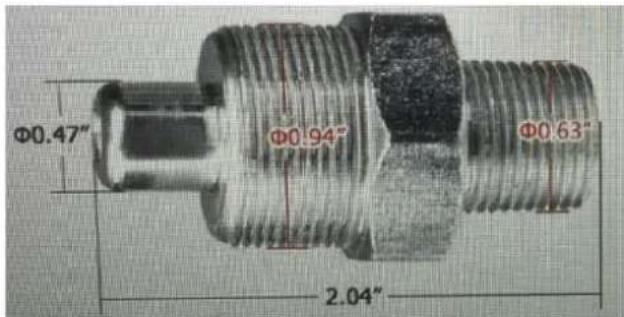

Φ0.47" Φ0.94" Φ0.63" 2.04"

ZG 3/8" male connector on the cylinder

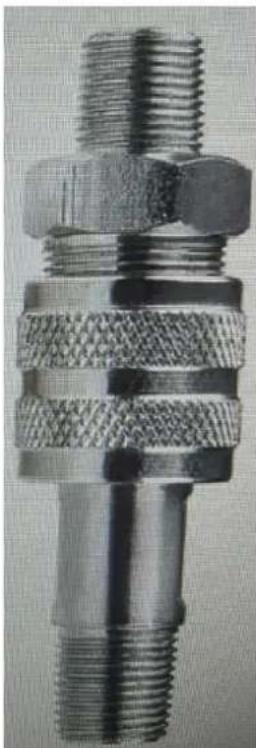

Close-up of a metallic mechanical component with threaded end and textured surface (no visible text or symbols)

The perfect connection

Operation

Working environment

Ensure the product operates within suitable environmental conditions (-10°C to +40°C, relative humidity 70%). Using it in extreme conditions may reduce the service life of the hydraulic cylinders.

For proper functioning, all hydraulic cylinders must be placed on a flat, solid surface. Placing it on loose or sandy ground may lead to damage.

Installation instructions

1. Inspect the hydraulic cylinder thoroughly for any external transport damage before unpacking.

2. Ensure all components are free from dust, hazardous materials, and moisture. Verify that hoses, pipes, and hydraulic parts are clean and free from any unsuitable liquids, abrasive particles, or contaminants. Confirm that all hoses, pipes, and valves are properly connected.

3. Before installation, lubricate all bearings and pins (if applicable) on the hydraulic cylinder.

4. Ensure no lateral loads act on the cylinder's centre section. All load forces must align fully parallel to the cylinder's axis, as lateral or radial loads can lead to irreversible damage.

5. Attach the quick connector of the pump to the hydraulic cylinder. Select the desired position, then tighten the hydraulic pump drain screw on the hydraulic pump to begin operation.

6. Secure all hydraulic connections, and fully hand-tightening couplers to ensure proper oil flow between the pump and cylinder.

7. After use, to lower the piston rod, turn the manual oil control knob slightly counterclockwise. This allows the hydraulic cylinder to release pressure, causing the piston rod to gradually descend. DO NOT Release it too quickly, which may cause a dangerous sudden drop.

Note: After the pressure is released, the piston will not retract by itself, please press the hydraulic cylinder firmly manually.

WARNING!

- Keep clear of the piston rod's path and exercise caution when connecting hose couplings.

- Note that adding attachments or extensions to a hydraulic system reduces the cylinder's capacity to that of the lowest-rated component in use. To prevent plunger rotation during attachment, extend the plunger and apply sufficient pump force to secure it while adding the attachment or extension.

Leakage check

1. Inspect visually for any leaks around the hydraulic cylinder.

2. If no leaks are observed, conduct a low-pressure test (up to 25% of the rated pressure).

3. Test the cylinder in both extended and retracted positions, holding each for 5 minutes to confirm stable pressure.

4. Perform a high-pressure test (design pressure) with the cylinder fully extended and retracted, holding each position for 5 minutes to verify the pressure stability at specified levels.

5. Once all tests are completed with no detected issues, the hydraulic cylinder is ready for use.

NOTICE!

• This product is designed with a spring-return structure, allowing it to be removed quickly after lifting. However, DO NOT pull the cylinder using the attached hose.
• Do not exceed the maximum working pressure outlined in this manual.

Cleaning and maintenance

General maintenance

1. Inspect hydraulic cylinder parts monthly for signs of damage, corrosion, or wear.
2. Whenever possible, protect the hydraulic system and components from environmental hazards. Verify that joints and connectors are securely fastened; loose connections may result in oil leaks, causing both equipment damage and environmental contamination.
3. Regularly monitor oil temperature and cleanliness. Ensure the oil temperature does not exceed 70^ C to avoid damage to hydraulic cylinder gaskets.
4. Do not use high-pressure jet nozzles to clean the cylinder, as this may damage paint, gaskets, and bearings. Refrain from dismantling the hydraulic cylinder; if parts need replacement, contact us. Unauthorized dismantling will void the warranty.
5. Oil cleanliness inspections can be performed by certified hydraulic operators.

Maintenance of main components

- Piston rod

1. Grease the piston rod at least once a month. If the hydraulic cylinder is exposed to salt, it should be pressurized at least twice a week. This helps extend the service life of the hydraulic cylinder.
2. Inspect the piston rod surface monthly for any damage. The hydraulic cylinder's oil generally protects the piston rod.
3. Ensure the exposed portion of the piston rod (the area not in oil contact) is always protected.

- Cylinder body

1. Check for any paint damage or cracks monthly. All paint damage must be repaired immediately.

- Bearings

1. For hydraulic cylinders with bearings, grease or inspect the bearings monthly. Failing to grease bearings reduces their service life significantly.
2. Maintenance-free bearings may not be greased!

Storage

If the hydraulic cylinder will not be put into service immediately, take the following protective steps:

1. Transport and handling: Keep the piston rod fully retracted during transport and lifting.
2. Extended storage with rod extended: If the chromium-plated cylinder rod is extended during transport or storage, apply anti-corrosion grease to protect the exposed rod.

3. Long-term horizontal storage: If stored horizontally for over four months, slight pressure drops and/or oil leaks may occur between the chromium-plated rod and front cover. This results from continuous pressure on the piston gasket and front cover packing. To restore the seal's original shape, cycle the cylinder to full stroke approximately 10 times under pressure.

4. Periodic pressurization: Even when not in use, activate and pressurize hydraulic cylinders every 3-4 months to maintain the elasticity of gaskets and packings, ensuring they retain the necessary compressive strength and sealing capability. For outdoor storage after required operation cycles, reapply anti-corrosion grease to any extended rods. Ensure extended rods are shielded from mechanical damage, as such damage is not covered by the manufacturer's warranty.

5. Storage position: Store hydraulic cylinders in a horizontal position, free from any tension or load.
6. Storage conditions: Store hydraulic cylinders indoors at temperatures between -10^ and +40^ , in a dry environment shielded from direct sunlight. Relative humidity should ideally be below 70%.

Disposing of used devices

When the product becomes damaged or unserviceable due to normal mechanical wear, it must be disposed of in compliance with the applicable waste regulations of your country.

Troubleshooting

Problem	Possible
The cylinder will not extend	The pump not working properlyLoad exceeds the rated capacityCouplers are not fully tightenedThe pump release valve is not closedPump oil level is lowThe system is not properly connected
The cylinder extends too slowly	Leak in hydraulic connectionsCouplers are not fully tightenedThe pump is not working properly
The cylinder extends in uneven strokes	There is air in the hydraulic systemThe cylinder plunger is bindingThe pump is not working properly
The cylinder stops extending	The cylinder is at full extensionPump oil level is lowCouplers are not fully tightenedThe cylinder plunger is binding
The cylinder extends but does not hold pressure	Leak in hydraulic connectionsDamage to cylinder sealsThe system is not properly connectedThe pump is not working properly
The cylinder will not retract	Couplers are not fully tightenedRetraction spring damagedDamage to cylinder internal componentsThe pump release valve is not openThe pump oil level is over-filledThere is a restriction in the return line
Oil leaks from the cylinder relief valve	There is a restriction in the return lineCouplers are not fully tightened
Oil leaks from cylinder	Damage to cylinder sealsDamage to internal componentsCouplers are not fully tightened
