USER MANUAL AIS8530 PHILIPS

Black handheld device with attached earbell and control panel, no visible text or symbols

Simple line drawing of an open book with a grid pattern on the left and a closed page on the right (no text or symbols)

-1

-1

1_

1

-1

1_

-1

1

English 6

Azərbaycanca 33

Bahasa Indonesia 61

Bahasa Melayu 89

Čeština 117

Dansk 145

Deutsch 172

Eesti 200

Español 228

Français 256

Hrvatski 284

Italiano 312

Latviešu 340

Lietuviškai 368

Magyar 396

Nederlands 424

Norsk 452

O'zbek 479

Polski 507

Português 535

Exploded view diagram of a vacuum cleaner with numbered parts for identification

1 Iron head
2 Steam supply hose
3 Iron dock
4 Iron dock arm
5 Pole
6 Pole clips
7 Wheels
8 Stand
9 Base
10 Water tank
11 Power button with light
12 Hanger hook
13 Ironing Board

14 Board cover

Preparing for use

Warnings

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

1 Hot steam is emitted from the iron. Never attempt to point to iron at someone while the iron is emitting steam.

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

2 Do not apply steam near your or someone else's hand.

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

3 Do not use your hand as a back support for the garment.

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

4 Do not leave the iron on the board. The steam hose may pull down and drop the iron.

8 English

Illustration of a desk lamp with a red X mark and a black triangular head (no text or symbols)

5 Do not place the iron unevenly on a surface.

Illustration of a desktop computer with a red X mark and cable, no text or symbols present

6 Do not leave the steam plate exposed.

Illustration of a robotic arm with a green checkmark on the handle (no text or symbols)

7 Place the iron on the dock when not in use.

Illustration of a gray gas cylinder with a red X mark on its side (no text or symbols)

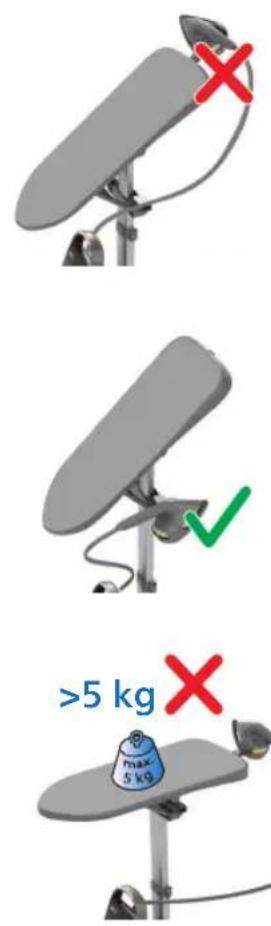

8 Do not dock the iron in a vertical position. This can cause the iron to drop from the dock.

Illustration of a mechanical device with a green checkmark indicating a detail (no text or symbols present)

9 Always dock the iron at the horizontal position.

10 Do not dock the iron in a tilted position. This can cause the iron to drop from the dock.

11 Always dock the iron at the horizontal position.

12 Do not place a load of more than 5kg.

Assembly

Mechanical component diagram showing a lever and base with labeled parts (1, 2), no text or symbols present.

1 Unlock the base clip and insert the pole into the base.

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

2 Lock the base clip. Unlock the bottom pole clip. Extend the pole.

10 English

Diagram illustrating mechanical assembly steps with numbered instructions and rotation arrows

3 Lock the bottom pole clip. Unlock the board titling lever. Extend the pole.

4 Lock the board tilting lever. Unlock the top pole clip.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

5 Assemble the board until you hear a click sound. Pull the board cover over the ironing board and hook the elastic bands to the ironing board hooks.

Diagram showing a mechanical or structural component with numbered annotations indicating directional flow or movement.

6 Insert the ironing board on the top of the pole. Lock the top pole clip.

Illustration of hands holding a car tire with blue arrows indicating force or movement (no text or symbols)

7 Insert the board buckle clips through the pole clips.

Mechanical assembly diagram showing a bracket with a green checkmark and blue arrows indicating force or motion (no text or symbols)

8 You will hear a click sound once the buckle clips are fully inserted.

Illustration of a hand holding a small electronic device with a magnified inset showing the contact point (no text or symbols)

9 Insert the dock into the iron dock arm until you hear a click sound.

Diagram of a device with two labeled parts connected by arrows, no text or symbols present

10 Left side insert: For left hander. Right side insert: for right hander.

Close-up of a mechanical component with a wooden handle and blue arrow indicating direction (no text or symbols visible)

11 Insert the iron dock arm into the pole.

Close-up of a mechanical component with a blue circular annotation highlighting a specific area (no text or symbols visible)

12 You will hear a click sound once the dock is fully inserted.

12 English

Diagram showing a device with labeled parts: one bottle, two air purifiers, and a small device with blue arrows indicating motion.

13 Place the base on the stand and the iron on the dock. Set up is complete.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Adjusting height of product

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

1 Unlock the bottom pole clip.

Mechanical assembly diagram showing a vertical component with an orange section and blue directional arrows (no text or symbols)

2 Push the pole down or pull the pole up to the desired height.

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

3 Lock back the bottom pole clip.

Changing board from vertical to tilt position

Illustration of a mobile phone stand with a magnified inset showing the device's internal structure (no text or symbols visible)

1 Unlock the board tilting lever.

Illustration of a satellite or antenna system with orange body, blue directional arrows indicating rotation (no text or symbols)

2 Push the board down to your desired angle.

Illustration of a medical or laboratory apparatus with a magnified inset showing internal components (no text or symbols visible)

3 Lock the board tilting lever.

4 You are ready to iron at tilt position.

Changing board from vertical to horizontal position

Illustration of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols)

1 Unlock the board tilting lever.

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

2 Push the board down to your desired angle.

3 Lock the board tilting lever.

Illustration of a modern office chair with a blue circular inset showing a hand holding a device (no text or symbols visible)

Illustration of a hand adjusting a car seatbelt with blue arrows indicating the process (no text or symbols present)

4 Press the button on the iron dock arm.

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating failure or rejection.

5 Do not hold the bottom of the dock as it is hot.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

6 Hold onto the iron handle and pull out the iron dock.

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

7 Insert the iron dock at the top of the ironing board.

Illustration of a hand touching a surface with a blue laser beam (no text or symbols)

8 You will hear a click sound once the dock is fully inserted.

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

9 You are ready to iron at horizontal position.

Filling water tank

Hand inserting a compact device into a black plastic case (no text or symbols visible)

1 Remove the water tank from the base.

16

English

3D rendering of a mechanical component with a blue tool inserted, no visible text or symbols

2 Fill it with tap water up to the MAX mark.

Hand inserting a device into a device housing, showing blue arrows indicating rotation (no text or symbols)

3 Put water tank back into the base by fitting the bottom part into the base first. Then push in the top part of the water tank until it locks into place.

Power on the product

1 Put the mains plug in an earthed wall socket.

Illustration of a plug being inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a hand interacting with a circular button (no text or symbols present)

2 Press the power button to switch on the appliance.

3 The white power button light will start to flash, indicating that the appliance is heating up (approximately 90 seconds). The light will turn steady when the appliance is ready for use.

Using your appliance

OptimalTemp technology

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

1 The Optimal Temp Technology enables you to iron all types of ironable fabrics, in any order, without adjusting the iron temperature setting. Fabrics with these symbols are ironable, for example linen, cotton, polyester, silk, wool, viscose and rayon.

i风

2 Fabrics with this symbol are not ironable. These fabrics include synthetic fabrics such as Spandex or elastane, Spandex-mixed fabrics and polyolefins (e.g. polypropylene), but also prints on garments.

Changing steam amount

AIS8540 W221

For AIS8540: Press the mode button to toggle between the different steam amounts. You can only change the steam mode after the appliance is ready for use. All 3 modes can be used on ironable fabrics.

1 steam cloud: If you would like lesser steam for softer fabrics (e.g. silk, wool).
2 steam cloud: This is the default steam setting, suitable for all fabrics.
3 steam cloud: If you would like more steam for tougher fabrics (e.g. cotton, linen).

English

AIS8530 M331

For AIS8530: Press the mode button to toggle between the different steam amounts. You can only change the steam mode after the appliance is ready for use. All 2 modes can be used on ironable fabrics.

2 steam cloud: This is the default steam setting, suitable for all fabrics.

3 steam cloud: If you would like more steam for tougher fabrics (e.g. cotton, linen).

Activating steam

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

1 Press and hold the steam trigger to start ironing.

Note: There might be water spitting from the iron at the start of each session, press steam trigger for 10 seconds before ironing to prevent water stains on garment.

Hand holding a pen or tool with a blue arrow indicating compression (no text or symbols)

2 Release the steam trigger to stop the steam emission.

Steam lock mode

1 Press the steam trigger twice quickly for continuous steam.

Illustration of a hand using a steam iron to clean or iron (no text or symbols)

2 Continuous steam will be active for 8 minutes.

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

3 Press the steam trigger once to stop steam lock mode.

4 Steam emission will stop.

Steam boost mode

2 secs

1 Long press power button for 2 seconds till it starts blinking.

20

English

2 Press the steam trigger twice quickly.

Illustration of a hand using an iron on a surface with a stopwatch indicating 3 seconds (no text or symbols on the diagram itself)

3 Steam boost mode will be active for 3 seconds. To stop the steam boost function, press the steam trigger once.

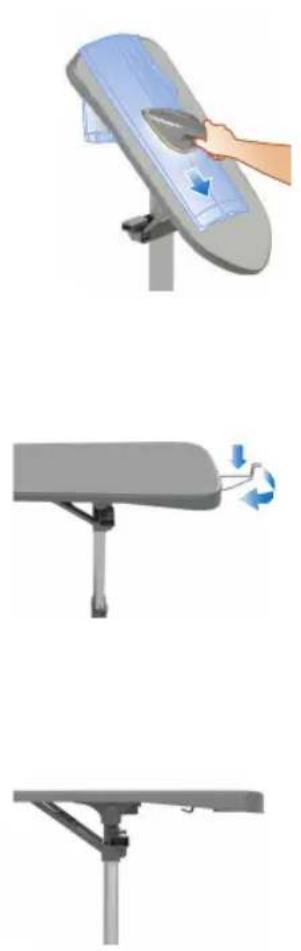

Hanger hook

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

1 Flip up the hanger hook located at the back of the ironing board.

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

2 Place the hanger on the hook. You can steam the garment vertically.

Diagram showing a mechanical or structural component with a blue arrow indicating rotation or force direction (no text or symbols present)

3 To lay garment on the board at tilt position, flip the hanger hook to the back of the board.

4 Drape the garment over the board.

5 Flip the hanger hook to the back of the board to store it while in horizontal position.

Auto shut off

10 mins.

1 The appliance will enter auto-shut off mode when not in used for 10 minutes.

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

2 Upon entering auto shut off mode, the power button will flash and the appliance will start to cool down.

22 English

OFF 10 mins.

3 Upon leaving the appliance untouched for the next 10 minutes, it will switch off automatically.

Close-up of a mobile phone with a hand pointing to its screen (no visible text or symbols)

4 To activate the appliance again, press the on/off button.

~90 sec.

5 The white power button light will start to flash, indicating that the appliance is heating up (approximately 90 seconds). The light will turn steady when the appliance is ready for use.

Detachable base

Hand using a tool to lift a wooden object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

1 Press the button on the iron dock arm. Then hold onto the iron handle to pull out the iron dock.

Close-up of a robotic arm gripping a mechanical component, with a blue arrow indicating motion (no text or symbols visible)

2 Insert the iron and dock on the base.

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

3 Remove the base from the stand.

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

4 You can move around with the base to refresh items that are ironable (e.g. soft toys, sofa, curtains).

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

Ironing tips

How to iron at vertical position

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

1 Place the shirt with the collar facing downwards. Glide the iron downwards while pressing the iron on the collar.

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

2 Place the area you want to iron within the surface of the ironing board. Glide the iron downwards while pressing the iron on the front of the shirt.

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

3 Place the area you want to iron within the surface of the ironing board. Glide the iron downwards while pressing the iron on the back of the shirt.

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow (no text or symbols)

4 Place the sleeves with the cuff facing downwards. Glide the iron downwards while pressing the iron on the sleeves.

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

5 Place the side seams with the bottom of the pants facing downwards. Glide the iron downwards while pressing the iron on the seams.

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

6 Use the hanger hook to hang the pants facing on the side. Glide the iron downwards while pressing the iron on the seams.

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols)

7 Use the hanger book to hang the T-shirt. Glide the iron downwards while pressing the iron on the shirt.

Illustration of a hand holding a blue garment with a cloth partially inserted, no text or symbols visible

8 User the hanger hook to hang the skirt. Lift the pleats up to iron it individually.

How to iron at the tilt position

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

1 Place the side seams with the bottom of the pants facing downwards. Glide the iron downwards while pressing the iron on the seams.

26

English

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

2 Place the area you want to iron within the surface of the ironing board. Glide the iron downwards while pressing the iron on the front of the dress.

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

3 Place the area you want to iron within the surface of the ironing board. Glide the iron downwards while pressing the iron on the front of the shirt.

How to iron at the horizontal position

Person using a power iron to clean a blue garment on an iron table (no text or symbols visible)

1 Place the collar on the ironing board. Glide and press the iron along the collar.

Illustration of hands using a tool to spread fabric on a cutting board (no text or symbols visible)

2 Place the area you want to iron within the surface of the ironing board. Pull the shirt to ensure that it is flat. Glide and press the iron on the front of the shirt.

Illustration of a hand holding a tool over a mechanical component (no text or symbols visible)

3 Drape the yoke along the front of the ironing board. Glide and press the iron along the yoke of the shirt.

Illustration of a hand holding a pen over a blue sheet of paper (no text or symbols visible)

4 Insert the pants through the front of the ironing board. Glide and press the iron on the area you want to iron.

Cleaning and maintenance

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

1 Switch off the appliance.

2 Unplug the appliance.

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

3 Wait for the appliance to cool down (approximately 60 minutes).

60 mins.

4 Clean the appliance and wipe any deposits off the iron head with a damp cloth. Do not use abrasive liquid cleaning agent.

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

28

English

Illustration of a faucet pouring liquid into a container with blue liquid, against a tiled wall background (no text or symbols)

5 Always empty the water tank after usage. This is to prevent calc build-up and maintain good steam performance.

Close-up of a mechanical device with a meshed panel and attached lever (no visible text or symbols)

6 Coil the steam hose and power cord on the storage hook.

Disassembly

Illustration of a desktop microphone with blue directional arrows indicating motion (no text or symbols)

1 Remove the base and the iron from the stand and the iron dock.

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

2 Press the button on the iron dock arm and pull it out.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

Close-up of a hand pressing down on a mechanical component with blue arrows indicating motion (no text or symbols visible)

3 Press the board buckle clips.

Mechanical assembly diagram showing a curved blade mounted on a vertical support with orange connectors (no text or symbols)

4 Then push the buckle clips out from the slots.

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating a flow or movement process.

5 Unlock the top pole clip remove the ironing board from the pole.

Diagram showing a vertical pole with labeled arrows (1 and 2) indicating motion or movement, likely illustrating a mechanical or structural concept.

6 Unlock the board tilting lever and the first pole clip to fully collapse the pole.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or movement.

30 English

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

7 Unlock the base clip to remove the pole from the stand.

Storage

Illustration showing a child using a handheld device with checkmark and magnified detail, likely for instructional or safety advice.

1 Lean the appliance backwards and pull it with the wheels.

Illustration showing a person using a vacuum cleaner with a checkmark and magnified detail view

2 Lean the appliance forwards towards your body and push it with the wheels.

3 Do not attempt to carry and lift up the appliance.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Cause Solution

The appliance produces no steam. The steamer has not heated up sufficiently (power button flashes).	Let the appliance heat up for 80 seconds. When the appliance is ready for use, the light turns steady.
	Auto shut-off has been activated when the appliance has not been used for more than 10 minutes (power button flashes).	Press the power button and wait for 90 seconds for the appliance to heat up again.
	Steam trigger has not been pressed to emit steam.	Press the steam trigger to activate steam.
	Low water level in the tank or the tank is not inserted properly.	Refill the water tank and insert it properly.
	Steam lock mode has been activated for 8 minutes.	Wait for 5 seconds before activating steam lock mode again. Normal steaming can still be activated immediately after steam lock mode ends.
Water leaks out from the steamer base.	The water tank is not inserted properly.	Insert the tank properly.
	Water tank has been overfilled. Fill water up to its MAX marking.
Steam lock cannot be activated. Fail to enter steam lock function. Double tap to activate the steam lock function.
Steam does not stop automatically after placing the steamer head onto the holder.	Steam lock function is activated. Press once to deactivate steam lock.
The board cover becomes wet or there are water droplets on the garment during steaming.	Steam has condensed on the board cover after a long steaming session.	Leave it to dry before storage. Replace the board cover if it has worn out. Purchase a new board cover from a Philips Authorized Service Center.
Board is shaky during use. The pole is not secured to the base of the product.		Make sure the base clip is secured and locked to the base.
	The board is not secured onto the pole.	Ensure the ironing board buckle clips are secured to the pole clips of the pole.
Board cannot be tilted or used in the horizontal position.	The board tilting lever has not been released.	Ensure the tilting lever is unlocked to allow board to be tilted to a desired position.Once a desired position is attained, lock the tilting lever to secure board.

32 English

Water droplets drip from the steamer head, sometimes the appliance produces a croaking sound.	Steam condenses into water in the hose and affect smooth steam flow.	Lift the steamer head to straighten the hose vertically.Hold the steamer head away from the garment and press the steam trigger for 10 seconds to release the initial gush of water droplets.
White flakes come out of the steamer head within first few usage sessions.	This is normal as the appliance has gone through quality tests and may have some residual particles.	Simply shake/ brush the flakes off the garment. Do not use wet cloth.
Dirty water, brown stains or white flakes come out of the steamer head and stain the garment.	Chemical or additives is added into the water tank.	Never use chemical or additives with the appliance. Fill the water tank with water and allow it to steam out 1 full tank to rinse off chemical residues.For stain on garment, rinse off any stains under running water.For stain on steamer head, wipe any deposits off the steamer head with a damp cloth.
	Depending on where you stay, the water hardness level may be high and results in fast scale builds up.	Ensure that water tank is emptied after a steaming session. It is recommended to use a combination of demineralization/distilled water (50%) mixed with tap water (50%).Hold the steamer head away from the garment and press the steam trigger for 10 seconds to release the initial gush of water droplets.For stain on garment, rinse off any stains under running water.For stain on steamer head, wipe any deposits off the steamer head with a damp cloth.
When ironing at the horizontal position, the location of the iron dock (where you rest the iron on) is interfering with my ironing.	The iron dock is located at the side of the board instead of the top of the board.	Change the location of the iron dock to the top of the board when ironing horizontally.
The board is too high for me at horizontal position.	Pole height is not adjusted when changing from vertical/tilt position to horizontal position.	Lower the pole height when ironing horizontally.

Məhsul icmalı

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Diagram of a satellite dish with a red X mark on its side, no text or symbols present

3D rendering of a satellite dish antenna with a green checkmark indicating a location (no text or symbols present)

Diagram showing a mechanical device with labeled parts and a magnified view of the component being rotated.

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating a mechanical or electrical component with numbered steps and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating motion or force.

Illustration of hands performing a mechanical press or lifting operation on a vehicle (no text or symbols visible)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing the contact point (no text or symbols)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a wooden object being inserted into a black perforated device (no text or symbols visible)

Close-up of a mechanical component with a curved handle and textured base, no visible text or symbols

Diagram showing a device with labeled parts: one connected to a lamp, another to a vacuum cleaner, and part 1.

Close-up of a handheld device with a magnified inset showing a blue circular component (no text or symbols visible)

Mechanical assembly diagram showing a vertical orange bar connected to a gray bracket with a blue directional arrow (no text or symbols)

Close-up of a desktop microphone with a cable and stand, showing a magnified view of the cable (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

Illustration of a satellite or antenna system with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory apparatus with a magnified inset showing a hand holding a blue object (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a device's rotation (no text or symbols)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a desktop desk lamp with a magnified inset showing the interior mechanism (no text or symbols)

Illustration of a hand adjusting a car seatbelt with blue arrows indicating the process (no text or symbols present)

Illustration showing hands using a power shaver with warning symbols and a red X mark indicating cancellation or error.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand cleaning a car hood with a blue light source (no text or symbols)

Exterior view of a modern office building (no signage)

Hand inserting a device into a gray plastic bag (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a container with blue arrows indicating rotation (no text or symbols)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols present)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a surface with a stopwatch indicating 3 seconds (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes iron on a hanger (no text or symbols visible)

Diagram showing a blue arrow pointing to a textured patterned surface, with no visible text or symbols.

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical lever with arrows indicating motion (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Avtomatik sönmə

10 mins.

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Illustration of a handheld device with a hand pointing to a circular button, no text or symbols present.

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

Mechanical assembly diagram showing a lever interacting with a component (no text or symbols visible)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols)

Illustration of a hand holding a blue garment with a cloth partially inserted, no text or symbols visible

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean blue fabric on a table (no text or symbols visible)

Illustration of hands cutting a blue sheet with a pen on a stand (no text or symbols visible)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand using a pen to lift a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

1 Cihazı işə salın.

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a surface with a magnifying glass and a bottle, no text or symbols present

Illustration of a faucet pouring liquid into a container on a metal sink (no text or symbols)

Mechanical device with attached clamping mechanism and wiring (no visible text or symbols)

Illustration of a desktop desk with a lamp and a handbag, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with blue arrows indicating motion (no text or symbols)

Close-up of a wooden tool and a perforated metal bracket (no text or symbols visible)

Close-up of a hand pressing down on a mechanical component with blue arrows indicating motion (no text or symbols visible)

Mechanical assembly diagram showing a curved component with orange and blue directional arrows (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows (1 and 2) indicating motion or movement, likely illustrating a mechanical or electrical system.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or movement.

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration showing a person using a vacuum cleaner with a checkmark and magnified detail view

Exploded view diagram of a vacuum cleaner with numbered parts for identification

1 Kepala setrika
2 Selang pasokan uap
3 Dudukan setrika
4 Lengan dudukan setrika
5 Tiang
6 Klip tiang
7 Roda
8 Dudukan
9 Bagian dasar alat
10 Tangki air
11 Tombol daya dengan lampu
12 Kait hanger
13 Papan Setrika

14 Penutup papan

Illustration of a person receiving hair styling with a hand, marked with a red X (no text or symbols present)

Illustration of hands holding a teardrop-shaped object with a red X mark, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Diagram of a satellite dish with a red X mark on its side, no text or symbols present

3D rendering of a satellite dish antenna with a green checkmark indicating a location (no text or symbols present)

11 Selalu letakkan setrika pada posisi horizontal.

>5 kg max $ kg

12 Jangan memberi beban melebihi 5 kg.

Perakitan

Diagram showing a mechanical device with labeled parts and a magnified view of the component being rotated.

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating a mechanical or electrical component with numbered steps and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating motion or force.

Illustration of hands performing a mechanical press or lifting operation on a vehicle (no text or symbols visible)

7 Masukkan klip gesper papan melalui klip tiang.

Bahasa Indonesia

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand pressing a button with a magnified inset showing the contact area (no text or symbols)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a mechanical component with a wooden handle and blue arrow indicating direction (no text or symbols visible)

Close-up of a mechanical component with a blue circular annotation highlighting a specific area (no text or symbols visible)

Diagram showing a device with labeled parts: one connected to a lamp, and another to a vacuum cleaner.

Close-up of a handheld device with a magnified inset showing a blue circular component (no text or symbols visible)

Mechanical assembly diagram showing a vertical orange bar connected to a gray bracket with a blue directional arrow (no text or symbols)

Close-up of a desktop microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing the device's internal structure (no text or symbols visible)

Illustration of a satellite or antenna system with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory device with a magnified inset showing a hand holding a blue object (no text or symbols visible)

3 Kunci tuas pengatur kemiringan papan.

Close-up of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols visible)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a blue circular inset showing a hand holding a device (no text or symbols visible)

Illustration of a hand pressing down on a car seatbelt, showing blue arrows indicating force or movement (no text or symbols present)

4 Tekan tombol pada lengan dudukan setrika.

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating failure or rejection.

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

6 Pegang gagang setrika dan cabut dudukan setrika.

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a surface with a blue laser beam (no text or symbols)

Exterior view of a modern office building (no signage)

Hand inserting a device into a gray plastic container (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating direction (no text or symbols)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

Hand holding a pen or tool with a blue arrow indicating compression (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols visible)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a surface with a stopwatch indicating 3 seconds (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes iron over a blue shirt (no text or symbols visible)

Diagram showing a mechanical or structural component with a blue arrow indicating rotation or force direction (no text or symbols present)

Illustration of a hand interacting with a device on a stand, showing a screen and handle (no text or symbols)

3D diagram of a mechanical lever with directional arrows indicating motion (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Mati otomatis

10 mins.

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Illustration of a handheld device with a hand pointing to a circular button, no text or symbols present

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

Mechanical assembly diagram showing a lever interacting with a component (no text or symbols visible)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

Tip menyetrika

Illustration of a hand holding a triangular object with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand ironing clothes on a t-shirt, with a downward arrow indicating clothing loss (no text or symbols)

Illustration of a hand holding a blue garment with a cloth partially inserted, no text or symbols visible

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using an iron on a steam iron, handling blue cloth (no text or symbols visible)

Illustration of hands cutting a blue sheet with scissors on a stand (no text or symbols)

Illustration of a hand inserting a small object into a container (no text or symbols visible)

Illustration of a hand holding a pen over a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

1 Matikan alat.

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

3 Tunggu hingga alat mendingin (kira-kira 60 menit).

60 mins.

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

Illustration of a faucet pouring liquid into a stainless steel tank (no text or symbols)

Mechanical device with attached clamping mechanism and wiring (no visible text or symbols)

Illustration of a desktop desk with a lamp and a handbag, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

Bahasa Indonesia

Close-up of a hand pressing down on a mechanical component with blue arrows indicating motion (no text or symbols visible)

3 Tekan klip gesper papan.

Close-up of a satellite dish with orange cable and blue directional arrows (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows (1 and 2) indicating motion or movement, likely from a technical or mechanical context.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or movement.

Illustration of a 3D orange object with blue arrows indicating motion or transformation, placed above a gray tray (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person holding a feather with a red X mark, no text or symbols present

Illustration of hands holding a teardrop-shaped object with a red X mark, no text or symbols present

2 Jangan kenakan stim berdekatan tangan anda atau orang lain.

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Satellite antenna with a red X mark indicating cancellation or error (no text or symbols present)

3D illustration of a satellite dish with a green checkmark indicating a location (no text or symbols present)

Diagram showing a mechanical device with labeled parts and a magnified view of the component's rotation direction.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force direction.

Diagram illustrating a mechanical or electrical component with numbered steps and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

5 Pasangkan papan sehingga anda mendengar bunyi klik. Tarik alas papan di atas papan seterika dan cangkuk gelang getah pada cangkuk papan seterika.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating motion or force.

Illustration of hands performing a mechanical press or lifting operation on a vehicle (no text or symbols visible)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

8 Anda akan mendengar bunyi klik sebaik sahaja klip kancing dimasukkan sepenuhnya.

Illustration of a hand gripping a small object with a magnified inset showing the contact point (no text or symbols)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a wooden object being inserted into a black perforated device (no text or symbols visible)

3D mechanical component with a highlighted circular feature (no visible text or symbols)

Diagram showing a device with labeled parts: one connected to a lamp, another to a vacuum cleaner, and part 1.

Close-up of a microphone with a magnified inset showing a blue circular icon (no text or symbols visible)

Mechanical assembly diagram showing a vertical component with an orange section and blue directional arrows indicating motion (no text or symbols)

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

Close-up of a desktop microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

1 Buka kunci tuil pencondong papan.

Illustration of a satellite or spacecraft with blue directional arrows indicating rotation (no text or symbols)

3D rendering of a handheld electronic device with a close-up inset showing a small circular detail (no text or symbols visible)

3 Kunci tuil pencondong papan.

Illustration of a mobile phone stand with a magnified inset showing a device's rotation (no text or symbols)

1 Buka kunci tuil pencondong papan.

Illustration of a satellite dish with blue directional arrows indicating rotation (no text or symbols)

Illustration of a desktop desk lamp with a magnified inset showing the interior mechanism (no text or symbols)

Illustration of a hand pressing down on a car seatbelt, with arrows indicating the process (no text or symbols present)

Illustration showing hands using a steam gun with warning symbols and a red X mark indicating cancellation or error.

Illustration of hands using a tool to adjust a component, with a blue arrow indicating direction (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

7 Masukkan dok seterika pada bahagian atas papan seterika.

Illustration of a hand touching a car's head with a blue light emission cone (no text or symbols)

3D rendering of a small office chair with a curved arm and base mount (no text or symbols visible)

Mengisi tangki air

Hand inserting a device into a gray plastic bag (no text or symbols visible)

3D rendering of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a container with blue arrows indicating rotation (no text or symbols)

Illustration of a black plug inserted into an open electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using an iron on a machine, with a stopwatch nearby (no text or symbols)

3 secs

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

Diagram showing a blue arrow pointing to a textured surface with a yellow line above, no text or symbols present.

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pematian automatik

10 mins.

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

Petua menyeterika

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols present)

Illustration of a hand holding a blue garment with a cloth partially inserted, no text or symbols visible

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand using a tool to clean or adjust a device (no text or symbols visible)

Illustration of a hand using a power tool to clean a light blue garment (no text or symbols visible)

Person using an iron on a steam iron, handling blue cloth (no text or symbols visible)

Illustration of hands cutting a blue sheet with scissors on a stand (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand holding a pen over a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

1 Matikan perkakas.

2 Cabut palam perkakas.

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a QR code (no text or symbols)

Illustration of a faucet pouring liquid into a container on a metal sink (no text or symbols)

Mechanical device with attached clamping mechanism and wiring (no visible text or symbols)

Illustration of a desktop desk with a lamp and a handbag, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with blue arrows indicating motion (no text or symbols)

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

112 Bahasa Melayu

Close-up of a hand pressing a mechanical component with blue arrows indicating motion (no text or symbols visible)

3 Tekan klip kancing papan.

Close-up of a mechanical component with orange and blue arrows indicating force or movement (no text or symbols visible)

Diagram showing a mechanical or structural component with labeled parts 1 and 2, indicating directional movement or force.

Diagram showing a vertical pole with two labeled arrows (1 and 2) indicating directional movement or rotation, likely illustrating a mechanical or structural concept.

Diagram of a vertical stand with labeled parts and directional arrows indicating motion or movement

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a child using a handheld device with a checkmark and magnified detail, likely for instructional or safety advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Illustration of a satellite dish with a red X mark on its side (no text or symbols)

3D illustration of a satellite dish with a green checkmark on the base (no text or symbols)

Diagram showing a mechanical device with labeled parts and a magnified inset illustrating rotational motion.

Diagram illustrating a mechanical assembly with numbered steps and rotation arrows, likely for robotic manipulation or assembly.

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered annotations indicating directional flow or movement.

Illustration of hands performing a mechanical press or lift operation with blue arrows indicating downward motion (no text or symbols present)

Mechanical assembly diagram showing a valve or connector with a green checkmark indicating a specific point (no text or symbols present)

Illustration of a hand holding a small electronic device with a magnified inset showing the contact point (no text or symbols)

Diagram of a device with two labeled parts connected by arrows, no text or symbols present

Close-up of a mechanical component with a wooden handle and a blue arrow pointing to it, no visible text or symbols.

Close-up of a mechanical component with a curved blade and structural framework (no visible text or symbols)

Diagram showing a device with labeled parts: one connected to a lamp, another to a vacuum cleaner, and part 1.

Close-up of a handheld device with a circular inset showing a blue circular symbol (no text or symbols present)

Mechanical assembly diagram showing a vertical orange bar connected to a gray bracket with a blue directional arrow (no text or symbols)

Close-up of a desktop microphone with a cable and stand, showing a magnified view of the cable (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing the device's internal structure (no text or symbols visible)

Illustration of a satellite dish with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory apparatus with a magnified inset showing a hand holding a blue object (no text or symbols visible)

Illustration of a desktop microphone with a magnified inset showing the internal structure (no text or symbols)

Illustration of a satellite or antenna device with blue directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a blue circular inset highlighting a mechanical component (no text or symbols)

Illustration of a hand pressing down on a car seatbelt with blue arrows indicating force (no text or symbols)

Safety warning illustration showing hand holding a steam covers with warning symbols and red X mark

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a surface with a blue light source (no text or symbols)

Illustration of a small office chair with a curved arm and base mount (no text or symbols)

Hand inserting a device into a gray plastic container (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating rotation (no text or symbols)

Illustration of a plug being inserted into an electrical outlet, with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a hand pointing to a circular button, no text or symbols present.

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Hand pressing a button on a surface with a blue arrow (no text or symbols visible)

Hand holding a pen or stylus with a blue arrow indicating compression action (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols visible)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a surface with a stopwatch indicating 3 seconds (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

Diagram showing a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Automatické vypnutí

10 mins.

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified circular detail showing a finger pointing to a small circular object (no text or symbols visible)

Hand using a tool to lift a wooden object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leafy object next to a metallic curtain border (no text or symbols visible)

Tipy na žehlení

Illustration of a hand holding a triangular object with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a tool interacting with a garment sleeve, showing a blue arrow indicating direction (no text or symbols present)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand using a tool to lift a blue object, with no visible text or symbols

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand removing a feather into a T-shirt (no text or symbols)

Illustration of a hand holding a light blue garment with a cloth partially inserted, no text or symbols visible

Illustration of a hand using a tool to interact with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean a blue garment on an iron table (no text or symbols visible)

Illustration of hands using a pliers to cut fabric on a cutting board (no text or symbols visible)

Illustration of a hand inserting a small object into a container (no text or symbols visible)

Illustration of a hand holding a pen over a blue sheet, no text or symbols present

Illustration of a medical device with a hand gesture and magnified view of the device (no text or symbols)

1 Přístroj vypněte.

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

Illustration of a faucet pouring liquid into a metal tank (no text or symbols)

Close-up of a mechanical device with a meshed panel and attached clamping bracket (no visible text or symbols)

Illustration of a desktop microphone with blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

Close-up of a hand pressing a mechanical component with blue arrows indicating motion (no text or symbols visible)

Close-up of a satellite dish with orange cable and blue directional arrows (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows and numbered parts, likely illustrating a mechanical or structural change.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or force directions.

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a child using a handheld device with a checkmark and magnified detail, likely for instructional or safety advice.

Illustration showing a person using a vacuum cleaner with checkmark and magnified detail view

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Diagram of a satellite dish with a red X mark on its side, no text or symbols present

3D rendering of a satellite dish antenna with a green checkmark indicating a location (no text or symbols present)

11 Placer altid strygejernet i holderen i vandret position.

>5 kg max $ kg

Diagram showing a mechanical device with labeled parts and a magnified view of the component being rotated.

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered annotations indicating directional flow or movement.

Illustration of hands holding a car tire with blue arrows indicating force or movement (no text or symbols)

Mechanical assembly diagram showing a valve or connector with a green checkmark indicating a specific point (no text or symbols present)

Illustration of a hand holding a small electronic device with a magnified inset showing the contact point (no text or symbols present)

Diagram of a device with two labeled parts connected by arrows, no text or symbols present

Close-up of a mechanical component with a wooden handle and blue arrow indicating direction (no text or symbols visible)

Close-up of a mechanical component with a curved blade and structural framework (no visible text or symbols)

Diagram showing a device with labeled parts: one bottle, two air purifiers, and a switch, with blue arrows indicating motion or movement.

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

1 Lås den nederste stangclips op.

Mechanical assembly diagram showing a vertical orange component with blue directional arrows indicating movement (no text or symbols)

Close-up of a desktop microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

3 Lås den nederste stangclips igen.

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

Illustration of a satellite or antenna system with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory apparatus with a magnified inset showing a hand holding a blue object (no text or symbols visible)

Close-up of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols visible)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a blue circular inset showing a hand holding a device (no text or symbols visible)

Illustration of a hand adjusting a car seatbelt with blue arrows indicating the process (no text or symbols present)

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating failure or rejection.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating rotation (no text or symbols)

Illustration of a black plug inserted into an open electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified circular detail showing a hand interacting with the screen (no text or symbols visible)

Illustration of a person in a shirt with a checkmark and icon of server racks, indicating approval or verification.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

1 Hold dampudløseren nede for at begynde strygning.

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

2 Slip dampudløseren for at stoppe dampen.

158 Dansk

Damplås

Illustration of a hand using a steam iron to clean or iron (no text or symbols visible)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

3 Tryk på dampudløseren én gang for at stoppe damplåsen.

4 Dampen stopper.

Dampskud

2 secs

Illustration of a hand using an iron on a surface with a stopwatch indicating 3 seconds (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue curved arrow indicating rotation or motion (no text or symbols)

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

Diagram showing a mechanical or structural component with a blue arrow indicating rotation or force direction (no text or symbols present)

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Auto-sluk

10 mins.

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

Close-up of a robotic arm gripping a mechanical component, with a blue arrow indicating motion (no text or symbols visible)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leafy object next to a metallic curtain border (no text or symbols visible)

Tip til strygning

Sådan stryger du i lodret position

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

1 Placer skjorten med kraven nedad. Skub strygejernet nedad, mens du trykker strygejernet mod kraven.

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols)

Illustration of a hand holding a blue garment with a cloth partially inserted, no text or symbols visible

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using an iron on a large table with cloth (no text or symbols visible)

Illustration of hands using a tool to spread fabric on a cutting board (no text or symbols visible)

Illustration of a hand inserting a small object into a container (no text or symbols visible)

Illustration of a hand holding a pen over a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

1 Sluk for apparatet.

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnifying glass showing a bottle and a red cross (no text or symbols)

Illustration of a water dispenser pouring liquid into a tank (no text or symbols)

Close-up of a mechanical device with a meshed panel and attached lever (no visible text or symbols)

Illustration of a desktop desk with a lamp and a handbag, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

168 Dansk

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

Mechanical assembly diagram showing a curved blade mounted on a vertical support with orange connectors (no text or symbols)

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a vertical pole with two labeled arrows (1 and 2) indicating directional movement or rotation, likely illustrating a mechanical or structural concept.

Diagram of a vertical stand with labeled parts and directional arrows indicating motion or movement

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

7 Lås baseclipsen op for at fjerne stangen fra standen.

Opbevaring

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Diagram of a satellite dish with a red X mark indicating a warning or error (no text or symbols present)

3D rendering of a satellite dish antenna with a green checkmark on the base (no text or symbols visible)

Diagram showing a mechanical device with labeled parts and a magnified view of the component's rotation direction.

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating mechanical assembly steps with numbered instructions and rotation arrows

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered annotations indicating directional movement or force directions.

Illustration of hands operating a car tire with blue arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing the impact of a tool (no text or symbols present)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a wooden object being inserted into a black perforated device (no text or symbols visible)

Close-up of a mechanical component with a curved handle and textured base, no visible text or symbols

Diagram showing a device with labeled parts: one connected to a lamp, another to a vacuum cleaner, and part 1.

Close-up of a mechanical device with a magnified inset showing a blue circular component (no text or symbols visible)

Mechanical assembly diagram showing a vertical component with orange and blue directional arrows (no text or symbols)

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

Close-up of a desktop microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

Illustration of a satellite or spacecraft with blue directional arrows indicating rotation (no text or symbols)

3D rendering of a handheld electronic device with a close-up inset showing a small blue object (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a blue circular arrow indicating rotation (no text or symbols present)

Illustration of a satellite or spacecraft with directional arrows indicating rotation (no text or symbols)

Illustration of a desktop desk lamp with a magnified inset showing the interior mechanism (no text or symbols)

Illustration of a hand adjusting a car seatbelt with blue arrows indicating the process (no text or symbols present)

Illustration showing hands using a chemical lamp to prevent chemical hazard, with warning symbols and red X mark indicating no chemical hazard.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating rotation (no text or symbols)

Illustration of a plug being inserted into an electrical outlet, with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a hand interacting with a circular button (no text or symbols present)

Illustration showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using an iron on a surface with a 3-second time indicator (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue circular arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes iron over a blue shirt (no text or symbols visible)

Diagram showing a blue arrow pointing to a textured patterned surface, with no visible text or symbols.

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Illustration of a handheld device with a hand pointing to a circular button, no text or symbols present

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

Mechanical assembly diagram showing a lever interacting with a component (no text or symbols visible)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leafy object next to a metallic curtain border (no text or symbols visible)

Illustration of a hand holding a triangular object with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand removing a feather into a T-shirt (no text or symbols)

Illustration of a person holding a blue garment with a cloth, partially covered by a zipper (no text or symbols visible)

Illustration of a hand interacting with a computer monitor (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using an iron on a steam iron, handling blue cloth (no text or symbols visible)

Illustration of hands cutting a blue sheet with scissors on a stand (no text or symbols)

Illustration of a hand inserting a small object into a container (no text or symbols visible)

Illustration of a hand using a pen to lift a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

194 Deutsch

Illustration of a faucet pouring liquid into a stainless steel tank (no text or symbols)

Mechanical device with attached clamping mechanism and wiring (no visible text or symbols)

Illustration of a desktop microphone with blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

Close-up of a hand pressing a mechanical component with blue arrows indicating motion (no text or symbols visible)

Mechanical assembly diagram showing a curved blade mounted on a vertical support with orange connectors (no text or symbols)

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a vertical pole with two labeled arrows (1 and 2) indicating directional movement or force directions.

Diagram showing a vertical orange bar with blue arrows labeled 1 and 2, indicating directional movement or force direction.

3D illustration of a mechanical component with labeled parts (1 and 2), no text or symbols present.

Illustration showing a child using a handheld device with a checkmark and magnified detail, likely for instructional or safety advice.

Illustration showing a person using a vacuum cleaner with a checkmark and magnified view of the device's interior.

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Illustration of a desk lamp with a red X mark and a black triangular head (no text or symbols)

Illustration of a desktop computer with a red X mark and cable, no text or symbols present

Close-up of a mechanical device with a green checkmark indicating a detail (no text or symbols visible)

Illustration of a gray gas cylinder with a red X mark on its side (no text or symbols)

Illustration of a mechanical device with a green checkmark indicating a detail (no text or symbols present)

9 Asetage triikraud dokile alati horisontaalasendis.

Satellite antenna with a red X mark indicating cancellation or error (no text or symbols present)

3D illustration of a satellite dish with a green checkmark on the base (no text or symbols)

11 Asetage triikraud dokile alati horisontaalasendis.

>5 kg max $ kg

Diagram showing a mechanical device with labeled parts and a magnified view of the component's rotation direction.

Diagram illustrating a mechanical assembly with numbered steps and rotation arrows, likely for robotic manipulation or assembly.

2 Lukustage alusklamber. Avage alumine varre klamber. Pikendage vart.

204 Eesti

Diagram illustrating mechanical assembly steps with numbered instructions and rotation arrows

3 Lukustage alumine varda klamber. Avage laua reguleerimishoob. Pikendage vart.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered annotations indicating directional flow or movement.

Illustration of hands holding a car tire with blue arrows indicating force or movement (no text or symbols)

7 Pange laua pandlaga klambrid läbi varreklambrite.

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing the impact of light (no text or symbols)

Diagram of a device with two labeled components and directional arrows indicating motion (no text or symbols)

10 Vasakpoolne sisestusava: vasakukäelistele. Parempoolne sisestusava: paremakäelistele.

Close-up of a wooden object being inserted into a black perforated metal bracket (no text or symbols visible)

11 Sisestage triikraua dokihoob varre sisse.

3D mechanical component with a highlighted circular feature and blue starburst pattern (no text or symbols)

Diagram showing a device with labeled parts: one bottle, two air purifiers, and a switch, with blue arrows indicating motion or assembly.

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

1 Avage alumine varre klamber.

Mechanical assembly diagram showing a vertical shaft with orange and blue directional arrows indicating movement (no text or symbols)

Close-up of a desktop microphone with a cable and stand, showing a magnified view of the cable (no text or symbols visible)

3 Lukustage alumine varre klamber.

Laua seadmine vertikaalsest asendist kaldasendisse

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

1 Vabastage laua kallutushoob.

Illustration of a satellite or antenna system with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory device with a magnified inset showing a hand holding a blue object (no text or symbols visible)

3 Lukustage laua reguleerimishoob.

Close-up of a desktop microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

1 Vabastage laua kallutushoob.

Illustration of a satellite or antenna system with directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a magnified inset showing internal components (no text or symbols)

Illustration of a hand adjusting a car seatbelt with blue arrows indicating the process (no text or symbols present)

4 Vajutage triikraua dokihooval olevat nuppu.

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating no hazard.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

3D rendering of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating rotation (no text or symbols)

Illustration of a plug being inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified circular detail showing a hand interacting with the screen (no text or symbols visible)

Illustration showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices.

Illustration of a hand using a power tool to press or press a surface, with no visible text or symbols.

Hand holding a pen or stylus with a blue arrow indicating compression action (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

4 Aurutamine lôpeb.

Lisaauru režiim

2 secs

Illustration of a hand using an iron on a surface with a stopwatch showing 3 seconds (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes iron over a blue shirt (no text or symbols visible)

Diagram showing a mechanical or structural component with a blue arrow indicating rotation or force direction (no text or symbols present)

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Hand using a tool to lift a wooden object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols present)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leafy object next to a metallic curtain border (no text or symbols visible)

Triikimisnõuanded

Illustration of a hand holding a triangular object with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a tool interacting with a garment sleeve, showing a blue arrow indicating direction (no text or symbols present)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols present)

Illustration of a person holding a blue garment with a cloth, partially covered by a zipper (no text or symbols visible)

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Illustration of hands using a power iron to clean or fabric the ceiling (no text or symbols visible)

Illustration of hands cutting a blue sheet with a pen on a stand (no text or symbols visible)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand holding a pen over a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

3 Oodake, kuni seade maha jahtub (umbes 60 minutit).

60 mins.

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a QR code (no text or symbols)

222 Eesti

Illustration of a faucet pouring liquid into a metal tank (no text or symbols)

Close-up of a mechanical device with a meshed circular component and attached lever (no visible text or symbols)

Illustration of a desktop microphone with blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

3 Vajutage laua pandlaga klambreid.

Mechanical assembly diagram showing a curved component with orange and blue parts, no visible text or symbols

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows and numbered parts, likely illustrating a mechanical or structural change.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or movement.

224 Eesti

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Illustration of a desk lamp with a red X mark and a black triangular head (no text or symbols)

Illustration of a desktop computer with a red X mark indicating a warning or rejection symbol (no text or symbols present)

Close-up of a mechanical device with a green checkmark pointing to a component (no text or symbols visible)

Illustration of a gray gas cylinder with a red X mark on its side (no text or symbols)

Close-up of a mechanical component with a green checkmark indicating a detail (no text or symbols present)

Mechanical component diagram showing a lever and base with numbered callouts (no text or symbols)

Diagram illustrating a mechanical or robotic device with numbered steps and directional arrows indicating motion or assembly.

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered annotations indicating directional movement or force directions.

Illustration of hands holding a car tire with blue arrows indicating force or movement (no text or symbols)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand pressing down on a wooden object with a magnified inset showing the contact area (no text or symbols)

Diagram of a device with two labeled components and directional arrows indicating motion (no text or symbols)

Close-up of a wooden object being inserted into a black perforated device (no text or symbols visible)

3D mechanical component with a highlighted circular feature and blue starburst pattern (no text or symbols)

Diagram showing a device with labeled parts: one bottle, two air purifiers, and a small device with blue arrows indicating motion.

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

Mechanical assembly diagram showing a vertical orange component with blue directional arrows indicating movement (no text or symbols)

Close-up of a microphone with a magnified inset showing a blue droplet on the vertical surface (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a mobile health monitoring device with a magnified inset showing internal components (no text or symbols visible)

Illustration of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a blue circular inset showing a hand holding a device (no text or symbols visible)

Illustration of a hand pressing down on a car seatbelt with blue arrows indicating force (no text or symbols)

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating failure or rejection.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

3D rendering of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating direction (no text or symbols)

Illustration of a black plug inserted into an open electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols present)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a machine, with a stopwatch and directional arrow (no text or symbols)

3 secs

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

Diagram showing a mechanical or structural component with a blue arrow indicating rotation or force direction (no text or symbols present)

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Hand using a tool to lift a wooden object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols present)

2 Introduzca la plancha y acóplela a la base.

Illustration of a person standing next to a vertical stand with a bag, showing motion direction (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

246 Español

Illustration of a hand holding a triangular object with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols present)

Illustration of a hand holding a blue garment with a cloth partially visible, no text or symbols present.

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean a blue garment on an iron table (no text or symbols visible)

Illustration of hands using a tool to spread fabric on a cutting board (no text or symbols visible)

Illustration of a hand inserting a small object into a container (no text or symbols visible)

Illustration of a hand using a pen to lift a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a surface with a bottle and a magnifying glass (no text or symbols)

250 Español

Illustration of a faucet pouring liquid into a stainless steel tank (no text or symbols)

Mechanical device with attached clamping mechanism and wiring (no visible text or symbols)

Illustration of a desktop microphone with blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

Mechanical assembly diagram showing a curved component with orange and blue parts, no visible text or symbols

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows indicating motion or force directions, marked as 1 and 2.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or movement.

252 Español

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Satellite antenna with a red X mark indicating cancellation or error (no text or symbols present)

3D illustration of a satellite dish with a green checkmark on the base (no text or symbols)

Diagram showing a mechanical device with labeled parts and a magnified view of the component's rotation direction.

Diagram illustrating a mechanical assembly with numbered steps and rotation arrows, likely for robotic manipulation or assembly.

Diagram illustrating mechanical assembly steps with numbered instructions and rotation arrows

Diagram illustrating a biological or geological structure with labeled parts and directional arrows, likely from a scientific or engineering context.

Diagram showing a mechanical or structural component with numbered annotations indicating directional flow or movement.

Illustration of hands operating a car tire with blue arrows indicating force or movement (no text or symbols)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing the impact of a tool (no text or symbols present)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a mechanical component with a wooden handle and blue arrow indicating motion (no text or symbols visible)

Close-up of a mechanical component with a curved handle and textured base, no visible text or symbols

Diagram showing a device with labeled parts: one connected to a lamp, another to a vacuum cleaner, and part numbered 1.

Close-up of a handheld device with a circular inset showing a blue circular symbol (no text or symbols present)

Mechanical assembly diagram showing a vertical orange bar connected to a gray bracket with a blue directional arrow (no text or symbols)

Close-up of a desktop microphone with a cable and stand, showing a magnified view of the cable (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing the device's internal structure (no text or symbols visible)

Illustration of a satellite dish with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory device with a magnified inset showing a hand holding a blue object (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a blue circular arrow indicating rotation (no text or symbols present)

Illustration of a satellite or spacecraft with directional arrows indicating rotation (no text or symbols)

Illustration of a desktop desk lamp with a magnified inset showing the interior mechanism (no text or symbols)

Illustration of a hand pressing down on a car seatbelt, showing blue arrows indicating force or pressure (no text or symbols present)

Illustration showing hands using a chemical lamp to prevent chemical hazard, with warning symbols and red X mark indicating no chemical hazard.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

Exterior view of a modern office building (no signage)

Hand inserting a device into a gray plastic bag (no text or symbols visible)

Français

3D rendering of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a container with arrows indicating direction (no text or symbols)

Illustration of a black plug inserted into an open electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols present)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

Hand holding a pen or tool with a blue arrow indicating compression (no text or symbols)

Illustration of a hand using an iron on a surface with a 3-second timer (no text or symbols on the diagram itself)

Diagram of a hook with a blue arrow indicating rotational motion, showing a mesh structure (no text or symbols)

Illustration of a hand holding a clothes iron over a blue shirt (no text or symbols visible)

Diagram showing a mechanical or structural component with a blue arrow indicating rotation or force direction (no text or symbols present)

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Arrêt automatique

10 mins.

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Illustration of a handheld device with a hand pointing to a circular button (no text or symbols visible)

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols present)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

3 Retirez la base du socle.

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

274 Français

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand removing a feather into a T-shirt (no text or symbols)

Illustration of a hand holding a blue garment with a cloth partially inserted, no text or symbols visible

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using an iron on a steam iron, handling blue cloth (no text or symbols visible)

Illustration of hands cutting a blue sheet with scissors on a stand (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand using a pen to lift a blue sheet of paper (no text or symbols visible)

Illustration of a medical or cleaning device with a hand pointing to a finger, no text or symbols present.

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

278 Français

Illustration of a faucet pouring liquid into a metal tank (no text or symbols)

Close-up of a mechanical device with a meshed circular component and attached clamping bracket (no visible text or symbols)

Illustration of a desktop stand with a lamp and a device, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden tool and a black perforated metal bracket (no text or symbols visible)

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

Mechanical assembly diagram showing a curved component with orange and blue parts, no visible text or symbols

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows (1 and 2) indicating motion or movement, likely from a technical or mechanical context.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or movement.

280 Français

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

1 Glava glačala
2 Crijevo za dovod pare
3 Stanica glačala
4 Krak stanice glačala
5 Stup
6 Kopče stupa
7 Kotači
8 Postolje
9 Podnožje
10 Spremnik za vodu
11 Gumb napajanja s indikatorom
12 Kukica za vješalicu
13 Daska za glačanje

14 Navlaka za dasku

Priprema za uporabu

Upozorenja

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

2 Paru nemojte primjenjivati blizu svojih ili tuđih ruku.

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

4 Glačalo nemojte ostavljati na dasci. Crijevo za paru može potegnuti glačalo i srušiti ga.

286 Hrvatski

Illustration of a desk lamp with a red X mark and a black triangular head (no text or symbols)

5 Glačalo nemojte postavljati neravno na površinu.

Illustration of a desktop computer with a red X mark and cable, no text or symbols present

Close-up of a mechanical device with a green checkmark indicating a detail (no text or symbols visible)

7 Glačalo postavite na stanicu kad se ne upotrebljava.

Illustration of a gray gas cylinder with a red X mark on its side (no text or symbols)

Illustration of a mechanical device with a green checkmark indicating a detail (no text or symbols present)

Mechanical component diagram showing a lever and base with labeled parts (1, 2), no text or symbols present.

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or force direction.

2 Blokirajte kopču podnožja. Deblokirajte donju kopču stupa. Produžite stup.

288 Hrvatski

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

3 Blokirajte donju kopču stupa. Deblokirajte ručicu za naginjanje daske. Produžite stup.

4 Blokirajte ručicu za naginjanje daske. Deblokirajte gornju kopču stupa.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows, likely illustrating soil or material flow.

Diagram showing a mechanical or structural component with numbered annotations indicating directional flow or movement.

6 Umetnite dasku za glačanje na vrh stupa. Blokirajte gornju kopču stupa.

Illustration of hands holding a car tire with blue arrows indicating force or movement (no text or symbols)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand pressing down on a wooden object with a magnified inset showing the contact area (no text or symbols)

Diagram of a device with two labeled components and directional arrows indicating motion (no text or symbols)

Close-up of a wooden object being inserted into a black perforated metal bracket (no text or symbols visible)

11 Krak stanice glačala umetnite u stup.

3D mechanical component with a highlighted circular feature (no visible text or symbols)

Diagram showing a device with labeled parts: one connected to a lamp, another to a vacuum cleaner, and part numbered 1.

Close-up of a handheld device with a circular inset showing a blue circular symbol (no text or symbols present)

1 Deblokirajte donju kopču stupa.

Mechanical assembly diagram showing a vertical orange bar connected to a gray bracket with a blue directional arrow (no text or symbols)

Close-up of a microphone with a magnified inset showing a blue droplet on the vertical surface (no text or symbols visible)

3 Ponovno blokirajte donju kopču stupa.

Promjena daske iz okomitog u nagnuti položaj

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

1 Deblokirajte ručicu za naginjanje daske.

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

2 Pritisnite dasku u željeni kut.

Illustration of a mobile health monitoring device with a magnified inset showing internal components (no text or symbols visible)

3 Blokirajte ručicu za naginjanje daske.

4 Spremni ste za glačanje u nagnutom položaju.

292 Hrvatski

Close-up of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols visible)

1 Deblokirajte ručicu za naginjanje daske.

Illustration of a satellite or spacecraft with orange body and blue directional arrows indicating rotation (no text or symbols)

2 Pritisnite dasku u željeni kut.

3 Blokirajte ručicu za naginjanje daske.

Illustration of a modern office chair with a blue circular inset showing a hand holding a device (no text or symbols visible)

Illustration of a hand pressing down on a car seatbelt with blue arrows indicating force (no text or symbols)

4 Pritisnite gumb na kraku stanice glačala.

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating failure or rejection.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

6 Držite ručku glačala i izvucite stanicu glačala.

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a container with blue arrows indicating direction (no text or symbols)

3 Spremnik za vodu vratite u podnožje tako da najprije umetnete donji dio u podnožje. Zatim gurnite gornji dio spremnika za vodu dok ne sjedne na mjesto.

Illustration of a black plug inserted into an open electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a hand pointing to a circular button (no text or symbols visible)

Illustration of a person with a checkmark and icon depicting server racks, symbolizing data verification or access.

1 Tehnologija Optimal Temp omogućuje vam glačanje svih vrsta tkanina koje se mogu glačati, bilo kojim redoslijedom, bez prilagodbe postavki temperature. Tkanine s ovim simbolima mogu se glačati, npr. lan, pamuk, poliester, svila, vuna, viskoza i umjetna svila.

i风

2 Tkanine s ovim simbolom ne mogu se glačati. Među tim tkaninama su sintetičke tkanine kao što je spandeks ili elastan, tkanine koje sadrže spandeks i poliolefini (npr. polipropilen), ali i otisnute slike na odjevnim predmetima.

Illustration of a hand pressing down on a device with a blue arrow indicating motion (no text or symbols)

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using a power iron to press a 2x speed limit indicator (no text or symbols on the diagram itself)

Illustration of a hand using a steam iron to clean or iron (no text or symbols visible)

3 Jednom pritisnite gumb za paru kako biste deaktivirali način zaključavanja pare.

Illustration of a hand using a power iron to press down a surface, labeled '1x' (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a machine, with a stopwatch and directional arrow (no text or symbols)

3 secs

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

Diagram showing a blue arrow pointing to a textured patterned surface, with no visible text or symbols.

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

2 Nakon aktiviranja načina rada automatskog isključivanja, gumb za napajanje počet će bljeskati, a aparat će se početi hladiti.

300 Hrvatski

OFF °C 10 mins.

Close-up of a handheld device with a magnified circular detail showing a finger pointing to its screen (no text or symbols visible)

4 Kako biste ponovo aktivirali aparat, pritisnite gumb za uključivanje/isključivanje.

~90 sec.

5 Bijeli indikator gumba napajanja počet će bljeskati, što znači da se aparat zagrijava (oko 90 sekundi). Indikator će početi stalno svijetliti kad aparat bude spreman za uporabu.

Odvojivo podnožje

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

1 Pritisnite gumb na kraku stanice glačala. Držite ručku glačala kako biste izvukli stanicu glačala.

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols)

Illustration of a person standing next to a vertical stand with a bag, showing motion direction (no text or symbols)

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

3 Uklonite podnožje iz postolja.

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

1 Položite košulju tako da ovratnik bude okrenut prema dolje. Klizite glačalom prema dolje, usmjeravajući pritisak glačala na ovratnik.

Illustration of a hand holding a knife to cut a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow direction (no text or symbols)

4 Položite rukave tako da manžeta bude okrenuta prema dolje. Klizite glačalom prema dolje, usmjeravajući pritisak glačala na rukave.

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

5 Položite bočne šavove tako da donji dio hlača bude okrenut prema dolje. Klizite glačalom prema dolje, usmjeravajući pritisak glačala na šavove.

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols present)

Illustration of a person holding a blue garment with a cloth, partially covered by a zipper (no text or symbols visible)

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

1 Položite bočne šavove tako da donji dio hlača bude okrenut prema dolje. Klizite glačalom prema dolje, usmjeravajući pritisak glačala na šavove.

304 Hrvatski

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean a blue garment on a table (no text or symbols visible)

1 Položite ovratnik na dasku za glačanje. Klizite i usmjerite pritisak glačala duž ovratnika.

Illustration of hands cutting a blue sheet with scissors on a stand (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

3 Postavite stražnju stranu ovratnika duž prednjeg dijela daske za glačanje. Klizite i usmjerite pritisak glačala duž stražnje strane ovratnika.

Illustration of a hand holding a pen over a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

1 Isključite aparat.

2 Iskopčajte aparat.

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

3 Ostavite aparat da se hladi (oko 60 minuta).

60 mins.

4 Očistite aparat i vlažnom krpom obrišite naslage s glave glačala. Nemojte upotrebljavati abrazivna tekuća sredstva za čišćenje.

Illustration of hands cleaning a bottle with a magnified inset showing a bottle and a green bag (no text or symbols)

306 Hrvatski

Illustration of a faucet pouring liquid into a metal tank (no text or symbols)

5 Nakon uporabe obavezno ispraznite spremnik za vodu. Time se sprječava nakupljanje kamenca i održava učinkovitost pare.

Close-up of a mechanical device with a meshed panel and attached clamping bracket (no visible text or symbols)

6 Namotajte crijevo za paru i kabel za napajanje na kukicu za spremanje.

Rastavljanje

Illustration of a desktop desk with a lamp and a device, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

2 Pritisnite gumb na kraku stanice glačala i izvucite ga.

Close-up of a wooden tool and a perforated metal bracket (no text or symbols visible)

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

3 Pritisnite kopče na sponi daske.

Close-up of a satellite dish with orange cable and blue directional arrows (no text or symbols)

4 Zatim izvucite kopče spone iz utora.

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating a flow or movement process.

5 Deblokirajte gornju kopču stupa i uklonite dasku za glačanja iz stupa.

Diagram showing a vertical pole with labeled arrows and numbered parts, likely illustrating a mechanical or structural concept.

6 Deblokirajte ručicu za naginjanje daske i prvu kopču stupa kako biste u potpunosti skupili stup.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or force directions.

308 Hrvatski

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

7 Deblokirajte kopču podnožja i uklonite stup iz postolja.

Pohrana

Illustration showing a child using a handheld device with checkmark and magnified detail, likely for instructional or safety advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Mechanical component diagram showing a lever and base with numbered callouts (no text or symbols)

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Diagram showing a mechanical or structural component with numbered annotations indicating directional movement or force directions.

Illustration of hands operating a car tire with blue arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing the impact of a tool (no text or symbols present)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a wooden object being inserted into a black perforated device (no text or symbols visible)

3D mechanical component with a highlighted circular feature (no visible text or symbols)

Diagram showing a device with labeled parts: one connected to a lamp and another to a vacuum cleaner, with blue arrows indicating motion or sequence.

Close-up of a microphone with a magnified inset showing a blue circular icon (no text or symbols visible)

Mechanical assembly diagram showing a vertical component with an orange section and blue directional arrows indicating motion (no text or symbols)

Close-up of a desktop microphone with a cable and stand, showing a magnified view of the cable (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

Illustration of a satellite dish with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory apparatus with a magnified inset showing a hand holding a blue object (no text or symbols visible)

Close-up of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols visible)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a blue circular inset showing a hand holding a device (no text or symbols visible)

Illustration of a hand pressing down on a car seatbelt, showing blue arrows indicating force or movement (no text or symbols present)

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating failure or rejection.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

322 Italiano

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a container with blue arrows indicating rotation (no text or symbols)

Illustration of a black plug inserted into an open electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a hand pointing to a circular button (no text or symbols visible)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a document with a blue arrow indicating the action (no text or symbols present)

Hand holding a pen or tool with a blue arrow indicating compression (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols visible)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a surface with a stopwatch showing 3 seconds (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue circular arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes t-shirt with an iron iron inside, no text or symbols present

Diagram of a mechanical or structural component with a blue arrow indicating rotation or force direction (no text or symbols present)

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical lever with arrows indicating motion (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified circular detail showing a finger pointing to a small circular object (no text or symbols visible)

Hand using a tool to lift a wooden object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols present)

Illustration of a person standing next to a vertical stand with a bag, showing motion direction (no text or symbols)

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a pen-like tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols present)

Illustration of a hand holding a blue garment with a cloth partially visible, no text or symbols present.

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean blue fabric on a table (no text or symbols visible)

Illustration of hands cutting a blue sheet with scissors on a stand (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand holding a pen over a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

334 Italiano

Illustration of a faucet pouring liquid into a metal tank (no text or symbols)

Close-up of a mechanical device with a meshed circular component and attached clamping bracket (no visible text or symbols)

Illustration of a desktop stand with a device and cable, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden tool and a black perforated metal bracket (no text or symbols visible)

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Mechanical component diagram showing a lever and base with numbered callouts (no text or symbols)

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows, likely illustrating soil or material flow.

Diagram showing a mechanical or structural component with numbered annotations indicating directional movement or force directions.

Illustration of hands operating a car tire with blue arrows indicating motion (no text or symbols)

Close-up of a mechanical assembly with a green checkmark indicating a detail (no text or symbols present)

Illustration of a hand holding a small object with a magnified inset showing the impact of light (no text or symbols)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a wooden object being inserted into a black perforated device (no text or symbols visible)

Close-up of a mechanical component with a curved handle and textured base, no visible text or symbols

Diagram showing a device with labeled parts: one bottle, two air purifiers, and a small device with blue arrows indicating motion.

Close-up of a desktop microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

Mechanical assembly diagram showing a vertical component with an orange section and blue directional arrows (no text or symbols)

Close-up of a microphone with a magnified inset showing a blue droplet on the vertical surface (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a mobile health monitoring device with a magnified inset showing internal components (no text or symbols visible)

Close-up of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols visible)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a blue circular inset highlighting a mechanical component (no text or symbols)

Illustration of a hand pressing down on a car seatbelt with blue arrows indicating force direction (no text or symbols)

Safety warning illustration showing hand holding a steam gun with warning symbols and red X mark

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a container with blue arrows indicating direction (no text or symbols)

Illustration of a black plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols present)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a document with a blue arrow indicating the action (no text or symbols present)

Hand holding a pen or tool with a blue arrow indicating compression (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a machine, with a stopwatch and directional arrow (no text or symbols)

3 secs

Diagram of a mechanical component with a blue circular arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes t-shirt with an iron iron, no text or symbols present

Close-up of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Illustration of a handheld device with a hand pointing to a circular button, no text or symbols present.

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols present)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

3 Nonemiet pamatni no statīva.

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

Gludināšanas padomi

Hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

1 Novietojiet kreklu ar apkali uz leju. Virziet gludekli uz leju, spiežot to pret apkakli.

Illustration of a hand holding a pen-like object over a garment, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand using a tool to lift a blue object into a container (no text or symbols visible)

Illustration of a hand using a tool to remove or dispose of a bag (no text or symbols visible)

Illustration of a hand holding a blue fabric swab with a downward arrow, hanging from a hanging hook (no text or symbols)

Illustration of a hand using an iron on a T-shirt, with a downward arrow indicating down (no text or symbols present)

7 Izmantojiet pakaramo, lai pakarinātu T kreklu. Virziet gludekli uz leju, spiežot to pret kreklu.

Illustration of hands using a clothes iron to clean fabric (no text or symbols visible)

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean a blue garment on a table (no text or symbols visible)

Illustration of hands cutting a blue sheet with scissors on a stand (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand using a pen to lift a blue sheet of paper (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

362 Latviešu

Illustration of a faucet pouring liquid into a metal tank (no text or symbols)

Close-up of a mechanical device with a meshed circular component and attached lever (no visible text or symbols)

Illustration of a desktop microphone with blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden tool and a perforated metal bracket (no text or symbols visible)

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

Close-up of a satellite dish with orange cable and blue directional arrows (no text or symbols)

4 Tad izspiediet stiprinašanas skavas no fiksatoriem.

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows and numbered parts, likely illustrating a mechanical or structural change.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or force directions.

364 Latviešu

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

7 Atbrīvojiet pamatnes fiksatoru, lai atvienotu balstu no pamatnes.

Glabāšana

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration showing a person using a vacuum cleaner with a checkmark and magnified detail view

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment with a red X mark (no text or symbols)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Illustration of a medical or surgical device with a red X mark on the top surface (no text or symbols present)

Illustration of a desktop computer with a red X mark indicating a warning or error (no text or symbols present)

Close-up of a mechanical device with a green checkmark pointing to a cable or connector (no text or symbols visible)

Illustration of a gray gas cylinder with a red X mark on its side (no text or symbols)

Close-up of a mechanical device with a green checkmark indicating a detail (no text or symbols visible)

Diagram of a satellite dish with a red X mark indicating a warning or error (no text or symbols present)

3D rendering of a satellite dish antenna with a green checkmark indicating a detail (no text or symbols present)

Diagram showing a mechanical device with labeled parts and a magnified view of the component being rotated.

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows indicating flow or movement.

Diagram showing a mechanical or structural component with numbered annotations indicating directional movement or force directions.

Illustration of hands operating a car tire with blue arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing the impact of a tool (no text or symbols present)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a wooden object being inserted into a black perforated device (no text or symbols visible)

Close-up of a mechanical component with a curved handle and textured base, no visible text or symbols

Diagram showing a device with labeled parts: one connected to a lamp and another to a vacuum cleaner, with blue arrows indicating motion or sequence.

Close-up of a handheld device with a circular inset showing a blue circular symbol (no text or symbols present)

Mechanical assembly diagram showing a vertical orange bar connected to a gray bracket with a blue directional arrow (no text or symbols)

Close-up of a desktop microphone with a cable and stand, showing a magnified view of the cable (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a device's internal structure (no text or symbols visible)

1 Atlaisvinkite lentos pakreipimo svirtj.

Illustration of a satellite dish with blue directional arrows indicating rotation (no text or symbols)

Illustration of a medical or laboratory apparatus with a magnified inset showing a hand holding a blue object (no text or symbols visible)

3 Užfiksuokite lentos pakreipimo svirtj.

Illustration of a desktop microphone with a magnified inset showing a blue circular component (no text or symbols)

1 Atlaisvinkite lentos pakreipimo svirtj.

Illustration of a satellite or spacecraft with orange body and blue directional arrows indicating rotation (no text or symbols)

Illustration of a modern office chair with a blue circular inset showing a hand holding a device (no text or symbols visible)

Illustration of a hand pressing down on a car seatbelt with blue arrows indicating force (no text or symbols)

Safety warning illustration showing hand holding a steam covers with warning symbols and a red X mark indicating failure or rejection.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a car hood with a blue light source (no text or symbols)

3D rendering of a small office chair with a curved arm and vertical legs (no text or symbols visible)

Hand inserting a compact device into a black plastic case (no text or symbols visible)

Close-up of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating rotation (no text or symbols)

Illustration of a plug being inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a hand pointing to a circular button, no text or symbols present

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Illustration of a hand pressing down on a document with a blue arrow indicating motion (no text or symbols present)

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using a steam iron to clean or iron (no text or symbols)

Illustration of a hand using a power tool to press or print a document, with the number 1x labeled (no text or symbols on the diagram itself)

Illustration of a hand using an iron on a machine, with a stopwatch and directional arrow (no text or symbols)

3 secs

Diagram of a hook with a blue arrow indicating rotational motion, showing a mesh structure (no text or symbols)

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

Diagram showing a blue arrow pointing to a textured patterned surface, with no visible text or symbols.

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

4 Uždékite drabužj ant lentos.

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

3D illustration of a robotic arm interacting with a mechanical component, showing a blue arrow indicating motion (no text or symbols)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leafy object next to a metallic curtain border (no text or symbols visible)

Patarimai del lyginimo

Hand holding a feathering device over a garment, with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a tool over a garment with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a triangular tool to lift down a garment with a blue arrow indicating downward motion (no text or symbols)

Illustration of a hand using an iron on a t-shirt, with a blue arrow indicating down (no text or symbols present)

Illustration of a hand holding a blue garment with a cloth partially inserted, no text or symbols visible

Illustration of a hand interacting with a touchscreen display (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean blue fabric on a table (no text or symbols visible)

Illustration of hands cutting a blue sheet with a pen on a stand (no text or symbols visible)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand using a pen to lift a blue sheet of paper (no text or symbols visible)

4 Kelnes jkiškite per lyginimo lentos priekj. Lygintuvu slyskite ir spauskite ant lyginamos vietos.

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

Illustration of a black plug inserted into a white electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

390 Lietuviškai

Illustration of a faucet pouring liquid into a metal tank (no text or symbols)

Close-up of a mechanical device with a meshed circular component and attached clamping bracket (no visible text or symbols)

Illustration of a desktop stand with a device and cable, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden tool and a black perforated metal bracket (no text or symbols visible)

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

3 Paspauskite lentos sagties spaustukus.

Close-up of a mechanical component with orange and blue arrows indicating force or movement (no text or symbols visible)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating a flow or movement process.

Diagram showing a vertical pole with labeled arrows (1 and 2) indicating motion or movement, likely illustrating a mechanical or electrical system.

Diagram showing a vertical stand with labeled parts and directional arrows indicating movement or force

392 Lietuviškai

Illustration of a mechanical component with numbered parts and directional arrows (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for safety or health advice.

Illustration of a person using a vacuum cleaner with a checkmark and magnified detail (no text or symbols)

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Illustration of a desk lamp with a red X mark and a black triangular head (no text or symbols)

Illustration of a satellite dish with a red X mark and a blue circular object, no text or symbols present.

Close-up of a mechanical device with a green checkmark pointing to a component (no text or symbols visible)

Illustration of a gray gas cylinder with a red X mark on its side (no text or symbols)

Close-up of a mechanical device with a green checkmark indicating a detail (no text or symbols visible)

Satellite antenna with a red X mark indicating cancellation or error (no text or symbols present)

3D illustration of a satellite dish with a green checkmark on the base (no text or symbols)

Diagram showing a mechanical device with labeled parts and a magnified inset illustrating rotational motion.

Diagram illustrating a mechanical assembly with numbered steps and rotation arrows, likely for robotic manipulation or assembly.

Diagram illustrating mechanical assembly steps with numbered instructions and rotation arrows

Diagram illustrating a biological or geological structure with labeled parts and directional arrows, likely from a scientific or engineering context.

Diagram showing a mechanical or structural component with numbered annotations indicating directional movement or force vectors.

Illustration of hands performing a car tire lift maneuver with blue arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a bracket with a green checkmark and blue arrows indicating force or motion (no text or symbols present)

Illustration of a hand holding a small object with a magnified inset showing the contact point (no text or symbols)

Diagram of a device with two labeled parts connected by arrows, no text or symbols present

Close-up of a mechanical component with a wooden handle and blue arrow indicating direction (no text or symbols visible)

Close-up of a mechanical component with a curved blade and structural framework (no visible text or symbols)

Diagram showing a device with labeled parts: one connected to a lamp, another to a vacuum cleaner, and part numbered 1.

Close-up of a handheld device with a circular inset showing a blue circular symbol (no text or symbols present)

Mechanical assembly diagram showing a vertical orange bar mounted on a gray frame with a blue directional arrow indicating motion (no text or symbols present)

Close-up of a microphone with a magnified inset showing a blue circular detail (no text or symbols visible)

Close-up of a desktop microphone with a magnified inset showing a blue circular graphic (no text or symbols visible)

Illustration of a satellite or spacecraft with blue directional arrows indicating rotation (no text or symbols)

3D rendering of a handheld electronic device with a magnified inset showing internal components (no text or symbols visible)

Illustration of a mobile phone stand with a magnified inset showing a blue circular arrow pointing to a device (no text or symbols present)

Illustration of a satellite or spacecraft with orange body, blue directional arrows indicating rotation (no text or symbols)

Illustration of a desk lamp with a magnified inset showing the interior mechanism (no text or symbols)

Illustration of a hand pressing down on a car seatbelt, with arrows indicating the process (no text or symbols present)

Illustration showing hands using a chemical lamp to clean air, with warning symbols and a red X mark indicating cancellation.

Illustration of a hand holding a small object with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands using a tool to apply material to a surface (no text or symbols visible)

Illustration of a hand touching a surface with a blue laser beam (no text or symbols)

Exterior view of a modern office building (no signage)

Hand inserting a device into a gray plastic bag (no text or symbols visible)

3D rendering of a mechanical component with a blue tool inserted, no visible text or symbols

Illustration of a hand inserting a device into a car seat, showing blue arrows indicating rotation (no text or symbols)

Illustration of a plug being inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of a handheld device with a magnified circular detail showing a hand interacting with the screen (no text or symbols visible)

Diagram showing a person wearing a shirt with a checkmark and a speech bubble containing three stacked devices, indicating a verification or notification.

Hand holding a pen or stylus with a blue arrow pointing to the pen tip (no text or symbols visible)

Hand holding a pen or stylus with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using an iron on a surface with a stopwatch showing 3 seconds (no text or symbols on the diagram itself)

Diagram of a mechanical component with a blue arrow indicating rotation or force direction (no text or symbols)

Illustration of a hand holding a clothes hanger with an iron inside, next to a blue shirt (no text or symbols visible)

Diagram showing a blue arrow pointing to a textured patterned surface, with no visible text or symbols.

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

3D diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a handheld electronic device with a circular icon highlighting a small circular feature (no text or symbols visible)

OFF °C 10 mins.

Close-up of a handheld device with a magnified view showing a finger pointing to the screen (no text or symbols visible)

Hand using a tool to lift a brown object, labeled with arrows 1 and 2 (no text or symbols on the object itself)

Close-up of a robotic arm gripping a small mechanical component, with a blue arrow indicating motion (no text or symbols visible)

Illustration of a person standing next to a portable stand with a bag, showing motion (no text or symbols)

× i √ ✓ i

Illustration of a teddy bear holding a gray object, with no visible text or symbols

Hand using a power iron to clean off a gray sofa (no text or symbols visible)

Hand holding a leaf-shaped object next to a metallic curtain border (no text or symbols visible)

Vasalási tippek

Illustration of a hand using a tool to remove or clean a garment (no text or symbols)

Illustration of a hand holding a tool interacting with a garment sleeve, showing a blue arrow indicating direction (no text or symbols present)

Illustration of a hand using a hairdryer to clean a garment (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow direction (no text or symbols)

Illustration of a hand using a tool to remove or dispose of a bag (no text or symbols visible)

Illustration of a hand holding a blue fabric swab with a downward arrow, hanging from a hanging hook (no text or symbols)

Illustration of a hand using a steam iron to clean a blue T-shirt (no text or symbols present)

Illustration of hands using a clothes iron to clean fabric (no text or symbols visible)

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

Illustration of a hand holding a tool over an orange surface, with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to clean or adjust a garment (no text or symbols visible)

Person using a power iron to clean a blue garment on a table (no text or symbols visible)

Illustration of hands cutting a blue sheet with a pen on a stand (no text or symbols visible)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to clean or spread material on a surface (no text or symbols visible)

Illustration of a medical device with a hand gesture and blue arrow pointing to the device (no text or symbols present)

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Illustration of hands cleaning a baby's face with a magnified inset showing a bottle and a green bag (no text or symbols)

Magyar

Illustration of a faucet pouring liquid into a tank (no text or symbols)

Mechanical device with attached clamping mechanism and wiring (no visible text or symbols)

Illustration of a desktop desk with a lamp and a handbag, showing blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with labeled parts (1 and 2), no readable text or symbols present.

Close-up of a wooden hammer and a perforated metal bracket (no text or symbols visible)

Close-up of hands operating a mechanical component with blue arrows indicating direction (no text or symbols visible)

Close-up of a satellite dish with orange cable attachment and blue arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating fluid flow or motion.

Diagram showing a vertical pole with labeled arrows (1 and 2) indicating motion or movement, likely from a technical or mechanical context.

Diagram showing a vertical stand with labeled parts and directional arrows indicating motion or movement.

420 Magyar

Illustration of a 3D orange object with a blue arrow and numbered callouts (no text or symbols)

Illustration showing a person using a handheld device with checkmark and magnified detail, likely for instructional or safety advice.

Illustration showing a person using a vacuum cleaner with checkmark and magnified detail view

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Illustration of a person receiving a hairdryer with a red X mark (no text or symbols)

Illustration of hands holding a teardrop-shaped object with a red X mark above, no text or symbols present

Illustration of hands using a tool to clean or wear a purple garment, with a red X mark indicating the defect (no text or symbols present)

Illustration of a desk lamp with a red X mark and cable, no text or symbols present

Diagram of a satellite dish with a red X mark indicating a warning or error (no text or symbols present)

3D rendering of a satellite dish antenna with a green checkmark indicating a location (no text or symbols present)

Mechanical assembly diagram showing a lever and base with numbered components (no text or symbols)

Diagram illustrating a mechanical or robotic device with numbered steps and rotation arrows, likely for assembly or positioning instructions.

Diagram illustrating mechanical assembly steps with numbered instructions and blue circular arrows indicating rotation or movement.

Diagram illustrating a biological or geological structure with labeled parts and directional arrows, likely illustrating soil or material flow.

Diagram showing a mechanical or structural component with numbered annotations indicating directional movement or force directions.

Illustration of hands operating a car tire with blue arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a green checkmark and blue screw holes (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing the impact of a tool (no text or symbols present)

Diagram of a device with two labeled components connected by arrows, no text or symbols present

Close-up of a mechanical component with a wooden handle and blue arrow indicating direction (no text or symbols visible)

3D mechanical component with a highlighted circular feature (no visible text or symbols)
