USER MANUAL Tivoli Physa

A B C D G E F H

Close-up of a white industrial machine component with a red circle highlighting a mechanical component (no visible text or symbols)

Close-up of a white medical or cosmetic device with a red circle highlighting a small circular feature on the side (no text or symbols visible)

Three abstract black line drawings on a white background, resembling stylized human figures or symbols (no text or symbols present)

1 — 2 5- 6 4 —3

Parameter description	Parameter value
Product name	Beauty bed
Model	TIVOLI BLUE 01
Rated voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	300
Protection class	I
Operation	10% interval, maximum 6 minutes during 1 hour
Maximum load [kg]	175
Footrest adjustment angle [°]	50 (±2)
Seat adjustment angle [°]	20 (±2)
Backrest adjustment angle [°]	81 (±2)
Dimensions [mm]	1950 x 830 x 660-870
Weight [kg]	66.3

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement.

Legend

EN

	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	ATTENTION! Hand crush hazard!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is written in German. Other language versions are translations from the German.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Beauty bed

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Do not touch the device with wet or damp hands.
c) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
d) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
e) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) Do not use in very humid environments or in the direct vicinity of water tanks.
h) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
g) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.

2.4. Safe device use

a) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
c) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
d) Keep the device out of the reach of children.
e) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.

g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
h) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Do not overload the device.
o) Exceeding the maximum permissible user weight can damage the product.
p) The bed cover is made of polyurethane, therefore it is recommended to use detergents and cleaning agents intended for PU or use warm water for cleaning.
q) Do not wax or use detergents and / or leather cleaning agents as these may damage the coating.
r) If the cover is significantly damaged, it is recommended to replace it with a new one.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

This product is designed as a support in various cosmetic services, it is equipped with electric adjustment of backrest and seat. Footrest adjustment is also possible.

The product is outside the scope of MDD93/42/EEC regulations for medical devices.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

A B C D G E F H

A. Headrest
B. Backrest
C. Armrest
D. Footrest
E. Remote control
F. Up/down-adjustment column
G. Built in control panel (also in the backrest housing)
H. Housing

3.2. Preparing for use

3.2.1. APPLIANCE LOCATION

Keep a minimum of 0.8 m of free space around. Keep the product away from hot surfaces. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.2.2. ASSEMBLING THE DEVICE

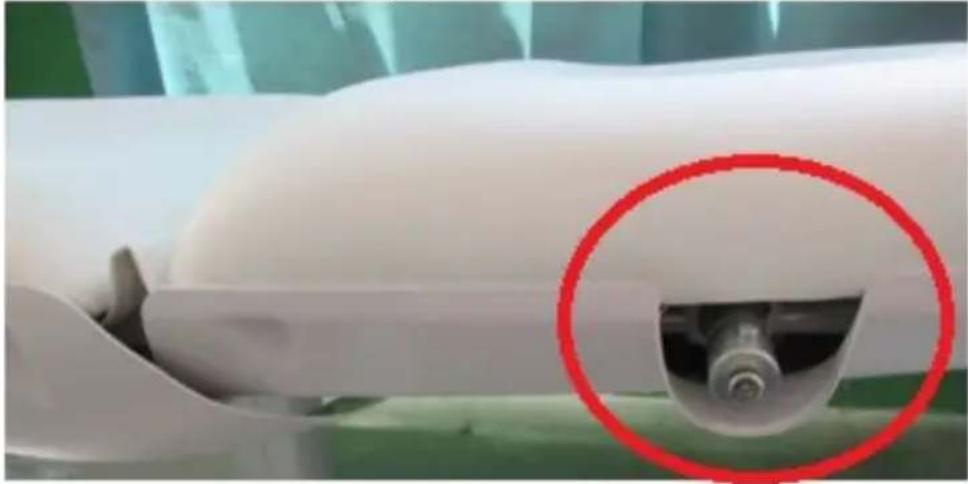

• Install the armrest in the place marked.

Close-up of a white industrial machine component with a red circle highlighting a mechanical part (no visible text or symbols)

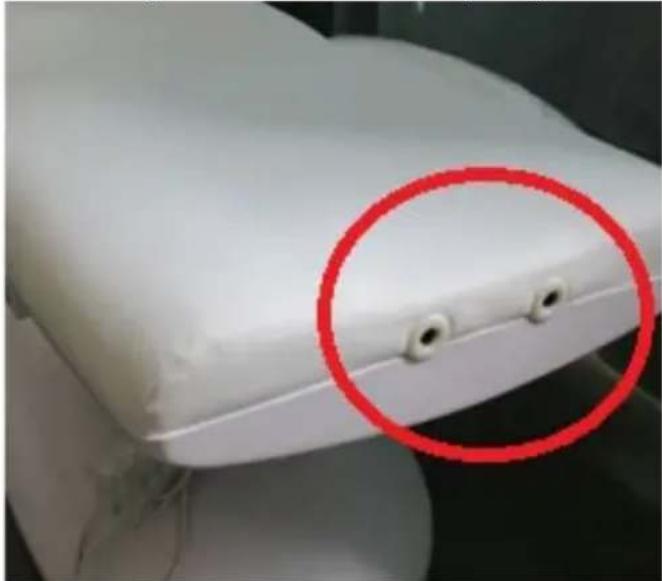

• Install the headrest by inserting it into the place marked.

Close-up of a white foam roller with two circular holes, circled in red (no text or symbols visible)

3.3. Device use

Handling

The device should be connected to a power supply compatible with the data given on the nameplate. The height and position of the device can be changed using remote control, buttons on the device. To start appropriate function press and hold button on the remote control / device. Releasing the button will cause stop of the device in the set position.

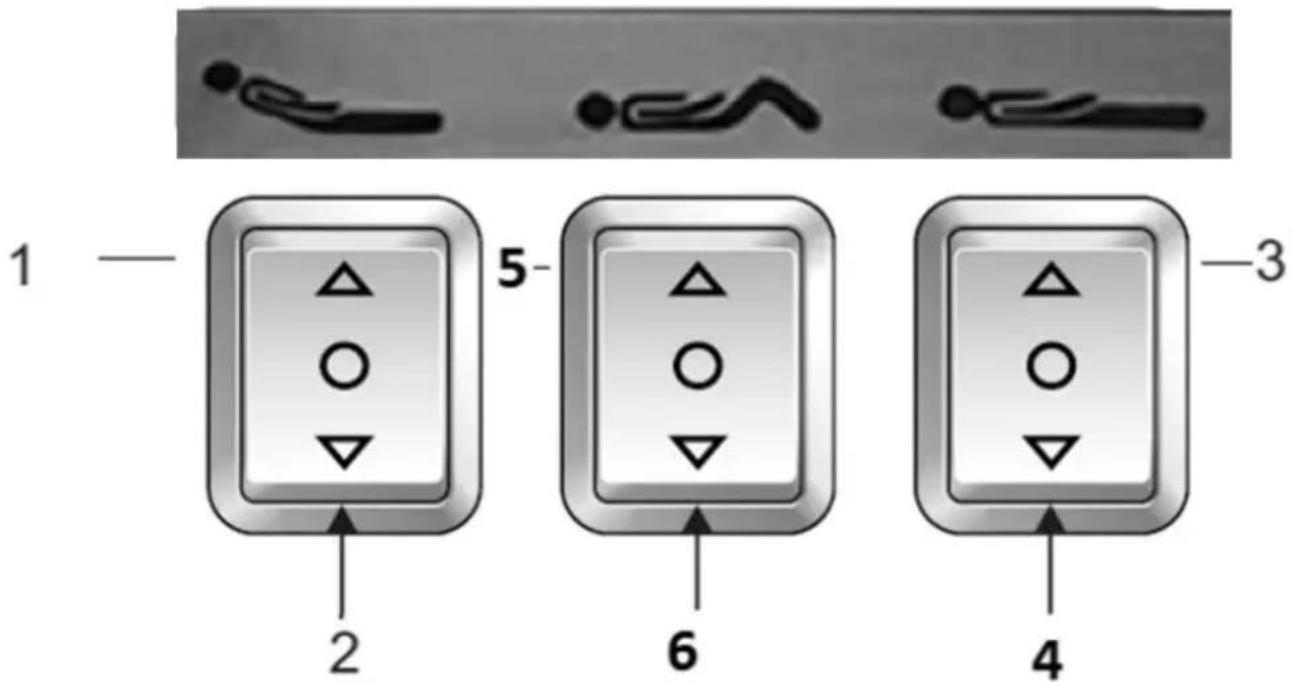

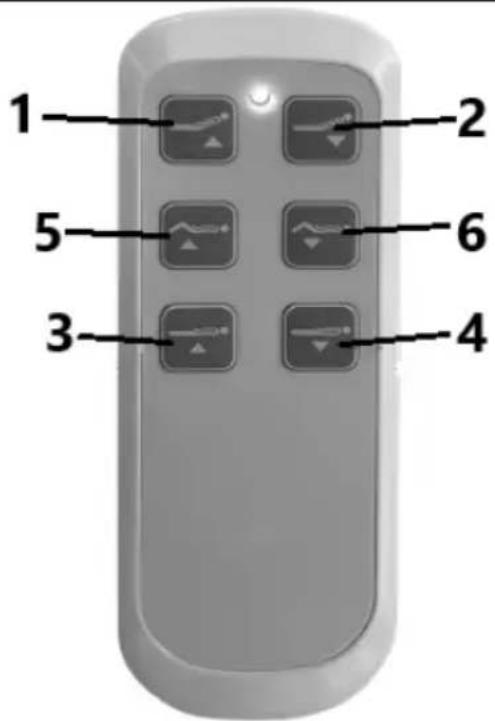

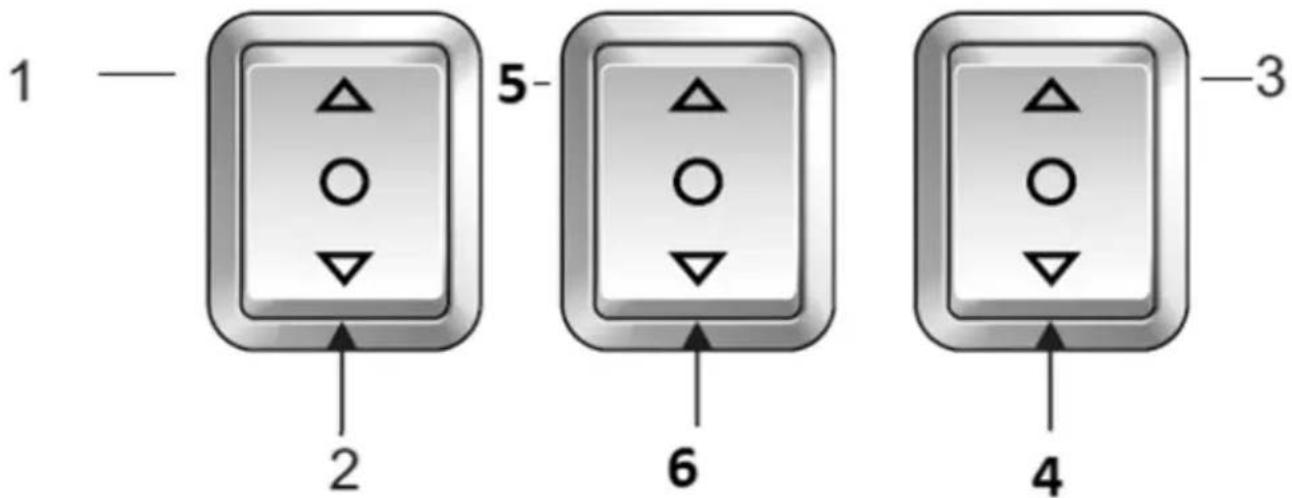

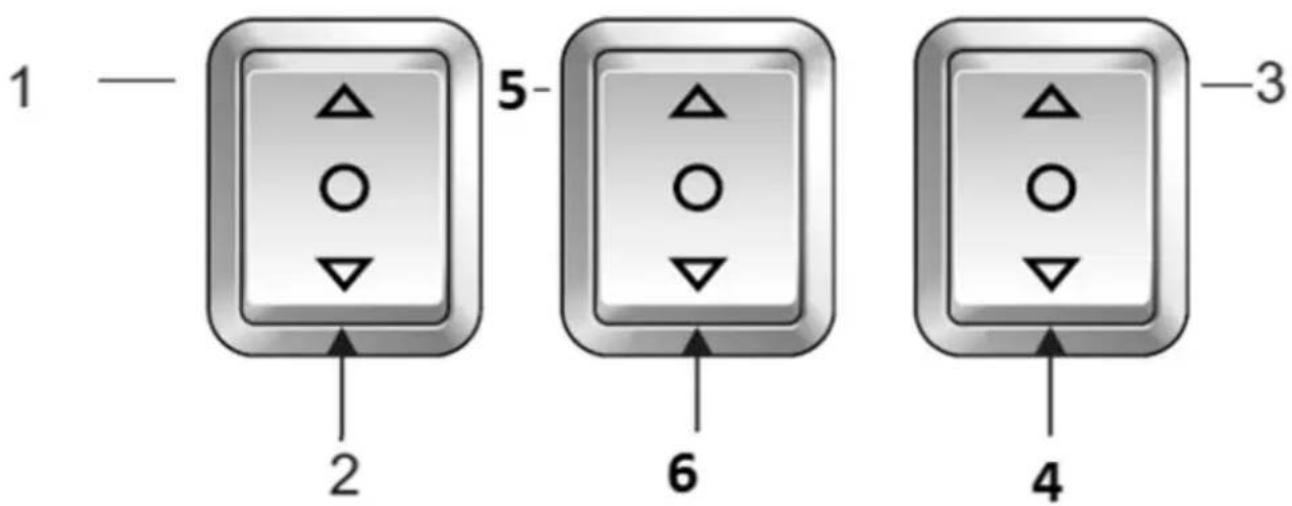

1 2 5 6 3 4

1 2 5- 6 4 3

1. Backrest inclination angle: up
2. Backrest inclination angle: down
3. Seat height adjustment: up
4. Seat height adjustment: down
5. Seat inclination angle: up
6. Seat inclination angle: down

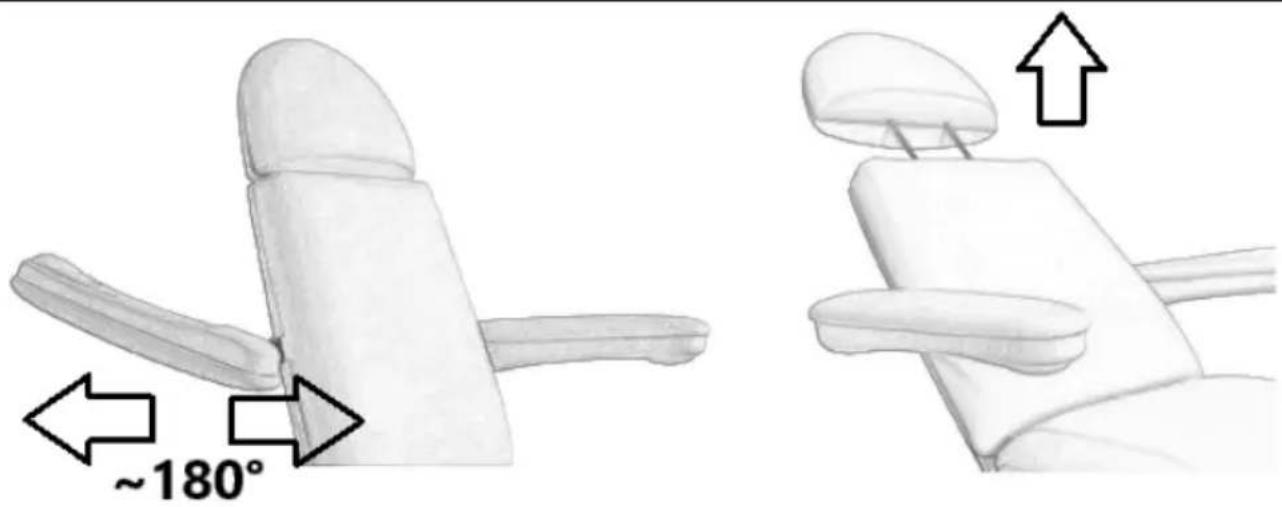

ARMREST AND HEADREST ADJUSTMENT

~180°

USAGE TIPS

In order to ensure good hygiene of the workplace, it is advisable to use a removable cover. After every use the covers must be subjected to sterilization in order to guarantee cleanliness.°

3.4. Cleaning and maintenance

a) Overall cleaning rules:

• Always unplug the device before cleaning it. Also unplug it when not use for a longer period.
• Note! The product should be cleaned after each use. It is recommended to use a mild disinfectant for this purpose.
  • Never spray the device with water jets.
• Use a soft cloth for cleaning.
• Fabrics with a different color than the upholstery may cause discoloration of the product.
  • After cleaning the device, all parts should be dried before reusing it.
• Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.

b) Metal and plastic surfaces:

Clean metal and plastic surfaces or hand controls with wet cloth and mild alkaline cleaning solution. Use small brushes in corners and other difficult areas. When cleaning, rinse with clean water and carefully wipe dry, do not use too much liquid, disinfectant (alcohol or chlorine) and follow the instructions of the disinfectant manufacturer, evaporation at room temperature drying.

c) Stainless steel surface

High resistance to chemicals, clean with a mild detergent solution. Ammonia and most solvents can be used to remove difficult stains. Avoid

using chlorine-based solutions to spray on chrome-plated metal surfaces. All surfaces must be dry before connecting the product to the main power supply and using the equipment. Do not use water spraying for cleaning. Do not clean at high temperatures and in high humidity. Do not expose the equipment to conditions that may cause liquid contamination. Do not clean with solvents or acids. Disinfection can wear surfaces. After disinfection clean the surface with a clean damp cloth.

d) Upholstered surface

Clean the upholstered cushions with a clean, soft cloth and a special leather or vinyl cleaner to wipe the surface evenly, and then clean with a clean soft cloth, do not use wet cloth, hard or acid, alkaline and other chemical in contact with the bed, to not affect the upholstery quality and life cycle.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
