USER MANUAL HWS78TGDFH1SW HAIER

Warning sign depicting a flame symbol in a yellow triangle with black border

EN WARNING: Risk of fire/flammable material.

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning – Important Safety information

spit dna noitam rofni lareneG

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect

the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

the insulation foam.

By ensuring this product is disposed of corectly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused.

For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals.

EN

Content

1- Safety information....4
2 - Safety tips....7
3- Maintenance ....11
4-Accessories....13
5- Product description ....14
6- Installation 15
7- Use....18
8- Energy saving tips....21
9 - Equipment 22
10- Care and cleaning....23
11- Troubleshooting 24
12- Technical data ....27
13- Customer Service 28

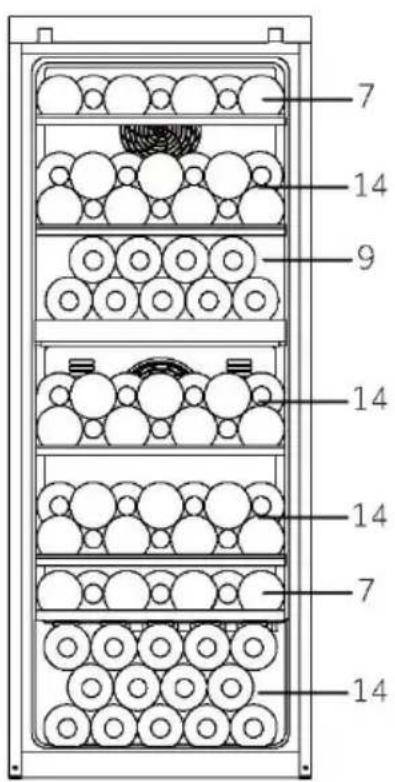

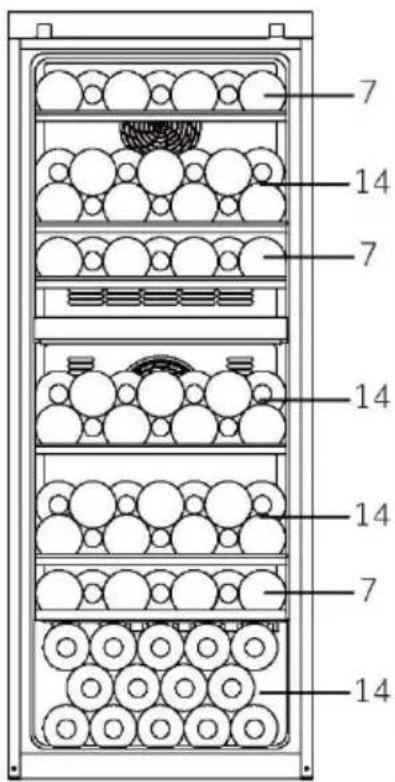

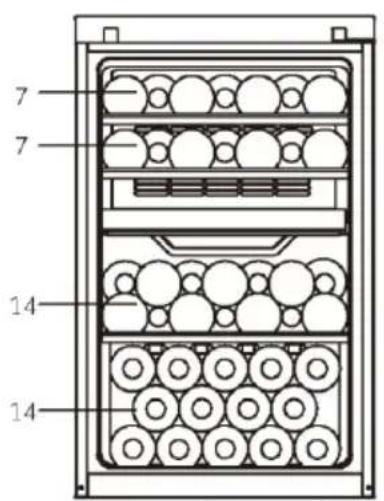

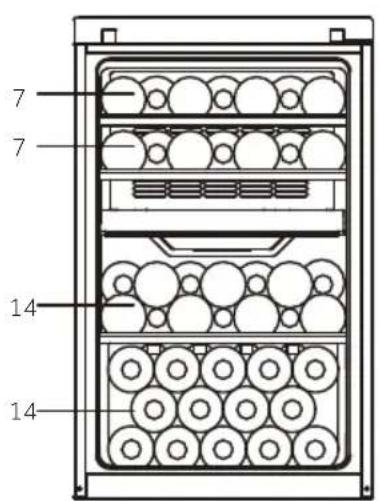

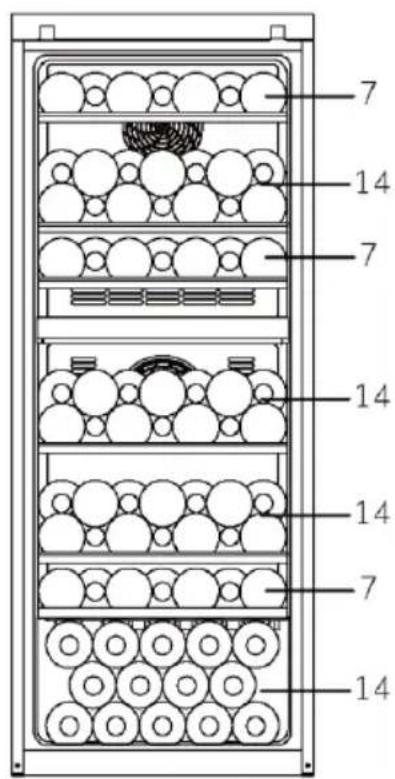

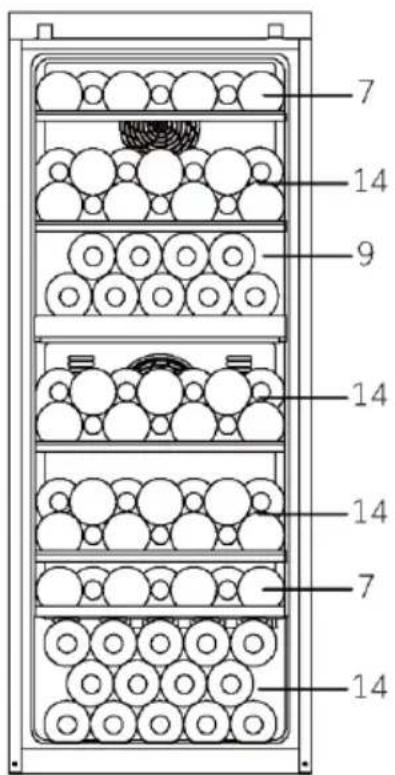

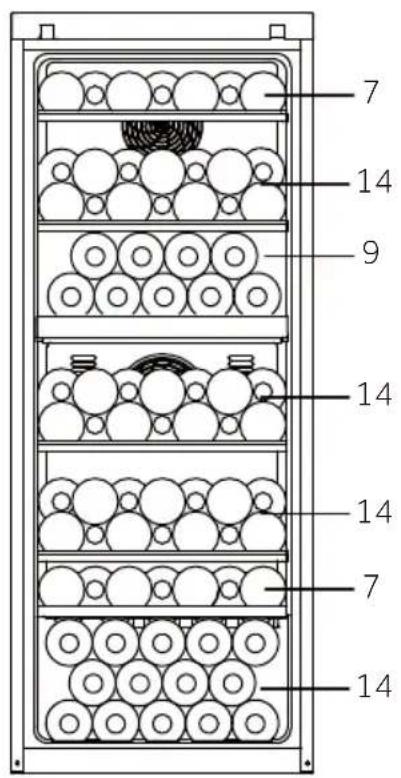

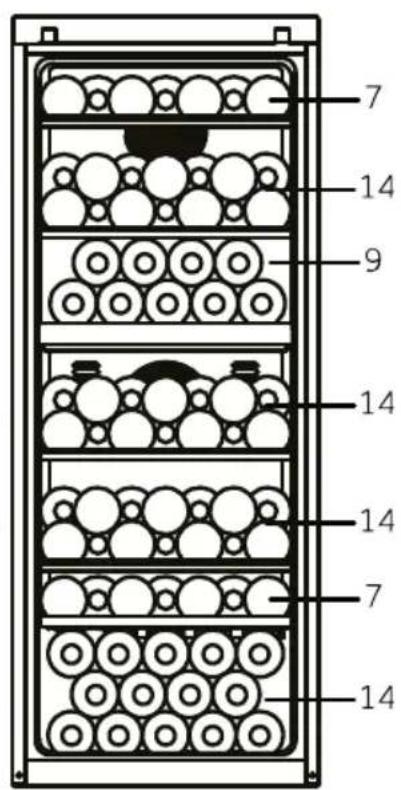

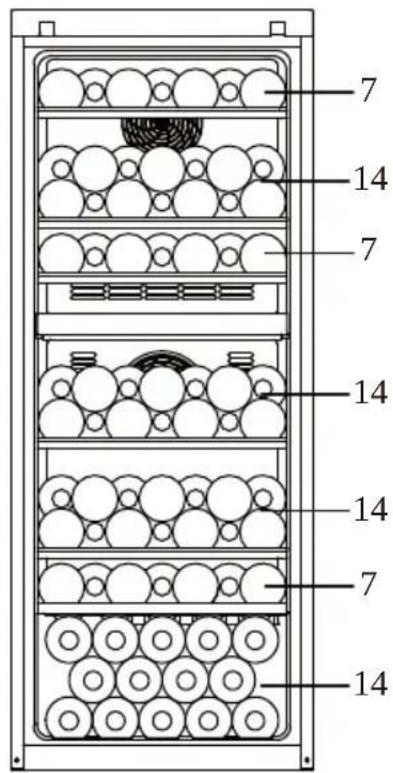

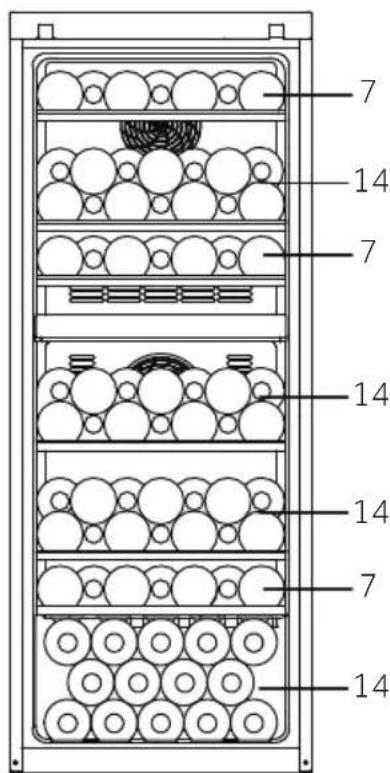

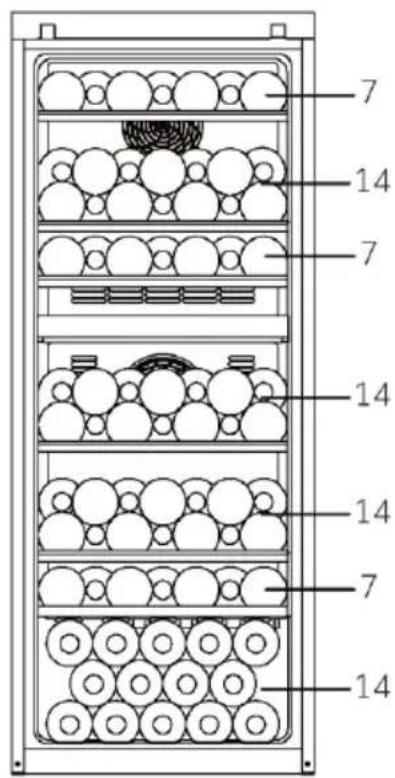

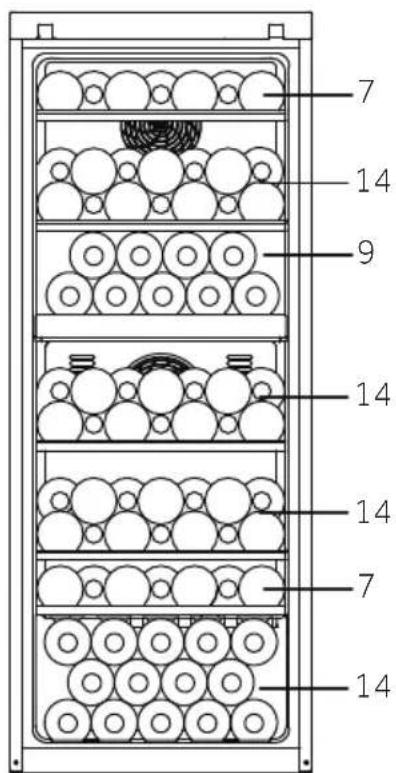

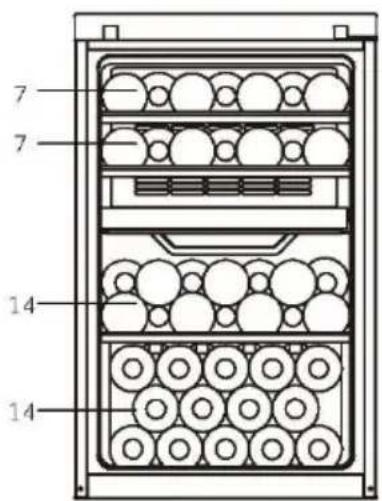

14- Wine bottle stacking....29

3 his appliance is intended to be used exclusive/ for the storage of wine. Before switching on the appliance for the ^- rst time read the following safety hints:

WARNING!

Before first use

▶Make sure there is no transport damage.
Remove all packaging and keep out of children's reach and dispose them in an environmentally friendly manner.
▶Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
▶Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your wine cellar was not designed to operate in ambient temperature below 10 °C.
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g.stoves,heaters).
▶Install and level the appliance in an area suitable for its size and use.
▶Make sure that the electrical information on the agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶Do not use multi-plug adapters and extension cables.

rating

WARNING!

▶WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.
▶WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶Do not step on the power cable.
▶Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.
▶Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
▶WARNING: Do not damage the refrigerant circuit.

Daily use

▶ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶Children shall not play with the appliance.
▶Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶Cleaning and user maintenance shall not be made by children with out supervision.
▶The appliance must be positioned so that the plug is accessible.
If coal gas or other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the appliance.
▶Wait at least 7 minutes to reconnect the power after the power has been disconnected.
▶Do not lift the appliance by its door handles.
▶The keys must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside the appliance.

WARNING!

▶Notice that the appliance is set for operation at the secific ambient range between 10 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶Do not place unstable articles(heavy objects, containers fill with water) on top of the appliance, to avoid personal caused by falling or electric shock caused by contact with water.
▶Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the appliance doors only when there are no children standing within the range of door movement.
▶Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶Do not set unnecessarily low temperature in the wine cabinet compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶Do not touch the inside surface of the appliance compartment when in operation,especially with wet hands,as your hands may freeze onto the surface.

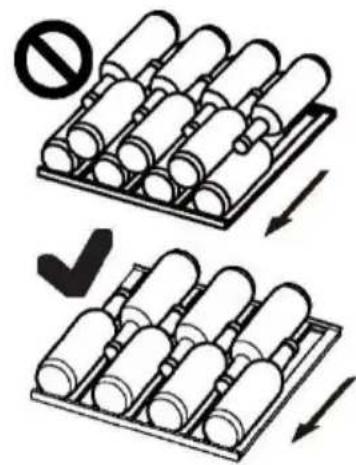

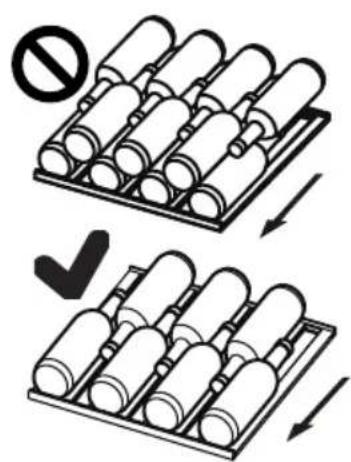

▶For proper wine cooling, do not overload the appliance.
▶Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ WARNING: Do not use electrical devices inside the appliance, unless they are of the type recommended by the manufacturer. To avoid risks a damaged power cord must be replaced by the customer service(see warranty card).
▶To prolong the service life of the appliance, avoid turning it off.
▶Never place the appliance horizontally on the ground. After tilting the appliance more than 45^ , wait for 24 hours before plugging it in.

àÊÛ×Ò×D

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and maintenance.
▶Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually warm water and baking soda solution - about a t-baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
▶àÊÛ×Ô×Đ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
▶If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
▶If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

Safety Tips

EN

▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass door with hot water. Sudden temperature change may cause the glass to break.
▶If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gass information

WARNING!

The appliance contains the flammable refrigerant ISOBUTAN (R600a). Make sure the refrigerant circuit is not damaged, transportation or installation. Leaking refrigerant may cause injuries or ignite. If a damage has occurred, keep away sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. In customer service.

In case of eyes get into contact with the refrigerant, rinse it immediately under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please, install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.

Intended use

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

▶To ensure the safe preservation of wine, please comply with this instruction for use.

The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

which

Since the fl ammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.

WARNING!

Risk of injury of suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance.

EN

▶WARNING: Disconnect the appliance from the power supply before cleaning.
▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶Clean the appliance when only little or no wine is stored. It is only necessary to clean it when it is dirty.
▶Clean the inside and housing of the appliance with a sponge damped in warm water and neutral detergent
▶Rinse with clean warm water and dry with soft cloth.
▶Do not clean any of the parts of the appliance in a dishwasher.
▶Allow at least 7 minutes before re-starting the appliance as frequent starting may damage the compressor.

Clean the door gasket:

The door gaskets should be cleaned every 3 months to assure a proper seal. As below: Remove: Grasp the door gasket and pull it out according to the direction of arrow to remove the whole door gasket in order. Dip the brush with water or food grade alcohol, clean up the door gasket groove firstly by pulling back and forth the brush. Then wipe door gasket surface with a towel dipped with water or food grade alcohol. Finally, wash the door gasket clean and wipe it dry with a clean towel.

Installation door gasket after cleaning:

Before installation, make sure that there is no water on the door gasket. Insert the door gasket into the groove, and press the door gasket tightly from the top to the bottom by hand until the whole door gasket is inserted into the groove.

Cleaning the shelves:

▶All shelves can be taken out for cleaning.
▶Take out all bottles.
▶Lift each shelf a little and take it out.
▶Clean the shelf with a soft towel.
▶Wait until the shelves are dry before putting them back in.

WARNING:

Wait at least 7 minutes to reconnet the power after the power has been disconnected.

Check the accessories and literature in accordance with this list: without isolation.

Name	User Manual	Service Card	Shelf	Small shelf	Hinger Cover	Energy Label	Key	Left cam of door
HWS77GDAU1 1	1 6 1 1	1 2 2
HWS42GDAU1 1	1 3 1 1	1 2 2
HWS79GDG 1	5 0 0	1 0 0
HWS78TGDFH1SW	1 1 6	1 1 1 2 2
HWSKTM42GDGIT	1 1 3	1			1	1 2 2

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

Picture of appliance

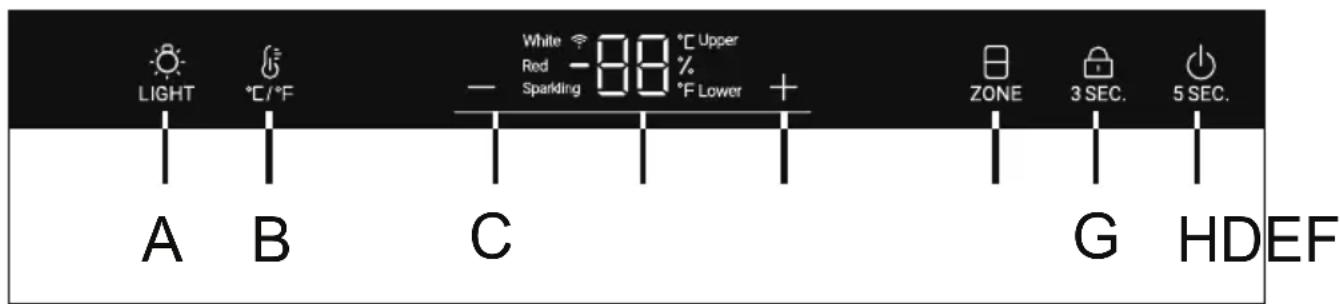

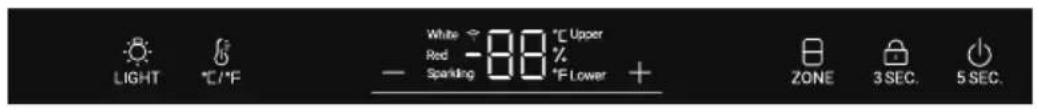

LIGHT °C/°F White ↑ Red ↑ Sparking -88 °C Upper % ↑ °F Lower + ZONE 3 SEC. 5 SEC.

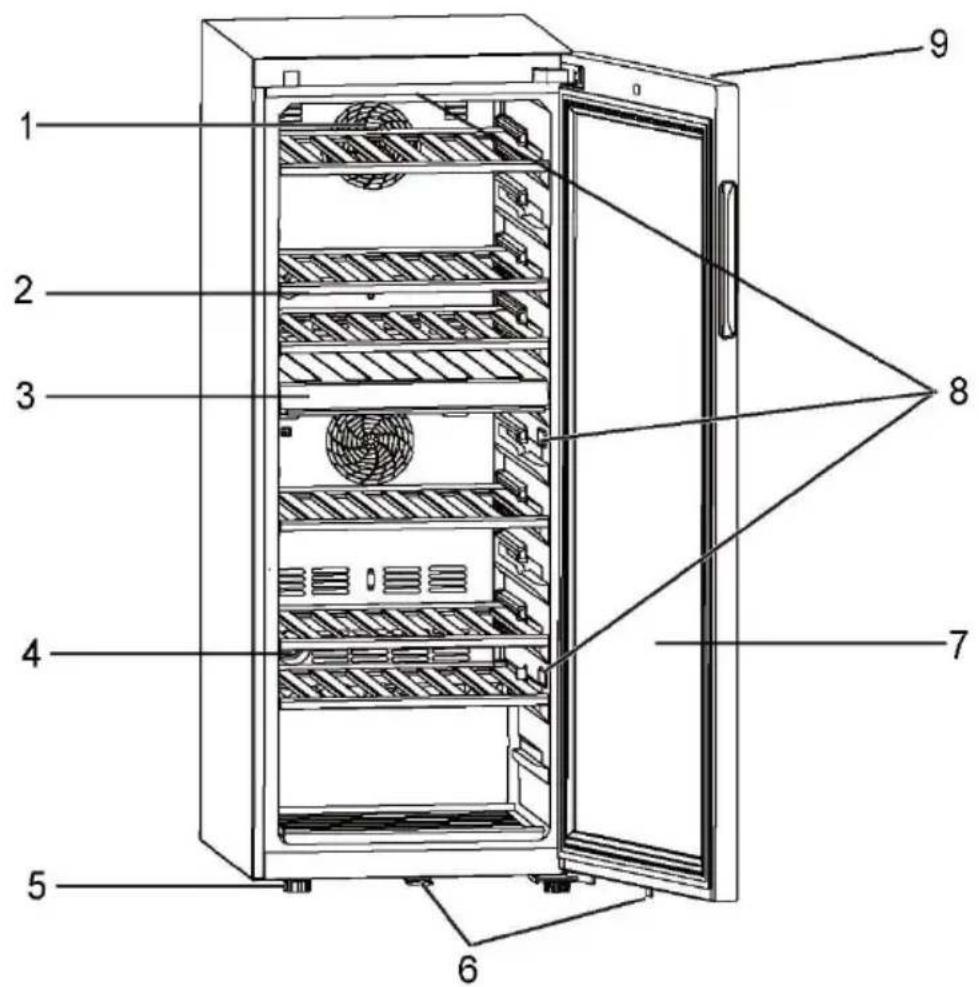

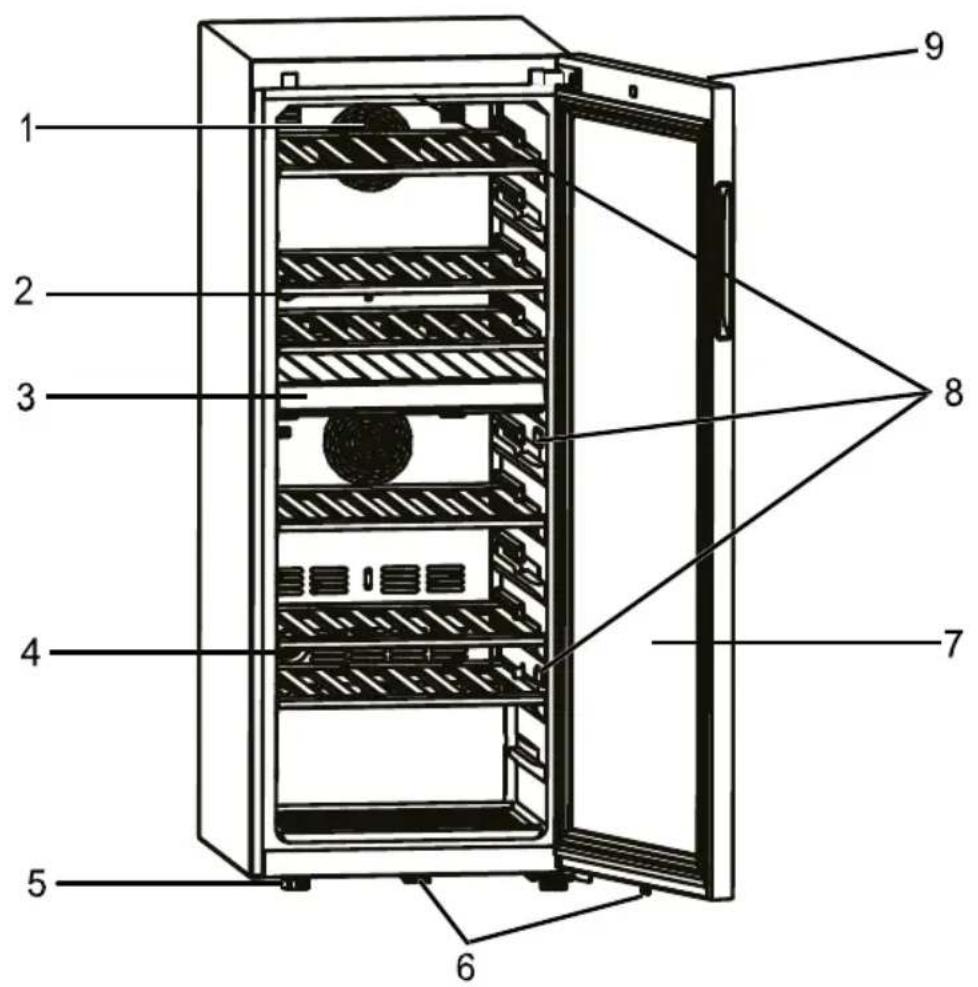

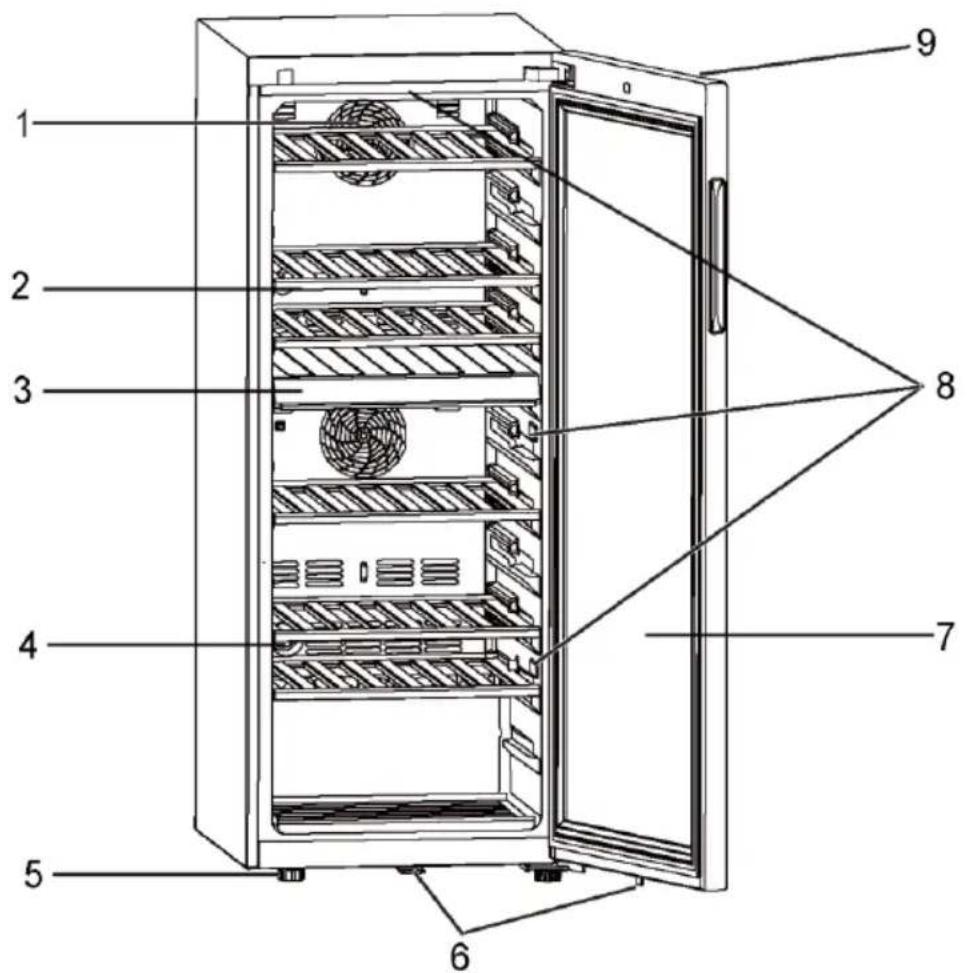

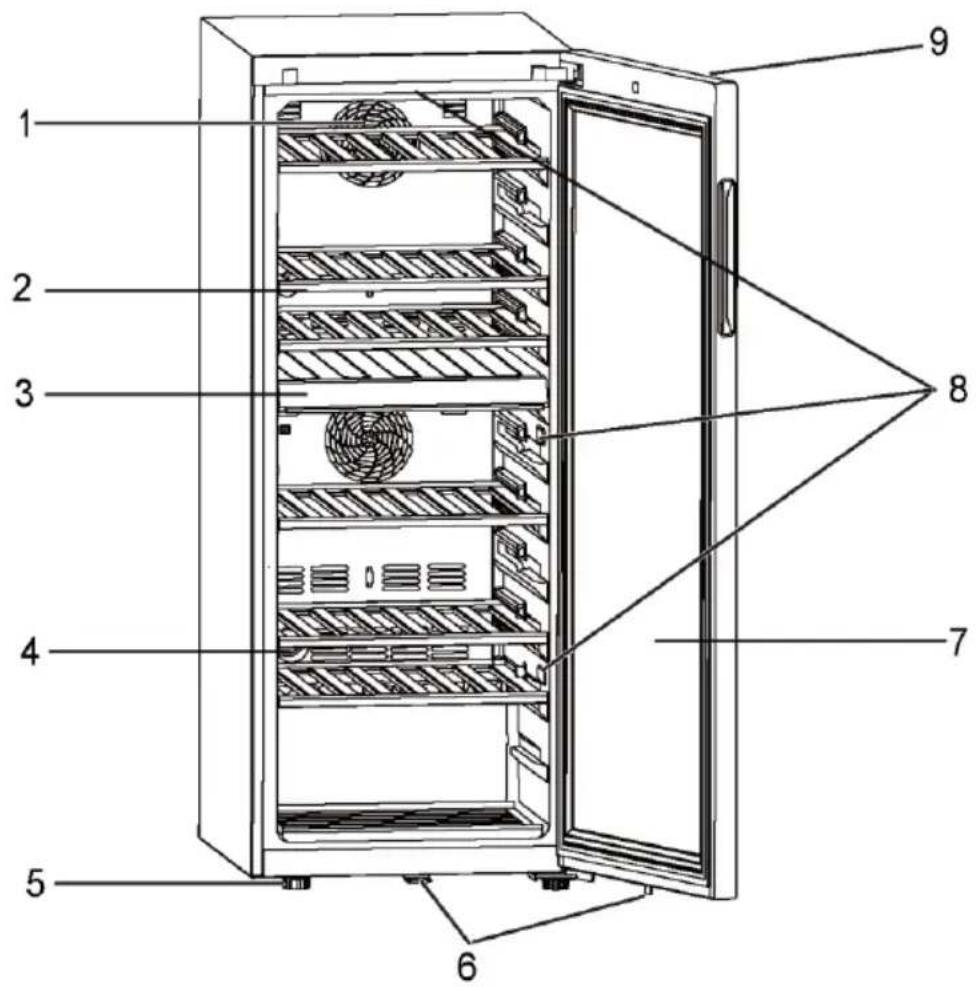

Technical diagram of a refrigerator with numbered parts labeled for identification

1. Fan
2. Shelf
3. Middle partition

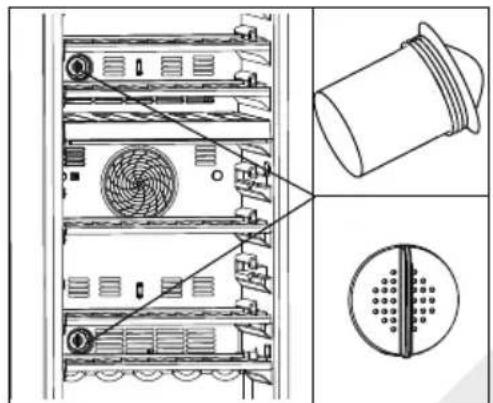

4. Active charcoal filter

5. Adjustable feet

6. Lock(for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)

7. Door
8. LED lamp
9. Display (on front of the door)

1. Unpacking

▶ Take the appliance out of the packaging.

Remove all packaging materials including the foam base and all adhesive tape holding the accessories.

2. Environmental conditions

The room temperature should always be between 10°C and 38°C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

3. Space requirements

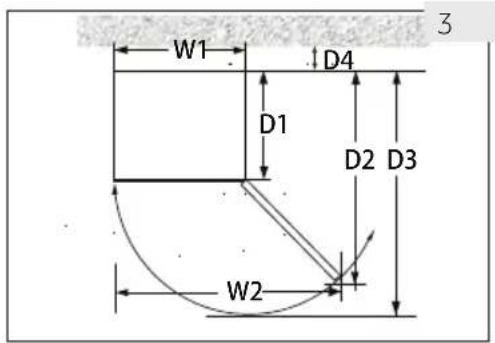

Required space to open the door (Fig. 3):

Width in mm	Depth in mm	Distance to wall in mm
W1 W2 D1	D2 D3 D4
495 630 535	1033 1047 100

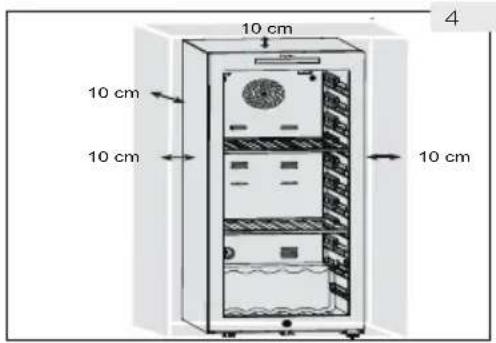

4. Ventilation space

For safety and energy reasons, the required ventilation distance of 10 cm in all directions must be observed (Fig. 4).

W1 D4 D1 D2 D3 W2 3

10 cm 10 cm 10 cm 4

WARNING!

▶ Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. This refrigerating appliance is not intended to be used as a built-in appliance

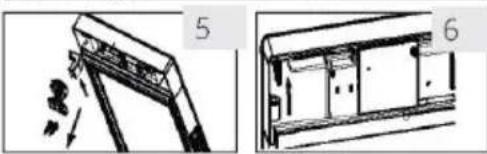

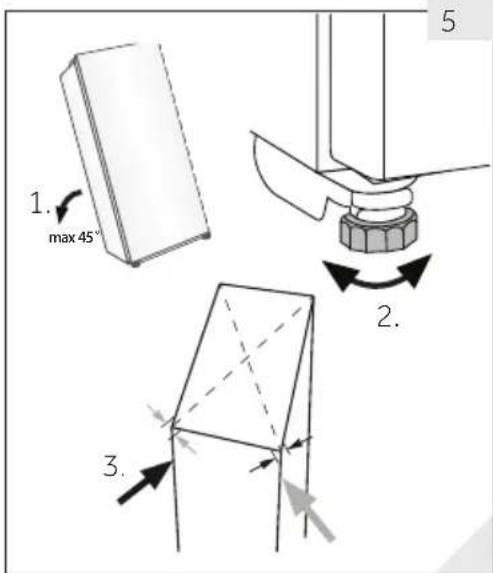

5. Aligning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards (Fig. 5).
2. Set the adjustable front feet to the desired level by turning them.
3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

1. max 45° 2. 3. 5

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

6. Fine tuning of the door

The appliance closes more easily if the levelling feet on the front are used:

Rotate the adjustable feet (Fig. 6) to turn them up or down:

▶Turning the feet clockwise raises the appliance.
▶Turning the feet counterclockwise lower the appliance.

24 h 7

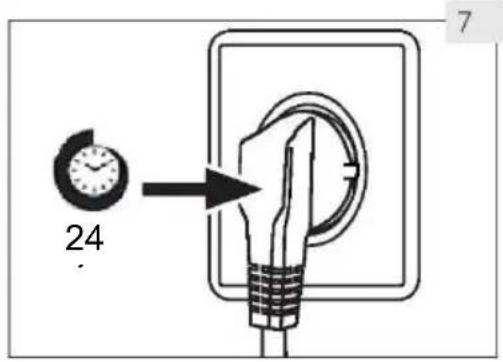

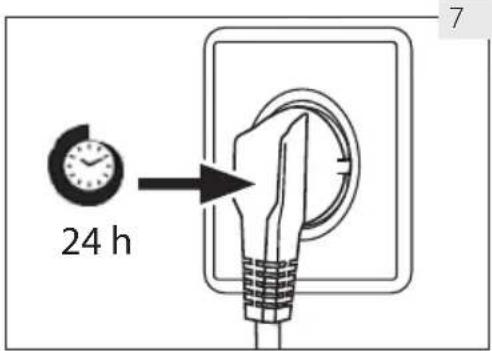

7. Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appliance is tilted. Before connecting the appliance to the power supply, wait 24 hours (Fig. 7) so that the oil runs back into the capsule.

8. Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are fit properly.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

9. Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability

WARNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
▶ Before any operation, first unplug the appliance from the mains.
▶Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

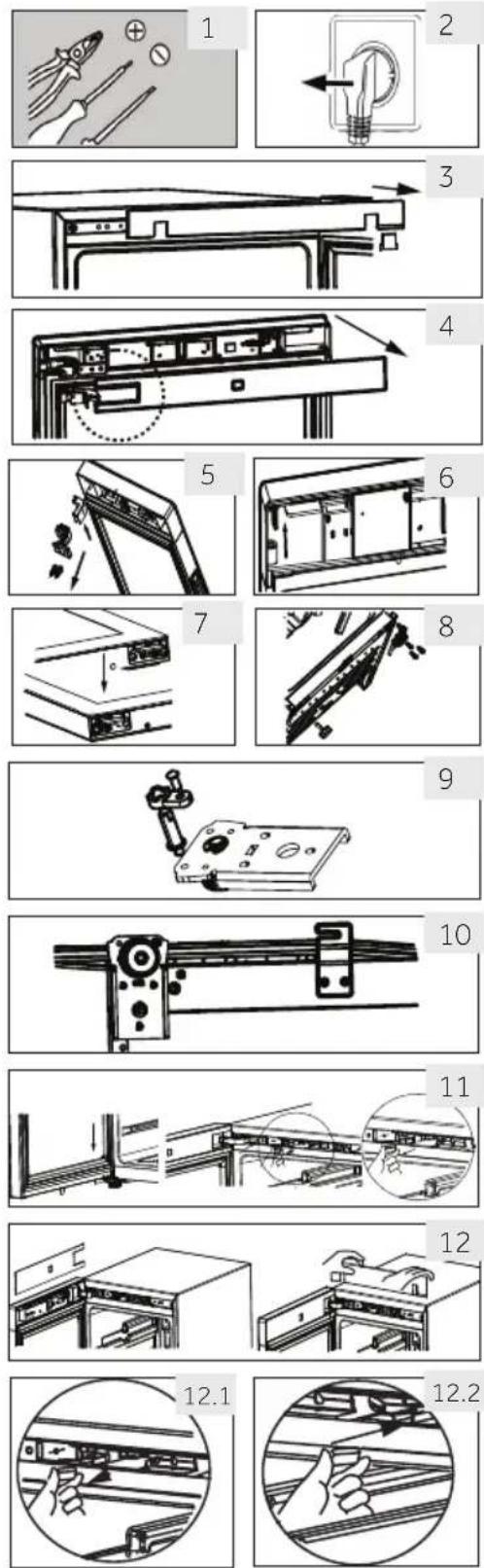

Assembly steps (for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)

1. Provide necessary tool.

2. Unplug the appliance.

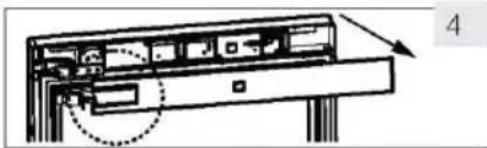

3. Open the door, take down the front strip and find the corresponding strip to remove the left side and placed on the right side of the gap.

4. Unplug the connection cable. Pull-out the upper part of the door seal, and take down the door back strip. (Remove from the left side opening)

5. Remove 2 screws on the upper hinge.

6. Remove cover and hinge, remove axe cover then assemble to the other side, then install the hinge in the axe.

7. Remove the cam and door holder, move the door holder to another side of the door. Install the new cam form the gift bag.

8. Cabinet tilted (less than 45^ ), remove the bottom hinge (3 screws) for backup.

9. Remove the lower hinge cam and hinge shaft. Install the shaft on the right side of the lower hinge. Take out the cam from the instruction bag and install it on the lower hinge shaft.

10. Install the lower hinge and the bottom foot on the other side of the cabinet. Lubricate the cam.

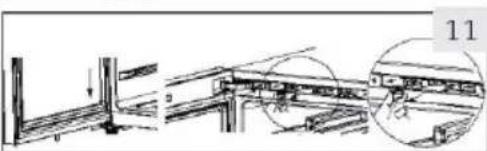

11. Install the door on the lower hinge shaft, and fix the upper hinge with two screws on the cabinet. Fix the signal wires in the middle of the upper hinge groove, and take the hinge cover in the instruction bag and fasten it on the upper hinge.

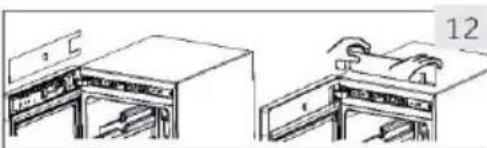

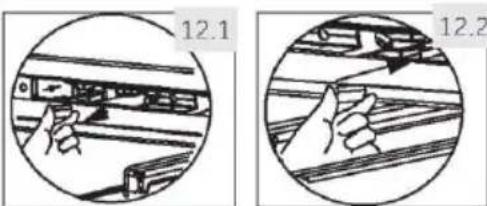

12. Install the door seal and the door strip on the door. Insert the pair of door signal wires, move the magnetic switch (12.1) to the right mounting slot (12.2) of the upper beam box, and fasten the front trim of the cabinet.

13. Make sure the door is able to open and close in a good condition.

1. Before first use

Remove all packaging materials. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. Keep them out of children's reach and dispose them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before putting any wine in it.
▶After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. See section INSTALLATION.
▶Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments.
The temperature is automatically set to 12 °C. If desired, you can change the temperature manually. Please see TEMPERATURE.

2. Touch keys

The buttons on the control panel are touch keys, which respond when lightly touched with the finger.

3. Description for control panel

LIGHT °C/°F White -88 °C Upper Red Sparkling -88 % SParking °F Lower + ZONE 3 SEC. 5 SEC. A B C G HDEF

A Interior light/Wi-Fi button
B °C /°Fconversion button
C Temperature adjust button:down
D Display

E Temperature adjust button:up
F Temperature zone selection button
G Lock button
H Power button

4. Automatically locking function

The control panel automatically locks from any key presses after 30 seconds from being enabled, the is light. To activate keylock press the button for 3 seconds, when locked the back lit LED lights will dim. Button A is not locked.

5. Power button function

Press the button H for 5 seconds, the wine cellar cuts off the power. Then press the button H for 5 seconds, the wine cellar power on.

6. Temperature setting

Notice

Presettings

Once you have plugged the unit into an electrical outlet, let the unit for at least 30 minutes to acclimatize itself before making any adjustments.
When the appliance is switched on after disconnection from the main power supply, it may take several hours for the correct temperatures to be reached. The exact time varies depending on the environment and the temperature setting.

1. Temperature zone selection

In the unlocking state, the "ZONE" icon is fully on. if the current display is in the upper temperature zone, the upper icon is on and the lower icon is off. At this time, press the "ZONE" key, the lower icon will be on and the upper icon will be off.

2. Temperature setting

In the unlocking state, when the "upper" icon is on, the upper temperature zone temperature can be adjusted;

Press + or — when "Upper" light on, to increase or decrease the temperature. When the desired temperature has reached, press the button. After that the temperature setting is completed and 3 seconds. later, the temperature display area will stop flashing, then the temperature display would show the current temperature.

The temperature range is 5 to 20 degree.

When the "lower" icon is on, the temperature in the lower temperature zone can be adjusted

Recommended temperature settings

The following drinking temperatures are recommended for the different types of wine.

Red wine +13°C to +20°C(+55°F to +68°C)	Sparkling wineProsecco	+5°C to +8°C(+41°F to +47°F)
White wine +9°C to +12°C(+48°F to +54°F)

If you store wine for long periods of time, it should be stored at a temperature between +10 °C and +12 °C(50°F and +54°F).

7. Standby-mode

The display screen is dimmed automatically 30 seconds.

It lights up automatically when any key is touched or the door is opened.

8. Lighting mode setting

Press the LIGHT button. When the lights in the cabinet are on, the lights will be lighted up gradually. When pressed the LIGHT button once again the lights will be off gradually.

Notice

Influences on temperatures

The temperature inside the appliance is influenced by the following factors:

▶Ambient temperature

▶Amount of stored bottles

▶ Frequency of door opening

▶The location of the appliance

The default setting is 12°C

When display stops flashing, it goes back to showing the current temperature inside the wine cellar. It will take some time to reach the set temperature.

9. ^ C/^ F function

Press the ⬤ button, switch between Fahrenheit and Celsius.

10. Power-Off Memory function

If a power outage, the cellar will automatically save the set temperature. After power recovery, it will run based on the temperature set before the power outage.

11. Low temperature compensation function

The wine cellar has a low temperature compensation function to ensure the stability of the temperature: When the ambient temperature is lower than the set temperature, the wine cellar automatically starts the low temperature compensation function, heating the application. When the temperature in the application reaches the set temperature, the low temperature compensation function is automatically turned off.

12. Door opening alarm

If the door is kept open for over 1 min, buzzer will be beeping to give an alarm till the door is closed or any key on display panel can be operated and then the buzzer will stop beeping.

13. Humidity display

Hold the " "button for 3 seconds, the display panel will appear the percentage of humidity. Press the "+" or "-" buttons to turn off humidity display.

Notice

The humidity of cabinet is tested in accordance with the European standard EN 62552, the test result at of humidity of cabinet is 50%-80% which is in line with EN 62552 and (EU) 2010/1060 requirements.

14. Wi-Fi mode setting(for HWS77GDAU1/HWS42GDAU1)

CONNECTIVITY

WIRELESS PARAMETERS

Technology	Wi-Fi	Bluetooth® Wireless Technology
Standard	IEE 802.11 b/g/n	Bluetooth® v4.2, BR/EDRBluetooth® Low Energy
Frequency Band(s) [MHz]	2401÷2483	2402÷2480
Maximum power [mW]Band(s) [MHz]	100	10

PRODUCT INFORMATION

How to activate Wi-Fi module:

• Press the light button for 3 seconds to activate the Wi-Fi
• The Wi-Fi module is switched on the Wi-Fi icon starts to blink
• If the wine cellar is enrolled but the Wi-Fi is off the icon will blink
• If the wine cellar is enrolled and connected the Wi-Fi icon is always on
  • To reset the Wi-Fi press the light for 3 seconds

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Candy Hoover Group SRL is under license. Other trademarks and trade names are those of their respective owners.

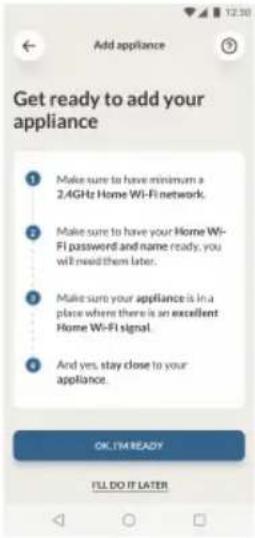

IN APP PAIRING PROCEDURE

Step 1

- Download the hOn app on the stores.

GET IT ON

Google Play

Download on the

App Store

EXPLORE IT ON

AppGallery

Step 2

- Log in or sign up.

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Past, new in Candy? Click above to discover our products TRY DEMO

Step 3

- Add a new appliance selecting the wine cellar from the list.

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

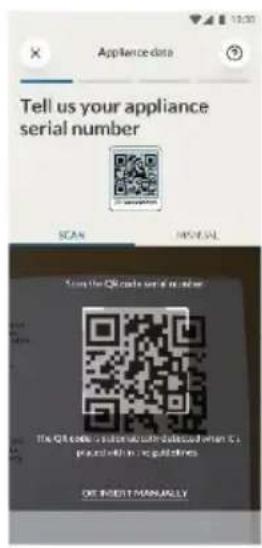

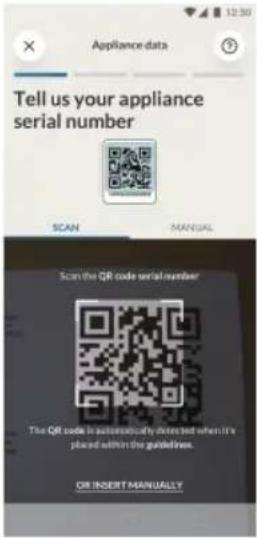

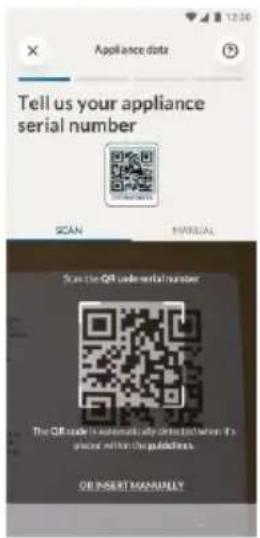

Step 4 Step 5•Scan the QR or insert manually the serial number.	•Press the light button on the product for 3s to activate the Wi-Fi.	Step 6•The wi-fi icon will blink, the pairing process is in progress.•You will have 5 minutes to complete the pairing process.•When the process is completed the Wi-Fi icon will stop blinking and it will remain always on.
		NOTE

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶Open the appliance door as little and as briefly as possible.
▶ Do not exceed the designed amount of bottles to avoid obstructing the air flow.
▶Keep door seals clean so that the door always closes correctly.
The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

1. Shelf

1. The shelves are designed for easy storage and easy removal of the wine. They can be cleaned with a soft towel.
2. Regualr bottles with diameter of 76mm can be stacked.
3. Magnum bottles can be stacked on the bottom shelf.
4. The quantity can vary from the depicted number or bottles if they are stacked in a different way.

Advice for the layout of your wine cellar

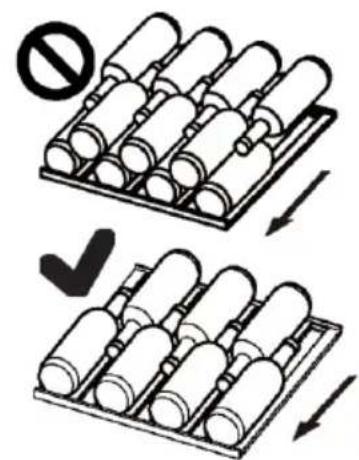

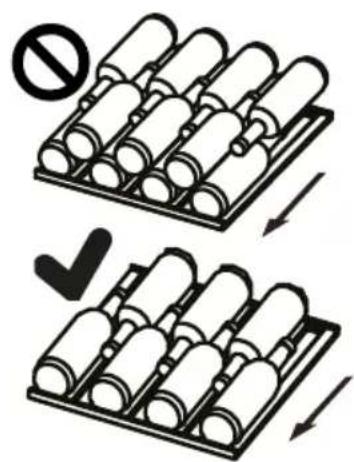

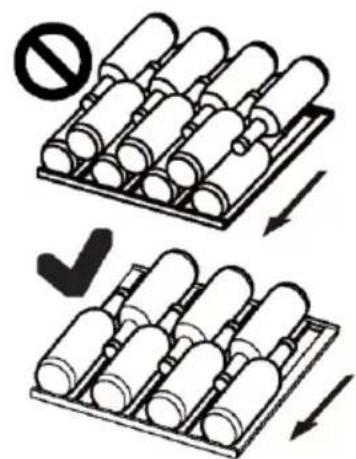

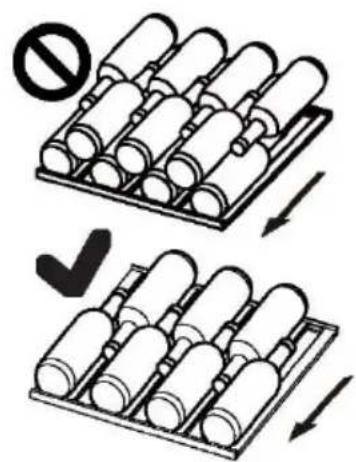

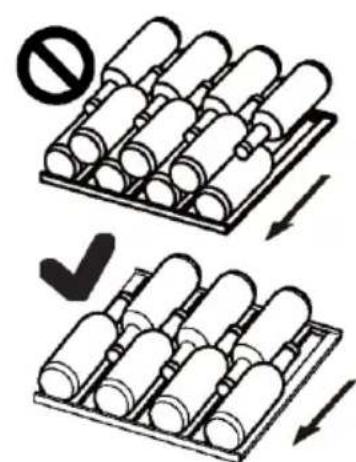

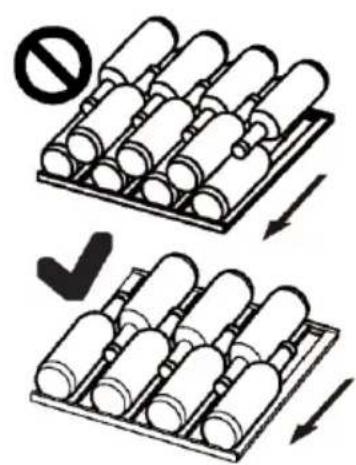

We recommend that the number of wine bottles should not exceed two layers on each shelf, and the bearing capacity of the wine shelves should not exceed 20 kg. Before placing the bottles inside the wine cellar, confirm whether or not the wine shelves are completely stable. In addition, confirm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing.

Diagram showing incorrect safety symbols for handling cylindrical objects, with a checkmark indicating no protection.

Diagram illustrating a filtration or particle removal process with labeled states and directional arrows

2. The light

The LED interior light comes on when the door is opened. To turn on the light while the door is closed, touch the LIGHT button. To turn the lights off, touch button again. To increase the energy efficiency, the lights should be turned off when the wine cellar is not being viewed.

3. The lock (for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)

To lock the wine cellar, close the door and put the key in the lock:

▶Lock the door by turning the key counterclockwise;
▶Unlock the door by turning the key clockwise.

1. Defrosting

The defrosting of the wine cellar is done automatically; no manual operation is needed.

2. Replacing the LED lamp

The lamp uses LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

WARNING!

Do not replace the LED lamp yourself. It must only be replaced by either the manufacturer or the authorised service agent.

Parameters of LED lamp:

Voltage12V; Max power:8W(for HWS77GDAU1/HWS79GDG)

Voltage12V; Max power:5W(for HWS42GDAU1/HWSKTM42GDGIT)

3. Non-use for a longer period

Unplug the power cord.

Clean the appliance and door gaskets as described above keep the door open to prevent the creation of bad odours inside.

4. Moving the appliance

1. Remove all bottles and unplug the appliance.
2. Secure shelves and other moveable parts in the wine cellar with adhesive tape.
3. Do not tilt the wine cellar more than 45^ to avoid damaging the refrigerating system.

5. Air exchange with activated carbon filter

The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine. An activated carbon filter has been fitted in the lower area of the rear wall of the appliance to through put remains at an optimum quality.

Notice

We recommend that you replace the filter once a year. Fitters can be obtained from your dealer.

Changing the filter:

Take the fiter by the handle. Turn it to the left and remove.

Inserting the filter:

Insert with the handle in a vertical position. Turn it to the right and insert.

Technical line drawing of a server rack with fan and ventilation slots, showing internal components and a close-up inset (no text or symbols)

of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or

Error Code Cause Solution

P2	The opening time of the door is too long.	Please close the door.
H1	The temperature of the upper temperature zone is too high.
H2	The temperature of the lower temperature zone is too high.	Please contact our after-sales service.Please check ambient temperature should be between 10°C and 38°C.
L2	The temperature of the upper temperature zone is too low.
L3	The temperature of the lower temperature zone is too low.
E6	The upper fan motor fault.	Please contact our after - class service.
E8	The lower fan motor fault.
Problem Possible Cause Possible Solution
The compressor does not work.	·Mains plug is not connected in the mains socket.	·Connect the mains plug.
The appliance runs frequently or runs for a too long period of time.	·The outdoor temperature is too high.·The appliance has been off power for a period of time.·A door of the appliance is not tightly closed.·The door has been opened too frequently or for too long.·The door gaskets are dirty, worn, cracked or mismatched.·The required air circulation is not guaranteed.·The temperature is set too low.	·In this case, it is normal for the appliance to run longer.·Normally, it takes a while for the appliance to cool down completely.·Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.·Do not open the door too frequently.·Clean the door gasket or replace them by the customer service.·Ensure adequate ventilation.·The problem will resolved itself when the desired temperature has been reached.
The inside of the wine cellar is dirty and/or smells..	·The inside of the wine cellar needs cleaning.	·Clean the inside of the wine cellar.
It is not cold enough inside the appli-ance.	·The temperature is set too high.·Bottles have been added recently.·A door of the appliance is not tightly closed.·The door has been opened too frequently or for too long.·The door gaskets are dirty, worn, cracked or mismatched.	·Reset the temperature.·Allow time for recently added bottles to reach desired tem-perature.·Close the door.·Do not open the door too frequently.·Clean the doorgasket or replace them by the customer service..
It is too cold inside the appliance.	·The temperature is set too low.·Reset the temperature.
Moisture formation on the inside of the refrigerator com-partment.	·The climate is too warm and too-damp.·A door of the appliance is not tightly closed.·The door has been opened too frequently or for too long..	·Increase the temperature.·Close the door.·Do not open the door/drawer too frequently.

Troubleshooting

EN

Problem Possible Cause Possible Solution
Moisture accumulates on the wine cellar's outside surface.	The climate is too warm and too dampThe door is not closed tightly.The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that the door is shut tightly and that the gaskets seal properly.
The appliance makes abnormal sounds	The appliance is not located on level ground.The appliance touches some object around it.	Ajust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	This is normal -
The interior lighting or cooling system does not work.	Mains plug is not connected to the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room.Call the local electricity company.Please call the service for changing
The sides of the cooler and door strip get warm	This is normal. -
The door does not shut properly	The appliance is not level.The door is blocked.	Level the appliance with the leveling feet.Check for blockages like bottles or shelves.

To contact the technical assistance, visit our website:

https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Product fiche according to regulation EU No. 2019/2016

Brand Haier Haier			Haier
Model name / identifier	HWS42GDAU1HWSKTM42GDGIT	HWS77GDAU1HWS78TGDFH1SW	HWS79GDG
Rated bottle capacity	42	77	79
Household refrigeration category 2 2			2
Energy efficiency class	G	G	G
Annual energy consumption (kWh/year) 1)	142 152		152
Storage volume (L) 106 190			190
Climate class:This appliance is intended to be usedat an ambient temperature between 10 °C and 38 °C.	SN N ST SN N ST SN N ST
Airborne acoustical noise emissions (db(A) re 1pW)	C(37) C(37)		C(37)
Type of appliance	Freestanding Freestanding Freestanding
This appliance is intended to be used exclusivelyfor the storage of wine.	Yes	Yes	Yes
Dimensions (D/W/H in mm) 585/497/820	585/497/1270		585/497/1270

Explanations:
1) based on standard test results for 24 hours. The actual power consumption depends on the actual environment, the amount of bottling, the set temperature, the door opening and closing, etc.
2) The nominal power consumption is the value obtained according to the standard test when the wine cabinet does not turn on the internal light.

• extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C';
• temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C';

Standards and directives

CE

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

Customer Service

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶your local dealer or

▶ the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____ Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find our addresses in Europe below:

European Haier addresses

Country* Postal address Country Postal address
Italy	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY	France	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY
SpainPortugal	Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN	Belgium-FRBelgium-NLNetherlandsLuxembourg	Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM
GermanyAustria	Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY	PolandCzechiaHungaryGreeceRomaniaRussia	Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND
UnitedKingdom	Haier Appliances UK Co. Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK

AVAILABILITY OF SPARE PARTS: Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for

Morocco, 6 months for Algeria, Tunisia no legal warranty required.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.

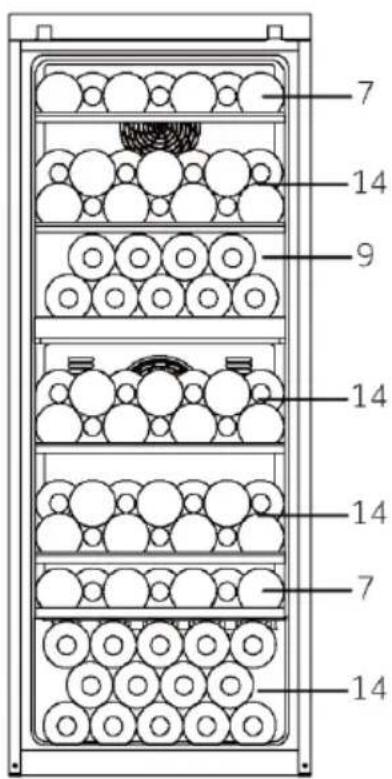

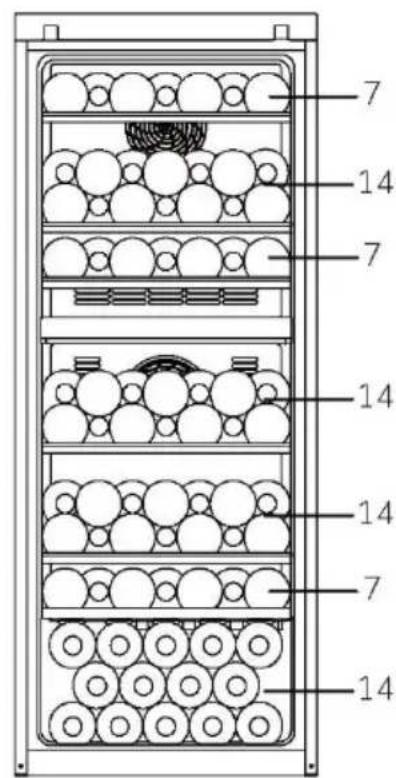

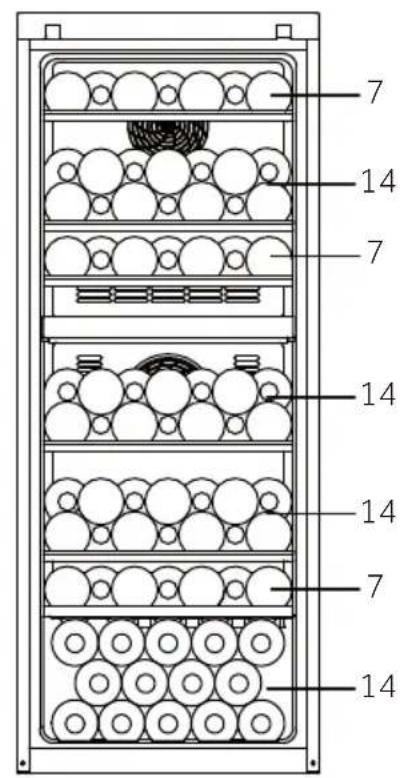

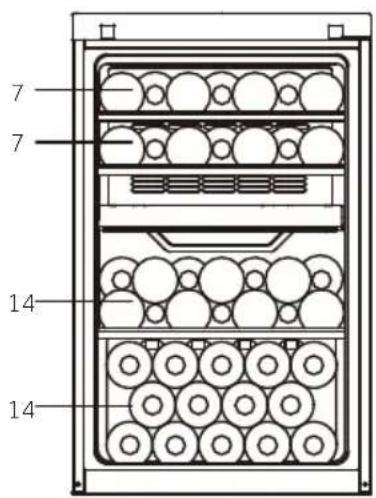

The bottle arrangement is based on a graphic representation of a standard Bordeaux bottle (0.75 l). Due to the different bottle specifications, the actual bottle loading quantity could be different.

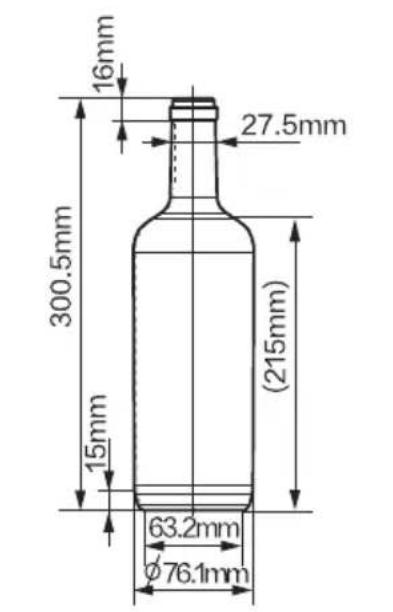

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

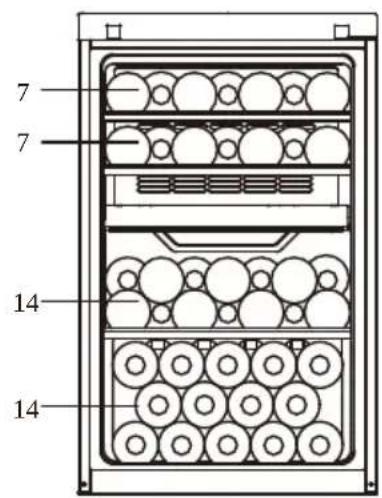

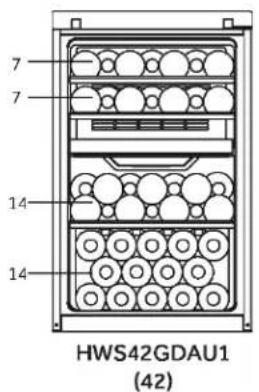

7 7 14 14

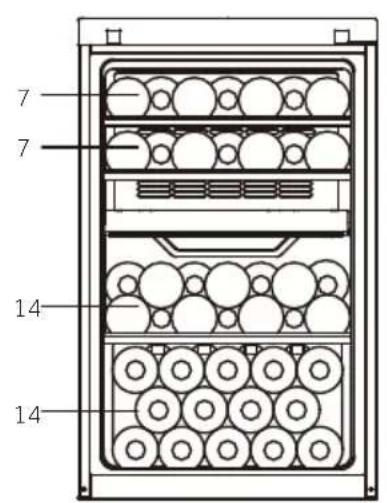

HWS42GDAU1 HWSKTM42GDGIT (42)

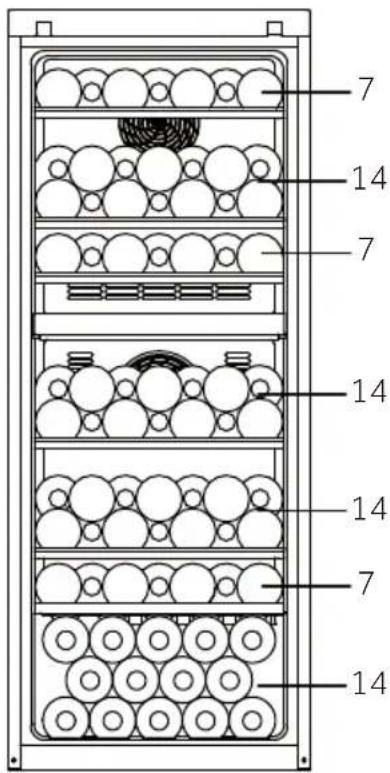

7 14 7 14 14 7 14

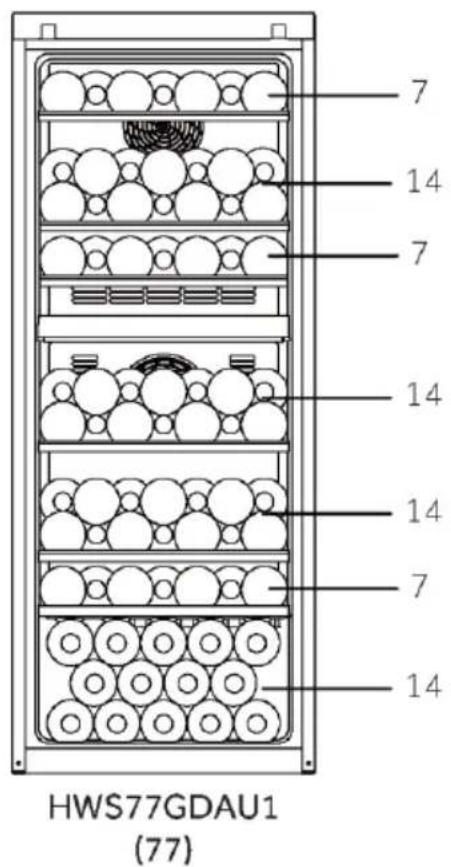

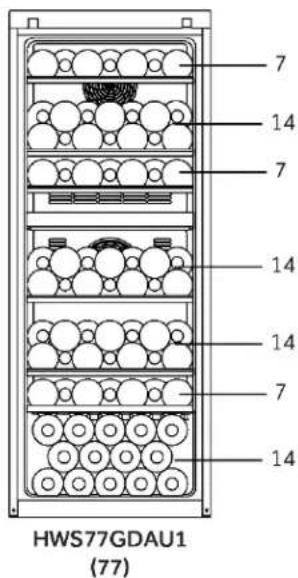

HWS77GDAU1 (77)

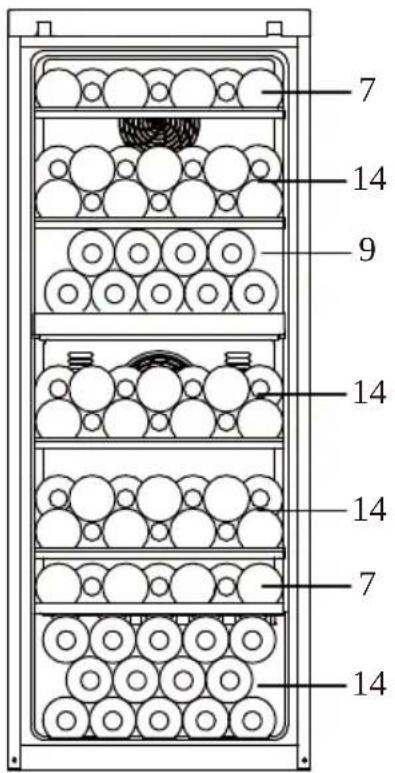

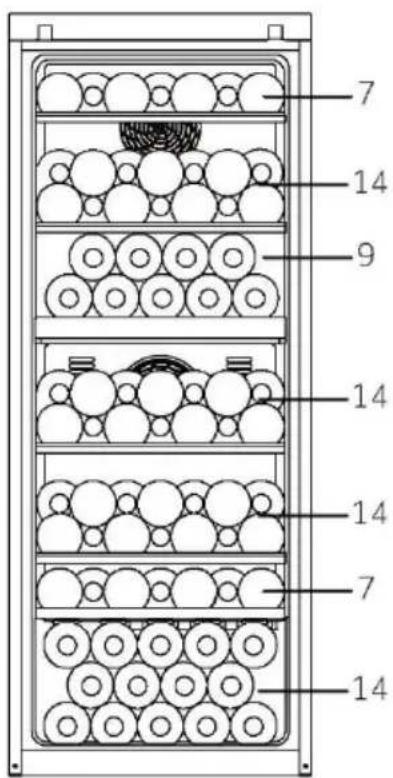

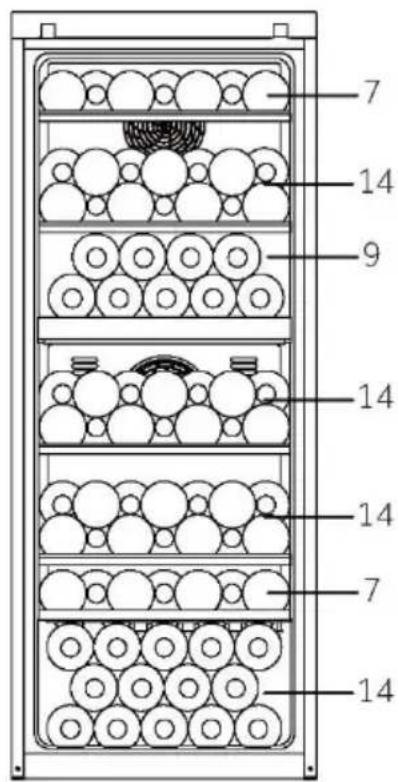

7 14 9 14 14 7 14

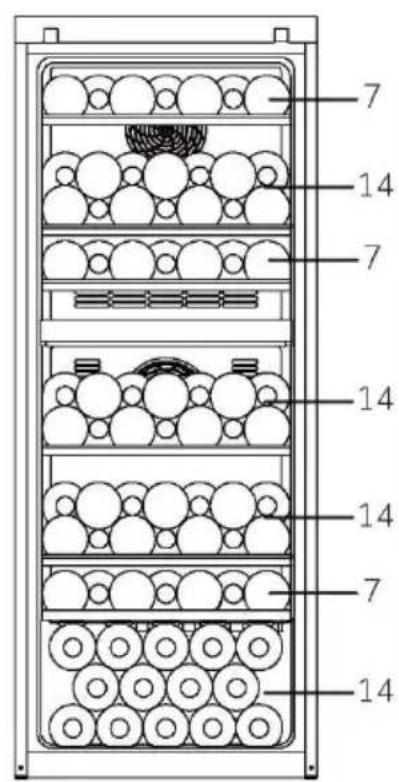

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -EN

Haier

Benutzerhandbuch

Weinklimaschrank

HWS77GDAU1 HWS42GDAU1 HWS79GDG HWS78TGDFH1SW HWSKTM42GDGIT

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Legende

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two abstract geometric shapes resembling a stylized letter or panel (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

LIGHT °C/°F White °C Upper Red °C Lower Sparkling - A B C D E F G H ZONE 3 SEC. 5 SEC.

PRODUKTINFORMATIONEN

ENTDECKEN BEI AppGallery

Schritt 2

12:30 Welcome! Sign in to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Schritt 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Appliance data Tell us your appliance serial number 32.0% 49.0%

Get ready to add your appliance Make sure to have a little more than 240% Home Will network. Make sure to have your home Will access all or more rooms, and will need them later. Make sure your appliance is a place where there is an excellent Home Will sign? And you stay closer to your appliance. OK, FREE, OK 11:00 AM / LITER

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating selection or rejection.

Diagram illustrating a mechanical or electronic process with labeled components and directional arrows, including a prohibition symbol.

2. Das Licht

Warning symbols including warning triangle, information icon, and waste bin with crossed-out lines

Légende

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two abstract geometric shapes resembling stylized buildings or panels (no text or symbols)

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC.

Labeled diagram of a refrigerator interior with numbered parts for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

(pour HWS77GDAU1/HWS42GDAU1)/HMSKTM42GDGT

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

INFORMATIONS SUR LE PRODUIT

12:30 Welcome! Sign in to enter in your home LOG IN SIGN UP Pst, new in Candy? Click above to discover our products TRY DEMO

Étape 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Étape 4

Tell us your appliance serial number SCAN MANUAL Scan the QR code serialnumber The QR code is automatically detected when it's placed within the guidelines. OR INSERT MANUALLY

Étape 5

Get ready to add your appliance 1 Make sure to have minimum a 2.4GHz Home Wi-Fi network. 2 Make sure to have your Home Wi-Fi password and name ready, you will need them later. 3 Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal. 4 And yes, stay close to your appliance. OK. I'M READY I'll DO IT LATER

Diagram showing two scenarios of a device with no prohibition and checkmark, indicating absence or rejection.

Diagram illustrating a mechanical process with no stop sign and checkmark indicators for assembly or inspection steps.

2. La lumière

Technical diagram showing server rack layout with fan, ventilation slots, and a close-up of a cylindrical component with internal components.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two mechanical components with no visible text or symbols

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC.

Technical diagram of a refrigerator with numbered parts labeled for identification

LIGHT °C/°F White °C Upper Red °C Lower Sparkling - A B C D E F G H ZONE 3 SEC. 5 SEC.

SCOPRI SU HUAWEI AppGallery

Fase 2

Welcome! Sign in to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Fase 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Fase 4

Appliance data Tell us your appliance serial number Scan the QR code serial number The QR code is used to access the user of the product.

Fase 5

Get ready to add your appliance 1 Make sure to know how a 2-4 GHz Home Wi-Fi keyboard. 2 Make sure to know how a Home Wi-Fi keyboard will read them better. 3 Make sure your appliance to a place where there is excellent Home Wi-Fi keyboard. 4 And use, understand to your appliance. OK/MAKE SELECT ORDER

Diagram showing two experimental setups with cylindrical objects and a prohibition symbol, indicating no protection or no reduction.

Diagram illustrating a mechanical process with no stop sign and checkmark indicators for assembly or inspection steps.

2. Luce

Technical diagram showing server rack layout with labeled components and a close-up of the component's internal structure.

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm φ76.1mm

7 7 14 14

HWS42GDAU1 HWSKTM42GDGIT (42)

7 14 7 14 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW - IT

Haier

Manual de usuario

Bodega de vinos

HWS77GDAU1 HWS42GDAU1 HWS79GDG HWS78TGDFH1SW HWSKTM42GDGIT

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two abstract geometric shapes resembling a stylized letter or block (no text or symbols)

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC.

Labeled diagram of a refrigerator interior with numbered parts for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

DISPONIBLE EN Google Play

12:30 hOn Welcome! Sign in to enter in your home LOGIN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

Paso 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Paso 4

Appliance data Tell us your appliance serial number Scan the QR code serial server The QR code is used to ensure that the footer of the product has been issued and will be issued here. OR POST-MINERALLY

Paso 5

Get ready to add your appliance Make sure to have instructions a 2-PAGE Home Wi-Fi Framework. Make sure to have you a Home Wi-Fi password and how many ways you will need them based. Make sure your appliance is a place where there is excellent Home Wi-Fi rating. And you always need to your appliance. OK! I already! I cannot later!

Ìònöeíòò çè äëòõõò çè èñèõêBä

Diagram showing two scenarios of a device with no prohibition and checkmark, indicating absence or rejection.

Diagram illustrating a mechanical setup with no restrictions and checkmark indicators for assembly or inspection.

2. La luz

Technical diagram showing server rack layout with fan, ventilation slots, and a close-up of the tower component

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

7 7 14 14

HWS42GDAU1 HWSKTM42GDGIT (42)

7 14 7 14 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -ES

Haier

Instrukcja obstugi

Chłodziarka do wina

HWS77GDAU1 HWS42GDAU1 HWS79GDG HWS78TGDFH1SW HWSKTM42GDGIT

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Legenda

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC.

Labeled diagram of a refrigerator interior with numbered parts for identification

merge unity 10 cm 10 cm 10 cm 4

'RZEŻENIE!

▶ 1LH EORNXM RWZRUμZ ZHQW\ODF\MQ\FK Z XU]ÇG]HQLX DQL Z XU]ÇG]HQLH FKARGQLF]H QLH MHVW SU]H]QDF]RQH GR XI\WNX MDNR

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

LIGHT °C/°F White -88% Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

ODKRYWAJ W HUAWEI AppGallery

Krok 2

12:30 hOn Welcome! Sign in to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Krok 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Krok 4

Tell us your appliance serial number Use the QR code serial number The QR code is used to find the user user will be found on the phone. OK OK!

Krok 5

Get ready to add your appliance 1 Make sure to save you home 2 Apply Home Will Replace. 2 Make sure to save your Home Will 3 Replace you your appliance in a place where there is an excellent home Will be signed. 3 Add you, stay above 10 your appliance. OK!

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating rejection or disapproval.

Diagram illustrating a mechanical or electronic device with multiple cylindrical components and directional arrows, including a prohibition symbol and checkmark.

" Oświetièniè

Technical diagram showing server rack layout with labeled components and a close-up of a device component.

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

Line drawing of two abstract geometric shapes resembling stylized trees or panels (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

(for HWS77GDAU1/HWS42GDAU1)HWSKTM42GDGIT

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

EXPLORE IT ON AppGallery

Passo 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, new in Candy? Click above to discover our products TRY DEMO

Passo 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Utilizar

PT

Passo 4

• Digitalize o QR ou insira manualmente o número de série

Tell us your appliance serial number Use the QR code to access them The QR code is used to access them and then use the QR code to access them.

Passo 5

Get ready to add your appliance Make sure to have an insurance 2.0GHz Home Wi-Fi network. Make sure to have your Home Wi-Fi network and can see really you will need their home. Make sure your appliances in a place where there is excellent Home Wi-Fi signal. And we, stay close to your appliance. OK, Please check ILLABLY LATTEN

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating inspection or clearance.

Diagram illustrating a mechanical or electronic device with multiple rollers and directional arrows, including a prohibition symbol and checkmark.

2. Aluz

Technical diagram showing server rack layout with fan and socket, alongside a close-up of a mechanical component with pin grid.

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

7 7 14 14

HWS42GDAU1 HWSKTM42GDGIT (42)

7 14 7 14 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -PT

Haier

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Illustration of a hand washing a surface with a soap block, and a basin with a fish (no text or symbols)

De deurpakking reinigen:

Line drawing of two mechanical components with no visible text or symbols

LIGHT °C/°F White Red Sparkling -88 °C Upper °F Lower + ZONE 3 SEC. 5 SEC.

Labeled diagram of a refrigerator interior with numbered parts for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

- Download the hOn app on the stores.

Download in de App Store

EXPLORE IT ON AppGallery

Step 2

- Log in or sign up.

12:30 hOn Welcome! Sign in to enter in your home LOGIN SIGN UP Past, new in Candy? Click above to discover our products TRY DEMO

Step 3

- Add a new appliance selecting the wine cellar from the list.

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Stap 4

Tell us your appliance serial number Use the QR code to order The QR code is used to access the product name. OR ARST MUSKLEY

Stap 5

Get ready to add your appliance Make your phone with Wi-Fi network. Make your phone with your Home Wi-Fi network and make your app with Wi-Fi signal. Make your appliance in a place where there is an excellent Home Wi-Fi signal. Ask you, please close to your appliance. OK, 1998:02.03 ILLBIG-TATED

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating inspection or clearance.

Diagram illustrating a mechanical setup with no restrictions and checkmark indicators for assembly or inspection.

2. De verlichting

Technical diagram showing server rack layout with labeled components and a close-up of the component's internal structure.

Problemen oplossen

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

7 7 14 14

HWS42GDAU1 HWSKTM42GDGIT (42)

7 14 7 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -NL

Haier

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Legenda

LIGHT °C/°F White Red Sparking 80°C Upper % °F Lower + ZONE 3-SEC. 5-SEC.

Technical diagram of a refrigerator with numbered parts labeled for identification

1. Ventilator
2. Polica
3. Sredinski predel
4. Filter z aktivnim ogljem

5. Nastavljive nogice

6. Ključavnica (za HWS77GDAU1/HWS42GDAU1)

7. Vrata
8. Lučka LED
9. Zaslon (na sprednji strani vrat)

1. Razpakiranje

▶ Vzemite aparat iz embalaže.
Odstranite vse embalažne materiale, vključno s podlago iz pene in lepilnim trakom, ki drži dodatke.

2. Okoljski pogoji

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products. TRY DEMO

1. korak

Add appliance Select your appliance category Wine Cellar Fridge Oven Disinchester START Enrollment

Uporaba

SL

4. korak

Tell us your appliance serial number SCAN MANOLO Press the QR code serial number The QR code is automatically intended when it's placed within the guidelines OR INSERT MANUALLY

5. korak

- Pritisnite gumb Light na izdelku za 3 sekunde, da aktivirate Wi-Fi.

6. korak

Get ready to add your appliance Make sure to have minimum a 2.4GHz Home Wi-Fi network. Make sure to have your Home Wi- Fi password and name ready, you will exceed them later. Make sure your appliance is in a placewhere there is an excellent Home Wi-Fi signal. And yes, stay close to your appliance. OK, IF/READY I'LL DO IT LATER

Diagram showing two scenarios of a device with no prohibition and checkmark, indicating absence or rejection.

Diagram illustrating a mechanical or electronic process with labeled components and directional arrows, including a prohibition symbol and checkmark.

2. Luč

Technical diagram showing internal components of a server rack with a close-up view of the component (no text or labels)

Odpravljanje težav

SL

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm φ76.1mm

7 7 14 14

HWS42GDAU1 HWSKTM42GDGIT (42)

7 14 7 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

6790 (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -SL

Haier

Εγχειρίδιο χρήσης

Συντηρητής κρασιών

HWS77GDAU1 HWS42GDAU1 HWS79GDG HWS78TGDFH1SW HWSKTM42GDGIT

Symbol of a trash bin crossed with no text or labels

Υπόμνημα

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular metal profiles with angled surfaces (no text or symbols)

Technical diagram of a refrigerator with numbered parts labeled for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

24 7

Welcome! Sign in to enter in your home LOGIN SIGN UP Past, now in Candy? Click above look forever our products TBY DEMO

Βήμα 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher STARTENROLLMENT

Diagram showing two scenarios of cylindrical objects on a tray, one marked with a prohibition symbol and the other with a checkmark.

Diagram illustrating a process with circular components and directional arrows, including a prohibition symbol and checkmark.

2. Φωτισμός

Diagram of server rack with ventilation slots and a close-up view of the tower (no text or labels)

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

7 7 14 14

HWS42GDAU1 HWSKTM42GDGIT (42)

7 14 7 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -EL

Haier

Kullanım Kılavuzu

Şarap Soğutucusu

HWS77GDAU1 HWS42GDAU1 HWS79GDG HWS78TGDFH1SW HWSKTM42GDGIT

Teşekkürler

TR

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Açıklama

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two mechanical components with no visible text or symbols

Labeled diagram of a refrigerator interior with numbered parts for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

6. Kapının ince ayarı

Welcome! Sign in to enter in your home LOGIN SIGNUP Past new in Candy? Click show to discover our products. TRY DEMO

Adim 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher STARTING/COUNTING

Adım 4

Diagram showing two scenarios of a device with no prohibition and checkmark, indicating absence or rejection.

Diagram illustrating a process with circular tanks and directional arrows, including a prohibition symbol and checkmark.

2. lşik

Architectural line drawing of a building facade with decorative eaves and window grilles (no text or symbols)

Sorun Giderme

TR

Symbol of a trash bin crossed with no text or labels

Ártalmatlanítás

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two abstract geometric shapes resembling a stylized tower or bracket (no text or symbols)

Technical diagram of a refrigerator with numbered parts labeled for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Diagram showing two scenarios of cylindrical objects on a tray, one marked with a prohibition symbol and the other with a checkmark.

Diagram illustrating a mechanical or electronic process with labeled components and directional arrows, including a prohibition symbol.

2. A világítás

Technical diagram showing internal rack layout with labeled components and a close-up of a cylindrical component with a grid pattern.

Symbol of a trash bin crossed with no text or labels

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular electronic components with no text or symbols

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

FREMGANGSMÅDE VED PARRING I APP

- Download hOn-appen i App-store eller Google Play.

GET IT ON Google Play

Download on the App Store

EXPLORE IT ON AppGallery

Trin 2

- Log på eller tilmeld dig.

hOn Welcome! Sign In to enter in your home LOGIN SIGNUP Past, new Win Candy? Click show to discover our products. TRY DEMO

Trin 7

Add appliance Select your appliance category Wine Cellar Fridge Dven Disheater STARTENROLLMENT

Brug

DA

Trin 4

Appliance data Tell us your appliance serial number SCAN MORIAL from the Q3 sales serial number The Q3 sales will be sold when & pract in this regulation. DE INVEST MANUALLY

Trin 5

- Tryk på lysknappen på produktet i 3 sekunder for at aktivere Wi-Fi.

Trin 6

Get ready to add your appliance 1 Make sure to have minimum a 2.4GHz Home Wi-Fi network. 2 Make sure to have your Home Wi-Fi password and name ready, you will need chemilator. 3 Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal. 4 And you say close to your appliance. OK! I'M READY FILL OK! LATES

Energisparetips

Diagram showing two scenarios of cylindrical objects on a tray, one marked with a prohibition symbol and the other with a checkmark.

Diagram illustrating a filtration or particle separation process with labeled components and directional arrows indicating removal or rejection steps.

2. Lyset

Technical diagram of server rack with ventilation fan and connector, plus close-up of a cylindrical component (no text or symbols)

HWS42GDAU1 HWSKTM42GDGIT
(42)

7 14 7 14 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -DA

Haier

Käyttöopas

Viinikaappi

HWS77GDAU1

HWS42GDAU1

HWS79GDG

HWS78TGDFH1SW

HWSKTM42GDGIT

Symbol of a trash bin crossed with no text or labels

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular electronic components with no visible text or symbols

Technical diagram of a refrigerator with numbered parts for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

6. Oven hienosäätö

Technical diagram showing 12 sequential steps of a mechanical assembly or assembly process, labeled 1 to 12.2.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a computer monitor with an open lid and control panel, showing no text or symbols

Technical line drawings of mechanical components, showing assembly and assembly details (no text or symbols)

Two technical diagrams showing a device with a stack and a mechanical assembly, labeled 7 and 8 (no text or symbols present)

Simple line drawing of a mechanical device with a lever and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with structural supports and a magnified inset showing detail (no text or symbols)

Line drawing of two furniture or mechanical setups with no visible text or symbols

Two circular diagrams showing hand positioning on server racks, one with magnified view and another with magnified view (no text or symbols)

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

A Sisävalo/Wi-Fi-painike

Appliance data Tell us your appliance serial number SCAN NEW ABL Start the QR code serial number THE QR code is updated with updated when it's your device in the guidelines. OR INSERT MANUALLY

Vaihe 5

Get ready to add your appliance 1 Make sure to have animum on a 2.4GHz Home Wi-Fi network. 2 Make sure to have your Home Wi-Fi power and name ready, you will need chemilator. 3 Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal. 4 And you stay close to your appliance. OK! I'M READY FILL YOUR LATER

Diagram showing two scenarios of cylindrical objects on a tray, one marked with a prohibition symbol and the other with a checkmark.

Diagram illustrating a mechanical process with no stop symbol and checkmark indicators for assembly or inspection steps.

2. Valo

Technical diagram of server rack with fan and socket, showing exploded view and close-up of component detail (no text or labels)

HWS42GDAU1 HWSKTM42GDGIT
(42)

7 14 7 14 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -FI

Haier

Brukerhåndbok

Vinkjeller

HWS77GDAU1

HWS42GDAU1

HWS79GDG

HWS78TGDFH1SW

HWSKTM42GDGIT

Takk for at du kjøpte et Haier-produkt.

Symbol of a trash bin crossed with no text or labels

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular electronic components with no text or symbols

LIGHT °C/°F White ↑ Red ↑ Sparkling -88 °C Upper + °F Lower + ZONE 3 SEC. 5 SEC.

Technical diagram of a refrigerator with numbered parts labeled for identification

1. Vifte
2. Hylle
3. Mellomskillevegg
4. Aktivt kullfilter

5. Justerbare føtter

6. Lås (for HWS77GDAU1/HWS42GDAU1)

7. Dør
8. LED-lampe
9. Display (på forsiden av døren)

1. Pakke ut

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

(for HWS77GDAU1/HWS42GDAU1/HWSKTM42GDGIT)

Download on the App Store

EXPLORE IT ON AppGallery

• Logg på eller registrer deg.

hOn Welcome! Sign in to enter in your home LOGIN SINUP Past, WebWith Cansby! Click show to discover our products TRY DEMO

Add appliances Select your appliance category Wide Cellar Fridge Oven Disinaster START/INSTALLMENT

Bruk

NO

Trinn 4

- Skann QR-en eller sett inn serienummeret manuelt.

Appliance data Tell us your appliance serial number SCAN PREVEAL Save the QR code serial number The QR code is used to download a 51 page with in-reguidelines DE INSERT MANUALLY

Trinn 5

Get ready to add your appliance 1. Have sure to have an offers, my 2.4GPs Home Wi-Fi network. 2. Have sure to have your Home Wi-Fi password and name ready, you will need chemilator. 3. Have sure your appliances in a place where there is an excellent Home Wi-Fi signal. 4. And you stay close to your appliance. OK! I'm READY FILL DO IT LATES

Energisparetips

Diagram showing two scenarios of cylindrical objects on a tray, one marked with a prohibition symbol and the other with a checkmark.

Diagram illustrating a filtration or particle removal process with labeled components and directional arrows indicating removal and rejection steps.

2. Lyset

Technical line drawing of server rack with fan and socket, showing internal components and a close-up inset (no text or symbols)

HWS42GDAU1 HWSKTM42GDGIT
(42)

7 14 7 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -NO

Haier

Bruksanvisning

Vinskåp

HWS77GDAU1

HWS42GDAU1

HWS79GDG

HWS78TGDFH1SW

HWSKTM42GDGIT

Symbol of a trash bin crossed with no text or labels

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular electronic components with no text or symbols

LIGHT °C/°F White ↑ Red ↑ Sparkling -88 °C Upper + °F Lower + ZONE 3 SEC. 5 SEC.

Technical diagram of a refrigerator with numbered parts labeled for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Download on the App Store

EXPLORE IT ON AppGallery

C+∞

- Logga in eller registrera dig.

Welcome! Sign in to enter in your home LOGIN SOGUP Past new in Candy? Click away to deliver our products TRY DENO

C+∞-7

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher STARTENPLIEMENT

Användning

SV

Steg 4

- Skanna QR-koden eller ange serienumret manuellt.

Appliencedate Tell us your appliance serial number SCAN RIVIDUAL Save the QR code serial number THE QR code is a manual to download when it is pre-site in an application. OR BYDNT MANUALLY

Steg 5

Get ready to add your appliance 1. Make sure to have minimum a 2.4GHz home Wi-Fi network. 2. Make sure to have your Home Wi-Fi password and name ready, you will need chemilator. 3. Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal. 4. And you stay close to your appliance. ON I'm READY TILL OUR LATES

Diagram showing two scenarios of cylindrical objects on a tray, one marked with a prohibition symbol and the other with a checkmark.

Diagram illustrating a filtration or particle removal process with labeled components and directional arrows indicating removal and rejection steps.

2. Belysning

Technical line drawing of a server rack with ventilation slots and a close-up inset showing internal components (no text or symbols)

HWS42GDAU1 HWSKTM42GDGIT
(42)

7 14 7 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -SV

Haier

Warning symbol and recycling icon with warning labels and crossed-out waste bin

Legenda

Upozorenje - važne sigurnosne informacije

Illustration of a hand washing a surface with a basin nearby (no text or symbols)

Očistite brtvu vrata:

Line drawing of two abstract geometric shapes resembling a stylized tower or structure (no text or symbols)

LIGHT °C/°F White ↑ -88 °C Upper Red Spelling % Lower + ZONE 3 SEC. 5 SEC.

Technical diagram of a refrigerator with numbered components for identification

1. Ventilator
2. Polica
3. Srednja pregrada
4. Filtar s aktivnim ugljenom

5. Podesive nožice

6. Brava (za HWS77GDAU1/HWS42GDAU1)

7. Vrata
8. Led svjetiljka
9. Zaslon (na prednjoj strani vrata)

1. Raspakiravanje

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

LIGHT °C/°F White -88 °C Upper Red Sparkling -10% °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

A Gumb za unutarnje svjetlo/Wi-Fi
B Gumb za pretvorbu °C /°F
C Gumb za podešavanje temperature: dolje
D Zaslon

E Gumb za podešavanje temperature: gore
F Gumb za odabir temperaturne zone
G Gumb za zaključavanje
H Gumb za uključivanje

4. Funkcija automatskog zaključavanja

Download on the App Store

EXPLORE IT ON AppGallery

2.korak

- Prijavite se ili registrirajte.

12:30 hOn Welcome! Sign into enter in your home LOG IN SIGN UP Peel, new in Candy? Click allows to discover our products TRY DEMO

1. korak

• Dodajte novi uređaj odabirom vinskog podruma s popisa.

Add appliance Select your appliance category Wine Cellar Fridge Oven

4. korak• Skenirajte QR ili ručno upišite serijski broj.	5. korak• Pritisnite tipku svjetlo na proizvodu na 3 sekunde kako biste aktivirali Wi-Fi.	6. korak• Ikona Wi-Fi mreže će treptati, postupak uparivanja bit će u tijeku.• Imat ćete 5 minuta za dovršetak postupka uparivanja.• Po završetku postupka ikona Wi-Fi-ja prestat će treptati i stalno će biti uključena.
		NAPOMENA

Diagram showing two scenarios of cylindrical objects on a tray, one marked with a prohibition symbol and the other with a checkmark.

Diagram illustrating a filtration or particle separation process with labeled states and directional arrows

2. Svjetlo

Diagram of server rack with labeled components and a close-up view of a cup (no text or symbols present)

HWS42GDAU1
(42)
HWSKTM42GDGIT

7 14 7 14 14 7 14

HWS77GDAU1
(77)

7 14 9 14 14 7 14

HWS79GDG
(79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW -HR

Haier

ET

Aitäh, et ostsite Haieri toote.

Symbol of a trash bin crossed with no text or labels

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two mechanical components with no visible text or symbols

Technical diagram of a refrigerator with numbered labels pointing to internal compartments and ventilation slots.

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign in to enter in your home LOG IN SIGN UP Psc, now in Candy? Click above to discover our products TRY DEMO

• Lisage uus seade, valides nimekirjast veinikeldri.

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

4. samm

Appliance data Tell us your appliance serial number SCAN HAPP Scan the QR code serial number The QR code is currently only connected when it's allowed within the guidelines. OUT INSERT RANDOMLY

5. samm

Get ready to add your appliance ① Make sure to have minimum in a 2.4GHz Home Wi-Fi network. ② Make sure to have your Home Wi-Fi password and name ready, you will need them later. ③ Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal. ④ And yes, they close to your appliance. OK ITA READY FILL DO IT LATER

Diagram of server rack with ventilation fan and connector, showing internal components and a close-up view of the device (no text or labels)

https://corporate.haier-europe.com/en/.

HWS42GDAU1 (42) HWSKTM42GDGIT

7 14 7 14 14 7 14

HWS77GDAU1 (77)

7 14 9 14 14 7 14

HWS79GDG (79)

HWS-42GDAU1-77GDAU1-79GDG - HWS78TGDFH1SW - ET

Haier

Naudotojo vadovas

Vyno šaldytuvas

HWS77GDAU1

HWS42GDAU1

HWS79GDG

HWS78TGDFH1SW

HWSKTM42GDGIT

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular electronic components with no text or symbols

Technical diagram of a refrigerator with numbered labels pointing to internal compartments and ventilation slots.

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

LIGHT °C/°F White -88 °C Upper Red Sparkling °F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

Download on the App Store

HUAWEI EXPLORE IT ON AppGallery

hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

4 veiksmas

Tell us your appliance serial number SCAN MAYLQAL Scan the QSI serial number The QSI code is automatically connected when it's placed within the guidelines OR INSERT MANUALLY

5 veiksmas

Get ready to add your appliance 1 Make sure to have within an a 2.4GHz Home Wi-Fi network. 2 Make sure to have your Home Wi-Fi password and name ready, you will need them later. 3 Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal. 4 And yes, say close to your appliance. OK IT/RELENT FILL DO IT/LATER

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating inspection or clearance.

Diagram illustrating a filtration or particle removal process with labeled states and directional arrows

2. Apšvietimas

Technical line drawing of server rack with ventilation slots and a close-up of a cylindrical component (no text or symbols)

Two symbolic icons: a crossed-out waste bin and a circular icon with recycling arrows, likely representing waste management or recycling.

Illustration of a hand washing a surface with a soap block and a basin nearby (no text or symbols)

Line drawing of two abstract geometric shapes resembling a stylized letter or panel, with no text or symbols present.

Labeled diagram of a refrigerator interior with numbered parts for identification

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Download on the App Store

HUAWEI EXPLORE IT ON AppGallery

1. darbība

- Piesakieties vai registrējieties.

Welcome! Sign in to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

1. darbība

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

4. darbība

Tell us your appliance serial number SCAN MAYLQAL Scan the QSI serial number The QSI code is automatically connected when it's placed within the guidelines OR INSERT MANUALLY

5. darbība

- Paturiet apgaismojuma pogu uz produkta 3s, lai aktivizētu Wi-Fi.

6. darbība

Get ready to add your appliance 1 Make sure to have within an a 2.4GHz Home Wi-Fi network. 2 Make sure to have your Home Wi-Fi password and name ready, you will need them later. 3 Make sure your appliance is in a place where there is an excellent Home Wi-Fi signal. 4 And yes, say close to your appliance. OK IT/RELENT FILL DO IT/LATER

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating cancellation or rejection.

Diagram illustrating a filtration or particle separation process with labeled components and directional arrows indicating removal or rejection steps.

2. Apgaismojums

Diagram of server rack with ventilation fan and connector, showing internal components and a close-up view of the device (no text or labels)

Symbol of a trash bin crossed with no text or labels

Likvidácia

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Čistenie tesnenia dverí:

Line drawing of two abstract geometric shapes resembling a stylized letter or panel (no text or symbols)

LIGHT °C/°F White Red Sparkling 80% Upper Lower + ZONE 3 SEC. 5 SEC.

Technical diagram of a refrigerator with numbered parts for identification

Simple line drawing of a rectangular object with a curved base and a small curved arrow at the bottom (no text or symbols)

6. Jemné doladenie dver í

LIGHT °C/°F White -88 °C Upper Red Sparkling -88 % F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

Download on the App Store

Krok 2

- Prihláste sa alebo sa zaregistrujte

In On Welcome! Sign to enter your home $100.00 Shop SP Post mobile Canada! Click allow to deliver our products YOU DOOR

Krok 3

Select your appliance category Wire Cellar Fridge Oven Platter Villa (M) (S) (P)

Krok 4

Tell us your appliance serial number from the Q1 only serial number The Q1 is not a serial number of users in pans, something another. OR IS NOT ONLY

Krok 5

Get ready to add your appliance 1 Make sure to have minimum a 2-40x Home Wi-Fi products. 2 Make sure to have your Home Wi-Fi products and must be easy, you will need them faster. 3 Make sure your appliance in a place where checks are excellent. Home Wi-Fi products. 4 And you also show to your appliance. OK! READY! NOO! EATER

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating selection or rejection.

Diagram illustrating a mechanical or electronic process with labeled components and directional arrows, including a prohibition symbol.

2. Osvetlenie

Diagram of server rack with ventilation slots and a close-up of a cylindrical component (no text or symbols)

Riešenie problémov

SK

HWS42GDAU1 (42) HWSKTM42GDGIT

HWS77GDAU1 (77)

Symbol of a trash bin crossed with no text or labels

Likvidace

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Line drawing of two rectangular electronic components with a flat top and a flat side, no text or symbols present.

LIGHT T/℉ White Red Sparkling 88°C Upper - °F Lower + ZONE 3 SEC. 5 SEC.

Technical diagram of a refrigerator with numbered parts for identification

Simple line drawing of a rectangular object with a curved base and a small curved mark at the bottom (no text or symbols)

LIGHT °C/℉ White -88 °C Upper Red Sparkling -88 % *F Lower + ZONE 3 SEC. 5 SEC. A B C D E F G H

Download on the App Store

Krok 2

Welcome! Sign to enter in your home LOG IN SICU UP Past, none in Candy! Click away to discover our products TINY BEND

Krok 3

Select your appliance category Wine-Cellar Fridge Ovin Pocketboxer STARE DANCEMENT

Krok 4

Tell us your appliance serial number from the Q1 only serial number The Q1 is not a serial number of users in pans, something another. OR IS NOT ONLY

Krok 5

Get ready to add your appliance 1 Make sure to have minimum a 2-40x Home Wi-Fi products. 2 Make sure to have your Home Wi-Fi products and must be easy, you will need them faster. 3 Make sure your appliance in a place where checks are excellent. Home Wi-Fi products. 4 And you also show to your appliance. OK! READY! NOO! EATER

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating cancellation or rejection.

Diagram illustrating a filtration or particle removal process with labeled states and directional arrows

2. Světlo

Diagram of server rack with ventilation slots and a close-up view of a cylindrical component (no text or symbols)

Řešení problémů

CZ

HWS42GDAU1 (42) HWSKTM42GDGIT

HWS77GDAU1 (77)

Abstract geometric composition with four gray polygonal shapes radiating from a central point, no text or symbols present.

HWS-42GDAU1-77GDAU1-EN

Haier

Manual de utilizare Răcitor de vinuri

HWS77GDAU1 HWS42GDAU1 HWS79GDG HWS78TGDFH1SW HWSKTM42GDGIT

Symbol of a trash bin crossed with no text or labels

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Line drawing of two abstract geometric shapes resembling a stylized book or architectural element (no text or symbols)

LIGHT C/FF White: 2 °C Upper Red: -88 % Sparking + ZONE 3 SEC. 6 SEC 1 2 3 4 5 6

Technical diagram showing 12-step assembly or installation process with labeled steps and component illustrations

6 - Instalare

RO

LIGHT °C/°F White -80 °C Upper Red -100 % Sparking -100 °C Lower + A B C D E F G H ZONE 3 SEC 5 SEC

A Buton lumină interior/Wi-Fi E Buton reglare temperatură: sus B Buton conversie °C/°F F Buton de selectare a zonei de temperatură C Buton reglare temperatură: jos G Buton de blocare D Afișaj H Buton de alimentare

INFORMATII DESPRE PRODUS

12:30 Welcome! Sign in to enter in your home LOG IN SIGN UP Pist, new in Candy? Click above to discover our products TRY DEMO

Pasul 3

Add appliance Select your appliance category Wine Cellar Fridge Oven Dishwasher START ENROLLMENT

Pasul 4

Tell us your appliance serial number SCAN NANJAL Scan the QR code serial number The QR code is automaticly detected when it's shared within the guidelines. OR INSERT NAMECALLY

Pasul 5

Get ready to add your appliance Make screen have minimums a 2.4GHz Home Wi-Fi network. Make screen have your Home Wi-Fi network and same ways you will strengthen it. Make screen your appliance in a place where there is an excellent Home Wi-Fi panel. Apply, stay close to your appliance. OK OK READY ELEDDY LIFER

8 – Sfaturi economisire energie

RO

Diagram showing two arrangements of cylindrical objects with a prohibition symbol and a checkmark indicating verification or clearance.

Diagram illustrating a mechanical or electrical setup with rollers and directional arrows, including a prohibition symbol and checkmark.

2. Lumina

Technical diagram showing server rack layout with labeled components and a close-up of a cylindrical component with internal structure.

750ml 300.5mm Φ76.1mm

7 7 14 14 HWS42GDAU1 (42)

HWS77GDAU1 (77)

Abstract geometric composition with four gray triangular shapes arranged symmetrically (no text or symbols)

Haier

Răcitor de vinuri

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

Haier

call center: 021.9168

mail: [e-mail]

haier-europe.com/ro
