USER MANUAL UNI_HEATER_11 Uniprodo

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

a b c g h i j k l UNIPROOO

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical Data

Parameter description	Parameter value
Product name	Ceramic column heater
Model	UNI_HEATER_11
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W].	1200-2000 (min-max)
Safety class	II
IP class	IPX0
Dimensions [Width x Depth x Height; mm]	150 x 150 x 510
Weight [kg]	2.1
Temperature control range [°C]	10-35
Remote control	Yes
Battery type for the remote	CR 2025 3V
Heating area [m2]	10-15

1. General Description

This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such

a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a situation (general warning sign).
	CAUTION! Risk of electric shock!
	Safety class II equipment with double insulation.
	Caution! Hot surface can cause burns!
	For indoor use only.
	Do not cover the unit with any materials or objects.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and in the description of the instructions refers to

Ceramic column heater.

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.

c) Do not touch the device with wet or damp hands.

d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.

e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.

f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.

g) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.

h) CAUTION – DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.

i) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!

j) Do not allow the machine to get wet. Risk of electric shock!

2.2. Safety in the workplace

a) I f you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.

b) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
c) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
d) In the event of ignition or a fire, use dry powder or CO2 extinguishers only to suppress the fire of the appliance is live.
e) Check the condition of the safety stickers regularly. Replace them if they are illegible.
f) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
g) Keep packaging components and small installation parts out of the reach of children.

2.3. Personal safety

a) Do not operate this device if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
d) The product is not a toy. Children should be watched to ensure that they do not play with the product.
e) Do not place your hands or any objects inside the running device!

2.4. Safe use of the device

a) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any

other condition that may affect the safe operation of the device). If damaged, have the device repaired before use.

e) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
f) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
g) When transporting or moving the device from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the device is used.
h) Do not touch any moving parts or accessories unless the device is unplugged.
i) Do not move, shift, or rotate the device while in operation.
j) Clean the device regularly to prevent permanent dirt build-up.
k) Do not obstruct the air inlet or outlet.
I) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
m) Do not tamper with the device to alter its performance or design.
n) Keep the unit away from sources of fire and heat.
o) Do not block the ventilation openings of the unit!

CAUTION! Although the product has been designed to be safe and has adequate safeguards and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.

3. Instructions for use

The product is intended for room heating.

The product has built-in overheating protection that will automatically switch it off in the event of overheating - after cooling down, the device can work again.

The user is responsible for any damage resulting from misuse.

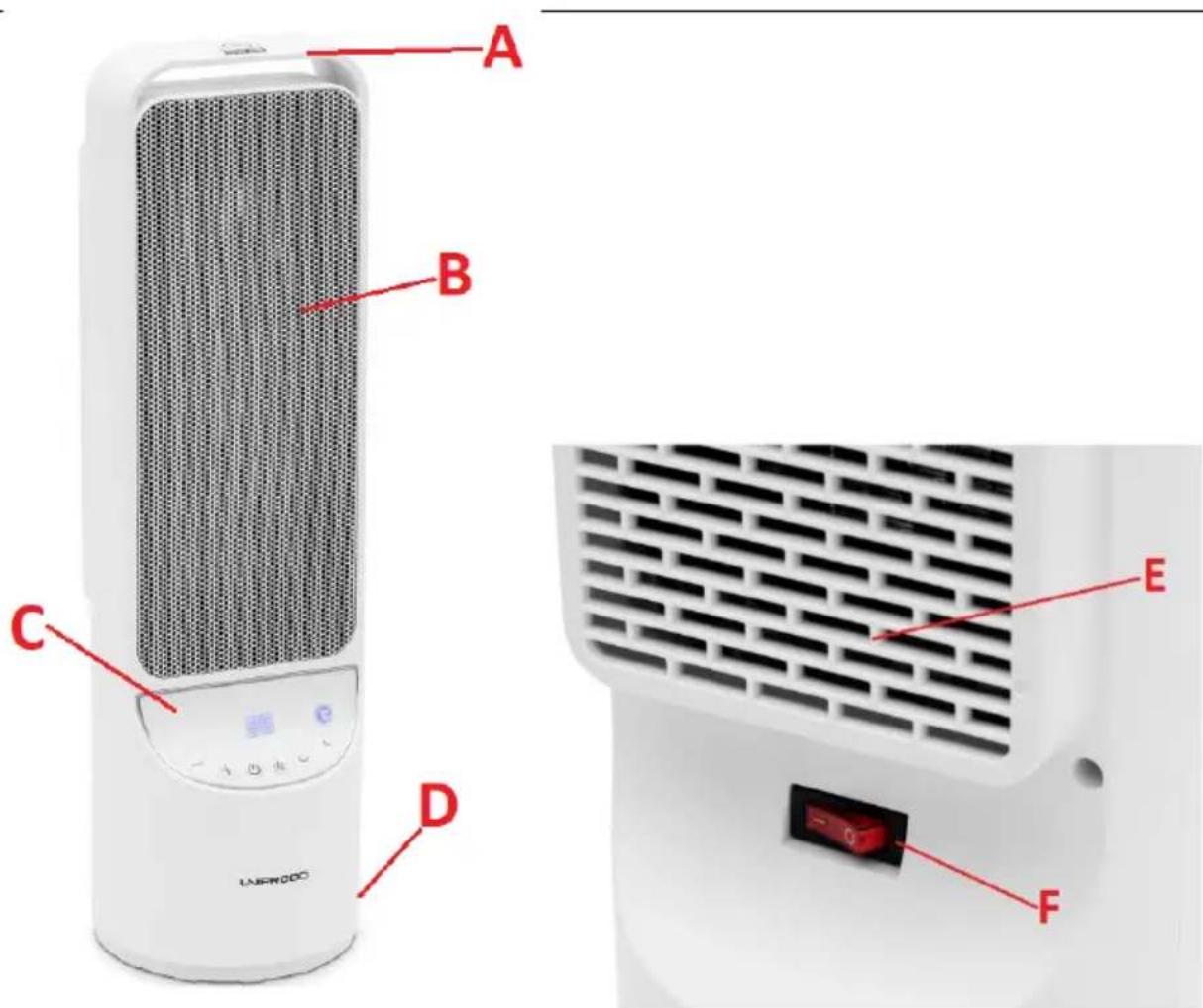

3.1. Product overview

A B C D E F LSPWDC

A. Ca rrying handle
B. Air outlet
C. Control panel with display
E. Air inlet
F. Power switch (0/I)
G. Remote control (picture below)

D. Power cord with plug (on the back of the housing - not visible in the picture)

LNIPROOO

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum distance of 1 m from each wall of the unit. Keep the unit away from any hot and humid surfaces. Always operate the unit on a stable, clean, fireproof and dry surface and out of the reach of children and persons with impaired mental, sensory and intellectual functions. It is forbidden to use the device in the immediate vicinity of bathtubs, showers, swimming pools! Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

ASSEMBLY OF THE DEVICE

The device itself does not require assembly, only the transparent protective insert of the battery needs to be removed from the control panel. Grasp its protruding end (1) at the bottom of the remote control and pull it out completely (2):

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

3.3. Working with the device

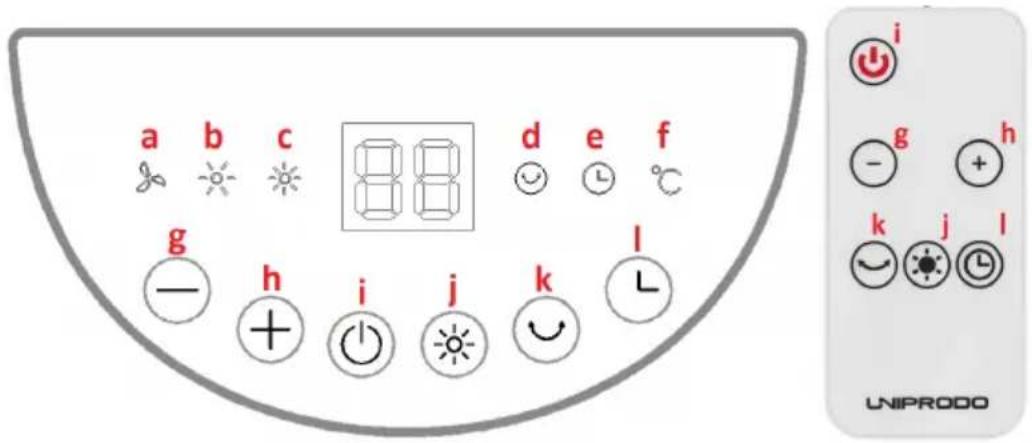

NOTE: the device can be controlled both from the control panel and the remote control - both have the same set of buttons:

a b c g h i j k l UNIPRODO

1) Connect the device to the power supply.

2) Set the power switch (F) on the back of the device to the "I" position - the device will go into standby mode.
3) Press the ON/OFF button (i) on the control panel or the remote control to turn on the unit. The central display will show the current ambient temperature. By pressing the same button (i) again, you can access the rest of the device control functions.
4) Pressing the heating function button (j) one time starts heating with low power - the corresponding indicator light (b) will light up on the panel. Pressing the same button again will turn on high heating power, which will be confirmed by the additional light (c) on the control panel, i.e. both indicators (b + c) will then be illuminated.
5) To start the timer, press the timer button (I) and then press the same button to set the range of 0-12 hours after which the device will be turned off. After completing this operation, the device will start counting down the set time (the indicator "e" will light up), after which it will turn off automatically.
6) To set the target temperature, use the button to increase or decrease the value (h or g).
IMPORTANT: if the ambient temperature is over 4^ C lower than the set temperature, it will heat with high power. If it is lower by 2^ C, but not more than 4^ C, it will heat with low power. When the set temperature in the room is reached, the device will stop heating, only the fan will continue to work. The heater will turn on only when the temperature in the room drops by more than 2^ C in relation to the set temperature.
7) The air supply flap is activated by means of the air supply flap control button (k) - its operation will cause the corresponding indicator light (d) to light up. Use the same button to turn it off and the relevant indicator (k) turns off.
8) Turn off the device using the ON/OFF button, but remember that after turning off the fan will be active for approx. 30-60 seconds to cool down the inside of the device - its operation is signaled by the appropriate light (a) on the control panel. After turning off, the device will go into standby mode.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.

- Wait until the rotating parts stop.

b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) Do not spray the unit with a stream of water or immerse it in water.

d) Make sure that no water enters through the ventilation openings in the casing.

e) Clean the ventilation openings with a brush and compressed air.

f) Use a soft, damp cloth for cleaning.

g) Remove the battery from the appliance if you do not intend to use it for a long time.
h) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) for cleaning as they may damage the surface of the appliance material.
i) Do not clean the device with acidic substances, medical products, thinners, fuel, oil or other chemicals as this may damage the device.
j) In case the device does not fully respond to the remote control, check the condition of the battery and, if necessary, replace it with a new, functional one.

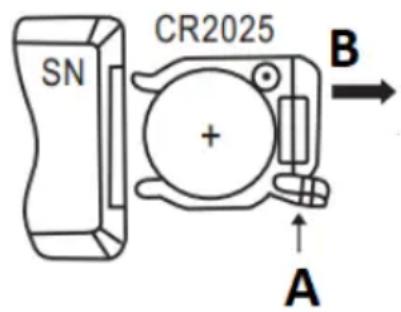

To replace the batteries of the remote control, press the latch of the battery compartment (at the bottom of the remote control at its back) and pull out the compartment with the battery. When replacing the battery, pay attention to the correct polarity according to the diagram on the back of the remote control housing.

SN CR2025 + A B

INSTRUCTIONS FOR THE SAFE DISPOSAL OF BATTERIES.

A CR 2025 3V battery is installed in the remote control.

Remove used batteries from the unit in the same way you put them in.

Return the batteries to a unit responsible for their disposal.

DISPOSAL OF WASTE APPLIANCES

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this appliance are recyclable according to their marking. By reuse, recycling or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

a b c g h i j k l UNIPROOO

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

a b c g h i j k l UNIPRODO

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

a b c g h i j k l UNIPRODO

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

a b c g h i j k l UNIPRODO

APPARATETS PLACERING

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

a b c g h i j k l UNIPRODO

For the disposal of the device please consider and act according to the national and local rules and regulations.
