USER MANUAL AG507DC Vonroc

Abstract geometric shape resembling a stylized letter 'U' on black background (no text or symbols)

VONROC®

BUILD YOUR FUTURE

ANGLE GRINDER AG507DC / S\_AG507DC S2\_AG507DC / S3\_AG507DC

White icon of a stylized tool or device on black background (no text or symbols)

EN Original Instructions 06

E 30 - 40°

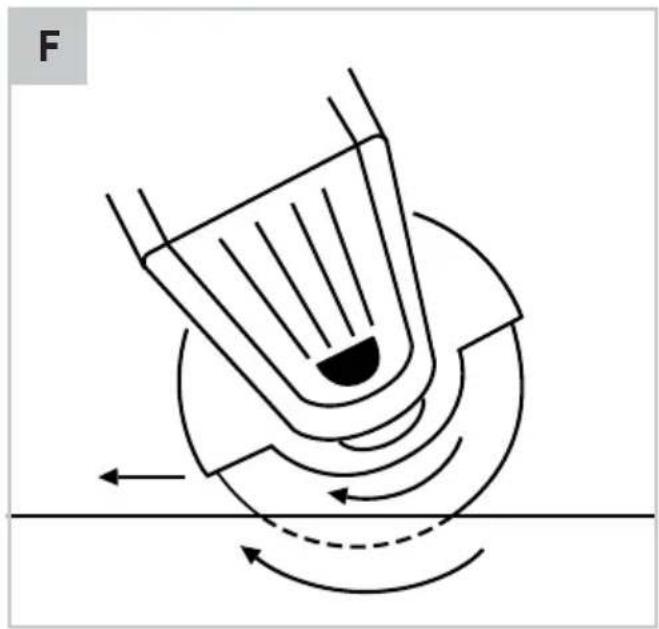

Diagram of a mechanical or fluidic device with directional arrows indicating flow or movement (no text or symbols)

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Max temperature 40^ C.

Do not throw the battery into fi re.

Do not throw the battery into water.

Wear safety goggles. Wear hearing protection.

Wear safety gloves.

Indoor use only.

Do not use in rain.

Always operate with two hands.

Do not use guard for cut-off operations.

Risk of flying objects. Keep bystanders away from the work area.

Do not press the spindle lock button while the motor is running.

Separate collection for Li-ion battery.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS COMMON FOR GRINDING OR ABRASIVE CUTTING-OFF OPERATIONS

a) This power tool is intended to function as a grinder tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

b) Operations such as sanding, wire brushing, polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

e) The outside diameter and the thickness of your accessory must be within the capacity rating of

your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by fl anges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping fl ying debris generated by various operations. The dust mask or respirator must be capable of fi ltrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

I) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near fl ammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kick-back will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the

accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel fl anges that are of correct size and shape for your selected wheel. Proper wheel fl anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel fl anges.
f) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

ADDITIONAL SAFETY WARNINGS SPECIFIC FOR ABRASIVE CUTTING-OFF OPERATIONS

Cut-off operations are only suitable with a special protection guard Fig. A.

a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twist-

ing or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kick-back. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kick-back.
g) Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short-circuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.

e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER Intended use

Charge only CD832AA and CD833AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm ^2 . If you use a extension cable reel, always fully unroll the cable.

2. MACHINE INFORMATION

Intended use

The product is suitable for cutting and grinding metal, stone and wood materials, plastic, tiles and non-ferrous metals without using water. There is a special disc for each of the separate applications. Please refer to the information from the disc manufacturer.

The tool should not be used in any other application (e.g. cutting/grinding with coolant solutions, cutting/grinding harmful substances such as asbestos).

The device is intended to be used by doityourselfers It was not designed for heavy commercial use. The tool is to be used by adults. Children over

the age of 16 may not use the tool except under supervision.

The manufacturer is not liable for damages caused by an improper use or incorrect operation of this product.

TECHNICAL SPECIFICATIONS

This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.

Model No	Batteries included	Chargers included
AG507DC	-	-
S_AG507DC	CD832AA	USB-C Cable
S2_AG507DC	2 x CD832AA	USB-C Cable
S3_AG507DC	CD833AA USB-C Cable

Machine information
Voltage 12V	---
No load speed 19.000/min
Grinding discDiameter:Bore:	76 mm10 mm
Spindle thread M5
Weight 0.73 kg
Sound pressure level L_PA	68.1 dB(A), K=3dB(A)
Acoustic power level L_WA	79.1 dB(A), K=3dB(A)
Vibration a_h,AG	2.827 m/s ^2 , K=1.5 m/s ^2

Model No CD832AA
Battery Type Lithium-Ion
Voltage 12V	---
Capacity 2.0 Ah
Weight	0.18

Model No CD833AA
Battery Type Lithium-Ion
Voltage 12V	---
Capacity 4.0 Ah
Weight	0.4 kg

To charge the battery only use the following recommended charger:

Charger model	XZ0500-2200WU
	XZ0500-2200WUB
Charger power supply
Input	100-240 V~;50/60 Hz; 0.3 A
Output	5 V d.c.; 2.0 A

Wear hearing protection.

Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool. CD832AA 12V, 2Ah Lithium-Ion CD833AA 12V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries. USB-C Cable

The batteries of the VONROC VPOWER 12V battery platform are interchangeable with all the VONROC VPOWER 12V battery platform tools.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns. kg

DESCRIPTION

The numbers in the text refer to the diagrams on pages 2 - 3.

1. Protective hood
2. Cutting disc

3. Clamping screw

4. Spindle stop button

5. On/off switch
6. Battery indicator
7. Soft grip handle
8. Battery release button
9. Battery
10. Hex key
11. Mounting fl ange
12. Clamping fl ange
13. USB charging cable
14. Charging indicator
15. Hex key

3. ASSEMBLY

Before any work on the power tool, remove the battery.

The battery must be charged before first use.

Inserting the battery into the machine Fig. C

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

• Insert the battery (9) into the base of the machine.
• Push the battery further forward until it clicks into place.

Removing the battery from the machine Fig. C

- Push the battery unlock buttons (8) and pull the battery out of the machine.

Charging the battery (with the charger) Fig. D

• Plug the USB-C connector of the charger cable (13) into the battery (9).
• Plug the USB-A connector of the charger cable into an USB power adapter (not included). Alternatively, for example a powerbank or laptop can be used as a power source.
• The charger indication light (14) will lighten up and show the charging status.

LED indicator (7) Fig. D

The battery has 1 LED indicator (6) which indicates the status of the charging process:

LED Charger status

Red Battery charging in progress

Green Battery charging fi nished, battery fully charged

After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.

When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

Mounting and removing the wheel disc (Fig. B)

Do not use the machine without the guard.

Only use sharp and undamaged wheel discs.

Before initial operation, check the tightness of the clamping screw (3).

If the direction of rotation is marked on your cutting/grinding disc, make sure that it matches the direction of rotation mark on the product.

Notes on replacement

• Never operate the product without protective equipment.
• Ensure that the rotation speed stated on the cutting/grinding disc is the same or higher than the nominal rotation speed of the product.
• Ensure that the cutting/grinding disc dimensions match those of the product.
• Only use fl awless discs (ringing test: when you strike the grinding disc with a plastic hammer, it results in a clear sound)
  Never re-drill a locating hole which is too small to make it larger.
• Never use separate bushings or adapters in order to make grinding discs with a hole that is too large fit the product.
• To clamp the grinding tools only use the clamping fl ange provided.

• The clamping screw [3] must not be too tight in order to avoid breaking the cutting/ grinding disc.

• Press and hold the spindle retaining tab (4)

• Loosen the clamping screw (3) with the hex key (15) Release the spindle retaining tab
• Position the desired cutting/grinding disc (2) on the mounting fl ange (11) The label on the cutting/grinding disc should always face the product.
• Reposition the clamping fl ange (12) The side of the clamping fl ange with recess generally points to the attachment tool and thus to the

cutting/grinding disc. The side with the marking on the clamping fl ange must be visible.

1. Press the spindle retaining tab and tighten the clamping screw using the hex key Release the spindle retaining tab (4).

4. OPERATION

Make sure that the work piece is properly supported or fixed.

Wear protective gloves when changing the tool so as to avoid injuries from cuts.

Caution! The cutting/grinding disc still runs for some time when the machine is turned off.

Switching on and off (Fig. A)

• To start the machine, press the pressure point on the on/off switch (5) downwards and slide the on/off switch (5) forwards. The machine switches on and starts.
• To stop the machine, release the on/off switch (5). The machine will switch off.
• Hold the machine away from the work piece when turning it on and off because the wheel disc could damage the work piece.
• Clamp the work piece firmly or use another method to ensure that it cannot move while working.
• Check the discs regularly. Worn wheel discs have a negative effect on the machine's efficiency. Change to a new wheel disc in good time.

Trial run Always carry out a trial run before carrying out your first grinding procedure and after every disc replacement Switch the product off immediately if the grinding disc is not rotating smoothly, if considerable vibration occurs or if you hear abnormal noises.

Deburring (Fig. E)

An angle of inclination of 30^ to 40^ will give the best results when deburring. Move the machine back and forth using light pressure. This will prevent the work piece from discolouring or becoming too hot and will avoid making groves.

Never use abrasive cutting discs for deburring work!

Cutting (Fig. F)

For cutting, a special protection guard must be used (included).

Maintain firm contact with the work piece to prevent vibration and do not tilt or apply pressure and when cutting. Use moderate pressure when working, appropriate to the material that is being worked on. Do not slow down wheel discs by applying sideways counter pressure. The direction in which you want to cut is important. The machine must always work against the direction of the cut; so never move the machine in the other direction! There is the risk that the machine will catch in the cut causing kickback and that you will lose control.

Hints for optimum use

• Clamp the work piece. Use a clamping device for small work pieces.
• Hold the machine with both hands.
• Switch on the machine.
• Wait until the machine has reached full speed.
• Place the wheel disc on the work piece.
• Slowly move the machine along the work piece, fi rm ly pressing the wheel disc against the work piece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

VEILIGHEIDSWAARSCHUWINGEN VOOR DE ACCU

2. INFORMATIE OVER HET APPARAAT

Bedoeld gebruik

CD833AA 12V, 4Ah Lityum-iyon
