DE	Produktname:	INDUKTIONSKOCHFELD	INDUKTIONSKOCHFELD 5KW
EN	Product name:	INDUCTION HOB	INDUCTION HOB 5KW
PL	Nazwa produktu:	KUCHNIA INDUKYJNA	KUCHNIA INDUKCYJNA 5KW
CZ	Název výrobku	INDUKČNÍ VÁRÍČ	INDUKČNÍ VÁRÍČ 5KW
FR	Nom du produit:	CUISEUR À INDUCTION	CUISEUR À INDUCTION 5KW
IT	Nome del prodotto:	FORNELLO A INDUZIONE	FORNELLO A INDUZIONE 5KW
ES	Nombre del producto:	PLACA DE INDUCCIÓN	PLACA DE INDUCCIÓN 5KW
HU	Termék neve	INDUKCIÓS FÖZÓLAP	INDUKCIÓS FÖZÓLAP 5KW
DA	Produktnavn	INDUKTIONSKOGEPLADE	INDUKTIONSKOGEPLADE 5KW
DE	Modell:	RCIK-3500IC2.1RCIK-3500IC4.2RCIK-3500IC4.3RCIK-3500IC4.4	RCIK-5000IC
EN	Product model:
PL	Model produktu:
CZ	Model výrobku
FR	Modèle:
IT	Modello:
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name Induction	hob				Induction hob 5kW
Model	RCIK-3500IC2.1	RCIK-3500IC4.2	RCIK-3500IC4.3	RCIK-3500IC4.4	RCIK-5000IC
Supply voltage [V~] / frequency [Hz]	230V~/50Hz	400V ~ /50Hz	400V ~ /50Hz	400V ~ /50Hz	230V~/50Hz
Rated power [W].	2 x 3500	4 x 3500	4 x 3500	4 x 3500	5000
IP code	IPX4	IPX4	IPX4	IPX4	IPX3
Dimensions (width x depth x height) [mm]	750 x 350 x970	770 x 700 x255	800 x 800 x260	800 x 800 x970	525 x 400 x240
Weight [kg]	25.1	33.6	36.3	46.8	10.2

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

		Read the manual before use.
		Recyclable product.
		CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
		CAUTION! Warning of electric shock!
		Caution! Hot surface can cause burns!

	For indoor use only.
	CAUTION! Non-ionising electromagnetic radiation

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Induction hob Induction hob 5kW

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.
h) CAUTION – DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
i) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
j) Do not connect the multicontact plugs, extension cables etc.
k) The electric connection should be made by a qualified electrician.

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust.
c) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
d) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!

f) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
g) Use the unit in a well-ventilated area.
h) Check the condition of the safety stickers regularly. Replace them if they are illegible.
i) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
j) Keep packaging components and small installation parts out of the reach of children.
k) Keep the device away from children and animals.
I) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) Use caution and common sense when operating this device. A moment's inattention during operation may result in serious personal injury.
d) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
e) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
f) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.4. Safe use of the product

a) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
c) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.
i) Do not move, shift, or rotate the machine while in operation.
j) Do not leave the device switched on unattended.
k) Clean the device regularly to prevent permanent dirt build-up.
I) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
m) Do not tamper with the device to alter its performance or design.
n) Keep the unit away from sources of fire and heat.
o) Do not block the ventilation openings of the unit!
p) Do not store items on the device, particularly on its glass surface.
q) It is forbidden to heat up empty vessels on the device.
r) The device shall be used on a surface resistant to heat. Do not place the device on carpets, tablecloths, etc., so surfaces made of flammable, melting materials.

s) Do not place the device on metal surfaces.

t) CAUTION! The cooktop of the device remains hot for an extended period of time after switching off of the power supply. Touching a hot cooktop can cause skin burns.

u) Use only pots and pans intended for use on induction cookers.

v) Do not place metal utensils, cutlery, etc., in the area of the appliance's heating plate as they can become very hot and cause skin burns.

w) CAUTION! Rings, watches, chains and other metal objects can become hot when in close proximity to the switched-on device.

x) It is forbidden to place a sheet of paper between a pot/pan and the cooktop. The paper could catch fire.

y) Aluminium foil, plastic cutlery and vessels should be kept away from the cooktop.

z) Do not use the device in the vicinity of devices susceptible to electromagnetic radiation, i.e. payment cards, TV receivers, etc.

CAUTION! Although the product has been designed to be safe and have adequate safeguards, and despite the additional safety features for the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The appliance is intended for heating and cooking food and liquids placed in dishes and pots suitable for use with induction cookers.

The user is responsible for any damage resulting from misuse.

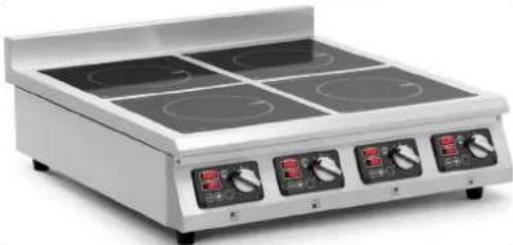

3.1. Product overview

RCIK-3500IC2.1
RCIK-3500IC4.2
RCIK-3500IC4.3
RCIK-3500IC4.4
RCIK-5000IC

Control panel:

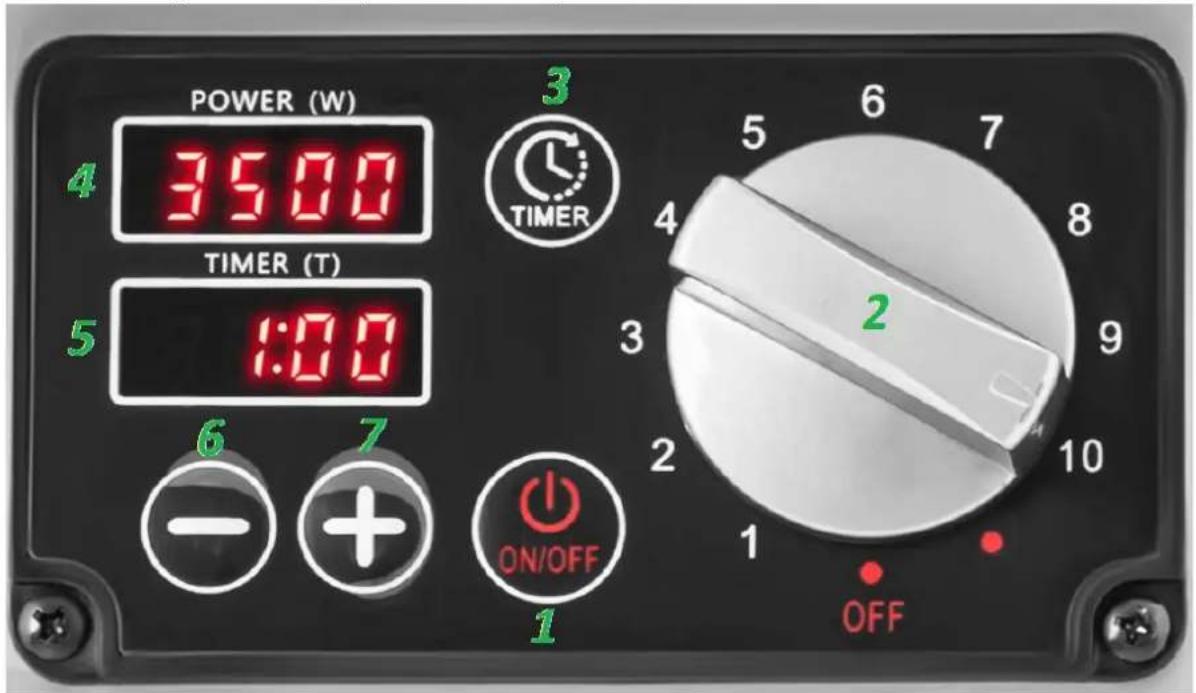

RCIK-3500IC2.1 / RCIK-3500IC4.2 / RCIK-3500IC4.3 / RCIK-3500IC4.4:

POWER (W) 3500 4 TIMER (T) 5 1:00 6 7 ON/OFF 1 OFF 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 OFF

1 - ON/OFF switch
2 - Power control knob
3 - TIMER function
4 - Power display
5 - Display timer (TIMER)
6 - Button for decreasing the timer/power value
7 - Button for increasing the timer/power value

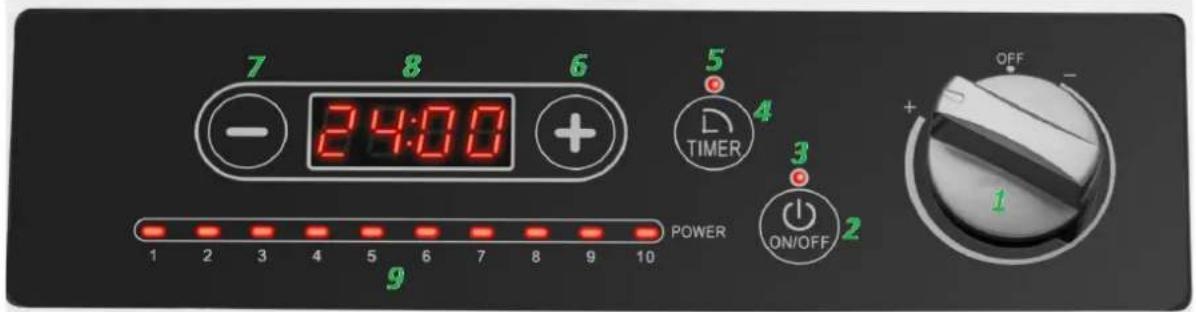

RCIK-5000IC:

7 8 6 - 24:00 + 5 TIMER 4 3 ON/OFF 2 POWER 1 2 3 4 5 6 7 8 9 10 9 OFF -

1 - Power control knob
2 - ON/OFF switch
3 - Power light
4 - TIMER function
5 - TIMER indicator
6 - Button for decreasing the timer/power value
7 - Button for increasing the timer/power value
8 - Time display
9 - LEDs for indicating power level

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

Before using the unit for the first time, disassemble all parts and wash them as well as the entire unit.

Keep the device away from a water source; the unit will not work if the air inlet and outlet are wet. Keep away from gas cookers or other similar cookers. If the ambient temperature is high, the unit may stop working.

3.3. Working with the machine

Do not put closed cans on the hob. Risk of explosion. Do not put paper or a cloth between the hob and the pan.

Power mode:

Plug in the power cord, the unit beeps once.

NOTE: For proper operation, an independent dedicated circuit should be used for each installed unit. Each circuit should be protected by a circuit breaker.

Handling:

Turn the hob "ON" by pressing the "ON/OFF" button. Place the dishes containing the ingredients on the hob. Turn the knob or use the "+" or "-" button until the desired "Power Cook" setting appears on the LED display. Turn the knob to the left to decrease the power and to the right to increase the power.

To turn off the hob, turn the control knob to the left and press the "ON/OFF" button until it "clicks" and the LED display goes out.

Timer mode:

Turn on the hob by turning the knob to the right OR press the "ON/OFF" button.

Place the dishes containing the ingredients on the hob.

Press the Timer mode button (0\~24 hours).

Press the "+" or "-" buttons to set the time using 1-minute intervals (0-60 min), press the "+" or "-" buttons for a long time to set the time in 5-minute intervals.

Press the Timer button again and use the "+" or "-" buttons to set in 1-hour intervals (0-24 hours).

Press the Timer button a third time to turn off the timer mode.

To switch off the hob, press the "ON/OFF" button or turn the knob to the "OFF" position.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.

b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) Only mild detergents designed for cleaning food contact surfaces may be used to clean the unit.

d) After each cleaning, all parts should be thoroughly dried before the device is reused.

e) Store the unit in a dry and cool place protected from moisture and direct sunlight.

f) Do not spray the unit with a stream of water or immerse it in water.

g) Make sure that no water enters through the ventilation openings in the casing.

h) Clean the ventilation openings with a brush and compressed air.

i) Perform regular inspections of the unit checking technical fitness and any damages.

j) Use a soft, damp cloth for cleaning.

k) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.

I) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.

3.5. Error codes

Error code	Error	Analysis
EC/E16	The main board cannot connect to the control panel.	Check the connection of the wires between the main board and the display control board.
E0	Electrical circuit failure.	Check the coil.
E1 Protection against empty vessels.		Is the pan placed on the induction hob? Is the vessel compatible with the hob?
E2	Low voltage protection.	Check the voltage value.
E3	High voltage protection.	Check the voltage value.
E4	Circuit of the temperature sensor is open.	Check if the temperature sensor is damaged or disconnected.
E4 Short circuit on the temperature sensor.		Check if the temperature sensor is damaged in its insulation or if its metal wire is exposed.Check if the socket is damaged.
E7 Open circuit of the IGBT sensor.		Check if the IGBT sensor is damaged or disconnected.
E7 Short circuit on the IGBT sensor.		Check if the IGBT sensor has insulation damage or if its metal wire is exposed.Check if the socket is damaged.
E8 Overheating of the temperature sensor.		Check if the fans under the coil are damaged or if there is poor heat dissipation.
E9 Overheating of the IGBT sensor.		Check if the fans on the main board are damaged or if the air intake is blocked, resulting in poor heat dissipation.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
