USER MANUAL TF White 10.8/18.0 Flex

Illustration of a mechanical device with two labeled components (no text or symbols visible)

Illustration showing a hand pressing a power button labeled 'FLEX' with an inset image of a jacket and zipper.

Symbols used in this manual ..... 9

Symbols on the heated jacket ..... 9

Important safety information. 9

Overview 12

Technical specifications ..... 12

Instructions for use. 13

Maintenance and care 13

Disposal information. 14

Exemption from liability 14

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation.

Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the heated jacket

Read the operating manual.

Safety instruction!

Must not be used by very young children (0 - 3 years).

Do not insert pins!

Cleaning instruction:

Machine wash warm gentle cycle - max. 30°C!

Cleaning instruction:

Do not bleach.

Cleaning instruction:

Do not wring.

Cleaning instruction:

Tumble drying at low temperature (delicates, max. 60°C) permitted.

Cleaning instruction:

Do not iron.

Cleaning instruction: Do not dry-clean.

Important safety information

WARNING!

Read all safety instructions and general instructions. Failure to comply with the safety instructions and general instructions may result in electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference.

Important instructions Retain for future use.

WARNING!

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This garment must not be used by persons who are not sensitive to heat or by vulnerable persons who may not be able to react to overheating.

This garment may not be used by very young children (0-3 years old) as they are unable to respond to overheating.

This garment may not be used by young children (3 – 8 years old) unless the controller has been set by a parent or responsible adult and the child has been given adequate instructions on how to use the garment safely.

This garment may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack

of experience or knowledge, provided that they are supervised and have been instructed on how to use the garment safely, and are fully aware of the consequent risks of use.

Children should be supervised to ensure that they do not play with the garment.

Intended use

The TJ 10.8/18.0 / TJ White 10.8/18.0 /

TF White 10.8/18.0 heated jacket is intended

– for commercial use in industry and trade,
– to keep the body warm in cold environments,
- for use with FLEX AP 10.8/18.0 / AP 18.0/8.0 type batteries in conjunction with the PS 10.8/18.0 battery adapter (read and adhere to the operating manuals for the batteries and the battery adapter).

Safety instructions for heated jackets

If whilst using the garment you suffer the symptoms listed below, take the garment off immediately and consult a doctor. Otherwise there is a risk of heat exhaustion or heat stroke.
First signs:
– Any discomfort; excessive sweating; neck pain; nausea; dizziness or drowsiness
Symptoms of heat exhaustion/heat stroke:
- Nausea and vomiting; throbbing headache; dizziness and drowsiness; absence of perspiration; red, hot and dry skin; muscle weakness or seizures; rapid heartbeat; quick, shallow breathing; behaviour changes such as confusion, disorientation or staggering; unconsciousness
■ Do not wear the garment during pregnancy. Ask your doctor whether you can use this heated garment.

■ Do not use the garment if you suffer from conditions which make you susceptible to overheating, or if your body contains a medical implant. Ask your doctor and/or the manufacturer of the medical implant whether you can use this heated garment.
■ Switch the garment's heating off when you are moving in a warm environment. There is a danger of heat stroke.
■ Never use the heated jacket with a wet inside lining.
■ Never wear the heated jacket against bare skin. It is recommended that heating elements do not touch bare skin.
■ Do not use the garment to keep the following persons warm: infants, helpless, sleeping or unconscious persons, or persons with circulatory disorders. The wearer must be able to immediately sense the temperature of the garment and his/her own wellbeing in order to prevent overheating.
■ The garment is not intended for use in hospitals.
■ Protect the garment against heat when the battery is inserted, e.g. also against continuous sunlight, fire, water, and moisture. There is a danger of explosion.
■ Do not stick any needles or other pointed objects into the garment. A damaged heating element or a damaged connector plug cable causes the garment to malfunction and increases the risk of electric shock or fire.
- Do not misuse the connector plug cable for anything other than its intended purpose, e.g. for carrying or pulling the garment or for unplugging the battery. Keep the cable away from oil, sharp objects or moving components. Do not kink the cable. A damaged heating element or a damaged connector plug cable causes the garment to malfunction and increases the risk of electric shock or fire.
■ The garment is not waterproof. Intrusion of water increases the risk of electric shock. If the garment does get wet, immediately unplug the battery and remove it from the battery adapter.

■ Do not fold up a garment which has been heated up, and do not store any objects on top of it. A damaged heating element or a damaged connector plug cable causes the garment to malfunction and increases the risk of electric shock or fire.
■ Carefully observe the care and cleaning instructions of the garment. Insufficient care poses a danger of electric shock or fire.
■ Leave the garment to cool down completely before you store it.

• Remove battery pack and power adapter.
• Install the cover over the power cable.
• Store at dry place.

• Do not crease the appliance by placing items on top of it.

• Check at regular intervals whether the garment is showing signs of wear or damage. If such signs are present or if the garment has been used improperly, do not use the garment again and return it to the retailer.
  ■ Have your garment serviced only by a qualified repair person using only identical replacement parts. This will ensure that the safety of the garment is maintained.

i NOTE

Follow the instructions for use in the adapter operating manual.

Safety instructions for the battery adapter

■ Do not open the battery adapter. This may result in malfunctions and injuries.
■ Use only original batteries (see table "Technical specifications"). The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.
- Check the cables for connecting external consumers (USB) for damage. A damaged cable may cause fires.

i NOTE

Follow the instructions for use in the adapter operating manual.

Safety instructions for handling batteries

■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
If the battery is damaged or used improperly, fumes may be emitted. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.
- Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention. Liquid discharged from the battery may cause irritation or burns.
■ Use FLEX rechargeable batteries only in connection with FLEX tools and FLEX accessories. Only in this way is the rechargeable battery protected against dangerous overloads.
■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
- Pointed objects, such as nails or screwdrivers, or external forces may damage the battery. This may cause an internal short-circuit and the battery to burn, smoke, explode or overheat.

i NOTE

Follow the instructions for charging the battery in the operating instructions for the battery charger.

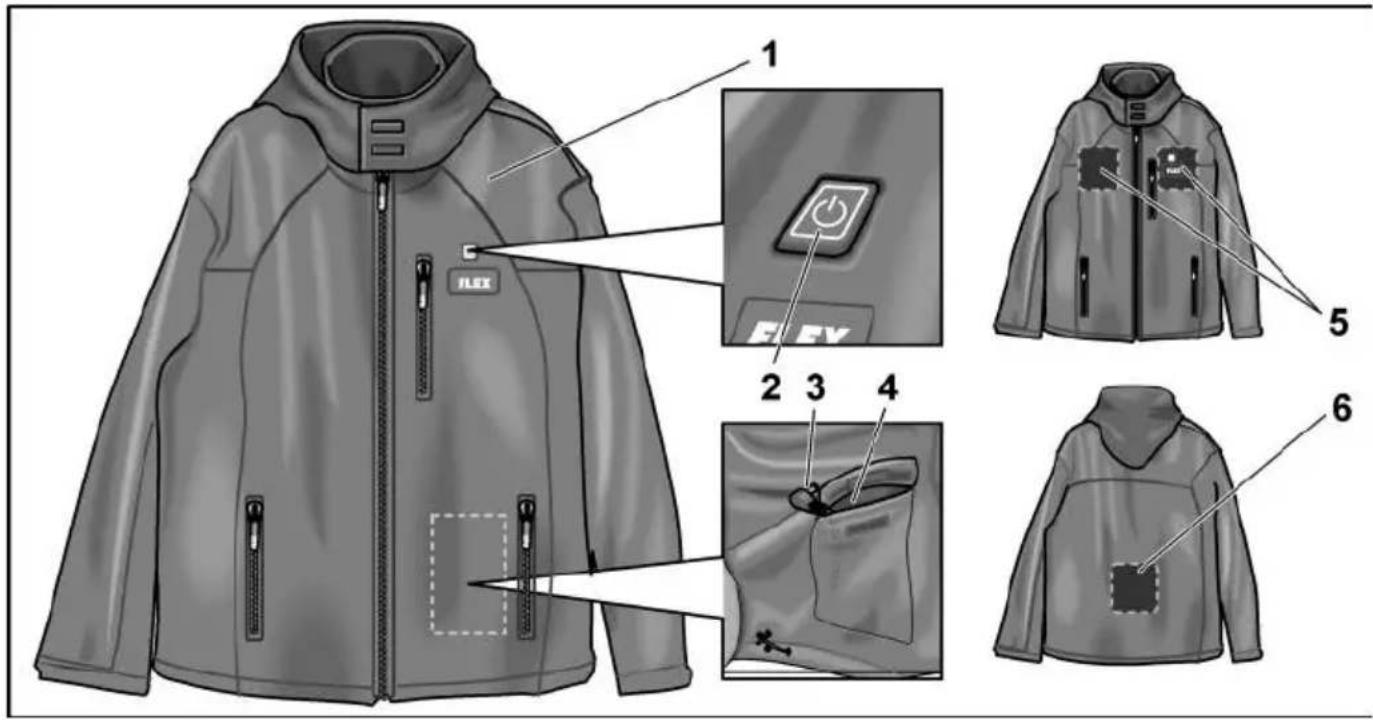

Overview

1 2 3 4 5 6

1 Heated jacket
2 ON/OFF button with LED

For switching the heated jacket on and off and for selecting the heat setting.

3 DC plug

For connecting to the battery adapter.

4 Pocket for storing battery and adapter
5 Position of front heating elements
6 Position of rear heating element

Technical specifications

Tool Heated jacket	TJ 10.8/18.0 / TJ White 10.8/18.0 / TF White 10.8/18.0
Sizes XS/S/M/L/XL/XXL/3XL
Battery adapter PS 10.8/18.0
Battery types AP 10.8/18.0 / AP 1		8.0/8.0
Heat settings 4
Operating temperature °	C -20 ...	+25

Instructions for use

i NOTE

Follow the instructions for charging the battery in the operating instructions for the battery charger.

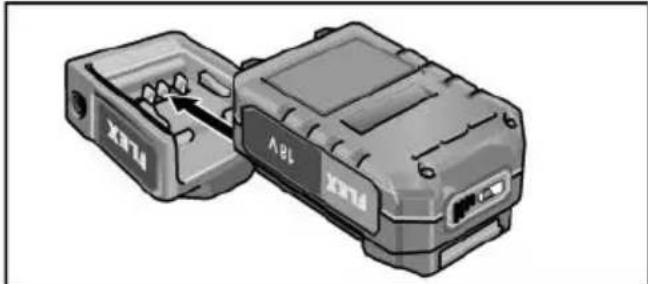

■ Press the charged battery into the adapter until it snaps fully into place.

Illustration of a two-port electronic device with internal components and a labeled port (no text or symbols beyond branding)

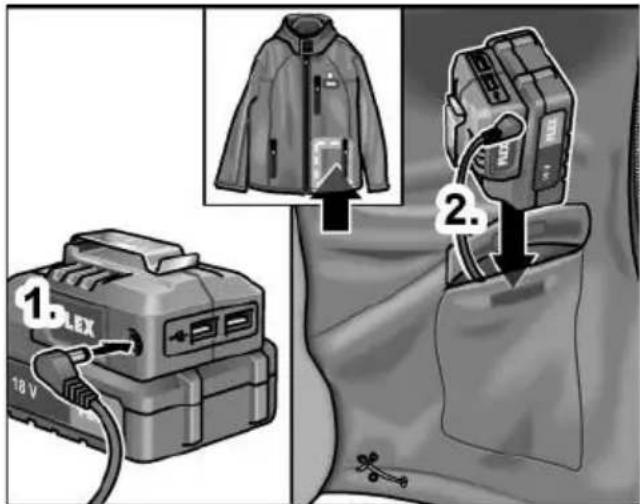

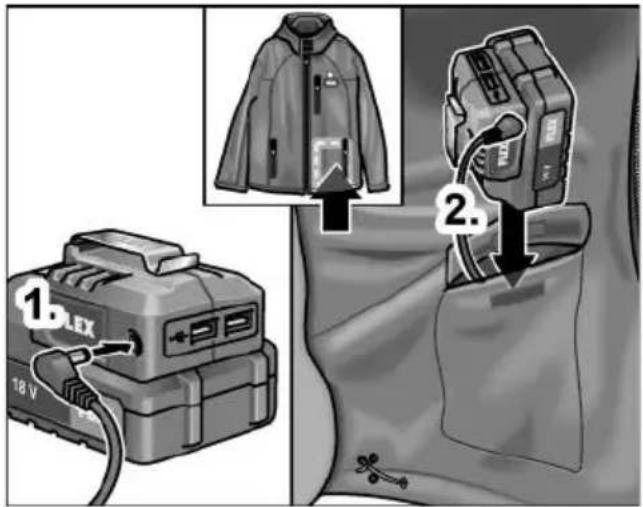

■ Insert the DC plug of the heated jacket into the adapter's DC connecting socket (1.).
■ Place the adapter and battery in the pocket (2.) or secure to the belt with the adapter belt clip.

1 18 V 2.

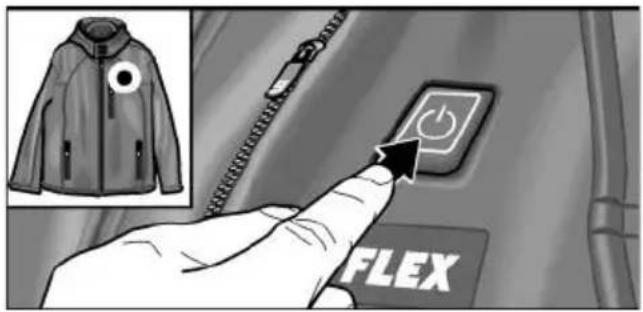

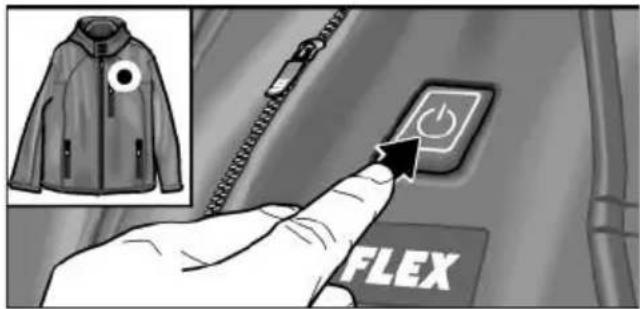

■ Switch on the heated jacket. To do so, press and hold down the ON/OFF button. The heated jacket starts to heat at the lowest setting. The LED lights up blue.

FLEX

■ Press the ON/OFF button briefly several times to change the heat setting.

- Press briefly 1x: medium heat setting (LED lights up white) - Press briefly 2x: high heat setting (LED lights up orange) - Press briefly 3x: highest heat setting (rapid heating, LED lights up red)

i NOTE

During operation at the highest heat setting (LED lights up red) the heating automatically switches after 30 minutes to the lowest setting (LED blue).

WARNING!

For a planned continuous operation select the middle heat setting so as to avoid overheating the body.

■ To switch off the heating, press and hold down the ON/OFF button until the LED goes out.

Maintenance and care

WARNING!

Before carrying out work of any kind (cleaning, transport, storage), remove the battery from the adapter.

Check at regular intervals whether the garment is showing signs of wear or damage. If such signs are present or if the garment has been used improperly, do not use the garment again and return it to the retailer.

Cleaning

WARNING!

• Remove battery pack and power adapter before washing.
• Before washing, install the cover over the power cable.
• Insure power cable is contained in battery pocket before washing.
• Empty all the jacket pockets so as to avoid damaging the heating elements and connecting cables.

CAUTION!

Follow the cleaning instructions on the label in the heated jacket.

- Do not dry-clean the heated jacket. Do not bleach.

- Do not iron the heated jacket.

■ Wash the heated jacket with a particularly gentle wash cycle (delicates or wool wash cycle).

■ Dry in a tumble drier with a particularly gentle cycle at low temperature.

Storing

■ Leave the garment to cool down completely before you store it.
■ Remove battery pack and power adapter before storing.
■ Before storing, install the cover over the power cable.
■ To avoid making sharp bends in the garment, do not place any objects on top of it whilst storing.

i NOTE

If the batteries are not used for a prolonged period, store batteries partially charged and in a cool location.

Disposal information

EU countries only

Do not dispose of electric power tools in the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its incorporation into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Recycling raw materials instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open disused batteries.

Batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

i NOTE

Please ask your dealer about disposal options!

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.
