Product Type	Ceiling Fan
Brand	Westinghouse
Model	72249
Span (blade diameter)	254 cm
Number of speeds	6 speeds
Remote control included	Yes
Minimum installation height (blades to floor)	3.05 m
Protection rating	IP20 (indoor only)
Usage	Indoor (living room, hall, etc.)
Power supply	Mains (requires a bipolar switch)
Forward/Reverse switch	Yes (for reversing rotation direction)
Maintenance	Clean with a soft brush or lint-free cloth; do not use water
Lubrication	None required (lifetime lubricated bearings)
Safety	Installation by a qualified electrician; minimum height 3.05 m; do not use with solid-state speed controller
Speed controller compatibility	Only with BF-5 speed control
Safety cable provided	Yes
Blade material	Natural wood (painted or varnished)
Warranty	Consult the manufacturer
Weight	Approximately 20 kg (estimate)

Frequently Asked Questions - 72249 WESTINGHOUSE

What to do if the fan does not start?

Check the fuses or circuit breaker. Ensure the forward/reverse switch is not in the middle position. If the problem persists, turn off the power and check the electrical connections at the connection block. Call a qualified electrician if necessary.

The fan is noisy, what to do?

Make sure all screws on the motor and blade holders are tightened (not over-tightened). Avoid using a solid-state speed controller (use only the remote control or BF-5 control). Allow a 24-hour break-in period: most noises disappear after that time.

The fan wobbles, how to solve this problem?

Check that the blade holders are securely fastened to the motor and that the canopy and mounting bracket are firmly attached to the ceiling joist. If wobbling persists, swap two adjacent blades to redistribute weight. Also ensure the ball of the hanging bracket is properly locked.

What is the minimum installation height?

The distance between the blades and the floor must be at least 3.05 meters to ensure safety.

Can I use a standard speed controller with this fan?

No, use of a solid-state speed controller is prohibited. You must use only the included remote control or the reference speed control BF-5 (spare part).

How to clean the fan?

Use a soft bristle brush or lint-free cloth to avoid scratches. Never use water as it could damage the motor or cause electric shock. The finish is varnished to minimize discoloration.

How to pair the remote control with the fan?

The transmitter and receiver are pre-paired at the factory. If needed, you can re-pair them: within 5 seconds after powering on the fan, simultaneously press the timer and power buttons on the transmitter. The fan will emit a double beep to confirm.

How many speeds does this fan have?

The remote control offers 6 speeds: from slowest to fastest (1 to 6).

Can I reverse the fan's rotation direction?

Yes, the fan is equipped with a forward/reverse switch. Place it in the up position for one direction (summer, downward airflow) or in the down position for the other direction (winter, recirculating warm air). Do not leave the switch in the middle position.

What to do if the remote control stops working?

Check the transmitter batteries. Ensure the fan's power is turned off and then on to reset the receiver. If necessary, redo the pairing procedure described in the manual. If the problem persists, contact a qualified electrician.

USER MANUAL 72249 WESTINGHOUSE

Line drawing of a six-pole ceiling fan with a top-mounted head and radial blades (no text or symbols)

GB CEILING FAN

D DECKENVENTILATOR

F VENTILATEUR DE PLAFOND

I VENTILATORE DA SOFFITTO

NL PLAFONDVENTILATOR

E VENTILADOR DE TECHO

EST VENTILAATOR-LAEVALGUSTI

LV GRIESTU VENTILATORS

LT LUBU VENTILIATORIUS

SK STROPNÝ VENTILÁTOR

CZ STROPNÍ VENTILÁTOR

SLO STROPNI VENTILATOR

HR STROPNI VENTILATOR

H MENNYEZETI VENTILÁTOR

GAS WARNING: Do not use this fan in the same room at the same time as a gas or fuel burning fire, unless the flue has been tested under these conditions of use by a competent person.

SAFETY TIPS

READ AND SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Proceed with caution. Read all instructions before beginning the installation.
2. WARNING! This fan may be operated only with a 2-pole switch with a 3mm contact opening each.
3. Only an authorized electrician should execute the installation.
4. The installation height, i.e. the distance between the blades and the floor, should be at least 3.05 m.
5. Make sure the fan is securely fastened at the ceiling.
6. WARNING! To prevent injuries, make sure the blades are not bent and that there are no objects with in the area of rotation.
7. WARNING: Do Not use this fan in the same room at the same time as a gas or fuel burning fire, unless the flue has been tested under these conditions of use by a competent person.
8. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
9. Suitable for use indoors.
10. Means for all poles disconnection having a contact separation that provide full disconnection under over voltage category III conditions must be incorporated in the fixed wiring in accordance with national wiring rules.
11. IP20 The fan is designed for indoor use. It is not designed for installation in a bathroom or any damp area. Please ensure that the lamp does not come into contact with water.
12. All set screws must be checked and re-tightened where necessary before installation.
13. WARNING! To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control. this fan should only be used with fan speed control part #: BF-5.
14. Before you begin installing the fan and servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
15. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
16. After making the wire connections, gently push connections into outlet box with wire nuts pointing up. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
17. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
18. To reduce the risk of electric shock, or personal injury, mount to outlet box marked “acceptable for fan support of 22.7 Kg (50 lb.) or less” and use mounting screws provide with the outlet box and/or support directly from building structure. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

19. This fan is designed for certain applications only. Westinghouse is not responsible for issues arising from modification or improper use of this product such as an application for which it was not designed. We strongly recommend that this product not be modified and/or used for any application other than that for which it was designed.

20. The Widespan 100In. High Volume Ceiling Fan is designed for large, high ceiling areas such as factories, barns, ranches, gyms, and warehouses.

21. The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense and caution when using this tool. Always be aware of the environment and ensure that the tool is used in a safe and responsible manner. 2. WARNING! This fan may be operated only with a 2-pole switch with a 3mm contact opening each.
22. Do not modify this product in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the product. There are specific applications for which the product was designed.
23. Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger industrial equipment. There are certain applications for which this equipment was designed. This product will be safer and do a better job at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.
24. Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit. Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas may put you dangerously close to cutting tools and rotating parts.
25. Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence of flammable liquids, gases, or dust. The product can create sparks, which may ignite the flammable liquids, gases, or dust.
26. Do not allow the product to come into contact with an electrical source. The tool without insulation and contact will cause electrical shock.
27. Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your work area. Some of these hazards may be hidden from your view and may cause personal injury and/or property damage if contacted.
28. Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury.
29. Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Air vents on the tool often cover moving parts and should be avoided.
30. Do not force the fan. Products are safer and do a better job when used in the manner for which they are designed. Plan your work and use the correct product for the job.
31. Check for damaged parts before each use. Carefully check that the product will operate properly and perform its intended function. Replace damaged or worn parts immediately. Never operate the product with a damaged part.
32. Do not use a product with a malfunctioning switch. Any power tool that cannot be controlled with the power switch is dangerous and must be repaired by an authorized service representative before using.
33. Store the product when it is not in use. Store it in a dry, secure place out of the reach of children. Inspect the tool for good working condition prior to storage and before re-use.15. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
34. Use only accessories that are recommended by the manufacturer for use with your product. Accessories that may be suitable for one product may create a risk of injury when used with another tool. Never use an accessory that has a lower operating speed or operating pressure than the tool itself.
35. Keep guards in place and in working order. Never operate the product without the guards in place.
36. To reduce the risk of fire or electrical shock, do not expose fan to water or rain.
37. Do not use fan near windows; rain and moisture may create an electrical hazard.

38. Do not alter fan's assembly.

39. If the power supply cord is damaged, contact your local service center or a qualified electrician to install an appropriate replacement cord to prevent any injury or damage.

40. The appliance should not be used in locations where special conditions prevail such as the presence of a corrosive or explosive atmosphere (dust, vapor, gas).
41. Do not place the fan near an open flame, cooking or heating appliance, or hot surface.
42. Be sure fan is not making unusual sounds or movements.
43. Be sure fan is switched off when unattended.
44. Be sure not to loosen any of the fan's connections while maintaining your fan.
45. Do not use cleaners that harm paints or plastics; i.e., bleach or ammonia

Line drawing showing a printer box open and inserting an open circuit board with a hand adjusting the panel (no text or symbols present)

GB Unpack and inspect fan carefully to be certain all contents are included. Turn off power at fuse box to avoid possible electrical shock.

Diagram of a bathtub with three circular arrows indicating cycle (no text or symbols)

Technical diagram of a bowl with labeled components, showing parts numbered 1 and 2, and a diagonal line indicating reference.

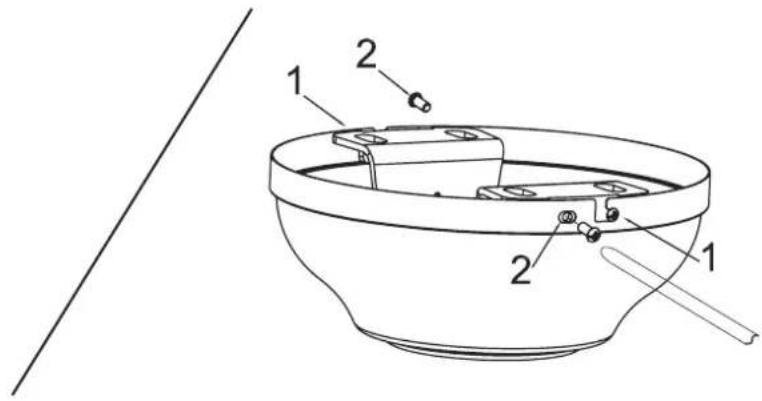

GB Remove the screws from the two mating holes (2) on the canopy. Loosen (do not remove) the screws in the mating slots (1) on the canopy. Rotate the mounting bracket and remove from the canopy.

GB According to the line art, drill two holes on each side of the supply mains for the expansion anchors. WARNING: The ceiling or structure the device is attached to must be strong enough to hold 100 kg/20 cm ^2 .

Technical diagram showing two bolt assembly steps with numbered components and upward arrows indicating assembly direction.

GB Drive the expansion anchors (1) into the holes. (Note: do not detach hex nut (2), spring washer (3) and metal washer (4) for this step).

Technical diagram of a mechanical assembly with two cylindrical components and a separate section, showing alignment lines and dimension arrows (no text or labels)

GB Tighten hex nut until feel the metal expansion anchor is not working loose.

Technical diagram of a mechanical assembly with threaded components and a cross-section view (no text or labels)

GB Remove the hex nut, spring washer, metal washer, keep them for next step usage.

Technical line drawing of a mechanical bracket assembly with multiple cylindrical components and mounting holes (no text or symbols)

GB Attach the ceiling bracket with the four expansion metal anchors of 10 mm diameter, washers and screws provided. Make sure the screws are properly tightened and the bracket is secure (not moving at all).

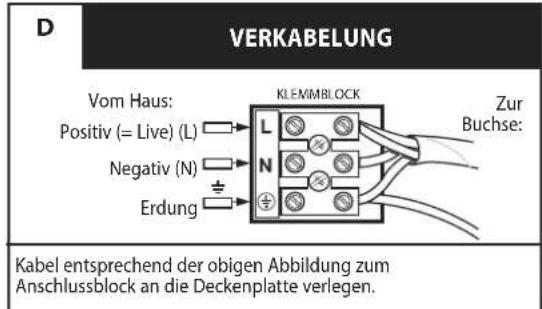

GB WIRING From House: TERMINAL BLOCK Live (L) → L Neutral (N) → N Ground → + To Connector: Follow diagram above to make wiring connections to the terminal block on the mounting bracket.

Technical diagram showing three-step assembly steps of a mechanical device with labeled parts 1, 2, 3, and 4.

GB Remove clamp pin (2) and cross pin (1) from downrod. Loosen set screw in downrod ball (3) until ball moves easily up and down the downrod. Do not remove ground wire (4) from downrod ball. Slide downrod ball down, exposing cross pin (5). Do not remove ball completely. Remove cross pin and save for later use.

Line drawing of a lamp with a black handle and base mount (no text or symbols)

Line drawing of hands assembling a mechanical component with wires (no text or symbols)

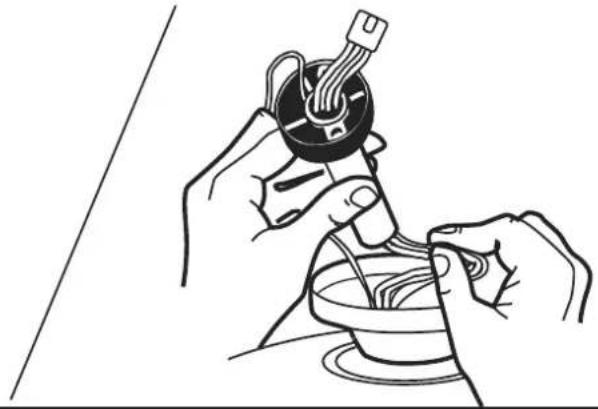

GB Insert the downrod through the canopy and coupling cover. Carefully thread lead wires and plug though the downrod and ball assembly.

Three-panel illustration showing hands using a tool to adjust a black object in a bowl, with no visible text or symbols.

GB Re-install cross pin into downrod and slide downrod ball up until cross pin fits firmly into ball. Tighten set screw in ball.

Technical diagram of a lamp fixture with numbered parts and labeled parts in Chinese

GB Loosen set screws in downrod coupling (1). Insert downrod into downrod coupling. Make sure to align hole in downrod with the hole in coupling. Install yoke cross pin (2) through yoke and downrod. Insert clamp pin (3) into cross pin until it snaps into place. Tighten set screws (4) in coupling. Slide coupling cover (5) over coupling.

Technical diagram showing exploded and assembled views of a mechanical component with numbered parts labeled 1 to 4.

GB

Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on down rod ball (1) engages the ridge on the mounting bracket (2). This will allow for hands free wiring. Thread the metal safety cable (3) through the ceiling bracket and secure it by tightening the nut on the safety bolt (4).

D

Technical diagram of a mechanical assembly with labeled parts 1 and 2, showing internal components and connections.

Line drawing of a hand inserting wires into a mechanical component (no text or symbols)

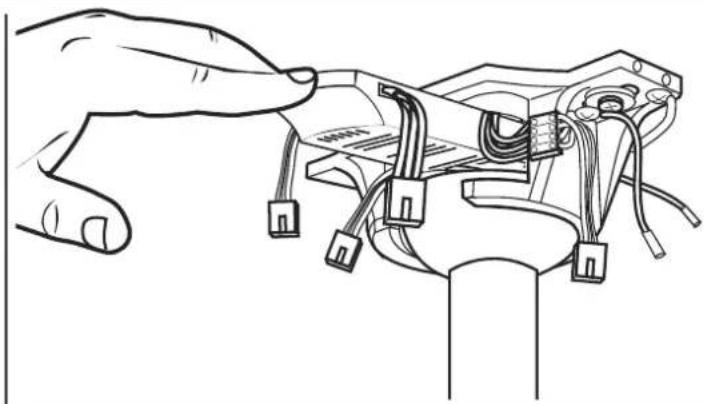

GB After hanging fan onto the mounting bracket, make sure plug connectors from the ceiling fan and terminal block (1) are moved away from the space located above the downrod ball (2). Slide the remote receiver into the space above the downrod ball as shown.

Technical diagram of a mechanical assembly with labeled parts 1, 2, and 3

GB While fan is hanging on bracket, plug 4-pole connector from the mounting bracket into the 4-pole plug connector from the remote receiver (1). Plug the 6-pole plug connector from the remote receiver into the 6-pole plug connector from the fan (2). Attach the ground wire (3) from the downrod to the mounting bracket.

Technical diagram showing three steps of a mechanical device with circular arrows indicating rotation and component positioning.

GB The canopy has two mating slots (1) and two mating holes (2). Position both slots on canopy directly under and in line with two screws in the mounting bracket. Lift the canopy, allowing the two screws to slide into the mating slots. Rotate the canopy until both screws from the mounting bracket drop into the slot recesses. Tighten screws securely. Install two screws into the mating holes of the canopy and tighten to secure the canopy to the mounting bracket.

Technical line drawing of a mechanical component with internal parts and mounting holes (no text or symbols)

GB Install blades to the pre-installed blade flywheel using screws and nuts. See above drawing for reference.

Technical diagram of a remote control device with labeled components and directional arrows indicating flow or movement.

GB

1. Note: Be sure the slide switch is pushed firmly to one side or the other. The fan will not operate with the slide switch in the middle.

2. To reverse the direction of the blades, slide the reverse switch (located in the cover of the transmitter) to the opposite side.

3. The slide switch controls the fan flow direction downward or upward.

4. Operation Turn on the power and check operation of fan. Speed settings for warm or cool weather depend on factors such as room size, ceiling height, number of fans and so on.

5. The slide switch controls direction, forward or reverse. Warm weather/down position - (Forward) Fan turns counterclockwise direction. A downward air flow creates a cooling effect as shown in illustration A. (S mark located above the battery) This allows you to set your air conditioner on a higher temperature setting without affecting your comfort. Cool weather/up position - (Reverse) Fan turns clockwise direction. An upward airflow moves warm air off the ceiling area as shown in illustration B. (W mark located above the battery) This allows you to set your heating unit on a lower setting without affecting your comfort.

NOTE: Turn off and wait for fan to stop before changing the setting of the forward/reverse slide switch.

D

1. Note : Assurez-vous que l'interrupteur coulissant est poussé fermement d'un côté ou de l'autre. Le ventilateur ne fonctionne pas avec l'interrupteur coulissant au milieu.

2. To reverse the direction of the blades, slide the reverse switch (located in the cover of the transmitter) to the opposite side.

3. The slide switch controls the fan flow direction downward or upward.

4. Operation Turn on the power and check operation of fan. Speed settings for warm or cool weather depend on factors such as room size, ceiling height, number of fans and so on.

5. The slide switch controls direction, forward or reverse. Warm weather/down position - (Forward) Fan turns counterclockwise direction. A downward air flow creates a cooling effect as shown in illustration A. (S mark located above the battery) This allows you to set your air conditioner on a higher temperature setting without affecting your comfort. Cool weather/up position - (Reverse) Fan turns clockwise direction. An upward airflow moves warm air off the ceiling area as shown in illustration B. (W mark located above the battery) This allows you to set your heating unit on a lower setting without affecting your comfort.

NOTE: Turn off and wait for fan to stop before changing the setting of the forward/reverse slide switch.

Technical line drawing of a remote control device with internal components and a separate view (no text or symbols)

GB Mount the transmitter holder onto the wall using screws provided. Place the transmitter into the holder.

GB Remote Control Operation

1. Symbol from the transmitter- press and release reflects the fan ON/OFF function.
2. The transmitter controls the fan speeds from the lowest speed to the highest speed. The remote control operates the fan speed as below: 1-lowest fan speed, 2-Med low fan speed, 3-Low fan speed; 4-Med fan speed; 5-Med high fan speed; 6-Highest fan speed.
3. Ⓧ Operation duration time (1-8 hours setting).

GB Controlling more that one fan with remote control

1. The remote control has no memory function. When the fan is working after disconnecting the power supply, the original state cannot be restored.

2. The transmitter and receiver are matched at the factory. Please follow the point 4 for re-match when the match is failed.

3. With the matching process can be done by fan without the blades, the same transmitter can control another identical model ceiling fan.

4. When the transmitter and receiver are matched, the time key and the power on key on the transmitter panel must be pressed simultaneously within 5 seconds after the power button is connected.

5. The ceiling fan will make a buzzing sound twice. After it receives this, the fan has recognized the remote control and you can:

- Control this fan with the remote control.

- Re-match two ceiling fans with one remote control transmitter with the same process.

NOTE: To control two fans simultaneously, the installation distance between the two fans must not exceed 30 feet.

1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure.
2. Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause electrical shock.
3. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer coating to minimize discoloration or tarnishing.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
5. Maintain the fan by adopting a program of conscientious repair and maintenance in accordance.
6. Maintain your fan. It is recommended that the general condition of any fan be examined before it is used. Keep your fan in good repair by adopting a program of conscientious repair and maintenance. Have necessary repairs made by qualified service personnel.

TROUBLESHOOTING GUIDE

If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble Shooting Chart. If a problem cannot be remedied, please consult with your authorized electrician and do not attempt any electrical repairs yourself.

TROUBLE

1. Check main and branch circuit fuses or circuit breakers.
2. Check terminal block connections as performed in step #8 of installation.
   CAUTION: Make sure main power is turned off.
3. Make sure forward/reverse switch is firmly in up or down position. Fan will not operate when switch is in the middle.

4. If the fan still will not start, contact a qualified electrician. Do not attempt to troubleshoot internal electrical connections yourself.

5. If fan sounds noisy:

6. Check to make sure all screws in motor housing are snug (not over tightened).

7. Check to make sure the screws, which attach the fan blade holder to the motor, are tight.
8. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT USE a Solid State variable speed control.

9. Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear after this period.

10. If fan wobbles:

All blades are weighed and grouped by weight. Natural woods vary in density, which could cause the fan to wobble even though all blades are weight-matched. The following procedures should eliminate most of the wobble. Check for wobble after each step.
1. Check that all blade holders are tightened securely to motor.
2. Make sure that canopy and mounting bracket are tightened securely to a fan rated electrical box or a ceiling joist.
3. Make sure that canopy and mounting bracket are tightened securely to ceiling joist.
4. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation.
5. Be sure ball to hanger bracket is locked in place. Remove canopy and adjust ball in hanger bracket.

Wartung

GB Meaning of crossed-out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact you local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge.

Westinghouse Lighting Corporation

Krefelder Strasse 562

D-41066 Mönchengladbach / Germany

WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF

are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Lighting

All rights reserved.

Made in China
