Product Type	Ceiling Fan with LED Light
Model Number	7876435
Voltage	240V ~ 50Hz
Net Weight	5.20 kg
LED Module	SMJD-3V16W2P3 (integrated)
Blade Material	Alloy (Combo-Blade with two finishes)
Number of Speeds	3 (Low, Medium, High)
Direction Control	Reversible slide switch (Forward/Counterclockwise, Reverse/Clockwise)
Motor Bearings	Permanently lubricated (no oiling required)
Mounting Type	Downrod (flush mount optional)
Safety Rating	IP20 (Indoor use only)
Installation Height	Minimum 2.3 m from floor to blades
Certification	SAA-181731-EA (AS/NZS)
Light Kit	Integrated LED, replaceable only by manufacturer or qualified person
Control Type	Pull chains for fan speed and light
Suitable For	Indoor use only, not for bathrooms or damp areas
Weight	5.20 kg
Glass Shade	Included (twist lock installation)
Canopy	Included

Frequently Asked Questions - 7876435 WESTINGHOUSE

What is the minimum installation height for the Westinghouse 7876435 ceiling fan?

The fan must be installed at least 2.3 meters (7.5 feet) from the floor to the blades to ensure safety.

Can I install this fan in a bathroom or damp area?

No, the fan has an IP20 rating and is designed for indoor use only. It should not be installed in bathrooms or any damp areas to prevent electrical hazards.

How should I clean the ceiling fan?

Use a soft brush or lint-free cloth to wipe the blades and motor housing. Avoid water as it may damage the motor or cause electrical shock. The motor has permanently lubricated bearings and does not require oiling.

Why is my fan making unusual noise?

Check that all screws, especially blade holder screws, are tightened. Allow a 24-hour break-in period for new fans. Do not use solid-state variable speed controls as they can cause motor noise. If noise persists, contact a qualified electrician.

How can I fix a wobbly ceiling fan?

First, ensure all blades are securely attached. Then check that blade holders are tight. If wobble persists, try swapping two adjacent blades to balance weight. Also verify the mounting bracket is securely fastened to the ceiling joist.

How do I reverse the fan direction?

Turn off the fan and wait for it to stop. Locate the slide switch on the fan body and move it to the opposite position. Forward (counterclockwise) creates a cooling breeze for summer; Reverse (clockwise) circulates warm air for winter.

Can I use a dimmer switch to control fan speed?

No, do not use a dimmer switch. The fan requires a dedicated speed control. Using a dimmer may damage the motor and create a fire hazard.

How do I replace the LED light module?

The integrated LED module (model SMJD-3V16W2P3) can only be replaced by the manufacturer, its service agent, or a qualified electrician. Ensure the light has cooled down and power is disconnected before attempting replacement.

Is it safe to use this fan with a gas fireplace?

No, do not operate the fan in the same room as a gas or fuel-burning fire unless the flue has been tested under those conditions by a competent person, as the fan may affect combustion.

What does the warranty cover for this fan?

The manual does not specify warranty details. For warranty information, please contact Westinghouse Lighting or the retailer where the fan was purchased.

USER MANUAL 7876435 WESTINGHOUSE

Please write model number here for future reference:

7876435

LED Module#: SMJD-3V16W2P3

Net Weight:

5.20 KGS

240V\~50Hz

SAA-Alloy LED-Australia-WH18

SAFETY TIPS

READ AND SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Proceed with caution. Read all instructions before beginning the installation.
2. Only an authorized electrician should execute the installation.
3. The installation height, i.e. the distance between the blades and the floor, should be at least 2.3 m.
4. (-1.0m-f) Always maintain the distance between the lamp and inflammable materials (curtains, wall, etc.), as indicated on the pictogram.
5. Make sure the fan is securely fastened at the ceiling.
6. WARNING! Do not use a dimmer type switch to control the fan speed.
7. WARNING! To prevent injuries, make sure the blades are not bent and that there are no objects with in the area of rotation.
8. WARNING! Due to European safety regulations, if the flush mount option is elected, the fan must not be re-installed utilizing the downrod. If attempted, this may cause a serious injury. When assembling the fan, please follow your local safety regulations.
9. WARNING: Do Not use this fan in the same room at the same time as a gas or fuel burning fire, unless the flue has been tested under these conditions of use by a competent person.
10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
11. Suitable for use indoors.
12. Before disassembling light kit, make sure the power supply is disconnected from the main supply. Power supply can be on only after installation is completed.
13. The lampshade should not be removed from the light bulb when the power supply is on.
14. Replacement of light bulb is only possible when the light kit has cooled down, and the power supply is disconnected from the main supply.
15. Make sure the lampshade is in the fixed position when operating the product.
16. Means for all poles disconnection having a contact separation that provide full disconnection under over voltage category III conditions must be incorporated in the fixed wiring in accordance with national wiring rules.
17. IP20 The fan is designed for indoor use. It is not designed for installation in a bathroom or any damp area. Please ensure that the lamp does not come into contact with water.
18. WARNING: If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.
19. The replacement of parts of the safety suspension system device shall be performed by the manufacturer, its service agent or suitably qualified persons.
20. The fixing means for attachment to the ceiling can be fixed with a sufficient strength to withstand 4 times the weight of the ceiling fan.
21. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

TOOLS REQUIRED

Phillips Screwdriver

Wire Cutters

Pliers

Step Ladder

FEAturES

DOWNROD
INSTALLATION

Pure mechanical cross-section diagram without any text, numbers, or symbols

For normal ceilings

VAULTED CEILING
INSTALLATION

Pure mechanical assembly diagram without any text, numbers, or symbols

May require a longer downrod
(sold separately)

Simple geometric shape resembling a wedge or fan, no text or symbols present

Close-up of a dark, curved wooden plank or blade (no text or symbols visible)

COMBO-BLADE
Combo-Blades feature two high quality finishes on one blade. Select the one that best complements your decor, or change the style with just a flip of the blade.
NOTE: Combo-Blade finishes vary, depending upon model.

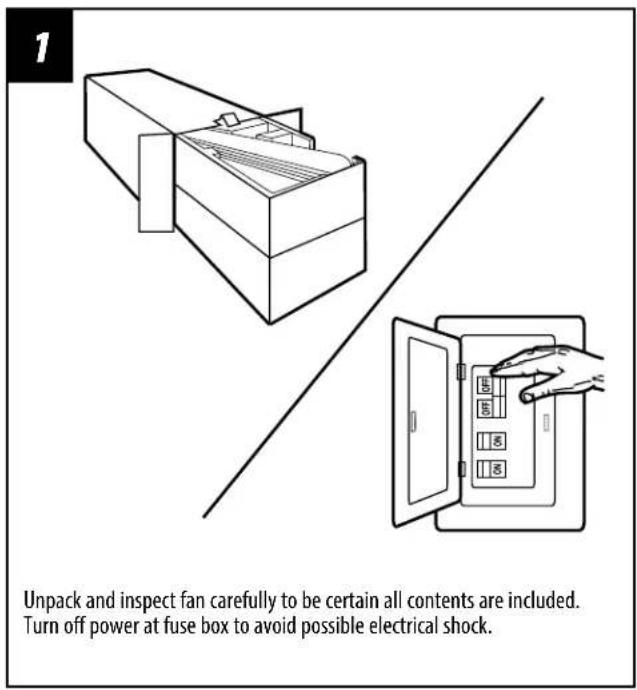

PrEPArInG FOr InStALLAtION

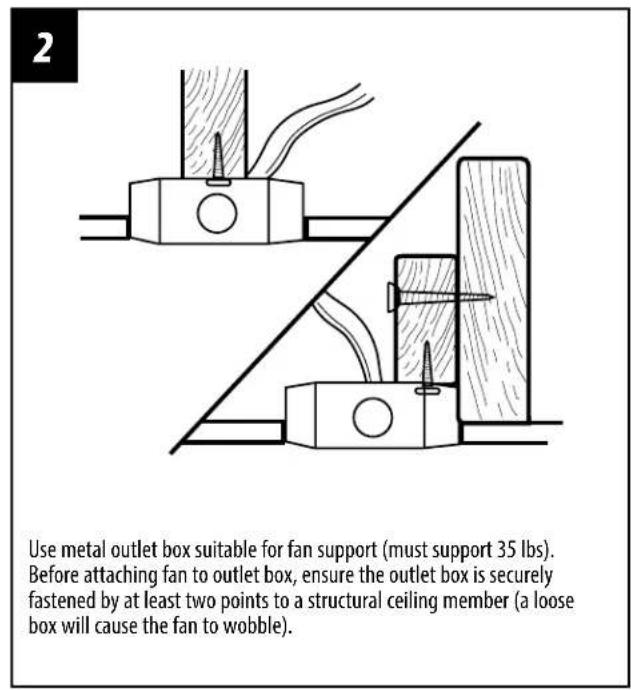

MOuntInG brAcKEt InStALLAtlOn

3

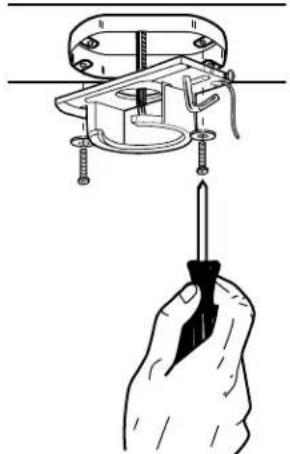

Illustration of a hand holding a screwdriver inserted into a mechanical component (no text or symbols present)

Install mounting bracket to outlet box in ceiling using the screws and washers provided with the outlet box.

WlrInG OPt10nS

4

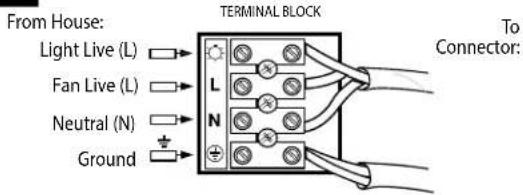

Wiring:

Follow diagram above to make wiring connections to the terminal block on the mounting bracket.

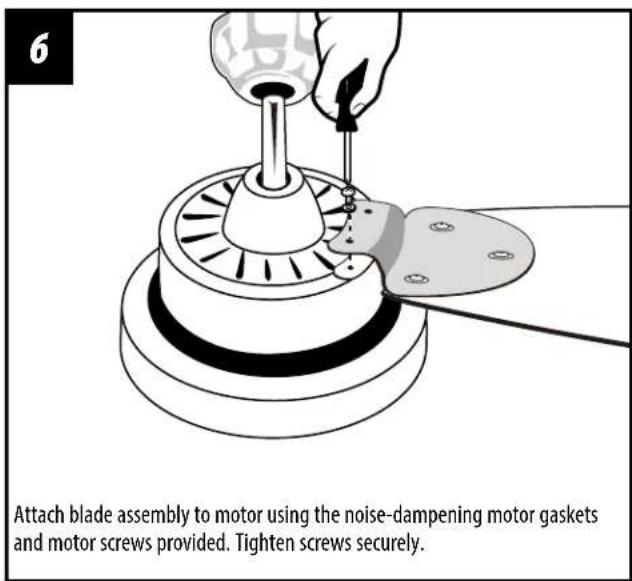

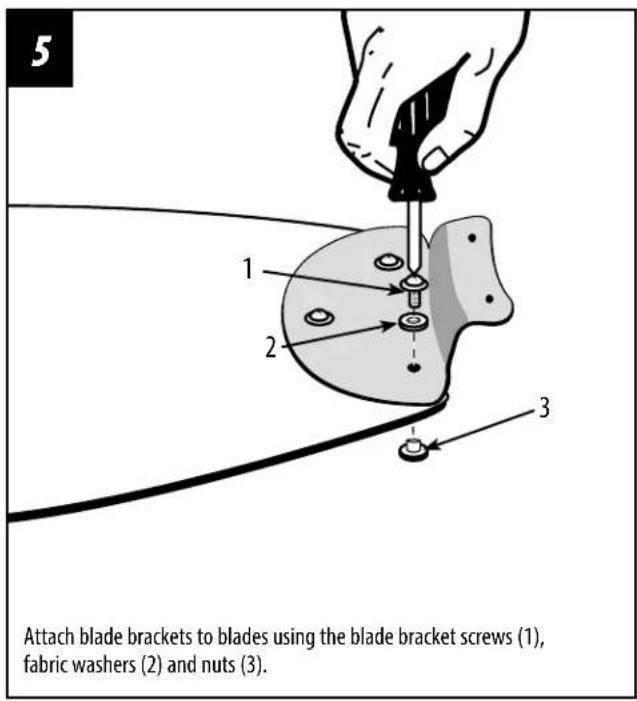

bLADE InStALLAt10n

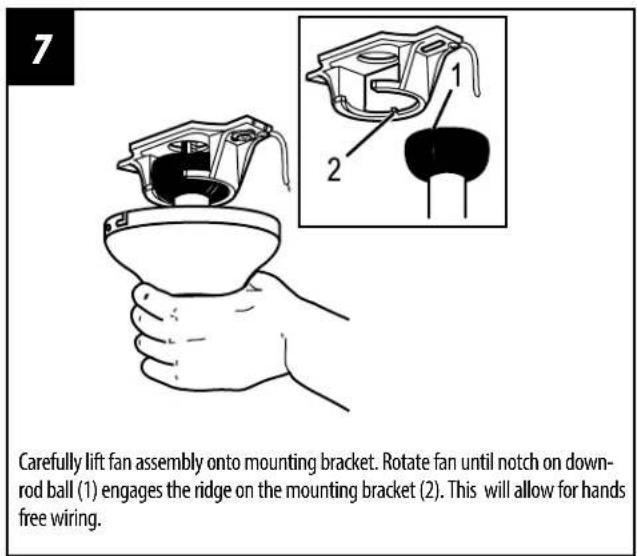

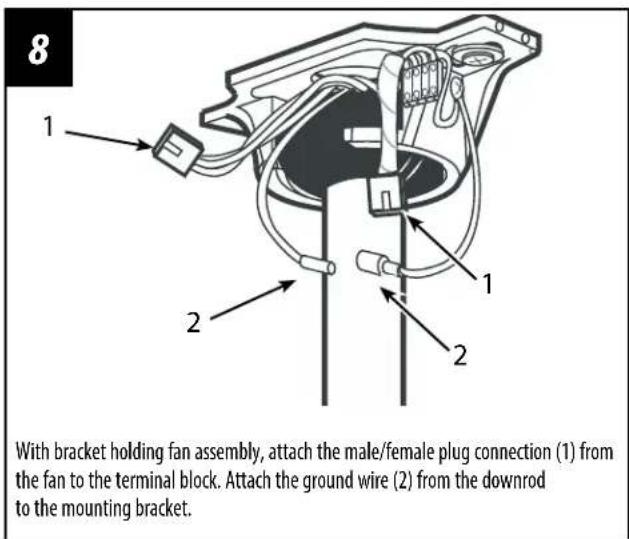

MOUNTInG

SEcurE t0 cEILInG

9

For downrod fans, slide the canopy up to the mounting bracket.

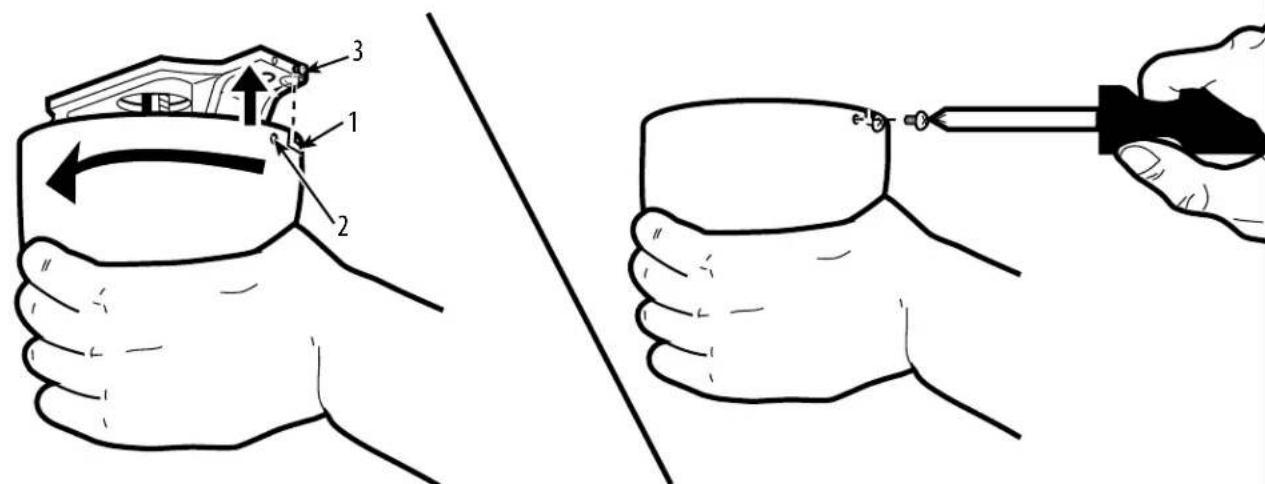

The canopy has two mating slots (1) and two mating holes (2). Position both slots on canopy directly under and in line with two screws in the mounting bracket (3). Lift the canopy, allowing the two screws to slide into the mating slots. Rotate the canopy until both screws from the mounting bracket drop into the slot recesses. Tighten screws securely. Install two screws into the mating holes of the canopy and tighten to secure the canopy to the mounting bracket.

GLASS InStALLAt1On

10

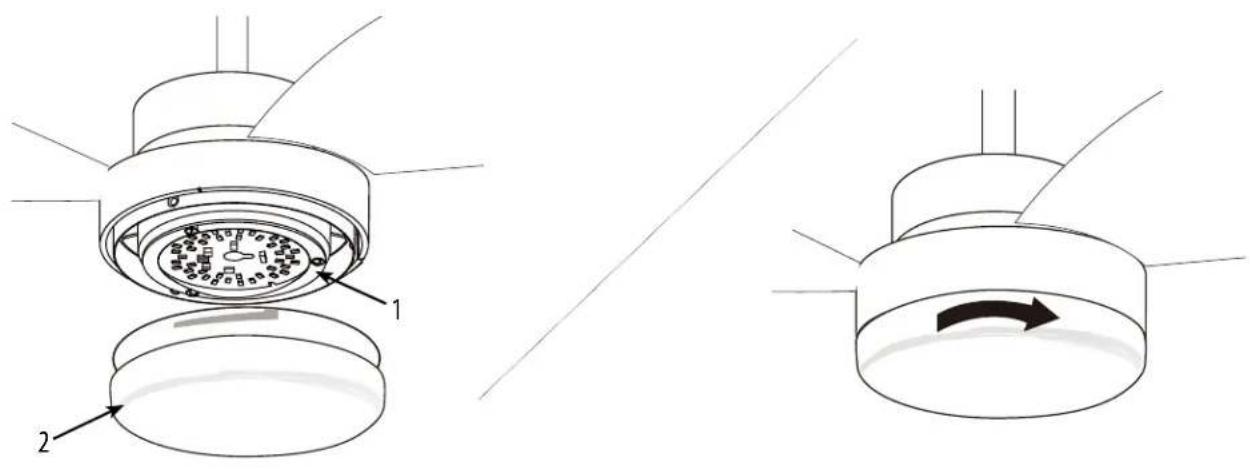

Locate the indentations on the neck of the glass (2) and align with the protrusions from the light kit (1). Lift the glass up allowing the protrusions to engage the indentations on the glass, and twist the glass clockwise to lock into place.

11

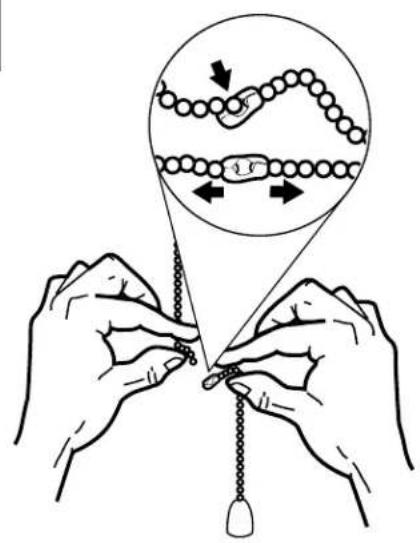

Illustration of hands tying a knot with a magnified inset showing thread arrangement (no text or symbols)

Assemble decorative fob and extension chains from hardware bag to fan pull chains by inserting end of chain into chain coupling. Confirm chains are held by lightly pulling both chains in coupling.

SAA-Alloy LED-Australia-WH18

Turn on the power and check operation of fan. The pull chain controls the fan speeds as follows: 1 pull - low; 2 pulls - medium; 3 pulls - high; 4 pulls - off.

Speed settings for warm or cool weather depend on factors such as room size, ceiling height, number of fans and so on. The slide switch controls direction, forward or reverse.

Warm weather/down position - (Forward) Fan turns counterclockwise direction. A downward air flow creates a cooling effect as shown in illustration A.

This allows you to set your air conditioner on a higher temperature setting without affecting your comfort.

Cool weather/up position - (Reverse) Fan turns clockwise direction. An upward airflow moves warm air off the ceiling area as shown in illustration B.

This allows you to set your heating unit on a lower setting without affecting your comfort. (Please however refer to point 10 in Safety Tips when operating in this position.)

NOTE: Turn off and wait for fan to stop before changing the setting of the forward/reverse slide switch.

Maintenance

1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure.
2. Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause electrical shock.
3. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer coating to minimize discoloration or tarnishing.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.

trOubLESHOOtInG Guide

If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Troubleshooting chart. If a problem cannot be remedied, please consult with your authorized electrician and do not attempt any electrical repairs yourself.

TROUBLE SUGGESTED REMEDY

1. If fan does not start:	1. Check main and branch circuit fuses or circuit breakers.2. Check wire connections as performed in step #4 of installation.cAutlOn: Make sure main power is turned off.3. Make sure forward/reverse switch is firmly in up or down position.Fan will not operate when switch is in the middle.4. If the fan still will not start, contact a qualified electrician.Do not attempt to troubleshoot internal electrical connections yourself.
2. If fan sounds noisy:	1. Check to make sure all screws in motor housing are snug (not over tightened).2. Check to make sure the screws which attach the fan blade holder to the motor are tight.3. Some fan motors are sensitive to signals from Solid State variable speed controls.DO NOT USE a Solid State variable speed control.4. Allow “break-in” period of 24 hours. Most noises associated with a new fan will disappear after this period.
3. If fan wobbles:	All blades are weighed and grouped by weight. Natural woods vary in density which could cause the fan to wobble even though all blades are weight-matched. The following procedures should eliminate most of the wobble. Check for wobble after each step.1. Check that all blades are screwed firmly into blade holders.2. Check that all blade holders are tightened securely to motor.3. Make sure that canopy and mounting bracket are tightened securely to ceiling joist.4. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation.
4. If light does not work:	1. Check to see that the wire connections in the switch housing are connected.2. Check for faulty light bulbs.3. If light kit will still not operate, contact a qualified electrician for assistance.

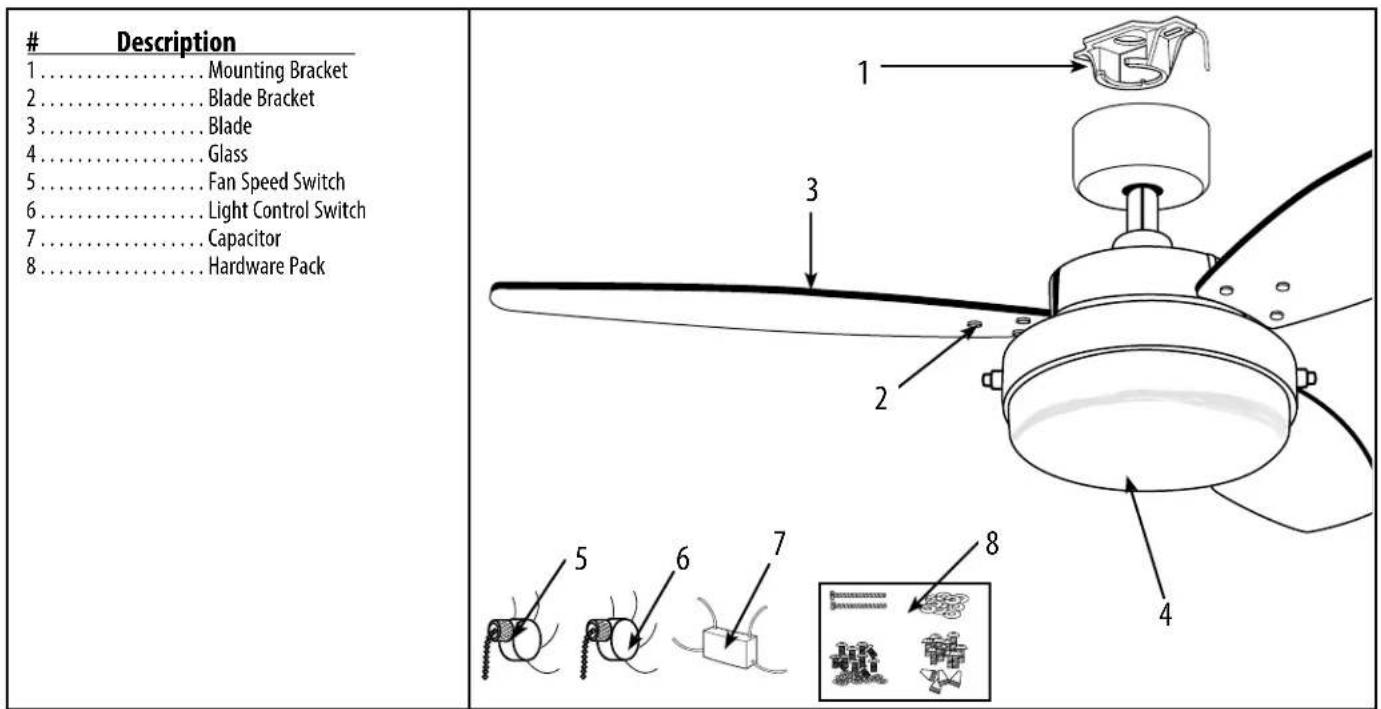

PArtS LIST

SAA-Alloy LED-Australia-WH18

SAA-Alloy LED-Australia-WH18

Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com

W, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation Used under license by Westinghouse Lighting All rights reserved. Made in China

AS/NZS Approval No. SAA-181731-EA
