USER MANUAL Wow XL COSATTO

baby stuff with personality®

the ABCs

WOW XL

travel system

(EN) Instruction 1 - 48

(FR) Instruction, (DE) Gebrauchsanleitung, (IT) Istruzioni, (PT) Instrução, (RU) Инструкция, (ZH) 说明, (ES) Instrucciones

(EN) Part list diagram

49

(FR) Schéma de nomenclature, (DE) Teilelisteabbildung, (IT) Diagramma della lista delle parti, (PT) Diagrama de lista de peças, (RU) Схема к спецификации деталей, (ZH) 零件清单图, (ES) Diagrama de lista de piezas

(EN) Spare part list diagram

50

(EN) Instruction diagram

51 - 62

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni,

(PT) Diagrama de instruções, (RU) Схема к инструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

(EN) Configuration diagram

63 - 68

(FR) Schéma de configuration, (DE) Konfigurationsdiagramm, (IT) Diagramma di configurazione,

(PT) Diagrama de configuração, (RU) Схема конфигураций, (ZH) 配置图, (ES) Diagrama de configuración

IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE Important safety Information.

General:

•WARNING: Never leave your child unattended.

- WARNING: Ensure that all the locking devices are engaged before use.

- WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.

- WARNING: Do not let your child play with this product.

- WARNING: This product is not suitable for running or skating.

- WARNING: Check that the seat unit, carrycot or child car seat attachment devices are correctly engaged before use.

- WARNING: Always use the bumper bar with the fabric cover fitted.

- Do not use replacement parts or accessories other than those approved by Cosatto.

- A basket is provided for the carriage of 5kg of goods, evenly distributed.

- Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.

•Always apply the brake when placing or removing a child from vehicle.

•This product complies with BS EN 1888-2:2018.

Carrycot:

- This product is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg.

•Must only be used in lie flat position.

WARNING: This product is only suitable for a child who cannot sit up unaided.

WARNING: Use only on a firm, level and dry surface.

•WARNING: Do not let other children play unattended near the carrycot.

•WARNING: Do not use if any part is broken, torn or missing.

•WARNING: Never use this carrycot on a stand.

- WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of carrycot.

- Rear pocket on hood - maximum weight 200g.

•Mattress included.

• No additional mattress shall be added.

- Carry handle and the base of the carrycot should be inspected regularly for signs of damage and wear.

- Prior to carrying or lifting, make sure that the carrycot carry handle is locked into position.

•The head of the child should never be lower than the body of the child.

•This carrycot complies to BS EN 1466:2014.

Carrycot mattress:

•This mattress complies with BS EN 16890:2017.

Pram mode:

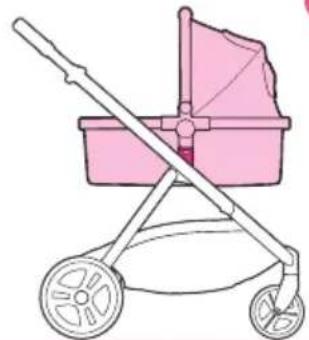

•The pram mode is achieved by attaching the carrycot to the chassis.

- There are a set of "D" rings located at the base of the carrycot for the attachment of a separate safety harness approved to BS EN 13210 should this be required (harness not supplied).

Pushchair mode:

- Pushchair mode is achieved using the seat unit attached to the chassis. In this mode:

This product is suitable for children from 6 months up to a maximum user weight of 25 kg.

When using the seat unit in configurations other than the middle attachment point, the maximum user weight is 15 kg.

•WARNING: This seat unit is not suitable for children under 6 months.

•WARNING: Always use the restraint system.

•WARNING: Always use the crotch strap in combination with the waist belt.

- Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided on the existing harness for the attachment of a separate safety harness approved to BS EN 13210 should this be required.

Car seat mode:

•This combination is suitable for children from birth up to a maximum user weight of 13kg.

- For use as a travel system, the chassis is only compatible with the child car seat approved by Cosatto and respective child car seat adaptor (All sold separately). In this mode:

This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in suitable cot, bed or carrycot.

Ride on platform mode:

•The ride on platform mode is suitable only for a child who can stand up unaided and hold on to the chassis securely. Maximum weight of the child: 25 kg.

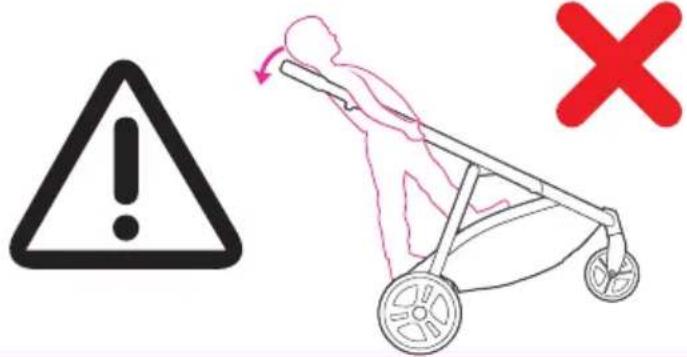

- When using the ride on platform mode, always keep your hands on the chassis handle and that your child has both feet firmly placed on the platform.

Configuration option:

- This product is suitable up to two children, only in the configuration options listed in the configuration diagram (P. 63 - 68). Additional seat unit/ carrycot to be sold separately.

•Never carry a third child on the product.

Travel companion:

- Remove all packaging materials before giving the travel companion to child.

- Remove the travel companion from your child before putting them to sleep.

Cosatto changing bag (sold separately):

• A coordinating changing bag can be purchased separately, suitable for the carriage of 2 kg of goods.

• Do not attach the changing bag to the vehicle as it will affect the stability of the vehicle.

Visual language key:

!XX	Refer to warning XX
	Correct action
	Incorrect action
CLICK!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
Cont.XX	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Chassis P11: Bumper bar

P2: Rear wheel (x2) P12: Seat unit

P3: Front wheel (x2) P13: Raincover (x2)

P4: Seat unit hood P14: Front adaptor (Low) (set)

P5: Bumper bar cap (x2) P15: Front adaptor (High) (set)

P6: Carrycot mattress (inc. mattress cover) P16: Middle adaptor (set)

P7: Carrycot liner P17: Rear adaptor (set)

P8: Carrycot P18*:Cosatto footmuff (sold separately)

P9: Carrycot apron P19*:Cosatto changing bag (sold separately)

P10: Travel companion (x2)

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Seat unit S13: Front adaptor cap (x2)

S2: Seat unit hood S14: Carrycot mattress cover

S3: Chest pad (set) S15: Carrycot mattress

S4: Bumper bar S16: Carrycot liner

S5: Bumper bar cover S17: Carrycot apron

S6: Bumper bar cap (x2) S18: Carrycot

S7: Harness S19: Front adaptor (Low) (set)

S8: Crotch pad S20: Front adaptor (High) (set)

S9: Front wheel S21: Middle adaptor (set)

S10: Basket S22: Rear adaptor (set)

S11: Rear wheel S23: Travel companion

S12: Raincover

Fitting & operation information:

Please refer to the instruction diagrams (P. 51 - 62):

Chassis 1- Opening:

Release the autolock (a) and lift the handle upwards until the chassis locks into position (b).

Check the chassis has locked in place.

2- Adjusting handle position:

Front wheel 3- Fitting:

4- Removing:

Rear wheel 5- Fitting:

6- Removing:

Brake 7- Applying:

8- Releasing:

Front wheel swivel lock

9- Applying:

10- Releasing:

Basket 11- Accessing rear compartment:

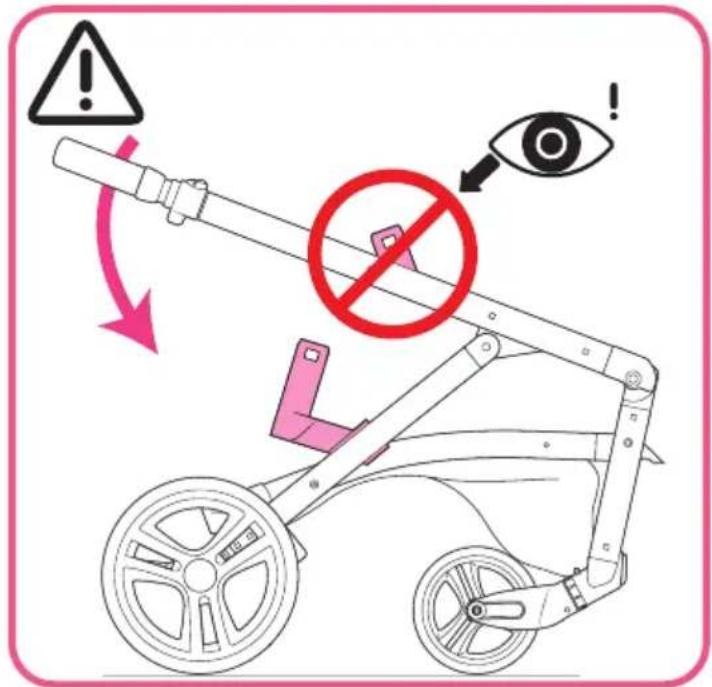

Chassis 12-Closing:

NOTE: The chassis cannot be closed in pram mode or car seat mode.

To close with seat unit fitted, the seat unit must be forward facing and in the most upright recline position.

While pressing the primary release button (a), pull both secondary levers (b) back. Press down on the handle (c) until the autolock retains the chassis in the folded position (d).

Adjust the handle to the lowest position (See Step 2) for the most compact fold.

NOTE: To avoid damage in transit, the rear adaptors and front adaptors should be removed prior to folding.

Middle adaptor 13- Fitting:

Carrycot Preparation:

14- Remove mattress and liner from carrycot (a).
Unfold both frame bars until they locked into positions (b).
15- Refit the liner into the carrycot (a) and secure the zip fasteners (b).
Refit the mattress over the liner in the carrycot (c).
Push the "D" rings through the slots in the liner (d).

Carrycot hood 16- Opening:

17- Closing:

Hood pocket (Style

18- Opening:

may vary)

19- Closing:

Viewing Windows 20- Opening:

(Style may vary) 21- Closing:

Carrycot

22- Note: When use in single mode, the carrycot can only be fitted rearward facing as shown in illustration.

23- Fitting:

Dots are marked on the chassis mounts and carrycot mounts (a). These should be on the same side and aligned if fitted correctly.

24- Removing:

Open the carrycot hood (See step 16).

Press the release button on top of the hood frame (a).

Lift the carrycot off the chassis (b).

Carrycot apron 25- Fitting:

Removing is a reversal of this procedure.

Raincover 26- Fitting:

Removing is a reversal of this procedure.

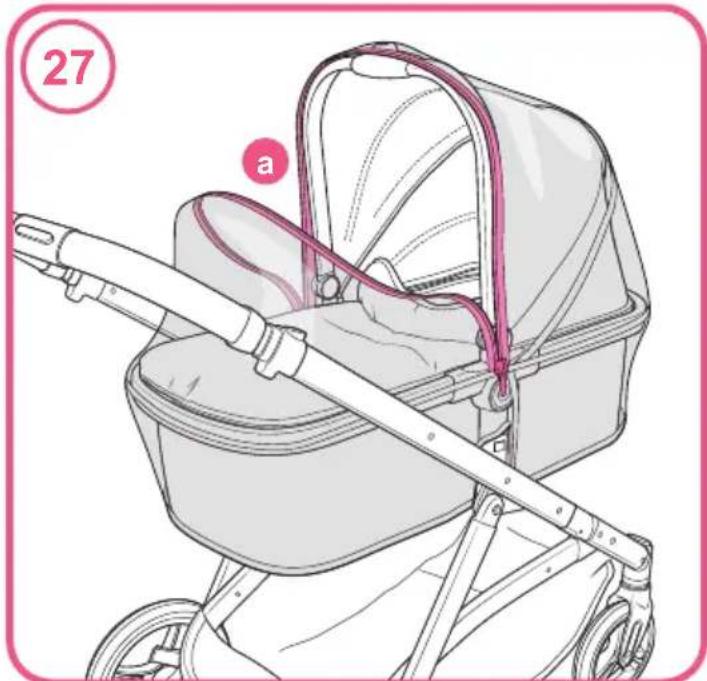

27- Using the access zip:

Seat unit

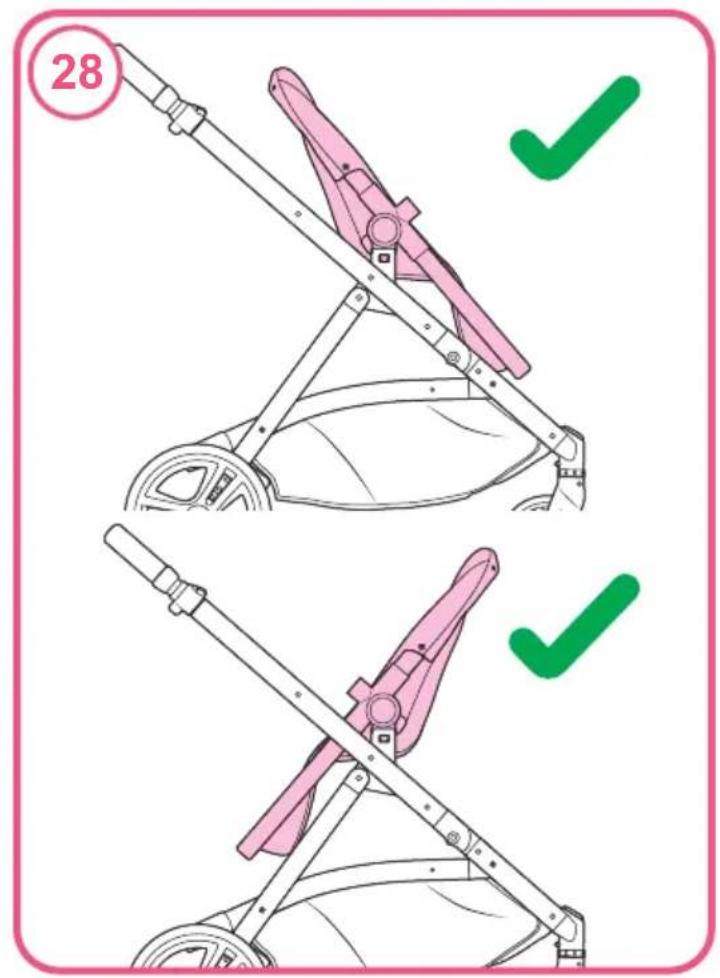

28- Note: The seat unit can be fitted forward or rearward facing.

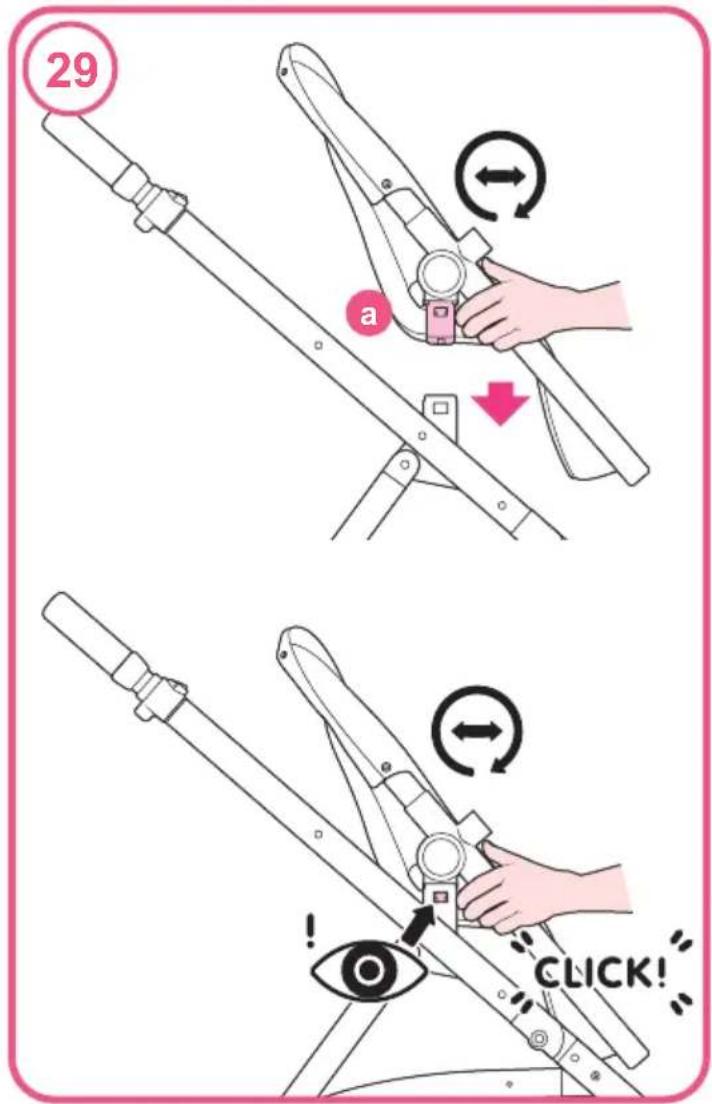

29- Fitting:

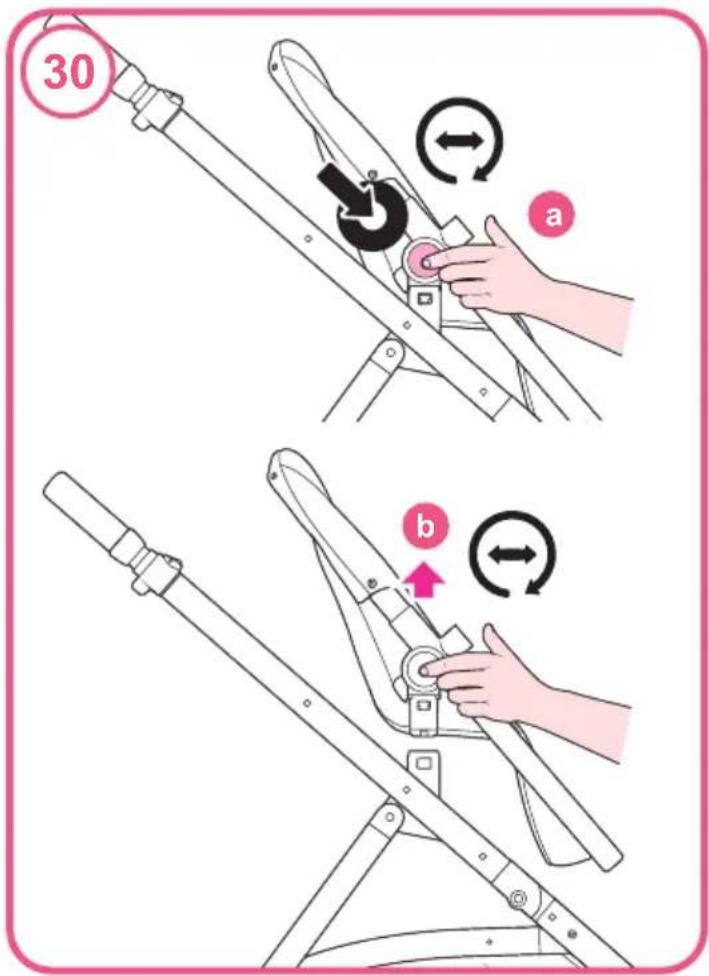

30- Removing:

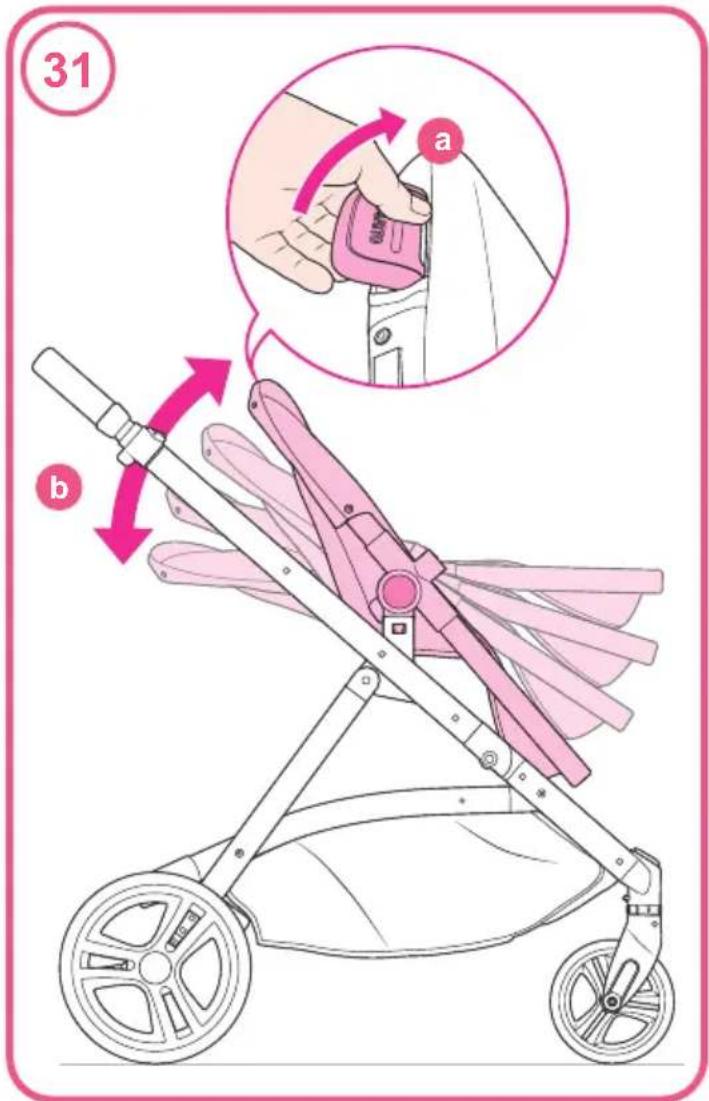

31- Adjusting the seat unit recline angle:

WARNING: Never adjust the seat unit with your child in the seat.

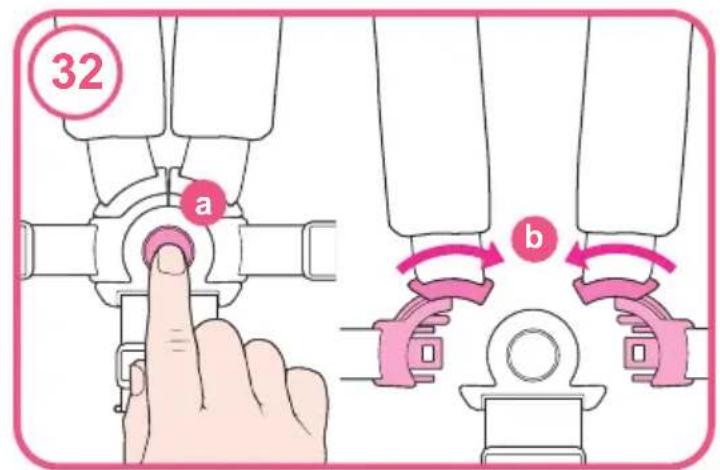

Harness 32- Opening:

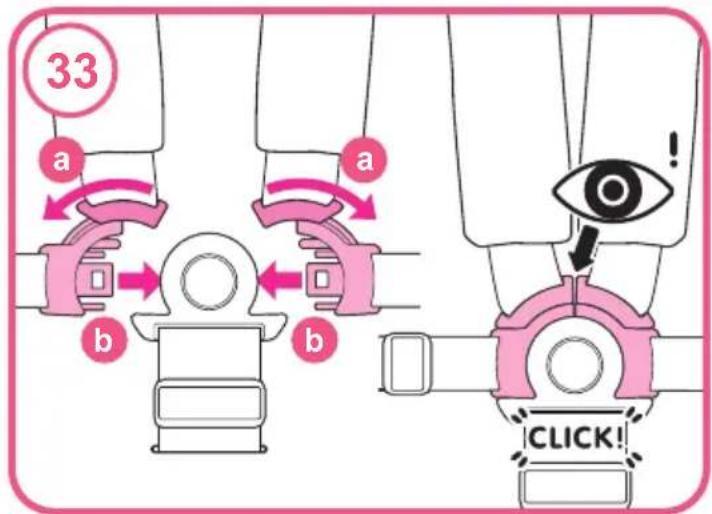

33- Closing:

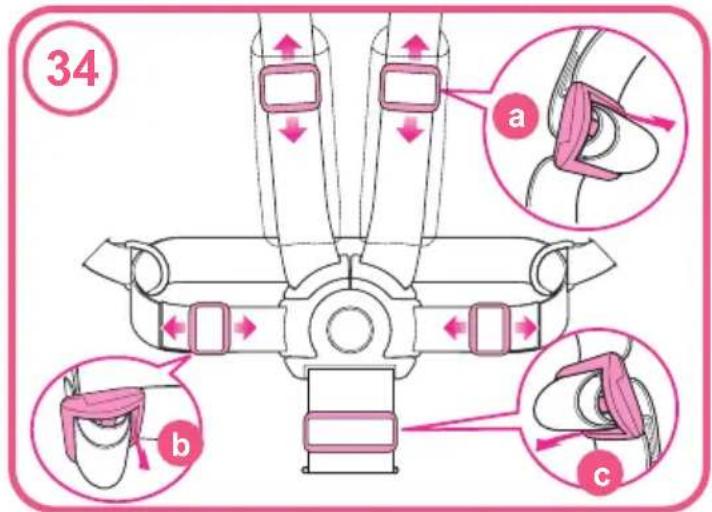

34- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

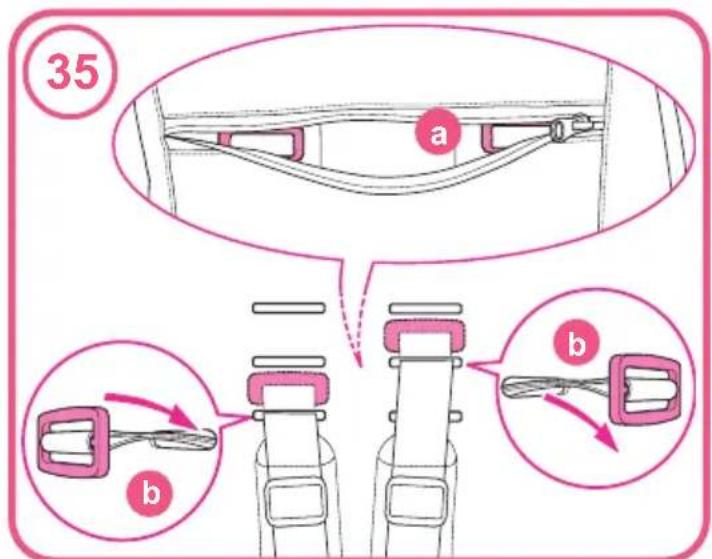

35- Adjusting the shoulder strap position:

Unfasten the top access zip to gain access to shoulder strap retainers (a).

Adjust the shoulder strap position (b & c).

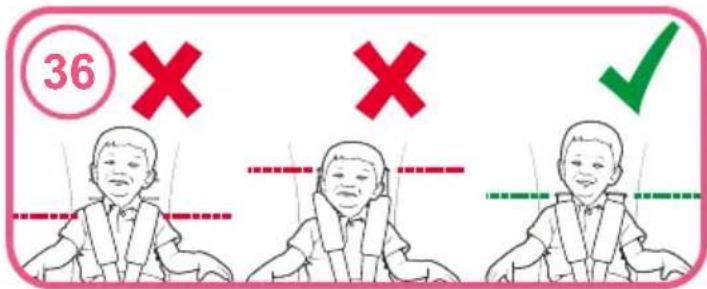

36- Satisfactory shoulder strap position:

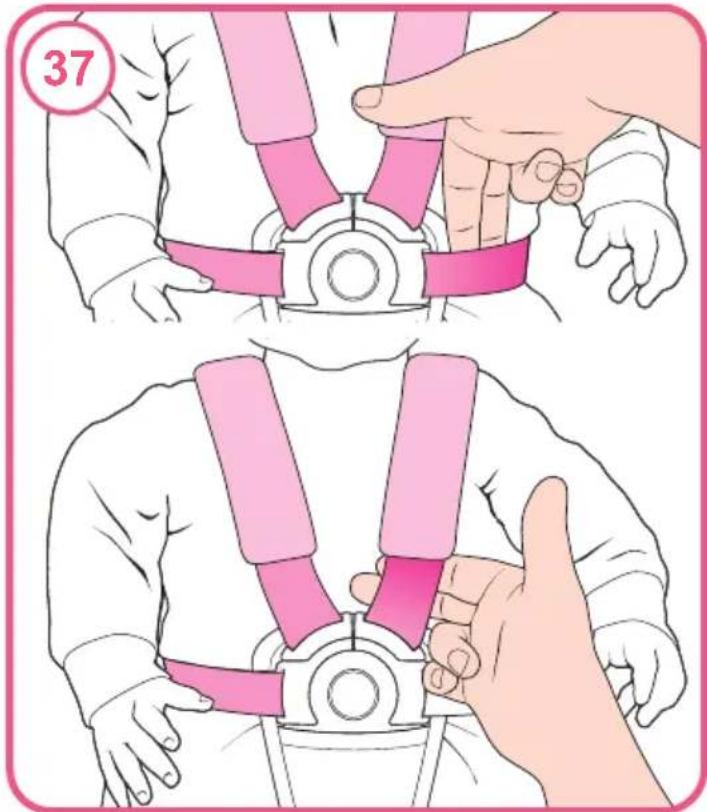

37- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

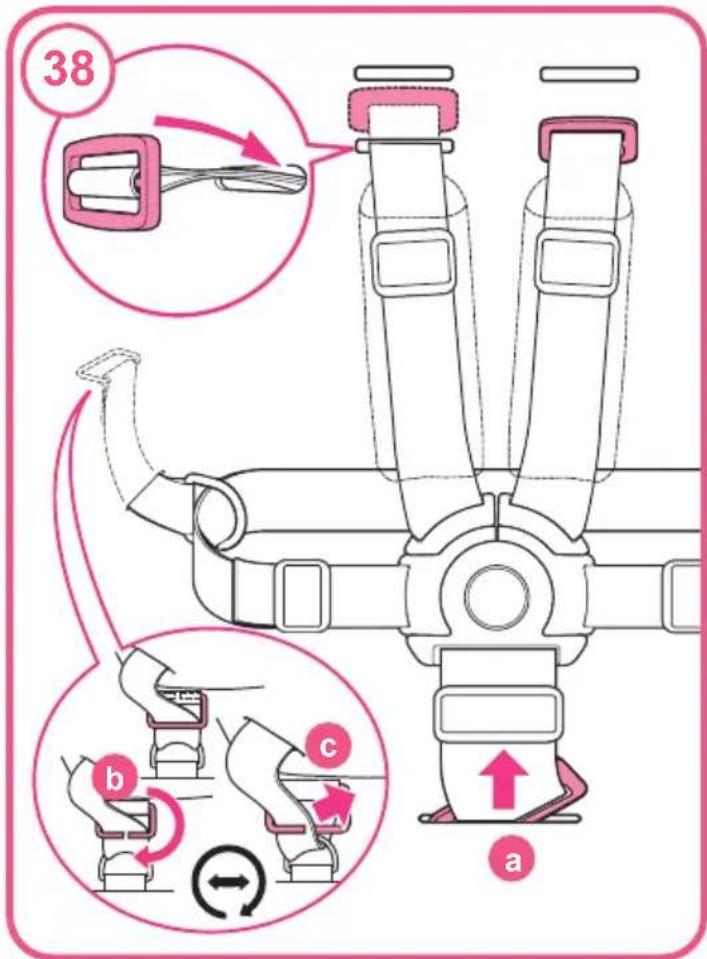

38- Removing:

Unfasten the top access zip to gain access to shoulder strap retainers (See step 35).

Push the shoulder strap retainers through the backrest (a).

Push the crotch strap retainer through the seat (b).

Rotate the "C" clip to expose its opening (c) and slide the waist strap out of the clip (d).

Refitting is a reversal of this procedure.

Bumper bar cap

39- Fitting:

40- Removing:

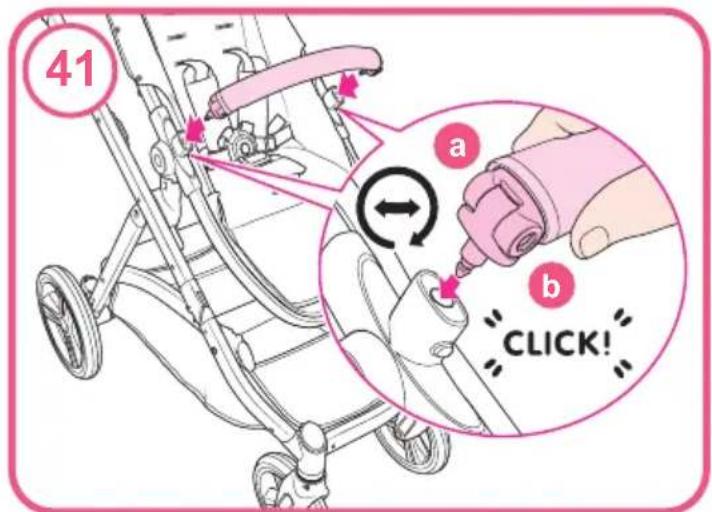

Bumper bar 41- Fitting:

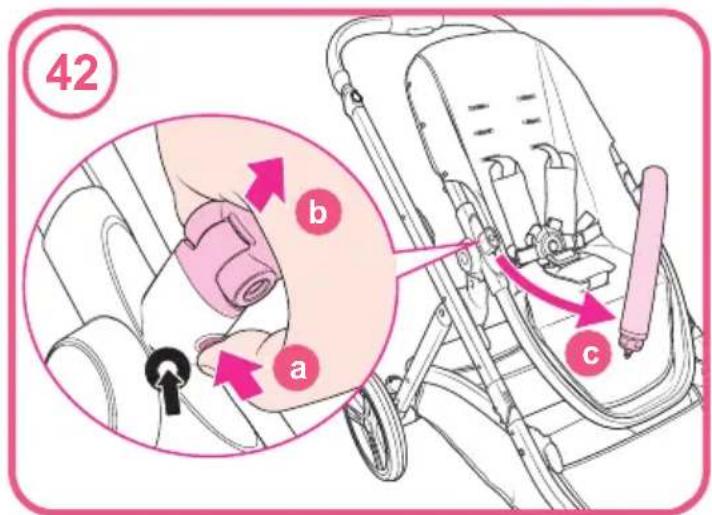

42- Opening:

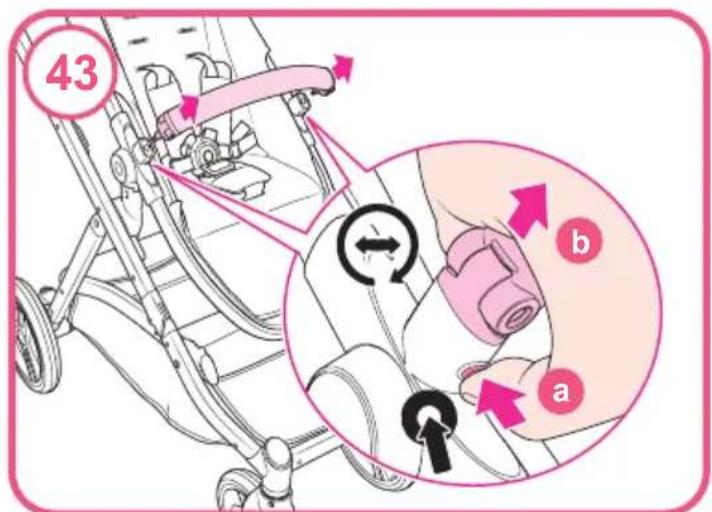

43- Removing:

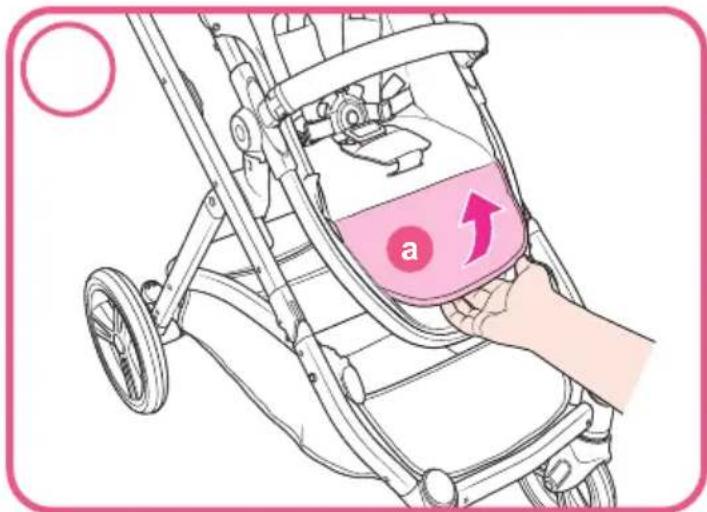

Calf support 44- Raising:

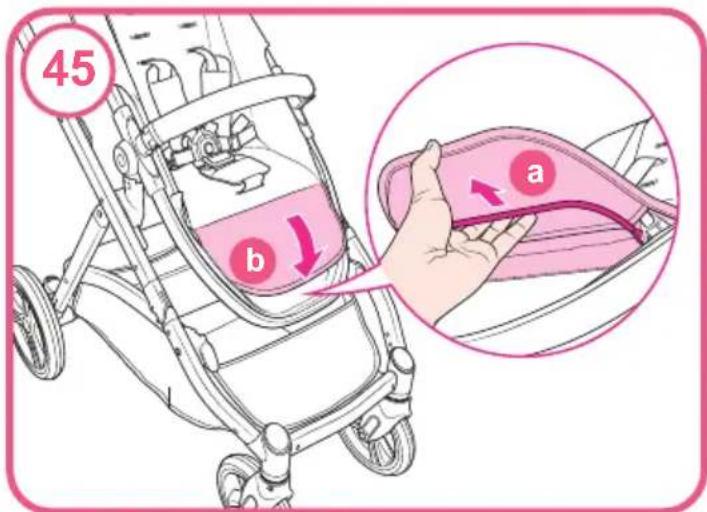

45- Lowering:

Cosatto footmuff (sold separately)

46- Open the harness (See Step 32) and remove chest pads & crotch pad (a).

Push the harness straps through the footmuff (b).

Attach the footmuff fabric fasteners to the rear of the backrest (c).

Refit chest pads & crotch pad then close the harness (See step 33).

Removing is a reversal of this procedure.

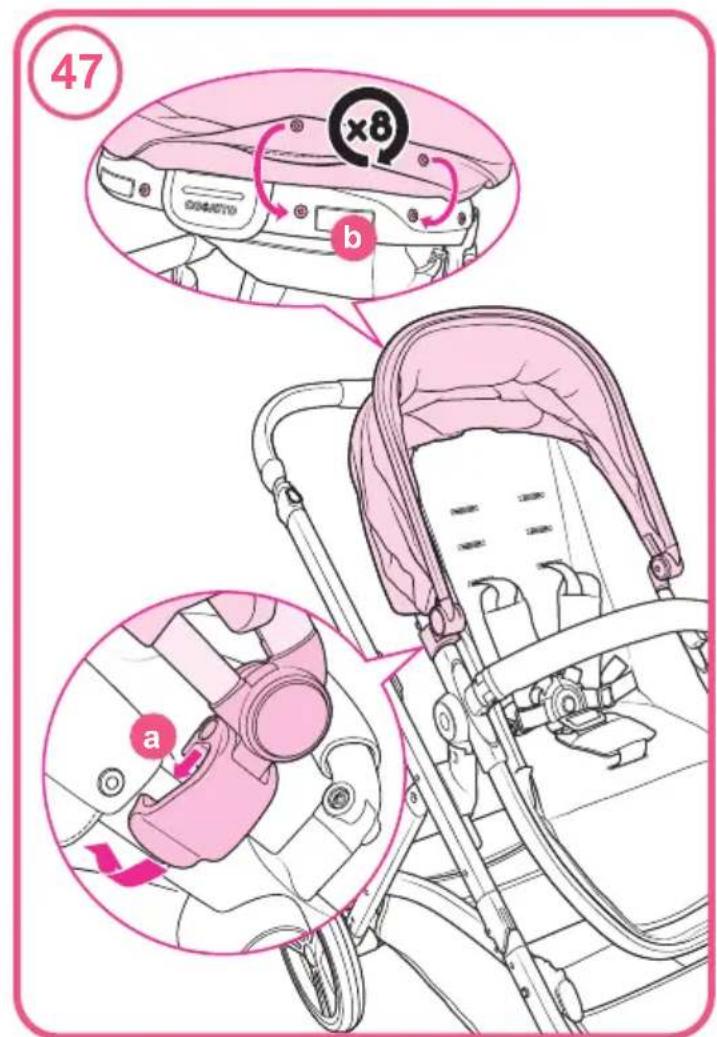

Seat unit hood 47- Fitting:

Removing is a reversal of this procedure.

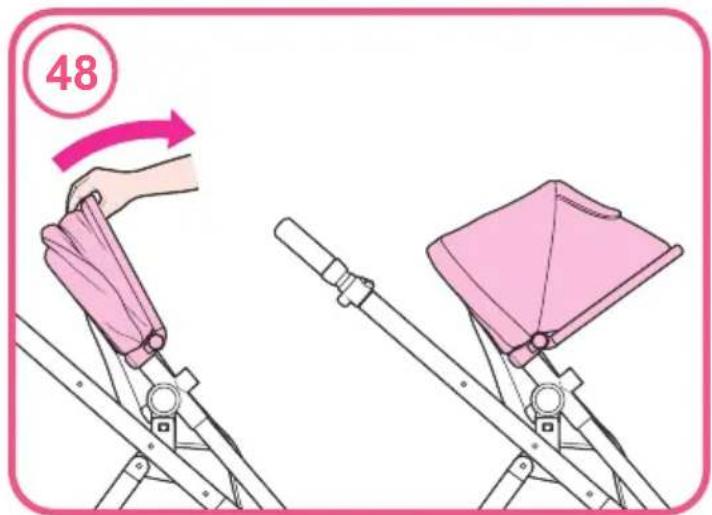

48- Opening:

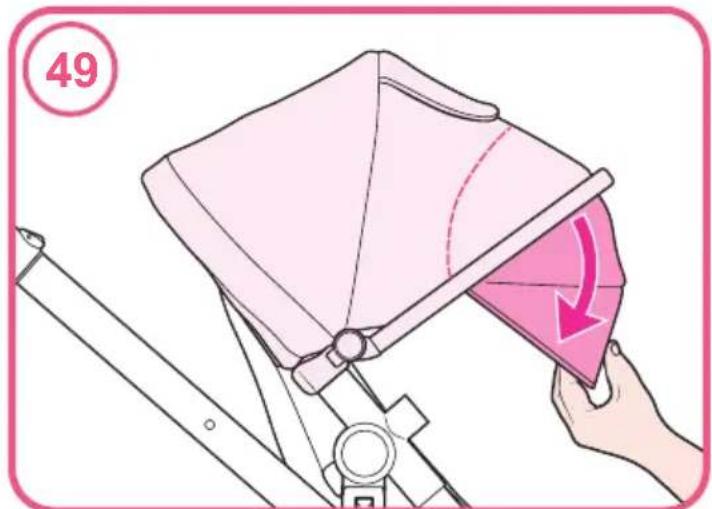

Sun visor 49- Opening:

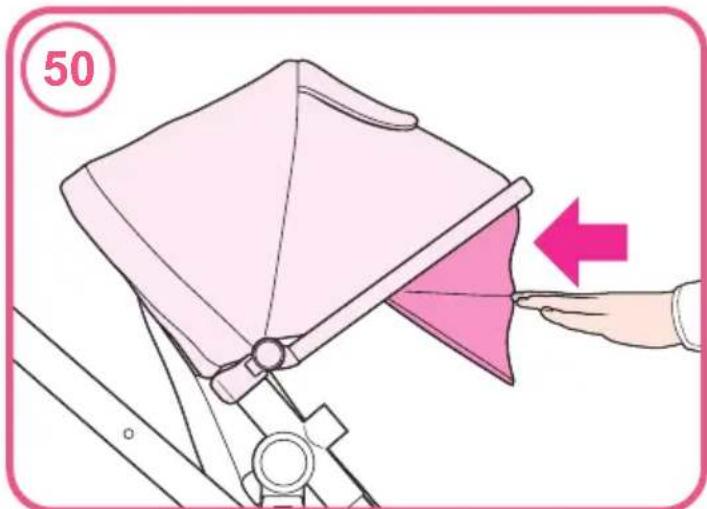

50- Closing:

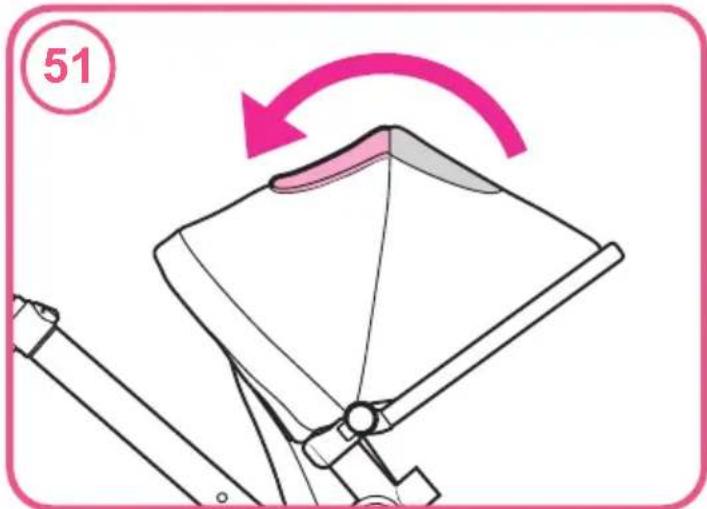

Viewing window 51- Opening:

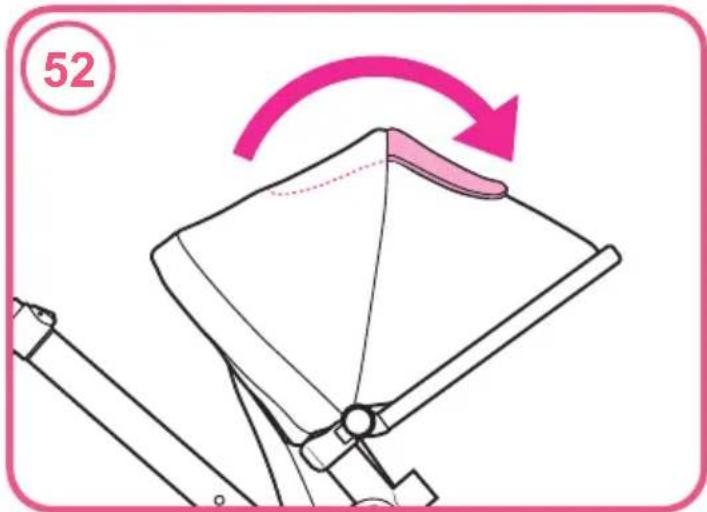

(Style may vary) 52- Closing:

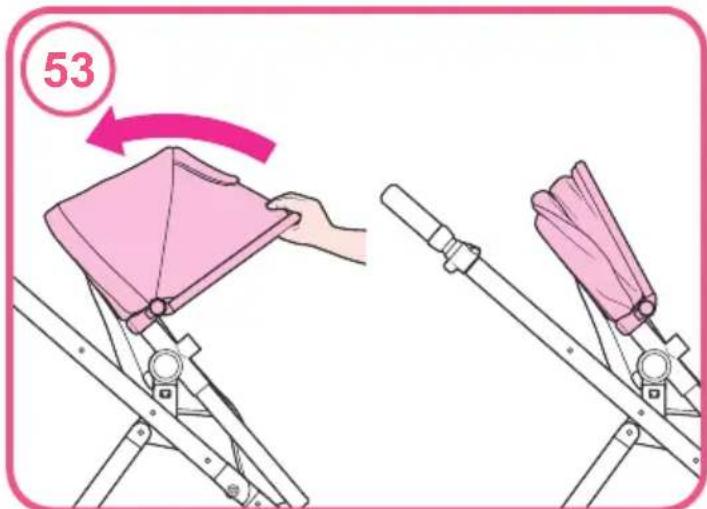

Seat unit hood 53- Closing:

Raincover

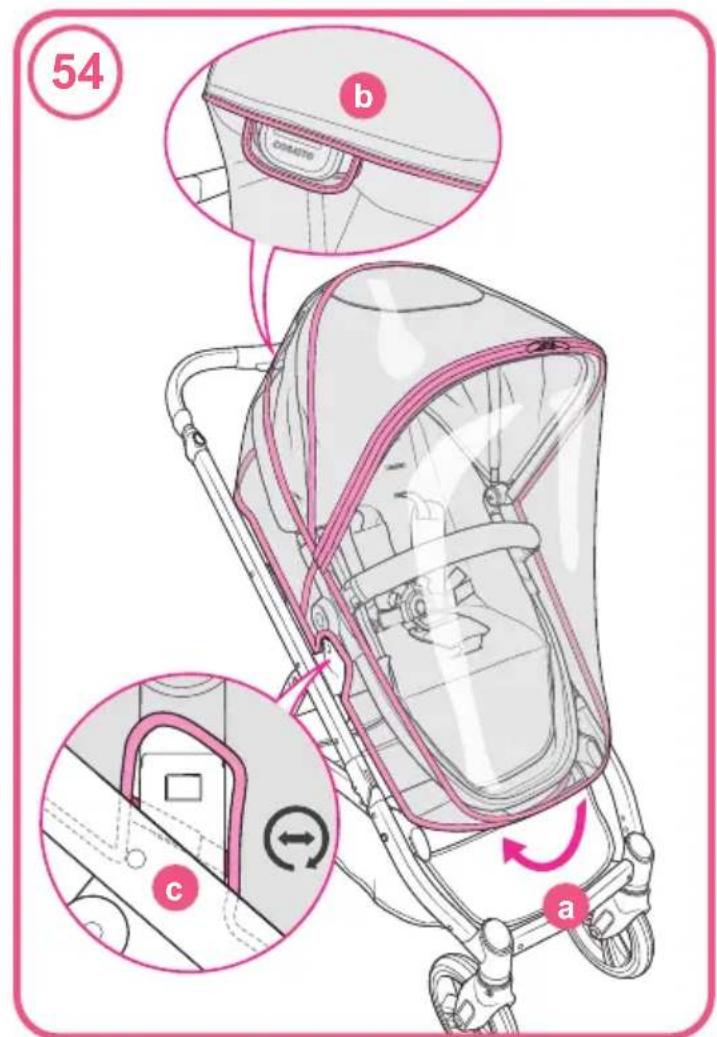

54- Fitting:

Removing is a reversal of this procedure.

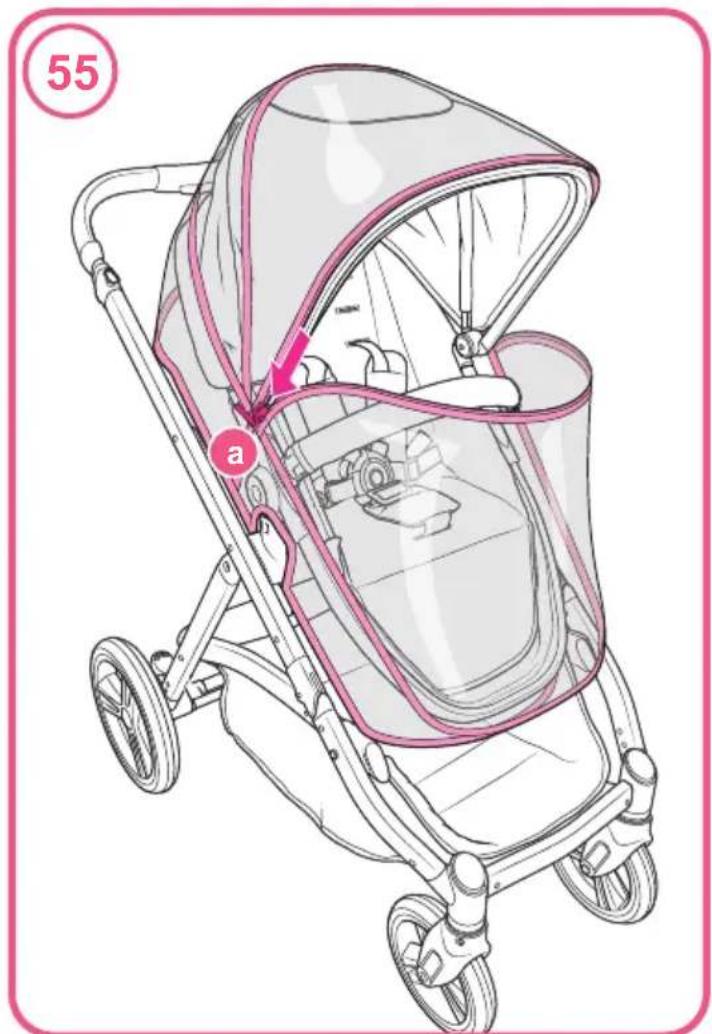

55- Using the access zip:

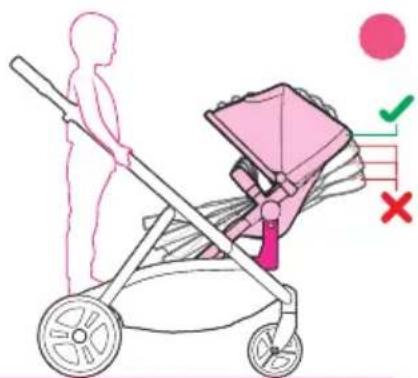

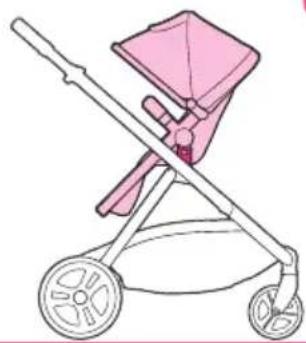

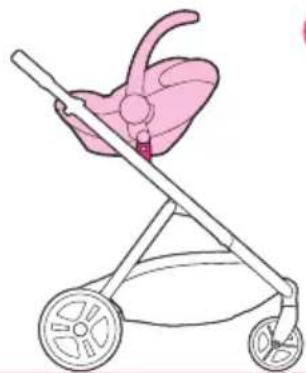

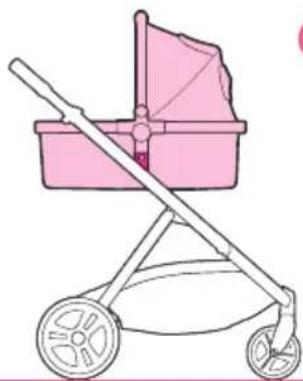

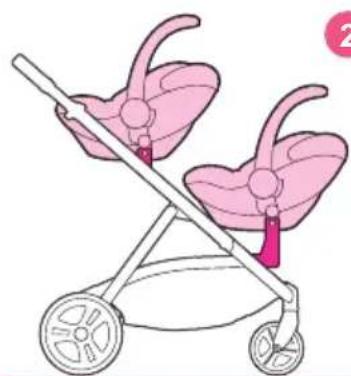

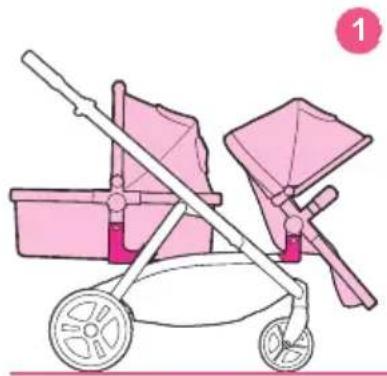

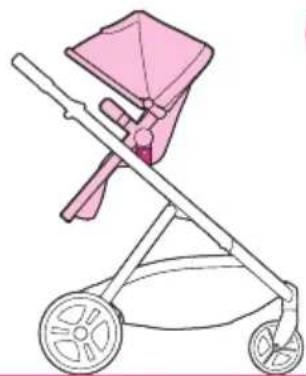

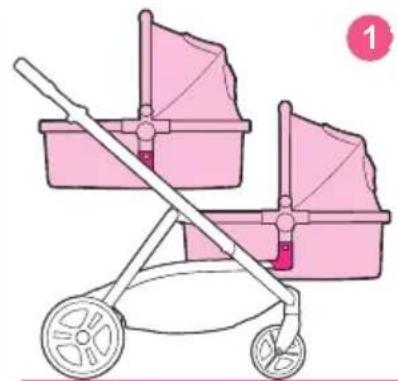

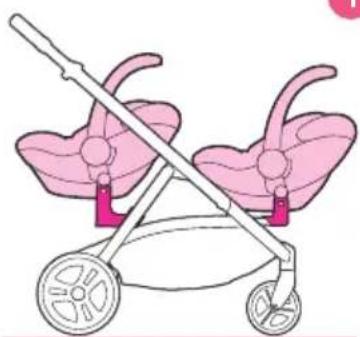

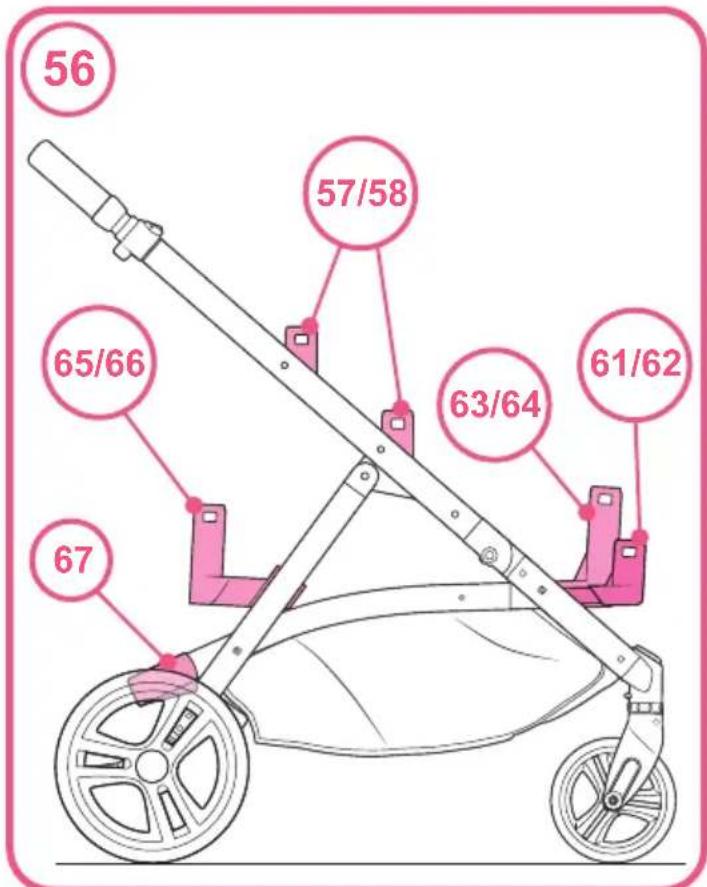

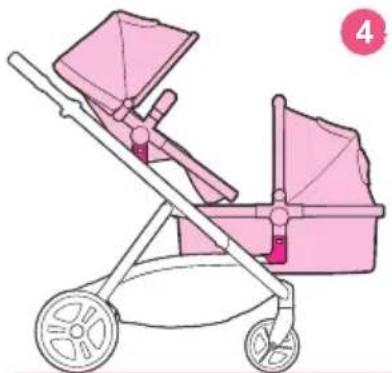

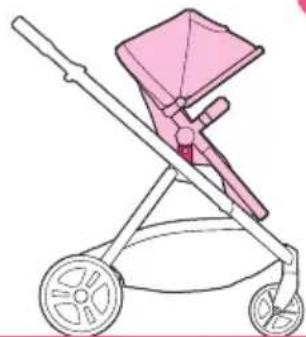

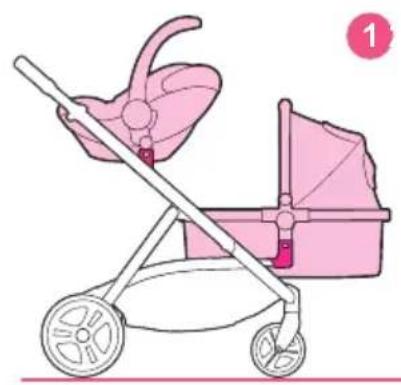

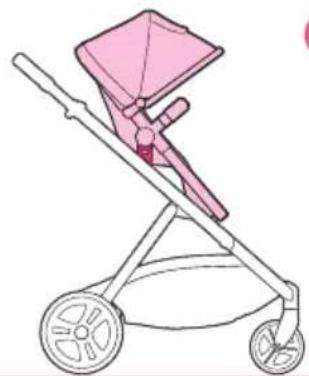

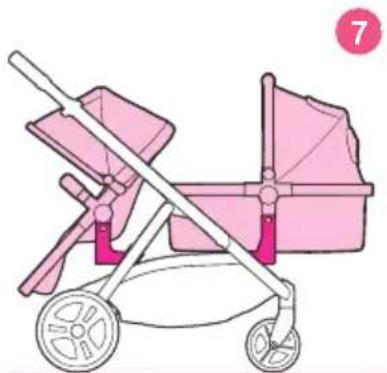

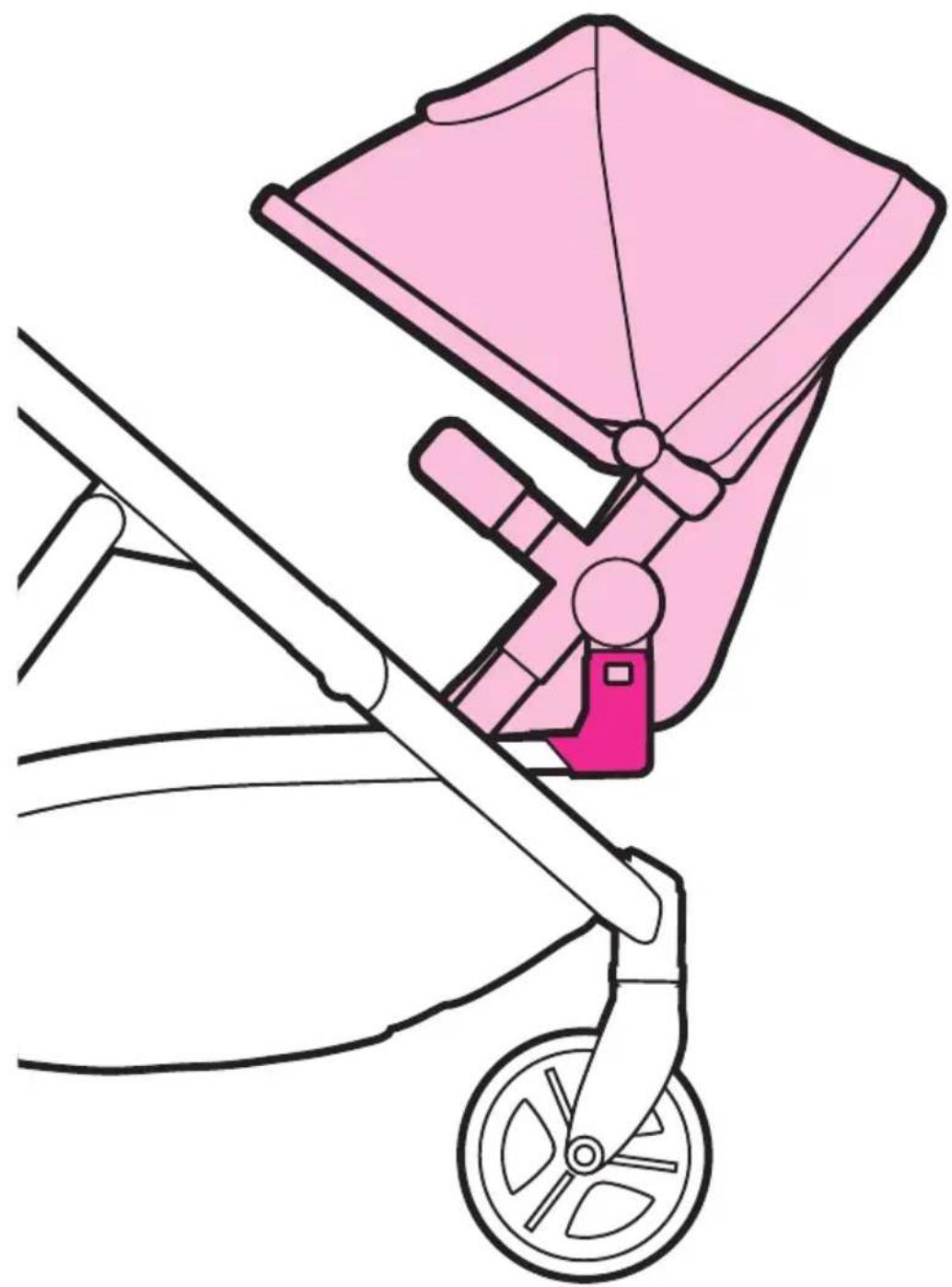

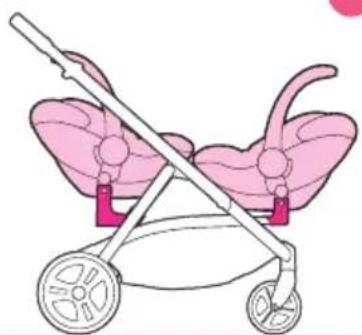

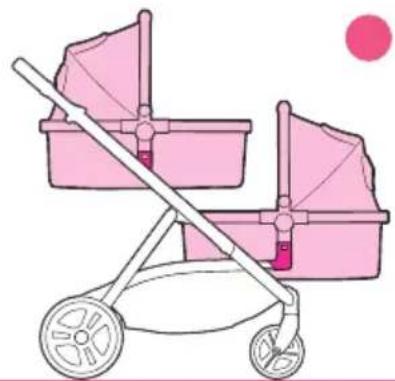

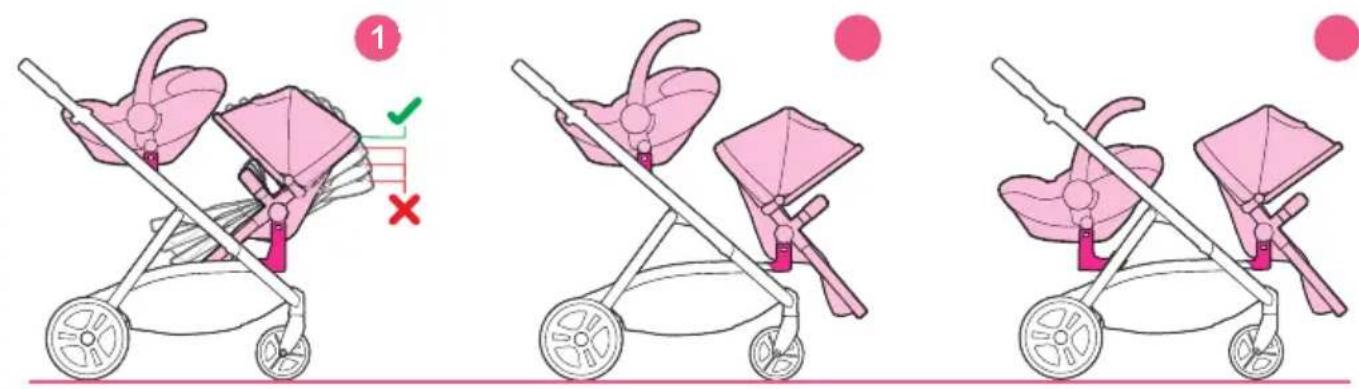

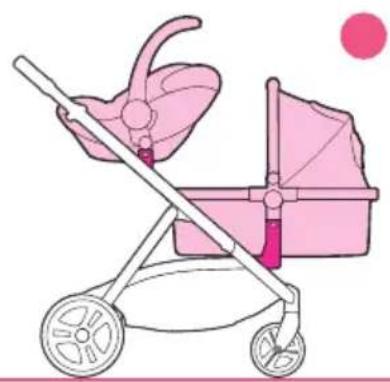

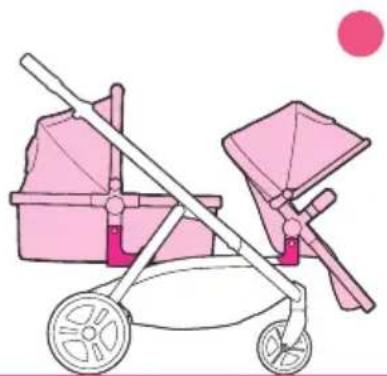

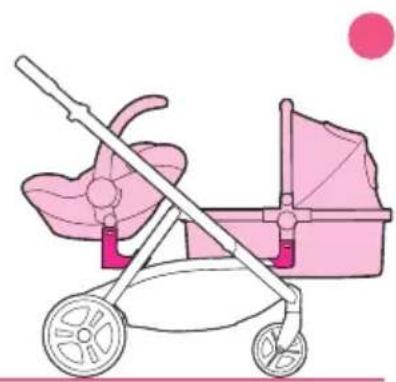

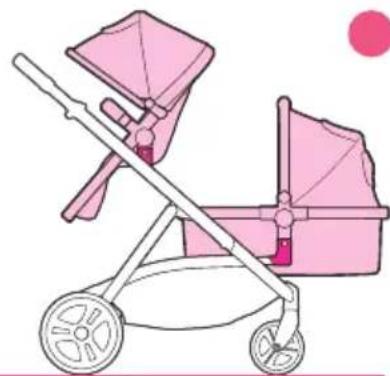

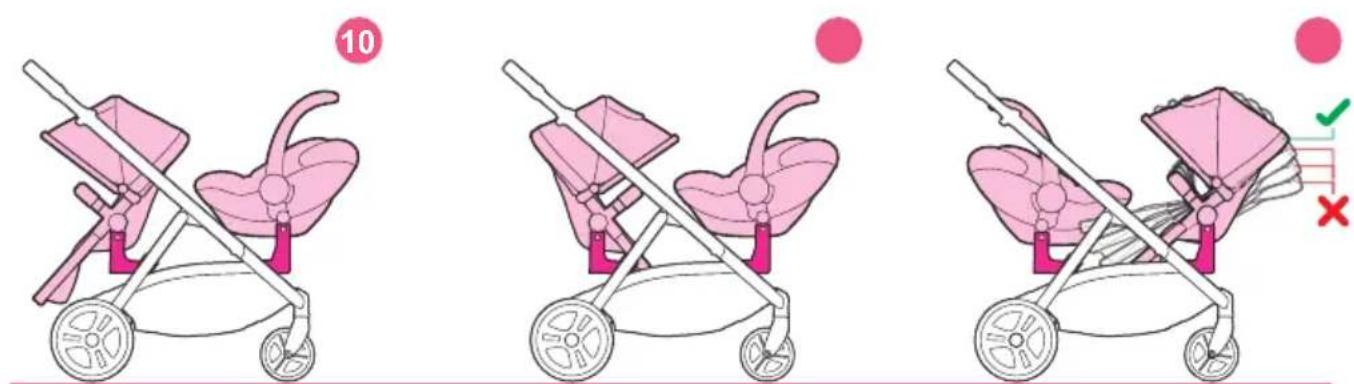

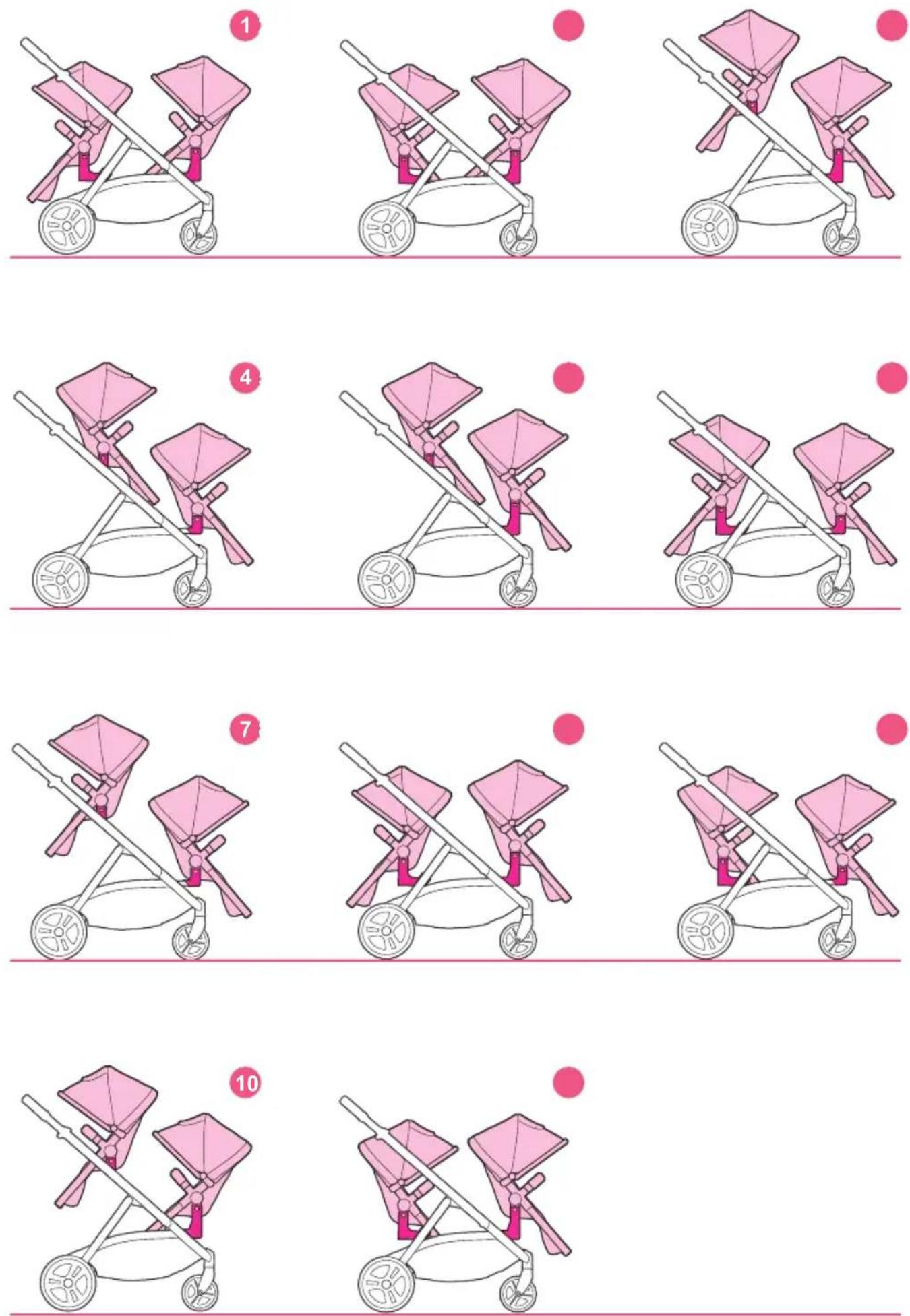

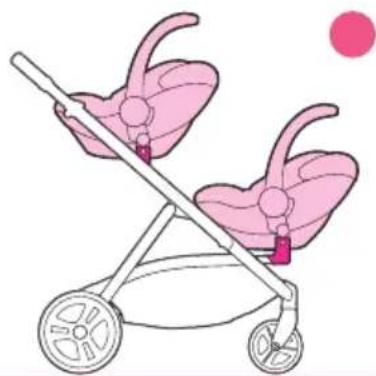

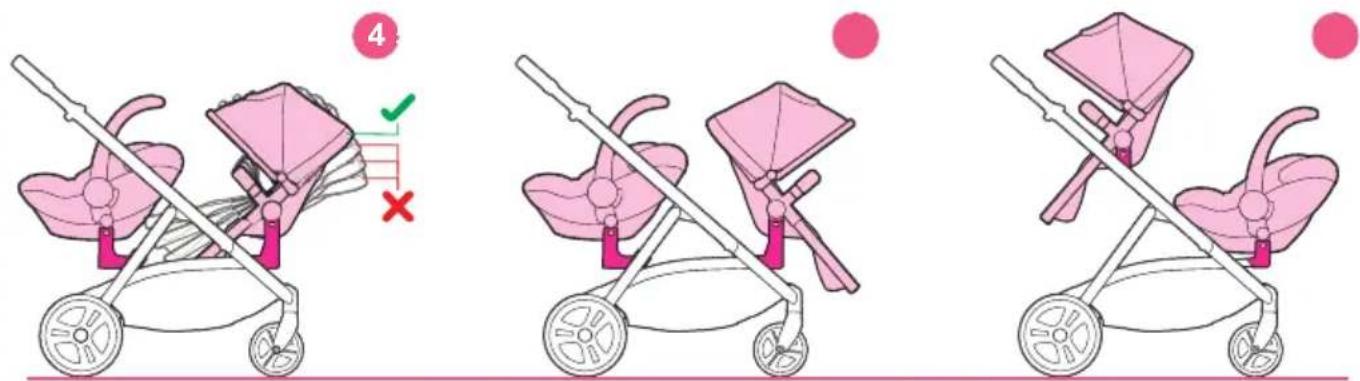

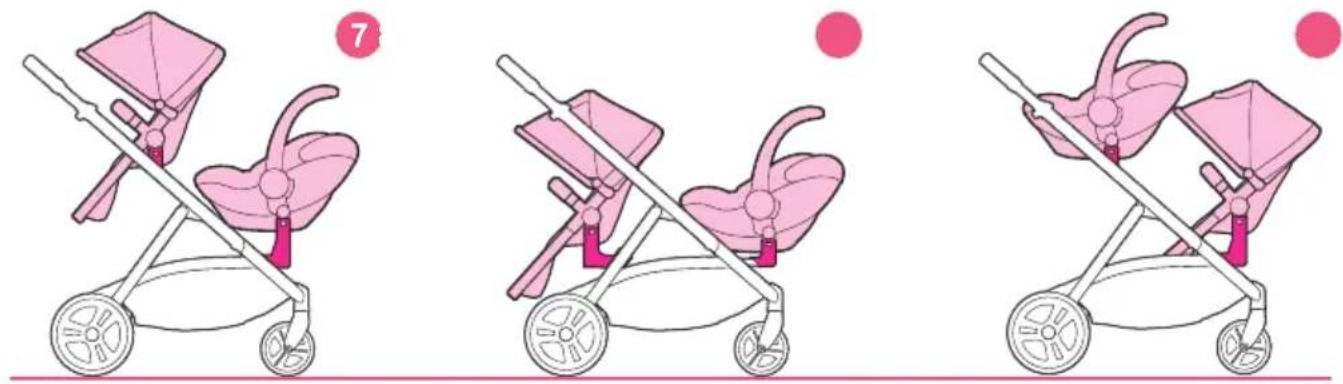

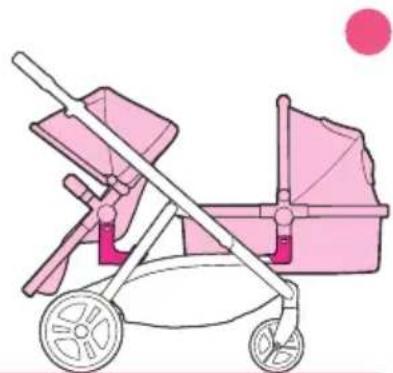

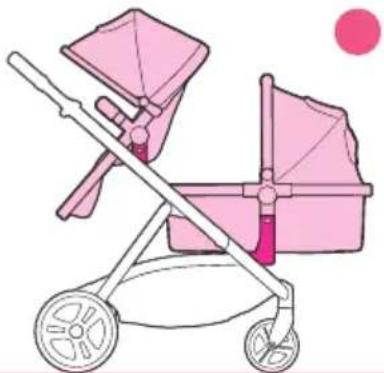

Configuration option56-

This product is suitable up to two children, only in the configuration options listed in the configuration diagram (P. 63 - 68). Additional seat unit/ carrycot to be sold separately.

Note: Illustration for reference purpose only.

Some of the functions may be restricted in certain configuration options.

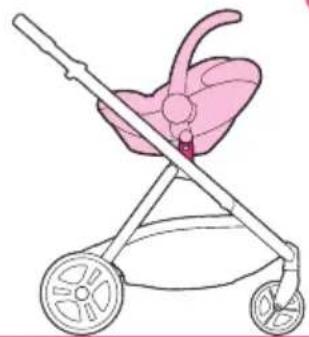

CS - Child car seat

CC - Carrycot

SU - Seat unit

RP - Ride on platform

Middle adaptor

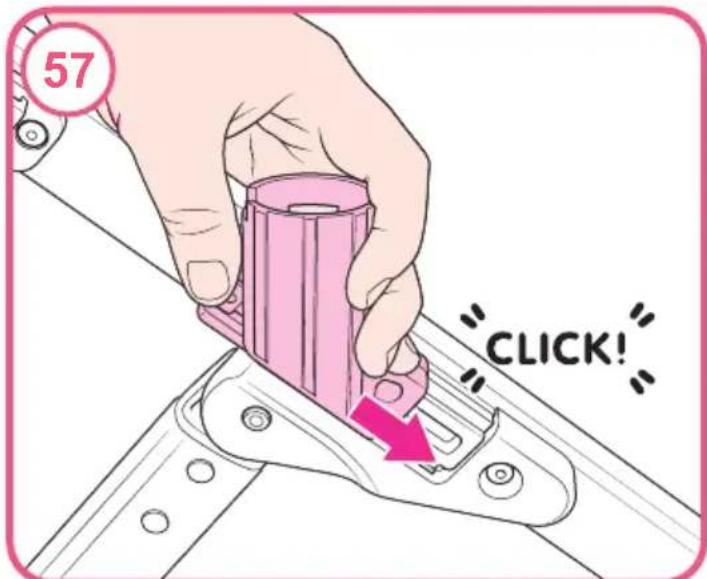

57- Fitting:

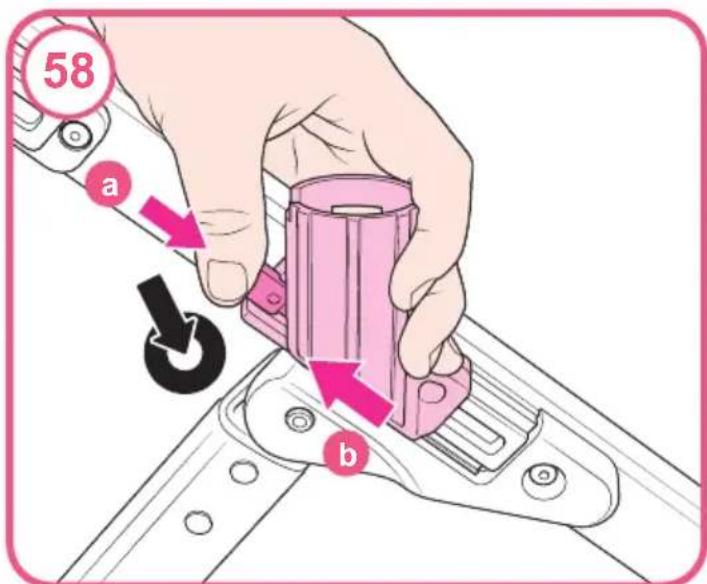

58- Removing:

Front adaptor cap

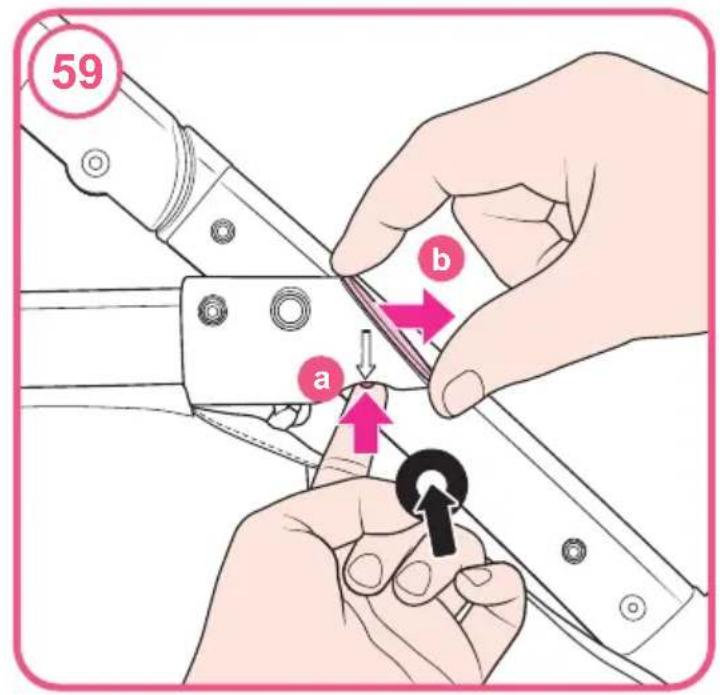

59- Removing:

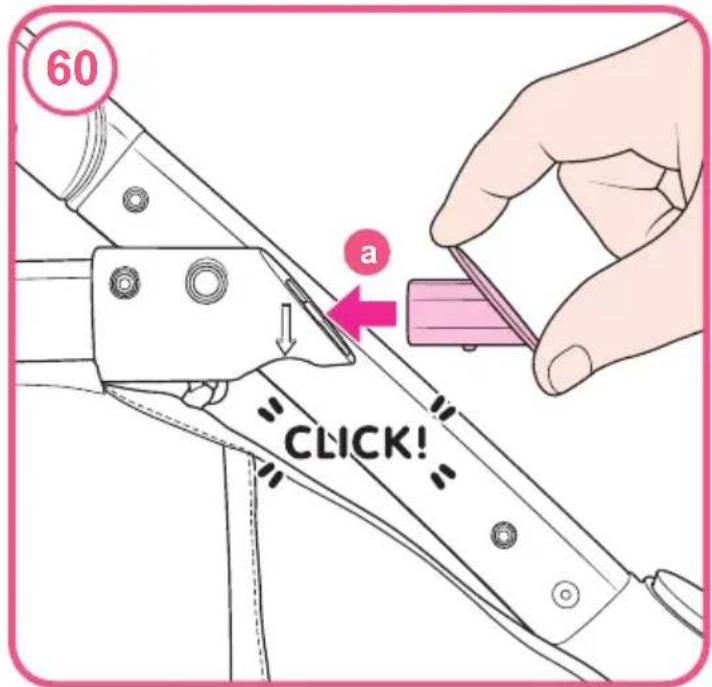

60- Fitting:

Front adaptor (Low)

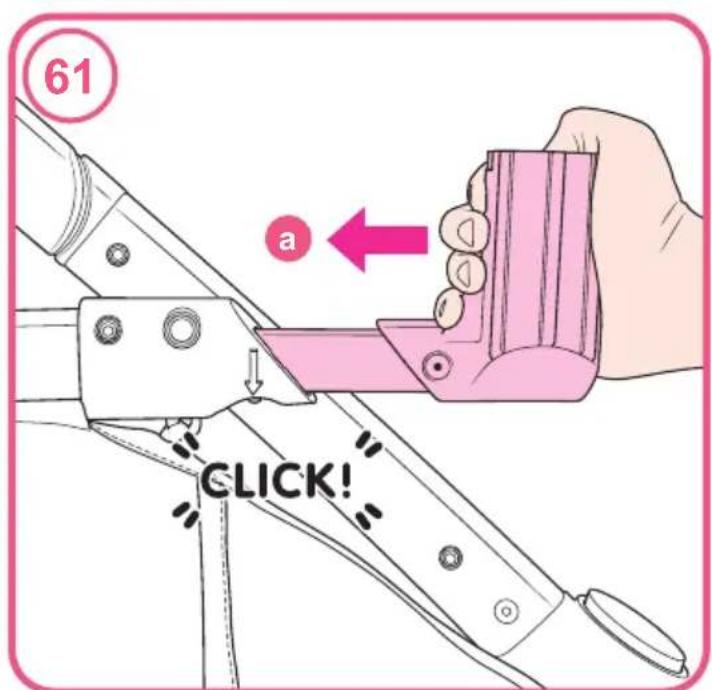

61- Fitting:

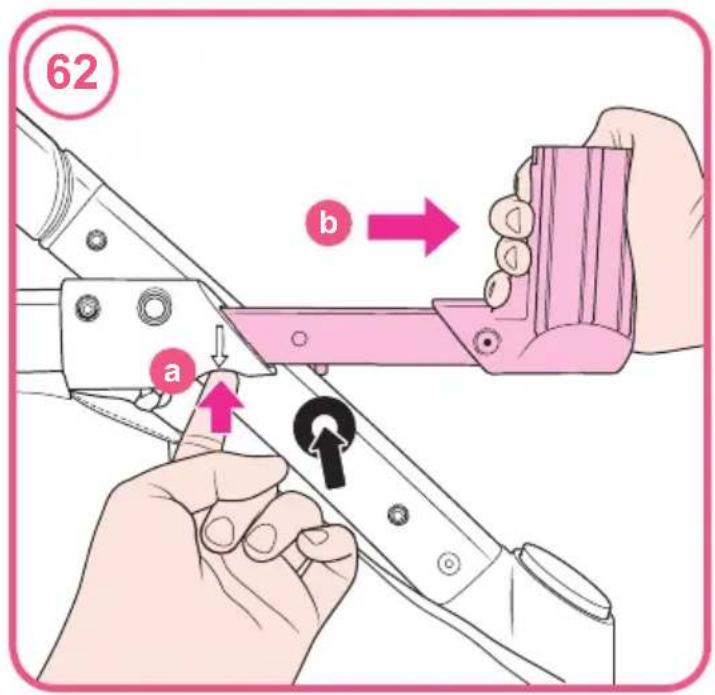

62- Removing:

Front adaptor (High)

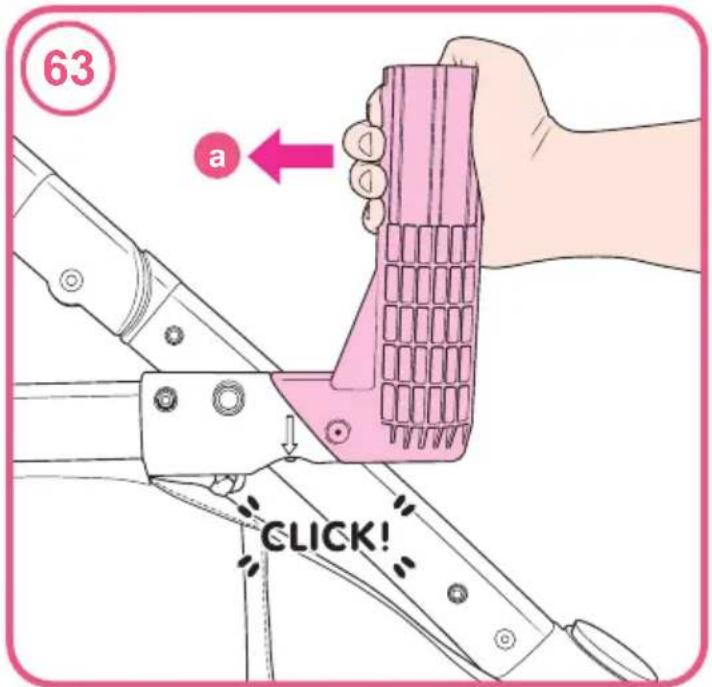

63- Fitting:

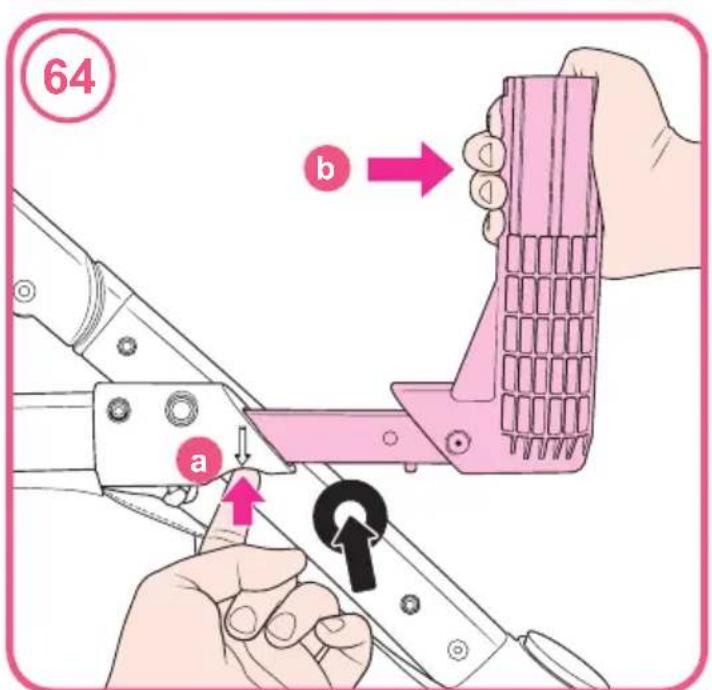

64- Removing:

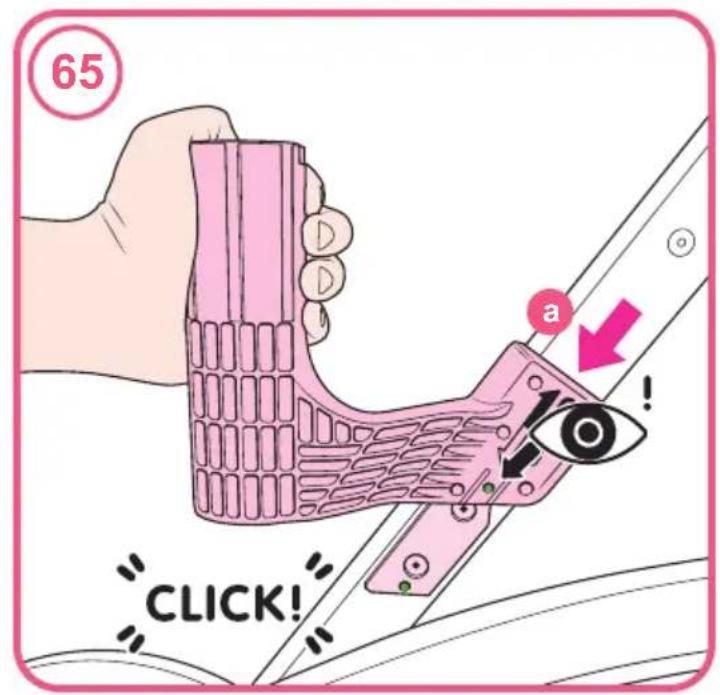

Rear adaptor 65-

Fitting:

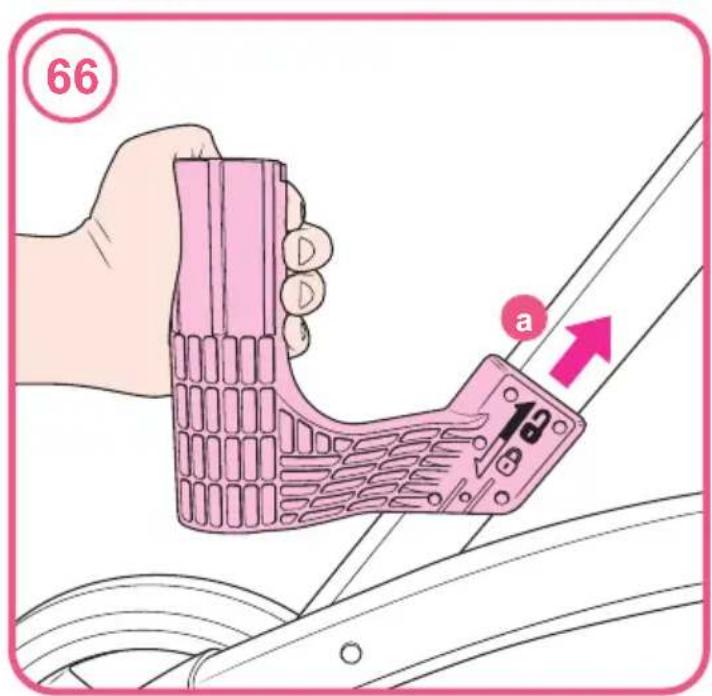

66- Removing:

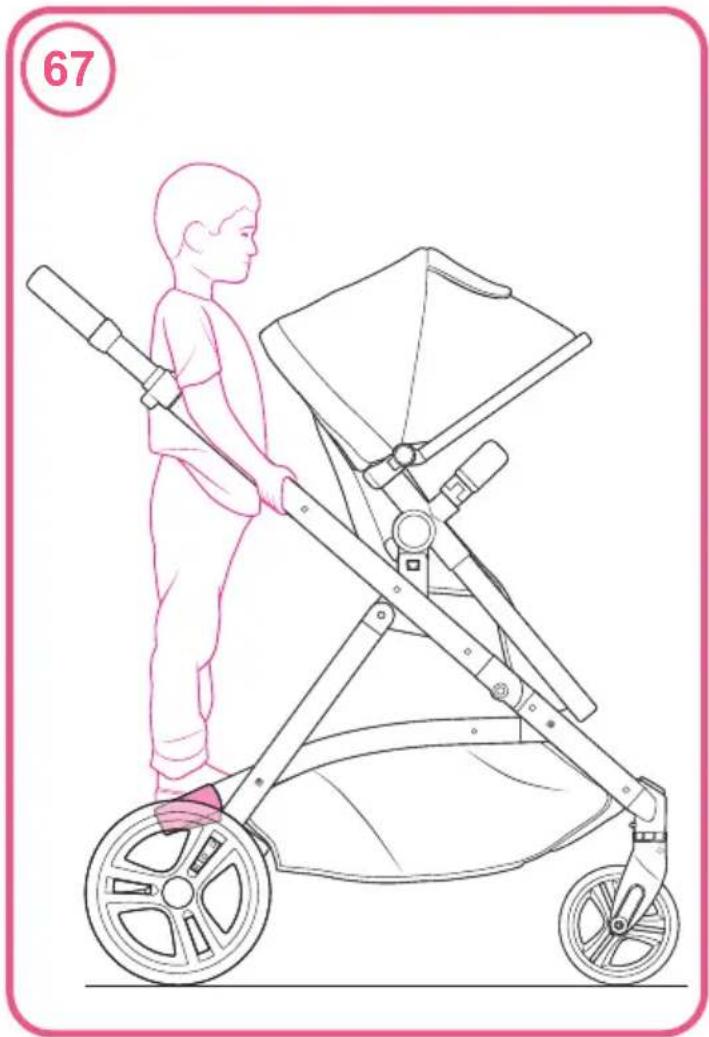

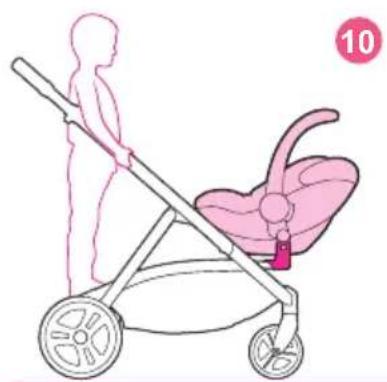

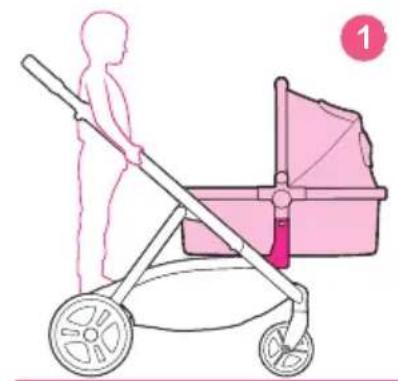

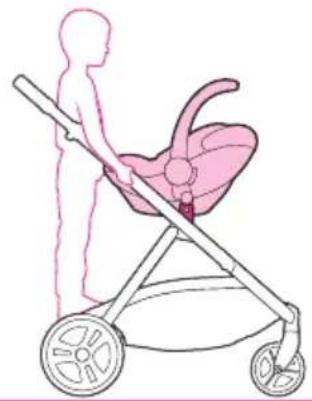

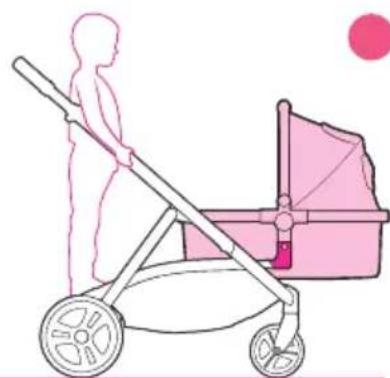

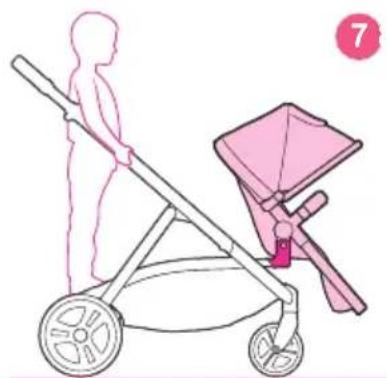

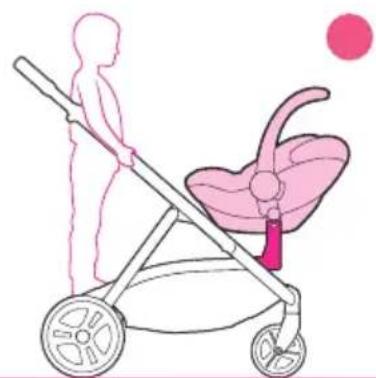

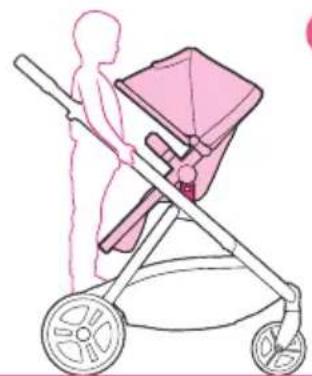

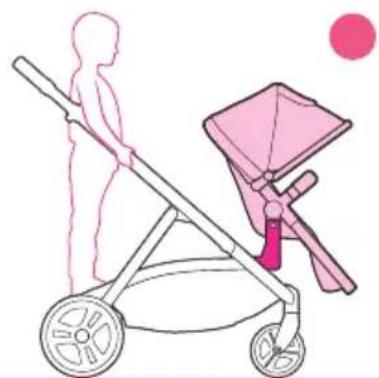

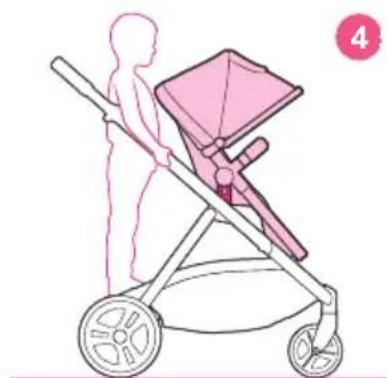

67- Using the ride on platform:

NOTE: Rear adaptor must be removed in this mode.

Care & maintenance:

- Your travel system has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.

- Storage - Always store your travel system dry. Storing a damp travel system will encourage mildew to form, so always wipe away any moisture with a soft cloth and allow to dry thoroughly before storing. Never leave in sunlight for prolonged periods - some fabrics may fade.

- Cleaning - Refer to wash care labels on soft goods for cleaning instructions. Plastic and metal parts may be sponged clean with warm water and a mild detergent. Never clean with abrasive, ammonia based, bleach based or spirit type cleaner.

- Wear & Tear - Continual impact can cause damage. The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs. Tyres will wear with use and wheel units should be replaced if necessary. If your child wears hard shoes these might damage the soft fabric.

- Maintenance - Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times and minimum maintenance should be required. However a regular light application of a spray lubricant e.g. silicone (do not use oil or grease) will extend the life of your travel system and make opening and folding easier. Your travel system should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.

IMPORTANT ! LIRE ATTENTIVEMENT AVANT UTILISATION ET CONSERVER POUR CONSULTATION ULTÉRIEURE Informations importantes de sécurité

Généralités:

Freins 7- Application:

8- Libération:

Loquet de rotation

9- Application:

des roues avant

10- Libération:

Repose mollets 44- Relever:

45- Abaisser:

Some of the functions may be restricted in certain configuration options.

CS- Il seggiolino

CC- Culla portatile

SU- Unitá sedile

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists

Diagram of a baby stroller with labeled parts (a, b) and a magnified inset showing hand positioning on the seat.

26 a b

Illustration of a baby stroller with a pink cord and handle, no text or symbols present

28

30 a b

29 a CLICK!

31 a b

32 a b

36 X X ✓

33 a a b b CLICK!

37

34 a b c

38 a b c

35 a b

a CLICK!

4039 44 a b

a

41 a b CLICK!

45 b a

42 a b c

46 a b c

43 b a

47 x8 b a

50

Diagram of a mechanical device with a pink arrow indicating rotation, no text or symbols present

48

52

49

53

54 b c a

56 57/58 65/66 63/64 61/62 67

55 a

57 CLICK!

58 a b

59 a b

62 a b

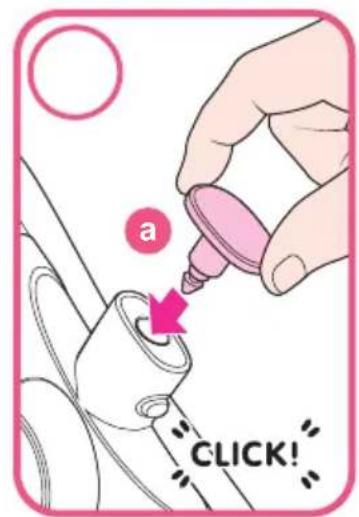

60 a CLICK!

63 a CLICK!

61 a CLICK!

64 a b

65 a CLICK!

Line drawing of a child pushing a baby stroller (no text or symbols)

Safety warning illustration showing a stroller with no protection symbols and warning labels

66 a

CS / CC / SU

Illustration of a baby stroller with pink floral design and two wheels (no text or symbols)

1

Illustration of a pink baby stroller with wheels and a basket (no text or symbols)

●

Illustration of a pink baby stroller with wheels and handle (no text or symbols)

●

Illustration of a pink baby stroller with wheels and handle (no text or symbols)

4

Illustration of a pink baby stroller with wheels and a handle (no text or symbols)

●

Illustration of a pink baby stroller with wheels and handle (no text or symbols)

●

CS + CS

Illustration of a two-pig flower stroller with pink floral design (no text or symbols)

1

Illustration of a pink baby stroller with wheels and handle (no text or symbols)

●

Illustration of a baby stroller with pink body and wheels (no text or symbols)

●

Illustration of a two-petal stroller with pink floral accessories (no text or symbols)

2

Illustration of a two-petal stroller with pink floral accessories and wheels (no text or symbols)

Illustration of a pink stroller with two wheels and a handle, no text or symbols present

●

SU + SU

CC + CC

Illustration of a two-child stroller with pink cabinetry (no text or symbols)

Illustration of a two-child baby stroller with pink cabinetry (no text or symbols)

CC + SU

Illustration of a baby stroller with pink cabinetry and wheels (no text or symbols)

Illustration of a baby stroller with pink cabinetry and front-mounted canopy (no text or symbols)

Illustration of a baby stroller with pink fabric and white body, no text or symbols present

Illustration of a pink baby stroller with wheels and seat, no text or symbols present

Illustration of a baby stroller with pink canopy and white frame (no text or symbols)

Illustration of a pink baby stroller with wheels and a backrest, no text or symbols present

Illustration of a baby stroller with pink fabric and wheels, no text or symbols present

CS + SU

Illustration showing three stages of a baby stroller with pink floral accessories and a numbered step indicator.

Illustration showing three stages of a baby stroller with pink fabric and a checkmark indicating the step 4.

Illustration showing three stages of a baby stroller with pink floral accessories and numbered instructions.

10 ✓ ×

RP + CS / CC / SU

Illustration of a baby stroller with a child silhouette, no text or symbols present

Illustration of a child pushing a baby stroller (no text or symbols)

Illustration of a baby stroller with a pink canopy and walking figure (no text or symbols)

Illustration of a child pushing a baby stroller (no text or symbols)

Illustration of a child pushing a stroller with a pink flower, no text or symbols present

Illustration of a baby stroller with a pink background (no text or symbols)

Illustration of a child pushing a stroller next to a pink baby stroller (no text or symbols)

Illustration of a child pushing a stroller with a pink umbrella, no text or symbols present

Illustration of a baby stroller with a child silhouette and directional indicators (green check, red X) for visual inspection.

Illustration of a child pushing a stroller next to a pink flower, with number 10 in the corner (no text or symbols on the diagram itself)

Safety warning symbol with triangular warning triangle and pictogram of a person pushing a stroller, accompanied by a red 'X' indicating no crossing.

CS + CC

Illustration of a baby stroller with pink plastic casing and wheels, no text or symbols present

Illustration of a baby stroller with pink floral head and baby seat, no text or symbols present

Illustration of a baby stroller with pink floral design and a pink fabric tray (no text or symbols)

!

Illustration of a pink baby stroller with a seatbelt, no text or symbols present

X

Blue circular sign with white pictogram of a baby figure (no text or symbols)

max 25 kg

Right by your Side

Landline: Go freephone fabulous on 0800 014 9252*

Mobile: Ring 0333 323 1729

International: [phone]

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth,

Bolton, Lancs, BL4 7EP, England.

* calls from BT landlines are free but calls from mobiles

and other networks may vary.

All the design and trademarks contained herein are the property of

Cosatto Limited. No part of this document may be reproduced without

the permission of Cosatto Limited.

www.cosatto.com
