IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE Important safety Information.

General:

• This vehicle is intended for children from birth up to a maximum of 25kg or 4 years whichever comes first.
- WARNING: Never leave your child unattended.
- WARNING: Ensure that all the locking devices are engaged before use.
- WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
- WARNING: Do not let your child play with this product.
- WARNING: This product is not suitable for running or skating.
- WARNING: Check that the seat unit, carrycot or child car seat attachment devices are correctly engaged before use.
- WARNING: Always use the bumper bar with the fabric cover fitted (if specified).
- Do not use replacement parts or accessories other than those approved by Cosatto.
- A basket is provided for the carriage of 8 kg of goods, evenly distributed.
- Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.
- Do not use a platform with this product as it may render the product unsafe.
• Always apply the brake when placing or removing a child from vehicle.
- Never carry a second child on the product.
• This product complies with BS EN 1888-2:2018 + A1:2022.

Carrycot:

• This product is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg.
• Must only be used in lie flat position.
• WARNING: This product is only suitable for a child who cannot sit up unaided.
• WARNING: Only use on a firm, horizontal level, flat and dry surface.
• WARNING: Do not let other children play unattended near the carrycot.
• WARNING: Do not use if any part is broken, torn or missing.
• The carrycot is only compatible with the "Home & Travel 3-in-1 Adjustable Stand" stand.
• Do not place the carrycot near an open fire or other source of strong heat.
• Carry handle and the base of the carrycot should be inspected regularly for signs of damage and wear.
• Prior to carrying or lifting, make sure that the carrycot carry handle is locked into position.
• The head of the child should never be lower than the body of the child.
• Be careful not to hit the baby, e.g. when putting on floor, going through doors.
• Mattress included.
• No additional mattress shall be added.

• Do not leave anything in the carrycot that could pose a risk of suffocation, e.g. non-rigid toys, pillows.

• Do not place the carrycot close to another product, which could present a danger of strangulation, e.g. strings, blind/ curtain cords.

• Overheating can endanger the life of your child! Take into account the ambient temperature and the child's clothing and ensure that the child is not too cold or too warm.
• Mesh ventilation widows in hoods and carrycots are intended for use in warm conditions only. Always keep your baby away from sources of heat and drafts.
  In order to provide the best sun protection it is recommended that mesh ventilation widows in hoods and carrycots are kept closed when in strong and direct sunlight. Always note the position of the sun and keep your baby in the shade.
• Ask a health professional for advice on safe sleeping
  • This carrycot complies to BS EN 1466:2023.

Pram mode:

- The pram mode is achieved by attaching the carrycot to the chassis.

Pushchair mode:

• Pushchair mode is achieved using the seat unit attached to the chassis. In this mode:
  This product is suitable for children from 6 months up to a maximum user weight of 25 kg.

- WARNING: This seat unit is not suitable for children under 6 months.

- WARNING: Always use the restraint system.

- WARNING: Always use the crotch strap in combination with the waist belt.

- Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided on the existing harness for the attachment of a separate safety harness approved to BS EN 13210 should this be required.

Car seat mode:

- This combination is suitable for children from birth up to a maximum user weight of 13kg.

- For use as a travel system, the chassis is only compatible with the child car seat approved by Cosatto and respective child car seat adaptor (All sold separately). In this mode:

This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in suitable cot, bed or carrycot.

Travel companion

• Remove all packaging materials before giving the travel companion to child.
• Remove the travel companion from your child before putting them to sleep.

Ultimate changing bag

- The maximum recommended loading for this bag is 3kg. The bag attachment straps are for use with the WOW 3 only. Attachment to other pushchairs is not recommended.

- WARNING: To avoid risk of strangulation from loops, keep the bag straps out of reach of children.

Essential cross baby bag:

- The maximum recommended loading for this bag is 3kg. The bag attachment straps are for use with the WOW 3 only. Attachment to other pushchairs is not recommended.

- WARNING: To avoid risk of strangulation from loops, keep the bag straps out of reach of children.

"Ultimate Out and About" Organiser:

• The maximum recommended loading for the organiser is 3kg. The organiser attachment straps are for use with the "Wow 3" only. Attachment to other pushchairs is not recommended.
• WARNING: To avoid risk of tipping, when used in conjunction with the "Ultimate Changing Bag", the organiser can hold a maximum of 1kg only.

"COSATTO Supersoft" Knitted Blanket:

- IMPORTANT! It is not recommended to add additional blankets when using the footmuff. Babies can overheat easily. Always dress your baby in an appropriate amount of clothing and check their temperature regularly.

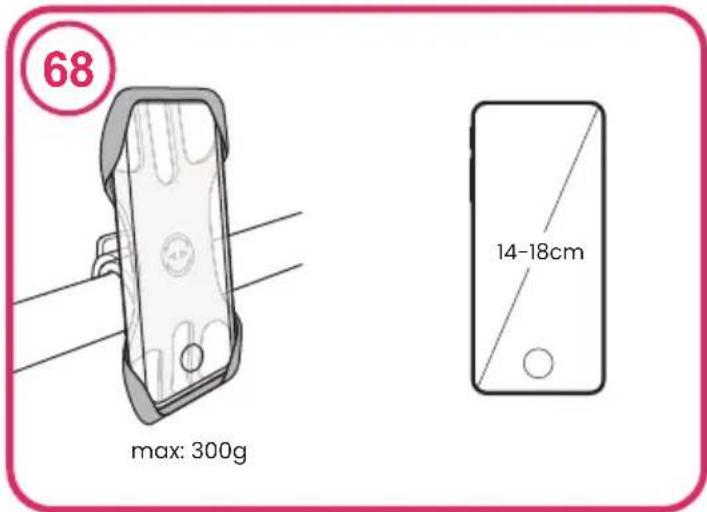

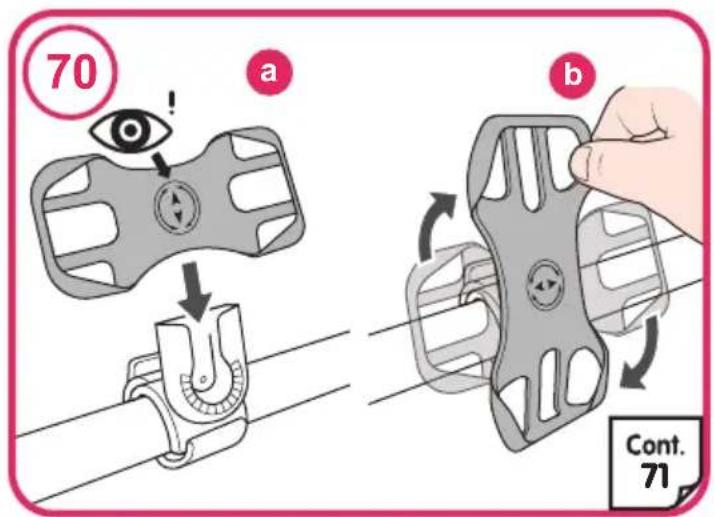

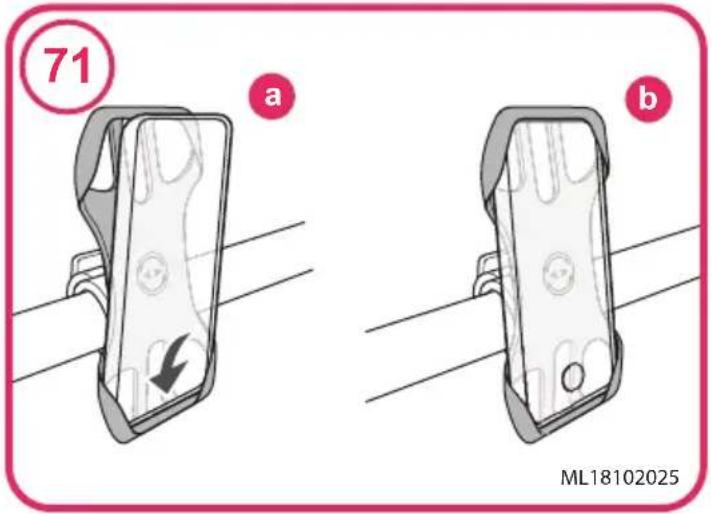

Smartphone Holder:

• WARNING: This is not a toy. For adult use only. Keep out of the reach of children.
  • To protect your child from injury, do not allow them to touch or play with the smartphone holder.
• WARNING: This smartphone holder is intended for use on the handlebar only. Do not use on the bumper bar.
• WARNING: The adult should pay attention to their surroundings and supervise their child and the pram/ pushchair at all times.
• Do not use your smartphone whilst you are pushing the pram/ pushchair.
• Remove the smartphone holder when folding the product.
• The adult is responsible for the safety of their smartphone, including any damage whilst using the smartphone holder.
• Always remove the smartphone holder when folding the pram/ pushchair and changing the handlebar direction.
• Do not use the smartphone holder if any part is broken.
• Do not place any other items on the smartphone holder other than a smartphone of recommended dimensions.
• Do not hang anything from the smartphone holder such as bags, as this will affect the stability of your pram/ pushchair.

Care & Maintenance:

• Your travel system has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.
• Storage - Always store your travel system dry. Storing a damp travel system will encourage mildew to form, so always wipe away any moisture with a soft cloth and allow to dry thoroughly before storing. Never leave in sunlight for prolonged periods - some fabrics may fade.
• Cleaning - Refer to wash care labels on soft goods for cleaning instructions. Plastic and metal parts may be sponged clean with warm water and a mild detergent. Never clean with abrasive, ammonia based, bleach based or spirit type cleaner.
• Wear & Tear - Continual impact can cause damage. The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs. Tyres will wear with use and wheel units should be replaced if necessary. If your child wears hard shoes these might damage the soft fabric.
• Maintenance - Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times and minimum maintenance should be required. However a regular light application of a spray lubricant e.g. silicone (do not use oil or grease) will extend the life of your travel system and make opening and folding easier. Your travel system should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.

Visual language Key:

!XX	Refer to warning XX
	Correct action
	Incorrect action
CLICK!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
Cont.XX	Continue to step XX
	Repeat on other side

Part List:

P1: Chassis P11: Travel companion

P2: Rear wheel (x2) P12: Essential cross body bag

P3: Front wheel (x2) P13: Ultimate changing bag

P4: Carrycot mattress P14: Ultimate footmuff & head hugger

P5: Carrycot P15: Carrycot raincover

P6: Carrycot apron P16: Carrycot mosquito net

P7: Seat unit hood P17: Smartphone Holder

P8: Bumper bar with cover P18: "Ultimate Out and About" Organiser

P9: Seat unit P19: "COSATTO Supersoft" Knitted Blanket

P10: Seat unit raincover

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Seat unit S15: Carrycot

S2: Seat unit hood S16: Carrycot apron

S3: Chest pads (Set) S17: Seat unit raincover

S4: Bumper bar

S5*: Bumper bar cover (if specified)

S6: Harness

S7: Crotch pad

S8: Front wheel

S9: Basket

S10: Rear wheel

S11: Autolock

S12: Carrycot mattress cover

S13: Carrycot mattress

S14: Carrycot liner

S18: Travel companion

S19: Ultimate footmuff

S20: Essential cross body bag

S21: Ultimate changing bag

S22: Ultimate footmuff head hugger

S23: Carrycot raincover

S24: Carrycot mosquito net

S25: Smartphone Holder

S26: "Ultimate Out and About" Organiser

S27: "COSATTO Supersoft" Knitted Blanket

Fitting & Operation Information:

Please refer to the instruction diagrams (P. 61 - 75):

Chassis 1- Opening:

Release the autolock (a) and lift the handle upwards until the chassis locks into position (b).

Check the chassis has locked in place.

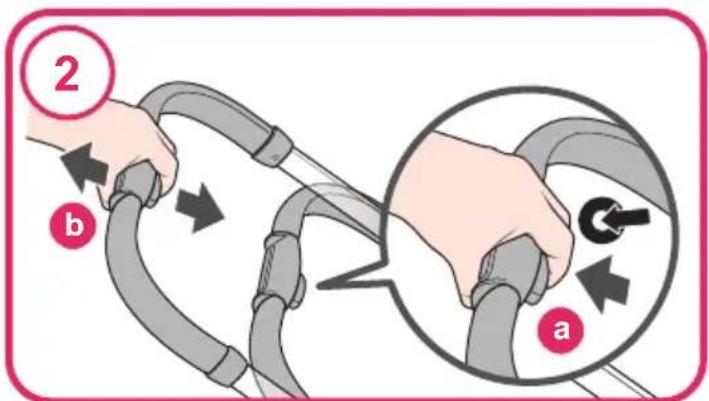

2- Adjusting handle position:

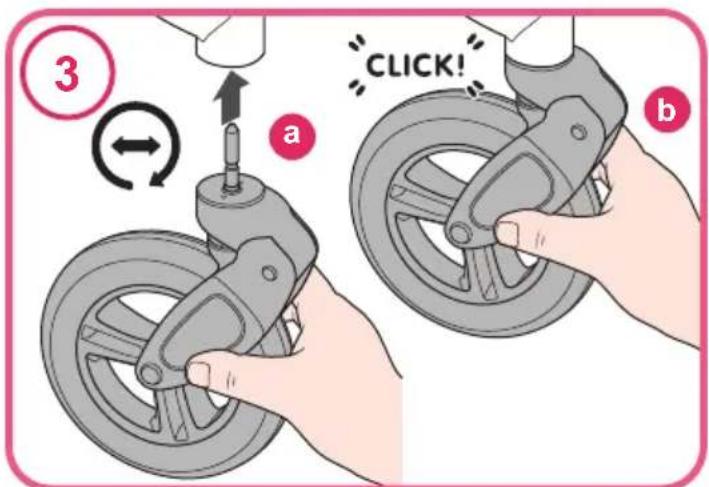

Front wheel 3- Fitting:

4- Removing:

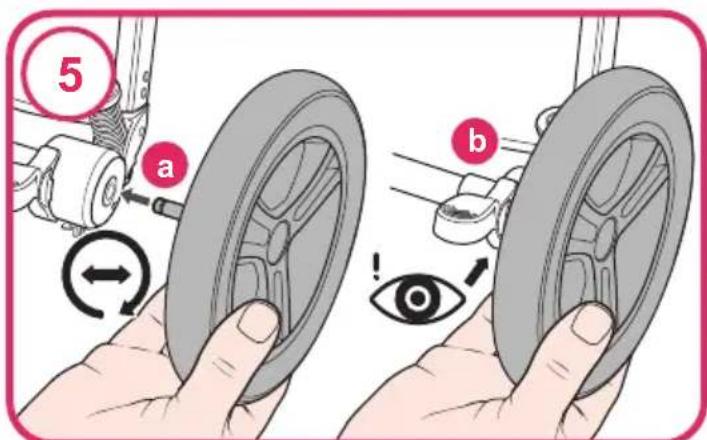

Rear wheel 5- Fitting:

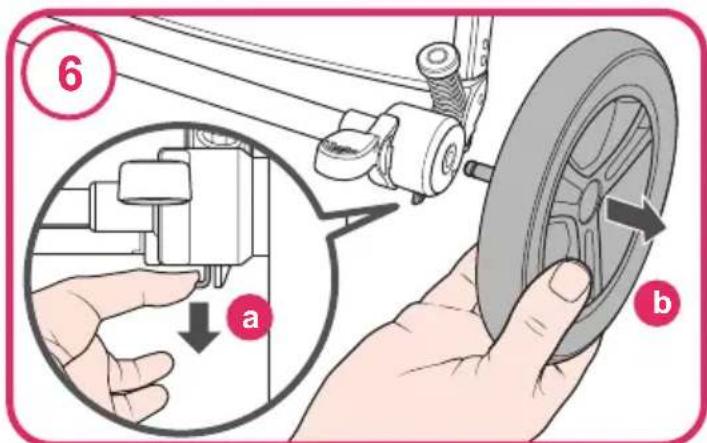

6- Removing:

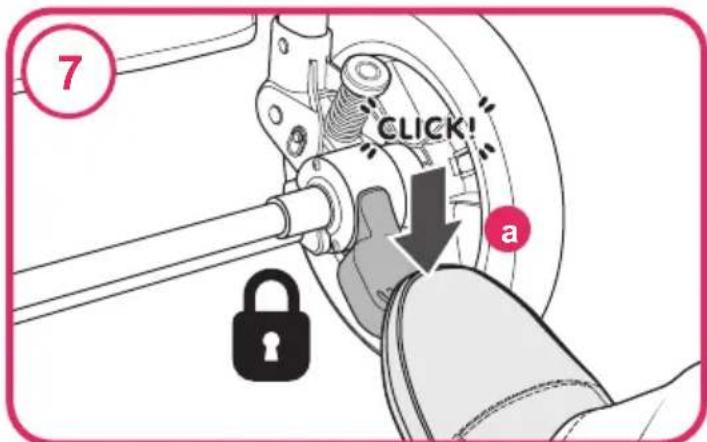

Brake 7- Applying:

8- Releasing:

Front wheel swivel lock

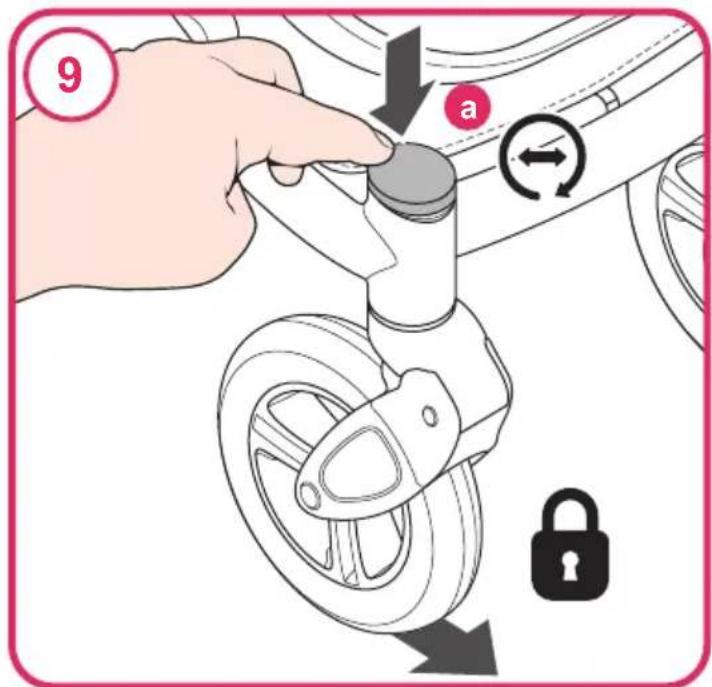

9- Applying:

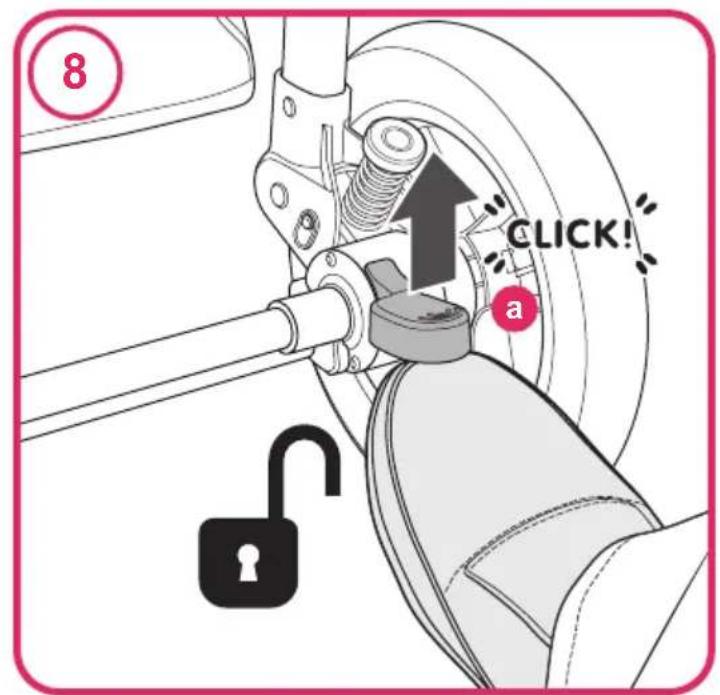

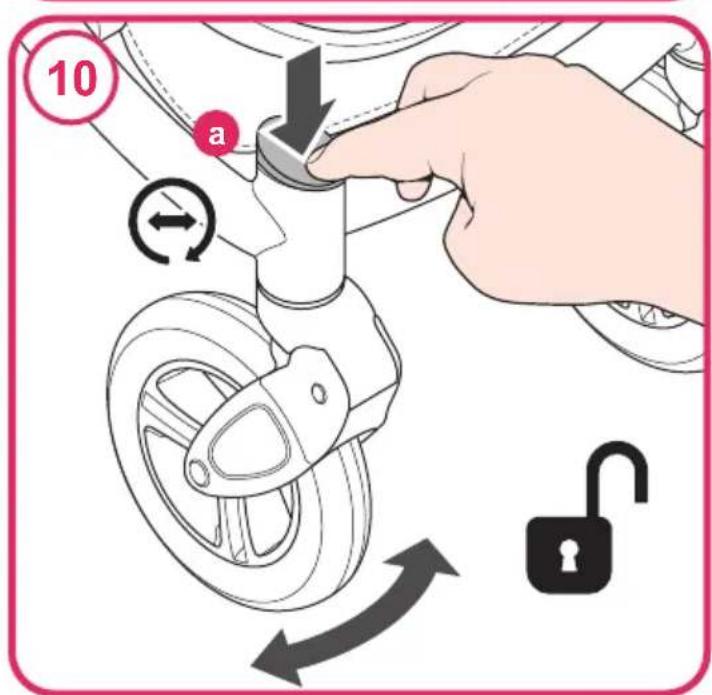

10- Releasing:

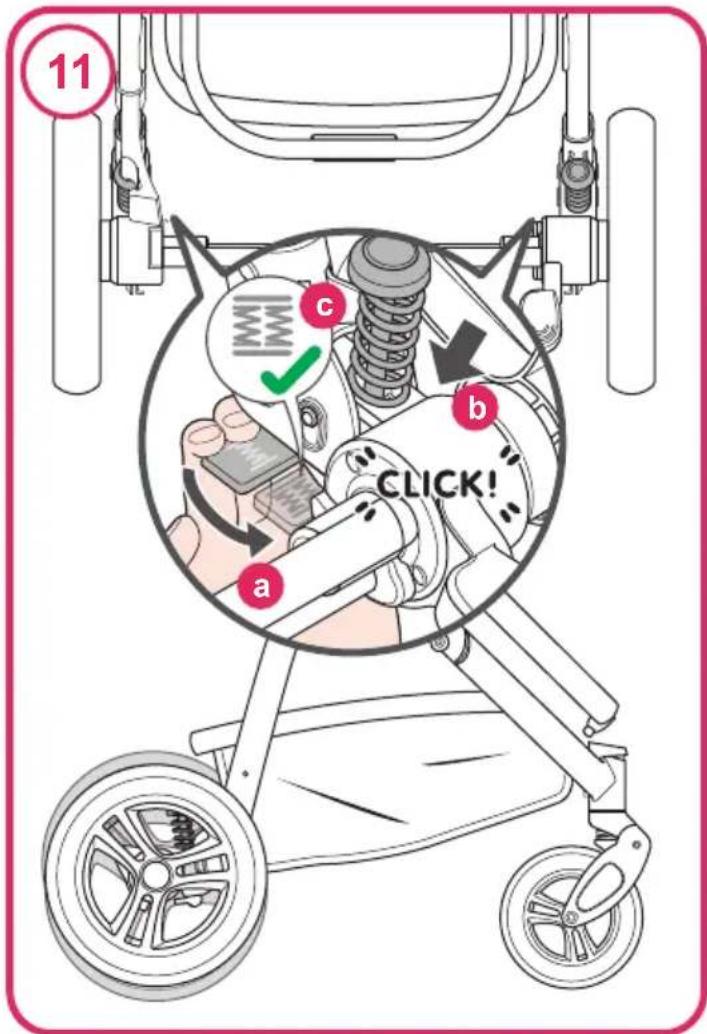

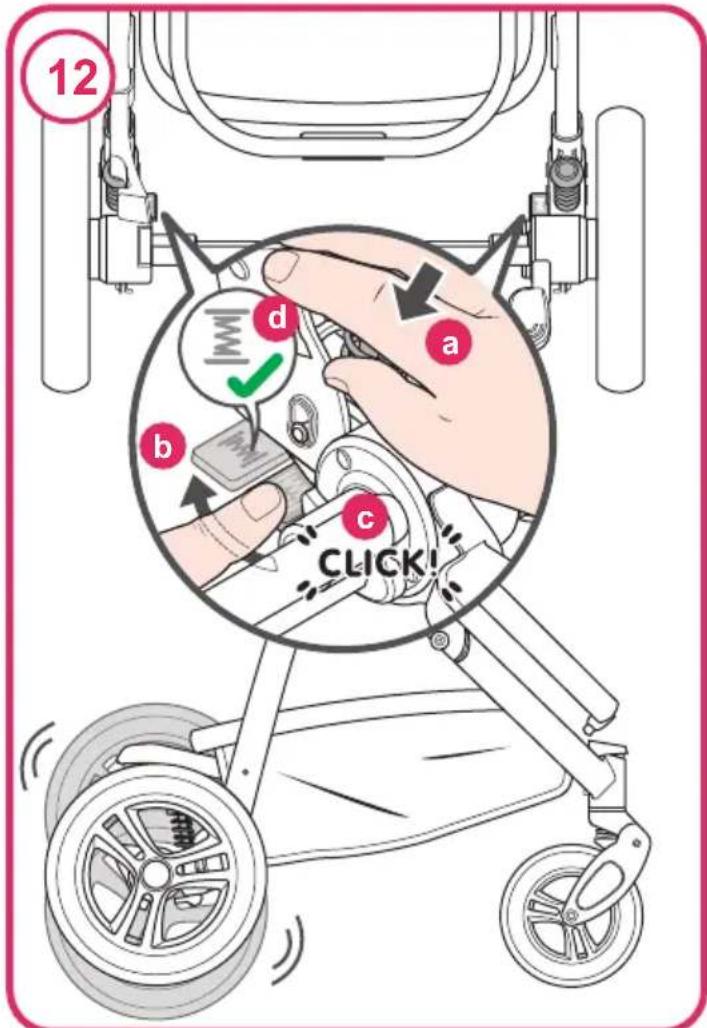

Rear Suspension 11- Firm:

12- Soft:

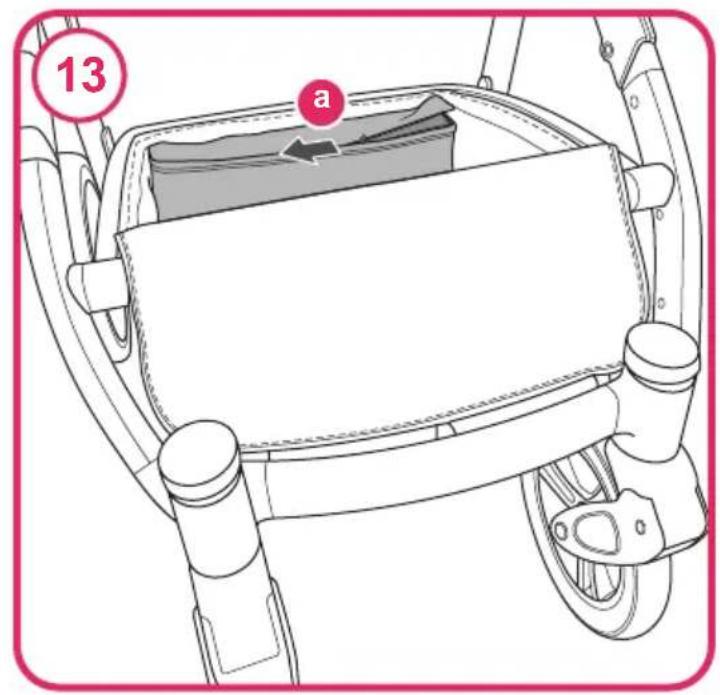

Basket 13- Accessing rear compartment:

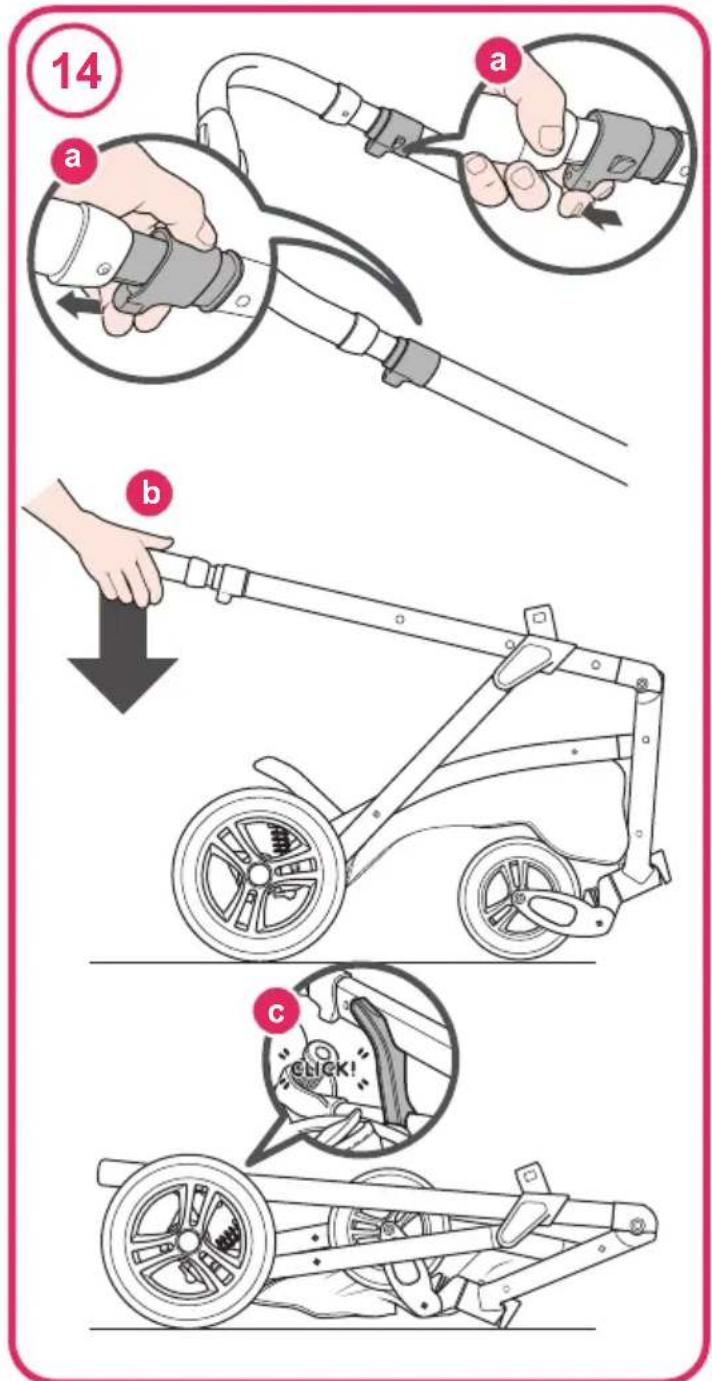

Chassis 14- Closing:

NOTE: The chassis cannot be closed in pram mode or car seat mode.

While pulling both secondary levers (a) back, Press down on the handle (b) until the autolock retains the chassis in the folded position (c).

Adjust the handle to the lowest position (See Step 2) for the most compact fold.

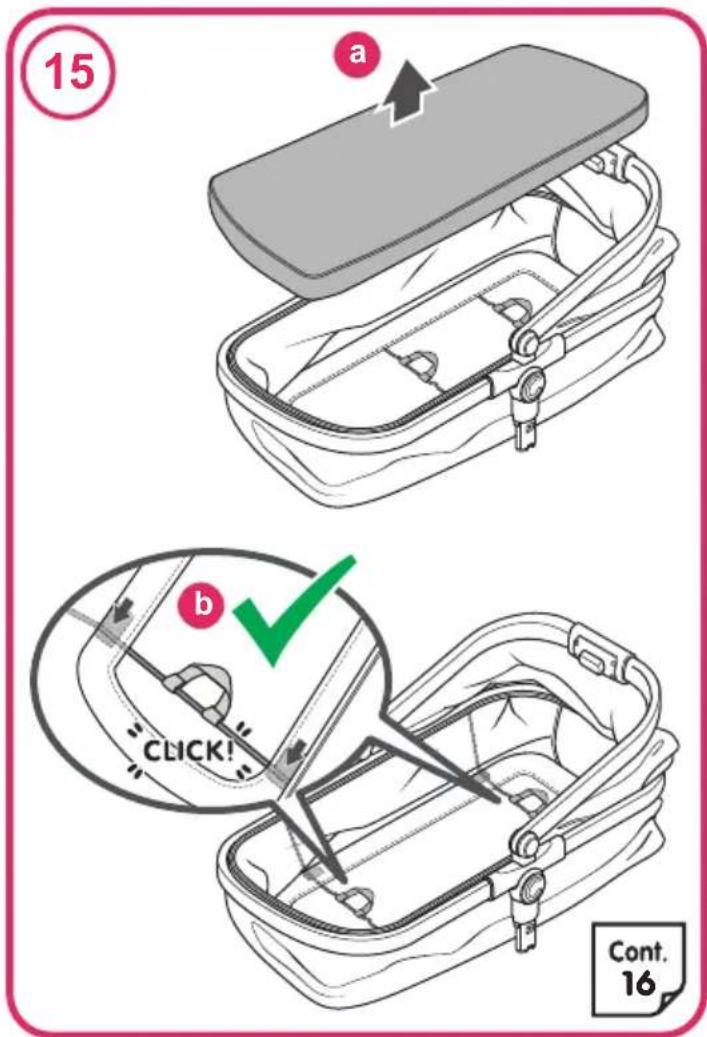

Carrycot 15- Preparation:

Remove mattress from carrycot (a).

Unfold both frame bars until they locked into positions (b).

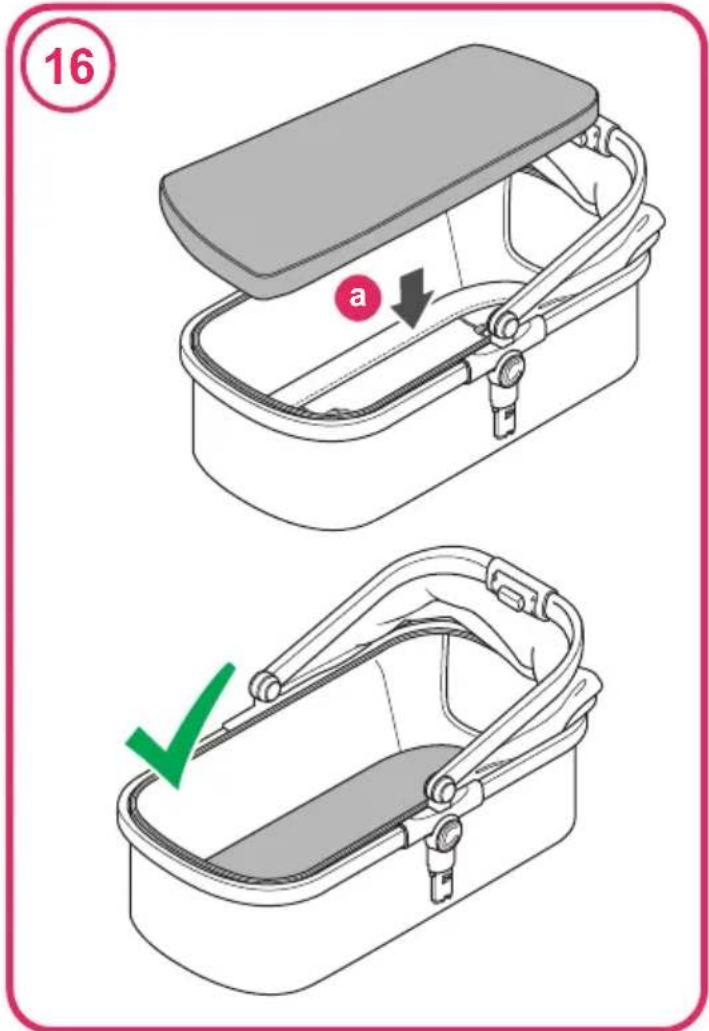

16- Refit the mattress over the liner in the carrycot (a).

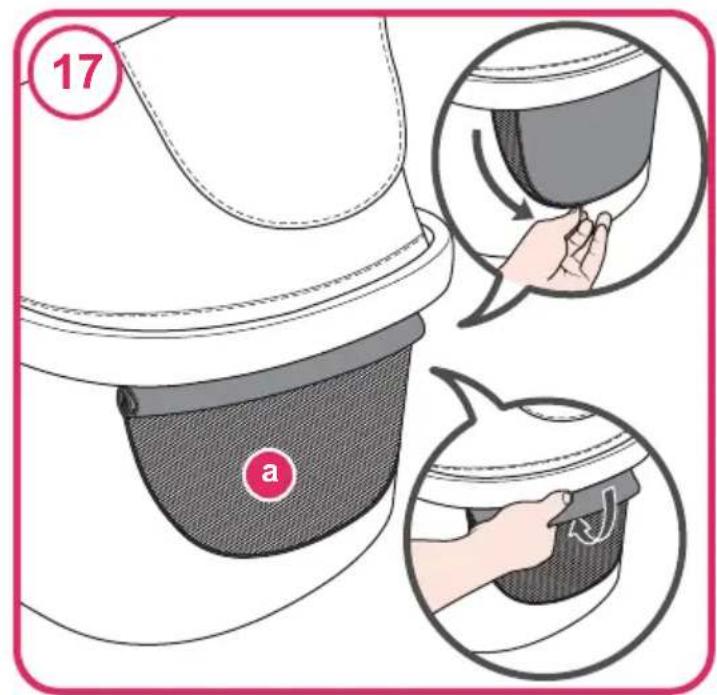

17- Using the ventilation flap:

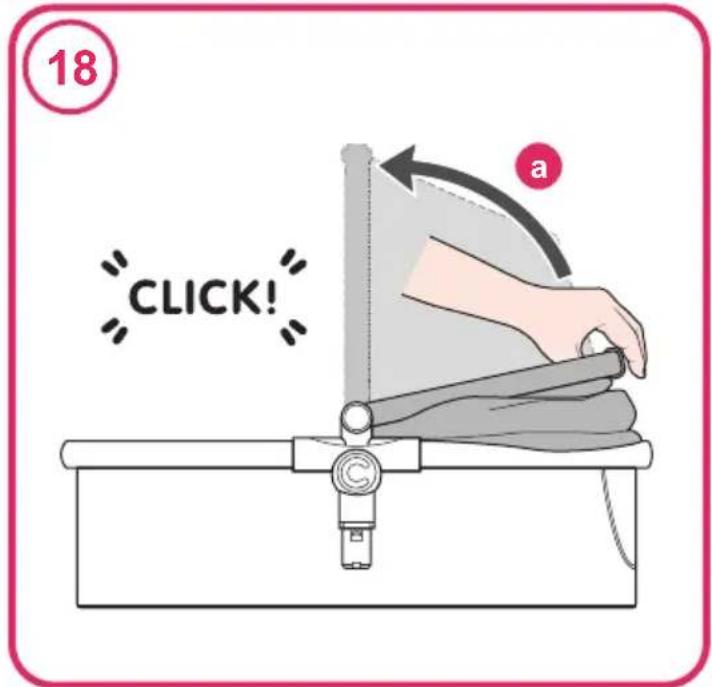

Carrycot hood 18- Opening:

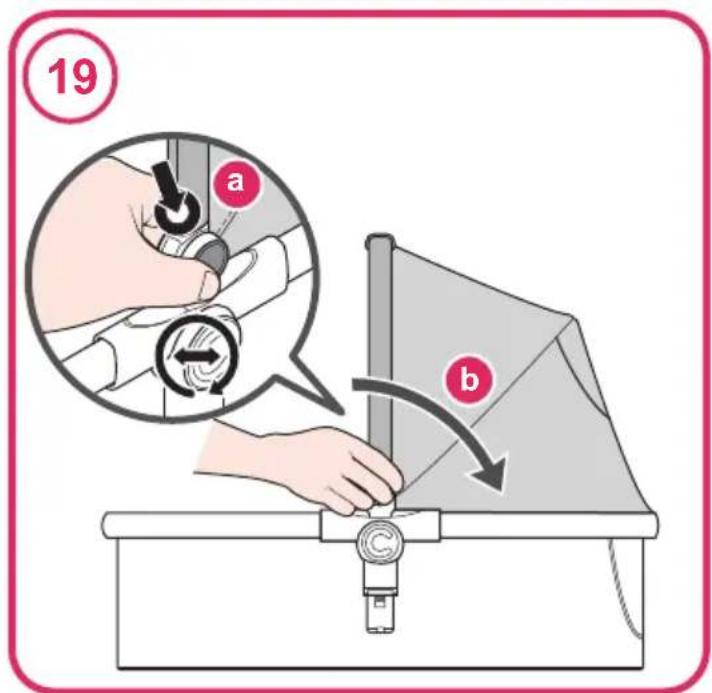

19- Closing:

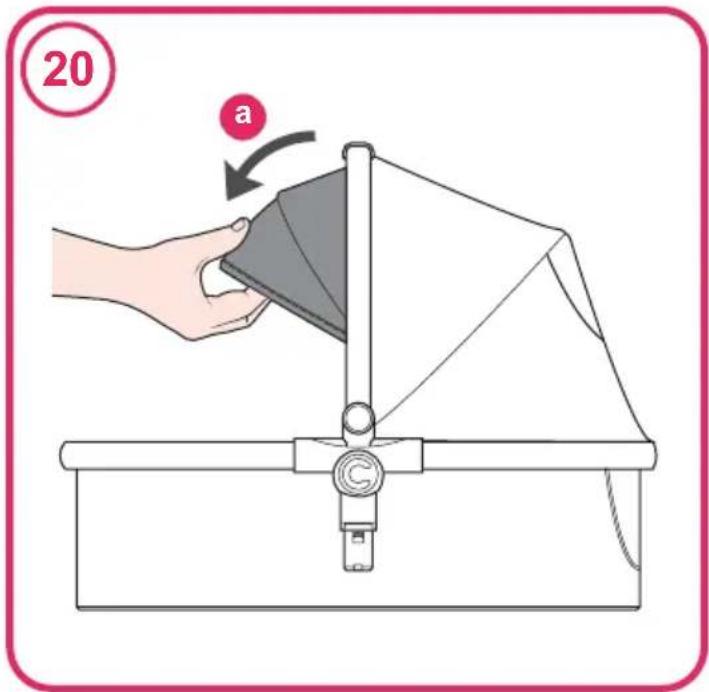

20- Using the hood sun visor:

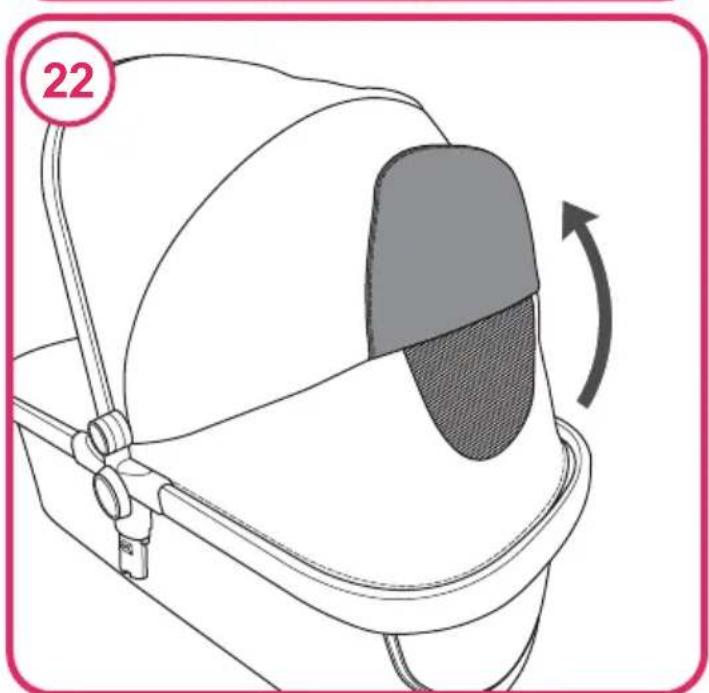

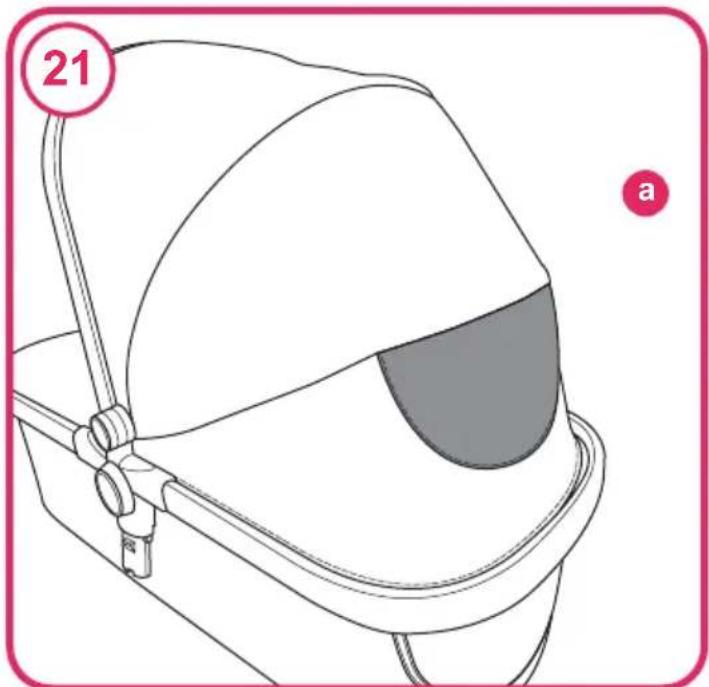

21- Opening the hood viewing window:

22- Closing the hood viewing window:

Carrycot

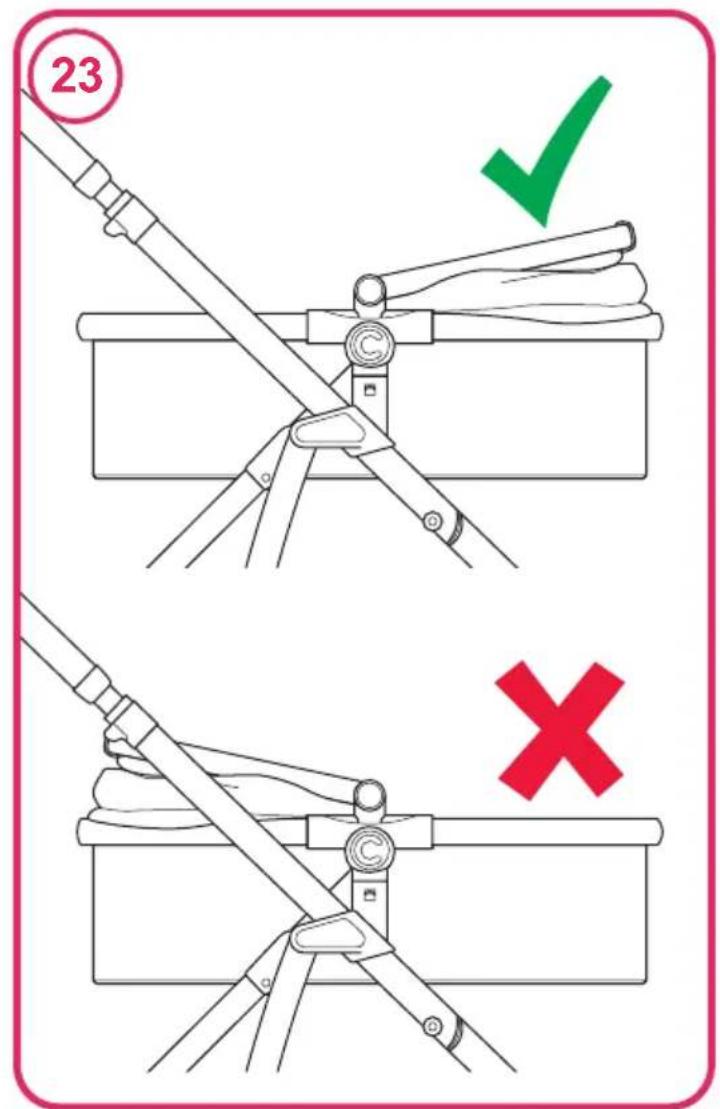

23- Note: The carrycot can only be fitted rearward facing as shown in illustration.

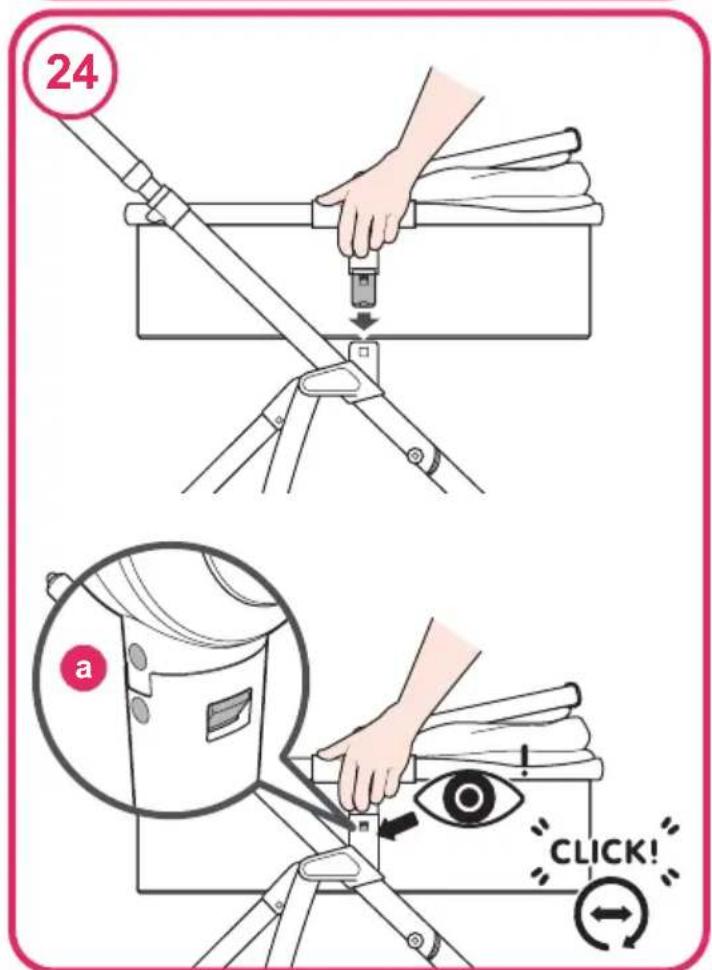

24- Fitting:

Dots are marked on the chassis mounts and carrycot mounts (a). These should be on the same side and aligned if fitted correctly.

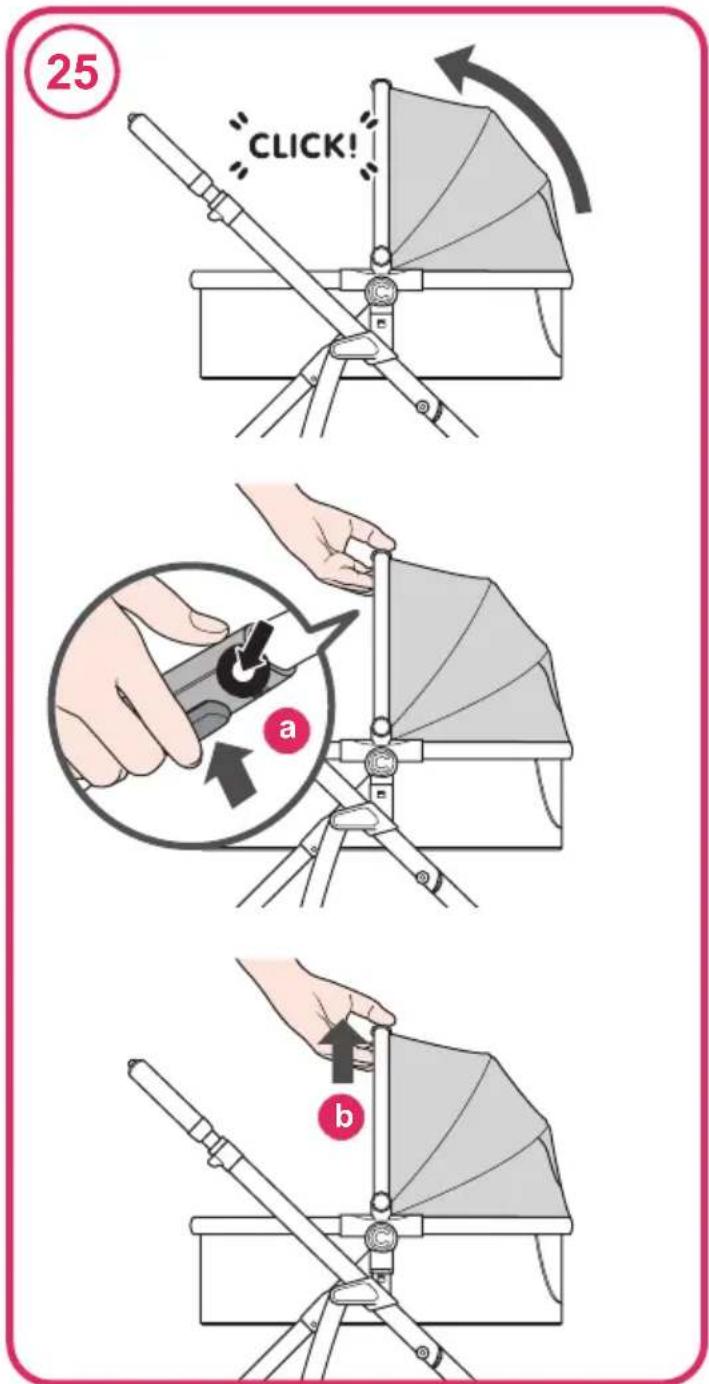

25- Removing:

Open the carrycot hood (See Step 18).

Press the release button under the hood frame (a).

Lift the carrycot off the chassis (b).

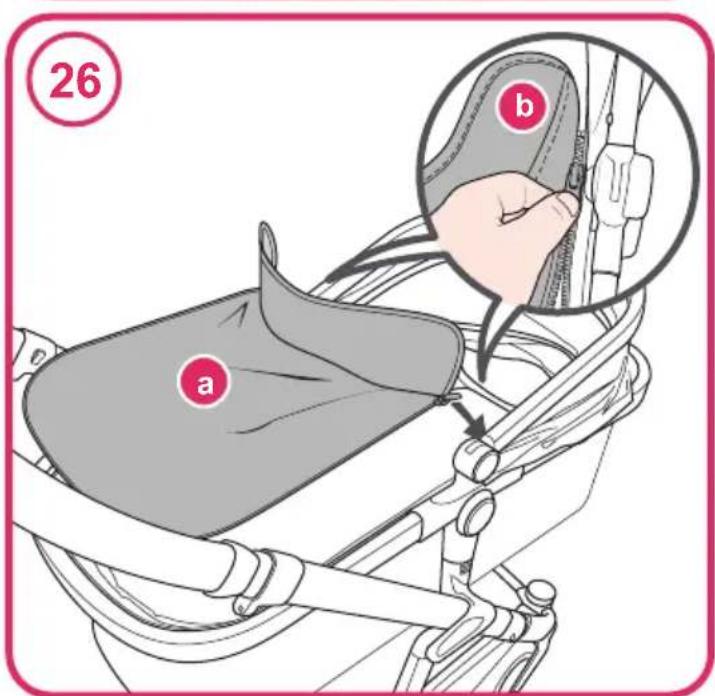

Carrycot apron 26- Fitting:

Removing is a reversal of this procedure.

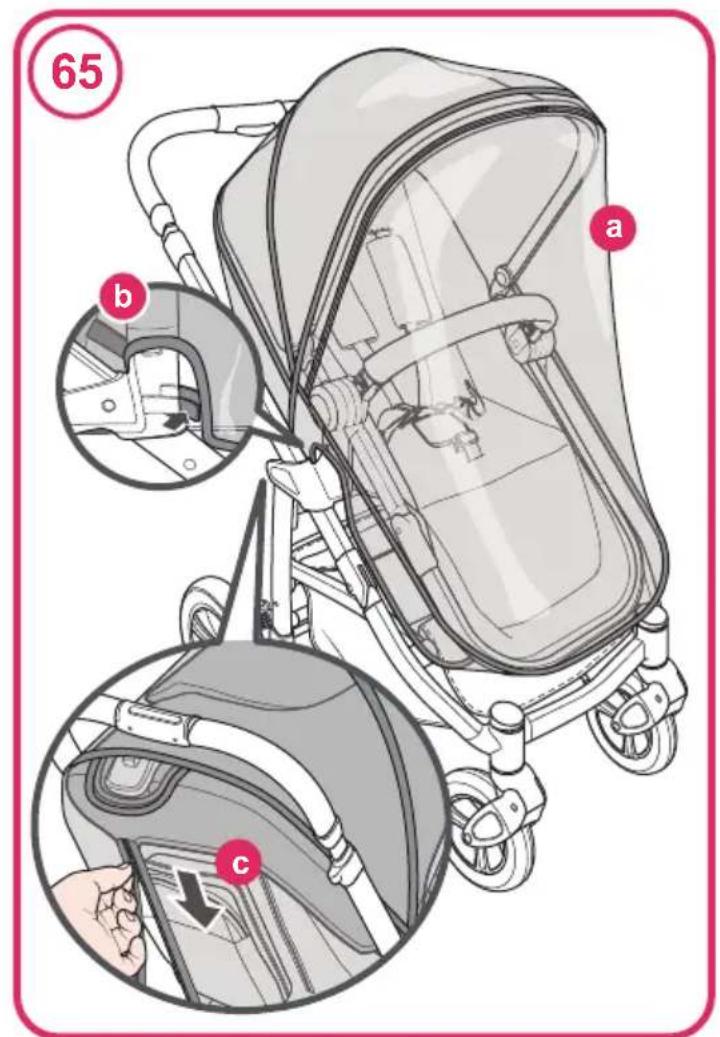

Carrycot mosquito net

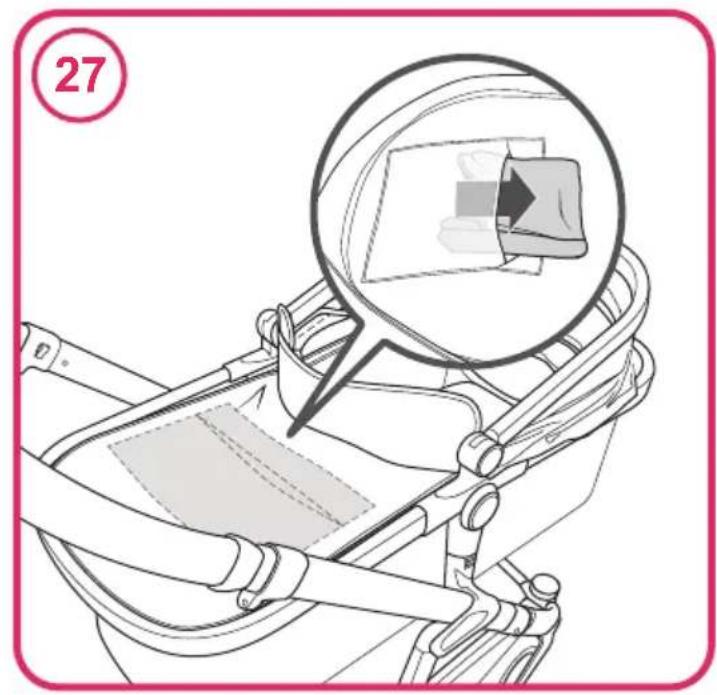

27- Access/storage:

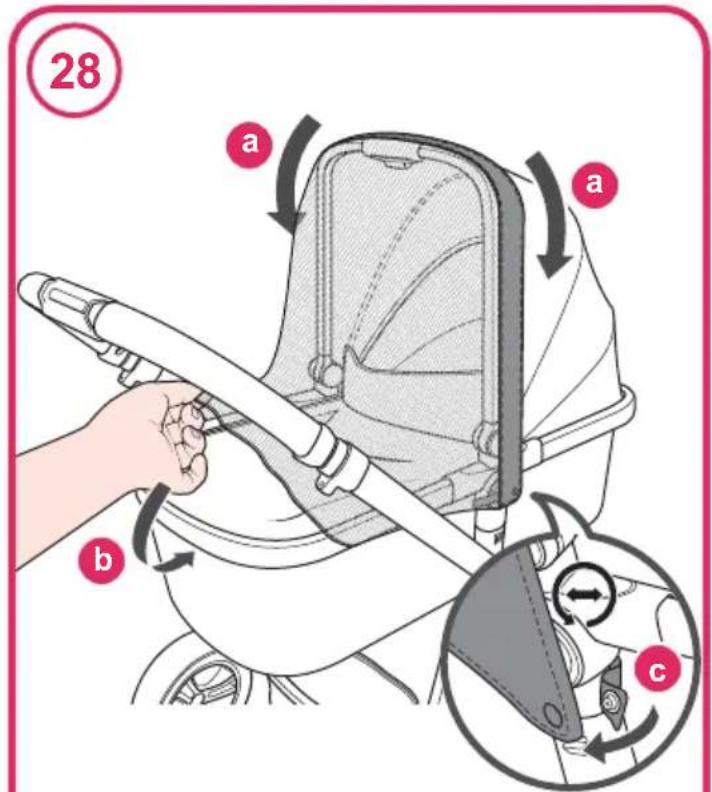

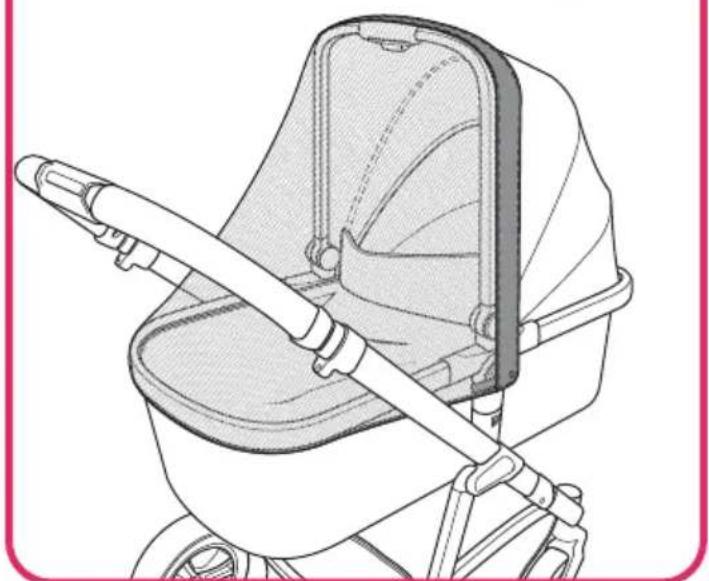

28- Fitting:

Removing is a reversal of this procedure.

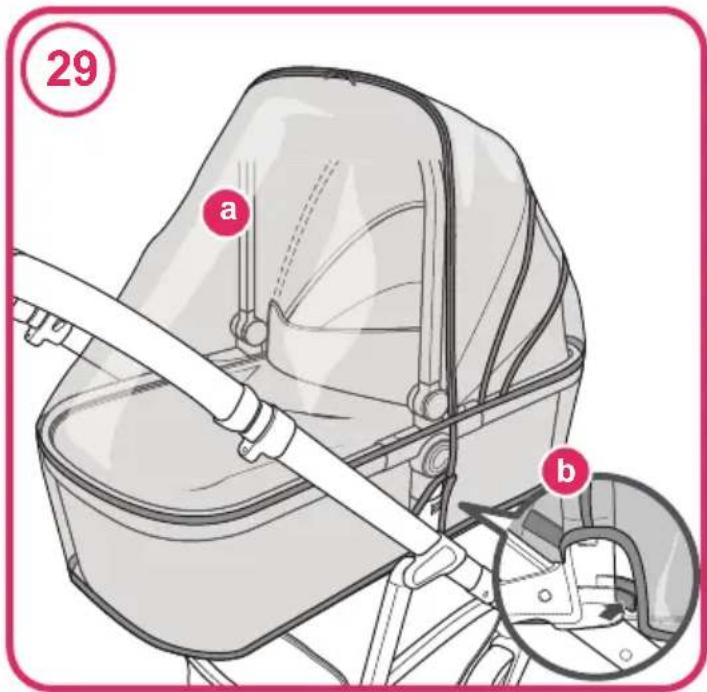

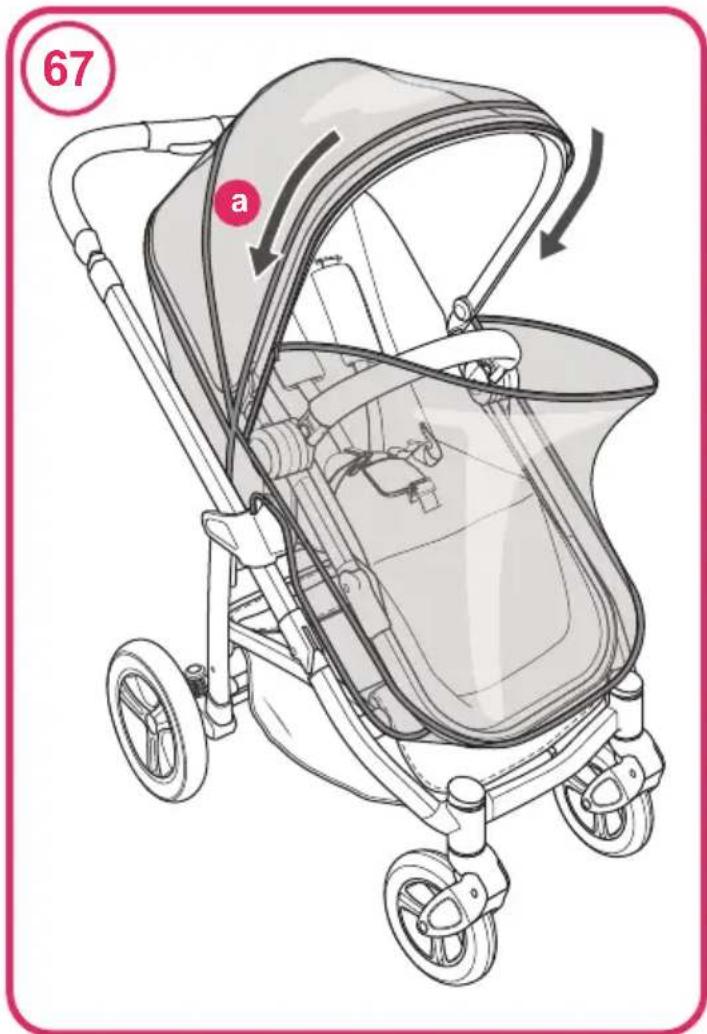

Carrycot raincover 29- Fitting:

Removing is a reversal of this procedure.

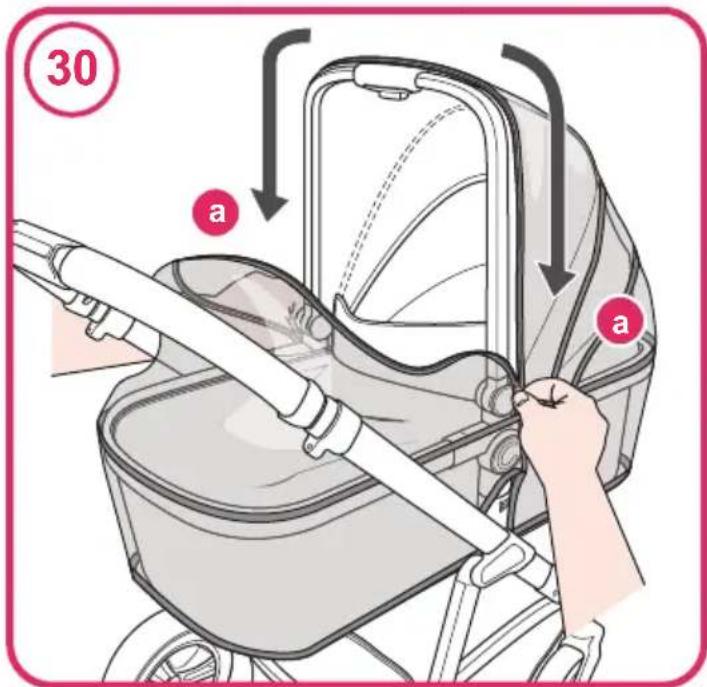

30- Using the access zip:

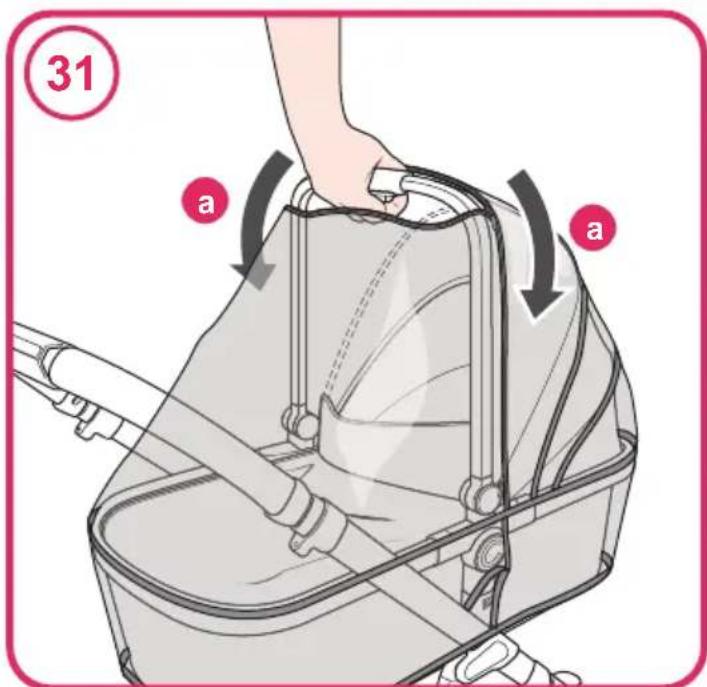

31- Accessing the handle:

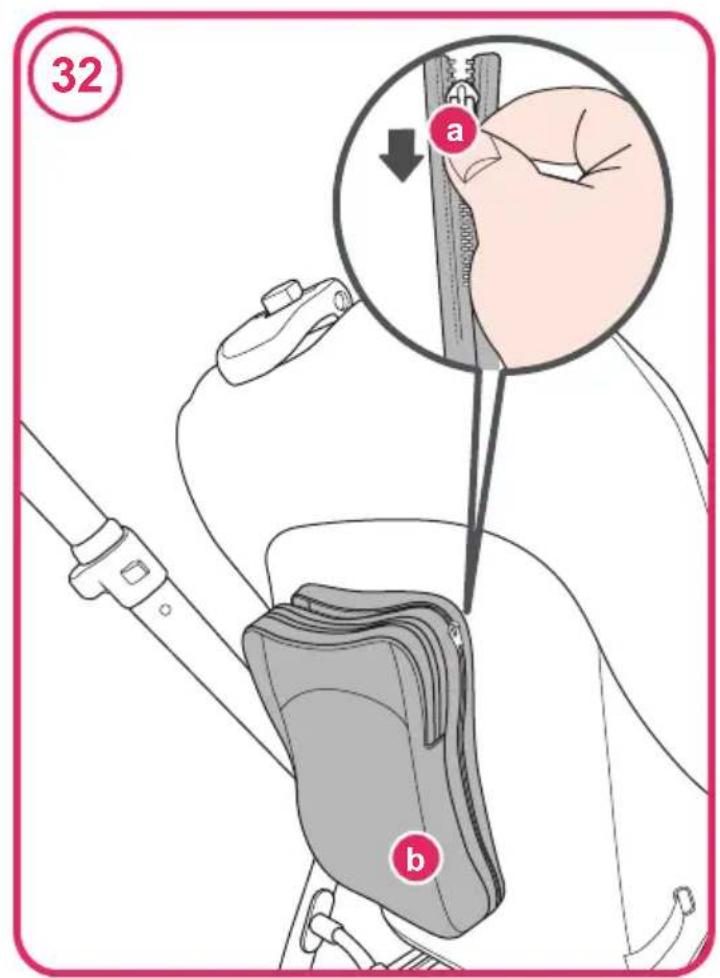

Essential cross body 32- Detaching the essential cross body bag:

Refitting is a reversal of this procedure.

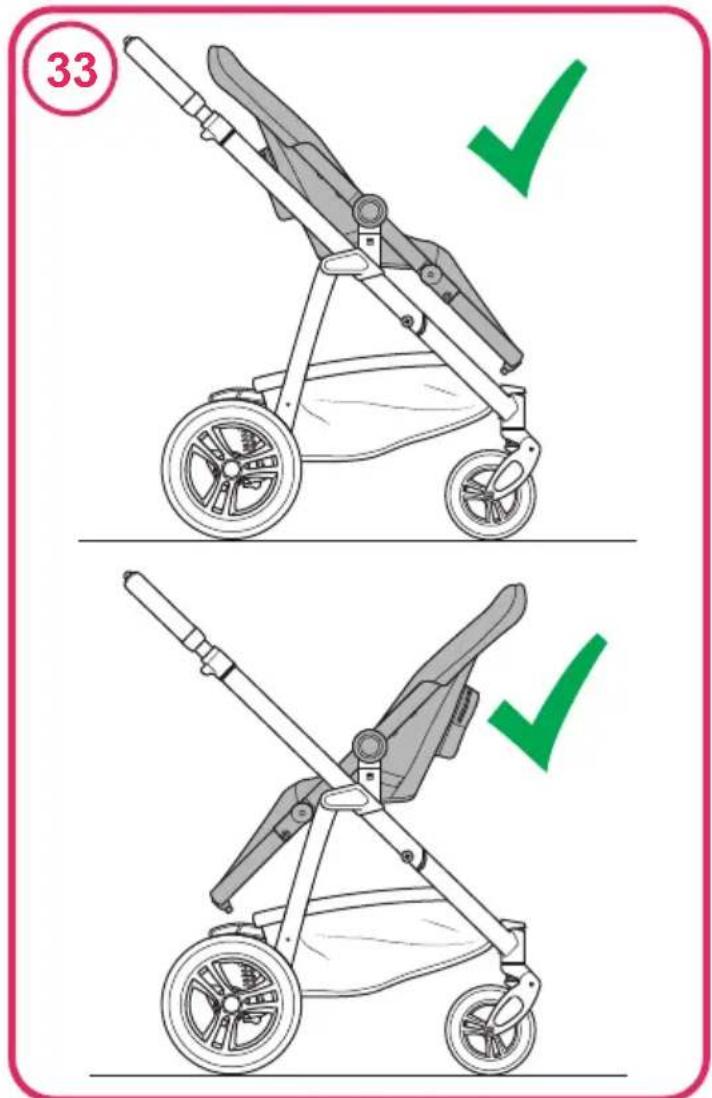

Seat unit 33- Note: The seat unit can be fitted forward or rearward facing.

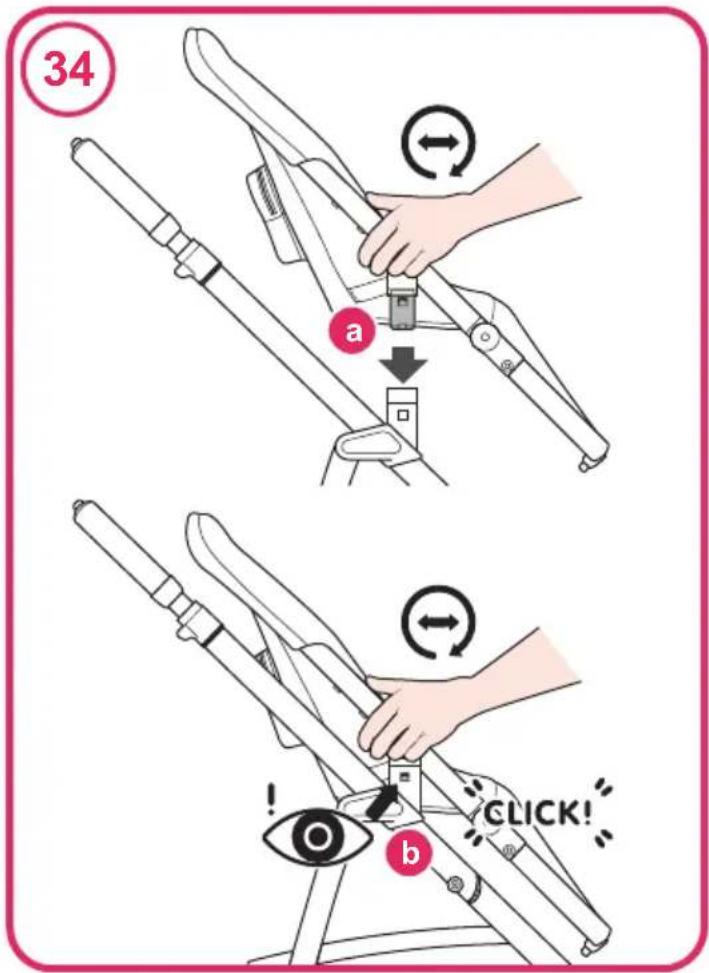

34- Fitting:

35- Removing:

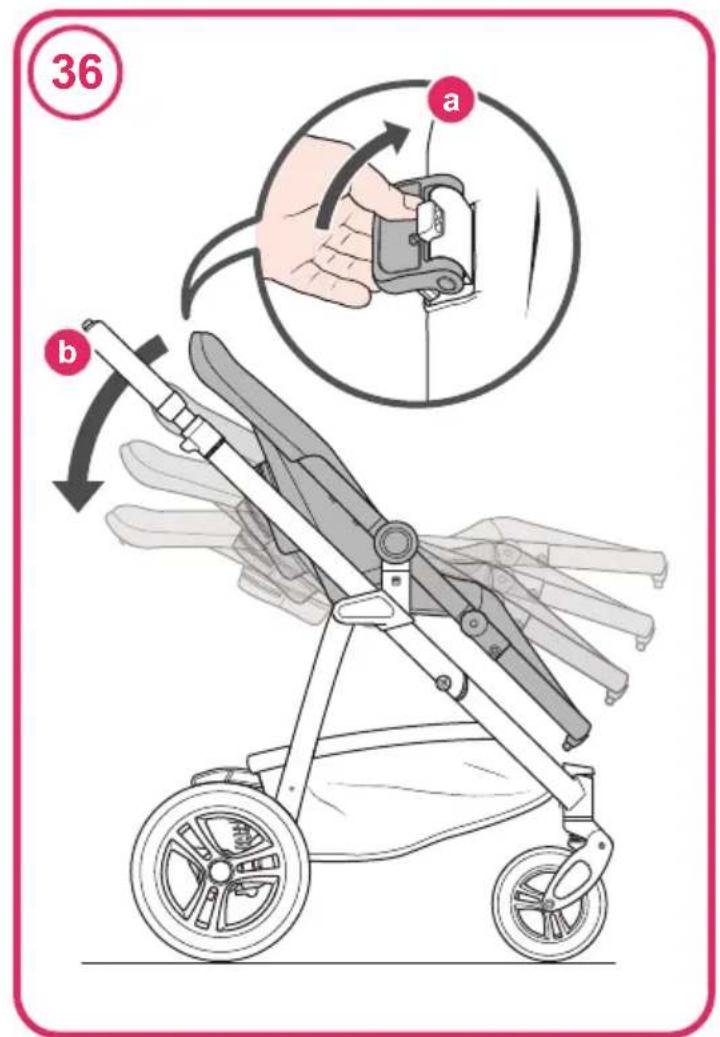

36- Adjusting the seat unit recline angle:

WARNING: Never adjust the seat unit with your child in the seat.

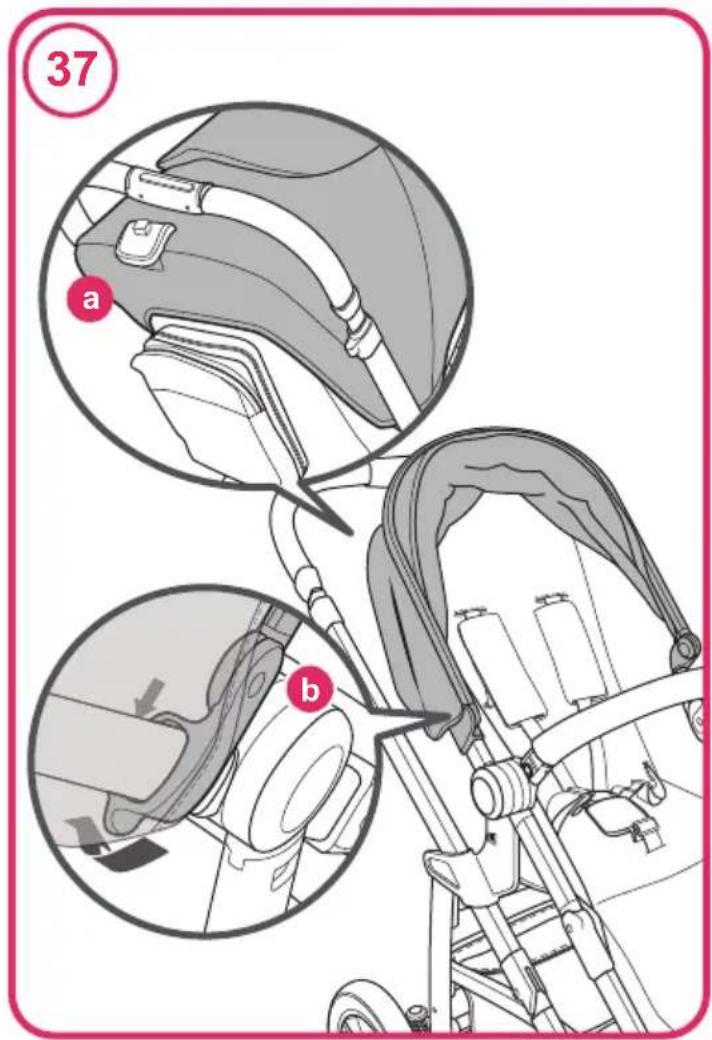

Seat unit hood 37- Fitting:

Removing is a reversal of this procedure.

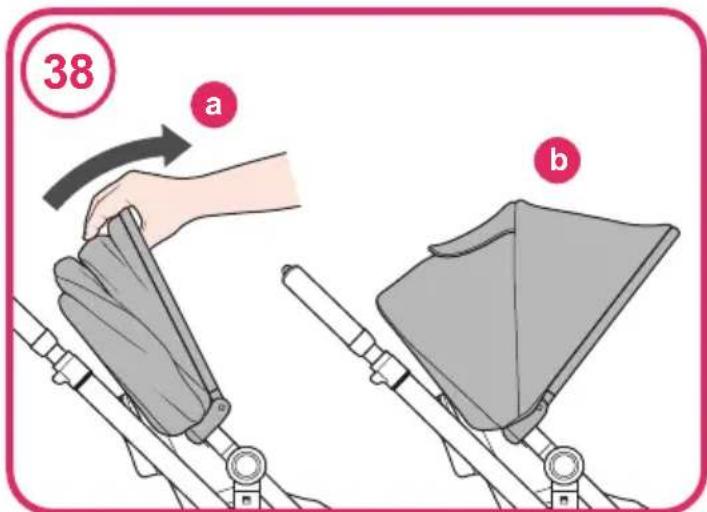

38- Opening:

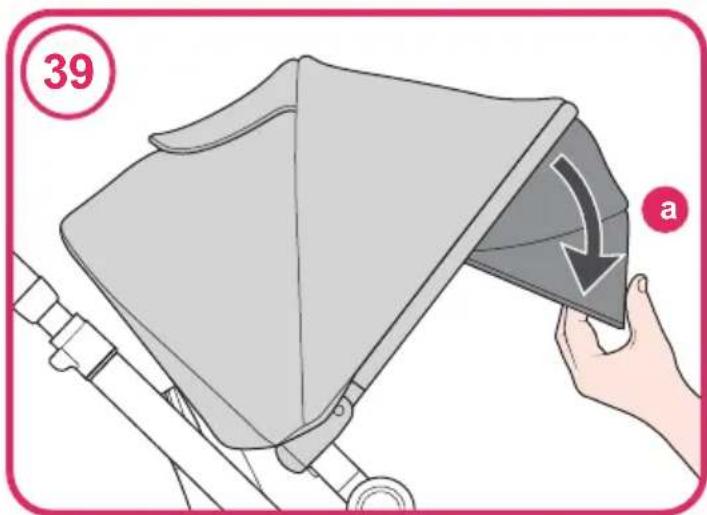

Sun visor 39- Opening:

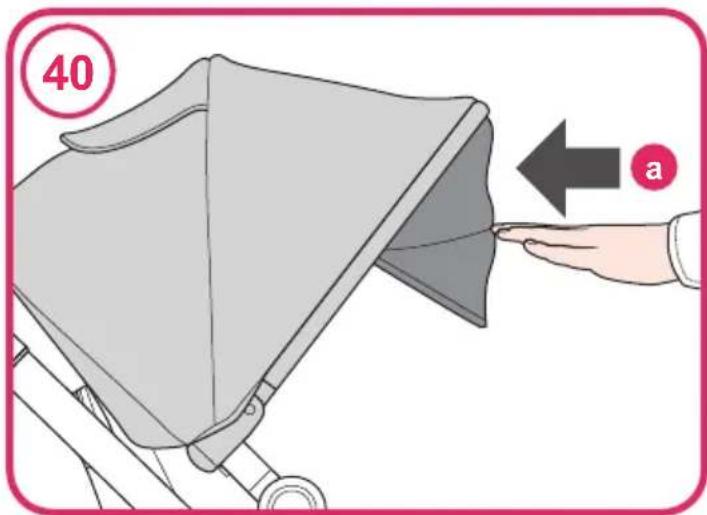

40- Closing:

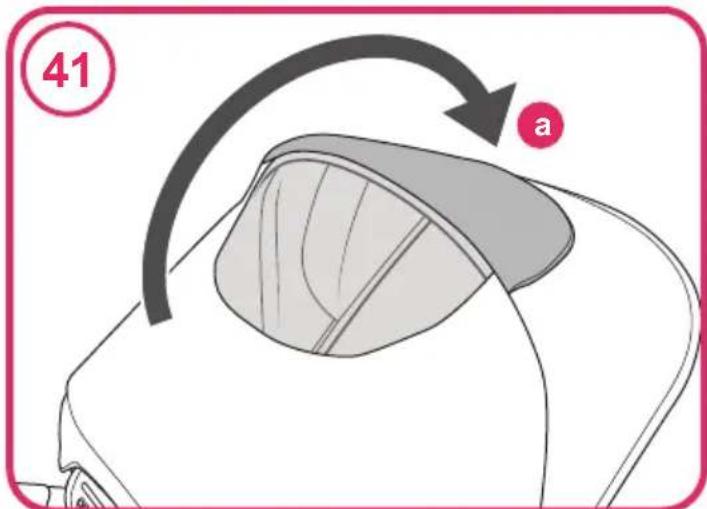

Viewing window 41- Opening:

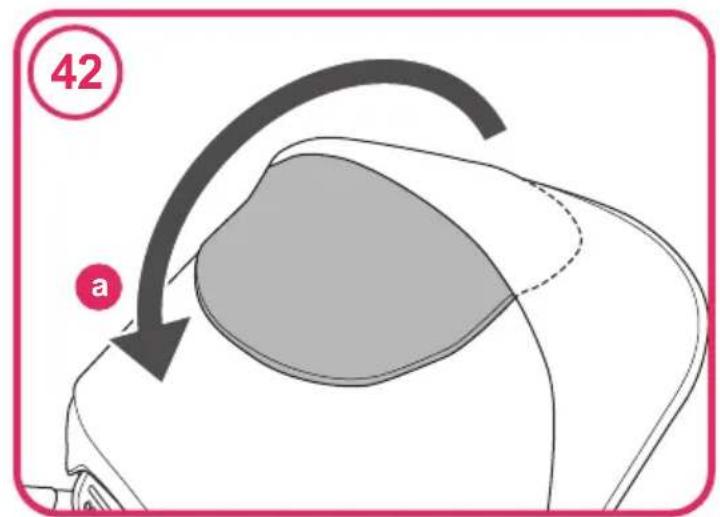

42- Closing:

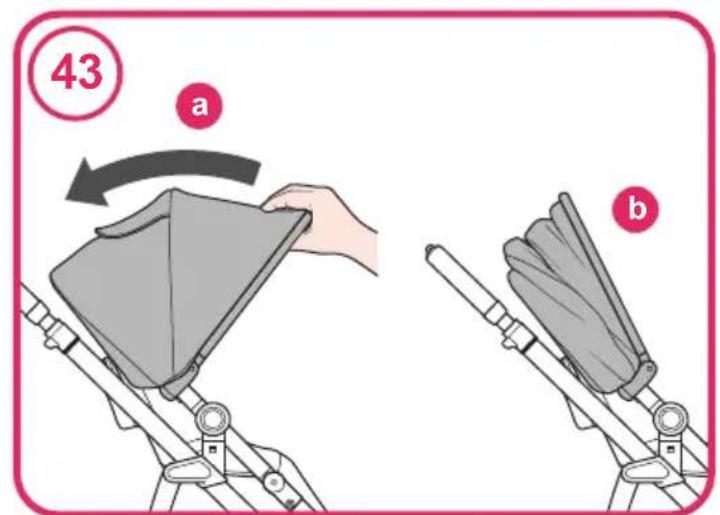

Seat unit hood 43- Closing:

Ultimate changing 44- Attaching to the chassis handle:

Removing is a reversal of this procedure.

45- Detaching from attachment straps:

Refitting is a reversal of this procedure.

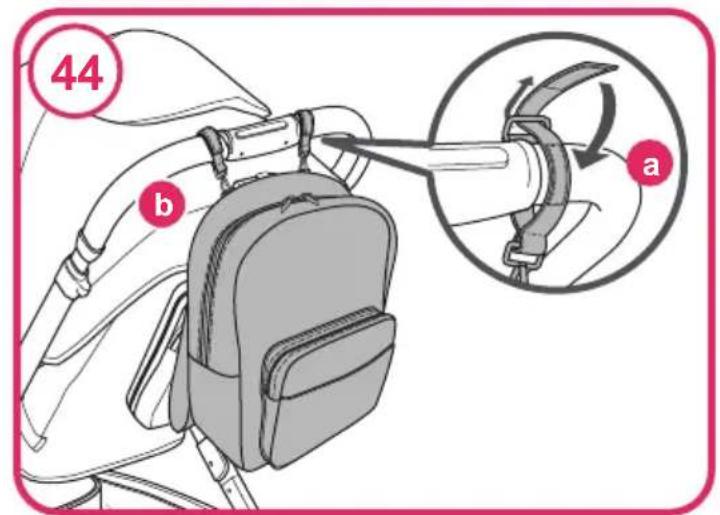

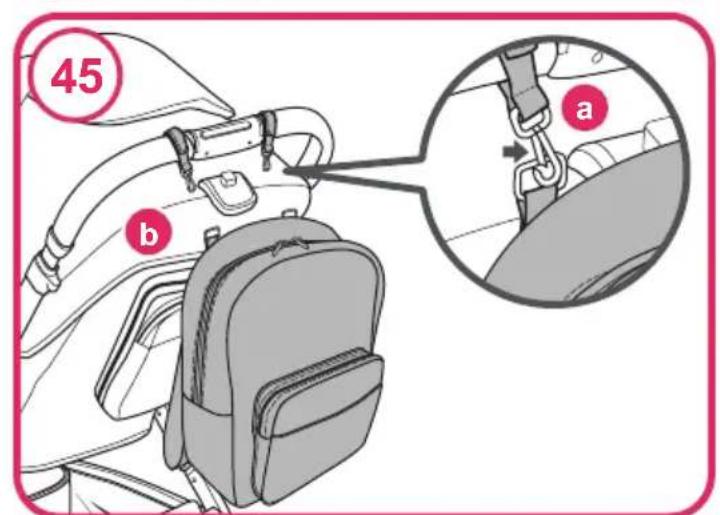

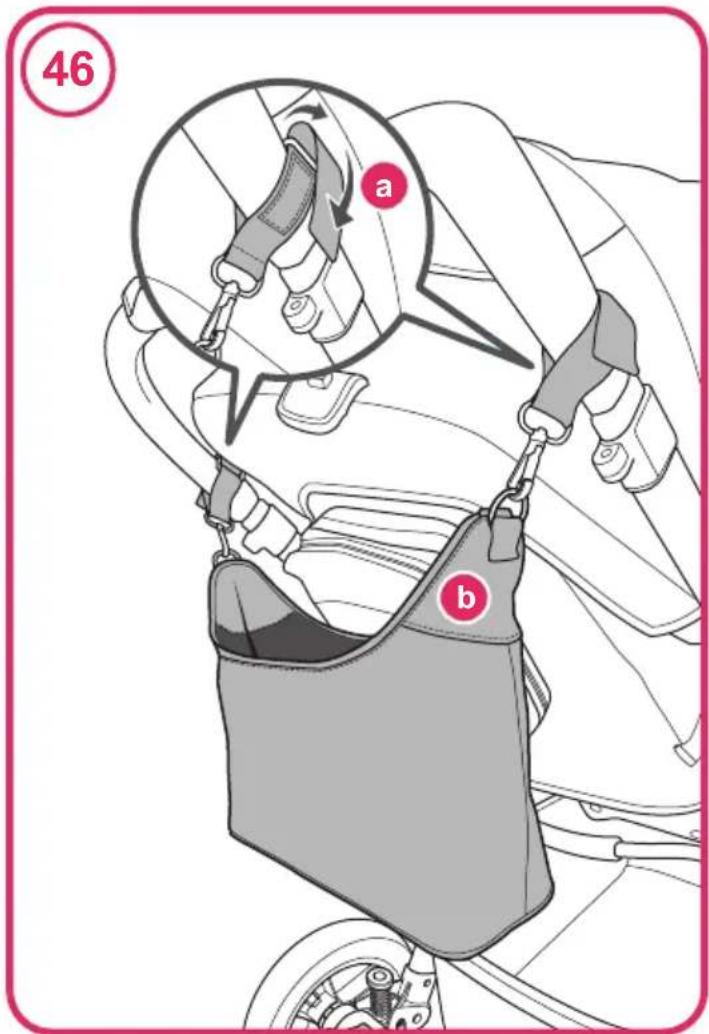

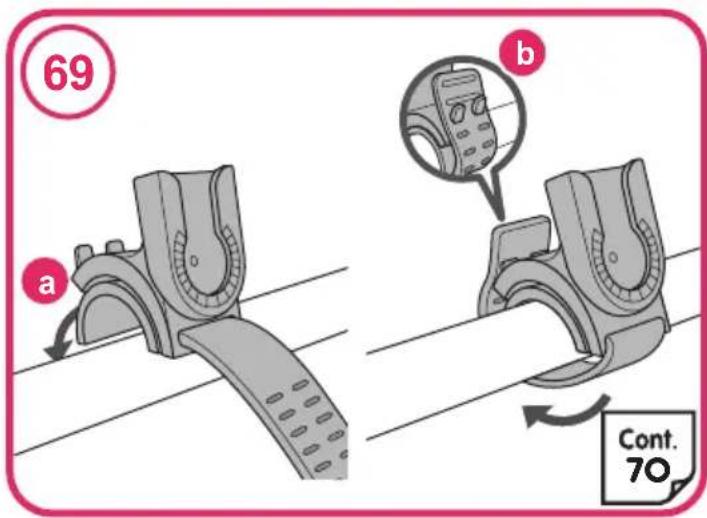

"Ultimate Out and 46- Attaching to the chassis handle:

Removing is a reversal of this procedure.

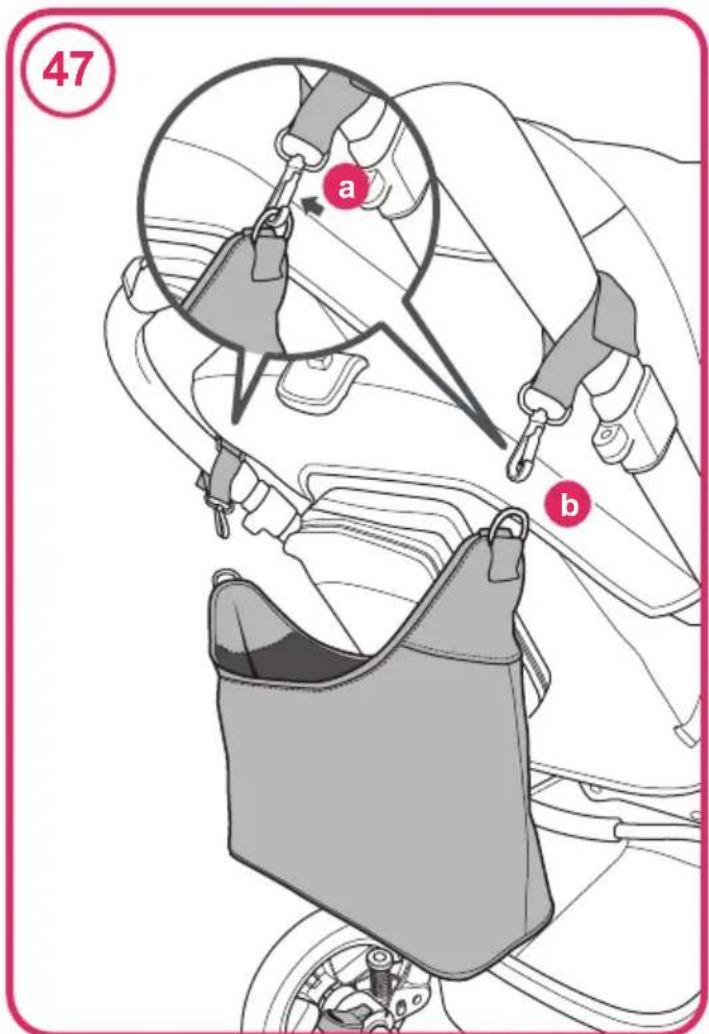

47- Detaching from attachment straps:

Refitting is a reversal of this procedure.

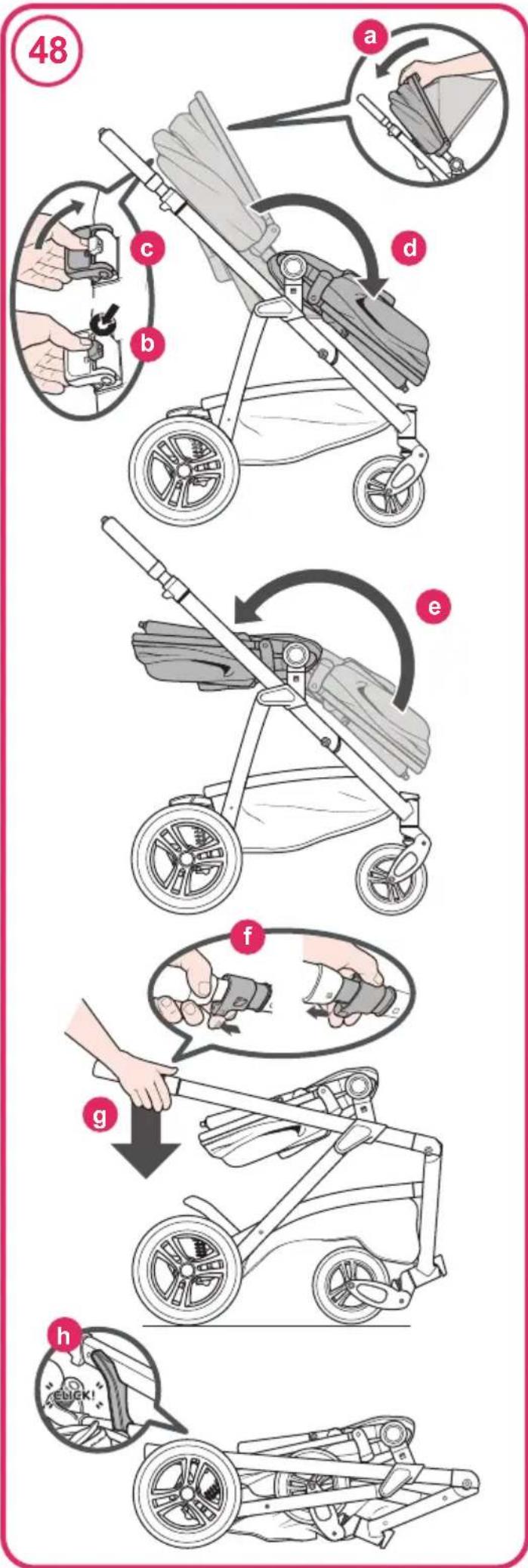

Chassis 48- Closing with the seat unit (forward facing):

Close the hood fully (refer to step 43) (a).

Press and hold the seat unit folding button (b) then lift up the recline lever fully (c). Push the backrest forward until it is in a closed position (d).

Pull the seat unit back fully (e).

While pulling both secondary levers (f) back, Press down on the handle (g) until the autolock retains the chassis in the folded position (h).

Adjust the handle to the lowest position (See Step 2) for the most compact fold.

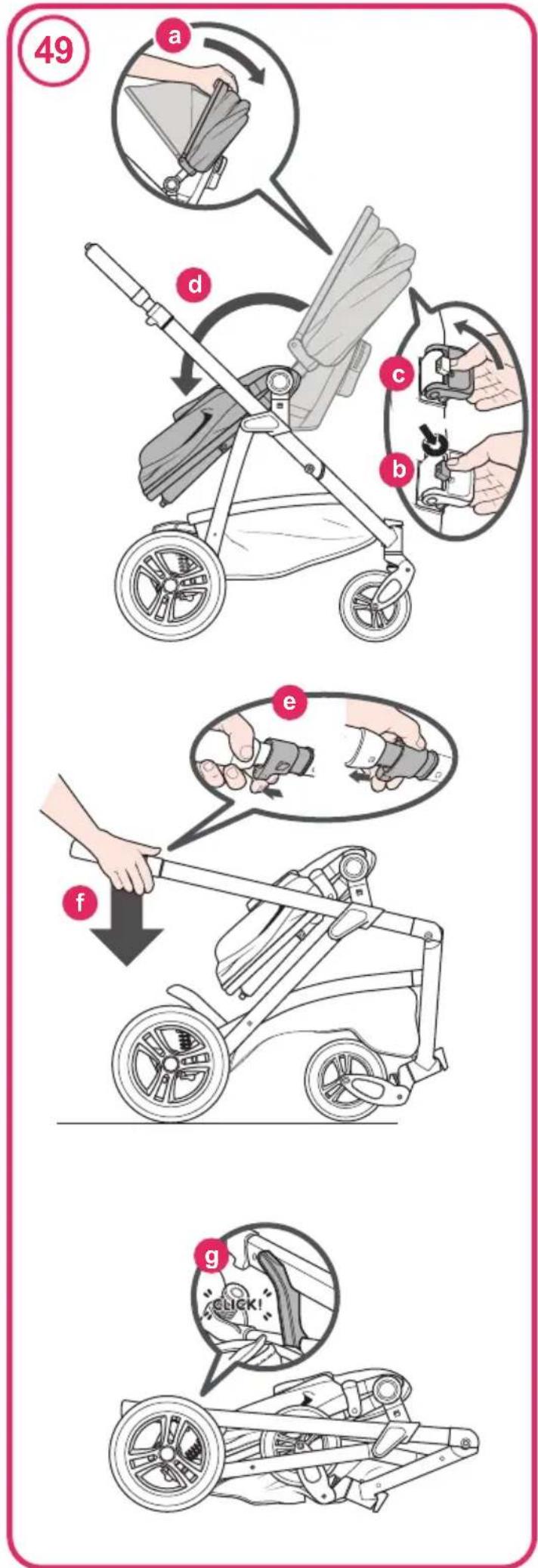

49- Closing with the seat unit (Rearward facing):

Close the hood fully (refer to step 43) (a).

Press and hold the seat unit folding button (b) then lift up the recline lever fully (c). Push the backrest forward until it is in a closed position (d).

While pulling both secondary levers (e) back, Press down on the handle (f) until the autolock retains the chassis in the folded position (g).

Adjust the handle to the lowest position (See Step 2) for the most compact fold.

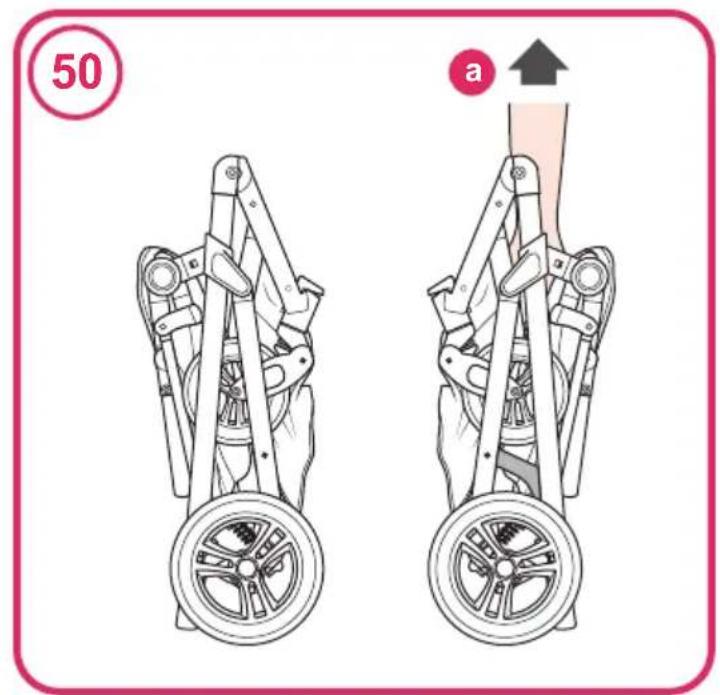

50- Carrying position:

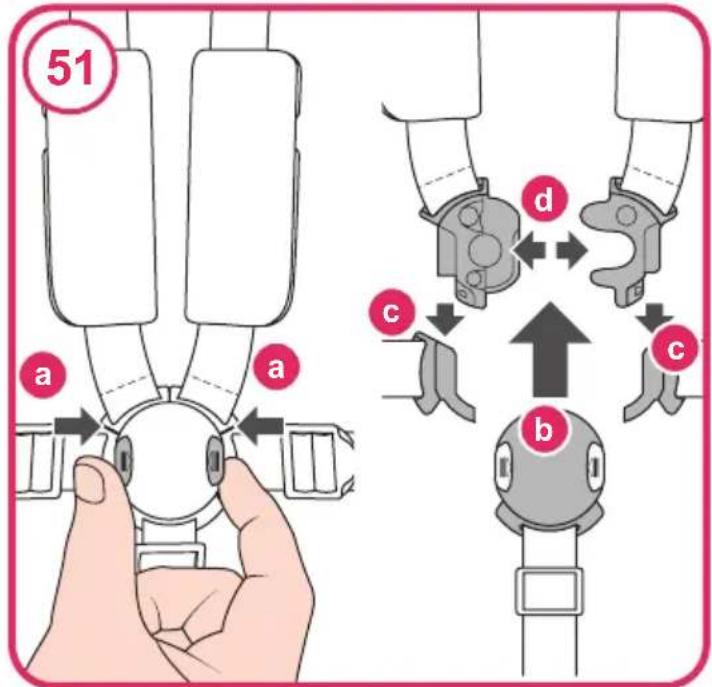

Harness 51- Opening:

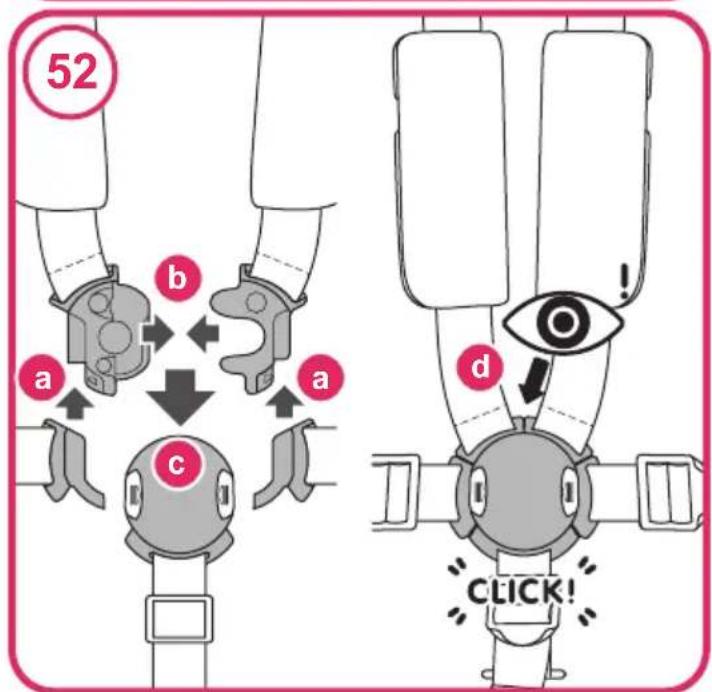

52- Closing:

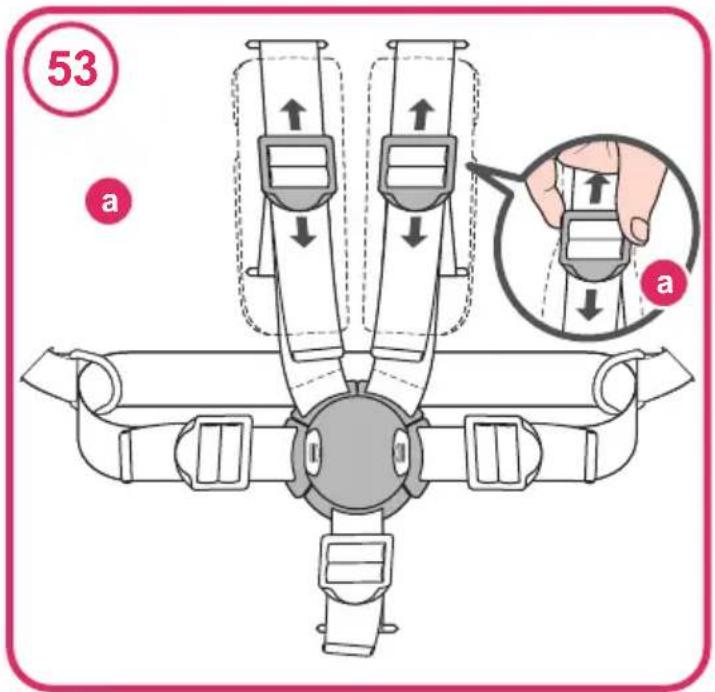

53- Adjusting the shoulder strap position:

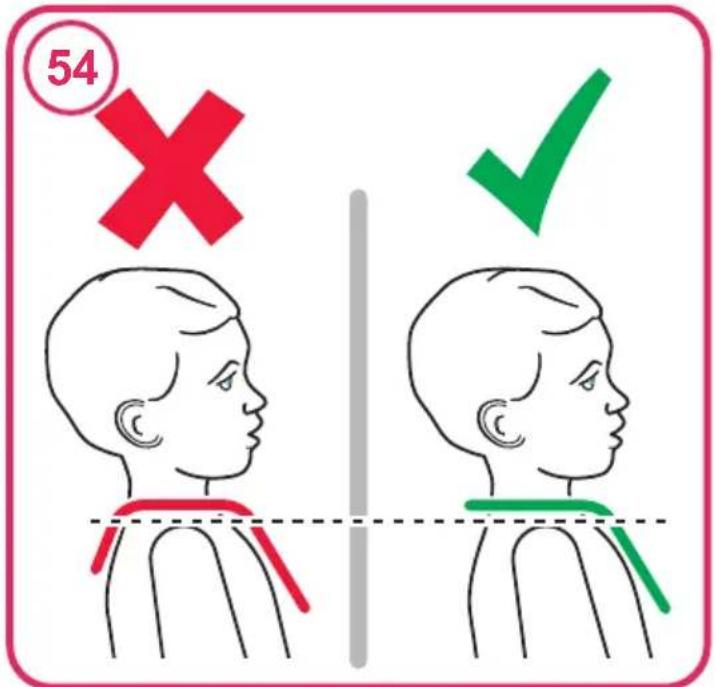

54- Satisfactory shoulder strap position:

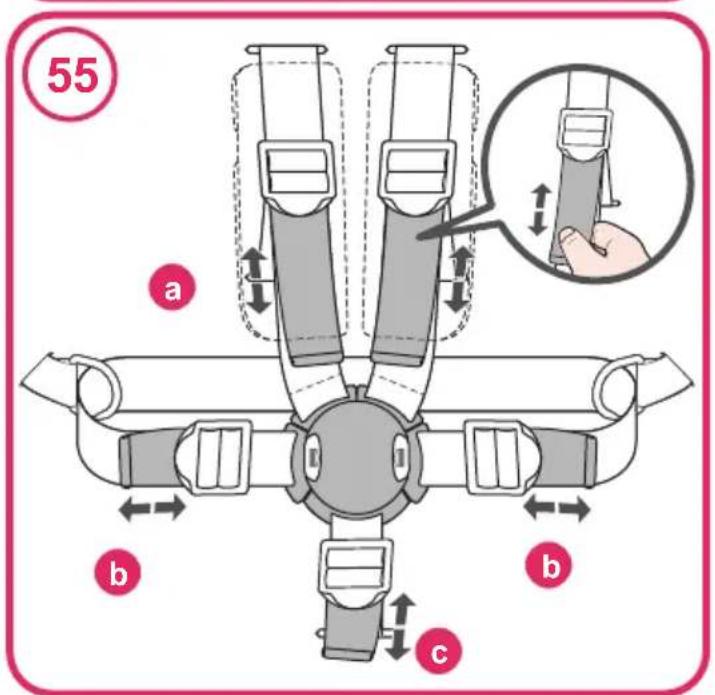

55- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

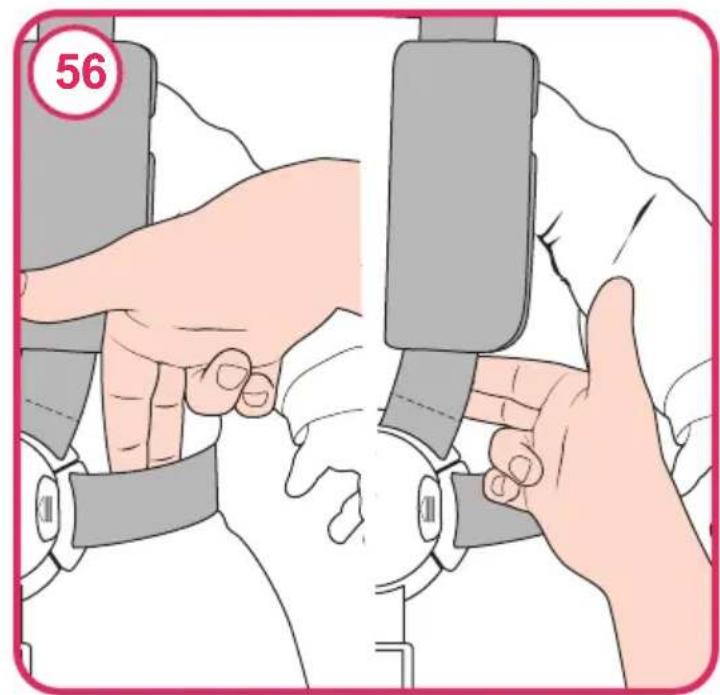

56- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

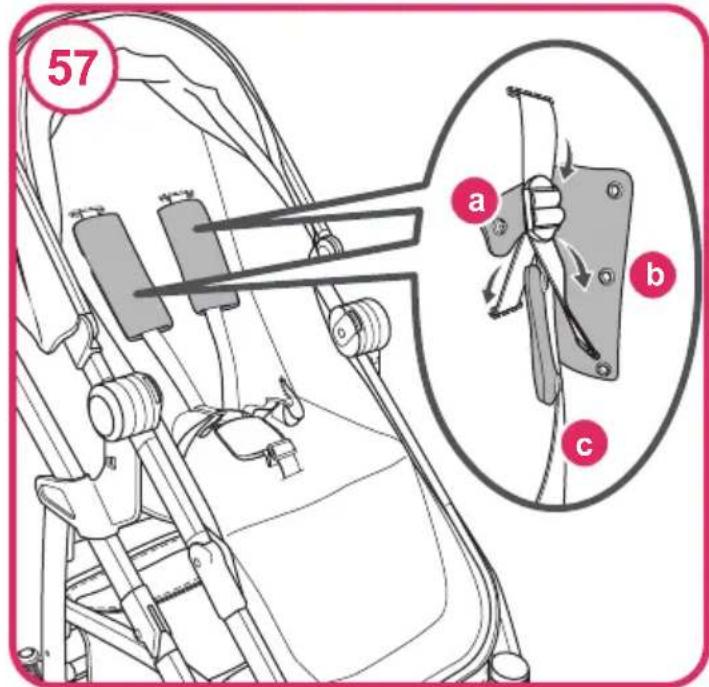

57- Refitting the chest pad:

Removing is a reversal of this procedure.

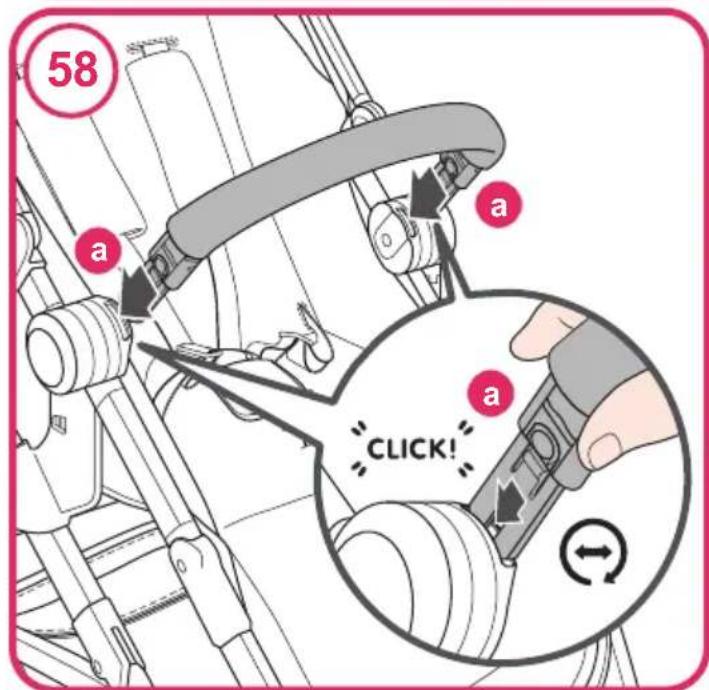

Bumper bar 58- Fitting:

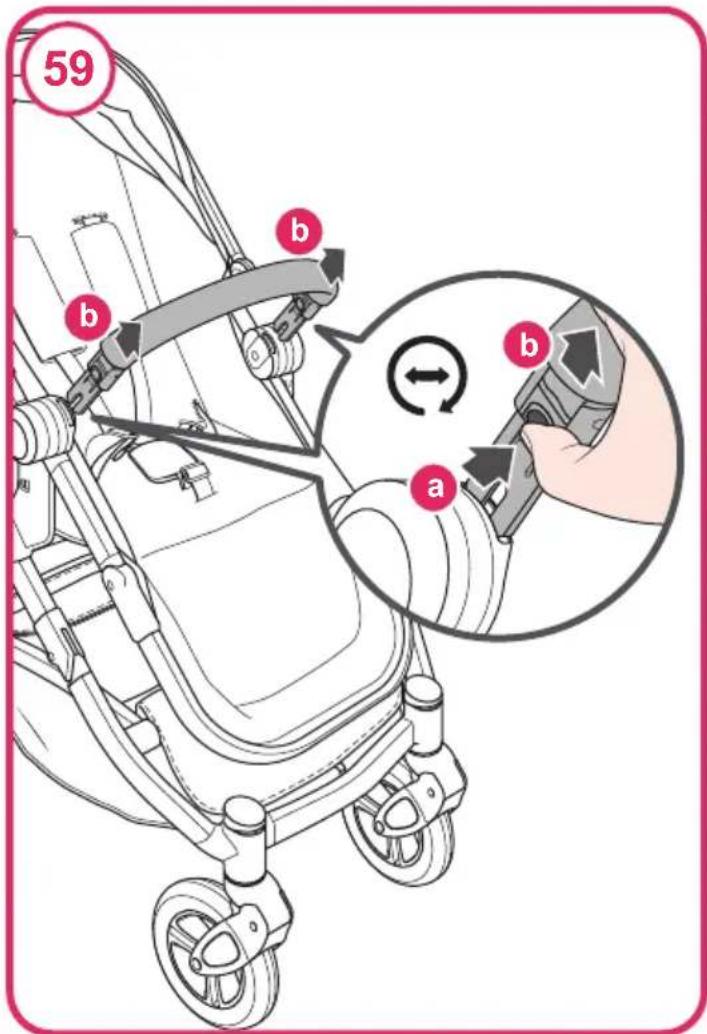

59- Removing:

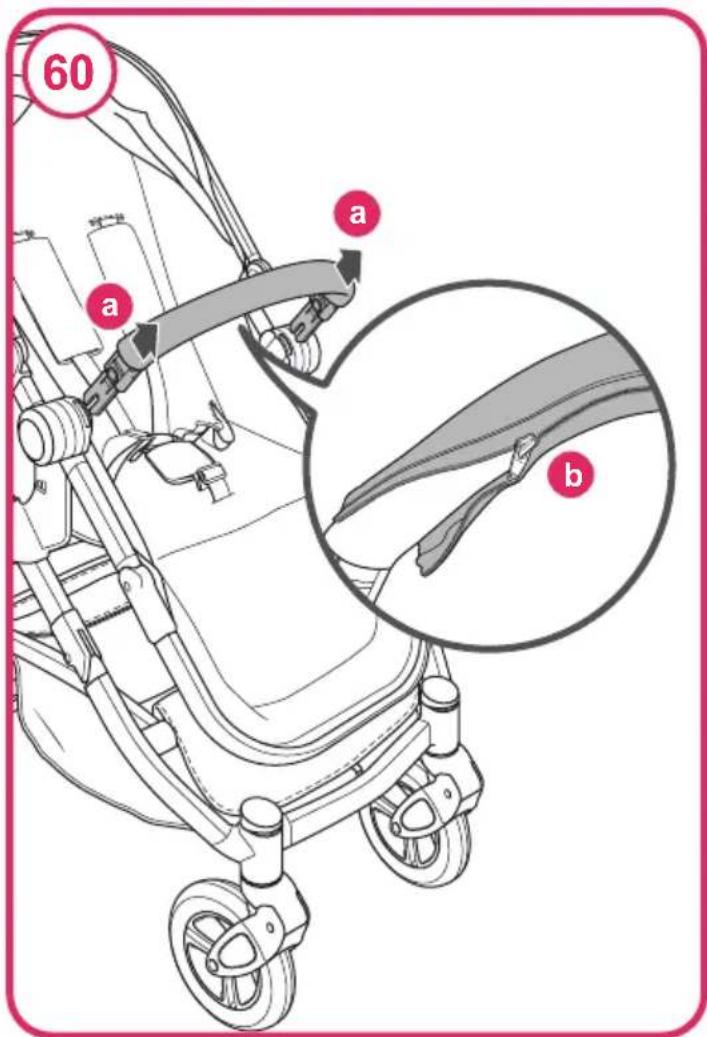

60- Removing the bumper bar fabric cover (if specified):

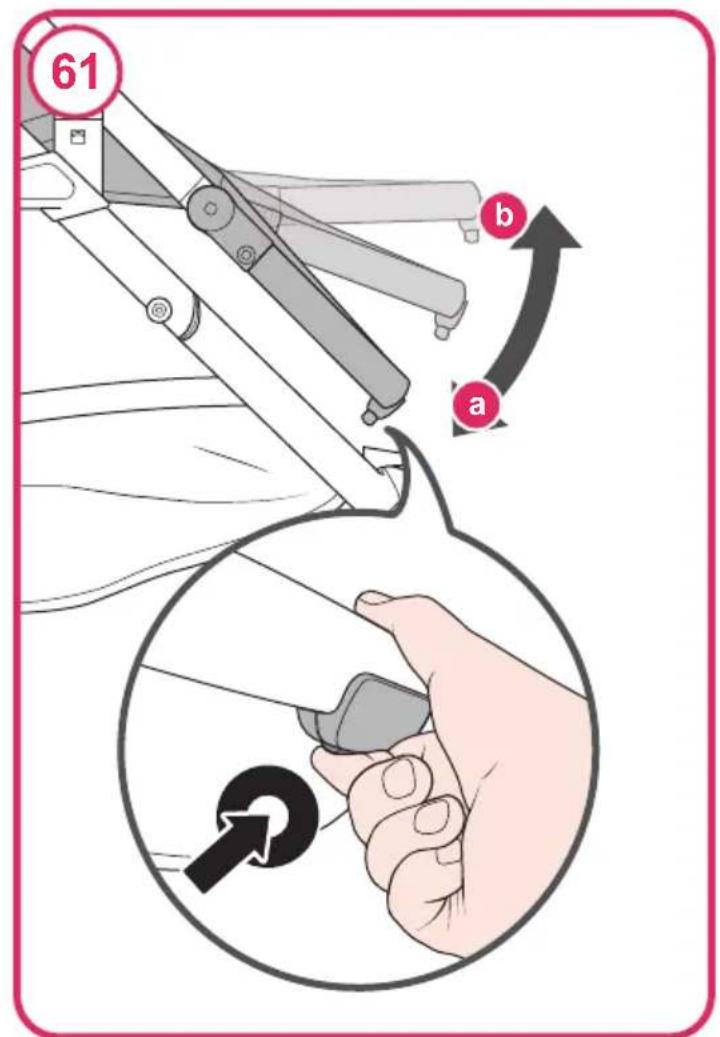

Calf support 61-Adjusting:

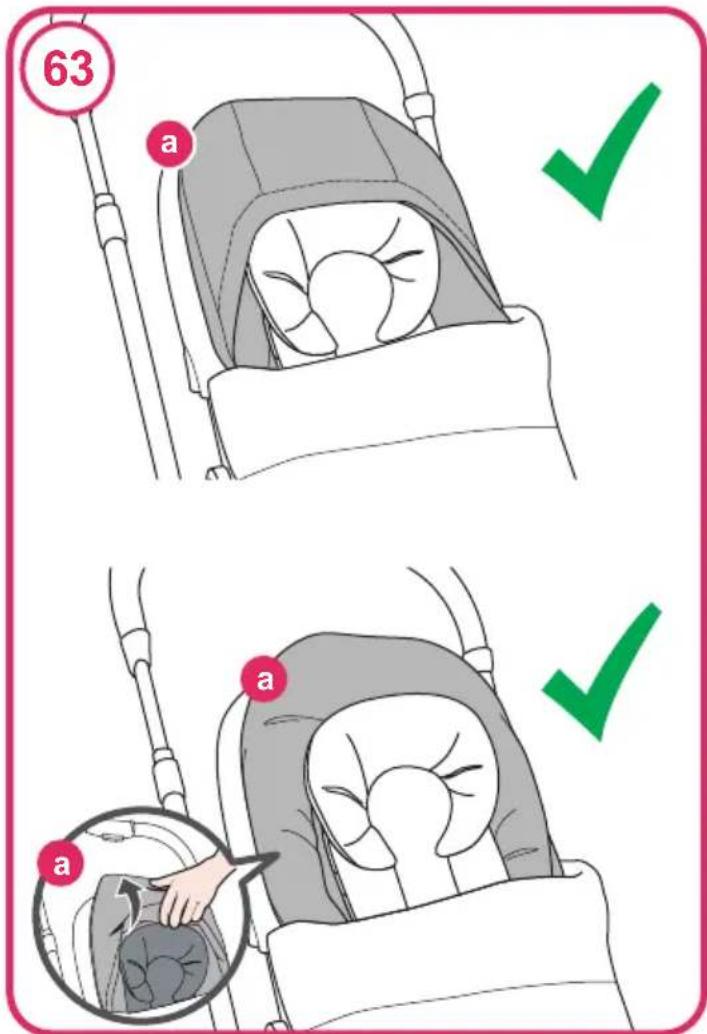

Footmuff 62- Fitting:

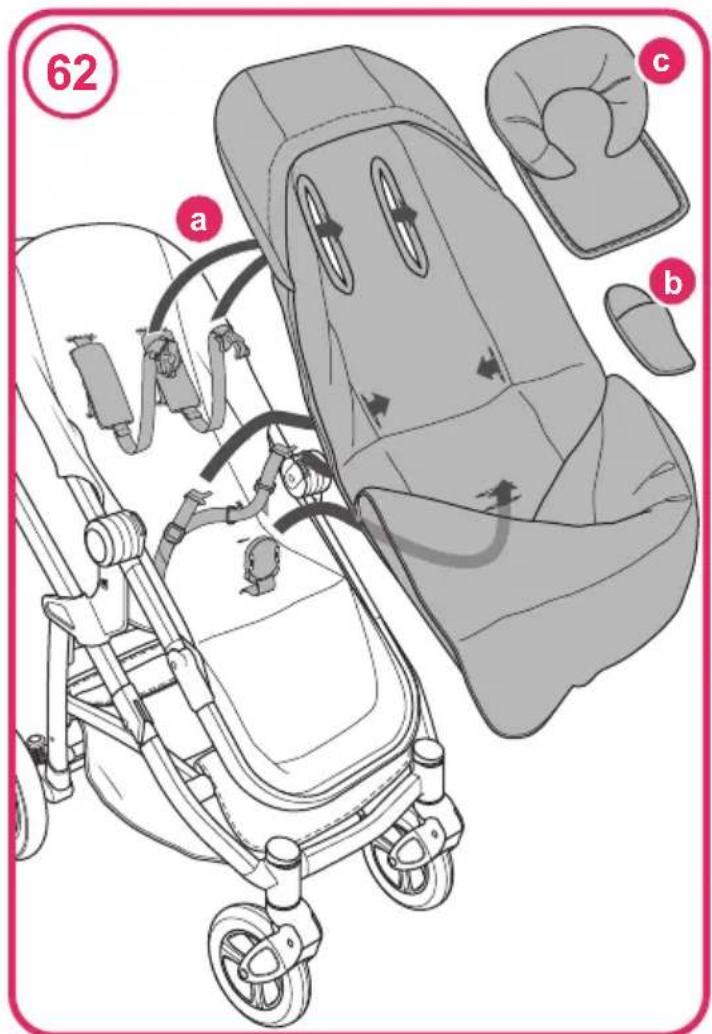

Open the harness (See Step 51) and remove the crotch pad.

Push the harness straps through the footmuff (a).

Refit the crotch pad (b) and fit the headhugger (c) then close the harness (See Step 52).

63- Using the hood section:

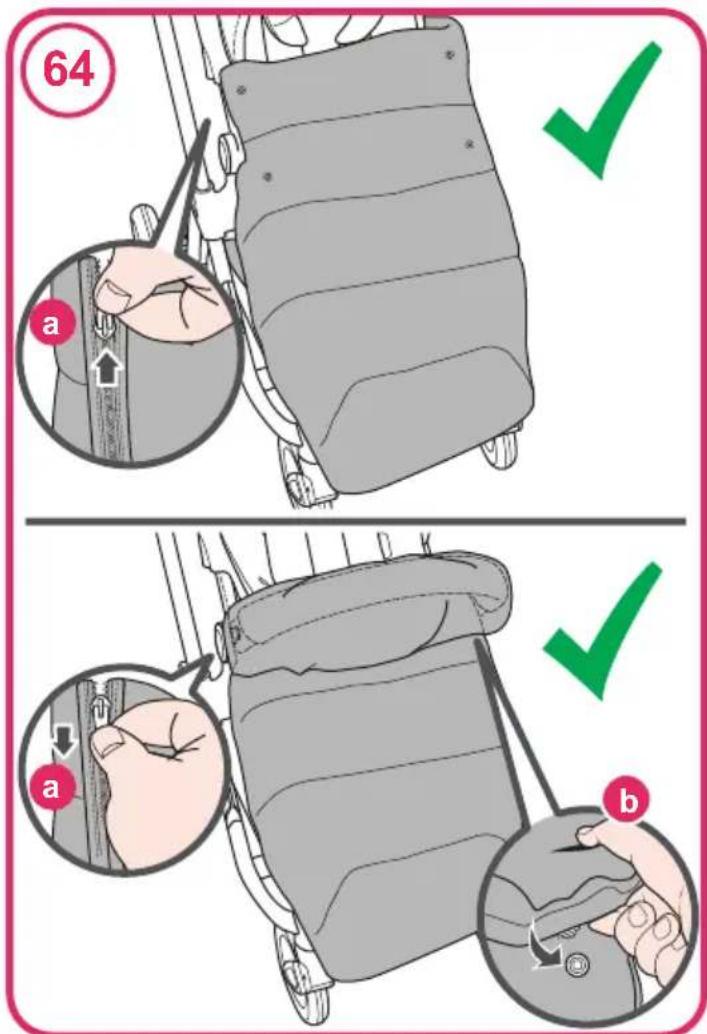

64- Using the flap section:

Raincover 65- Fitting:

Removing is a reversal of this procedure.

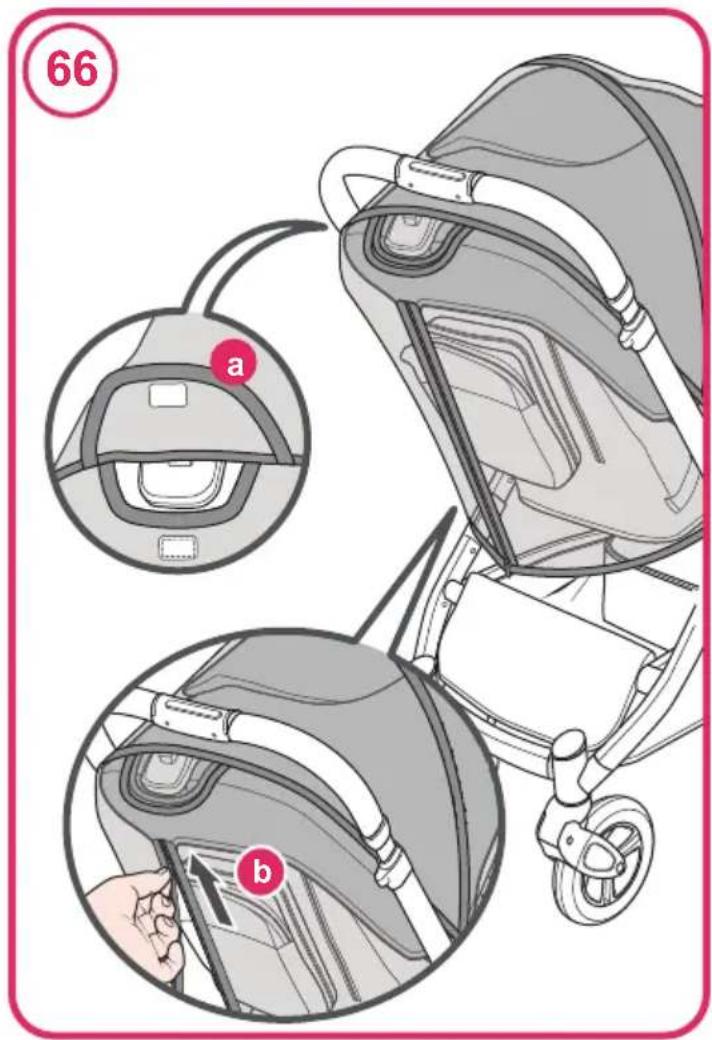

66- Accessing the recline lever and essential cross body bag:

67- Using access zip:

Smartphone Holder Use the Smartphone Holder:

68- The Smartphone Holder is suitable for smartphone with screen size between 14 to 18 cm and with maximum weight of 300g.

69- Secure the Smartphone Holder mount to the handlebar (a & b).

70- Noting the orientation icon on the grip, connect the Smartphone Holder grip to the mount (a). Rotate to secure (b).

71- Secure the Smartphone to the Smartphone holder grip (a & b).

IMPORTANT ! LIRE ATTENTIVEMENT AVANT UTILISATION ET CONSERVER POUR CONSULTATION ULTÉRIEURE Informations importantes de sécurité

Généralités:

Freins 7- Application:

8- Libération:

Loquet de rotation

9- Application:

des roues avant

10- Libération:

Pare-soleil 39- Ouverture:

40- Fermeture:

Repose mollets 61- Réglage:

Chancelière 62- Installation:

"Ultimate Out and About" Organizer:

"Ultimate Out and About" Organizer

"COSATTO Supersoft" Strickdecke

Ersatzteile:

S26: "Ultimate Out and About" Organizer "COSATTO Supersoft" Strickdecke

"Ultimate Out and About" Organizer

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists

Illustration showing two steps of a car seatbelting device, labeled (a) and (b), with instructions for adjusting the wheel.

5 a b

2 b a

6 a b

3 a CLICK! b

7 CLICK! a

8 a CLICK!

11 a b c CLICK!

9 a

12 a b c d CLICK!

10 a

13 a

15 a b CLICK! Cont. 16

14 a b c

16 a

17 a

20 a

18 CLICK!

Line drawing of a helmet with a numbered label (21 and a) and no readable text or symbols

19 a b

Diagram of a helmet with a shaded grip and arrow indicating rotation (no text or symbols)

23 ✓ ×

25 CLICK! a b

24 a CLICK!

26 a b

Line drawing of a bicycle steering wheel with a magnified inset showing the wheel (no text or symbols)

29 a b

28 a a b c

30 a a

Line drawing of a baby stroller with adjustable arm and seat (no text or symbols)

31 a a

32 a b

34 a b CLICK!

33

35 a b

36 a b

38 a b

39 a

37 a b

40 a

41 a

42 a

43 a b

46 a b

44 b a

45 b a

47 a b

49 a d c b e f g CLICK!

50 a

53 a a

51 a a d c b c

54 ×

52 a b c a d CLICK!

55 a b c b b

Illustration of hands adjusting a device with a numbered circle marker (56) in the top-left corner, no text or symbols present.

59 b b a b

57 a b c

60 a b

58 a a a CLICK!

61 b a

63 a a a

62 a b c

64 a b

65 a b c

67 a

66 a b

68 max: 300g 14-18cm

69 a b Cont. 70

70 a b Cont. 71

71 a b ML18102025

Blue circular sign with white pictogram of a baby figure (no text or symbols)

max 25 kg

max 4 years

Right by your Side

Telephone: [phone]*

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

*This is a local rate chargeable number, prices may vary. Please check with your provider.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com
