General:

• This vehicle is intended for children from birth up to a maximum of 25kg or 4 years whichever comes first.
  • WARNING: Never leave your child unattended.
• WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
• WARNING: Do not let your child play with this product.
• WARNING: This product is not suitable for running or skating.
  • WARNING: Always use the restraint system.
• WARNING: Always use the crotch strap in combination with the waist belt.
• WARNING: To avoid risk of injury from burning, do not place hot beverage on drink holder.
• Do not use replacement parts or accessories other than those approved by Cosatto.
• Use the seat in the most reclined position for new born babies until they can sit up unaided.
• A basket is provided for the carriage of goods, evenly distributed, up to a maximum weight of 5kg.
• Plastic drink holder - maximum weight 500g.
• Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.
• Do not use a platform with this product as it may render the product unsafe.
  • Always apply the brake when placing or removing a child from vehicle.
• Never carry a second child on the product.
  • This product complies with BS EN 1888-2:2018 + A1:2022.
• Remove all packaging & protective materials on the product before using.

Care & maintenance:

• Your pushchair has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.
• Storage - Always store your pushchair dry. Storing a damp pushchair will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing. Never leave in sunlight for prolonged periods - some fabrics may fade.
• Cleaning - Refer to the wash care label on soft goods for cleaning instructions. Plastic and metal parts may be sponged clean with warm water and a mild detergent. Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Wear & Tear - Continual impact will cause damage. The chassis is strong but will weaken should the back wheel be bumped down stairs or kerbs. Tyres will wear with use and wheel units should be replaced if necessary. If your child wears hard shoes these might damage the soft fabric.

- Maintenance - Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times and minimum maintenance should be required. However a regular light application of a spray lubricant e.g. silicone (do not use oil or grease) will extend the life of your pushchair and make opening and folding easier. Your pushchair should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.

Visual language key:

	Refer to warning XX
	Correct action
	Incorrect action
	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Pushchair (basket attached) P5: Drink holder

P2: Hood P6: Bumper bar

P3: Front wheel (x2) P7: Bumper bar cap (x2)

P4: Raincover P8*: Cosatto footmuff (if specified)

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website:

http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Foam handle S10: Footrest

S2: Handle pip S11: Wheel cap

S3: Hood S12: Basket

S4: Seat cover S13: Auto lock

S5: Chest pad (pair) S14: Drink holder

S6: Harness S15: Bumper bar

S7: Crotch pad S16: Bumper bar cap (x2)

S8: Raincover S17*: Cosatto footmuff (if specified)

S9: Front wheel

Fitting & Operation information:

Please refer to the instruction diagrams (p. 35 - 40):

Pushchair 1- Opening:

Release auto lock (a) then pull the handles upwards (b).

Press down on the locking lever (c) until a 'Click' is heard and the secondary lock bar (d) is locked in place.

Check the chassis has locked in place.

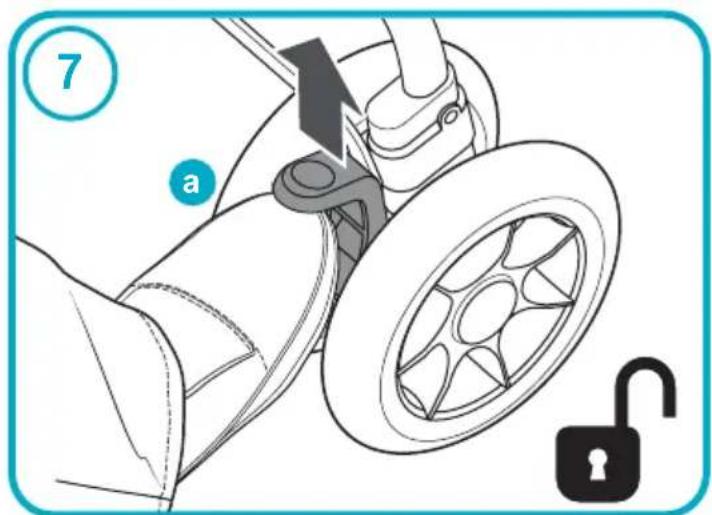

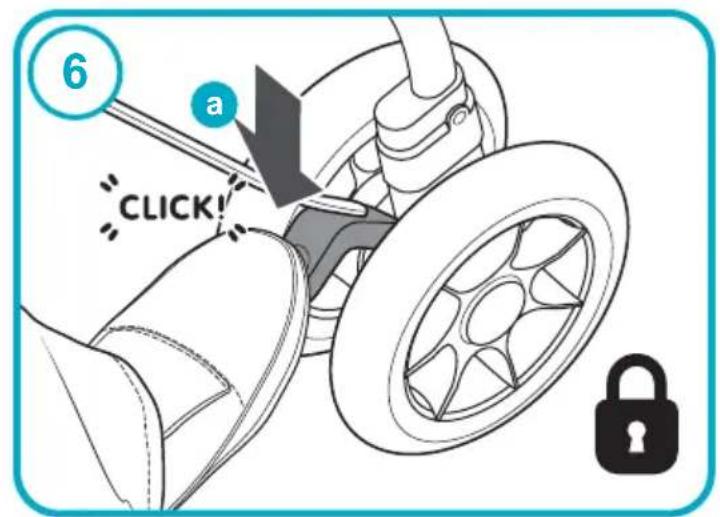

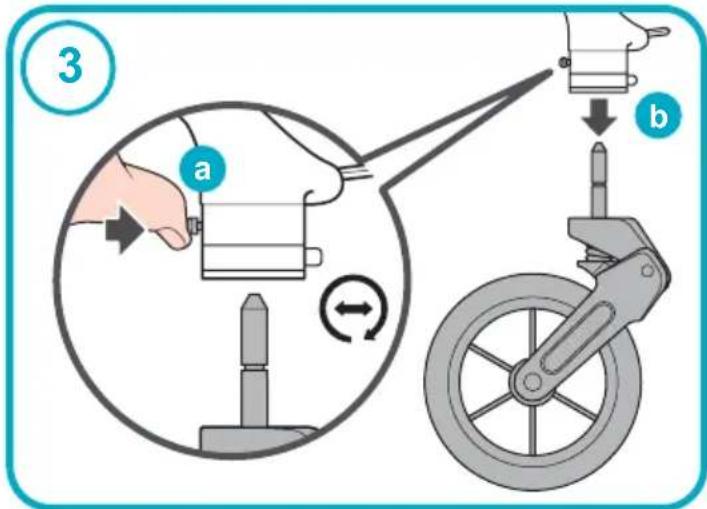

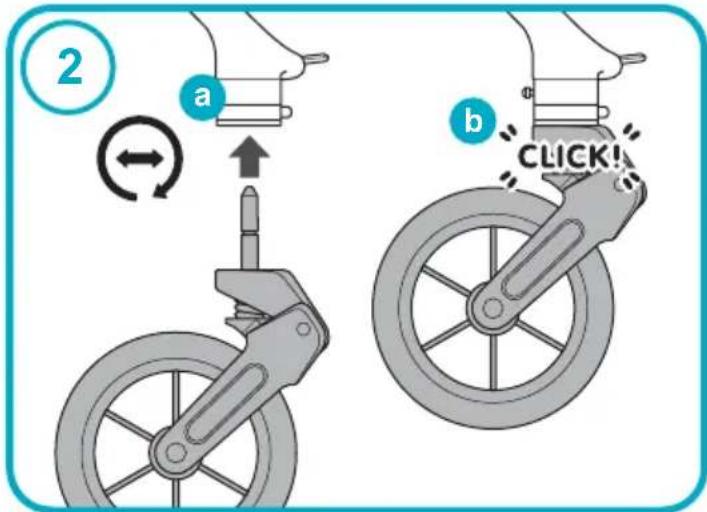

Front wheel 2- Fitting:

3- Removing:

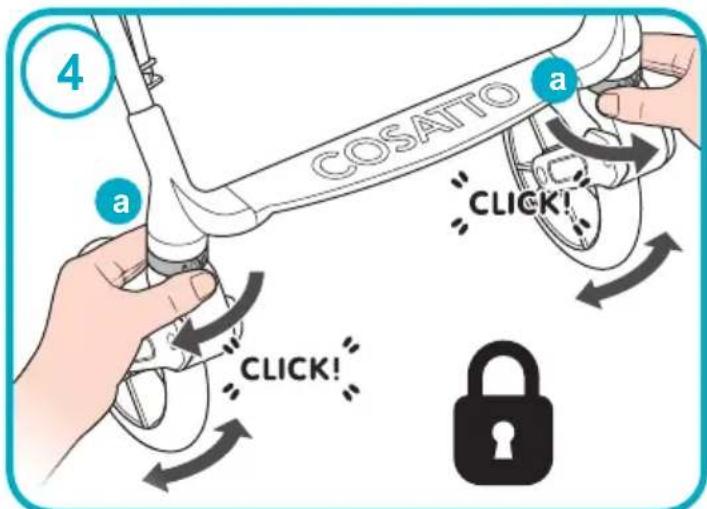

Front wheel swivel4- Applying:

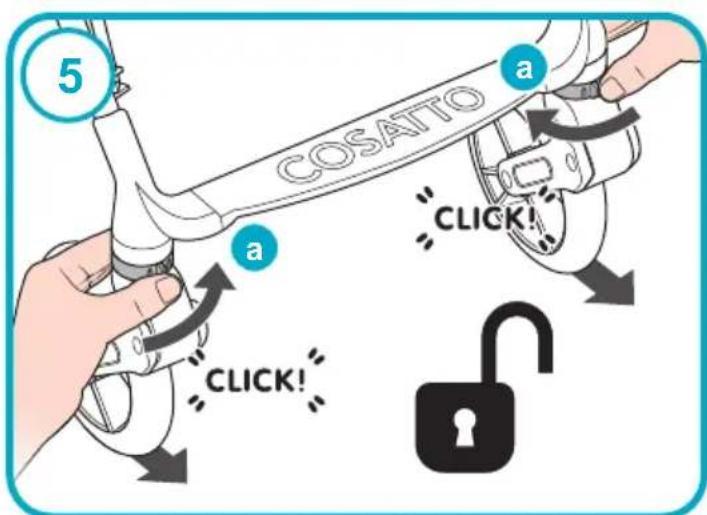

lock 5- Releasing:

Brake 6- Applying:

7- Releasing:

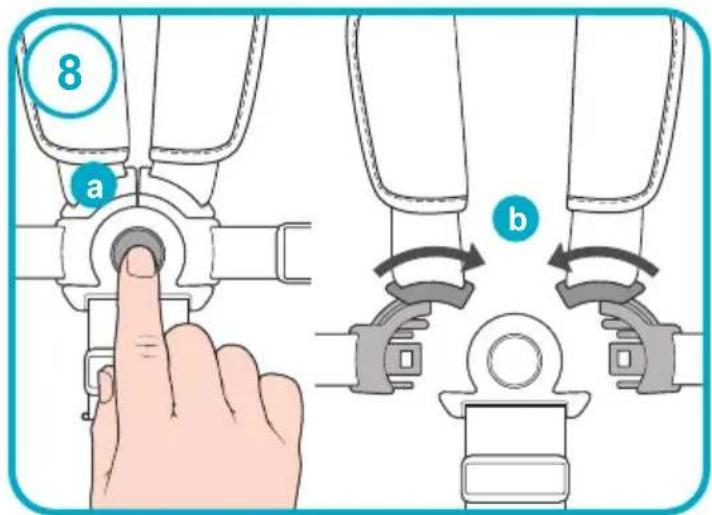

Harness 8- Opening:

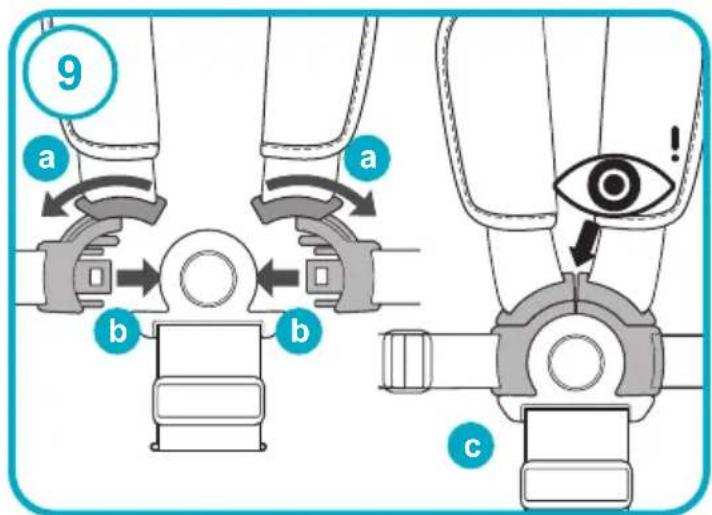

9- Closing:

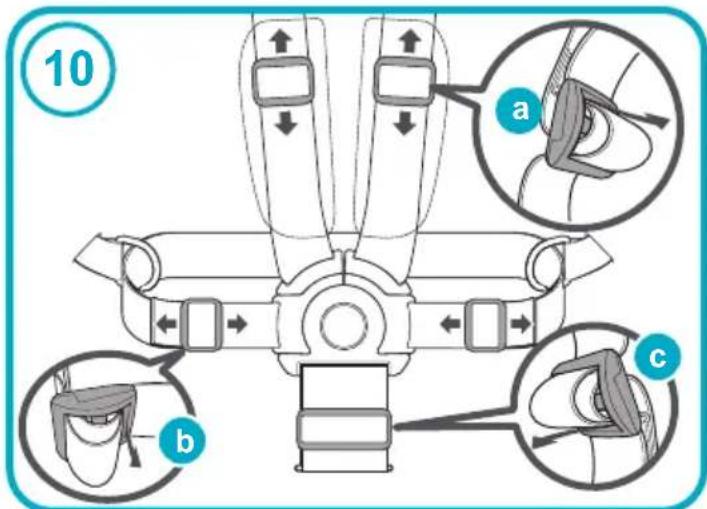

10- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

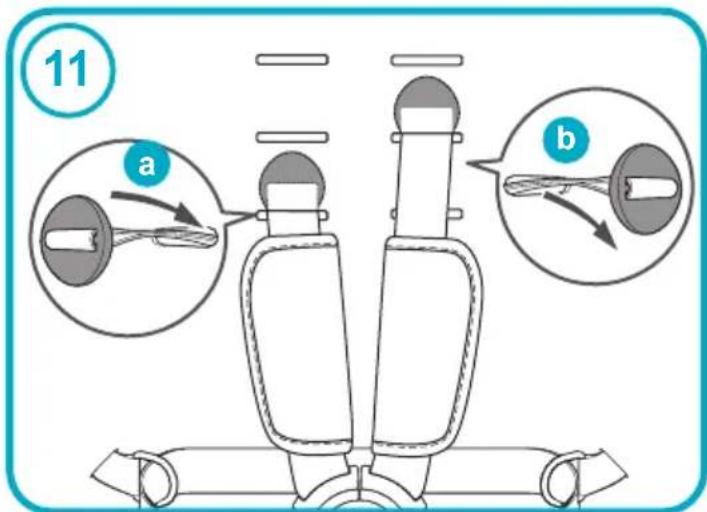

11- Adjusting the shoulder strap position:

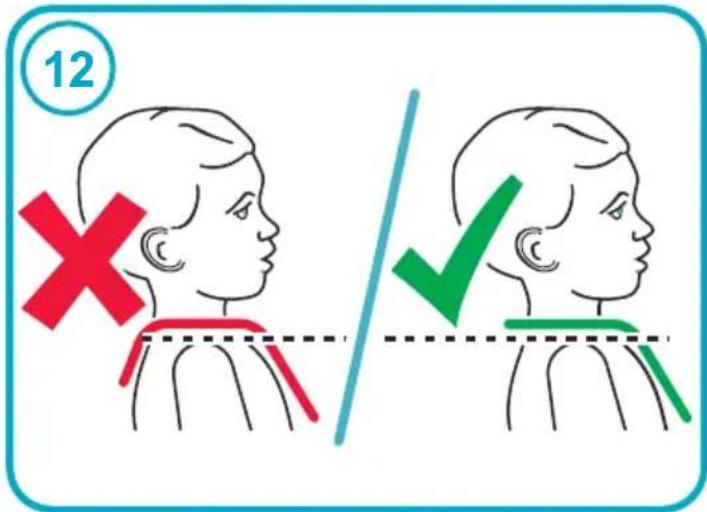

12- Satisfactory shoulder strap position:

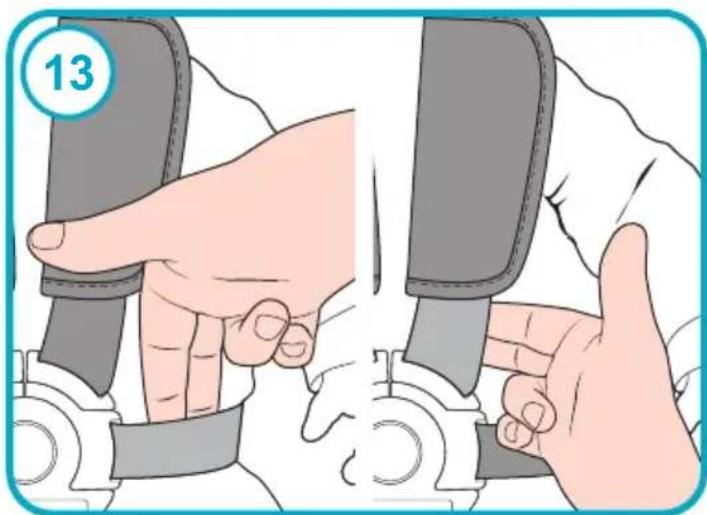

13- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

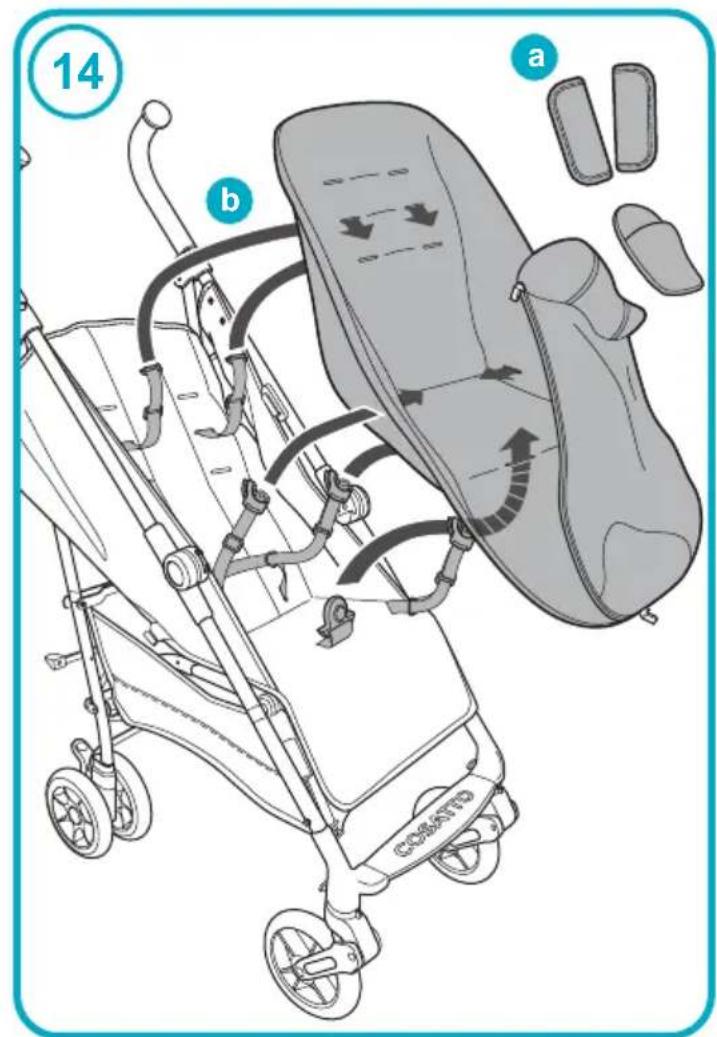

Cosatto footmuff 14- Fitting:

(if specified)

Open the harness (Refer to step 8) and remove the chest pads & crotch pad (a).

Push the harness straps through the footmuff (b).

Refit chest pads & crotch pad then close the harness (Refer to step 9).

Removing is a reversal of this procedure.

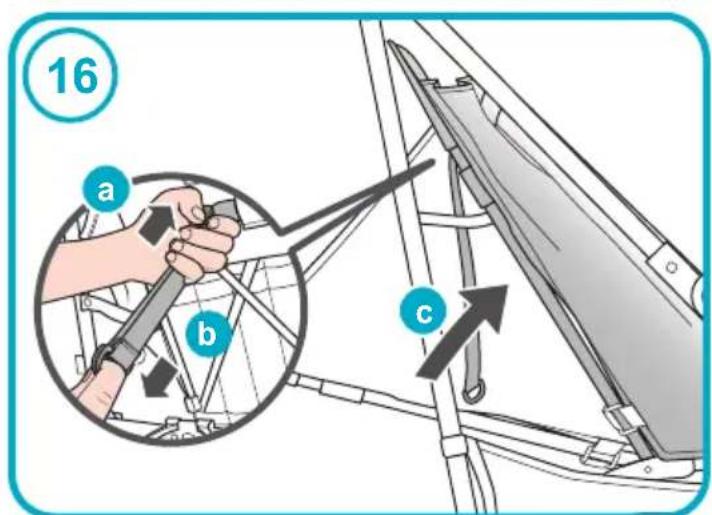

Backrest 15- Lowering:

16- Raising:

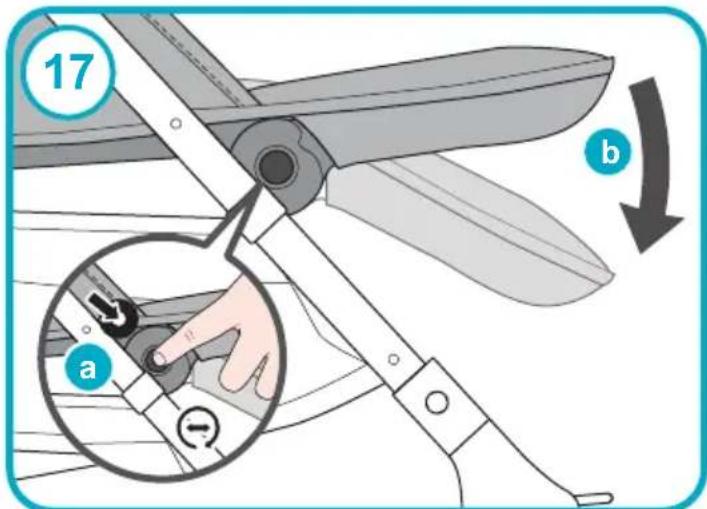

Calf support 17- Lowering:

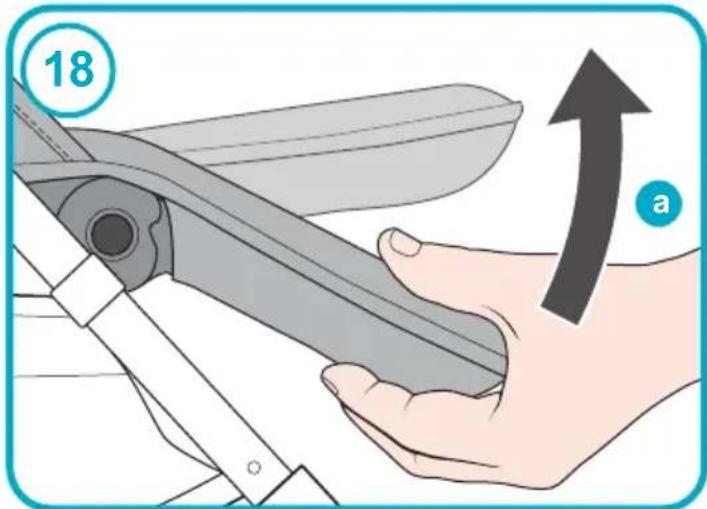

18- Raising:

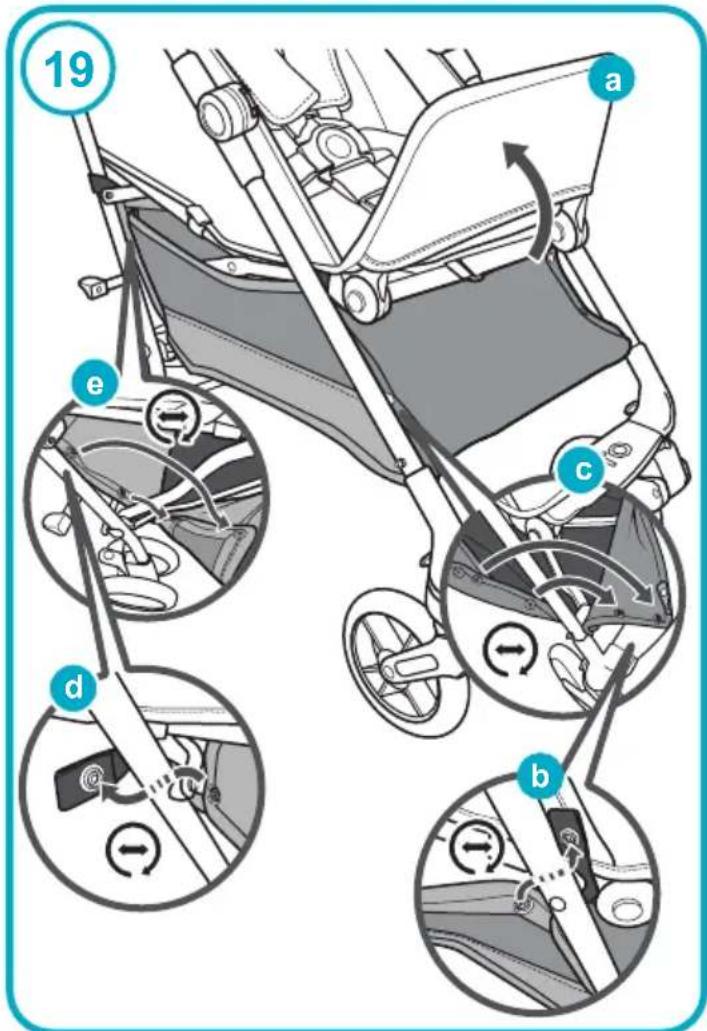

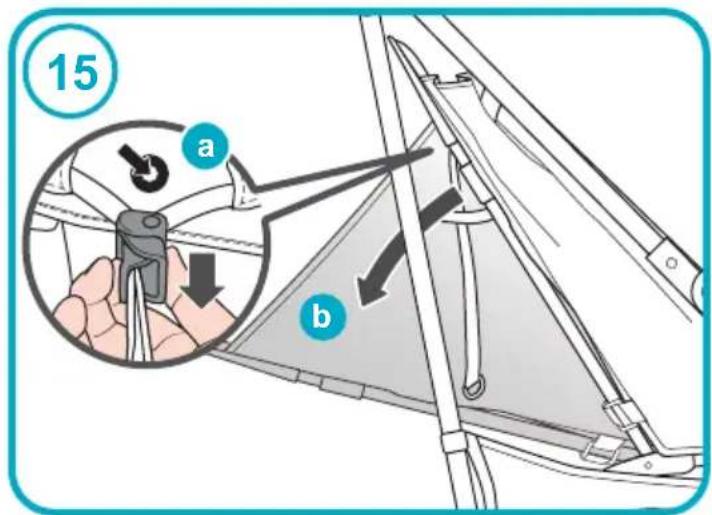

Basket 19-Removing:

Refitting is a reversal of this procedure.

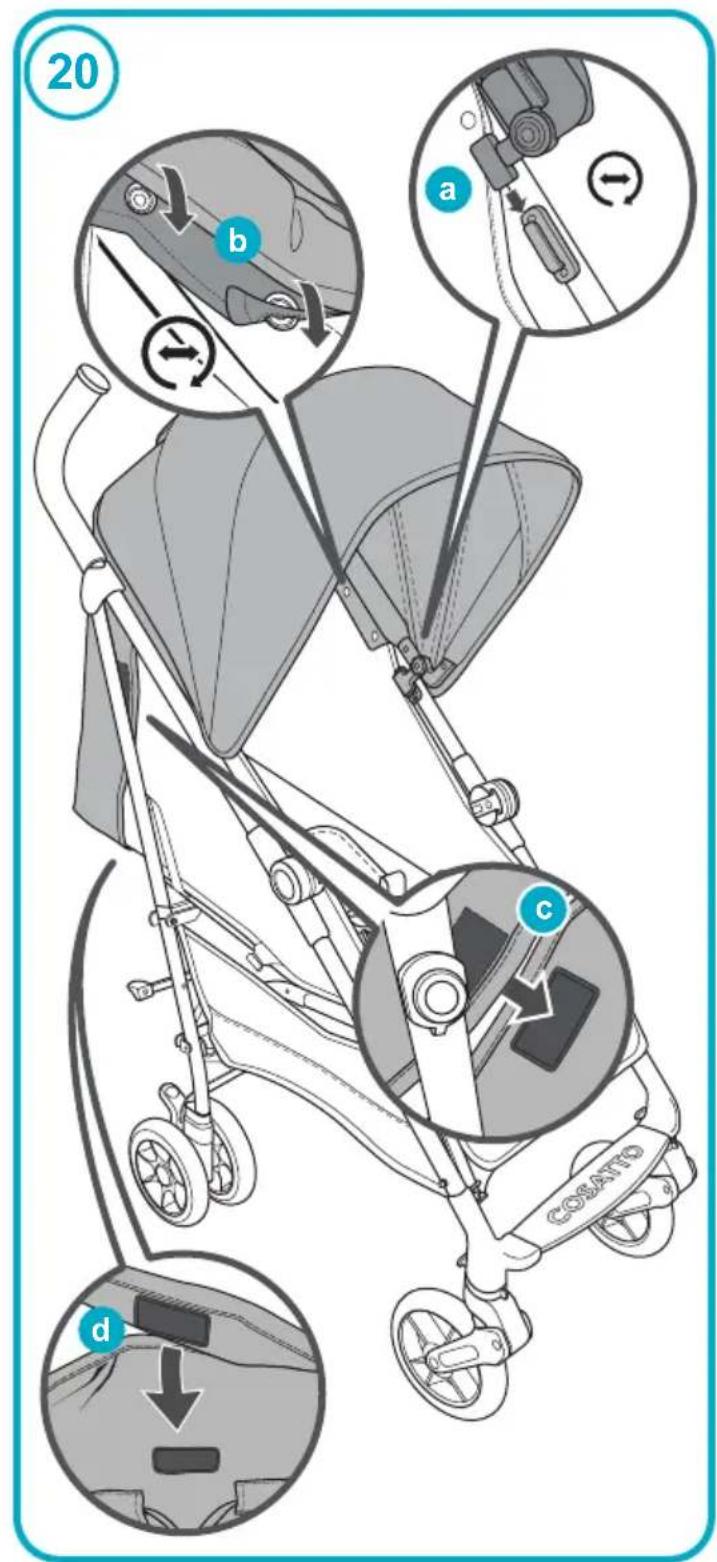

Hood 20- Fitting:

Push the brackets onto the mounts on the chassis (a).

Attach the fabric tabs to the mounts on the inward side of the seat (b)

Attach the fabric fasteners to the outside of the seat unit (c).

Fit the rear of the hood behind the backrest and attach the fabric fastener (d).

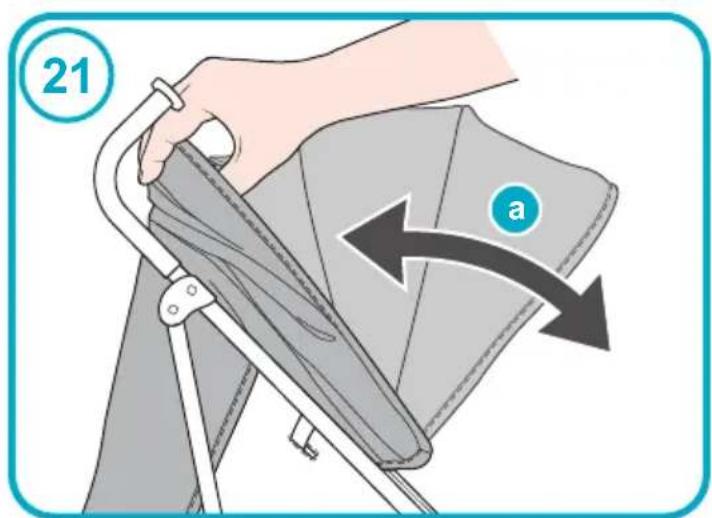

21- Adjusting:

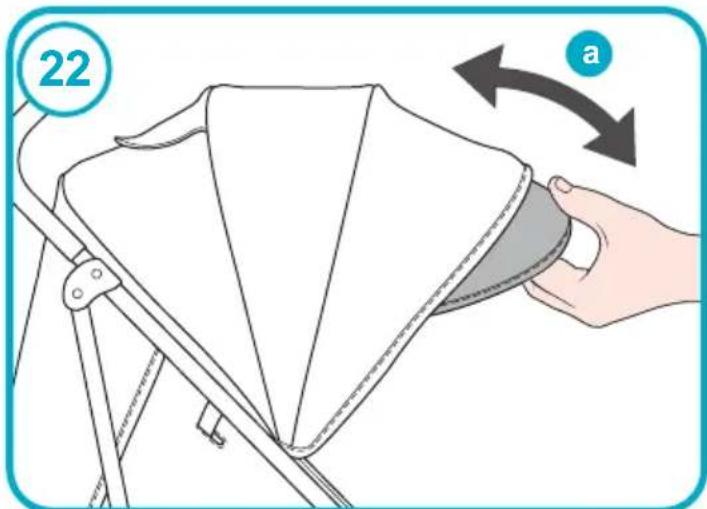

22- Using the hood sun visor:

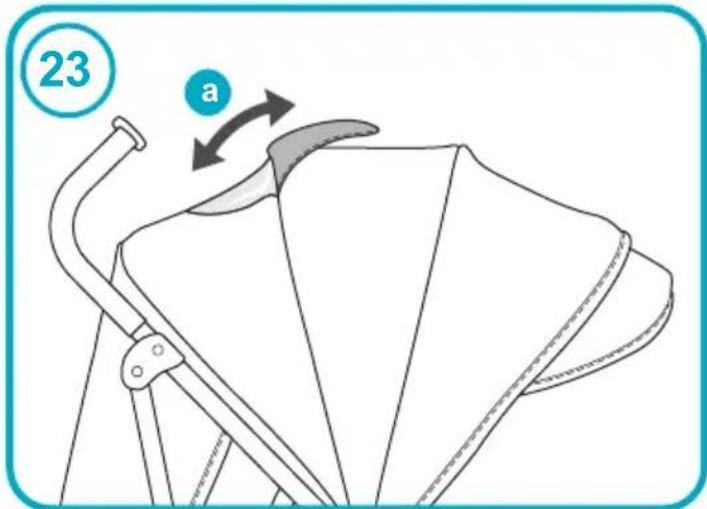

23- Using the hood viewing window flap:

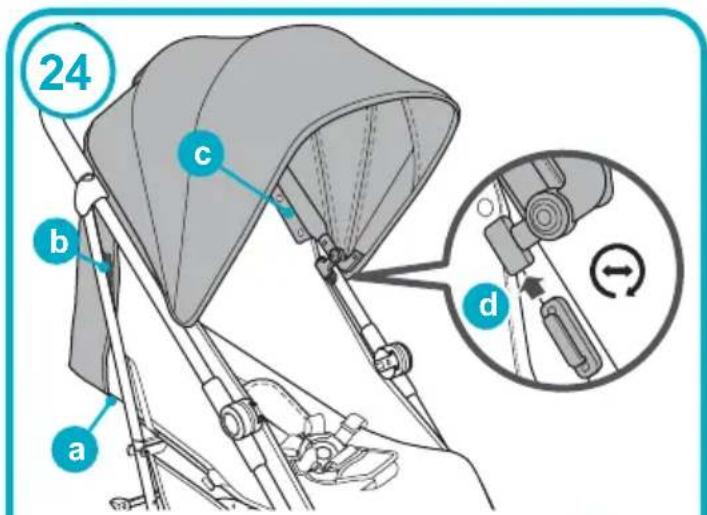

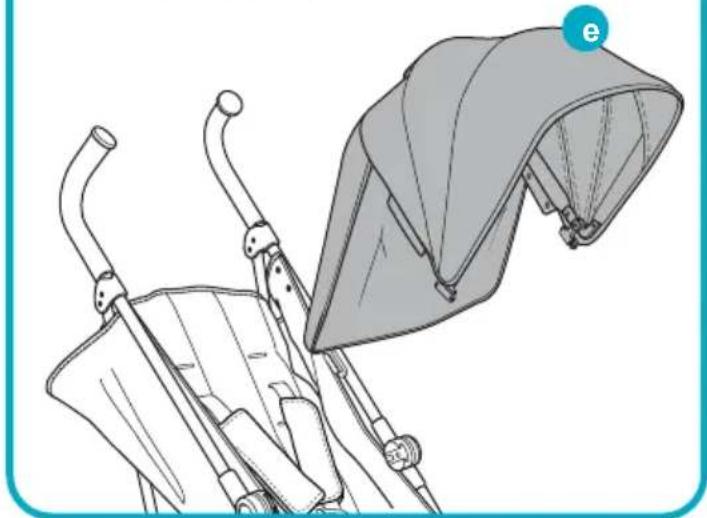

24- Removing:

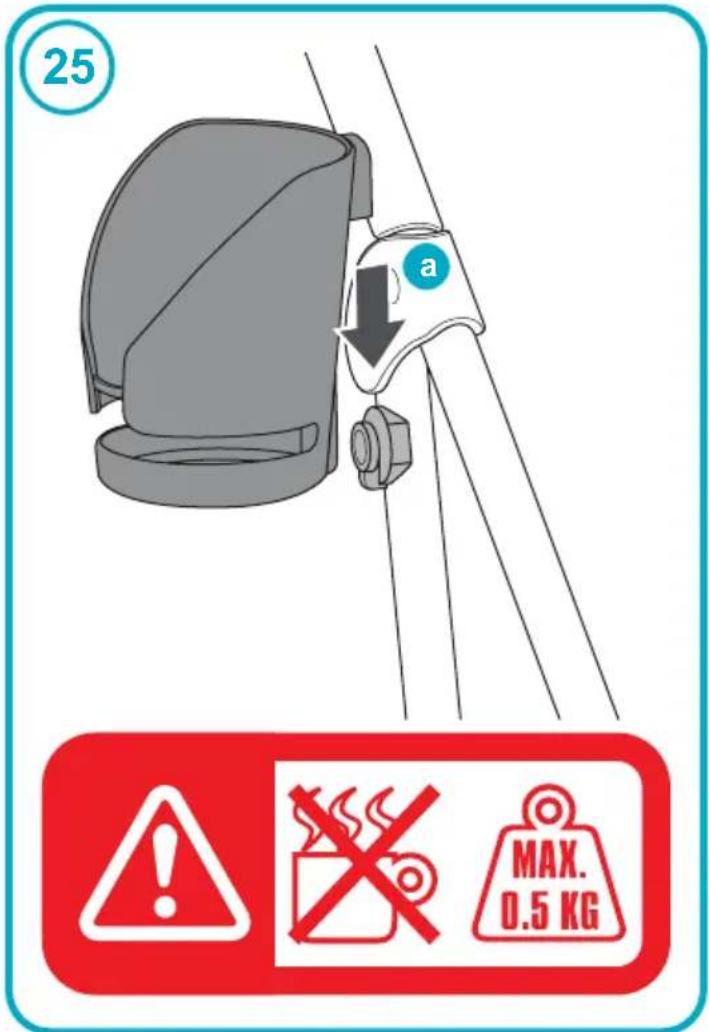

Drink holder 25- Fitting:

Removal is a reversal of this procedure.

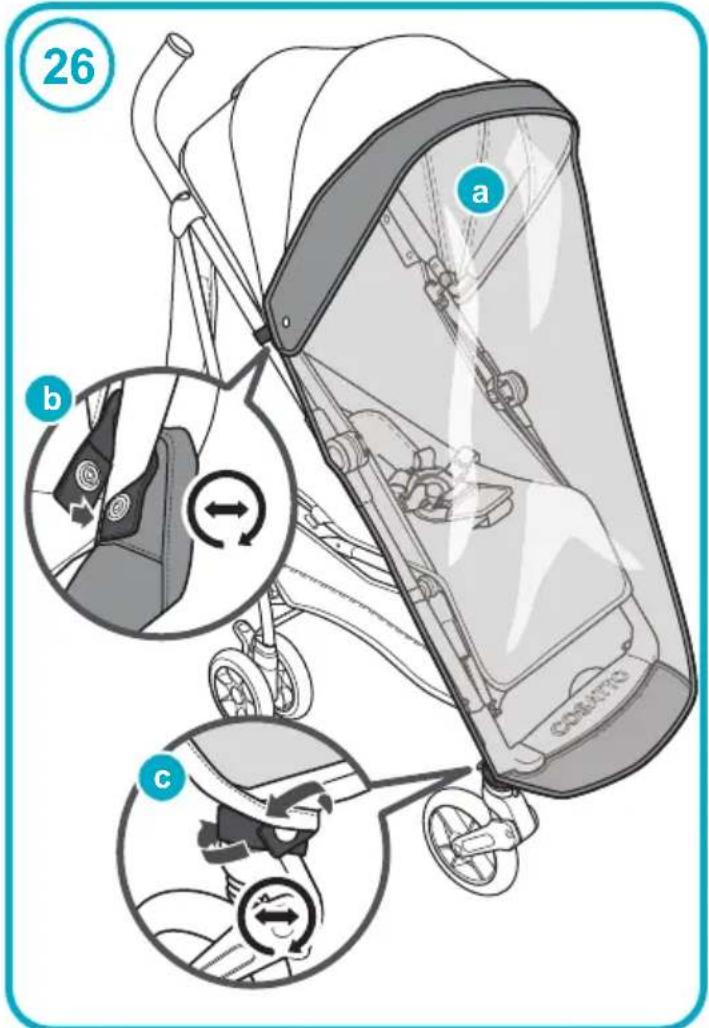

Raincover 26- Fitting:

Removal is a reversal of this procedure.

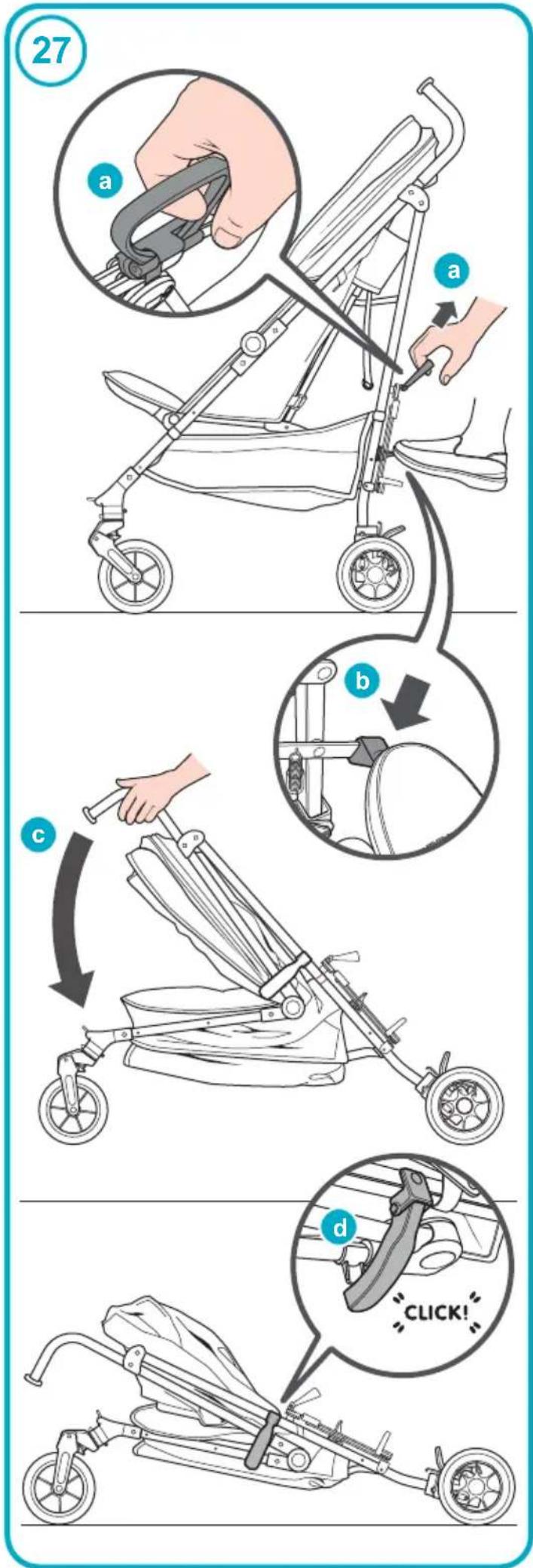

Pushchair 27- Closing:

Ensure backrest is in the upright position (Refer to step 16).

Always remove the raincover and close the hood completely.

Pull the ring upwards (a) then press down the secondary lock bar (b).

Push the handles forward (c) until the auto lock engages (d).

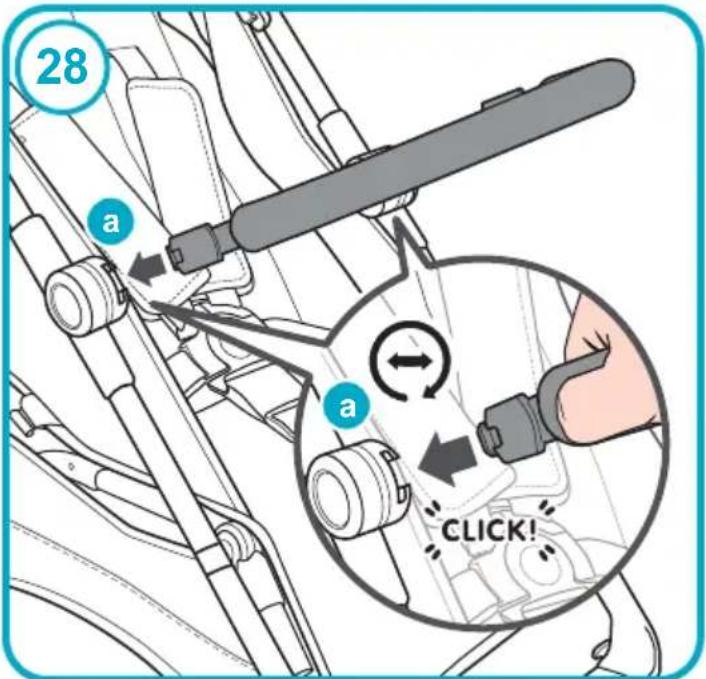

Bumper Bar 28- Fitting:

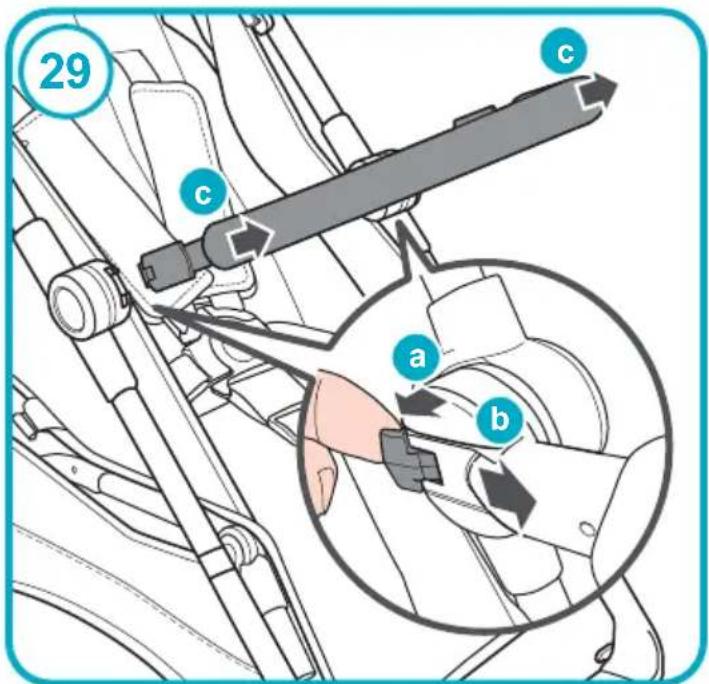

29- Removing:

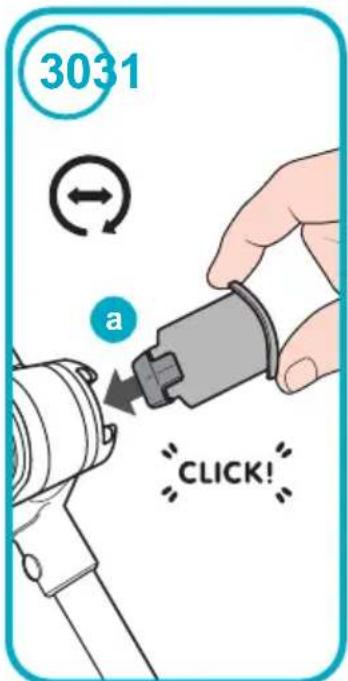

Bumper Bar Caps 30- Fitting:

31- Removing:
