USER MANUAL Supa 3 COSATTO

baby stuff with personality®

the ABCs

supa 3

pushchair

(EN) Instruction 1 - 32

(EN) Spare part list diagram

34

(FR) Schéma de pièces détachées, (DE) Ersatzteillisteabbildung, (IT) Diagramma della lista delle parti di ricambio, (PT) Diagrama de lista de peças sobresselentes, (RU) Схема к спецификации запчастей, (ZH) 备件清单图, (ES) Diagrama de lista de piezas de repuesto

(EN) Instruction diagram

35 - 39

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni, (PT) Diagrama de instruções, (RU) Схема к инструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

General:

• The pushchair is suitable for children from birth up to a maximum user weight of 25kg.
• WARNING: Never leave your child unattended.
• WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
  • WARNING: Do not let your child play with this product.
• WARNING: This product is not suitable for running or skating.
  • WARNING: Always use the restraint system.
• WARNING: Always use the crotch strap in combination with the waist belt.
• WARNING: To avoid risk of injury from burning, do not place hot beverage on drink holder.
• Do not use replacement parts or accessories other than those approved by Cosatto.
• Use the seat in the most reclined position for new born babies until they can sit up unaided.
• A basket is provided for the carriage of goods, evenly distributed, up to a maximum weight of 2kg.
• Rear pocket on hood - maximum weight 700g.
• Plastic drink holder - maximum weight 500g.
• Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.
• Do not use a platform with this product as it may render the product unsafe.
  • Always apply the brake when placing or removing a child from vehicle.
• Never carry a second child on the product.
  • This product complies with BS EN 1888-2:2018.
• Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided for the attachment of a separate safety harness approved to BS EN 13210 should this be required.

Care & maintenance:

• Your pushchair has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.
• Storage - Always store your pushchair dry. Storing a damp pushchair will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing. Never leave in sunlight for prolonged periods - some fabrics may fade.
• Cleaning - Refer to the wash care label on soft goods for cleaning instructions. Plastic and metal parts may be sponged clean with warm water and a mild detergent. Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Wear & Tear - Continual impact will cause damage. The chassis is strong but will weaken should the back wheel be bumped down stairs or kerbs. Tyres will wear with use and wheel units should be replaced if necessary. If your child wears hard shoes these might damage the soft fabric.

- Maintenance - Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times and minimum maintenance should be required. However a regular light application of a spray lubricant e.g. silicone (do not use oil or grease) will extend the life of your pushchair and make opening and folding easier. Your pushchair should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.

Visual language key:

	Refer to warning XX
	Correct action
	Incorrect action
	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Pushchair (basket attached) P5: Drink holder

P2: Hood P6: Bumper bar

P3: Footmuff P7: Bumper bar cap (x2)

P4: Raincover

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website:

http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Foam handle S10: Footrest

S2: Handle pip S11: Wheel cap

S3: Hood S12: Basket

S4: Seat cover S13: Auto lock

S5: Chest pad (pair) S14: Carry handle

S6: Harness S15: Drink holder

S7: Footmuff S16: Bumper bar

S8: Raincover S17: Bumper bar cap (x2)

S9: Front wheel

Fitting & Operation information:

Please refer to the instruction diagrams (p. 35 - 39):

Pushchair 1- Opening:

Release auto lock (a) then pull the handles upwards (b).

Press down on the locking lever (c) until a 'Click' is heard and the secondary lock bar (d) is locked in place.

Check the chassis has locked in place.

Brake 2- Applying:

3- Releasing:

Front wheel swivel4- Applying:

lock 5- Releasing:

Harness 6- Opening:

7- Closing:

8- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

9- Adjusting the shoulder strap position:

10- Satisfactory shoulder strap position:

11- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

12- Removing:

Push the shoulder strap retainer through the backrest (a).

Push the crotch strap retainer through the seat (b).

Rotate the «C» clip to expose its opening (c) and slide the waist strap out of clip (d).

Refitting is a reversal of this procedure.

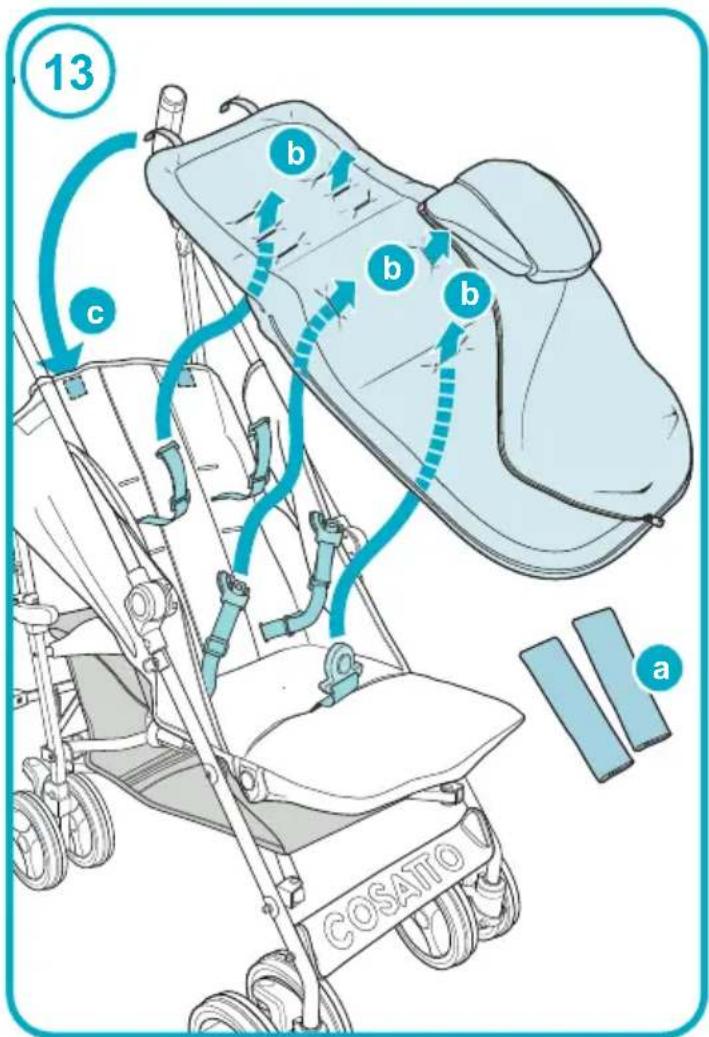

Footmuff 13- Fitting:

Open the harness (Refer to step 6) and remove chest pad (a).

Push the harness straps through the footmuff (b).

Attach the footmuff fabric fasteners to the rear of the backrest (c).

Refit chest pad then close the harness.

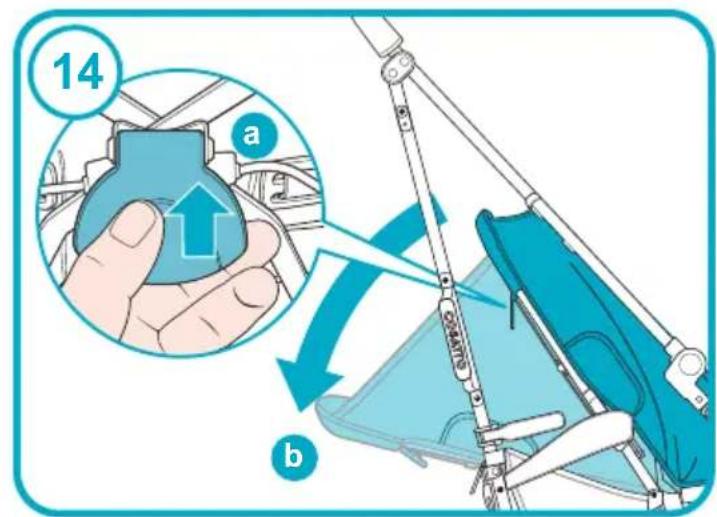

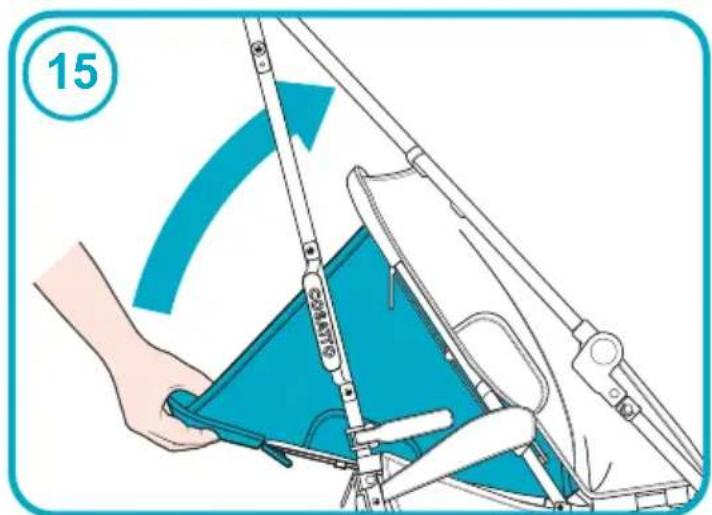

Backrest 14- Lowering:

15- Raising:

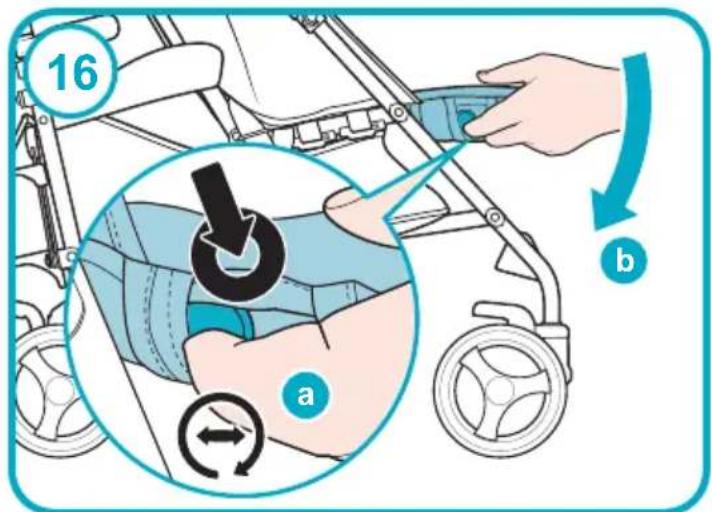

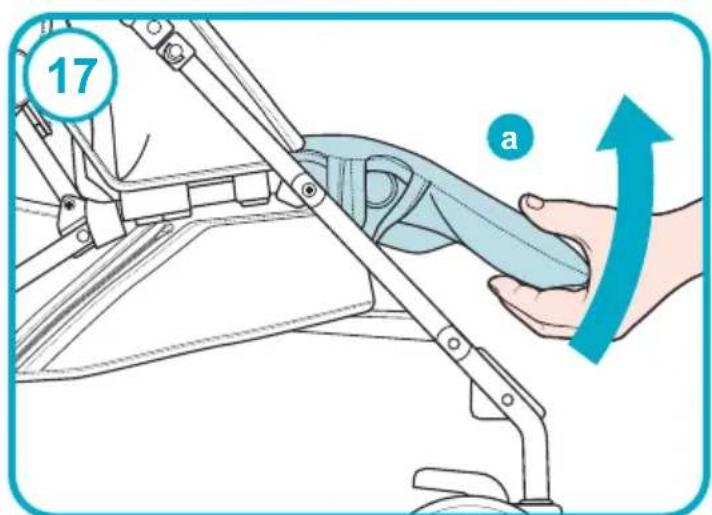

Calf support 16- Lowering:

17- Raising:

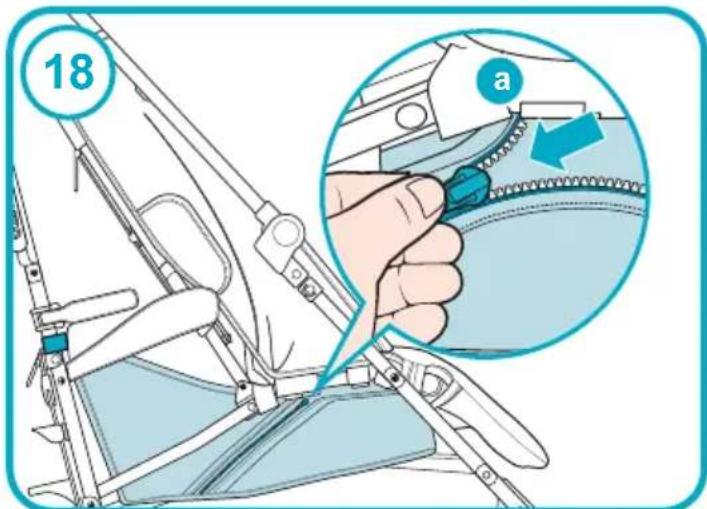

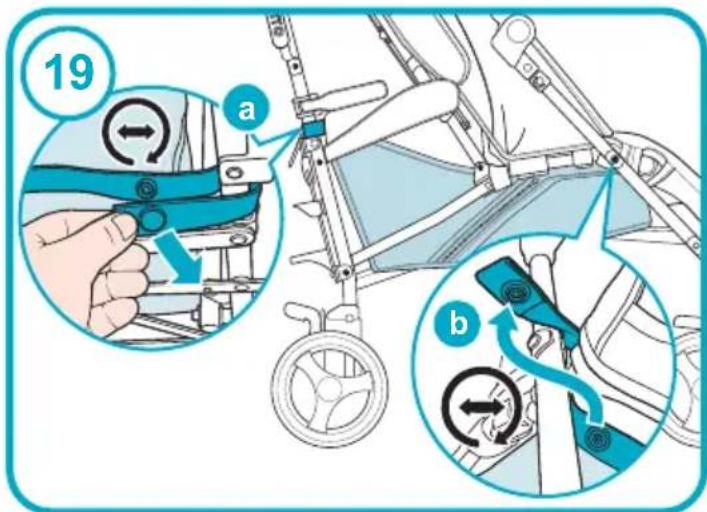

Basket 18- Using access zip:

19- Removing:

Refitting is a reversal of this procedure.

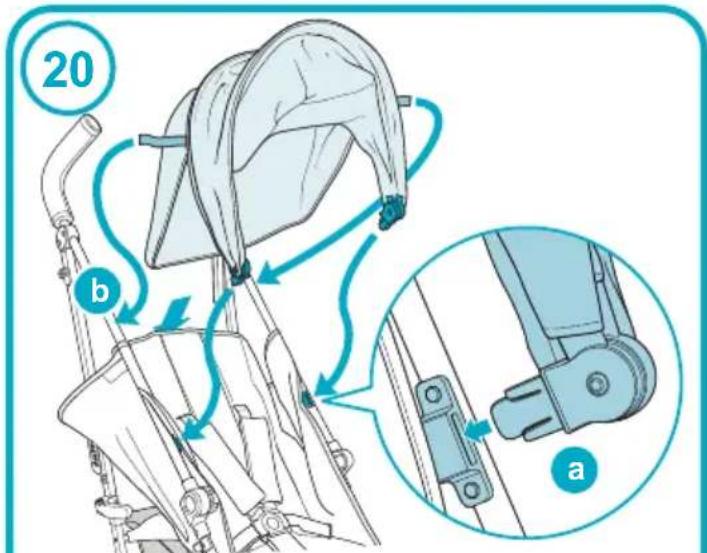

Hood 20- Fitting:

Push the brackets onto the mounts on the chassis (a).

Attach the fabric fasteners to the outside of the seat unit (b).

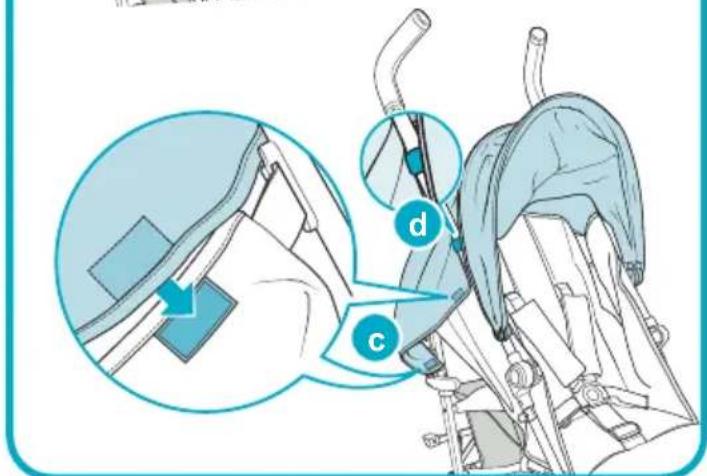

Fit the rear of the hood behind the backrest and attach the fabric fastener (c).

Attach the straps to the front chassis tubing (d).

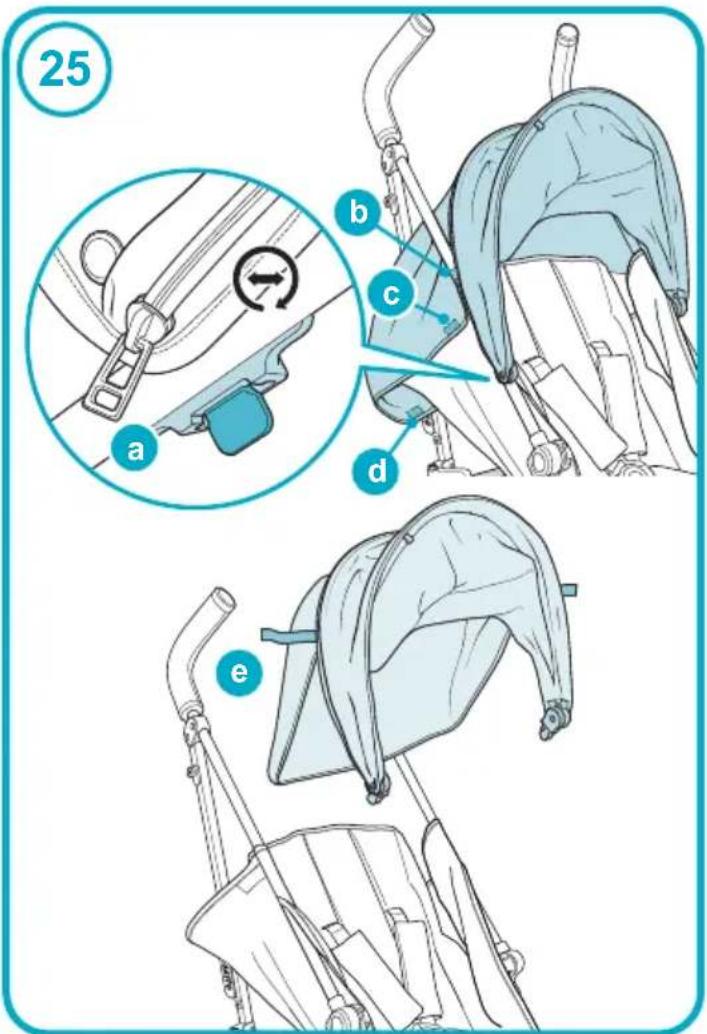

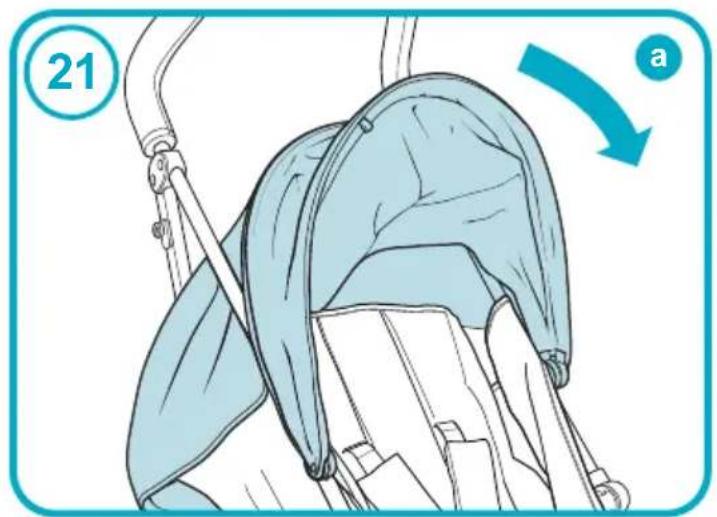

21- Opening:

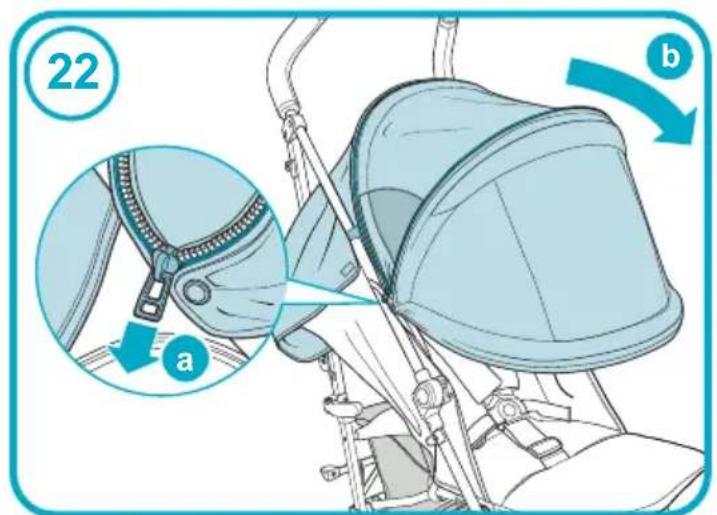

22- Extending:

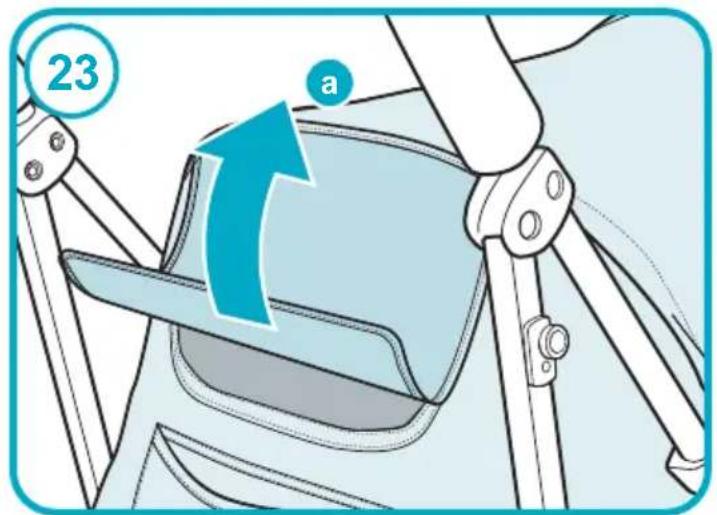

23- Using the viewing window flap:

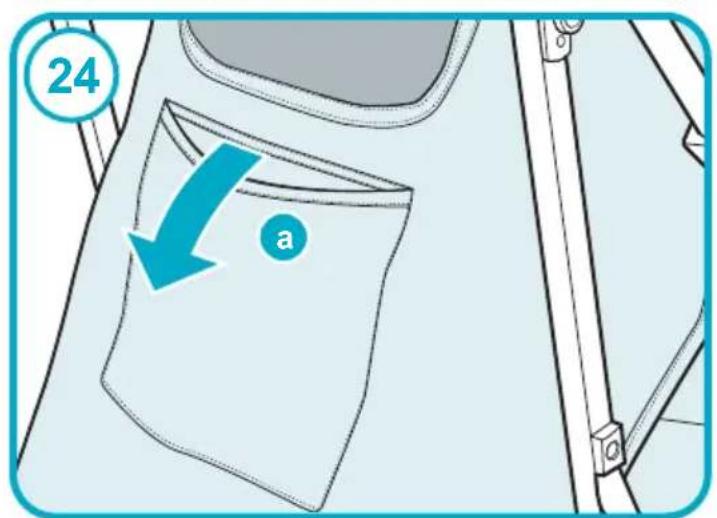

24- Using the hood pocket:

25- Removing:

Removal is a reversal of step 20.

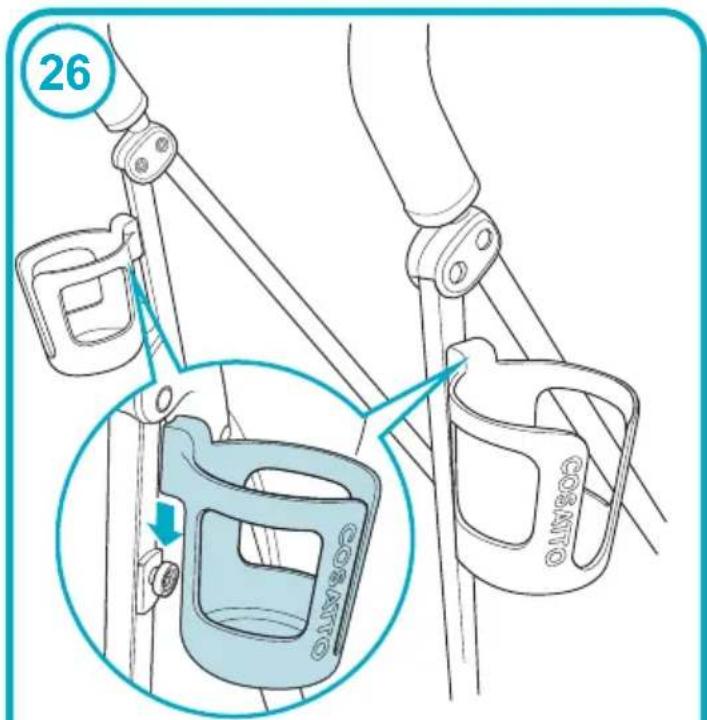

Drink holder 26- Fitting:

Removal is a reversal of this procedure.

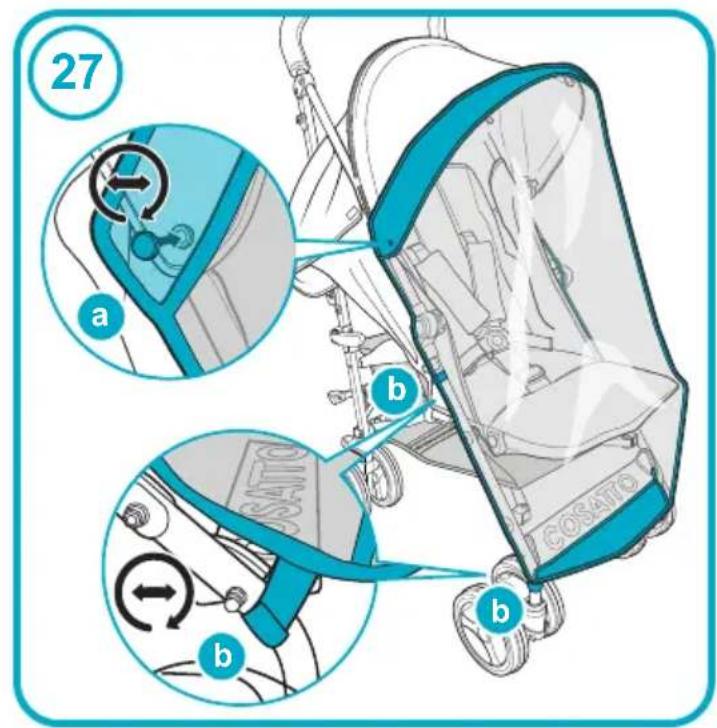

Raincover 27- Fitting:

Removal is a reversal of this procedure.

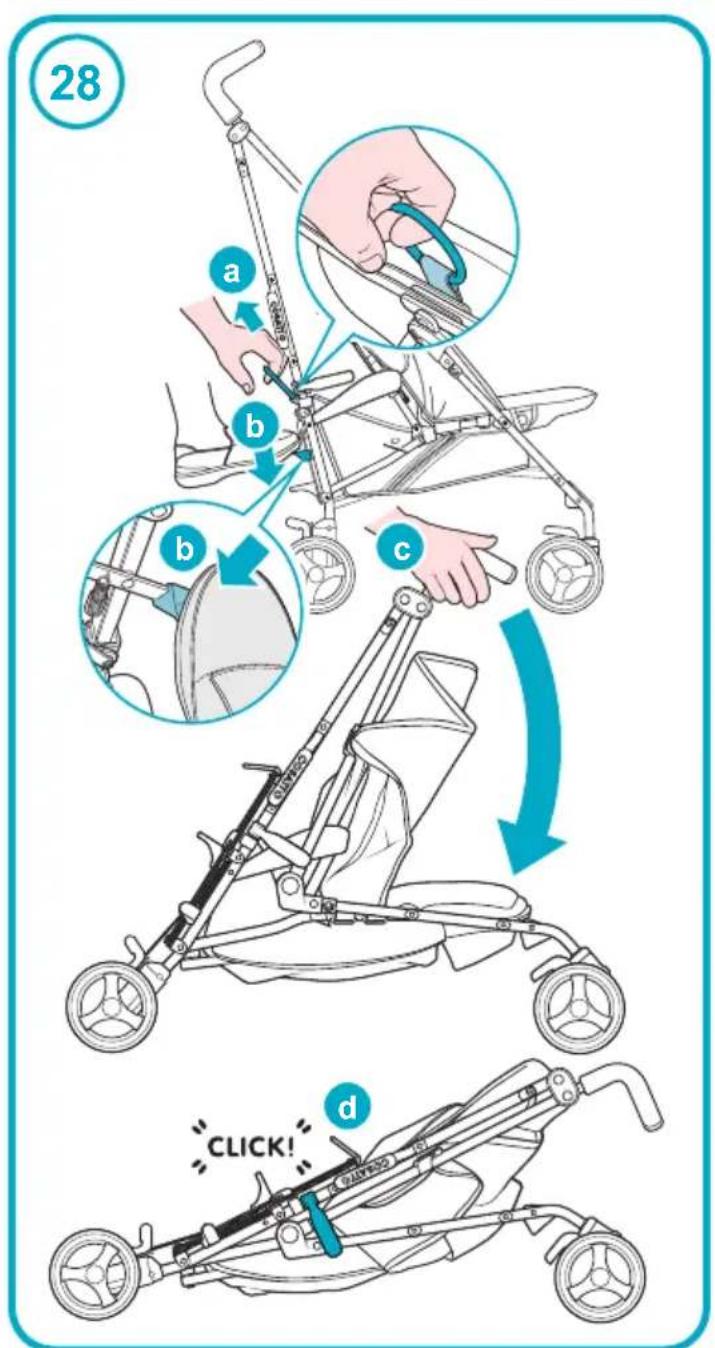

Pushchair 28- Closing:

Ensure backrest is in the upright position (Refer to step 15).

Always remove the raincover, placing it in the basket and close the hood completely.

Pull the ring upwards (a) then press down the secondary lock bar (b).

Push the handles forward (c) until the auto lock engages (d).

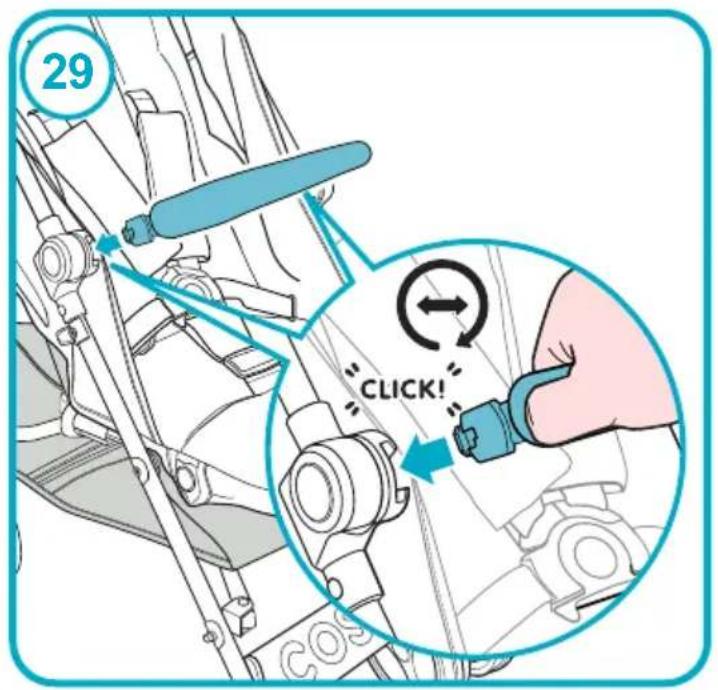

Bumper Bar 29- Fitting:

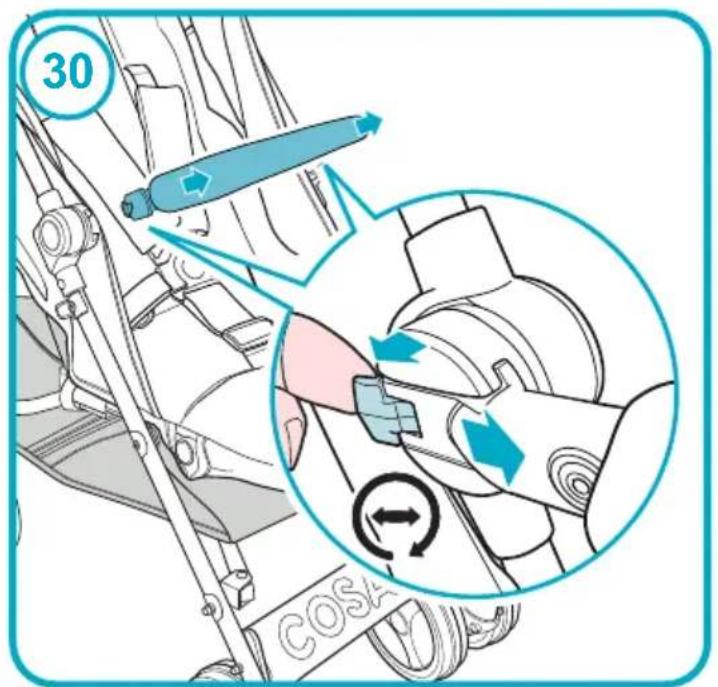

30- Removing:

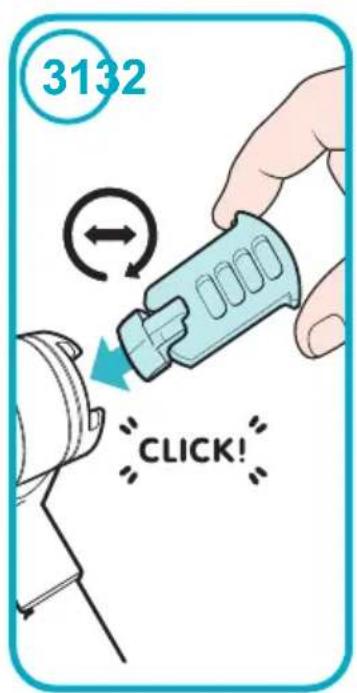

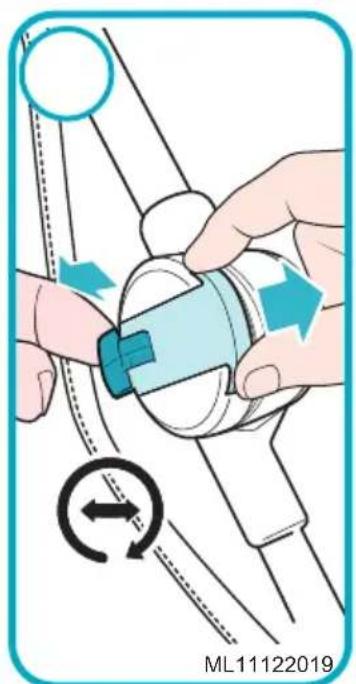

Bumper Bar Caps 31- Fitting:

32- Removing:
