USER MANUAL TASSIMO TAS5542, TASSIMO TAS5543 BOSCH

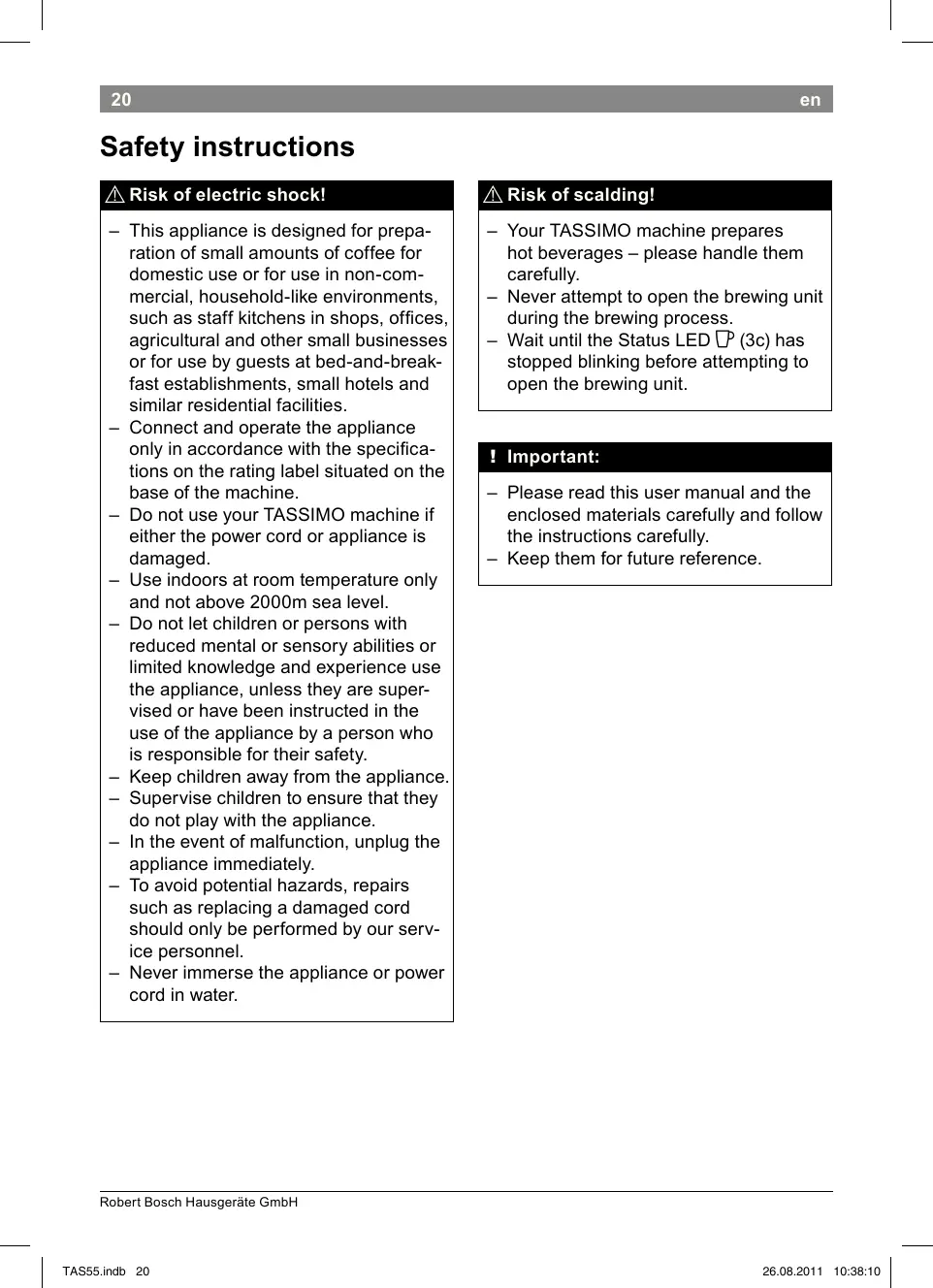

Risk of electric shock!

• This appliance is designed for preparation of small amounts of coffee for domestic use or for use in non-commercial, household-like environments, such as staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Connect and operate the appliance only in accordance with the specifications on the rating label situated on the base of the machine.
• Do not use your TASSIMO machine if either the power cord or appliance is damaged.
• Use indoors at room temperature only and not above 2000m sea level.
• Do not let children or persons with reduced mental or sensory abilities or limited knowledge and experience use the appliance, unless they are supervised or have been instructed in the use of the appliance by a person who is responsible for their safety.
• Keep children away from the appliance.
  Supervise children to ensure that they do not play with the appliance.
• In the event of malfunction, unplug the appliance immediately.
• To avoid potential hazards, repairs such as replacing a damaged cord should only be performed by our service personnel.
• Never immerse the appliance or power cord in water.

Risk of scalding!

• Your TASSIMO machine prepares hot beverages - please handle them carefully.
• Never attempt to open the brewing unit during the brewing process.
• Wait until the Status LED (3c) has stopped blinking before attempting to open the brewing unit.

! Important:

• Please read this user manual and the enclosed materials carefully and follow the instructions carefully.
• Keep them for future reference.

Thank you for choosing a TASSIMO machine. With TASSIMO, you can enjoy your favourite drink at any time. Aromatic coffee, strong espresso, tasty caffe crema, creamy cappuccino or latte macchiato, or even a cup of tea or hot chocolate: they're all waiting for you at the push of a button.

Your TASSIMO machine works exclusively with specially developed capsules known as TASSIMO T DISCs. When you insert the T DISC, the machine automatically reads the bar code printed on the label. This contains exact details of the amount of water needed, as well as the brewing time and temperature required to prepare the chosen beverage. T DISCs are specially designed for use with the TASSIMO brewing system and offer perfect enjoyment, cup after cup. To ensure long-term enjoyment, please only use the T DISCs specially developed for the TASSIMO machine.

Table of contents

Safety instructions. 20

Your TASSIMO machine at a glance ....21

First use of your TASSIMO machine.....22

BRITA MAXTRA water filtration system ..24

Controls and Displays 26

Cup size 27

How to use your TASSIMO machine ....28

Maintenance and day to day care. 30

Dscaling 32

Disposal. 35

Troubleshooting 35

Guarantee 184

TASSIMO careline. 188

Your TASSIMO machine at a glance

Before reading further, please open the folded diagram page at the start of the manual out to the left.

1 ON/OFF switch
2 Start/Stop button

a Drink adjustment button +
b Drink adjustment button -

3 Indicators

a + LED
b - LED
c Status LED
d Fill water tank
e Descale required
f BRITA cartridge replacement indicator

4 Brewing unit

a Handle
b T DISC holder
c T DISC piercing unit
d Drink outlet
e T DISC barcode reading window

5 Removable water tank

a Float
b Fill mark for descending solution
c Filter cartridge holder
d BRITA MAXTRA filter cartridge

6 Storage compartment

a Service T DISC
b Short instructions for cleaning/descaling

7 Cup stand

a Drip tray
b Height adjustment with drip grate

Note:

We recommend that you store the Service T DISC and the cleaning/descaling programme short instructions in the compartment (6) provided at the back of the appliance.

First use of your TASSIMO machine

Insert the power plug into a wall outlet.
- Remove the water tank, rinse it and the filter cartridge holder (5c) thoroughly under running water, and fill it up to the max mark with cool fresh water.

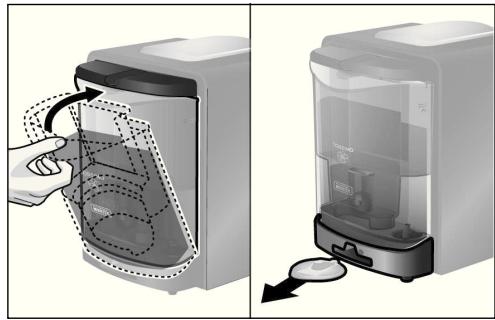

Replace the water tank by slanting it slightly and returning it to its original position until it clicks into place.

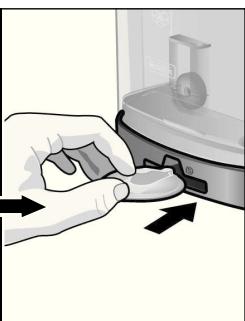

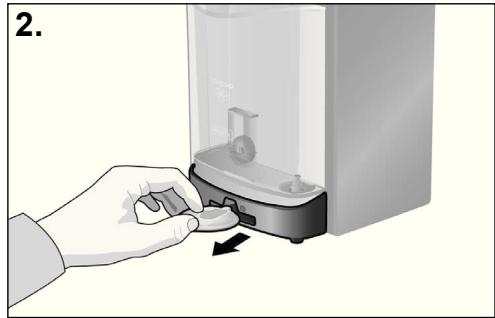

Remove the Service T DISC (6a) from its compartment (6) at the back of the appliance.

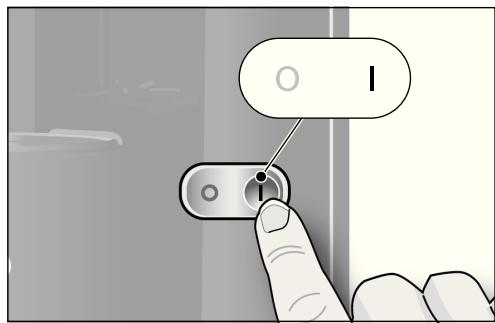

Turn the machine on by pressing the ON/OFF switch (1). The display elements will light up briefly.

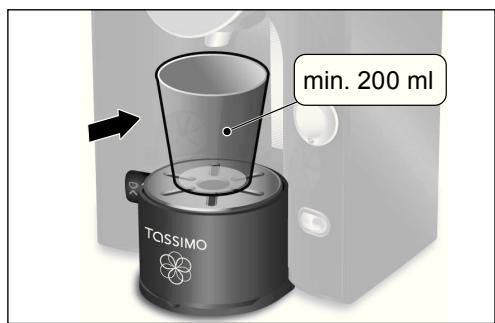

• Select a large cup (minimum capacity 8 oz / 200 ml) and place it on the cup stand (7).

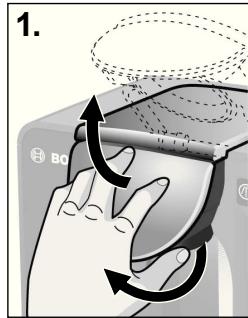

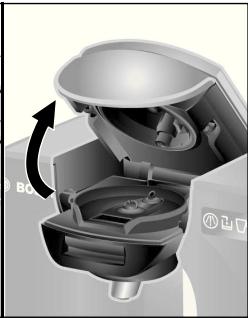

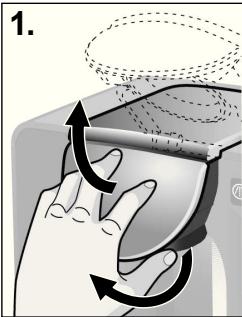

1. Open the brewing unit by lifting the handle (4a) and then pushing the brewing unit up.

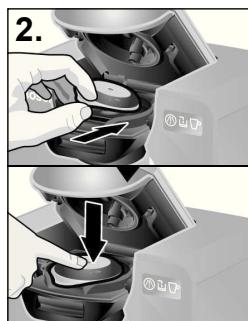

2. Place the Service T DISC (6a) on the T DISC holder (4b) with the barcode facing down. Make sure that the flap of the T DISC is centred in the slot in the front.

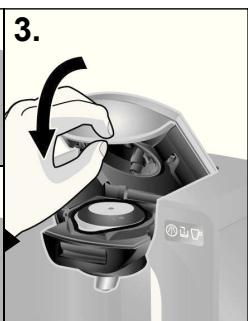

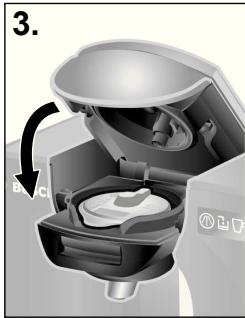

3. Close the brewing unit by first bringing it down.

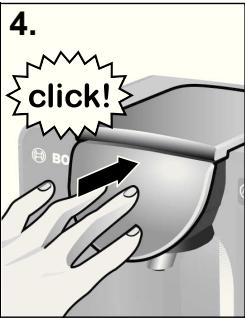

4. Then push the handle (4a) firmly to the machine, until you hear an audible click.

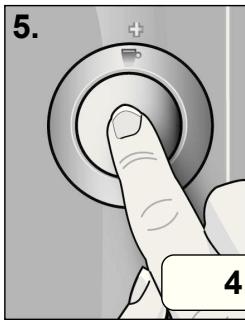

5. Press the Start / Stop button (2) to start the cleaning process.

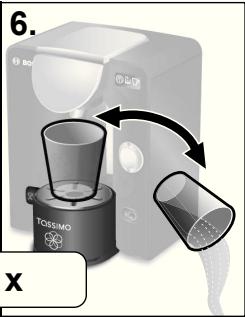

6. When the cleaning process is complete, empty the cup and return it under the drink outlet.

! Important:

• Please complete steps 5 and 6 four times to ensure the machine is cleaned and prepared for the next steps.

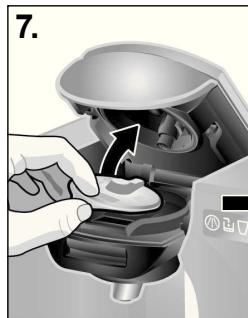

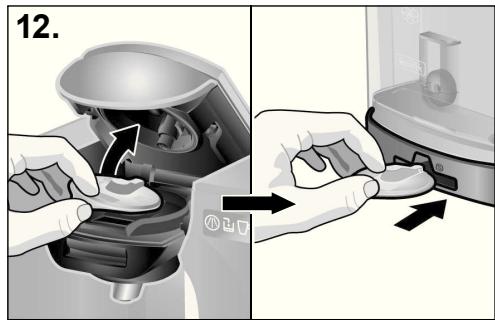

• Open the brewing unit, remove the Service T DISC and store it in the compartment (6) at the back of the machine.
  The next step involves installing the BRITA MAXTRA water filter system that came with your machine. Please follow the instructions on the next pages.

BRITA MAXTRA water filtration system

Only BRITA MAXTRA water filtration system cartridges may be used in TASSIMO machines.

BRITA MAXTRA filter cartridges (5d) are available from various retailers or directly from the Bosch Customer Service Department (see page 186 for contact information).

To operate your machine with a new filter cartridge (5d), proceed as follows:

Preparing and inserting BRITA MAXTRA filter cartridge

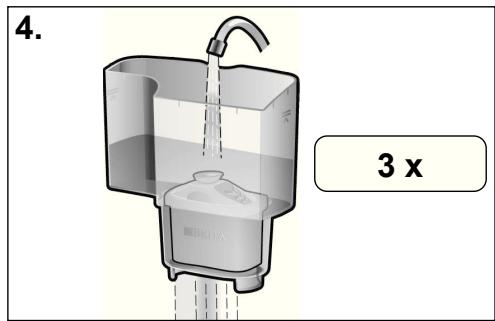

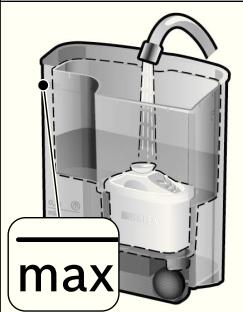

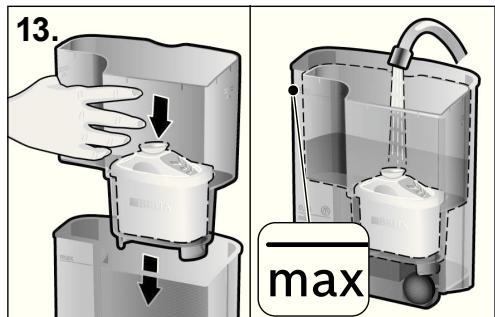

1. Hold the filter cartridge holder (5c) under the tap, fill it with fresh, cold water and let the water run through the filter cartridge (5d). Repeat this procedure three times.

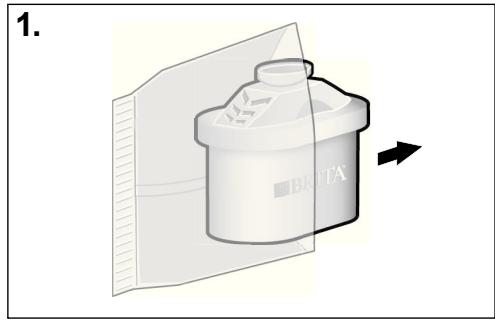

2. Remove the filter cartridge (5d) from its protective wrap.

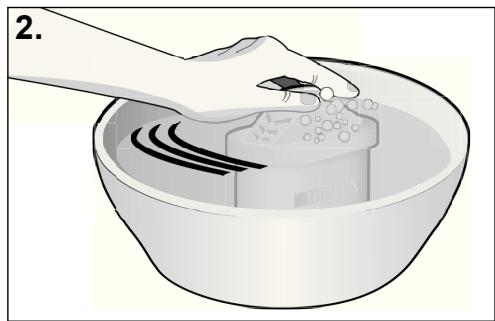

3. Immerse the filter cartridge (5d) in cold tap water and move it gently back and forth to remove any air bubbles (about 5 seconds).

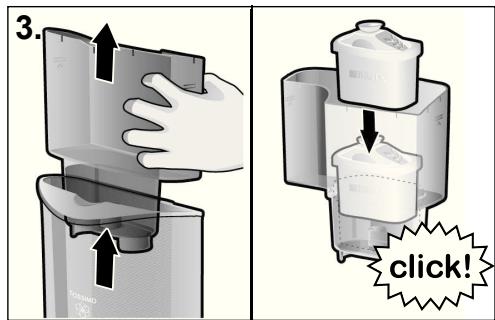

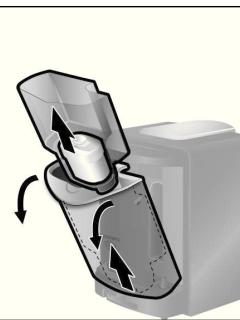

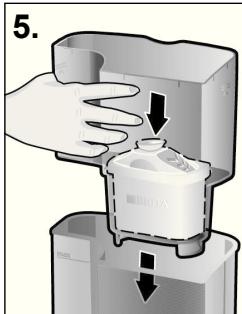

4. Remove the filter cartridge holder (5c) from the water tank and insert the filter cartridge (5d) into the appropriate chamber of the filter cartridge holder (5c) until it snaps into place with an audible click.

1. Now place the filter cartridge holder (5c) with the filter cartridge (5d) into the empty water tank and fill the tank with fresh water to the max mark.

! Important:

• Always remove the filter cartridge holder (5c) with the filter cartridge (5d) before running the descaling programme.

Activate BRITA Filter cartridge replace indicator

For maximum filter performance and antiscale protection, the BRITA MAXTRA filter cartridge (5d) should be replaced every eight weeks.

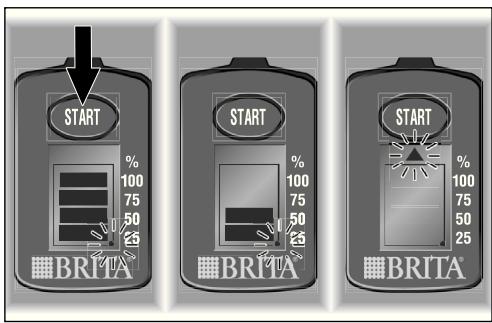

The BRITA cartridge replacement indicator (3f) on the top of the machine uses bars to indicate when the filter cartridge (5d) should be replaced with a new one.

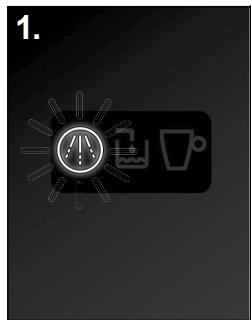

To activate the BRITA filter cartridge replacement indicator (3f), press and hold the Start button until all four bars appear on the display and blink twice.

The blinking dot in the lower right corner indicates that the filter cartridge replacement indicator (3f) is activated. All four bars should be visible.

From this moment on, one bar disappears every two weeks. When no bars are visible after eight weeks and the arrow is blinking, replace the filter cartridge (5d).

To remove the filter cartridge (5d), simply pull it out by its tab.

To prepare a new filter cartridge (5d), follow the instructions in the section titled "Preparing and inserting BRITA MAXTRA filter cartridge" and reset the BRITA filter cartridge replacement indicator (3f), by pressing and holding the Start button.

Note:

Your TASSIMO machine is now ready for use.

1 Note:

It's a good idea to purchase a new filter cartridge (5d) when the replacement indicator shows only one bar. BRITA MAXTRA filter cartridges (5d) are available from various retailers or directly from the Bosch Customer Service Department (see page 186 for contact information).

Controls and Displays

(see the illustration at the beginning of this instruction manual)

ON/OFF switch (1)

The ON/OFF switch is the main power switch for the machine. You use it to turn on your TASSIMO machine or turn it off completely.

1 Note:

To save even more energy, the appliance should be switched off after each use.

Start/Stop button (2)

The Start/Stop button is used to start and interrupt the brewing, cleaning and descending processes.

Drink adjustment buttons

+ (2a) and - (2b)

You use the drink adjustment buttons to adjust the size of the drink you are preparing.

2a Makes a larger/longer drink (milder flavour)

2b Makes a smaller/shorter drink (stronger flavour)

+LED (3a) and -LED (3b)

These LEDs light up when the T DISC has been detected. The + and - LEDs light up individually according to whether a bigger or smaller drink has been selected and flash during the brewing process.

Status LED (3c)

The status LED indicates four machine conditions:

Steady yellow: Machine is in standby mode
- Blinking yellow: Machine is in the process of brewing a drink/cleaning/descaling
- Steady red: Error mode (for example, if the barcode was not recognized)
- Dimmed, yellow light: Power save mode

! Risk of scalding!

• Wait until the Status LED (3c) has stopped blinking before attempting to open the brewing unit.

Fill water tank (3d)

This indicator lights up when the removable water tank needs to be refilled or is not in place.

Descale required (3e)

This indicator lights up or blinks when your TASSIMO machine must be descaled.

Note:

Always descale your TASSIMO machine in accordance with the instructions provided under "Dscaling" on page 32.

BRITA filter cartridge replacement indicator (3f)

This indicator reminds you that it is time to replace the BRITA MAXTRA filter cartridge (5d).

Cup size

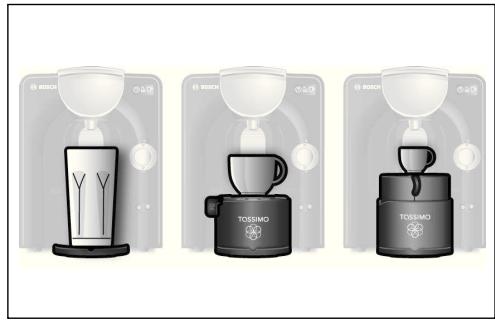

To use cups of different sizes in accordance with your beverage selection, you can adjust the cup stand of your TASSIMO machine.

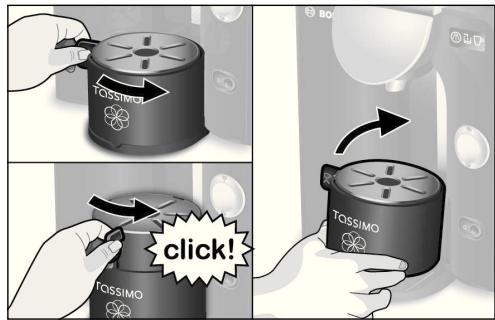

To adjust the height setting for small cups, turn the control handle (7b) left to right until it clicks into place.

For large cups or glasses, the cup stand can be removed completely.

To remove lift up the front of the cup stand and tilt towards the back.

Notes:

• To ensure the best possible beverage quality and avoid splashing, always use the highest cup stand position.
• To avoid spillage, select the appropriate cup size for each type of beverage. The recommended cup size is indicated on the original T DISC outer packaging.

How to use your TASSIMO machine

! Important:

• For optimum results, fill the tank only with cool, fresh, non-carbonated water each day. Do not use chemically softened water.

1 Note:

Make sure that your TASSIMO machine has been set up for use as described in the section titled "First use of your TASSIMO machine" on page 22.

To prepare your favourite beverage, proceed as follows:

Turn the TASSIMO machine on by pressing the ON/OFF switch (1).
Place a suitable cup on the stand (7) according to the type of beverage. Adjust the height of the cup stand, if necessary, or remove it altogether for large cups or glasses.
Always set the cup stand as high as possible.

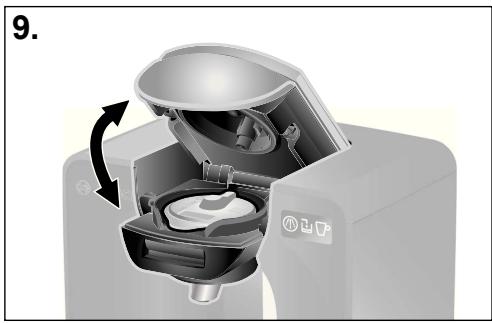

1. Open the brewing unit by lifting the handle (4a) and then pushing the brewing unit up.

2. Select a beverage T DISC and insert it into the T DISC holder (4b) with the printed side down. Make sure that the flap of the T DISC is located in the slot in the front.

3. Close the brewing unit by first bringing it down and then pushing the handle (4a) firmly to the machine.

When the T DISC has been detected, the + / - LEDs light up.

The machine is now ready to brew your beverage.

1. To brew your beverage with the recommended settings as defined in the T DISC bar code, go straight to Step 5.
2. You have the option to adjust the beverage quantity to your taste with the drink adjustment buttons:
   drink adjustment button + (2a): larger/longer drink for a milder flavour
   drink adjustment button - (2b): smaller/shorter drink for a stronger flavour
   If drink adjustment was chosen, either the + or - LED will light up until you start the brewing process.
3. Press the Start / Stop button (2) once to start the brewing process.

Risk of scalding!

• Never attempt to open the brewing unit during the brewing process.
• Keep in mind that the beverages are very hot when dispensed.

The status LED (3c) and (if selected) the + or - LED blinks, while the machine is brewing.
If you want a larger beverage, you can add more water immediately after the brewing process by pressing and holding the Start/Stop button (2) or the drink adjustment button + (2a).
6. When the brewing process is complete, the status LED (3c) stops blinking. Your beverage is now ready. You can sit back and enjoy it or prepare another beverage.

Note:

There may be short pauses during the brewing process. This is to achieve the optimal flavour extraction.

If you don't prepare any other beverages, your machine automatically switches to power-saving mode.

To save even more electricity, we recommend turning your TASSIMO machine off with the ON/OFF switch (1) after each use.

Where to buy T DISCs

Your TASSIMO appliance works only with specially developed capsules known as TASSIMO T DISCs.

You can buy these T DISCs at various retailers, or online at www.tassimo.com.

T DISC storage

T DISCs may be stored in their own packaging or in other containers of your choice. They should be stored in a cool, dry place. It is not necessary to store T DISCs in the refrigerator. Do not keep them in the freezer. Provided the outer packaging is intact, T DISCs may be used until the best-before date which is printed on the outer package.

Once outer foil packaging is removed, use T DISCs within 6 weeks.

Maintenance and day to day care

Risk of electric shock!

• Switch off and unplug the appliance before cleaning.
• Never immerse the appliance in water.
• Do not use a steam cleaner.

Clean your TASSIMO machine regularly to ensure that it continues to produce beverages of the best possible quality. If the appliance has been unused for a long time, run the cleaning process with the Service T DISC several times to ensure that the drinks it produces are of its normal high quality (see "First use of your TASSIMO machine").

Never use vinegar or vinegar-based products, scouring agents or chemically softened water.

2.

3.

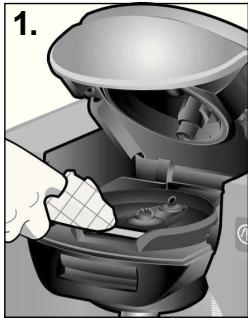

1. Clean the brewing system regularly with a soft, damp cloth, especially the T DISC barcode scanner (4e) and the area around the clamp, so that the T DISC barcode can be scanned properly.
2. Wipe the outside of the appliance with a soft, damp cloth.

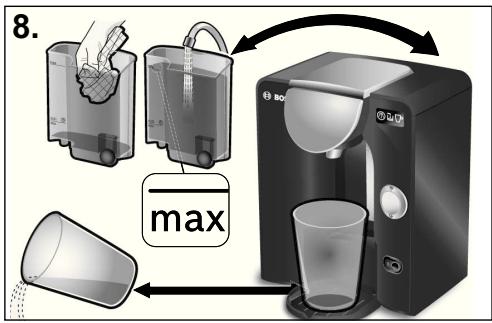

3. Rinse out the water tank (5) and the filter cartridge holder (5c) by hand and with water only; do not place them in the dishwasher.

1. All parts of the cup stand (7) are dishwasher-safe.

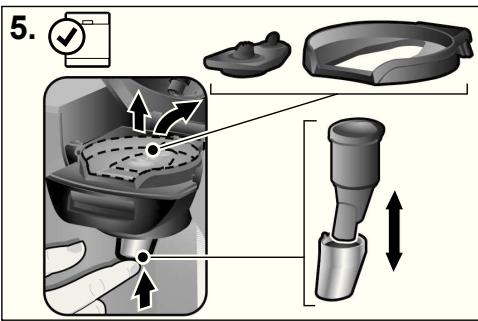

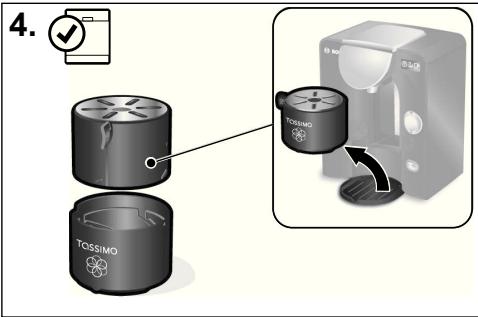

2. Remove the T DISC holder (4b) and the piercing unit (4c). Also remove the drink outlet (4d) by pushing it up. It is recommended to clean these parts regularly, otherwise the drink outlet could become blocked, possibly causing leakage or reduced drink sizes.

All these parts can also be cleaned in the dishwasher.
- When preparing a number of drinks one after another, the piercing unit may be manually cleaned quickly and easily under running water.

! Important:

• The piercing unit and the drink outlet can be very hot immediately after brewing.
• After use, we recommend that the Service T DISC be stored in its compartment (6) at the back of the appliance.
• The drink outlet (4d) must be put back in place after cleaning.

1 Note:

If you prepare beverages containing milk or cocoa, we recommend cleaning the brewing unit more frequently by using the Service T DISC as described in the section titled "First use of your TASSIMO machine".

Dscaling

! Important:

• If you have very hard water, notice an unusual amount of steam or if the beverage size is not what it should be, descale the machine before the LED comes on.
• Although the enclosed BRITA MAXTRA filter system reduces the amount of lime in the water significantly, it does not eliminate the need for regular descaling.
• Do not drink any of the liquids used for descaling.
• Never use vinegar or vinegar-based products.
• Always remove the filter cartridge holder (5c) with the filter cartridge (5d) before running the descaling programme.
• Never interrupt the descending programme.

Your TASSIMO machine must be descaled regularly, because heating water creates limescale which accumulates in the machine over time. When descending is needed, the machine indicates this by activating the "Descale required" LED (3e). When this LED lights up, you should descale your machine immediately. Not doing so may result in machine not functioning properly and beverage quality deteriorating.

If you have not descaled the machine after another 30 T DISCs, the indicator starts to blink.

Special descending agents can be obtained from www.tassimo.com, the Bosch customer service department (article no. 310967, for contact details, see page 186) or from your retailer.

Running the descending programme

1. Remove the water tank from your TASSIMO machine and take out the filter cartridge holder (5c) with the filter cartridge (5d).
2. Remove the Service T DISC from the compartment (6) at the back of the machine.

! Important:

• The descending programme runs for about 20 minutes.

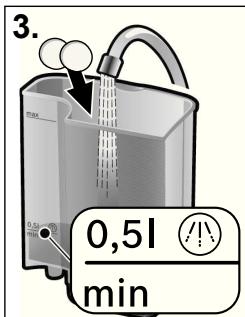

• Fill the water tank up to the descending mark (0,51) and add the descending agent in accordance with the manufacturer's instructions.

Note:

If you have hard water, increase the amount of the descending agent.

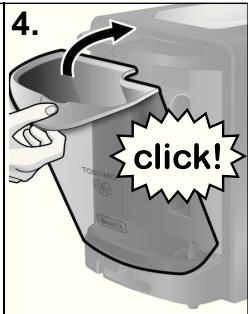

1. Replace the water tank by slanting it slightly and returning it to its original position until it clicks into place.

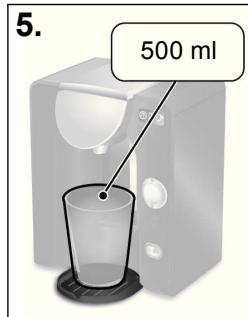

2. Place a container with a capacity of at least 500 ml under the drink outlet.

3. Open the brewing unit by lifting the handle (4a) and then pushing the brewing unit up. Place the Service T DISC on the T DISC holder (4b) with the barcode facing down. Make sure that the flap of the T DISC is located in the slot in the front.

4. Close the brewing unit by first bringing it down and then pushing the handle (4a) firmly to the machine, until you hear an audible click.

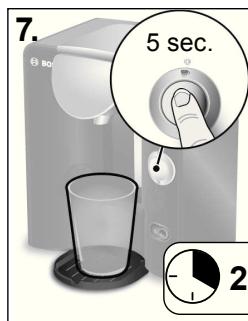

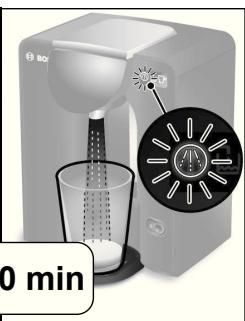

5. Press and hold the Start/Stop button (2) for at least 5 seconds to start the descending programme.
   Release the Start/Stop button after 5 seconds; the machine will run the descending cycle automatically. This is indicated by the Status LED and "Descale required" LED 品 blinking.

Note:

The descending solution is pumped through the machine in intervals and then runs into the container until the water tank is almost empty. A small amount of liquid is always left in the tank.

1. When the Status LED and "Descale required" LED stop blinking, the descaling process is complete. Empty the receiving container and return it under the drink outlet.
   Rinse the water tank thoroughly and fill up to the max mark with fresh water.
   Replace it back onto your TASSIMO machine.
2. Open and close the brewing unit (Leave the Service T DISC in the T DISC carrier).
3. Press the Start/Stop button (2) briefly to run the cleaning cycle.
4. When the cleaning process is complete, empty the cup and return it under the drink outlet.

! Important:

• Please complete steps 10 and 11 four times.

Your TASSIMO machine has now been properly descaled and cleaned.

1. Now open the brewing unit, remove the Service T DISC and store it in the compartment (6) at the back of the machine.

1. Now place the filter cartridge holder (5c) with the filter cartridge (5d) into the empty water tank and fill the tank with fresh water to the max mark.

Note:

Your TASSIMO machine is ready for use again.

Disposal

This appliance is labelled in accordance with the European Directive 2002/96/EG relating to waste electrical and electronic equipment - WEEE. The directive provides the framework for the EU-wide take-back and disposal of end-of-life appliances. Please ask your retailer about current disposal facilities.

All rights reserved.

! Important:

• Bosch only manufactures the TASSIMO machine. It therefore does not guarantee the availability of TASSIMO T DISCS.
• To find out where to purchase beverage T DISCS go to www.tassimo.com

Troubleshooting

The following table provides solutions for problems and glitches that may arise as you use your TASSIMO machine. If you do not find a solution for your specific problem, or the problem persists after troubleshooting please contact our customer service department.

Problem	Possible cause	Solution
Appliance not working; no symbols light up.	There is no power supply.	Check that the appliance is properly plugged into the power supply.
Machine brews but no drink dispensed.	The water tank is not correctly positioned.	Make sure that the water tank is positioned correctly.
	The water tank was removed during the brewing process or there is air in the system.	Start a cleaning cycle with the Service T DISC.
	The float in the water tank is stuck.	Clean the water tank and ensure the float can move.
Drink size smaller than usual.	Not enough water in the water tank.	Fill the water tank after the drink has finished dispensing and press the start/stop button to finish the drink.
	The appliance needs descaling.	Descale the appliance (for details see “Descaling”).
More steam than usual.	The appliance needs descaling.	Descale the appliance (for details see “Descaling”).
The appliance does not recognise the inserted T DISC and remains in stand-by mode or the Status LED lights up red.	No T DISC inserted.	Check if T DISC has been inserted.
	The barcode could not be detected.	Clean the T DISC barcode reading window and try again or smooth the barcode on the T DISC out with your thumb.
		Use another T DISC.
		If problems persist contact the TASSIMO careline 0800 032 88 33 (UK only)
	The brewing system is not properly closed.	Clean the brewing system thoroughly, especially in the area of the clamp.
The quality of the foam/crema has deteriorated.	The drink outlet is clogged or dirty.	Remove the drink outlet from the brewing unit and detach the piercing unit. After cleaning everything thoroughly, reassemble the parts and replace them in the brewing unit.
		Clean the brewing unit with the Service T DISC.
	The appliance needs descaling.	Descale the appliance (for details see “Descaling”).
Brewing unit cannot be securely closed.	T DISC Piercing unit or T DISC holder is not properly inserted.	Insert T DISC holder or T DISC piercing unit properly.
	The T DISC is not in-serted properly.	Re-insert the T DISC and make sure it is properly positioned.
	The brewing unit is not properly closed.	Push the handle down until it snaps into place with an audible click.
		Clean the brewing system thor-oughly, especially in the area of the clamp.
Water dripping from the brewing unit.	The T DISC is damaged or leaky.	Stop the brewing process. Wait until the machine is cooled down before removing the T DISC and then clean the brewing unit
	The piercing unit is either not inserted or not inserted properly.	Check to ensure that the piercing unit is inserted properly.
Water on the surface under the cup stand.	Water from condensation.	Condensation may occur and is not a fault. Remove it by wiping with a cloth.
The Service T DISC is damaged or lost.	The Service T DISC is required for the cleaning cycle and the descaling cycle.	Check the storage compartment for the Service T DISC at the back of the appliance.
		The Service T DISC can be ordered from Bosch customer service (Product No. 624088). See page 186 for contact information.
“Fill water tank” lights up even though there is sufficient water in the tank.	The float in the water tank is stuck.	Clean the water tank and ensure that the float can move.
“Descale required” lights up even though you are using soft water.	Even soft water contains small amounts of dis-solved lime.	Descale the appliance. Special descaling agents can be obtained from www.tassimo.com, the Bosch customer service department (article no. 310967, for contact details, see page 186)orfrom your retailer.
Filter cartridge change indicator is not working anymore.	Please proceed as described on page 25.	If filter cartridge change indicator is still not working, please contact TASSIMO careline 0800 0328833 (UK only).

More Customer Service information is available online at www.tassimo.com

Interruptor on/off (1)

El interruptor luminoso on/off es el interruptor principal de laquina. Permiteponer en serviceo laquina TASSIMO o apagarla.

Nota:

+LED (3a) e-LED (3b)

Onde comprar as capsalas T DISC

Guardar as capsulas T DISC

+LED (3a) og-LED (3b)

1 PÅ/AV-bryter
2 Knapp for start/stopp

Knapp for start/stopp (2)

+LED (3a) og-LED (3b)

Disse lysdiodene tennes kort nar T DISC registreres. LED + eller - tennes tilsvarende enkeltvis nar større eller mindre væskemengde velges, og de blinker under bryggingen.

Status-LED (3c)

Statusindikatoren viser fire maskinstatuser:

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

fr Garantie (CH)

Service interventions:

Tel.: [phone]

To arrange an engineer visit,

to order spare parts and accessories or for product advice please visit:

www.bosch-home.cu.uk

or call

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Eλλας

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Greece - Athens

Tel.: [phone]

Fax: [phone]

Central-Greece - Patras

Tel.: [phone]

Fax:[phone]

North-Greece-Thessaloniki

Tel.: [phone]

Fax: [phone]

South-Greece - Heraklion/Kreta

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.gr

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.cu.uk

NO Norge, Norway

KRAFT FOODS HELLAS SA.

Φ. ΓΚΙνοσάτη 19.

For all other countries: www.tassimo.com

TASSIMO Infoline

For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO:

Phone: [phone] (UK only. Calls made from a mobile phone might be charged)

Mail: Freepost SWC3320, Cheltenham, GL50 3ZZ

Kraft Foods Ireland, Malahide Road, Coolock, Dublin 5

TASSIMO Conseil
