Product type	Filter coffee maker
Brand	Bosch
Model	TKA5M253
Color	Black/metal (depending on version)
Carafe capacity	Approx. 8 cups (1 L)
Carafe type	Thermal carafe or glass carafe (depending on model)
Power consumption	1000 W
Supply voltage	220-240 V ~ 50 Hz
Dimensions (L x H x D)	Approx. 25 x 35 x 15 cm
Net weight	Approx. 1.5 kg
Main materials	Plastic, glass or stainless steel (carafe)
Water tank	Removable with water level indicator
Filter holder	Removable, for size 4 paper filters
Drip-stop device	Yes
Keep-warm plate	Yes (on models with glass carafe)
Auto shut-off	Yes (after approx. 40 min for glass carafe, after brewing for thermal carafe)
Functions	Filter coffee brewing, auto shut-off, drip-stop device
Care and cleaning	Clean surfaces that come into contact with food before each use; descale regularly with vinegar or commercial descaler
Safety	Supervise children, do not immerse, do not use if damaged, do not cover the hot plate
Spare parts and repairability	Repairs only by qualified personnel; replacement carafe available
General information	Household use only, max altitude 2000 m, removable water tank, cord storage compartment

Frequently Asked Questions - TKA5M253 BOSCH

How much ground coffee should I use per cup?

It is recommended to use about 6 g of ground coffee per cup (125 ml), with a medium grind.

How do I clean the thermal carafe?

To remove stubborn deposits, use a solution of caustic soda, dishwasher granules, or denture cleaning tablets. Then rinse thoroughly.

Why is my coffee maker taking longer to brew?

This is often due to limescale. Descale the appliance immediately if brewing time increases, excessive steam is produced, or the appliance becomes noisier.

How do I descale the Bosch TKA5M253 coffee maker?

Use a mixture of 5 cups of water and 1 cup of vinegar for the first descaling. For subsequent ones, use a commercial descaler without phosphoric acid. Follow figures 20 to 26 in the manual.

Can I use milk or prepared drinks in the coffee maker?

No, only use fresh still water. Never fill with milk, prepared drinks, or instant products.

How long before the auto shut-off activates?

For models with a glass carafe, the appliance heats for about 40 minutes then turns off. For models with a thermal carafe, it turns off a few minutes after brewing is complete.

Is the thermal carafe leak-proof?

The closure is not completely airtight to avoid a vacuum effect. Never transport the thermal carafe horizontally, as coffee could leak.

Can I put the thermal carafe in the microwave or dishwasher?

No, never heat the thermal carafe in a microwave or oven, and do not put it in the dishwasher. Wash it by hand with hot water.

What should I do if the drip-stop device leaks?

Remove the filter holder and clean the drip-stop device under running water. Press the drip-stop device several times with your finger towards the filter holder.

Where can I find spare parts and after-sales service?

Consult the list provided with the appliance or visit the Bosch website to find after-sales service contact details and approved spare parts.

USER MANUAL TKA5M253 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

Filter coffee machine

TKA2M... TKA5M...

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.
[sk]	Naskenujte QR kód alebo navštívte webovú stránku, aby ste sa dozvedeli rozšírené informácie o používaní. Tam nájdete d'alšie informácie o vašom spotrebiči alebo príslušenstve.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001280187

Diagram illustrating cable installation process with blue cable and plug, showing two steps with directional arrows indicating movement.

2

Illustration of a portable coffee maker with a blue cloth cover and black arrow pointing to the lid (no text or symbols)

3

5x 1x

4

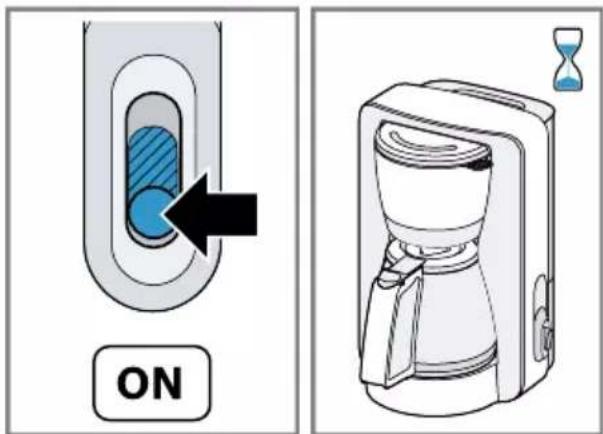

ON

5

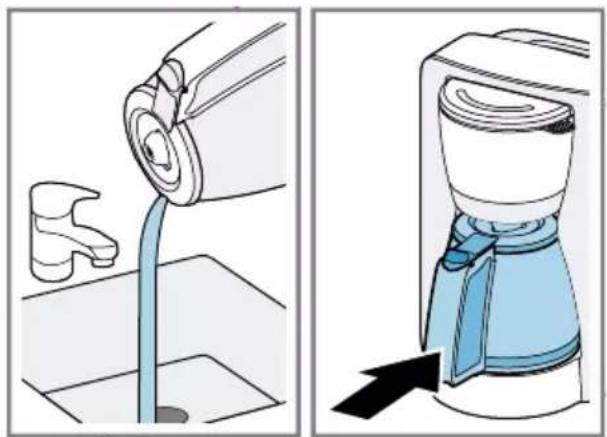

Illustration showing a hand pouring liquid into a sink and a water dispenser pouring liquid from a bottle (no text or symbols)

6

7

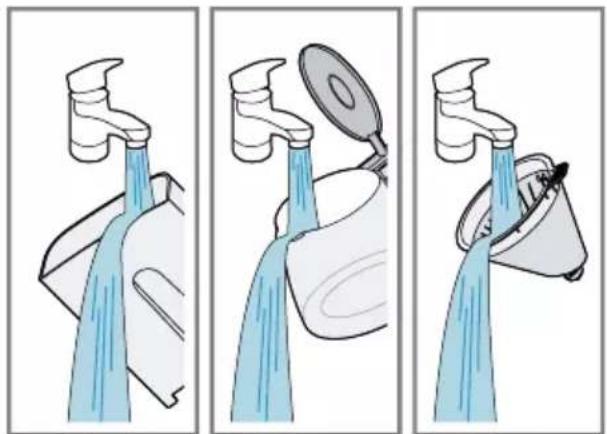

Three-panel illustration showing a faucet with blue liquid flowing into a bucket and a bucket pouring liquid from a pan (no text or symbols)

8

Illustration of a faucet with blue liquid being inserted into a container, shown from two different angles (no text or symbols)

9

Illustration of a blue handheld device with a black arrow indicating a downward motion (no text or symbols present)

10

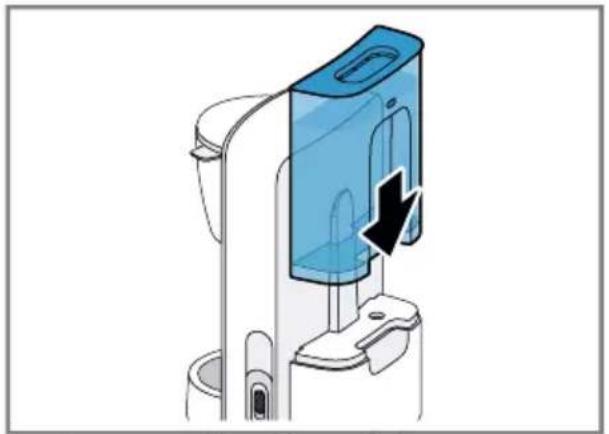

Illustration of a blue bucket being inserted into a kitchen appliance (no text or symbols)

The image is too blurry to recognize any text content.

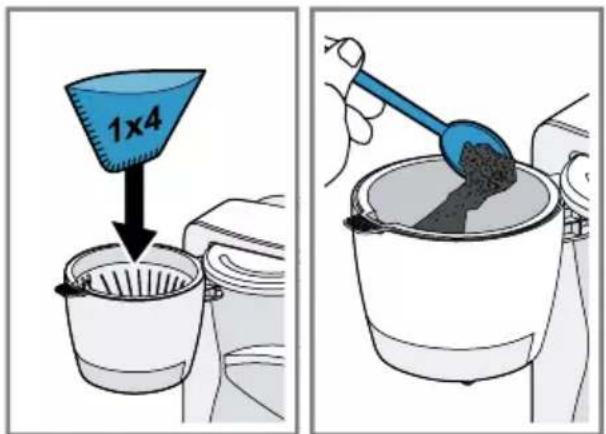

1×4

12

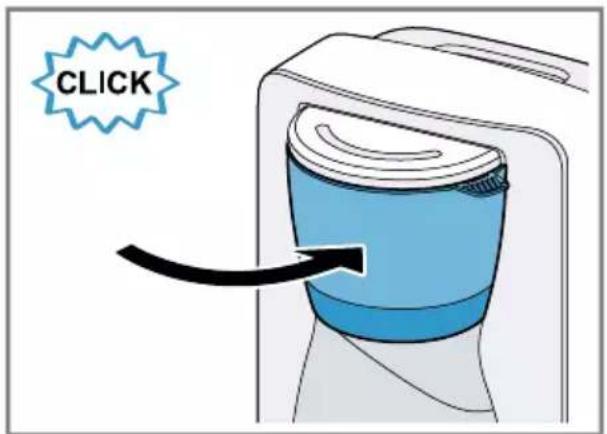

CLICK

The image is too blurry to recognize any text content.

Illustration of a portable coffee maker with a blue cloth cover and arrow indicating insertion (no text or symbols)

14

ON

The image is too blurry to recognize any text content.

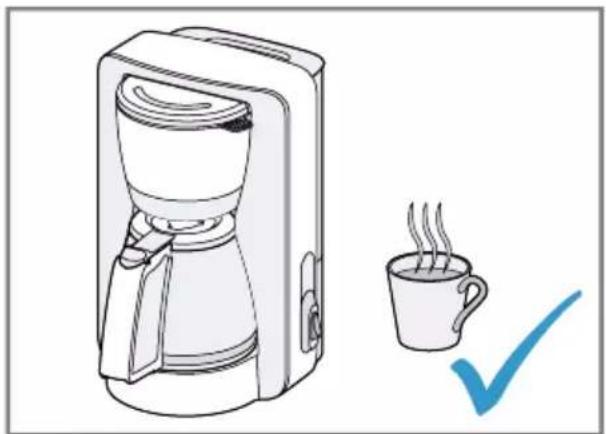

Illustration of a coffee maker with a steaming cup and checkmark (no text or symbols)

16

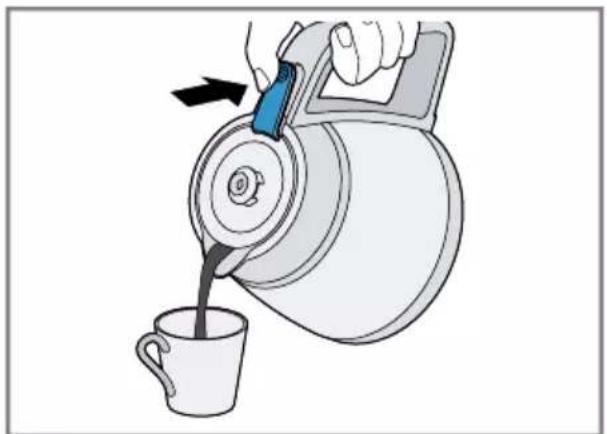

Illustration of a hand pouring liquid from a teapot into a cup (no text or symbols)

The image is too blurry to recognize any text content.

Diagram illustrating a device's rotation and playback mechanism with labeled components and directional arrows

18

Diagram illustrating a device's internal components and directional arrows, showing a blue lid with a speaker icon and a black arrow indicating motion.

m = 311

Illustration of a portable coffee maker with a blue cloth cover and black arrow pointing to the lid (no text or symbols)

20

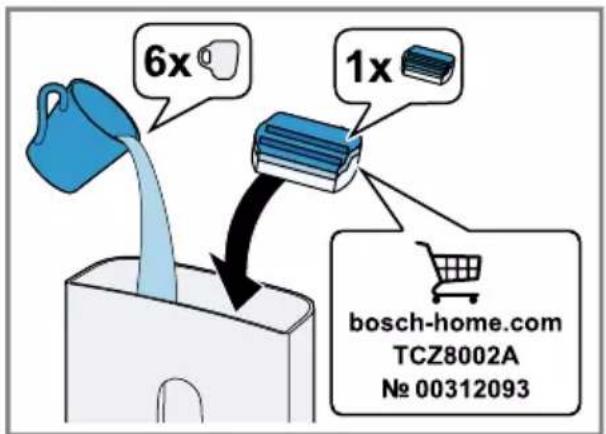

6x 1x bosch-home.com TCZ8002A No 00312093

m = 311

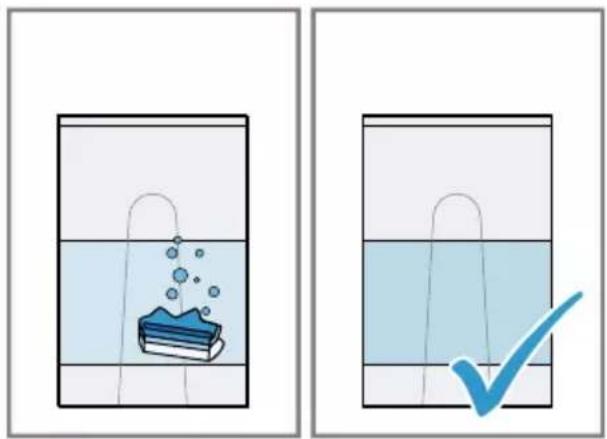

Two-panel illustration showing a container with bubbles and liquid, one partially submerged (no text or symbols)

22

The image is too blurry to recognize any text content.

Illustration showing a hand pouring liquid into a sink and a water dispenser with a blue handle (no text or symbols)

24

The image is too blurry to recognize any text content.

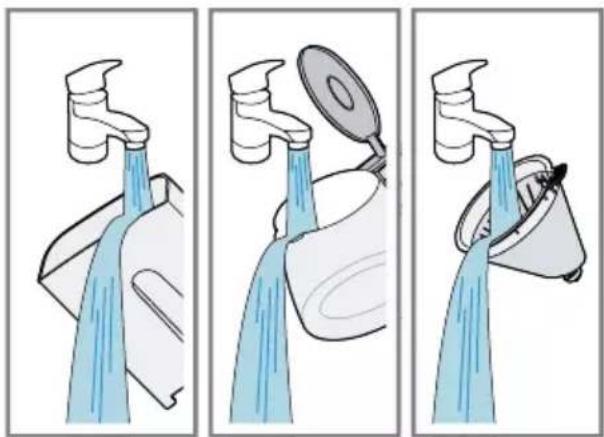

Three-panel illustration showing a faucet with water flowing, a bucket pouring liquid, and a bucket pouring liquid into a container (no text or symbols)

26

	√	×	×	×	×
	√	√	×	√	×
	√	√	√	√	√
	√	√	×	×	×

27

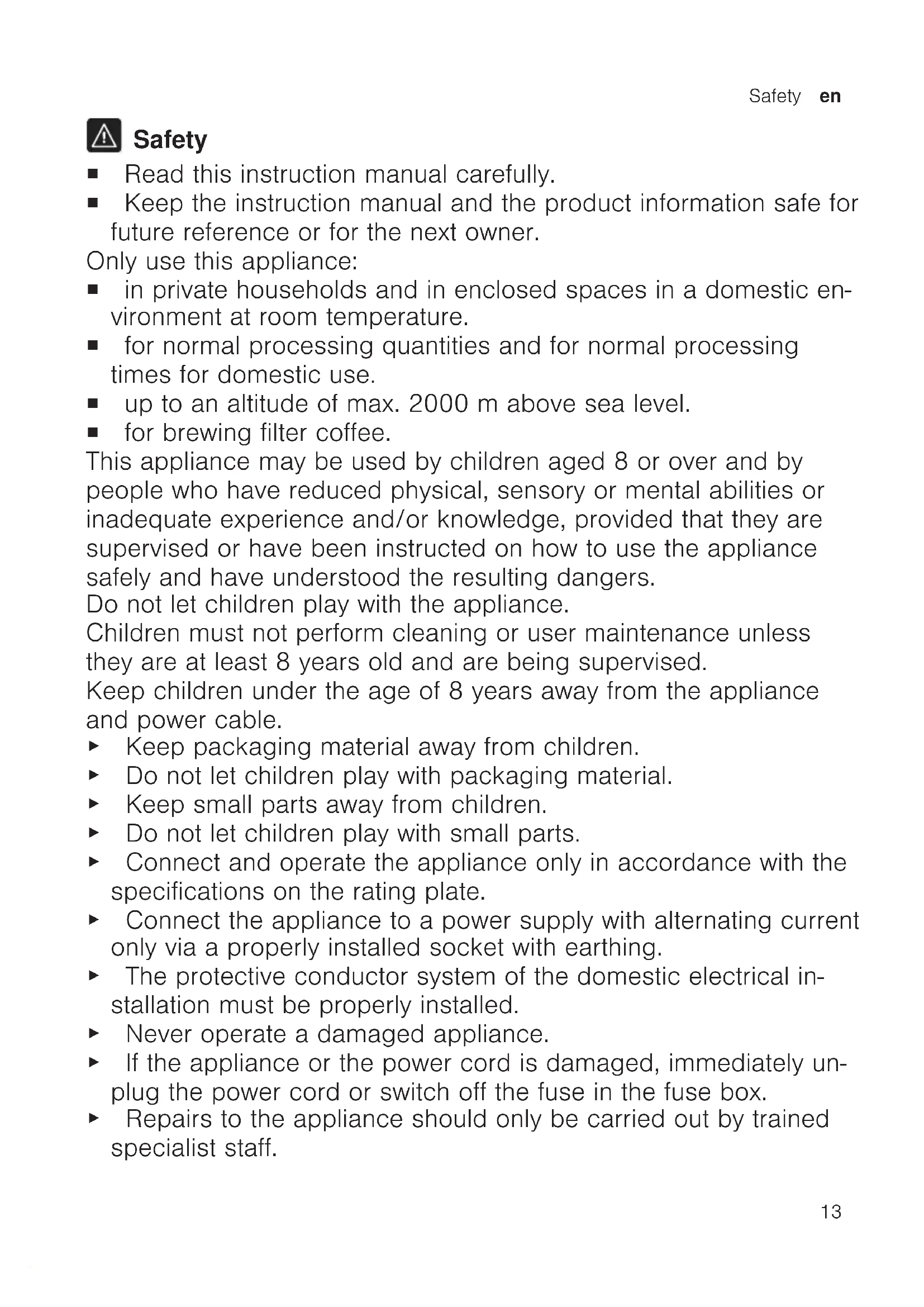

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ up to an altitude of max. 2000 m above sea level.
■ for brewing filter coffee.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never operate a damaged appliance.
  ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Repairs to the appliance should only be carried out by trained specialist staff.

en

Preventing material damage

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
- Liquids must not be spilled on the appliance plug connection.
▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cupboard.
▶ Never leave the appliance unattended while it is switched on.
▶ Never place the appliance on or near hot surfaces.
▶ Never cover the warming plate.
▶ Only use replacement jugs that are approved for your model by customer service.
▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.
▶ Only hold the jug by the handle.
▶ To avoid injuries, only use the appliance for its intended purpose.
▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.
- To prevent bacteria forming, do not keep dairy products, baby food or similar foodstuffs in the thermos jug or keep them warm in it.

Preventing material damage

▶ Only use the appliance with fresh, cold, non-carbonated water. Never add milk, ready-made drinks or instant products.
▶ Never operate the appliance when empty or overfilled. Observe the water level indicator.
Leave the appliance to cool down for at least 5 minutes after each use.
▶ Never heat the thermos jug in the microwave or oven.
▶ Never put the thermos jug or the lid of the thermos jug in the dishwasher or in soapy water.
▶ Only place the jug in the appliance with the lid closed.

• Do not remove the jug during the brewing process.
  ▶ Only use the jug supplied.

Overview

→ Fig. 1

A	Coffee machine with thermos jug ^1
B	Coffee machine with glass jug ^1
1	Water tank with water level indicator, removable
2	Cover for water tank, removable
3	Filter holder, removable
4	Drip stop

^1 Depending on the model

5	Filter housing, swivelling
6	Thermos jug with lid ^1
7	Lid-opening button
8	Glass jug with lid ^1
9	Warming plate ^1
10	Cord storage compartment
11	On/off button, illuminated

^1 Depending on the model

Preparing the appliance for first use

Notes

■ Perform the first cleaning process with a mixture of 5 cups of water and 1 cup of vinegar.
■ Before each rinsing process switch off the appliance using the on/off button and leave it to cool down for 5 minutes.

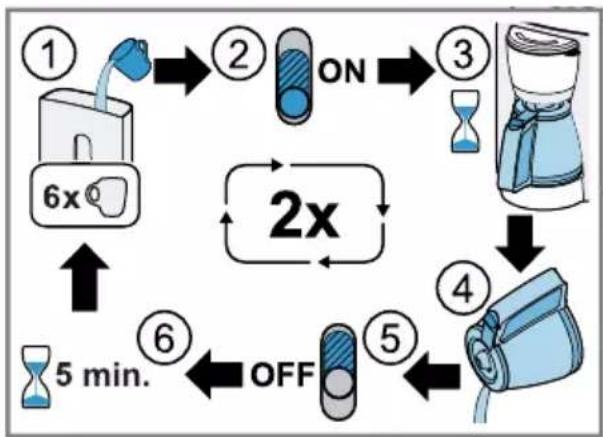

■ Run the rinsing process twice using 6 cups of water without adding vinegar.

→ Fig. 2 - 8

General information

• Observe the water level indicator on the water tank. Fill the water tank to at least the bottom marking line and no more than the top marking line.
  ■ To attain an adequate coffee temperature and the full aroma, do not brew less than 3 cups of coffee. A cup is approx. 125 ml.
  ■ Add approx. 6 g medium-ground coffee for each cup.
  ■ Store ground coffee in a cool place or freeze.
  ■ Once a pack of coffee has been opened, always close it tightly to preserve the aroma.
  ■ How coffee beans are roasted affects their flavour and aroma.
• Darker roast = more flavour
  – Lighter roast = more acidity
  ■ Condensation may form on the filter housing for technical reasons.

Brewing coffee

Follow the illustrated instructions.

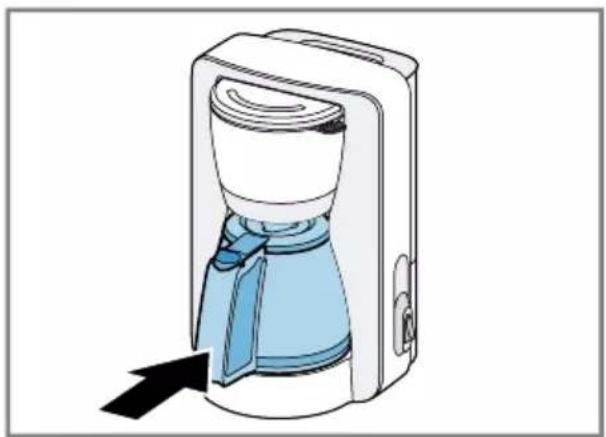

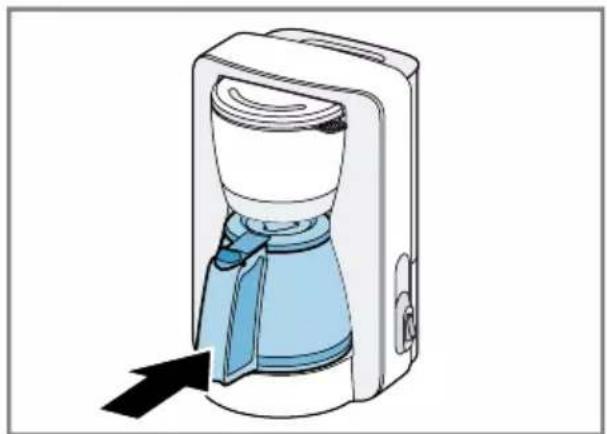

→ Fig. 9 - 16

Auto switch-off

Your appliance is equipped with an automatic switch-off function that switches the appliance off after a certain period of time. Models with a thermos jug switch off a few minutes after the end of brewing. Models with a glass jug keep the coffee hot for approx. 40 minutes and then switch off. The on/off button lights up red until the coffee machine switches off automatically.

Thermos jug

The thermos jug has a capacity of around 8 cups.

Notes

■ The seal is not hermetically tight to stop it adhering through a suction effect.
■ Never transport the thermos jug in a horizontal position or coffee might leak out.
■ Do not keep or transport carbonated drinks in the thermos jug.
■ If you rinse the thermos jug with hot water before use, the coffee will stay hot for longer.

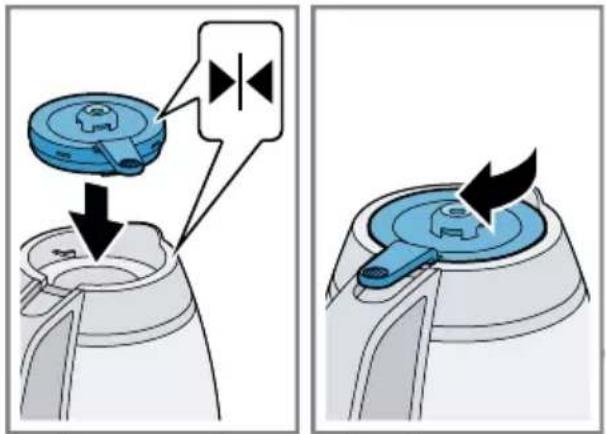

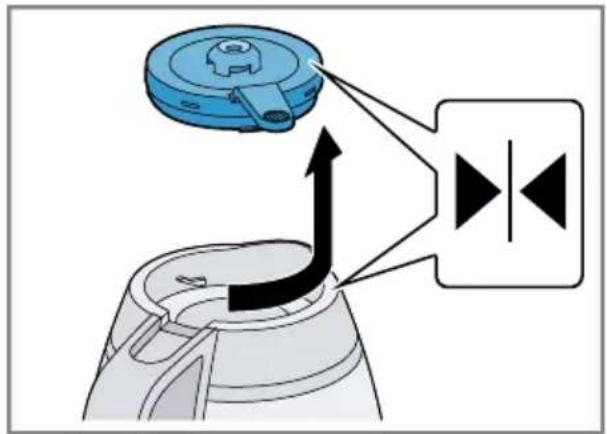

Pouring out the coffee, removing and attaching the lid

→ Fig. 17 - 19

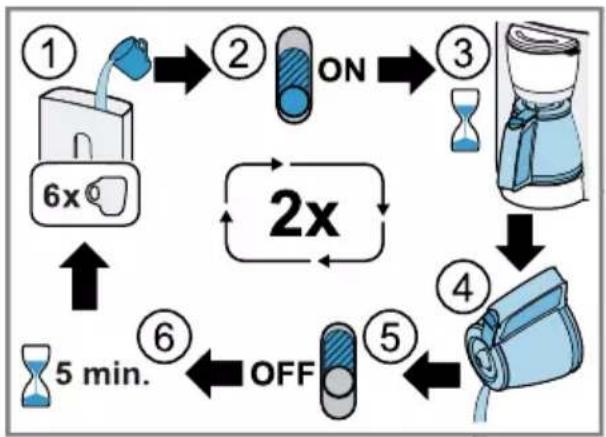

Descaling the appliance

Descale the appliance regularly.

Notes

■ Descale the appliance immediately when:
- brewing takes longer
– excessive steam is emitted
– the appliance makes more noise
■ Regular descaling:
– prolongs the life of the appliance
- ensures proper functioning
- prevents excessive steam
- shortens the brewing time
- saves energy

en Overview of cleaning

■ If you are descaling the appliance with a commercially available descaler, follow the manufacturer's instructions for use and safety. Do not use descaler with phosphoric acid.
■ If the appliance is brewing more slowly or switches off before the brewing process ends, descale it.
■ If there is still fluid in the water tank after 3 descaling cycles, switch the appliance on again until the water tank is empty, wait 1 minute and then switch off.

→ Fig. 20 - 26

Overview of cleaning

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

→ Fig. 27

Notes

■ After each use, clean all parts thoroughly and rinse out.
■ Remove stubborn deposits in the thermos jug with a solution of baking soda, dishwasher granulate or denture tablets.
■ Store the thermos jug with the lid open to prevent any odours and bacteria forming.

■ If the drip stop is leaking:

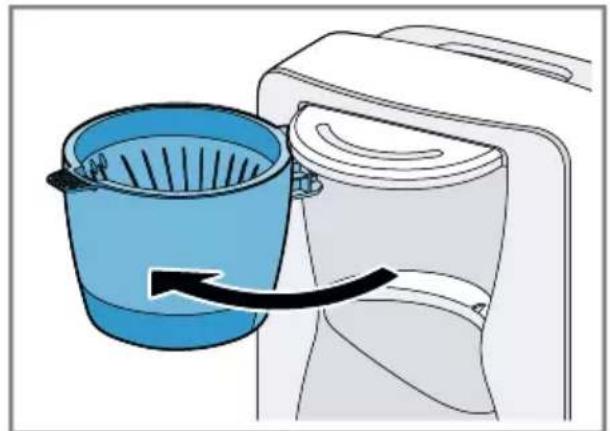

- Remove the filter holder and clean the drip stop under running water.
- Press the drip stop towards the filter holder with your finger several times.

Disposing of old appliance

• Dispose of the appliance in an environmentally friendly manner.
  Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Sécurité

QR code image containing encoded data, no visible human-readable text

■. Grenية
■ ق أو

electrical and electronic

.(equipment - WEEE

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

8001280184 (030526)

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, cs, sk, uk, ru, ar
