USER MANUAL CTL9181D0 BOSCH

Exploded view diagram of a refrigerator internal components with numbered labels for identification

3

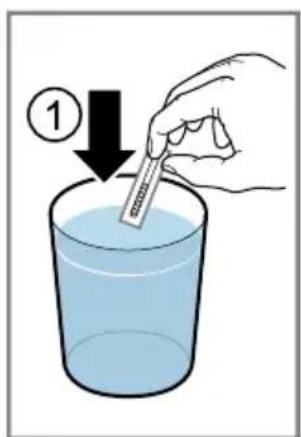

Diagram showing a hand pouring liquid into a beaker with a labeled step 1 indicating the process.

4

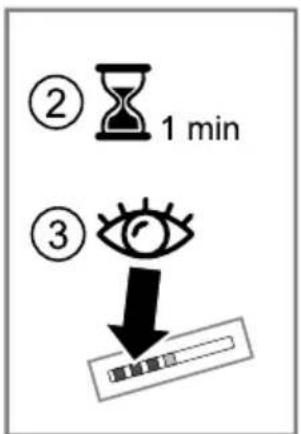

② 1 min ③ ↓

③

Diagram of a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating flow or movement.

5

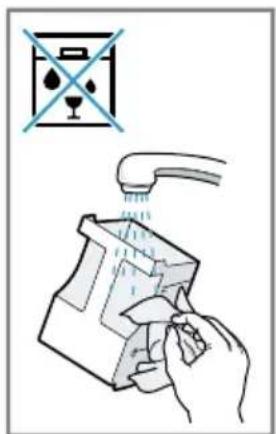

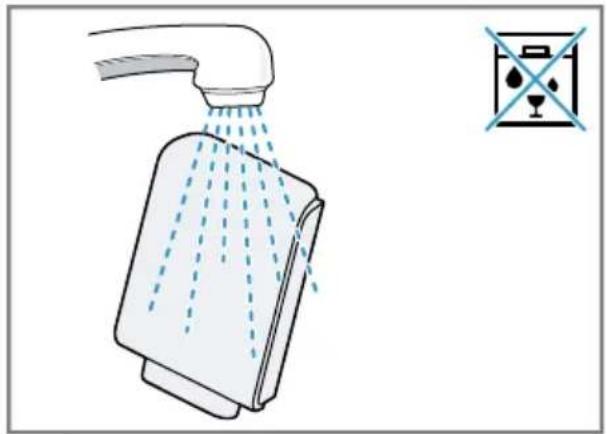

Diagram showing a hand washing a kitchen appliance with a water drop symbol above it

Illustration of a hand washing a small appliance with liquid, no text or symbols present

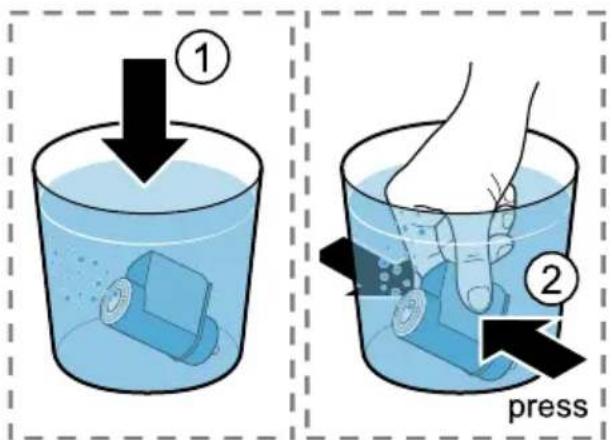

① press ②

6

Diagram illustrating a mechanical device operation with labeled components and directional arrows indicating rotation and assembly steps.

7

Technical diagram of an air conditioner unit with labeled components and directional arrows indicating airflow or movement.

8

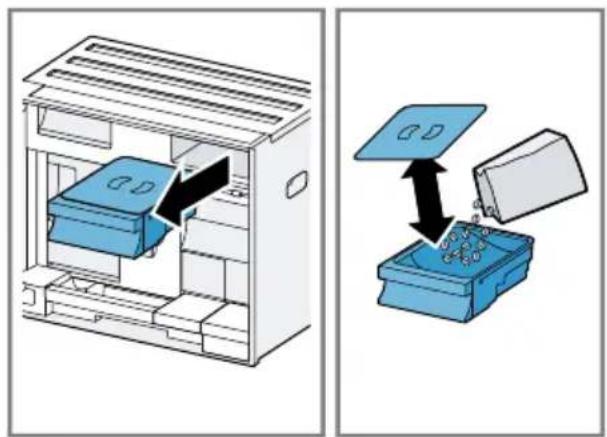

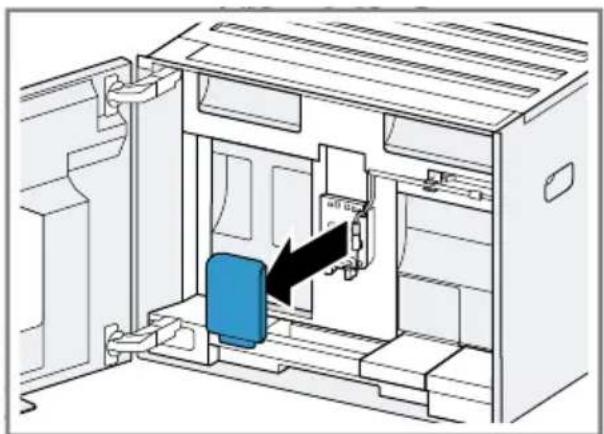

Diagram showing a device with a blue box inside a storage unit and its corresponding internal component being inserted into a blue case.

9

Diagram of a device interior showing a blue box and internal components with an arrow indicating direction (no text or symbols present)

10

Diagram showing a mechanical assembly with labeled parts, including numbered annotations 1 and 2 indicating specific components.

The image is too blurry to recognize any text content.

Technical diagram of a mechanical or electrical device interior showing internal components and a downward arrow indicating a specific section (no text or symbols present)

12

Diagram illustrating mechanical assembly steps with directional arrows and component placement

The image is too blurry to recognize any text content.

Illustration of a showerhead spraying water with a showerhead and no text or symbols present

14

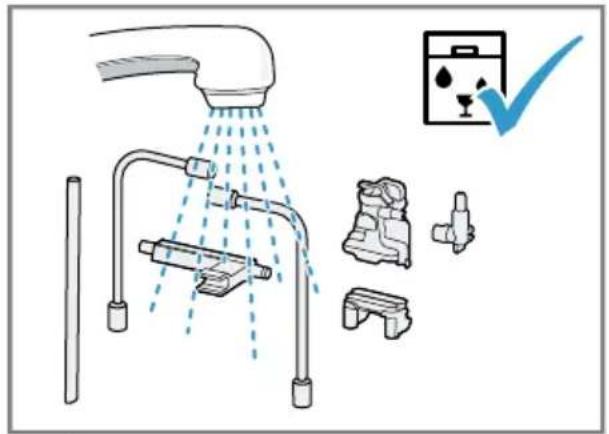

Diagram illustrating a shower system with water spray, showing components like shower faucet, shower valve, and cleaning tools.

The image is too blurry to recognize any text content.

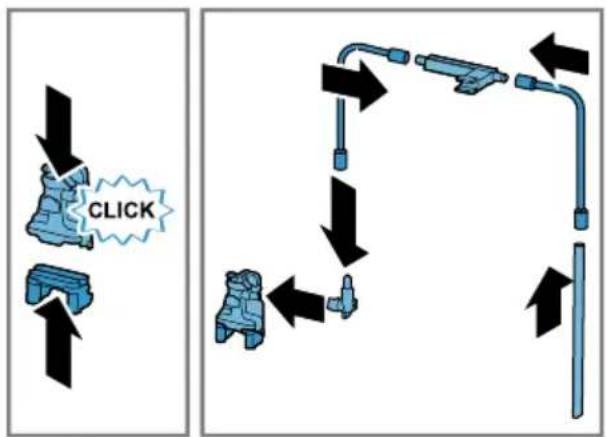

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating movement or flow.

The image is too blurry to recognize any text content.

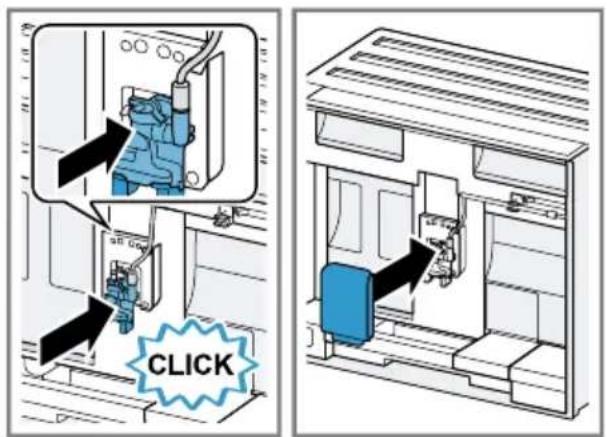

CLICK

18

Diagram illustrating a mechanical or fluidic process with numbered components and directional arrows indicating flow or movement.

The image is too blurry to recognize any text content.

Illustration of a kitchen sink with water spray and a hand pump, showing liquid transfer from a bottle to a lid (no text or symbols)

20

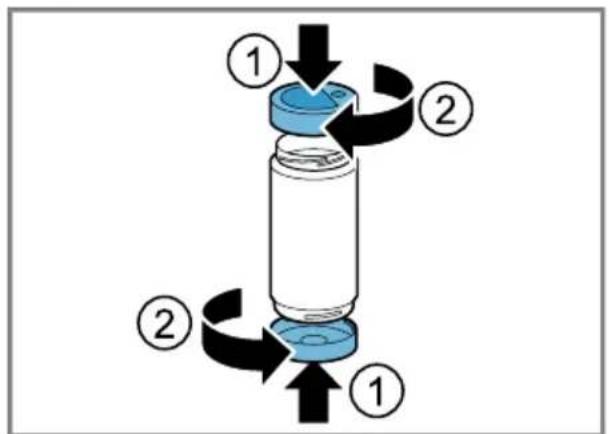


The image is too blurry to recognize any text content.

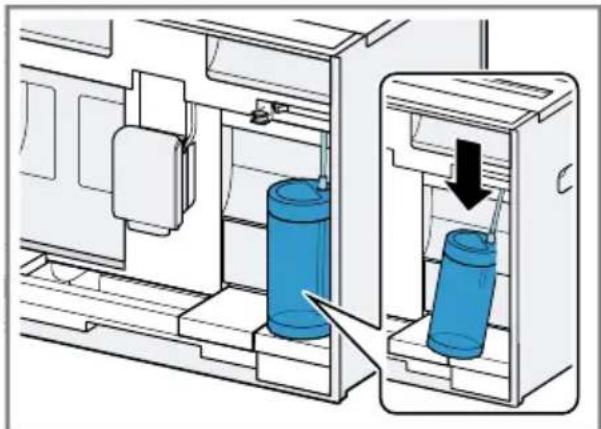

Diagram of a refrigerant unit with two blue cylindrical tanks inside, showing internal compartments and a downward arrow indicating flow or movement (no text or symbols present)

22

Diagram of a refrigerator interior showing internal compartments and a blue cylindrical container (no text or symbols)

The image is too blurry to recognize any text content.

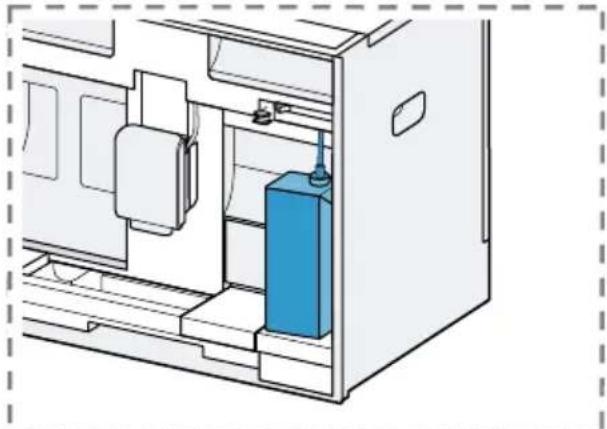

Technical diagram of a printer's internal structure with labeled components and an inset showing a device inside the frame.

24

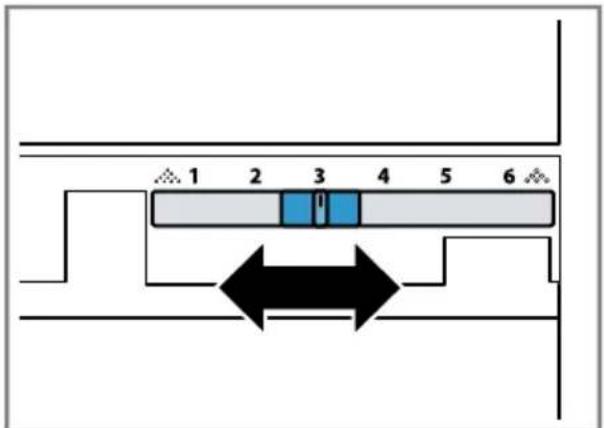

1 2 3 4 5 6

The image is too blurry to recognize any text content.

Diagram showing a 3D mechanical assembly with an arrow indicating force or movement, alongside a simplified diagram of a device with three blocks and arrows indicating motion (no text or symbols present)

26

Line drawing of a hand cleaning a refrigerator interior with a blue cloth (no text or symbols)

The image is too blurry to recognize any text content.

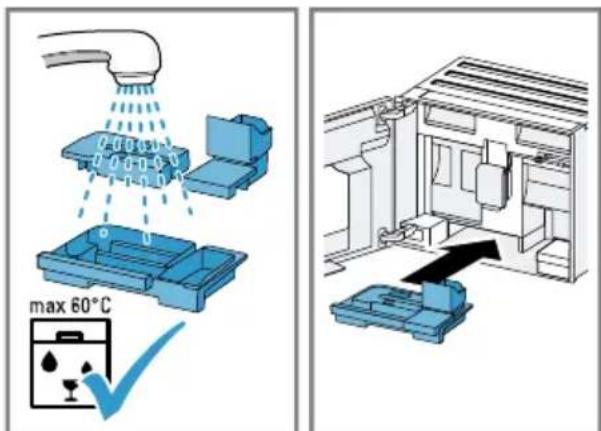

0.000 0.000 15.0 max 60°C

28

Illustration of a hand cleaning a window with a blue cloth, showing a tool interacting with the window (no text or symbols present)

The image is too blurry to recognize any text content.

QR code image containing encoded data, no visible human-readable text

Inhaltsverzeichnis

1 Sicherheit 9

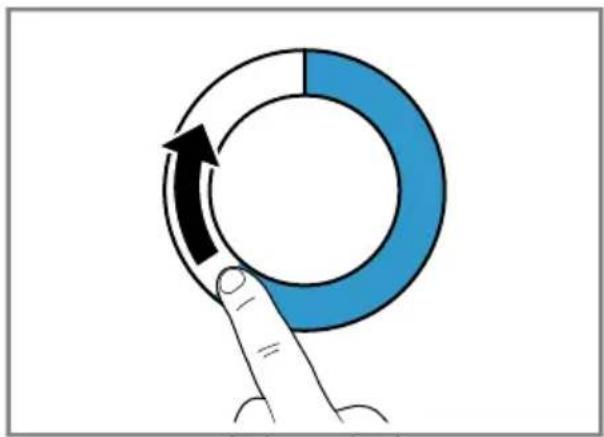

Diagram showing a finger pressing a circular button with an arrow indicating clockwise rotation (no text or symbols)

QR code image containing encoded data, no visible human-readable text

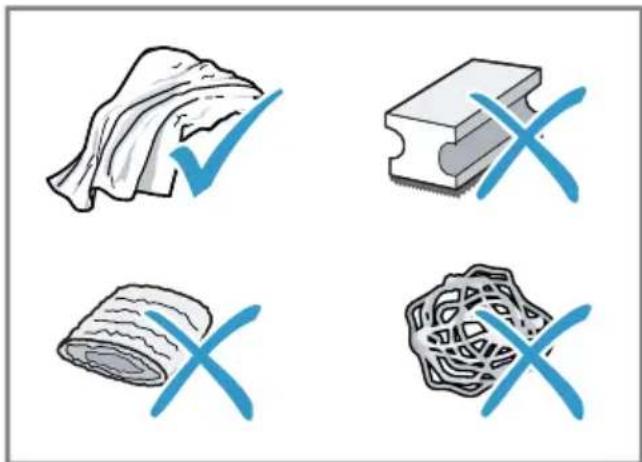

Four symbolic illustrations: a rolled-up document, a rectangular block with X marks, a rolled-up dough, and a textured bread-like object (no text or symbols present)

Tipps

Further information and explanations are available online:

QR code image containing encoded data, no visible human-readable text

Table of contents

1 Safety...... 43

1.1 General information...... 43
1.2 Intended use.... 43
1.3 Restriction on user group...... 43
1.4 Safe installation 43
1.5 Safe use 44

2 Preventing material damage .... 48

3 Environmental protection and saving energy...... 48

3.1 Disposing of packaging ..... 48

3.2 Tips for saving energy...... 48

4 Installation and connection..... 49

4.1 Scope of delivery.... 49
4.2 Installing and connecting the appliance.... 49
4.3 Connecting the appliance to the electricity supply..... .. 49

5 Familiarising yourself with your appliance.... 49

5.1 Appliance 49
5.2 Control panel.... 50
6 Accessories.... 51

7 Before using for the first time .. 51

7.1 Preparing and cleaning the appliance.... 51
7.2 Checking the water hardness.... 52
7.3 Overview of water hardness levels 52
7.4 Water filter ^1 52

7.5 Performing initial start-up ..... 53
7.6 General information.... 53

8 Basic operation 54

8.1 Switching the appliance on or off 54
8.2 Dispensing beverages ..... 54
8.3 DoubleShot and tripleShot ..... 54
8.4 Slow Brew and Cold Brew ..... 54
8.5 Dispensing a coffee drink with milk.... 55
8.6 Dispensing two cups at once.. 55

9 Grinder.... 56
9.1 Setting the grinding level...... 56

10 Milk container shelf.... 56

10.1 Using the milk container shelf.... 56
10.2 Using your own milk container ^1 56

11 Childproof lock.... 56

11.1 Activating the child-proof lock.... 56
11.2 Deactivating the childproof lock.... 56

12 Favourites.... 57

12.1 Creating favourites from Favourites menu.... 57
12.2 Create favourites from Classic or Coffee World ..... 57

12.3 Changing a favourite.... 57
12.3 Changing a favourite.... 57
12.4 Deleting a favourite 57
12.5 Sorting favourites 57

en

13 Home Connect 57

13.1 Setting up the Home Connect app 58

13.2 Setting up Home Connect..... 58

13.3 Home Connect settings...... 58

13.4 Data protection.... 59

14 Basic settings.... 59

14.1 Changing settings 59

14.2 Overview Settings.... 60

14.3 Setting the time 62

15 Cleaning and servicing...... 62

15.1 Dishwasher-safe components.... 62

15.2 Cleaning agent 62

15.3 Cleaning the appliance ..... 63

15.4 Cleaning the drip tray and coffee dregs container ...... 63

15.5 Cleaning the milk container .. 64

15.6 Service programmes...... 64

16 Troubleshooting...... 66

17 Transportation, storage and disposal 71

17.1 Activating frost protection ..... 71

17.2 Disposing of old appliance ... 71

18 Customer Service.... 71

18.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) 71

18.2 AQUA-STOP guarantee...... 72

19 Technical specifications...... 72

19.1 Information regarding Free and Open Source Software... 72

20 Declaration of Conformity ..... 73

20.1 Statement of Compliance for Great Britain.... 74

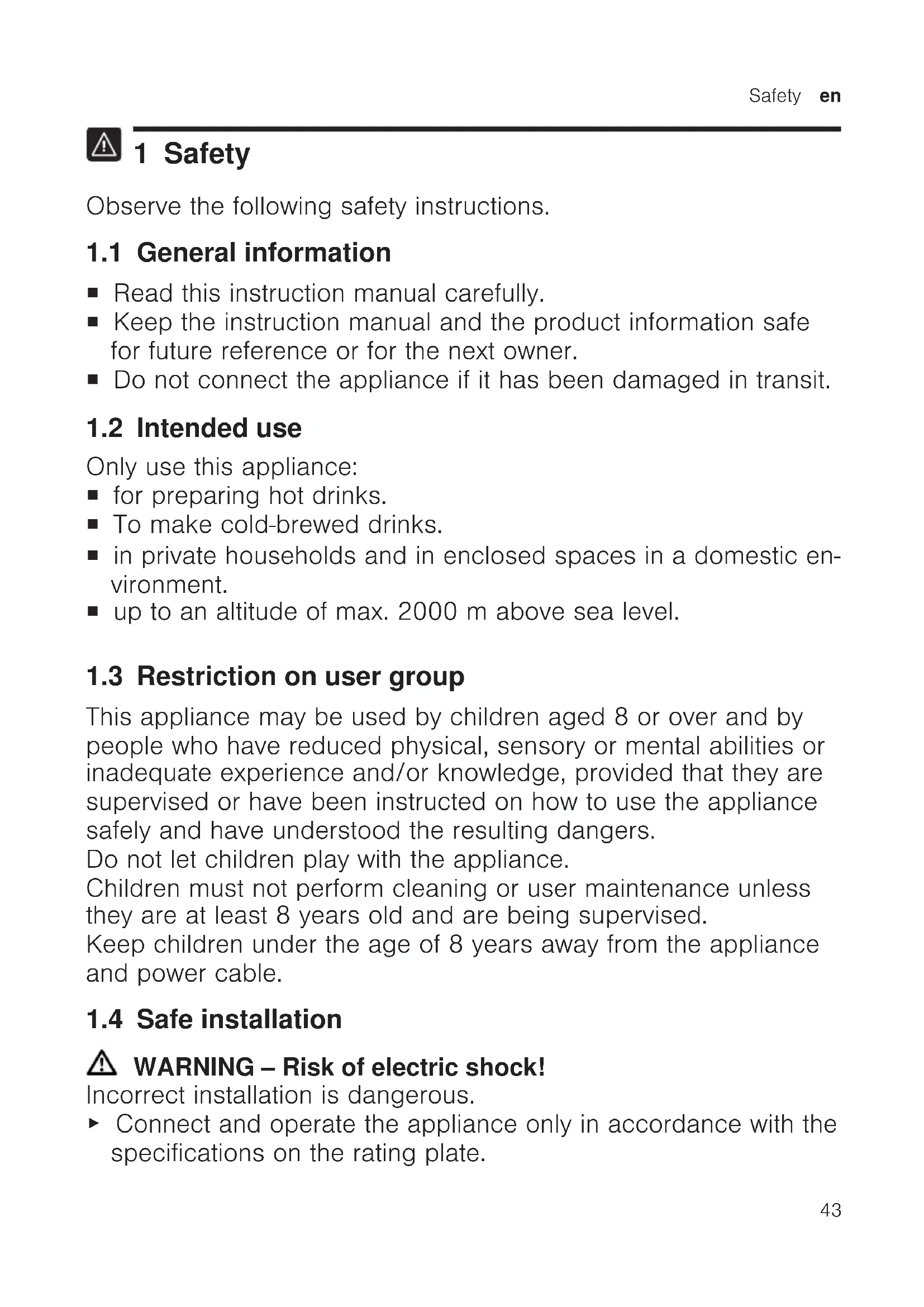

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ To make cold-brewed drinks.
■ in private households and in enclosed spaces in a domestic environment.
■ up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safe installation

⚠ WARNING – Risk of electric shock!

Incorrect installation is dangerous.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

en Safety

▶ Always use the supplied power cable for the new appliance.
- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
- The protective conductor system of the domestic electrical installation must be properly installed.
- Only trained specialist personnel may carry out the fixed water connection.
- When connecting or working on the fixed water connection, disconnect the appliance from the mains power supply.
- Comply with the legal regulations of the respective country, the local electricity company and the water company.
- Do not connect the appliance to the mains power supply until it has been connected to a fixed water supply.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Call customer services. → Page 71

Improper repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

If the power cord or the appliance power cable of this appliance is damaged, it must be replaced with a special power cord or special appliance power cable, which is available from the manufacturer or its Customer Service.

1.5 Safe use

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of fire!

The appliance will become hot.

▶ Ventilate the appliance adequately.
▶ Never operate the appliance with the cupboard door closed. It is dangerous to use an extended power cord and non-approved adapters.
- Do not use extension cables or multiple socket strips.
- Only use adapters and power cords approved by the manufacturer.
- If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

⚠ WARNING – Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

⚠ WARNING – Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

en Safety

A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties.

• Do not reach under the beverage outlet when dispensing drinks.
• Keep persons, particularly children, away from the appliance.

⚠ WARNING – Risk of injury!

Improper use of the appliance may endanger the user.

- To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door. The grinder rotates.

▶ Never reach into the grinder.

⚠ WARNING – Danger: Magnetism!

Caution: Magnetism!

Warning for wearers of pacemakers

The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ People with electronic implants must stand at least 10 cm away from the appliance and appliance door.
- Keep a minimum distance of 10 cm from the water tank, milk container, coffee dregs container, beverage outlet cover, beverage dispenser, beverage outlet, milk system holder, brewing chamber cover and brewing unit.

⚠ WARNING – Risk of harm to health!

Soiling on the appliance may be harmful to health.

- To ensure hygiene, follow the cleaning instructions for the appliance.

Contaminated water may be harmful to health.

- Connect the appliance exclusively to a cold water connection. Circulation of the water must be guaranteed.

- Observe the hygiene regulations during installation and operation.

Water from the hot water circuit can be harmful to health.

- Only ever use the appliance with fresh, cold, non-carbonated drinking water.

2 Preventing material damage

ATTENTION!

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

▶ Use the appliance in frost-free rooms only.
▶ If the appliance has been transported or stored below 0 °C, wait 3 hours at room temperature before starting it up.

▶ After plugging in, always wait approx. 5 seconds.

Improper installation may cause material damage.

- Observe the installation instructions for the appliance installed above or below.

- When installing the appliance above a warming drawer, observe a niche height of 590 mm.

- The connection to the domestic water supply and all equipment and devices used to supply water to the appliance must comply with the applicable provisions of the respective country.

▶ Only trained specialist personnel may carry out the fixed water connection.

- Connect the appliance to a cold water pipe only.

- The water quality must comply with the drinking water regulations of the individual country in which the appliance is operated.

▶ Water circulation must be guaranteed.

- Ensure that the water pressure in the water supply system is at least 50 kPa (0.5 bar) and max. 1000 kPa (10 bar).

- If the water pressure exceeds the maximum value indicated, install a pressure-reducing valve between the fixed water connection and the hose set of the appliance.

Unsecured units may fall over.

- Secure units to the wall using a standard bracket.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Tips for saving energy

If you follow these instructions, your appliance will use less energy.

Set the interval for automatic switch-off to the smallest value.

√ If the appliance is not being used, it will switch itself off earlier.
→ "Basic settings", Page 59

Do not interrupt the dispensing process prematurely.

√ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

4 Installation and connection

4.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

→ Fig. 1

A	Fully automatic coffee machine
B	Milk container
C	Installation instructions
D	Water filter1
E	Water hardness testing strip
F	User manual

^1 Depending on the appliance specifications

4.2 Installing and connecting the appliance

The installation instructions describe various models that may differ with regard to scope of supply and installation.

Notes

• Observe the information on safety → Page 43 and preventing material damage → Page 48.
  ■ Make sure that the fixed water connection is always accessible.
• Install and connect the appliance properly in accordance with the installation instructions enclosed in the box.

4.3 Connecting the appliance to the electricity supply

1. Insert the non-heating appliance plug of the power cable into the appliance.
2. Insert the mains plug of the appliance's power cable in a socket nearby.
3. Check the mains plug is inserted properly.

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

Exterior view

→ Fig. 2
1	Shelf, removable
2	Lights
3	Control panel
4	Beverage outlet, height-adjustable
5	Cup lighting
6	Appliance door
7	Beverage dispenser
8	Beverage outlet cover

Interior view

→Fig.

3

9	Collecting tray
10	Rating plate
11	Water tank with lid
12	Mains switch
13	Accessory drawer
14	Bean container with lid
15	Interior lighting ^1
16	Grinding level adjustment
17	Brewing chamber cover
18	Brewing unit
19	Milk container
20	Milk system
21	Milk container shelf, removable
22	Coffee dregs container
23	Drip tray
24	Drip tray cover

^1 Depending on the appliance specifications

5.2 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

	Switch the appliance on or off.
	■ Exit the menu settings.■ Return to the Start menu.
start stop	Start or stop the pro-gramme.
Favour-ites	Select saved beverages with personal settings.→ Page 57

Classic Select standard beverages.
Coffee World	Select basic beverages which can be extended in conjunction with Home Connect.
Care & maintenance	Call up service programmes.
Settings Open or exit the settings.

Quick selection in beverage selection

	Quick selection directly to "Favourites"
	Quick selection directly to "Classic"
	Quick selection directly to "Coffee World"

Information

	Customer service
	Appliance is connected to Home Connect.
	Appliance is not connected to Home Connect.
	Appliance is not connected to the server.
	Playlist function is activated in the Home Connect app.
	Check the milk container.
	Add beans.
	Fill with water.
	"Demo mode" is activated.

Beverage settings

◇	Quantity
∅	Strength
	Aroma
	Share of milk
	Temperature

Operation

<	Go back in the menu.
☆	Add favourite.

★	Delete favourite.
	Dispense two cups.

Quick selection

:	Open quick selection.
	Activate or deactivate childproof lock.
	Switch WiFi on or off.

6 Accessories

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service

Cleaning tablets TCZ8001A 00312096

Descaling tablets TCZ8002A 00312093

Water filter TCZ7003 17000705

Microfibre cloth - 00312289

Care set TCZ8004A 00312107

Milk container made of glass - 12043068

Limit stop for 92° opening angle - 10020041

Water inlet hose extension - 00671612

Power cord extension Europe, 5 m - 12022522

7 Before using for the first time

Prepare the appliance for use.

7.1 Preparing and cleaning the appliance

Clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION!

Unsuitable beans can block the grinder.

• Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
• Do not use glazed coffee beans.
• Do not use caramelised coffee beans.
• Do not use coffee beans that have been treated with additives containing sugar.
  ▶ Do not add instant coffee.

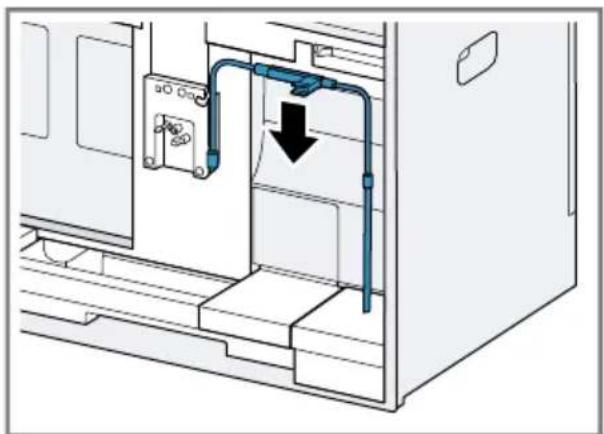

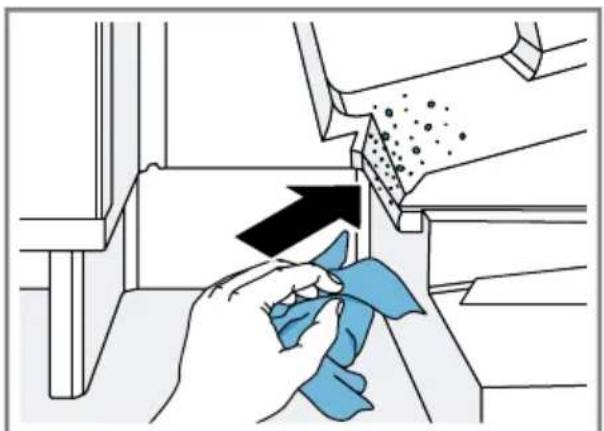

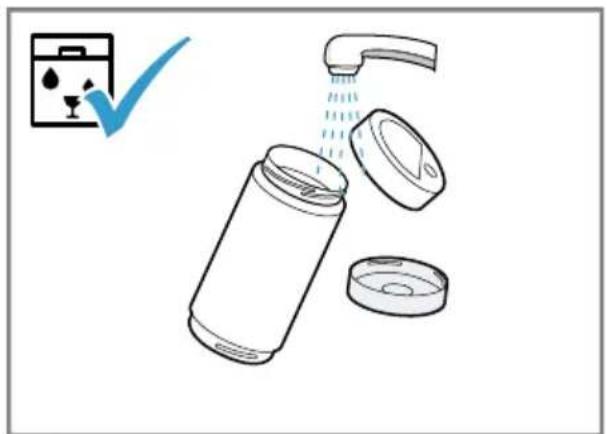

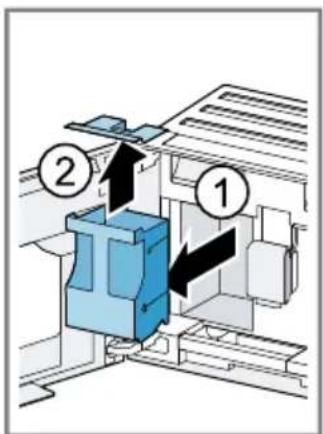

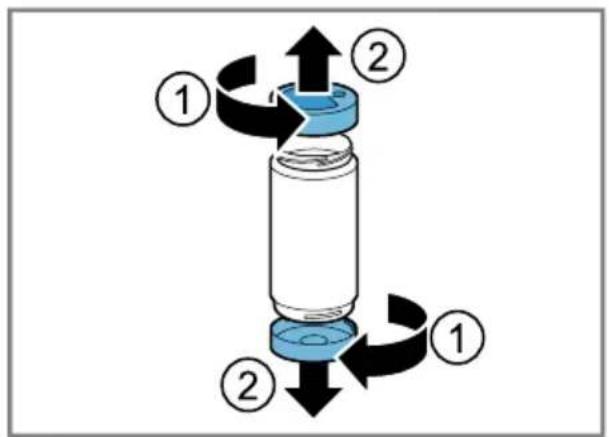

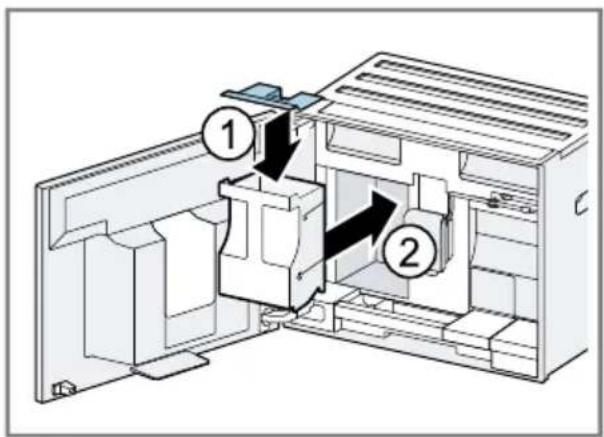

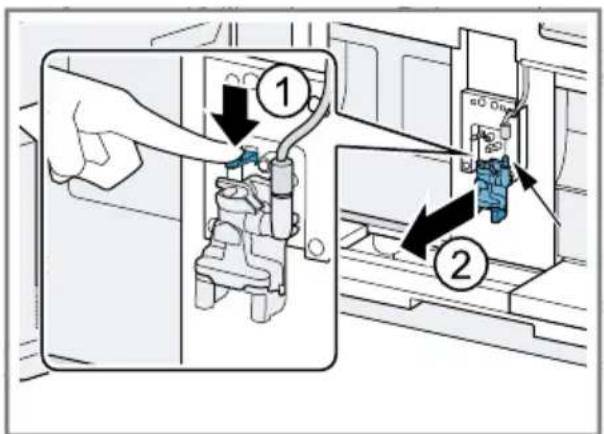

→ Fig. 4 - 23

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

7.2 Checking the water hardness

It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

1. Briefly dip the test strip in fresh tap water.

2. Allow the water to drain off the test strip.

3. Read the water hardness off the test strip after 1 minute.

→ "Overview of water hardness levels", Page 52

Note: If a water softening system is installed in your house, you can select "Water softening system".

Tips

■ You can change the settings at any time.
→ "Basic settings", Page 59
■ If the water hardness exceeds 21^ dH (3.8 mmol/l), you can fill the water tank with prefiltered water to reduce limescale deposits.

7.3 Overview of water hardness levels

The table shows allocation of the levels to the different degrees of water hardness.

Setting Ring setting on INTENZA filter		German degrees in °dH	Total hardness in mmol/l
1 A 1 - 7 < 1.3
2 A 8 - 14 1.3 - 2.5
3 B 15 - 21 2.5 - 3.8
4^1	C 22 - 30 > 3.8
^1 Factory setting

7.4 Water filter ^1

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the BRITA INTENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water.

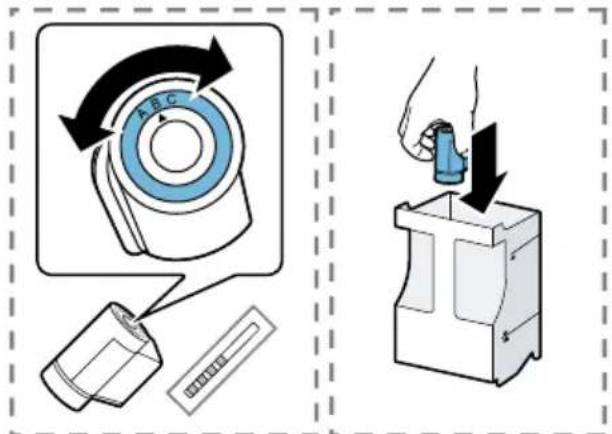

Inserting the water filter

ATTENTION!

Possible damage to the appliance due to limescale build-up.

• Change the water filter in good time.
  ▶ Change the water filter after 2 months at the latest.
  ▶ Observe the display messages.

• Select "Care & maintenance".

• Select "INTENZA filter" and follow the instructions on the display.

Changing or removing the water filter

You can also operate your appliance without a water filter.

1. Select "Care & maintenance".
2. Select "INTENZA filter".
3. Select "Replace" or "Remove" and follow the instructions on the display.

Notes

■ Dispose of spent water filters according to local regulations.
■ Always store replacement water filters in a cool and dry place in their original sealed packaging.

Tips

■ You should also change your water filter for reasons of hygiene.
■ With a water filter you need to de-scale your appliance less frequently.
■ If you use a water filter, your coffee will be more flavoursome.
■ If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.
■ The water filter can be purchased from retailers or customer service. → "Accessories", Page 51

7.5 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for first use. First use appears when switching on for the first time or after resetting to the factory settings.

1. Open the appliance door.

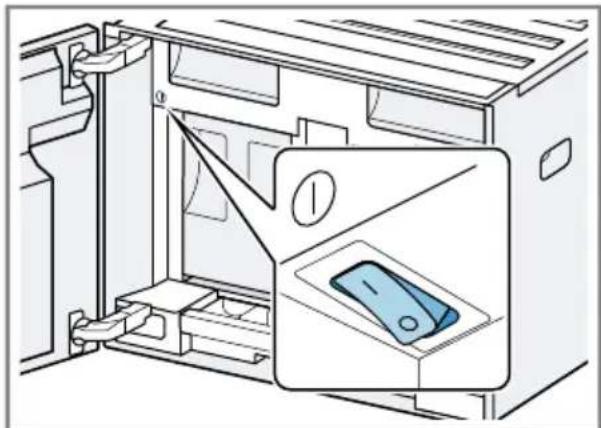

2. Check that the mains switch is set to I.

→ Fig. 24

1. Close the appliance door.
2. Press ☐ to switch the appliance on and wait until the appliance has rinsed.
3. Follow the instructions on the display.

√ The display will guide you through the programme.

Tip: To call up brief information, press i

Notes

■ If you want to set up Home Connect now, follow the instructions in the Home Connect app.
→ "Setting up Home Connect", Page 58
■ If "Demo mode" is selected, only the displays will work. You cannot dispense a beverage or run a programme.

7.6 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.
■ The integrated fan switches on each time a beverage is dispensed and switches off again after around 5-7 minutes.
■ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level. → "Setting the grinding level", Page 56
■ If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings. → Page 59

en Basic operation

■ The first beverage will not yet have its full aroma if:
- You are using the appliance for the first time.
- You have run a service programme.
- You have not used the appliance for a long time.
Do not drink the beverage.

8 Basic operation

8.1 Switching the appliance on or off

Notes

■ Do not press the power switch while the appliance is operating.
■ Before switching off the power switch, switch the appliance off with ⏻. This is the only way for the appliance to rinse automatically.

▶ Press ⏻

When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

8.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

- Leave drinks to cool down if necessary.

- Do not let escaping liquids or steam come into contact with your skin.

Notes

■ With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed.
■ If you are dispensing a beverage with milk, always connect a container filled with milk to the milk hose and suction pipe.
■ The milk container is specially designed for this appliance. Only use the milk container for storing milk in the refrigerator and in the house.
■ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

8.3 DoubleShot and tripleShot

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible aromatic substances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter substances and undesirable aromas affect the taste and digestibility of coffee.

Note: The functions "DoubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.

8.4 Slow Brew and Cold Brew

Slow Brew and Cold Brew are slowly brewed beverages that your appliance dispenses in a pulsating beverage

age flow that is not continuous. This type of coffee preparation exists as a hot and a cold version. Dispensing of the beverage takes several minutes.

Note: Fill the water tank with fresh, cold, non-carbonated drinking water before dispensing drinks.

8.5 Dispensing a coffee drink with milk

An example explains how to make a latte macchiato.

WARNING

Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

Requirements

■ The milk container is inserted.
■ The milk system is connected to the beverage dispenser.
■ The milk container has been filled with sufficient milk.

1. Place a glass underneath the beverage outlet.
2. Select "Classic" and press "Classic".

3. Select "Latte macchiato" and press "Latte macchiato".

4. Set the beverage parameters.

5. To change the per-cup quantity , press the segments.

6. To change the strength, press Ⓞ and set the strength via the segments.

7. To change the milk ratio, press and set the milk ratio via the segments.

8. Press

start stop

- To completely stop dispensing the beverage, press start stop

- To only stop the current dispensing step, press "Skip".

√ The beverage is prepared and then runs into the glass.

Notes

■ If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode.
■ The appliance saves the settings automatically.

Tips

■ You can also pre-heat cups before dispensing using hot water.
■ You can also use plant-based alternatives to milk, e.g. soya milk.
■ The quality of the milk froth depends on the type of milk or plant-based alternative used.

8.6 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: If the "DoubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Select the required beverage.
2. Press
   √ The display shows the setting.
3. Place two cups on the left and right underneath the beverage outlet.
4. Press start stop.
   The drink is prepared in 2 steps. The beans are ground in 2 grinding operations.
   √ The beverage is brewed and then runs into the cups.
5. Wait until the process is complete.

9 Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

9.1 Setting the grinding level

• Use the slider to set the grinding level to between very fine ⚙️ and very coarse ⚙️
  → Fig. 25
  Only change grinding level setting slightly.
  The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.

If the coffee is dispensed too quickly and with too little crema, set a finer grinding level.

10 Milk container shelf

Your appliance detects when there is a milk container on the shelf.

Note: If you are using the milk container supplied or a milk carton, the appliance detects this automatically.

10.1 Using the milk container shelf

1. Connect the milk container or milk carton and place it on the shelf.
2. Start dispensing.

Note: If the message "Please insert milk container." appears, dispensing is not possible.

10.2 Using your own milk container ^1

With certain appliance series, you can use your own milk container.

1. Put out your own milk container.
2. Tare your own milk container. → "Overview Settings", Page 60 The appliance uses the weight to detect the quantity of milk in the milk container or the milk carton. If there is not enough milk in the milk container, a message will appear.

Note: If you use the standard milk container or a milk carton, the appliance detects this automatically.

11 Childproof lock

You can lock the appliance, to protect children against scalding and burns.

11.1 Activating the child-proof lock

Requirement: The appliance is switched on.

1. Press :.
2. Press
   √ The childproof lock is activated.

11.2 Deactivating the child-proof lock

1. Press :

2. Move your finger along the ring until it is filled.

Diagram showing a hand pressing a circular button with an arrow indicating clockwise rotation (no text or symbols)

√ The childproof lock is deactivated.

12 Favourites

Save individual beverages as favourites so that you can dispense them more quickly.

A favourite is a beverage with personal settings. You can change the settings at any time.

Note: To exit the settings, press △ or start dispensing the beverage.

12.1 Creating favourites from Favourites menu

1. Press "Favourites".
2. Press +.
3. Select a beverage.
4. Set the beverage parameters.
5. Press ☆
6. Enter the name.
7. Press "Save".

12.2 Create favourites from Classic or Coffee World

1. Select a beverage from "Classic" or "Coffee World".
2. Set the beverage parameters.

3. Press ☆.

4. Enter the name.

5. Press "Save".

12.3 Changing a favourite

1. Press "Favourites".
2. Select favourite.
3. Make the changes.
4. Press
5. Press "Save".

12.4 Deleting a favourite

1. Press "Favourites".
2. Select favourite.
3. Press ★.
4. Press "Delete".

12.5 Sorting favourites

You can change the sequence of your favourites.

1. Press "Favourites".
2. Select favourite.

√ The display shows all favourites, which can be moved using your finger.
√ The appliance saves the new sequence automatically.

Tip: You can also use the Home Connect app to create, change, delete, or sort favourites.

13 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status.

The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of

Home Connect services in your country. You can find information about this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi ^1 ) and to the Home Connect app.

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tip: Please also follow the instructions in the Home Connect app.

Notes

■ Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 43
■ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

13.1 Setting up the Home Connect app

1. Install the Home Connect app on your mobile device.
2. Start the Home Connect app and set up access for Home Connect. The Home Connect app guides you through the entire login process.

13.2 Setting up Home Connect

Requirements

■ The Home Connect app has been installed on your mobile device.
■ The appliance is receiving signals from the WLAN home network (Wi-Fi) at its installation location.

1. Open the Home Connect app and scan the following QR code.

QR code image containing encoded data, no visible human-readable text

1. Follow the instructions in the Home Connect app.

13.3 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings

You can find an overview of the Home Connect settings and network settings here.

Basic setting Selection Description
Home Connect assistant	Start Disconnect	Add mobile device.Disconnect appliance from network.
WiFi On	Off	Switch off the wireless module during long absences or to save energy.Note: In networked standby mode your appliance requires max. 2 W.
Remote start On	Off	Switch remote start on the appliance on and off.Note: With the Home Connect app only switch-off is possible.
Software update - Note: This setting is only available with a software update.

Note: When "WiFi" and remote start are switched on, 🔊 appears on the display.

13.4 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■ The current software and hardware version of your appliance.
■ Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

14 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

14.1 Changing settings

1. Select "Settings".

√ The display shows the list of settings.

1. Change the required setting.

√ The appliance saves the setting automatically.

en Basic settings

1. To go back to the menu, press <
2. To exit the settings, press 🔒

Tip: To call up brief information, press i

14.2 Overview Settings

See here for an overview of the "Settings".

Language Set language.
Home Connect Home Connect assistant	→ "Setting upHome Connect",Page 58
Time Set the current time or	automatically display viaHome Connect.
Display settings Brightness Set the brightness in steps.
	Clock display Set the clock display soit is limited or unlimitedin terms of time or switchoff.Note:If you do not limitthe clock display interms of time, the energyconsumption will increase.
	Clock display Set the clock display soit is limited or unlimitedin terms of time or switchoff.Note:If you do not limitthe clock display interms of time, the energyconsumption will increase.
	Clock Set the time display.
	Adjustment ■ Set the horizontal andvertical alignment ofthe display.■ Adjust the optimisationand centring of thedisplay to the viewingangle.
Sounds Button tone Switch sound off and on.
	Volume Adjust volume in steps.
1 Depending on the appliance specifications

	Signal tone Switch sound off and on.
	Welcome tune Switch sound off and on when the appliance is started.
Beverage setting Brewing temperature Set the brewing temperature.
	Milk sequence Select the sequence for milk and coffee.
	Latte macchiato pause Select the pause between milk and coffee.
Appliance settings Illumination Adjust the illumination brightness in steps.
	Automatic switch-off Set the time after which the appliance switches off.
	Water hardness Set the water hardness.
	Milk container^1	Set milk carton or individual milk container.Note: If you use the standard milk container, the appliance automatically detects it.
Personalisation Start category Set the menu display after switching on, e.g. "Classic".
Factory settings Reset appliance to factory settings?		Reset personal settings to the factory settings.
Demo mode Mode for demo purposes		Switch "Demo mode" on or off.
Appliance information Beverage counter Display the number of beverages dispensed.
	Cleaning information Time until the water filter should next be changed or a service programme started.
	Version information	Display appliance information.
	Network information Display network information.
^1 Depending on the appliance specifications

14.3 Setting the time

1. Press "Settings" in the menu.
2. Press "Time".
3. To set the time, press the hour display or the minute display.
   √ The selected value is marked in blue.
4. Use the setting ring to set the time.

- The minutes are counted in 5-minute increments. To set it to the precise minute, press and hold the corresponding area in the setting ring for around 1-2 seconds. The minutes are shown in dots. Use the setting ring to set the minutes.

1. To exit the basic settings, use △ to go back to the main menu or switch off the appliance using ⏻

√ The time is saved.

15 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

15.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION!

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

- Follow the operating instructions of the dishwasher.

▶ Only clean dishwasher-safe components in the dishwasher.
- Only use programmes that do not heat the components above 60 °C.

Suitable: √

■ Drip tray
■ Drip tray cover
■ Coffee dregs container
■ Collecting tray
■ Milk container with lid and base
■ Milk container shelf
■ Beverage dispenser
■ Milk system

Not suitable:

■ Water tank
■ Water tank lid
■ Brewing unit
■ Beverage dispenser cover
■ Brewing unit cover
■ Bean container
■ Bean container lid
■ Shelf

15.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appliance.

- Do not use harsh or abrasive detergents.

• Do not use cleaning agents containing alcohol or spirits.
• Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

- Do not use pure citric acid, vinegar or any vinegar-based agents to de-scale the appliance.

- Do not use descaling agent with phosphoric acid.

▶ Only use cleaning tablets and de-scaling tablets that have been specially developed for the appliance. → "Accessories", Page 51

Four symbolic illustrations: a rolled document, a rectangular block with X marks, a rolled cloth, and a textured surface (no text or symbols)

Tips

■ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.

■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

15.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.

• Liquids must not be spilled on the appliance plug connection.
• Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with a microfibre cloth.

2. Clean the beverage outlet with a soft, damp cloth after beverages have been dispensed.

3. Rinse the water tank with fresh, clean water.

4. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

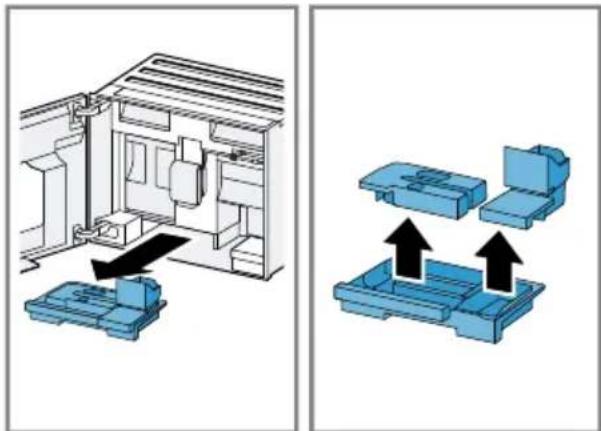

15.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illustrated instructions at the beginning of this manual.

→ Fig. 26 - 28

15.5 Cleaning the milk container

Clean the milk container regularly for hygiene reasons. You can clean the milk container in the dishwasher. Follow the illustrated instructions at the beginning of this manual.

→ Fig. 19 - 22

15.6 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thoroughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning.

ATTENTION!

Improper cleaning and descaling or a delay in doing so may damage the appliance.

• Immediately perform the descaling process in accordance with the instructions.
  ▶ Only put cleaning tablets in the brew chamber of the brewing unit.
• Do not put descaling tablets or other products in the brew chamber of the brewing unit.

Notes

■ The display indicates the progress of the descaling or cleaning process.
■ If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Tip: In addition to the automatic rinsing process, regularly also remove and clean the brewing unit.

Using the service programmes

1. Select "Care & maintenance".

2. Press "Care & maintenance".
   √ The display shows a list.

3. Press the required programme.

√ Display indicates progress of the programme.

Overview of service programmes

You can find an overview of the service programmes here.

Note: The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration.

INTENZA filter	Insert, replace or remove the water filter.
Cleaning milk system	Rinse the milk system automatically.
calc'nClean Combine cleaning and descaling. Remove residues of limescale and coffee from the pipes.
Cleaning Remove residues of coffee from the pipes.
Descaling Remove residues of limescale from the pipes.
Frost protection	Drain the pipes to protect the appliance during transport or storage.
Cleaning brewing unit	The display shows optimum cleaning of the brewing unit step by step.
Cleaning beverage system	The display shows optimum cleaning of the outlet step by step.
	If a service programme is interrupted, e.g. due to a power failure, the appliance will rinse itself automatically.

The appliance is then ready for use again.

Tips

■ If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 0,5 l at the ready.
■ If you use a water filter, this will prolong the time until you have to run a service programme.
■ You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

16 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord or the appliance power cable of this appliance is damaged, it must be replaced with a special power cord or special appliance power cable, which is available from the manufacturer or its Customer Service.

Fault Cause and troubleshooting

Home Connect is not working properly.	Different causes are possible.► Go to www.home-connect.com.
Appliance only dispenses water, not coffee.	Empty bean container is not detected by the appliance.► Pour in coffee beans.
	Coffee shaft on brewing unit is blocked.► Clean the brewing unit.
	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly.1. Check whether the brewing unit is inserted correctly and is securely locked.2. Push the red lever up to the left.3. Insert the brewing unit cover.
Appliance is not dispensing milk froth.	Milk system is soiled.► Clean the milk system in the dishwasher.
	Milk tube not immersed in milk.► Use more milk.► Check whether the milk tube is immersed in the milk.
	Heavy build-up of limescale in the appliance.
Fault Cause and troubleshooting
Appliance is not dispensing milk froth.	▸ Descale the appliance.
No milk intake by the milk system.	The milk system is assembled incorrectly.▸ Assemble the milk system correctly.
	Milk tube not immersed in milk.▸ Use more milk.▸ Check whether the milk tube is immersed in the milk.
Milk froth is too cold. Milk is too cold.▸ Use lukewarm milk.
Cold-brewed beverage is not cold enough.	Water in water tank is warm.1. Fill the water tank with fresh, cold, non-carbonated drinking water.2. You can add ice cubes to cool the beverage down even more.
Appliance is not dispensing hot water.	Beverage dispenser is soiled.▸ Clean the beverage dispenser in the dishwasher.
Appliance is not dispensing drinks.	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.▸ Firmly press the water filter straight down into the tank connection.
	Residues of limescale remover are blocking the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
There is dripping water on the inner floor of the appliance.	Drip tray was removed too soon.▸ Wait a few seconds after the last drink was dispensed before removing the drip tray.
There is brown water under the coffee grounds container or the drip tray.	Coffee grounds on the invisible side of the drip edge causes water to run under the coffee grounds container or the drip tray.1. Remove the drip tray and the coffee grounds container.2. Remove the brewing unit cover.3. Remove the coffee grounds on the drip edge.→ Fig. 29
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed.► Switch the appliance off and back on after 3 minutes.
Grinder won't start. Appliance is too hot.1. Disconnect the appliance from the mains.2. Wait 1 hour so the appliance can cool down.
Grinder is not grinding any coffee beans despite full bean container.	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.► Descale the appliance.
Milk froth quality varies widely.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimise the result through the selection of the milk or vegetable-based drink type.
Coffee is not dispensed or has slowed to a trickle.Set quantity is not reached.	Grinding level is set too fine.► Set a coarser grinding level.
	Heavy build-up of limescale in the appliance.► Descale the appliance.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Appliance is soiled.► Clean the brewing unit.► Descale and clean the appliance.
Coffee has no crema. Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.► Use beans with a darker roast.

Fault Cause and troubleshooting

Coffee is too acidic. Grinding level is set too coarse. ▶ Adjust the grinder to a finer setting.
Type of coffee is not optimal. ▶ Use a coffee variety with a higher proportion of Robusta beans. ▶ Use beans with a darker roast.
Coffee is too bitter. Grinding level is set too fine. ▶ Set a coarser grinding level.
Type of coffee is not optimal. ▶ Change the coffee variety.
Coffee tastes burnt. Grinding level is set too fine. ▶ Set a coarser grinding level.
Type of coffee is not optimal. ▶ Change the coffee variety.
Brewing temperature is too high. ▶ Set the brewing temperature lower.
Coffee grounds are not compact and are too wet.	The grinding level is not set optimally. ▶ Adjust the grinder to a coarser or finer setting.
	Coffee beans are too oily. ▶ Use a different type of bean.
Display shows "Please insert brewing unit.".	Brewing unit is not inserted properly. 1. Check whether the brewing unit is inserted correctly and is securely locked. 2. Push the red lever up to the left. 3. Insert the brewing unit cover.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Water tank is wrongly inserted. ▶ Insert the water tank correctly.
	Float is stuck in the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions. 1. Rinse the water filter according to the instructions. 2. Place the water filter into operation.
	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter.
	Water filter is old.
Fault Cause and troubleshooting
Display shows "Please fill water tank." despite the fact that the water tank is full.	Insert a new water filter.
	Limescale deposits in the water tank are blocking the system.1. Clean the water tank thoroughly.2. Start the descaling programme.
Display shows "E61: Please clean brewing unit.".	Brewing unit is soiled.Clean the brewing unit.
	Mechanism of brewing unit is stiff.Clean the brewing unit.
Display shows "Incorrect voltage".	There are problems with the power supply.Only operate the appliance at 220 - 240 V.
Display shows "Restart appliance".	Appliance has a fault.Set the mains switch toand wait 60 seconds.Set the mains switch to
Display shows calc'nClean very frequently.	Decalcified water still contains small amounts of lime.Insert a new water filter.Set the corresponding water hardness.
	Incorrect or too little descaling agent used.When descaling, only use suitable tablets.
	Service programme has not been carried out in its entirety.Start the "Special rinsing step /" service programme.→ "Service programmes", Page 64

17 Transportation, storage and disposal

17.1 Activating frost protection

Protect your appliance from frost during transport and storage.

ATTENTION!

Residues of liquid in the appliance may damage it during transport or storage.

▶ Empty the pipe system before transport or storage.

1. Run the "Frost protection" programme.

→ "Overview of service programmes", Page 64

1. Disconnect the appliance from the power supply.

17.2 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

18 Customer Service

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

18.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

18.2 AQUA-STOP guarantee

In addition to warranty claims against the seller under the purchase agreement and in addition to our manufacturer's warranty, we offer compensation under the following conditions.

■ If our Aqua-Stop system is defective and causes water damage, we will make good the damage for private users. To ensure protection from water damage, the appliance must be connected to the power supply.
■ The liability guarantee is valid for the service life of the appliance.
■ A claim can only be made under the guarantee if the appliance has been correctly installed and connected with Aqua-Stop according to our instructions; this also includes correctly fitting the Aqua-Stop extension (genuine accessory). Our guarantee does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap.
■ If your appliance is fitted with Aqua-Stop, you can in principle leave your appliance unattended during operation and the tap turned on afterwards. The tap only needs to be turned off if you are away from home for a long period, e.g. on holiday for several weeks.

19 Technical specifications

Voltage 220-

240 V \~

Frequency 50 / 60 Hz
Connection rating 1500 W
Maximum static pump pressure	20 bar
Maximum capacity of water tank (without filter)	2,2 l
Maximum capacity of bean container	400 g
Length of the power cable	170 cm
Appliance height 45,5 cm
Appliance width 59,4 cm
Appliance depth 37,7 cm
Weight, empty 20,6 kg
Type of grinder Ceramic

This product contains light sources from energy efficiency classes D and F. These light sources are available as spare parts and may only be replaced by trained specialist staff.

19.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your

Home Connect app: "Profile -> Legal

information -> Licence Information".¹ You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany. The source code will be made available to you on request. Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany. Subject: „OSSREQUEST“ The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

20 Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the essential requirements and other relevant provisions of Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.bosch-home.com among the additional documents on the product page for your appliance.

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements. ^2

A detailed Declaration of Conformity can be found online at www.bosch-home.co.uk among the additional documents on the product page for your appliance. ^2

2.4 GHz band (2400–2483.5 MHz): Max. 100 mW 5 GHz band (5150–5350 MHz + 5470–5725 MHz): max. 200 mW

	BE BG CZ DK DE EE IE EL ES
	FR HR IT CY LI LV LT LU HU
	MT NL AT PL PT RO SI SK FI
	SE NO CH TR IS UK (NI)
5 GHz WLAN (Wi-Fi): For indoor use only.
AL	BA	MD	ME	MK	RS	UK	UA
5 GHz WLAN (Wi-Fi): For indoor use only.

20.1 Statement of Compliance for Great Britain

The full Statement of Compliance according to the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 can be found online at www.bosch-home.co.uk among the additional documents on the product page for your appliance.

Product type

This statement of compliance covers the products described in this information for use whose model identifier group is seen on the title page. The full model identifier is made up of the characters before the slash in the product number (E no.) which can be found on the rating plate. Alternatively, you can also find the model identifier in the first line of the UK Energy Label.

Name and address of manufacturer

This statement of compliance is prepared by the manufacturer.

The manufacturer, BSH Hausgeräte GmbH deems that it has complied with

■ provision 5.1-1 of ETSI EN 303 645 v2.1.1 and, where relevant, provision 5.1-2 of ETSI EN 303 645 v2.1.1;
■ provision 5.2-1 of ETSI EN 303645 v2.1.1;
■ provision 5.3-13 of ETSI EN 303645 v2.1.1.

Support period

BSH Hausgeräte GmbH will provide security updates that are necessary to maintain the main functions free of charge until at least 28/02/2034.

QR code image containing encoded data, no visible human-readable text

Indice

1 Sicurezza 77

8.3 DoubleShot e TripleShot

8.4 Slow Brew e Cold Brew

Diagram showing a hand pressing a circular button with an arrow indicating clockwise rotation (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four symbolic icons: a rolled-up document, a block with X marks, a rolled-up cloth, and a textured object (no text or symbols)

Consigli

QR code image containing encoded data, no visible human-readable text

Table des matières

1 Sécurité.... 113

Diagram showing a hand pressing a circular button with an arrow indicating clockwise rotation (no text or symbols)

13.2 Configurer Home Connect

Conditions

QR code image containing encoded data, no visible human-readable text

Four symbolic illustrations: a rolled-up document, a rectangular block with X marks, a rolled-up cloth, and a textured circular object (no text or symbols present)

Conseils

usagés (waste electrical and electronic equipment - WEEE).

QR code image containing encoded data, no visible human-readable text

Inhoudsopgave

1 Veiligheid.... 148

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

8 De Bediening in essen- tie

Diagram showing a finger pressing a circular button with an arrow indicating clockwise rotation (no text or symbols)

13.1 Home Connect app in- stellen

QR code image containing encoded data, no visible human-readable text

Four symbolic illustrations: a rolled parchment, a rectangular block with X marks, a rolled parchment, and a textured basket (no text or symbols)

Tips

QR code image containing encoded data, no visible human-readable text

Tabla de contenidos

1 Seguridad 183

Diagram showing a hand pressing a circular button with an arrow indicating clockwise rotation (no text or symbols)

13.2 Ajustar Home Connect

Requisitos

QR code image containing encoded data, no visible human-readable text

Four hand-drawn icons showing different food items: rolled cheese, rectangular block, rolled bread, and patterned bread (no text or symbols)

Consejos

QR code image containing encoded data, no visible human-readable text

Bmict

1 Безпека 219

8.3 DoubleShot ta TripleShot

8.4 Slow Brew ta Cold Brew

Hand interacting with a circular diagram showing a hand pressing a finger with an arrow indicating rotation (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four symbolic illustrations: a rolled parchment, a rectangular block with X marks, a rolled parchment, and a textured rectangular block with X marks (no text or symbols present)

Поради

QR code image containing encoded data, no visible human-readable text

İçindekiler tablosu

1 Güvenlik.... 256

8.3 DoubleShot ve TripleShot

8.4 Slow Brew ve Cold Brew

Diagram showing a finger pressing a circular button with an arrow indicating clockwise rotation (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four symbolic illustrations: a rolled parchment, a rectangular block with X marks, a rolled parchment, and a textured rectangular block with X marks (no text or symbols present)

İpuçları
