Tassimo Suny TAS3203CH - Coffee maker BOSCH - Free user manual and instructions

Product Type	Coffee Maker
Brand	Bosch
Model	Tassimo Suny TAS3203CH
Dimensions (H x W x D)	Approx. 28 x 22 x 33 cm
Weight	Approx. 2.8 kg
Power Consumption	1500 W
Voltage	220-240 V, 50/60 Hz
Water Tank Capacity	1.0 L
Brewing System	Tassimo T-Disc capsule system
Brewing Technology	Intelligent barcode reading for optimal brewing
Adjustable Cup Size	Yes, via sliding switch (small, medium, large)
Water Filter	Optional (BRITA filter compatible)
Descaling Indicator	Yes, LED light alerts when descaling needed
Auto Shut-off	Yes, after 5 minutes of inactivity
Anti-Drip System	Yes
Pump Pressure	Not specified (typical 3.5 bar)
Maintenance	Regular descaling and cleaning of brew unit
Spare Parts Availability	Available through Bosch service or authorized dealers
Repairability	User-replaceable parts: water tank, drip tray, capsule container
Energy Efficiency Class	Not classified

Frequently Asked Questions - Tassimo Suny TAS3203CH BOSCH

How do I descale my Tassimo Suny TAS3203CH?

Press and hold the descaling button (if equipped) or follow the routine: fill tank with descaling solution, run a brew cycle without a capsule, then rinse with fresh water. Refer to the manual for detailed steps. The descaling indicator will light up when needed.

What type of pods does this machine use?

The Tassimo Suny uses Tassimo T-Discs (barcoded capsules) only. Do not use other brands or ground coffee.

How do I clean the machine?

Wipe the exterior with a damp cloth. Remove and wash the drip tray and capsule container in warm soapy water. Descale regularly as indicated by the alert.

Why is my coffee not hot enough?

Ensure the machine is preheated (wait for ready light). If still cool, descale the unit, as limescale can affect temperature. Also check if you are using a small cup size, which may cool faster.

How do I adjust the cup size?

Slide the cup selector on the front of the machine to the desired size: small (approx. 125ml), medium (200ml), or large (300ml). The machine will brew accordingly.

What does the error code mean?

Common errors: flashing lights may indicate low water, need to descale, or a blocked puncture needle. Refer to the troubleshooting section of the manual. If persistent, contact Bosch support.

Can I use a reusable pod?

No, the machine is designed exclusively for Tassimo T-Discs. Using reusable pods may damage the barcode reader and void warranty.

How often should I descale?

When the descaling indicator lights up, usually every 2-3 months depending on water hardness. Use Bosch descaling tablets or a compatible solution.

Why is water not flowing?

Check that the water tank is properly seated and filled. If after adding water the pump still doesn't run, the machine may need priming (run a cycle without a capsule). Also check for airlocks.

Is the machine compatible with WiFi or app?

No, the Tassimo Suny TAS3203CH is a basic model without connectivity. It operates with manual controls only.

USER MANUAL Tassimo Suny TAS3203CH BOSCH

Colorful abstract flower-like pattern with six petals (no text or symbols)

TQSSIMO

SUNY

BOSCH

Two abstract icons: an orange eye on a rounded background and a pink warning triangle with an exclamation mark inside (no text or symbols)

de Reinigen

en Cleaning

fr Nettoyage

es Limpiar

pt Limpar

it Pulizia

nl Reinigen

sv Rengöring

da Rengøring

no Rengjøring

el Kaθαρισμός

pl Czyszczenie

cs Čistění

sk Čistenie

ro Curățarea

ru Очистка

uk Очищення

ko 청소

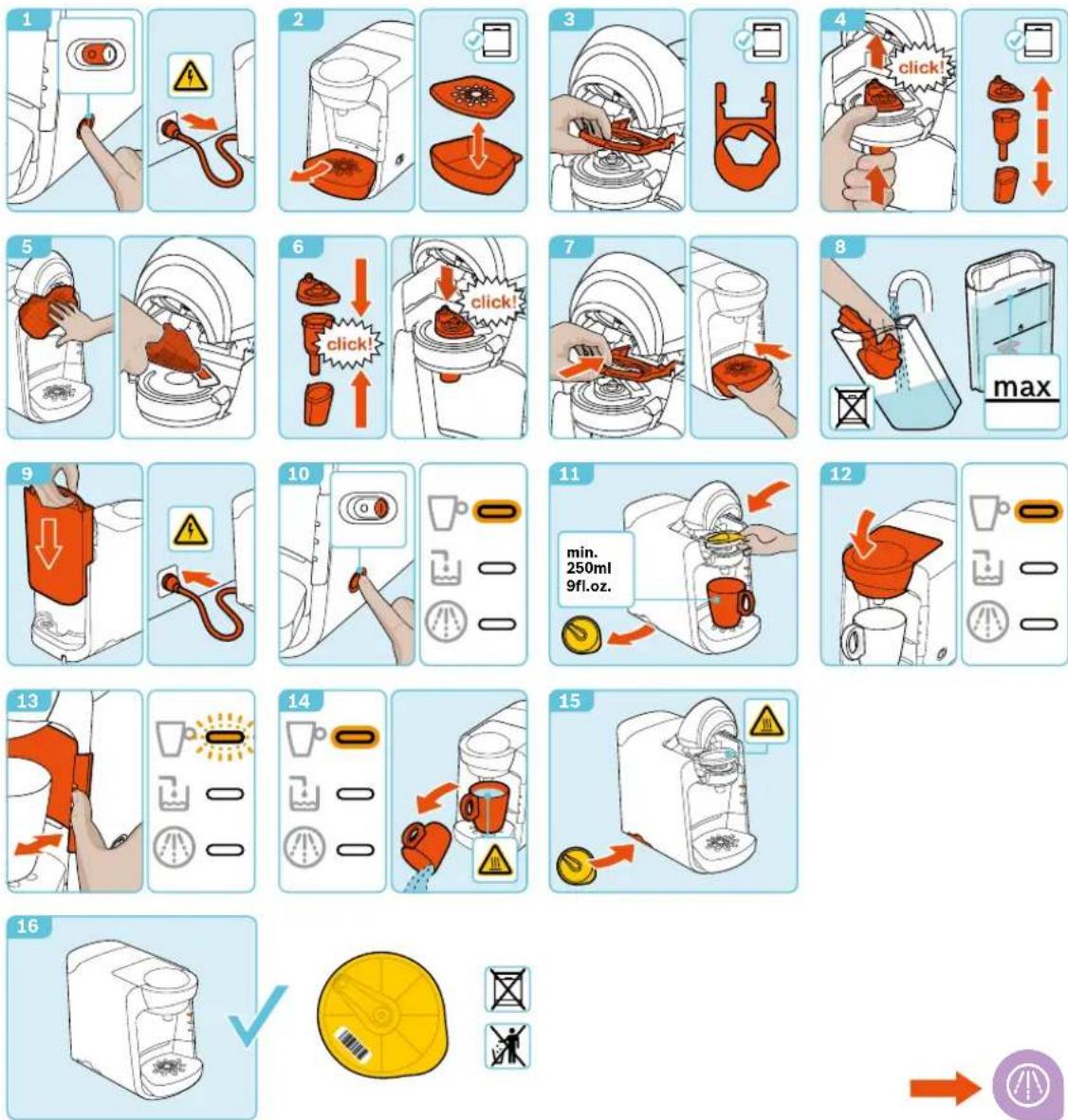

de Entkalken

en Descaling

fr Détartrage

es Descalcificar

pt Descalcificar

it Decalcificare

nl Ontkalken

sv Avkalkning

da Afkalkning

no Avkalking

el Απασβέστωση

pI0dkamienianie

Illustration of a hand holding an orange device with a downward arrow, next to a white container (no text or symbols)

Illustration of a hand washing a white appliance with orange filter bands, showing airflow direction (no text or symbols)

Line drawing of a hand mixer with a side bowl (no text or symbols)

9000 940 662 - 10/13

www.tassimo.com
