USER MANUAL UV-C-PJ-11W T.I.P.

Black industrial vacuum cleaner with blue label 'T.I.P. UV-C-PJ 11W' and inlet/outlet pipes (no readable text beyond branding)

EC declaration of conformity

We, T.I.P. Technische Industrie Produkte GmbH, Siemensstr. 17, D-74915 Waibstadt, declare in our sole responsibility that the products identified below comply with the basic requirements imposed by the EU directives specified below including all subsequent amendments: 2006/95/EC, 2004/108/EC, 2011/65/EU.

Close-up of a white cylindrical mechanical component with a black central slot and concentric rings (no text or symbols visible)

Close-up of a mechanical component with a red annotation line and label 'Fig.II' (no readable text or symbols beyond label)

Close-up of mechanical components with labeled parts A and B, no readable text or symbols present

Technical line drawing of a mechanical device with gears and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Strictly ensure that you have read the use instructions before placing the pump in service!

Dear customer,

Congratulations for buying your new device from T.I.P.!

Like all our products, this one, too, was developed using the latest technological knowledge. The device was manufactured and assembled on the basis of state-of-the-art pump technology using most reliable electrical or electronic components which ensure a high level of quality and a long life of your new product.

Please read through these operating instructions carefully to make sure that you can fully benefit from all features. Some explanatory illustrations can be found at the end of these operating instructions.

We hope you will enjoy your new device!

Table of contents

1.	Technical data	1
2.	Scope of delivery	1
3.	General safety instructions	1
4.	Application areas	3
5.	Placing in service	3
6.	Maintenance and care	3
7.	Warranty	4
8.	Ordering spare parts	5
9.	Service	5
10.	Annex	6

1. Technical data

Model	UV-C-PJ 11W
Power consumption of the UVC tube 13 W
UV-C-tube type / performance G 23 / 11 W
Service life of the UVC tube ca. 5.000 h
Degree of protection / protection class - UVC emitter IPX4
Length of the connecting cable - UVC emitter 5 m
Voltage / frequency, primary (input) 230 V / 50 Hz
Degree of protection - transformer IPX4
Max. flow rate (Qmax)	3,000 l/h
Operating pressure max. (pmax)	0,2 bar
Maximum temperature of the pumped liquid (Tmax)	35 °C
Minimum temperature of the pumped liquid	5 °C
For ponds up to	10,000 l
Weight (net)	1.6 kg
Filter dimensions, mounted (W x D x H)	27,5 x 25,2 x 8 cm
Item number	30432

2. Scope of delivery

T.I.P. UV-C lamp, 2 clamping brackets, 2 hose connectors, operating instruction.

Check the device for transport damage and complete delivery. If there is damage the retailer must be notified without delay, at the latest however, within 8 days of the purchase date.

3. General safety instructions

Please read through these operating instructions carefully and make yourself conversant with the control elements and the proper use of this product. We shall not be liable in the case of damage caused as a result of the nonobservance of instructions and provisions of the present operating instructions. Any damage caused as a result of the nonobservance of the instructions and regulations contained in the present operating instructions shall not be covered by the warranty terms. Please keep these operating instructions in a safe place and hand them on together with the device should you ever dispose of it.

Persons not conversant with the contents of these operating instructions must not use this device.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Notes and instructions with the following symbols require particular attention:

Danger of injury or material damage if this instruction is not complied with

Danger of electrical shock that can result in injury or material damage if this instruction is not complied with

In addition to the basic safety instructions, also comply with the following instructions to prevent accidents:

1. ATTENTION: Before performing any installation or maintenance tasks, disconnect the electrical devices immersed in the pond from the power source by pulling the plug out of the socket outlet. Do not operate the pump if there are people in the water. Switch off the main fuse of the main domestic power supply, before unplugging the mains cable, if the connection plug or the main power outlet are wet. Never transport or suspend the device by the mains cable.

2. Ensure that the voltage specified on the type plate of the device agrees with the mains voltage.

3. Prior to connecting the device to the mains supply, ensure that the mains cable and the device are not damaged in any way.

4. The mains cable of the device must form a loop that points downward (DRIP LOOP) to prevent water from running along the cable and into the socket outlet.

5. The device must have a residual current circuit breaker (RCCB) with a rated residual current of max. 30 mA connected on the line side. Consult a qualified electrician.

6. Do not bury the mains cable in the ground; follow the installation instructions specified in the applicable local regulations. Consult a qualified electrician.

7. Prior to placing the device in service, ensure that the installation has been properly executed.

8. Install the filter at least 2 meters away from the edge of the pond; ensure that it is attached in such a manner that it cannot accidentally fall into the water and that the installation area of the filter cannot be flooded.

9. Do not use or store the device in areas where there is danger of freezing. In winter the device should be removed, emptied and stored where it is protected against freezing.

10. Do not let the pump run dry (without water flow).

11. Do not use the device with corrosive liquids.

12. The temperature of the pumped liquid must not exceed 35^ C (max.) and must not underrange 2^ C

13. ATTENTION! Only use the UVC filter together with the safety transformer included in the scope of delivery. If there is a defect, the complete UVC unit must be replaced.

14. ATTENTION: This device emits UVC radiation that can harm eyes and skin. Do not use the bulb outside of the device

15. ATTENTION: NEVER LOOK DIRECTLY INTO THE UVC TUBE WHEN IT IS SWITCHED ON

16. ATTENTION: This device consists partially of glass! Handle with care!

17. The max. temperature of the pumped liquid must not exceed 35^ C

18. Never connect the filter to the public water supply network.

19. The UV filter is not designed for immersion in water. If the device should accidentally fall into the water, do not, under any circumstances, attempt to get it out of the water, until you have pulled the mains plug out of the mains socket outlet. Also unplug the mains plug if you determine that the exterior of the device is wet

20. To avoid an overheating of the lamp, please switch of the lamp if there is no direct water flow.

21. ATTENTION! Temporarily stop the operation of the UVC lamp, while treating the water or fish inside your pond with additional care products.

Attention! Use in garden ponds and the protected area of garden ponds is only permitted if the installation complies with the valid regulations. Consult a qualified electrician. DO NOT use the pump in or on swimming pools!

4. Application areas

This device has been developed for private use and not for industrial or commercial purposes.

5. Placing in service

When tightening threaded connections, please do not apply excessive force which may cause damage. Please observe the illustrations, too, which are contained as an attachment at the end of the present operating instructions. The numeric and other details included in brackets below refer to these illustrations.

5.1 Placing in service

Attention! Comply with the safety measures specified for the UVC emitter (see above)! (See the provided operating instructions).

Install the connection socket outlet in the water-protected area and at least 2 m away from the edge of the pond!

Connect the pond pump to the mains supply.

Check whether the hose is connected so that it is watertight.

UV-C should be fixed on a base with a weight of at least 18 kg. Connect the UVC emitter to the mains Supply, plug the mains plug into the socket outlet.

You can check the function of the UVC tube through a bluish shimmer on the transparent discharge port of the UVC emitter.

For this filter system we recommend continuous operation (24 hours a day), in the season months March to October.

6. Maintenance and care

Attention! Before performing any installation or maintenance tasks, disconnect the electrical devices immersed in the pond from the power source by pulling the plug out of the socket outlet

Attention! The power cord of this device cannot be replaced. If the cable is damaged the UVC emitter contained in the filter, including the ballast, is unusable and must be properly disposed of. Repair is not possible because the connecting lines are permanently cast.

6.1. Cleaning of the UV-C lamp and replacing the tube

In case of stronger accumulation of alga and calcification, the correct function of the UV C unit should be checked. UVC tube (2) has a limited period of effectiveness (approx. 4000 to 5000 hours) and should be replaced at the latest after one season (March to October). Appropriate replacement tubes are available at the service address specified below.

If the pond filter has been switched off for a longer period of time, ensure that the quartz glass cylinder that encloses the UVC tube is clean.

If the filter has not been operated for a longer period of time, under some circumstances it may be necessary to replace the sealing rings (particularly for the UVC emitter).

Cleaning of the UV-C lamp

1. Disconnect the UVC lamp from the mains power and safeguard it from being switched on unintentionally
2. Comply with the safety measures.
3. Allow the water to completely run out of the unit.
4. Carefully take the lamp socket (1) out of the housing (5) and replace the UVC tube (2) if needed.

Cleaning of the quartz glass cylinder

1. After disassembling the lamp socket (1) and UV-C tube (2) take carefully the Quartz glass (3) out of the housing. You may use a wide screw driver or a coin. Insert the tool into the recess, which is at the end of the thread of the protective sleeve and lift it carefully out.

2. Clean the Quartz glass (3) and housing (5) thoroughly with water and a soft cloth.

3. If needed, remove calcifications from the Quartz glass (3) with a suitable solvents. Rinse out thoroughly before reassembling.

4. If quartz glass tube or O-rings are defective they must always be replaced.

Assemble everything in reverse order.

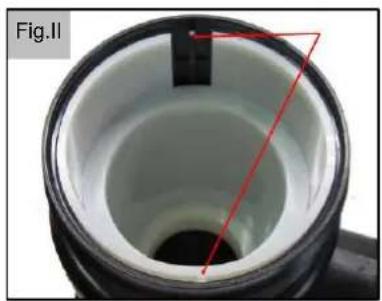

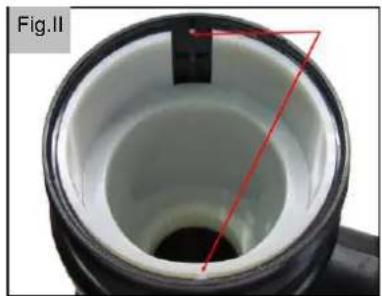

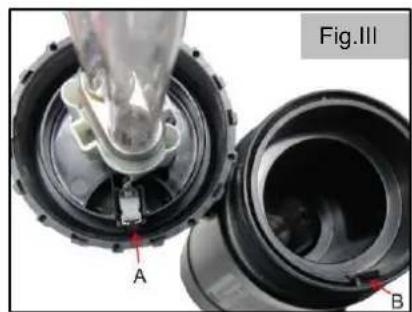

While inserting the quartz glass into the protective housing (5), make sure the recess and groove engage exactly. Assure the O-Ring (4) is exactly inserted in the groove of the quartz glass. Where necessary, grease O-rings (4) with Vaseline. For installation of the lamp socket, the micro switch of the lamp socket (Fig. III, A) is correctly inserted in the groove of the previously mounted quartz glass (Fig. III B). Otherwise without contact there is no function (see Fig. I).

Close-up of a white plastic cylindrical component with a small black hole, labeled Fig.1 (no text or symbols on the object itself)

Close-up of a cylindrical container with a black lid and red annotation line, labeled Fig.II (no text or symbols on the main subject)

Close-up of a mechanical component with labeled parts A and B, showing internal structure (no text or symbols beyond labels)

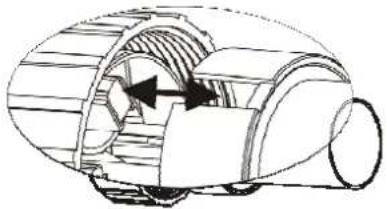

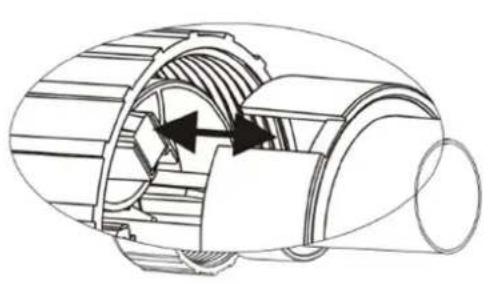

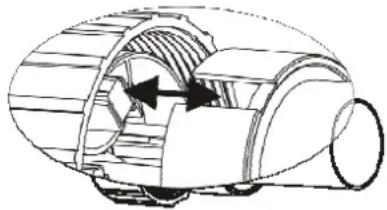

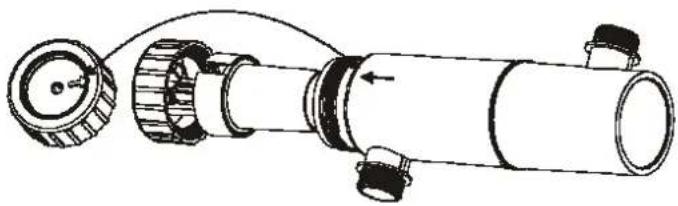

Replacing the UVC tube:

1. Disconnect the UVC lamp from the mains power for the maintenance.

2. Screw the socket (1) from the housing of the lamp. Remove the UV-C-tube (2) and replace the old tube with a new one.

Assemble all parts in reverse order and ensure the O-Ring is correctly inserted. Lubricate the O-Ring with some vaseline.

Caution! Do not touch UVC tube (2) directly with your hand; put on cotton gloves!

Old UV-C tubes shall not get broken and must not be disposed in regular garbage bin. Contact your local waste disposal company. Do not use an sharp edged tools. In case Quartz glass cylinder or O-ring are defect, they should get replaced immediately.

Technical line drawing of a mechanical device with gears and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical component with internal gears and a directional arrow (no text or symbols)

Function check of UVC lamp

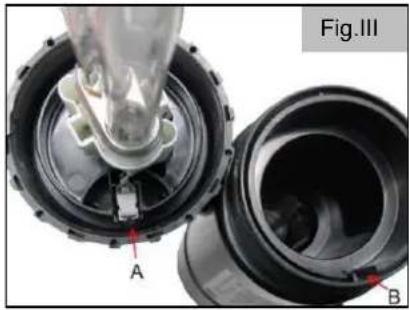

In case the UVC lamp does not shine, the micro switch might not be activated. The UVC lamp should get completely reassembled.

1. Assemble UV-C tube (2) including Quartz glass (3) to lamp socket (1).

2. Make sure O Ring (4) is inserted

3. Pull the protective housing (5) over the UV-C tube and Quartz glass and connect to the socket. By doing so the micro switch should get active automatically.

The UVC tube works properly if you see a bluish light at the end of the lamp socket (1).

Winter - maintenance

• Protect your UVC tube from freezing!
• Completely clean the UVC tube as specified in the instructions.
• Store the UVC tube over winter in a frost-free location

7. Warranty

The present device was manufactured and inspected according to the latest methods. The seller warrants for faultless material and workmanship in accordance with the legal regulations of the country in which the device was purchased. The warranty period begins with the day of the purchase and is subject to the provisions below:

GB

Within the period of warranty, all defects which are to be attributable to defective materials or manufacturing will be eliminated free of charge. Any complaints are to be reported immediately upon their detection.

The warranty claim becomes void in the case of interventions undertaken by the purchaser or by third parties. Damage resulting from improper handling or operation, incorrect setting-up or storage, inappropriate connection or installation or Acts of God or other external influences are excluded from warranty.

Parts subject to wear, such as the UV–C tube, rotor and bearings are excepted from the guarantee. All parts were manufactured using maximum care and high-quality materials and are designed for a long lifecycle. It should be understood, however, that the wear and tear depends on the kind of use, the intensity of use and the internals of maintenance. Complying with the installation and maintenance information contained in the present operating instructions will therefore considerably contribute to a long lifecycle of these wearing parts. In case of complaints, we reserve the option of repairing or replacing the defective parts or replace the entire device. Replaced parts will pass into our property.

Claims for liquidated damages are excluded unless they are caused by wilful acts or negligence on the side of the manufacturer.

The warranty does not provide for any claims beyond those referred to above. The warranty claim has to be evidenced by the purchaser in the form of the submission of the sales receipt. The present warranty commitment is valid in the country in which the device was purchased.

Please note:

1. Should your device fail to function properly, please verify first whether an operating error or another cause is present which cannot be attributed to a defect of the device.
2. In case you have to take or send in your defective device for repair, please be sure to enclose the following documents:

- Sales receipt (sales slip).

• A description of the occurring defect (a description as accurate as possible will expedite the repair work).
• In case you have to take or send in your defective device for repair, please remove any attached parts which do not belong to the original condition of the device. If any attached parts of this kind should be missing upon the return of the device, we shall not be liable for them.

8. Ordering spare parts

The fastest, most simple and cheapest way of ordering spare parts is through the internet. On our www.tip-pumpen.de website you will find a convenient spare part shop where you can order spare parts with just a couple of clicks. In addition, this is also the place where we publish comprehensive information and valuable tips on our products and accessories, introduce new devices and present current trends and innovations in the range of pump technology.

9. Service

In the case of warranty claims or malfunction, please contact your point of sale.

A current operating manual is available as required as a PDF file via e-mail: [e-mail].

For EC countries only

Do not throw electric appliances in your dustbin!

According to EU guideline 2012/19/EU concerning old electric and electronic appliances and its implementation in national law, such appliances must be collected separately and fed into an environment-friendly recycling system. Please consult your local waste management system for advice on recycling.

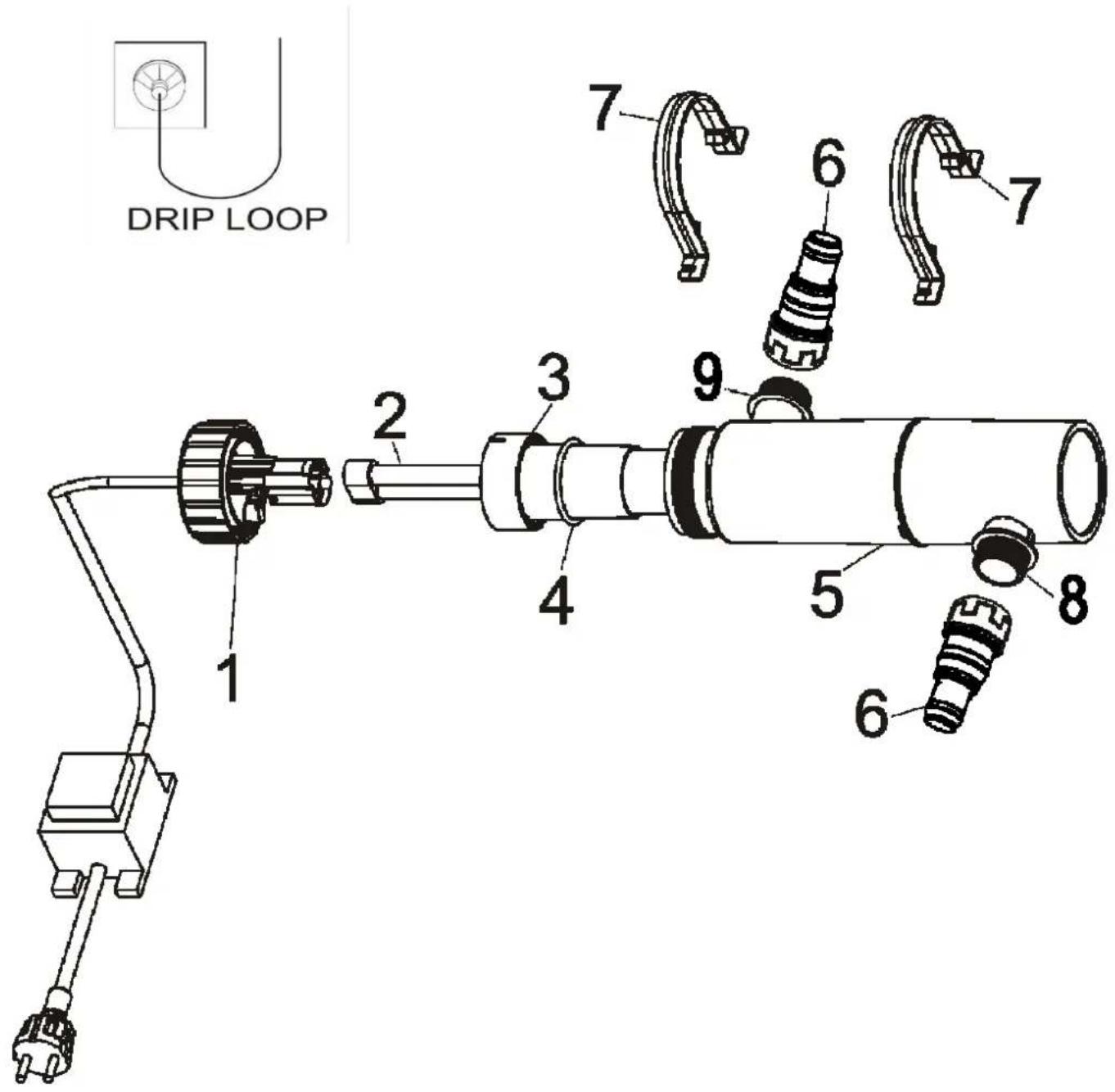

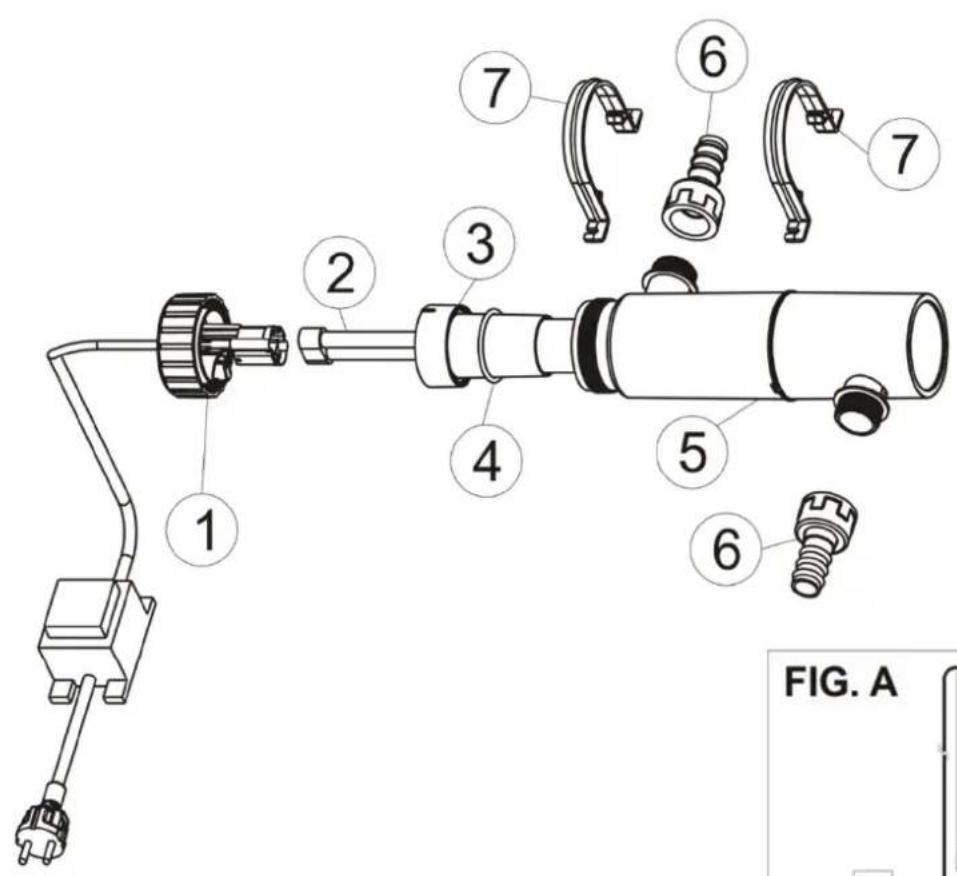

10. Annex

Part no.	Spare part item no.	Description
1	72637 Lamp socket with ballast
2	30985 Replacement tube	UV-C 7 W (G23 socket)
3	72638 Quartz glass cylinder
4	72639 O-Ring
5	72640 Protection housing
6	73554 Hose joint
7	73555 Lid

DRIP LOOP 1 2 3 4 5 6 7 8 9 7 6

Technical line drawing of a mechanical assembly with gears and threaded ports (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and flow direction (no text or labels)

FIG. A

FIG. A WATER LEVEL DRIP LOOP
