USER MANUAL Aerostyle Compact AP730 Venta

Two stacked electronic devices, one white and one black, with visible branding and green accents (no text or symbols on the devices themselves)

VIELEN DANK!

White square electronic device with a black plastic clip and cable, no visible text or symbols

ÜBERSICHT

Stacked white square electronic components with a blue upward arrow indicating internal flow or insertion (no text or symbols)

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

DISPLAY

1 FILTER SERVICE WIFI OFF 13 12 1 2 3 - 12PM2.5 µg/m³ + TURBO 11 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 Sec.

Service

1

Two white square electronic devices with a black interior, one with a small square top and the other with an arrow pointing upward (no text or symbols visible)

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 Sec.

We are convinced that this VENTA model will exceed your expectations and we hope you will enjoy it.

Please register your VENTA unit: www.venta-air.com

DE

DEAR CUSTOMER,

The powerful AeroStyle Compact Air Purifier reduces fine dust, viruses and formaldehyde gases in indoor air. With its AirFlow 360 technology, it provides highly efficient air purification performance with even distribution of purified air without annoying drafts. At the same time, HEPA Performance technology ensures consistent and high air purification efficiency.

SYMBOLS USED

Caution: Danger to the integrity of health and product.

Read the operating instructions carefully and follow them!

The device complies with the CE, UKCA and FCC markings.

This device complies with protection class II.

TABLE OF CONTENTS

Safety Instructions 21

Intended use 22

Warranty

Scope of delivery 23

Description

Putting into operation 24

Display

Operation

Wifi / Hotspot 29

Configuration & smart life app 30

Cleaning / Maintenance 31

23 Technical data 34

Cleaning the device 34

23 Accessories

Data protection 35

26 Disposal

Disposal 35

27 What if...?

What if...? 36

SAFETY INSTRUCTIONS

Please read this operating manual in its entirety, keep it for later reference and note all safety instructions as well as instructions for the proper use of the appliance. You can find the latest version of the operating manual on our website www.venta-air.com

• This appliance is suitable for use by children over the age of 8 years and people with restricted physical, sensory, or mental capacities or lack of experience and knowledge, providing they are supervised or have received instructions on the safe use of the appliance and understand the existing hazards.
• Read the operating instructions completely before putting the appliance into operation and keep them for later reference.
  • The appliance is not a toy for children.
• Cleaning and user maintenance may not be performed by children under the age of 8 years or without supervision.
• Keep the appliance and its power cable out of the reach of children under the age of 8 years.
• Improper use can damage the appliance and cause physical injuries.
• Plug the appliance into suitable power outlets only – the mains voltage must correspond to the nameplate data on the appliance.
• Never use the appliance if it has a damaged power cable.
• Disconnect the power supply before every cleaning or maintenance operation and before transportation of the appliance.
• Never use the appliance if it has been dropped or damaged in any other way.
• Electrical appliances should only be repaired by professional specialists. Amateur repairs could result in considerable danger to the user.
• Do not sit on the appliance and do not place any objects on it.
• Do not put any foreign objects into the appliance.
• Never immerse the appliance in water or any other liquid.
• Never disconnect the power supply by pulling on the cable or with wet hands.
• The appliance should only be operated when it is completely assembled.
• Place the appliance on a stable surface which is flat and dry.
• Set up the appliance so that it cannot be knocked over, and so that no one can trip over it or the cable.

- Leave at least the following distances from other objects and walls:

• At the front and above: 50 cm
• At the left and right: 20 cm
• At the back: 5 cm

• Maximum installation altitude: 2000 meters
- Never cover or block the vents to prevent overheating/damage to the appliance.
- Unplug the power supply unit from the socket when you are not using the appliance

INTENDED USE

This Venta appliance is a domestic appliance for improving indoor air quality in homes, offices and leisure facilities. The appliance is not suitable for outdoor areas. Any other use or modification of the appliance is considered to be improper use. Venta is not liable for damage or injuries resulting from improper use.

Using the appliance for something other than the intended purpose can endanger health and lives. This includes use under the following conditions:

• in rooms or locations where there is risk of explosion and/or where there is an aggressive atmosphere.
• in rooms where there is a high concentration of solvents.
• in the vicinity of swimming pools or other wet areas.

WARRANTY

Due to its high quality, Venta-Luftwäscher GmbH warrants that this product will be free from defects for a period of two years from the date of purchase, provided it is used properly. Should a material or processing defect occur, please contact the VENTA service team or your dealer. VENTA's general warranty conditions also apply: www.venta-air.com

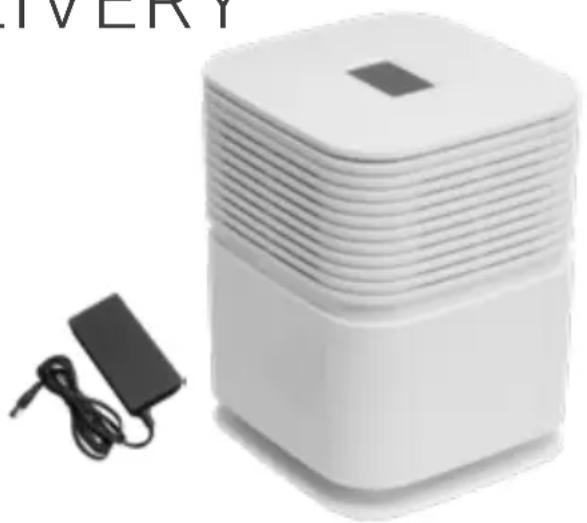

SCOPE OF DELIVERY

1 × Quick start guide
1 × Safety instructions
1 × VENTA Air Purifier
1 × Filter unit (integrated in the device)
1 × Power supply

White square electronic device with a black charging plug and cable, no visible text or symbols on the device itself.

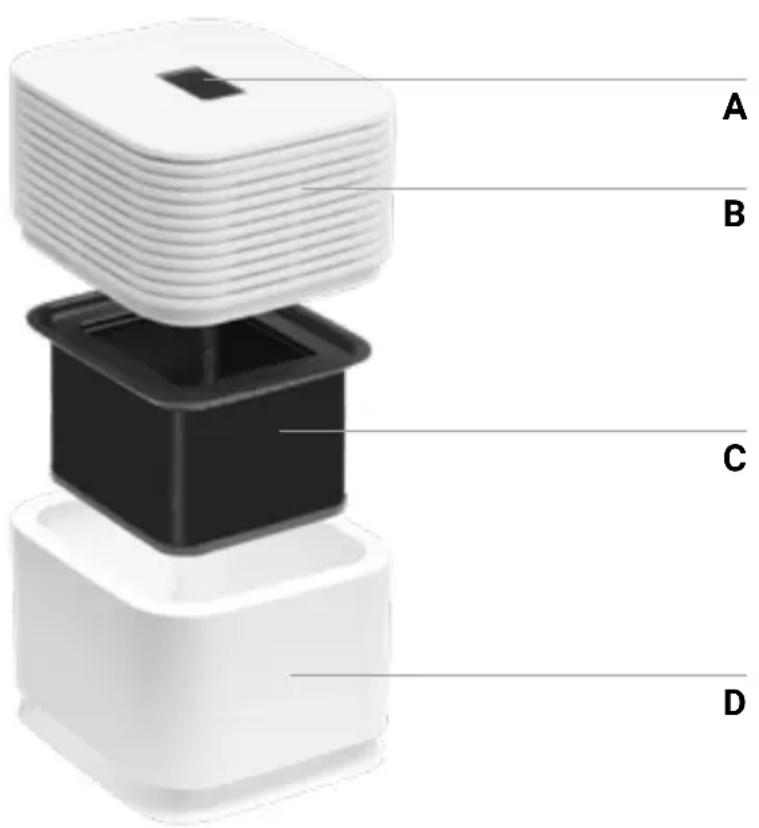

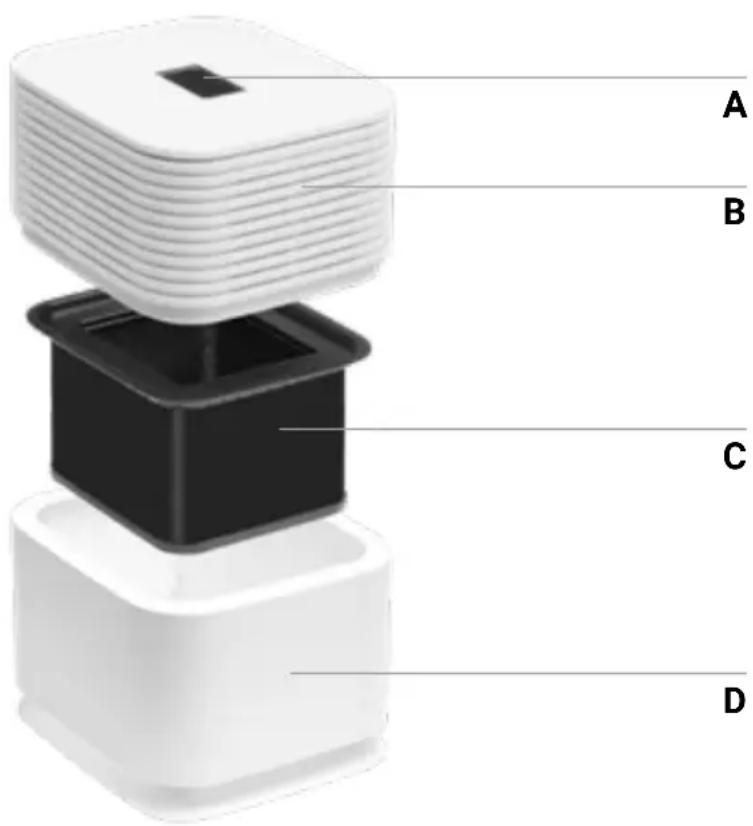

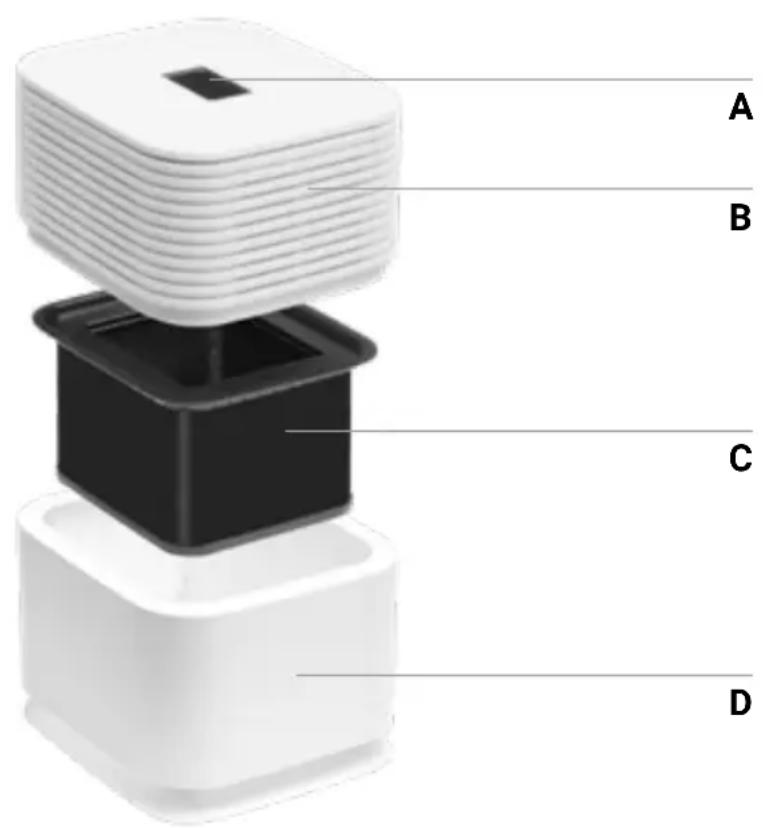

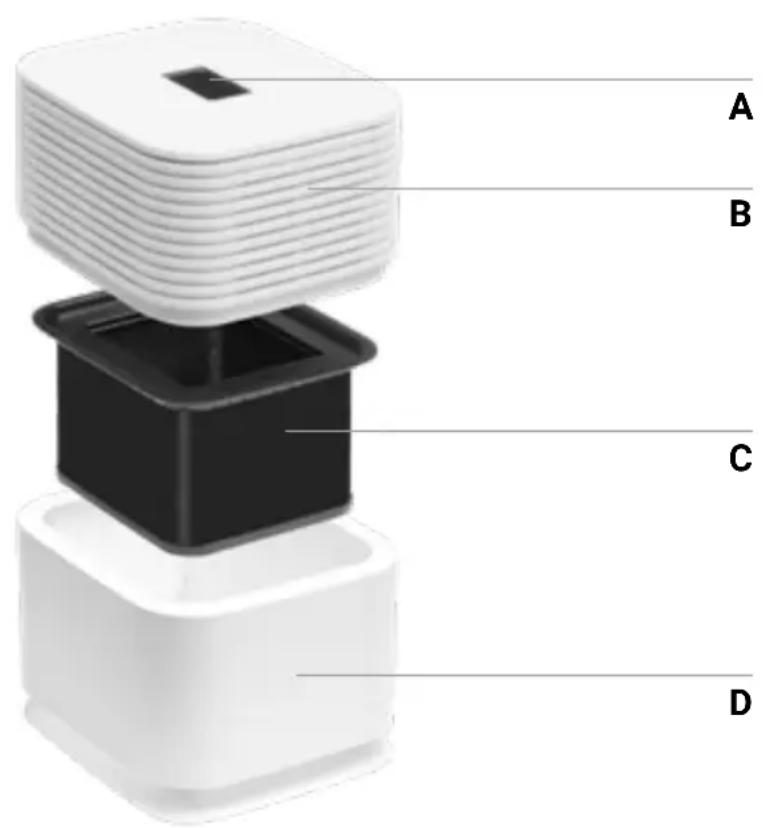

DESCRIPTION

A Display
B Upper part of the unit
C Filter unit
D Lower part of unit

A B C D

1 Remove the appliance from its packaging and set it up. Remove the upper part of the appliance (B).
2 Remove the packaged filter unit (C) from the lower part of the appliance (D). Remove the Remove the film from the filter unit.

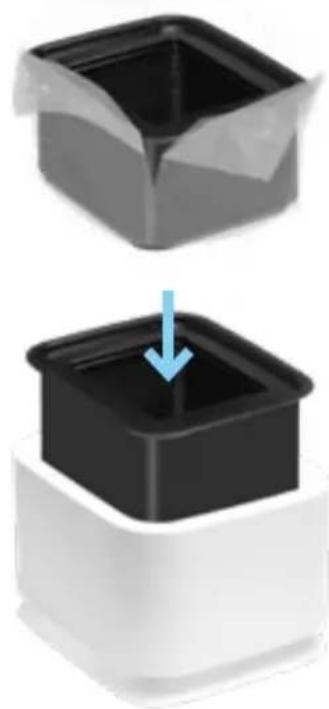

3 Place the filter unit freed from the foil unit (C) into the lower part of the appliance (D).

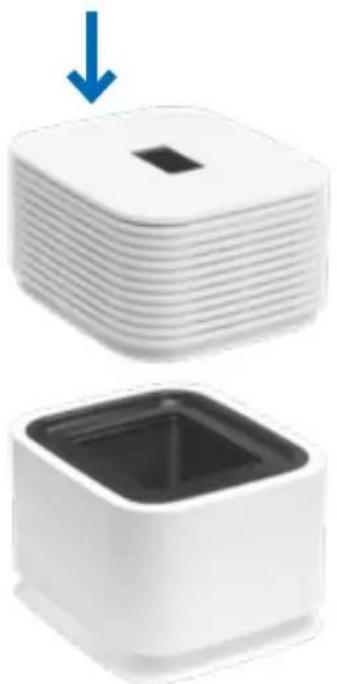

4 Place the upper part of the appliance (B) onto the lower part of the appliance (D).

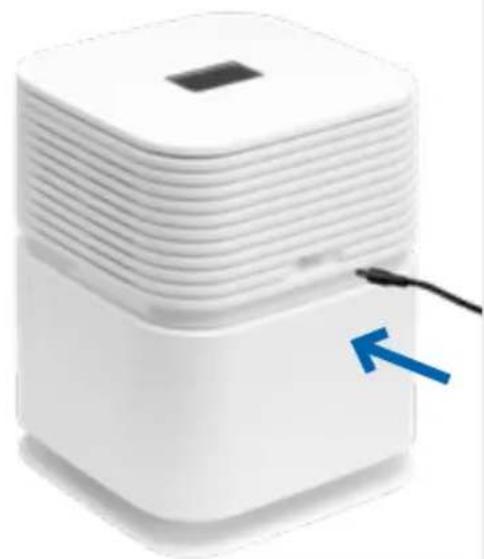

5 Connect the power supply unit to the socket on the back of the upper part of the device (B).
6 Make sure that the power supply complies with the specifications listed in the specifications. Connect the power supply unit to the mains.

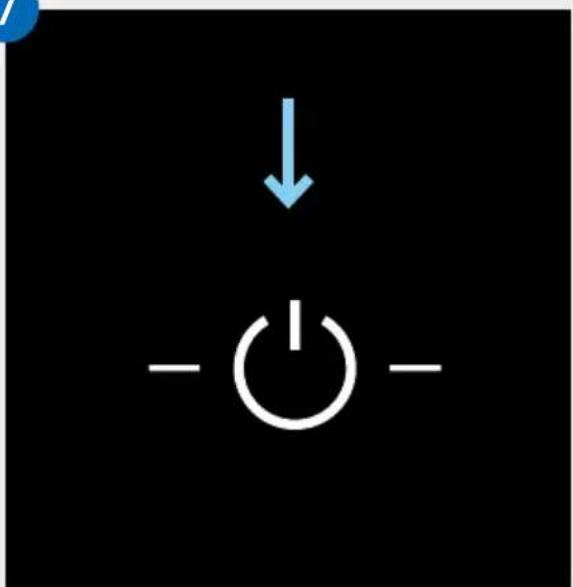

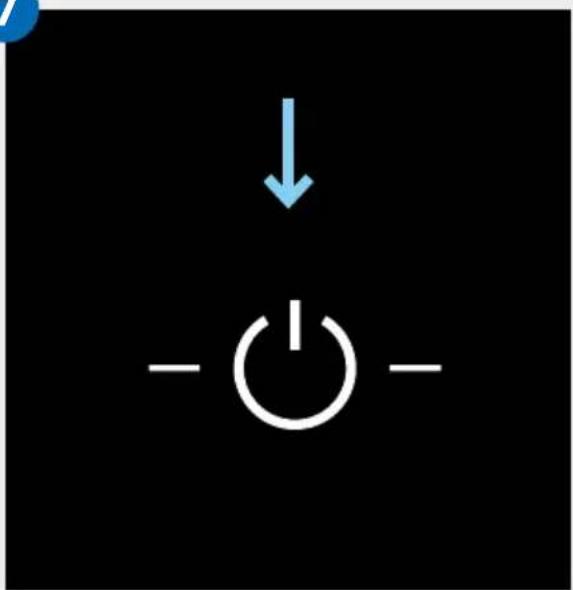

7 When the device is connected to the mains, the power button lights up to switch the device on and off. A short touch on the power button will turn the device on.

You can find out how to connect the device to your smartphone or tablet in the "Configuration Smart Life App" section.

1

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

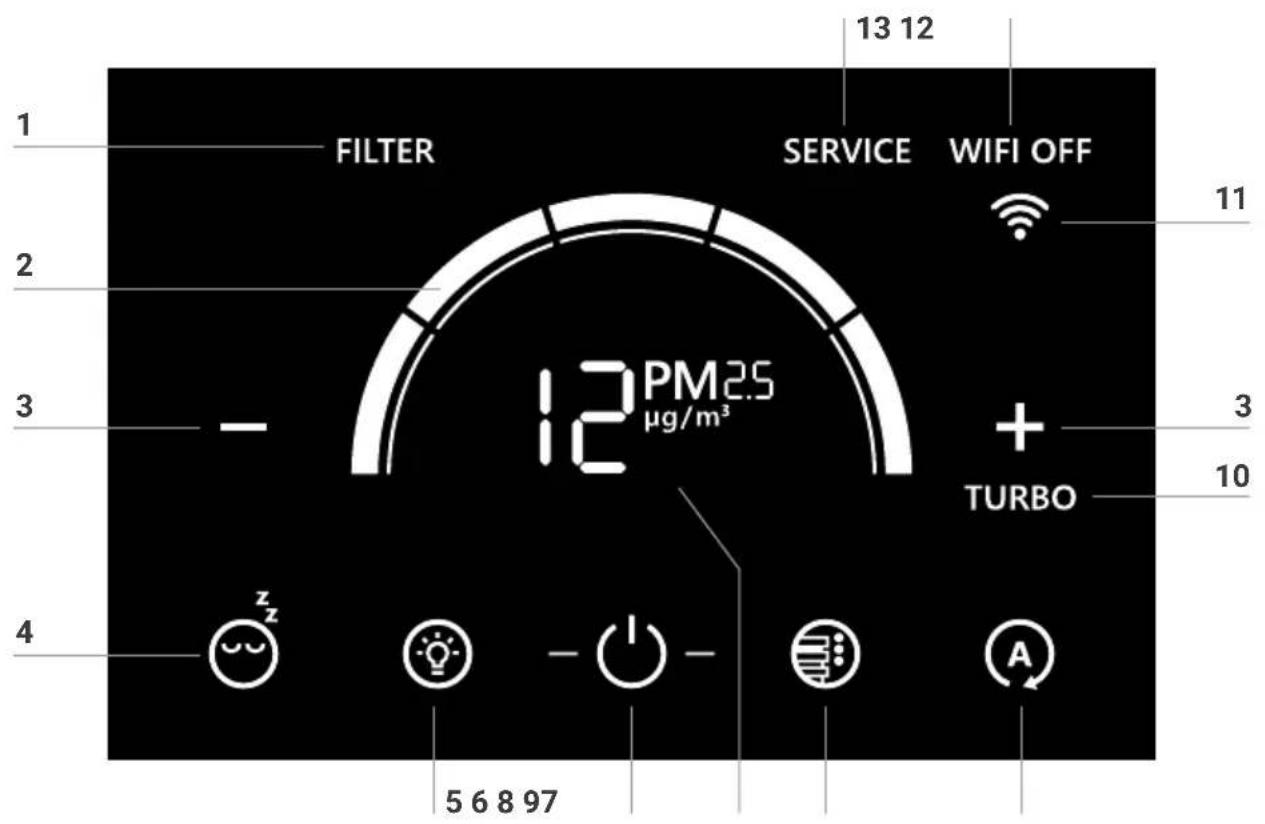

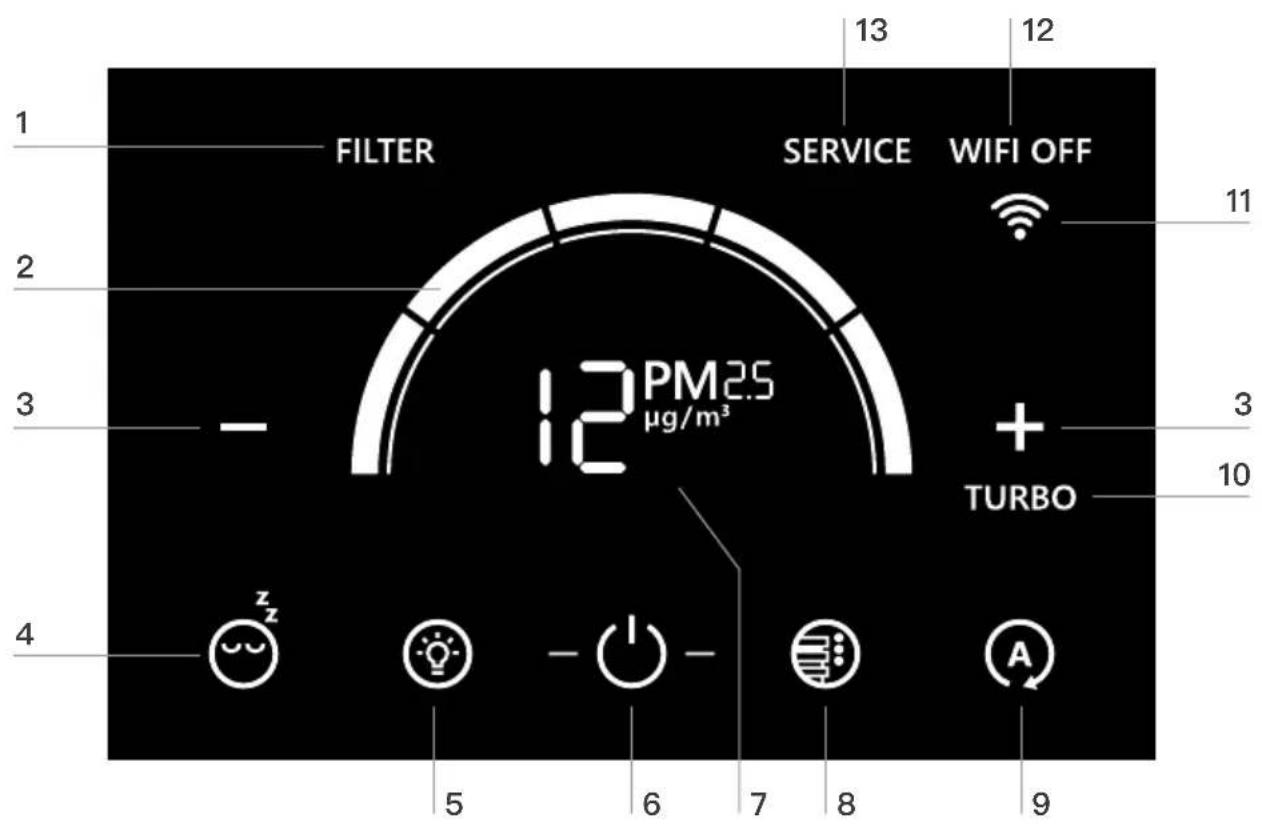

DISPLAY

1 FILTER SERVICE WIFI OFF 13 12 1 2 3 - 12PM2.5 µg/m³ + TURBO 11 3 10 4 5 6 8 97

1 Filter change necessary
2 Speed level
3 Regulation of the speed level: + higher / - lower
4 Sleep mode button
5 LED band ON/OFF – regulate brightness
6 Switching the device on/off

7 Air quality
8 Select LED colors
9 Automatic mode button
10 Turbo mode
11 WiFi status
12 WiFi ON/OFF button
13 Maintenance required

OPERATION

Display Function

Switching the device on or off (6)Briefly touching the button ⏻(6) switches the device on or off.
	Speed stage (2)Five speed levels can be activated. The speed steps are displayed as a ring segment. As the speed level increases, the next ring segment increases in a clockwise direction. Level 1 is shown here.
	Regulation of the speed level (3)Briefly touching the + button increases the fan speed up to and including the maximum speed “Turbo”.Briefly touching the - button decreases the fan speed.
	Turbo (10)The maximum fan speed is switched on by touching the + button again after switching the highest speed level. The turbo indicator (10) lights up continuously in the display. The maximum fan speed is switched off by touching the - button. The turbo indicator (10) in the display goes out.
	Automatic mode (9)Is switched on or off by briefly touching the Ⓐ button (9).On: Button Ⓐ flashes continuously. Depending on the air quality in the room, the device automatically regulates the fan levels.Off: Button Ⓐ lights up continuously. Unit runs with set fan speed 1 - 5.
	Sleep mode (4)Switched on by a short touch ⚙ and switched off again by touching for 3 seconds.On: The unit switches to speed level 1. The LED band is switched off. Only the Sleep mode button (4) and the on/off button (5) lights up, with reduced brightness.By briefly touching the Sleep mode button (4), the following displays/ functions are available for approx. 5 seconds:• + and - buttons (3) for changing the speed level 1• WiFi can be switched on/off• LED band (5) can be switched on/off and dimmed.• LED colors (8) can be changed.Off: To exit Sleep mode, press and hold the Sleep mode button (4) for approx. 3 seconds. All displays/functions light up in normal brightness and are available. The device runs at the set speed level.

Air quality

Color display g/m^3 PM2.5 AQI US Meaning

Green 0-12 0-50 Good
Yellow 12,1-35,4 51-100 Moderate
Orange	35,5-55,4	101-150	Unhealthy for sensitive persons
Red	55,5-150,4	151-200	Unhealthy
Red	150,5-250,4	201-300	Very unhealthy
Red	≥ 250,5	301-500	Dangerous

From a particle measured value greater than 99 g/m^3 , the display shows “Hi”.

LED band (5)

Is switched on or off by a short touch.

Set the desired brightness:

• Touch the LED strip button (5) and hold for approx. 3 seconds until the LED strip button (5) and the air quality indicator (7) flash. The + and - buttons (3) change the brightness in 8 levels.
• Touch the LED strip button (5) again and hold for approx. 3 seconds until it lights up constantly again.

LED colors (8)

Can be selected by briefly touching them.

Retrieve the current air quality in the room (air quality):

On: Touch and hold the LED colors button (8) for 3 seconds. The word "air quality" in the air quality display (7) lights up constantly. The LED band provides color information about the current air quality in the room. For the color description and its exact meaning, please refer to the table in the "Air quality" section.

Off: Briefly touch the LED colors button (8) again. The "air quality" lettering in the air quality display (7) goes out. The LED strip lights up in the selected color.

Color information of the LED strip

Constant glow:

Flawless device operation.

A blue running light moves along the LED strip:

The firmware is being updated.

The following messages appear when maintenance is required:

Display Function

FILTER	Filters (1)The filters must be changed (see chapter “Cleaning & Maintenance” section “Changing the filters”).
SERVICE	Service (13)The filter must be vacuumed (see chapter “Cleaning & care” section “Service”).

WIFI / HOTSPOT

Display Function

	WiFi connectionActivated and deactivated by briefly touching the WiFi icon (11).
	WiFi connection is activated:
	WiFi symbol (11) flashes: The WiFi connection is disconnected / The device is waiting for a WiFi connection.
	The lower two segments of the WiFi symbol (11) light up constantly, the upper two light up one after the other: WiFi connection to the cloud is established.
	WiFi symbol (11) lights up constantly: WiFi connection to the cloud successfully established.
	The VENTA device is in hotspot mode:The dot lights up continuously and the three reception bars appear in ascending order: The VENTA device is in hotspot mode and is ready for setup in the Smart Life app.
WIFI OFF	WiFi connection is deactivated:WiFi Off (12) lights up: WiFi module is not sending or receiving data and is not connected to any network or device.

CONFIGURATION & SMART LIFE APP

Hotspot mode

During initial startup, the device is automatically in hotspot mode. The hotspot mode can be activated at any time by touching and holding the WiFi symbol (11) for 3 seconds. Hotspot mode is activated when the three reception bars of the WiFi symbol light up in succession from bottom to top in the display .

Activating WLAN

Make sure your smartphone or tablet is connected to your home WLAN network and Bluetooth is turned on.

Install "Smart Life – Smart Living" App

Install the free "Smart Life – Smart Living" app on your smartphone.

Set up WiFi

After you have downloaded and installed the "Smart Life – Smart Living" app, please open the app.

• Create a user account and log in.
• Tap "Add device" if your device appears in the app. Otherwise, tap +, "Add device", "Small home appliance", "Humidifier (BLE +Wi-Fi)". Select your WiFi and enter the WiFi password.

Please make sure that ...

• the device is assigned a radio network in the 2.4 GHz band by your router. Unfortunately, radio networks in the 5 GHz band are not supported.
• Your router supports 802.11b/g/n.
• iOS version 11.0 or higher or Android version 6.0 or higher is installed. If necessary, update the operating system of your smartphone or tablet.

If problems occur during WiFi setup, please refer to the corresponding section in the "What if ...?" chapter. Further information at: www.venta-air.com

CLEANING / MAINTENANCE

Caution! Make sure that the device is switched off and the power supply is disconnected from the socket during all measures! Use a protective mask and gloves! Pack the used VENTA filter in a bag and dispose of it in the household waste.

Change filter

The service life of the VENTA filter is approx. 1 year (at 24-hour continuous operation). The filter service life depends on the number of operating hours and the air quality in the room. The FILTER indicator (1) indicates when the filter needs to be changed.

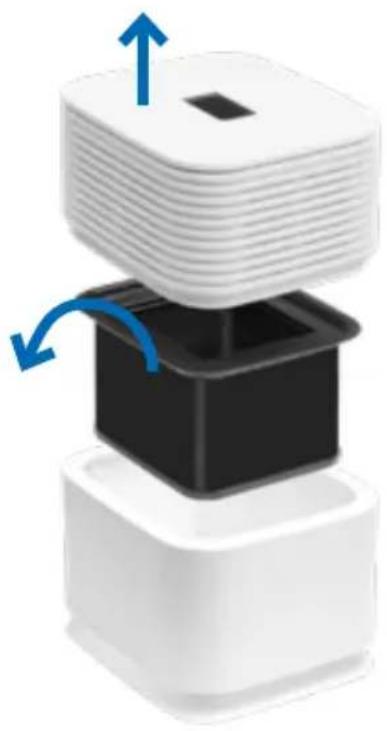

1 Remove the upper part of the unit. Remove the filter unit from the lower part of the device.

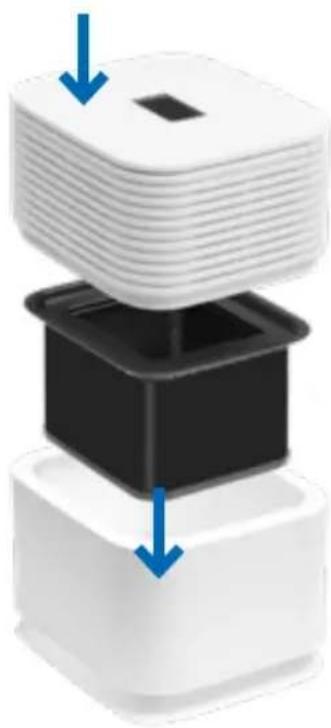

2 Remove the new filter unit and insert it into the lower part of the device.
3 Reassemble the unit and put it into operation.

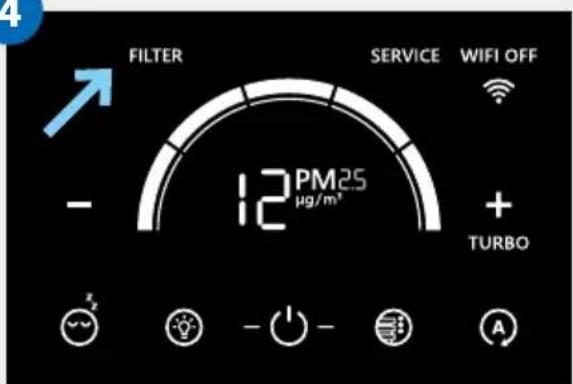

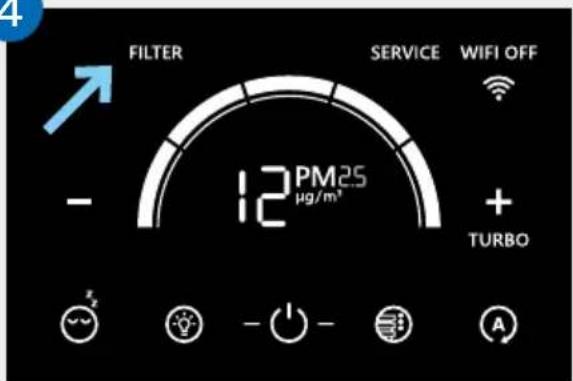

4 Touch the FILTER display (1) and hold it for approx. 3 seconds until it goes out.

Service

To ensure perfectly hygienic continuous operation, the SERVICE indicator (13) reminds you to carry out this measure every 4 weeks.

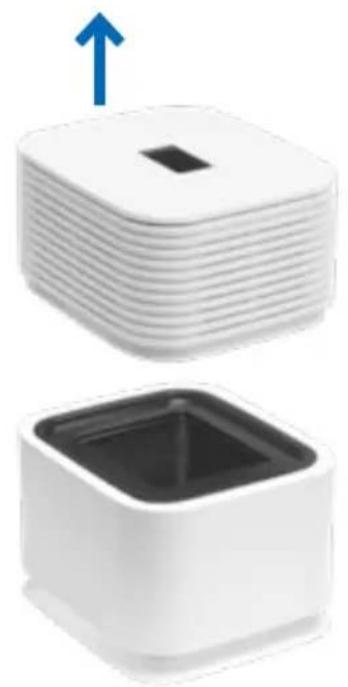

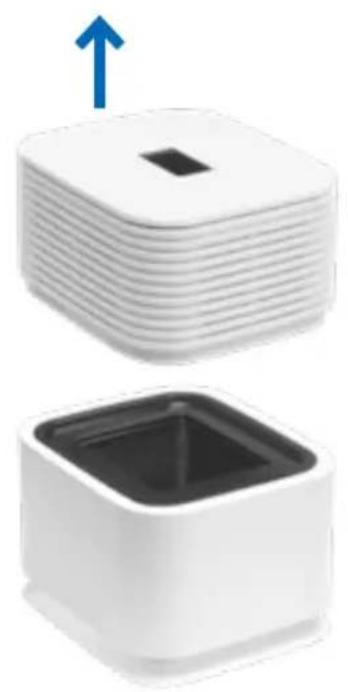

1 Remove the upper part of the unit.
2 Remove the filter unit from the lower part.

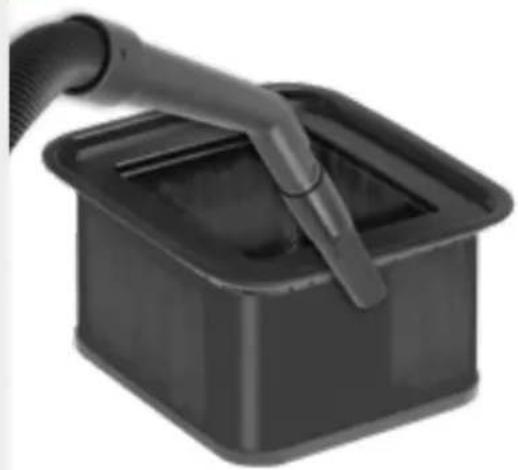

3 Vacuum the inner walls of the filter unit.
4 Replace the filter unit and put on the upper part of the unit.
5 Touch the SERVICE display (13) and hold it for approx. 3 seconds until it goes out.

Reset-Menu

The maintenance actions can always be carried out if necessary, even if they are not displayed.

Touch the On/Off button ⏻(6) and hold for approx. 3 seconds until the display flashes and FILTER, CLEANING and SERVICE appear on the display. Now touch the measures that have been carried out and hold for approx. 3 sec. until they go out.

Then touch the flashing On/Off button ⏻ (6). It now lights up continuously again. The next reminders for the measures performed are now displayed again in rotation.

Change filter

1

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 Sec.

Service

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 Sec.

CLEANING THE DEVICE

Caution! Make sure that the device is switched off and the power supply is disconnected from the socket during all measures!

Cleaning the upper part of the device

Clean the upper part of the device with a dry cloth/cleaning brush or a slightly damp cloth!

Caution! The upper part of the device must not be cleaned under running water! Please do not use any cleaning agents.

Cleaning the display

Only clean the display with a dry cloth or a display cleaning cloth!

Caution! The display must not be cleaned wet or too moist! Please do not use any cleaning agents.

TECHNICAL DATA

Model AP730/AP735
Colors white / black
Room size suitability* up to 75 m2
Interactive touch display standard
App Control / Voice assistant standard WiFi / Google, Alexa
Measurement sensors Air quality PM2.5
VENTA-Filter standard 1-fold
Power levels 5 + Automatik + TURBO + Sleep
Noise level 22 / 27 / 34 / 40 / 45 dB (SPL)
Noise level TURBO 55 dB (SPL)
Power consumption	4 / 6 / 8 / 13 / 21 W
Power consumption TURBO	60 W
Mains voltage	100-240 V~, 50/60 Hz
Dimensions (L × W × H)	34 × 33 × 44 cm
Weight	approx. 6,8 kg
WLAN frequency range	2412 - 2480 MHz
WLAN transmitting power	max 20 dBm

* with standard 2.5 m ceilings

Room size suitability depending on the room air load:

- Indoor air pollution Light: room size suitability up to approx. 75 m² (>AQI 0 - 100).

- Indoor air pollution Medium: room size suitability up to approx. 50 m² (>AQI 101 - 200)

- Indoor air pollution Heavy: room size suitability up to approx. 25 m² (>AQI 201 - 500)

Subject to modifications and errors.

ACCESSORIES

Accessories can be ordered by phone or online at www.venta-air.com.

DATA PROTECTION

Your data will be processed by VENTA-Luftwäscher GmbH confidentially. Further information on the subject of data protection you can find in our data protection guidelines at: www.venta-air.com

DISPOSAL

The "crossed-out wheeled garbage can" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Such equipment may contain hazardous and environmentally dangerous substances.

These devices must be disposed of at a designated collection point for the

recycling of electrical and electronic devices and must not be disposed of in unsorted municipal waste. By doing so, you are helping to protect resources and the environment. For further information, please contact your local authorities.

Make sure that all personal data is deleted before is deleted before disposing of the appliance. If you reset your networked Venta appliance to the factory factory settings and delete all saved WLAN settings and delete all saved please proceed as follows: In standby mode, press and hold the power button for 5 seconds to reset the device to factory settings.

The packaging material can be recycled. Please dispose of the packaging in an environmentally friendly manner and take it to the recycling collection.

Children must never play with plastic bags and packaging material as there is a risk of injury or suffocation. Store such material safely or dispose of it in an environmentally friendly manner.

WHAT IF...?

... the ON/OFF button (6) does not appear in the display?

Please check whether the power supply is connected to a suitable outlet.

... the ON/OFF button (6) does not appear in the display although the power supply is connected to the mains?

Please check whether the power supply is connected to a suitable outlet.

... the display shows "Hi" instead of the particle measurement value (PM)?

The particle measured value is greater than 99 m/m^3 .

... white fields are visible in the background when touching the display?

The phenomenon is caused by electrostatic charges in dry rooms, does not represent a defect and does not affect the device. The white fields disappear after a short time.

... no WiFi connection can be established?

Please make sure that the device is assigned a radio network in the 2.4 GHz band by your router. Unfortunately, radio networks in the 5GHz band are not supported. Your router should also support the IEEE 802.11b/g/n transmission standards. The operating system iOS from version 11.0 or Android from version 6.0 must be installed. If necessary, update the operating system of your smartphone or tablet.

... only the ON/OFF button (6) and a sleeping face (4) are shown in the display?

This is not an error, but the sleep mode, in which the device should not be disturbing.. The device runs at the lowest speed and lights up with reduced brightness. Press the Sleep mode button (4) (the sleeping face) for 3 seconds. After that, the device runs normally again.

MERCI BEAUCOUP!

Configuration & application Smart Life 47

White rectangular electronic device with a black plastic charger and cable, no visible text or symbols.

DESCRIPTION

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on the top surface (no text or symbols)

2

Black square container with transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

ÉCRAN

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER 3 s

Maintenance

1

Two white square electronic devices with a black interior, one with a small square top and the other with an upward arrow (no text or symbols visible)

2

3D illustration of a black square container with a blue upward arrow, placed on top of a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE 3 s

NETTOYAGE DE L'APPAREIL

White square electronic device with a charging cable and a small rectangular component (no visible text or symbols)

DESCRIZIONE

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

DISPLAY

1 FILTER SERVICE WIFI OFF 13 12 11 2 12PM2.5 µg/m³ + TURBO 3 10 3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 5 6 8 97

CONFIGURA- ZIONE E APP SMART LIFE

Modalità hotspot

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 Sec.

Assistenza

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 Sec.

Stacked white square electronic device with a small square top on top (no visible text or symbols)

BESCHRIJVING

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow, no text or symbols present

2

Black square container with transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

DISPLAY

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

CONFIGURATIE & SMART LIFE-APP

Hotspot-modus

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 seconden

Service

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 seconden

HET APPARAAT REINIGEN

White square electronic device with a flat top and a black plug beside it, no visible text or symbols on the device itself.

DESCRIPCIÓN

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow, no text or symbols present

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

PANTALLA

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 segundos

Mantenimiento

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 segundos

LIMPIEZA DEL APARATO

Stacked white square electronic device with a small square top on top (no visible text or symbols)

ОПИСАНИЕ

Stacked 3D printer or scanner device with layered structure (no visible text or symbols)

A

B

C

D

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

ДИСПЛЕЙ

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 сек.

Two white square electronic devices with a black top and bottom casing, one with a blue upward arrow indicating motion (no text or symbols)

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 сек.

ОЧИСТКА УСТРОЙСТВА

Stacked white square electronic device with a small square top on top (no visible text or symbols)

OPIS

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a square bottom, one with a downward arrow indicating compression or disassembly (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

WYŚWIETLACZ

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

KONFIGURACJA I APLIKACJA SMART LIFE

Tryb hotspot

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 sekundy

SERVICE

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 sekundy

CZYSZCZENIE URZĄDZENIA

⚠ INSTRUCTIUNI DE SIGURANTĂ

White square electronic device with a charging cable and a small square top, shown against a plain white background (no text or symbols visible)

A B C D

PUNEREA ÎN FUNCTIUNE

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

AFIŞAJ

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 Sec.

Întreținere

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 Sec.

CURĂȚAREA DISPOZITIVULUI

White square electronic device with a charging cable and a small rectangular component, no visible text or symbols.

OPIS

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a square bottom, one with a downward arrow indicating compression or disassembly (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

DISPLEJ

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a black lid (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 s

Servis

1

Two white square electronic devices with a black interior, one with a small square top and the other with a blue upward arrow (no text or symbols)

2

3D illustration of a black square container with a blue upward arrow, placed on top of a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE 3 s

ČISTENIE ZARIADENIA

White square electronic device with a black plastic top and a separate charger (no visible text or symbols)

A B C D

UVEDENÍ DO PROVOZU

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a square bottom, one with a downward arrow indicating compression or disassembly (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

DISPLEJ

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

KONFIGURACE A APLIKACE SMART LIFE

Režim hotspot

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a black lid (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 s

Servis

1

Two white square electronic devices with a black interior, one with a small square top and the other with an upward arrow (no text or symbols visible)

2

3D illustration of a black square block with a blue upward arrow, placed on top of a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE 3 s

ČIŠTĚNÍ ZAŘÍZENÍ

White square electronic device with a black cable and a small rectangular top, no visible text or symbols on the device itself.

A B C D

KÄYTTÖÖNOTTO

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square container with a blue downward arrow pointing to it (no text or symbols)

4

Two white square electronic devices with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and a black cable, no visible text or symbols

6

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol diagram showing a power button with downward arrow and minus signs

NÄYTTÖ

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two-step illustration of a black square container with a blue arrow pointing to it, no text or symbols present.

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 sekuntia.

Huolto

1

Two white square electronic devices with a black interior, one with a small square top and the other with an upward arrow (no text or symbols visible)

2

3D illustration of a black square container with a blue upward arrow, placed on top of a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 sekuntia.

LAITTEEN PUHDISTAMINEN

White square electronic device with a charging cable and a small rectangular top (no visible text or symbols)

KIRJELDUS

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on the top (no text or symbols)

2

Black square container with transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

EKRAAN

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3s

Teenindamine

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE 3 s

SEADME PUHASTAMINE

White rectangular electronic device with a charging cable and a square top, shown against a plain background (no text or symbols visible)

СИПАТТАМАСЫ

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, connected by a black cable with a blue arrow pointing to its side (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

ДИСПЛЕЙ

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two-step illustration of a black square container with a blue arrow pointing to it, no text or symbols present.

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 сек.

Кызмет көрсету

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 сек.

КУРЫЛГЫНЫ ТАЗАЛАУ

White square electronic device with a black plastic top and a black electrical plug beside it (no visible text or symbols)

APRAŠYMAS

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

EKRANAS

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3s

Techninė priežiūra

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE 3 s

PRIETAISO VALYMAS

White square electronic device with a charging cable and a small rectangular top (no visible text or symbols)

A B C D

LIETOŠANAS SĀKŠANA

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow, no text or symbols present

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

DISPLEJS

1 FILTER SERVICE WIFI OFF 13 12 1 2 3 - 12PM2.5 µg/m³ + TURBO 11 3 10 4 z 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 sekundes

Apkalpe

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 sekundes

IERİCES TİRİŞANA

White square electronic device with a black charging plug and cable, no visible text or symbols on the device itself.

KETERANGAN

A Paparan
B Bahagian atas unit
C Unit penapis
D Bahagian bawah unit

A B C D

MEMULAKAN OPERASI

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a square bottom, one with a downward arrow indicating compression or disassembly (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

PAPARAN

1 FILTER SERVICE WIFI OFF 13 12 11 2 3 + TURBO 3 10 4 5 6 8 97

KONFIGURASI & AP SMART LIFE

Mod hotspot

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 Saat

Servis

1

Two white square electronic devices with a black interior, one with a small square top and the other with a dark interior; no text or symbols visible.

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 Saat

MEMBERSIHKAN PERANTI

White rectangular electronic device with a black plastic top and a charging cable beside it (no visible text or symbols)

产品描述

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with a transparent plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

显示界面

1 FILTER SERVICE WIFI OFF 13 12 1 2 3 - 12PM2.5 µg/m³ TURBO 11 3 10 4 z 5 6 8 97

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER

3 Sec.

服务

1

Two white square electronic devices with a black top and bottom casing, one with a blue upward arrow indicating motion (no text or symbols)

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE

3 Sec.

设备清洁

注意!

White square electronic device with a charging cable and a small rectangular top panel, no visible text or symbols.

A B C D

使用手順

初回使用の前

Stack of white square electronic components with a black square on top (no text or symbols visible)

White square button with a blue upward arrow on top (no text or symbols)

2

Black square container with plastic wrap, no visible text or symbols

3

3D illustration of a black square object with a blue arrow pointing downward (no text or symbols)

4

Two white square electronic components with a black square top and a blue arrow pointing downward (no text or symbols)

5

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

6

Close-up of a black electrical plug with a white socket, showing a blue arrow pointing to it (no text or symbols visible)

7

Electrical symbol for a power switch with downward arrow and power button icon

ディスプレイ

1 FILTER SERVICE WIFI OFF 13 12 2 12PM2.5 µg/m³ 3 + TURBO 11 3 10 4 5 6 7 8 9

Stacked 3D printer or scanner component with blue directional arrows indicating rotation (no text or symbols)

2

Two 3D-rendered containers with black lids and a blue arrow pointing to a glossy surface (no text or symbols)

3

Two white square electronic devices with a black interior, one with a small square top and the other with a dark bottom (no text or symbols visible)

4

FILTER SERVICE WIFI OFF - 12PM25 µg/m³ + TURBO

FILTER 3秒

お手入れ

1

Two white square electronic devices with a black top and bottom casing, one with a blue upward arrow indicating motion (no text or symbols)

2

Close-up of a black square object with a blue upward arrow, placed on a white base (no text or symbols)

3

Close-up of a black plastic container with a hand holding a hose, no visible text or symbols

4

Stacked 3D printer or scanner device with blue arrows indicating compression or disassembly (no text or symbols)

5

SERVICE 3秒

デバイスの清掃

www.venta-air.com/Service/Service-Support/

VENTA WORLD WIDE

www.venta-air.com/en_de/Venta-worldwide/

BENELUX

Venta Benelux B.V.

1111 North Plaza Drive, Suite 715

Schaumburg, IL 60173

No. 27, Jalan PP 11/4,

Alam Perdana Industrial Park,

Taman Putra Perdana, 47130

Puchong, Selangor, Malaysia

Tel.: [phone]

Fax: [phone]

[e-mail]

RUSSIA

Venta Russia TSK IMPORT

Nihonbashi Daiei Building 7F

1-2-6 Muromachi Nihonbashi

Chuo-ku, Tokyo 103-0022

090-4129-0399

[e-mail]

www.venta-air.jp

MONGOLIA

AERIS LLC, SUITE 316, Barilga

Architecture Building, Chinggis

Avenue, Oron Suuts Street,

2nd horoo, Khan-Uul district,

Ulaanbaatar, Mongolia 17032

Tel.: [phone],

[phone]

[e-mail]

www.aeris.mn

SOUTH AFRICA

EUROCARE Wellness

5 Star Business Park, Unit 2,

Persimmon Close, Honeydew,

Johannesburg

Südafrika

Tel.: [phone]

Fax:[phone]

[e-mail]

KROATIEN

MR servis d.o.o.

Dugoselska cesta 5

10370 Rugvica, Kroatien

Tel.: [phone]

[e-mail]

mrservis.hr

SOUTH KOREA

VENTA KOREA CO., LTD.

3/F., Seojin Bldg., 754,

Seolleung-ro, Gangnam-Gu,

Seoul 135-948, Korea

Tel.: [phone]

Fax: [phone]
