USER MANUAL AeroStyle Compact AW735 Venta

Two stacked electronic devices, one white and one black, with no visible text or symbols on the devices themselves.

VIELEN DANK!

Two electronic devices: a black bottle with a probe and a black rectangular device connected to a cable (no visible text or symbols)

Stacked white square electronic device with a small square top on top (no visible text or symbols)

ÜBERSICHT

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

INBETRIEBNAHME

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black door handle with a blue arrow pointing to a corner detail (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6
\~61->Waterline

White laboratory water dispenser with a pipette and tubing, no visible text or symbols

7

Close-up of a white industrial machine with internal components and a magnified inset showing meshing (no text or symbols visible)

White square electronic device with layered top and base, showing a small screen icon and a blue arrow pointing to it (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

DISPLAY

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH + TURBO 15 6 14 9 10 11 12 13

Two white square blocks with a small central hole, one with a blue arrow indicating rotation or change (no text or symbols)

Two 3D blocks with a blue arrow pointing downward from one to the other (no text or symbols)

Close-up of a white industrial ventilation grille (no text or symbols visible)

Stacked 3D blocks with a small diamond shape on top and blue arrows indicating rotation (no text or symbols)

White square-shaped object with a circular top and small curved cutout, no visible text or symbols.

Diagram showing device installation steps with labeled arrows and a magnified view of the component being inserted.

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

9

Close-up of a white plastic electronic component with a blue arrow indicating rotation, alongside two circular insets showing internal structure (no text or symbols visible)

11

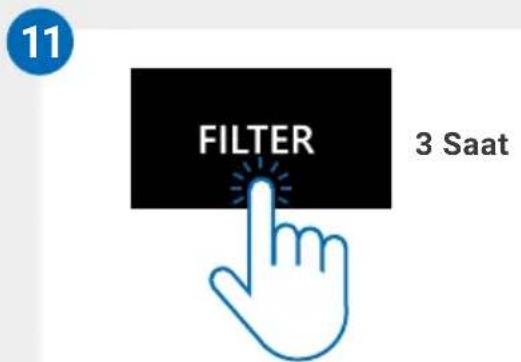

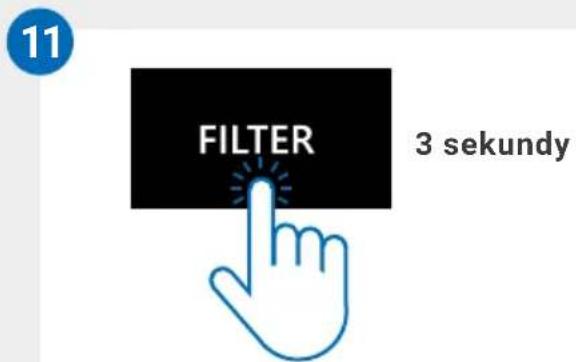

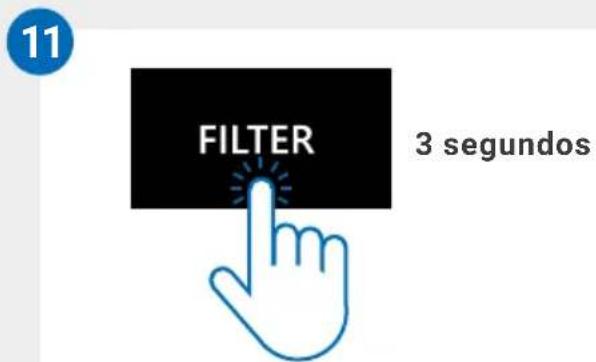

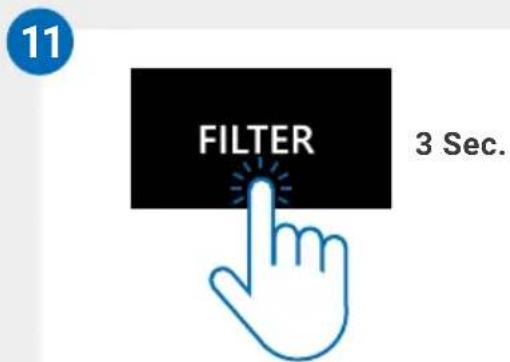

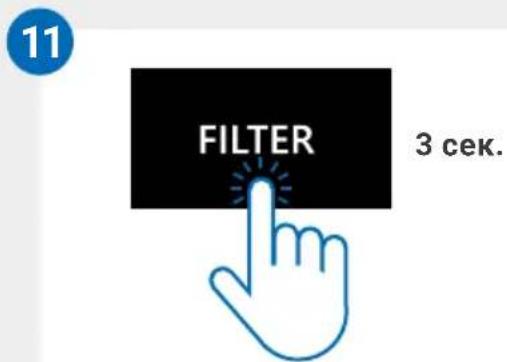

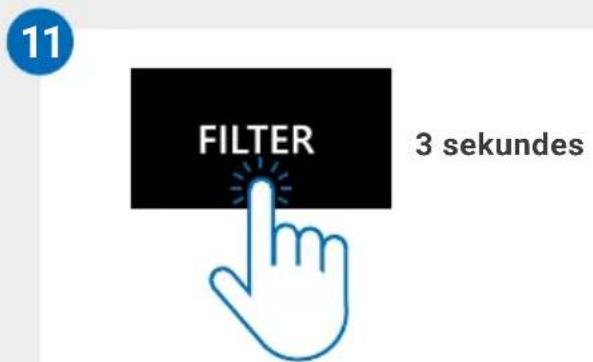

FILTER 3 Sec.

Reset-Menü

We are convinced that this VENTA model will exceed your expectations and we hope you will enjoy it.

Please register your VENTA unit: www.venta-air.com

DE

DEAR CUSTOMER,

the powerful AeroStyle Compact Airwasher humidifies indoor air and reduces fine dust, viruses and formaldehyde gases.

SYMBOLS USED

Caution: Danger to the integrity of health and product.

Read the operating instructions carefully and follow them!

The device complies with the CE, UKCA and FCC markings.

This device complies with protection class II.

TABLE OF CONTENTS

Safety instructions 27

Intended use 29

Warranty

Scope of delivery 29

Putting into operation 31

Display

Operation

Wifi / Hotspot 39

Configuration & smart life app 40

Cleaning / Maintenance 41

29

Cleaning the device 45

Technical data 46

Accessories 47

34

Data protection 47

35

Disposal 47

What if...?

48

SAFETY INSTRUCTIONS

Please read this operating manual in its entirety, keep it for later reference and note all safety instructions as well as instructions for the proper use of the appliance. You can find the latest version of the operating manual on our website www.venta-air.com

• This appliance is suitable for use by children over the age of 8 years and people with restricted physical, sensory, or mental capacities or lack of experience and knowledge, providing they are supervised or have received instructions on the safe use of the appliance and understand the existing hazards.
• Read the operating instructions completely before putting the appliance into operation and keep them for later reference.
  • The appliance is not a toy for children.
• Cleaning and user maintenance may not be performed by children under the age of 8 years or without supervision.
• Keep the appliance and its power cable out of the reach of children under the age of 8 years.
• Improper use can damage the appliance and cause physical injuries.
• Plug the appliance into suitable power outlets only – the mains voltage must correspond to the nameplate data on the appliance.
• Always unplug the appliance before maintenance work, during filling and when moving or transporting the appliance, unplug the power supply unit from the socket.
• Never use the appliance if it has a damaged power cable.
• Disconnect the power supply before every cleaning or maintenance operation and before transportation of the appliance.
• Never use the appliance if it has been dropped or damaged in any way.
• Electrical appliances should only be repaired by professional specialists. Amateur repairs could result in considerable danger to the user.
• Do not sit on the appliance and do not place any objects on it.
• Do not put any foreign objects into the appliance.
• Never immerse the appliance in water or any other liquid.
• Never overfill the appliance.

• Never transport or tilt the appliance when the tank is full.

• Never disconnect the power supply by pulling on the cable or with wet hands.

• The appliance should only be operated when it is completely assembled.
• Place the appliance on a stable surface which is flat and dry.
• Set up the appliance so that it cannot be knocked over, and so that no one can trip over it or the cable.

• Leave at least the following distances from other objects and walls:

• In the front and above: 50 cm

• To the left and right: 20 cm
• Behind: 5 cm
  • Maximum installation altitude: 2000 meters
• Never cover or block the vents to prevent overheating/damage to the appliance.
• A persistent relative ambient humidity of more than 60 %, especially in winter, can enable the formation of biological organisms.
• Do not permit the area around the appliance to become damp or wet. If dampness occurs, turn the output of the appliance down. If the appliance output volume cannot be turned down, use the appliance intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.
• Note that high humidity can promote the growth of biological organisms in the environment.
• The design of the appliance and the cold evaporation technology make it impossible for water to leak directly from it in the form of droplets, vapor, mist or lime deposits, providing you use it correctly.
• Only operate the appliance with original Venta accessories designed for the purpose. Do not use aromatic oils or other additives. Venta-Luftwäscher GmbH accept no liability for damage due to aromatic oils or other unsuitable additives.
• If you do not use the appliance for several days or put it into storage for a longer period, empty the water tray completely, clean it and dry thoroughly to prevent odors or biological organisms from developing in standing water or water residues. Clean the appliance before the next use.
• Unplug the power supply unit from the socket when you are not using the appliance

INTENDED USE

This Venta appliance is a domestic appliance for improving indoor air quality in homes, offices and leisure facilities. The appliance is not suitable for outdoor areas. Any other use or modification of the appliance is considered to be improper use. Venta is not liable for damage or injuries resulting from improper use.

Using the appliance for something other than the intended purpose can endanger health and lives. This includes use under the following conditions:

• in rooms or locations where there is risk of explosion and/or where there is an aggressive atmosphere.
• in rooms where there is a high concentration of solvents.
• in the vicinity of swimming pools or other wet areas.

WARRANTY

Due to its high quality, Venta-Luftwäscher GmbH warrants that this product will be free from defects for a period of two years from the date of purchase, provided it is used properly. Should a material or processing defect occur, please contact the VENTA service team or your dealer. VENTA's general warranty conditions also apply: www.venta-air.com

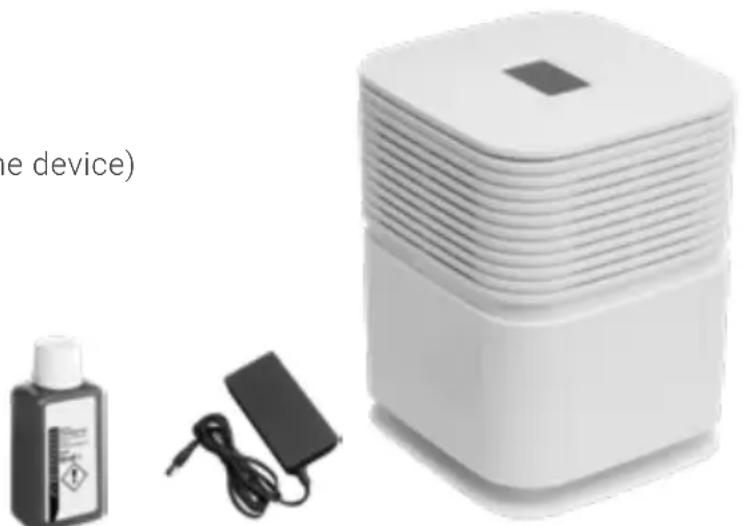

SCOPE OF DELIVERY

1 × Quick start guide
1 × Safety instructions
1 × VENTA Airwasher
1 × Filter unit (integrated in the device)
1 × Power supply
1 × Hygiene Additive

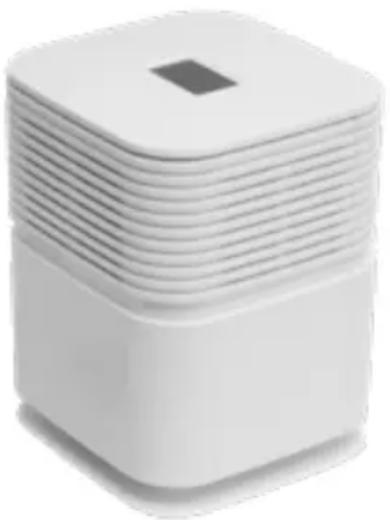

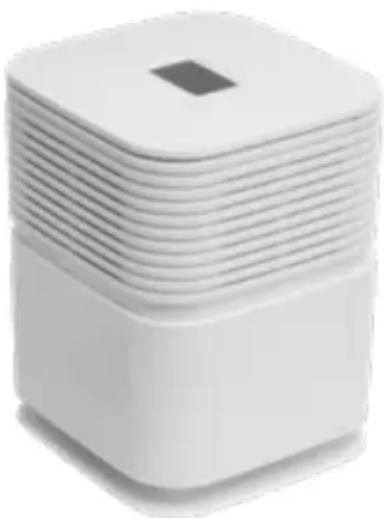

Product photo of a white electronic device with a square base, accompanied by a small battery and charging plug (no visible text or symbols)

OVERVIEW

A Display
B Upper part of the unit
C Filter
D Hygienic disk
E Disk stack

F Water tray
G 4 × support parts (only for operation as an Air Purifier without water tray)
H Lower part of unit

Exploded view diagram of a white industrial machine with internal components (no text or labels)

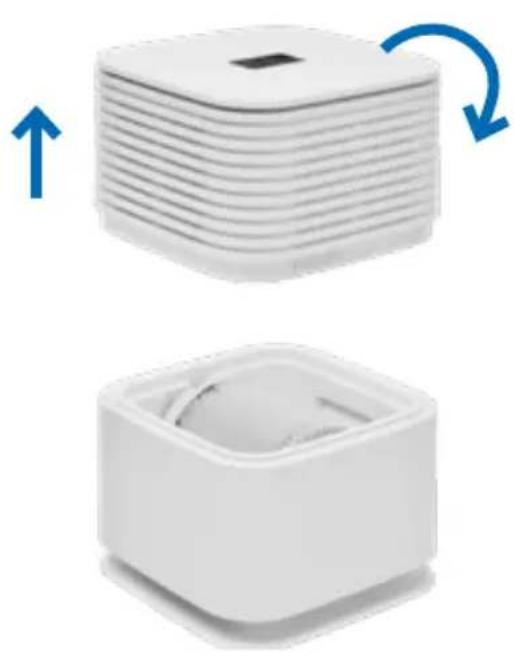

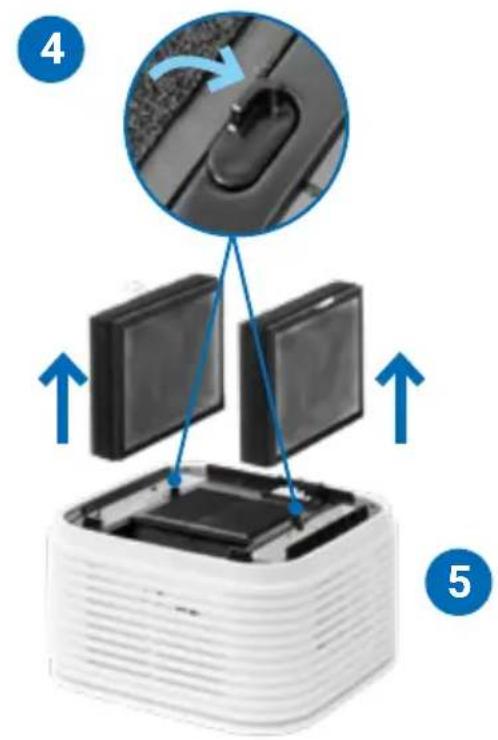

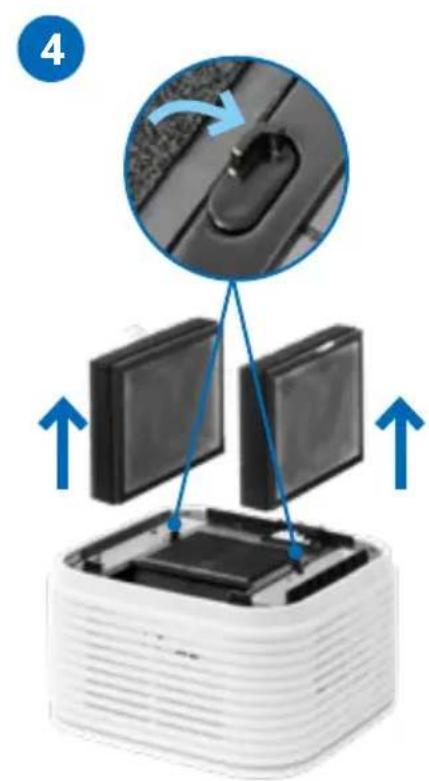

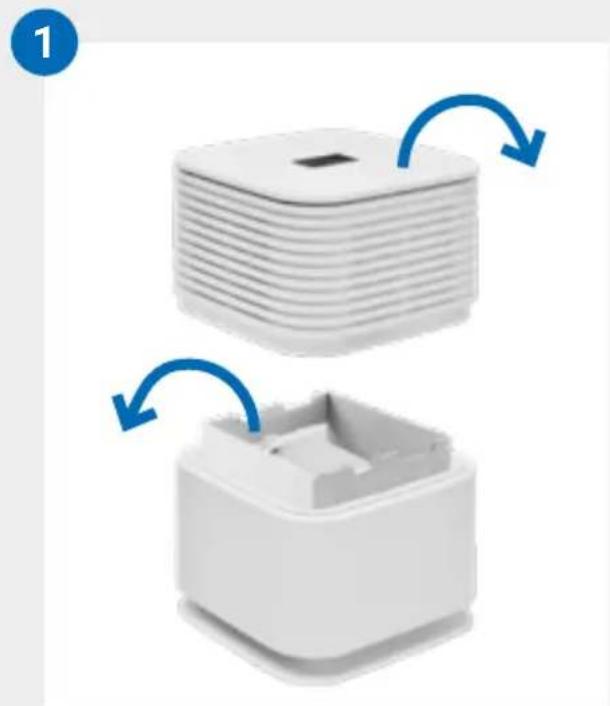

1 Remove the appliance from its packaging and set it up. Remove the upper part of the appliance (B) and place it with the top side on a soft, flat surface (e.g. a carpet). Remove the transportation lock.

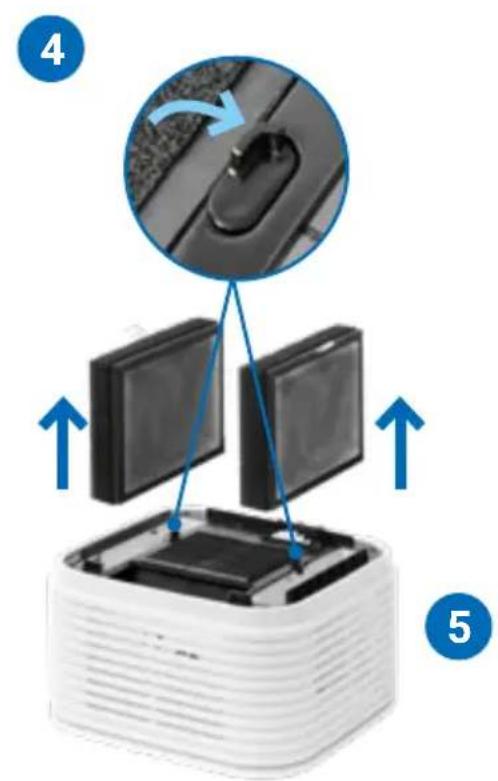

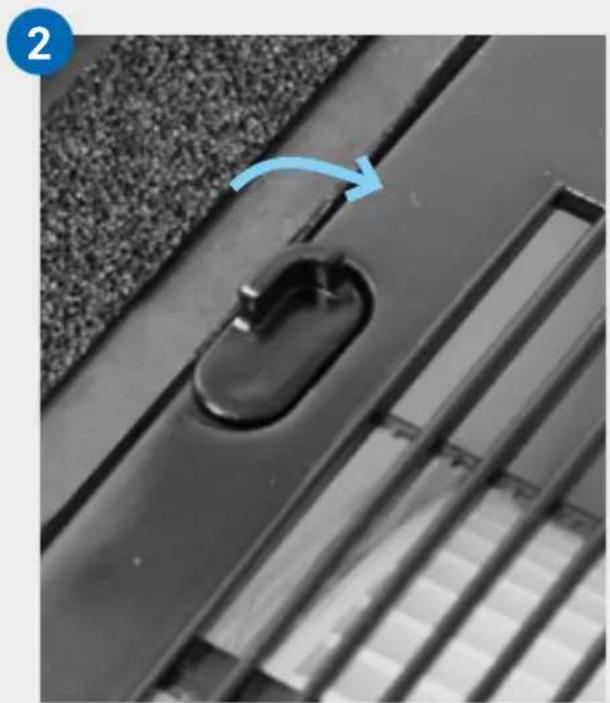

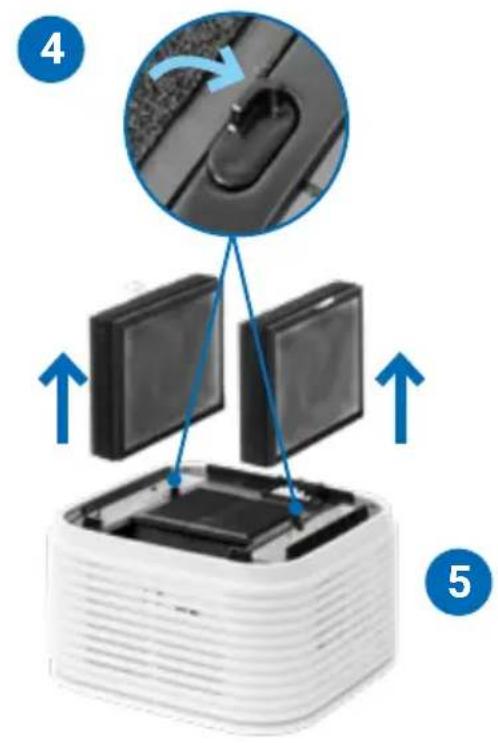

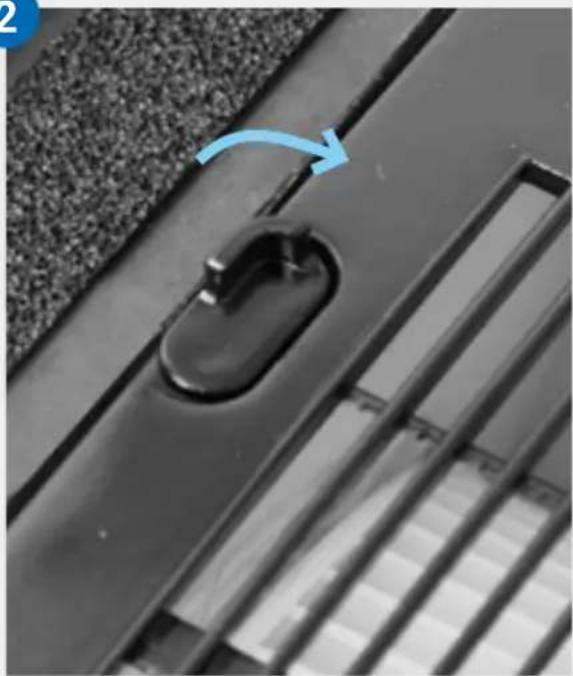

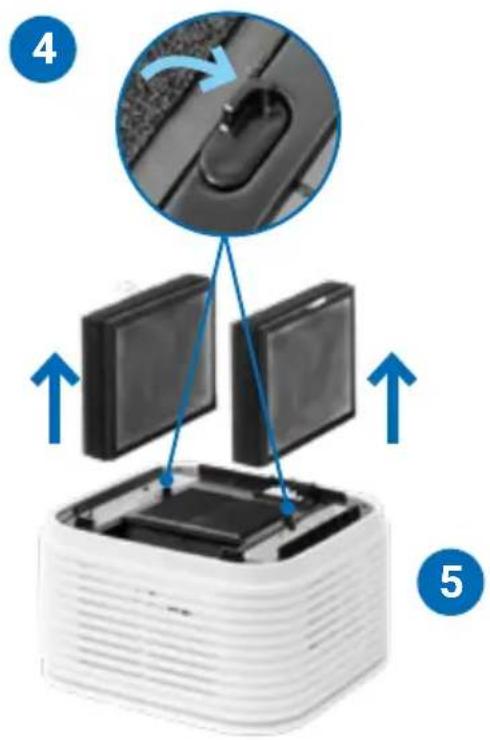

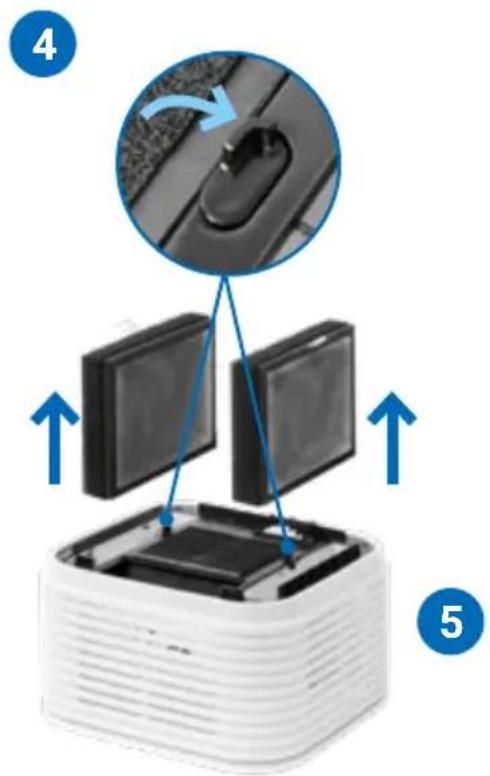

2 Open the locking mechanism in the upper part (B) of both filter inserts.

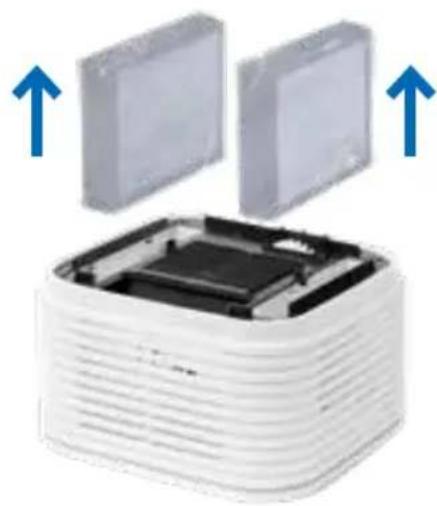

3 Pull out the two packaged filters (C) and remove the foil.

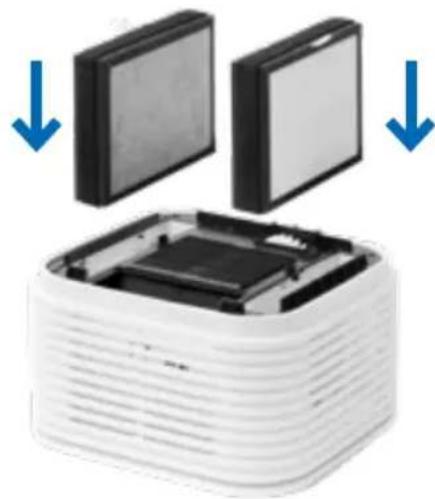

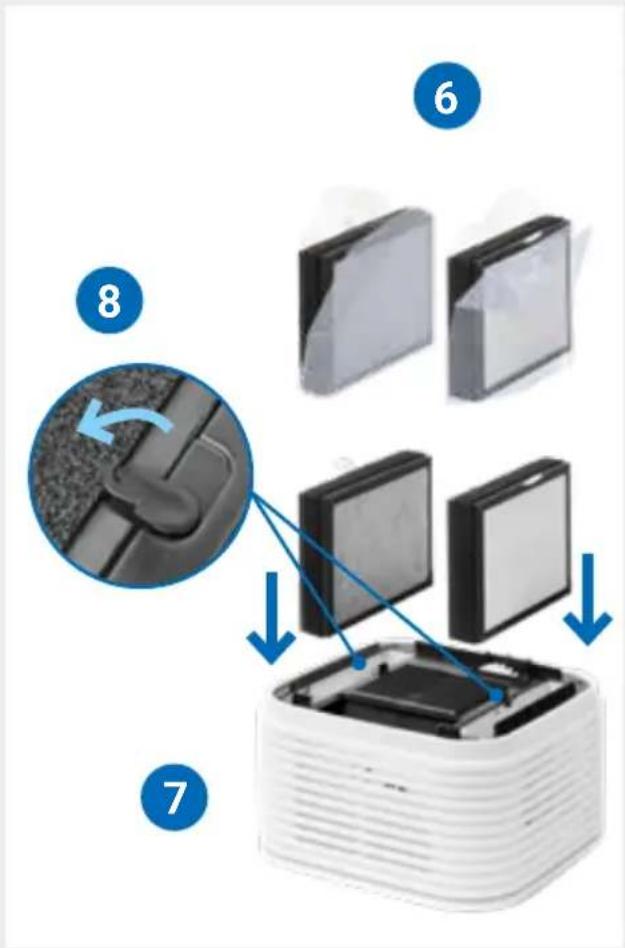

4 Then reinsert the filters so that the white loop is at the top and the white HEPA filter is facing the outside of the upper part.

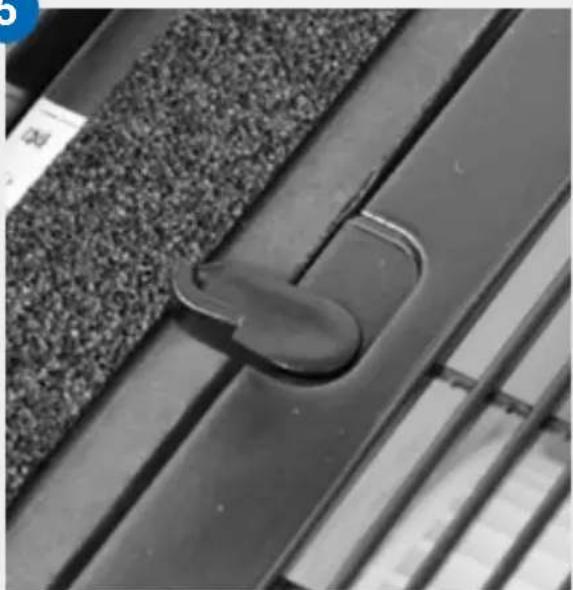

5 Close both latches.

The device must only be operated with the filters installed.

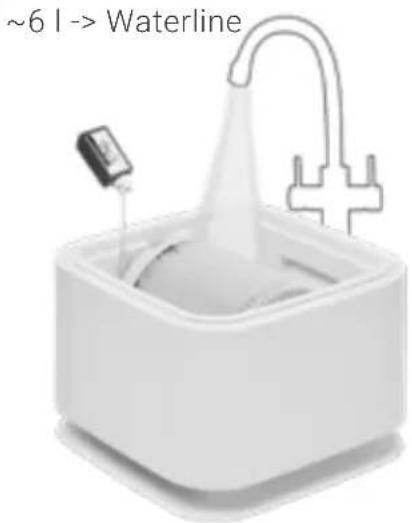

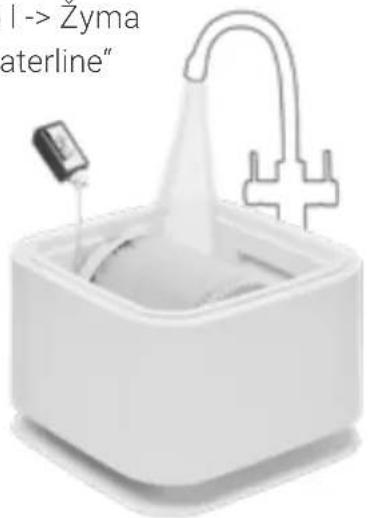

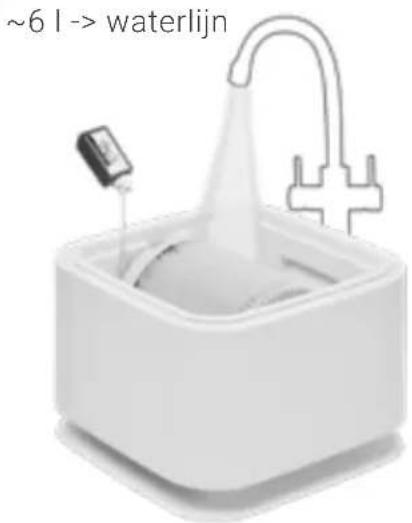

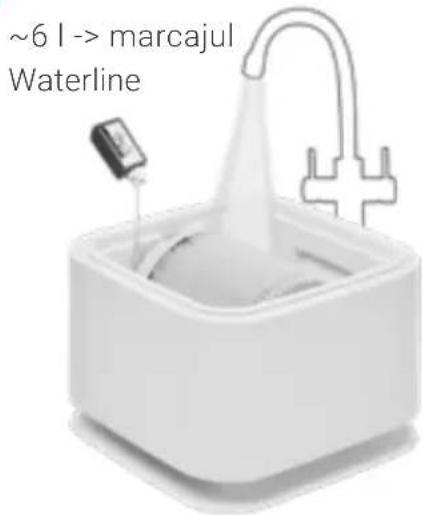

6 Fill the water tray (F) in the lower part of 6 the appliance (H) with fresh tap water up to the WATERLINE mark. Add 50 ml sample bottle of hygiene additive to the water (total bottle contents).

The hygiene additive very important because with it the air is optimally humidified.

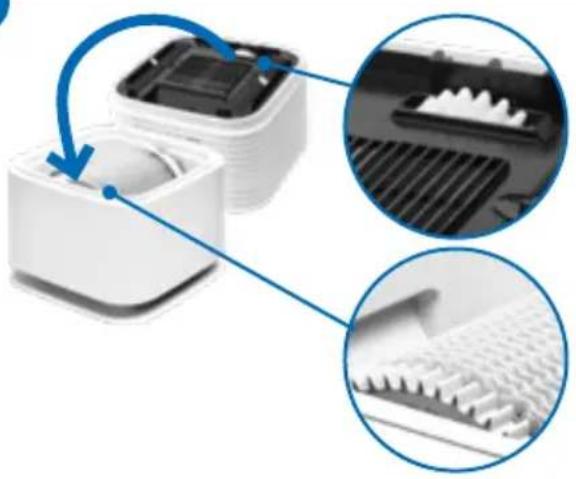

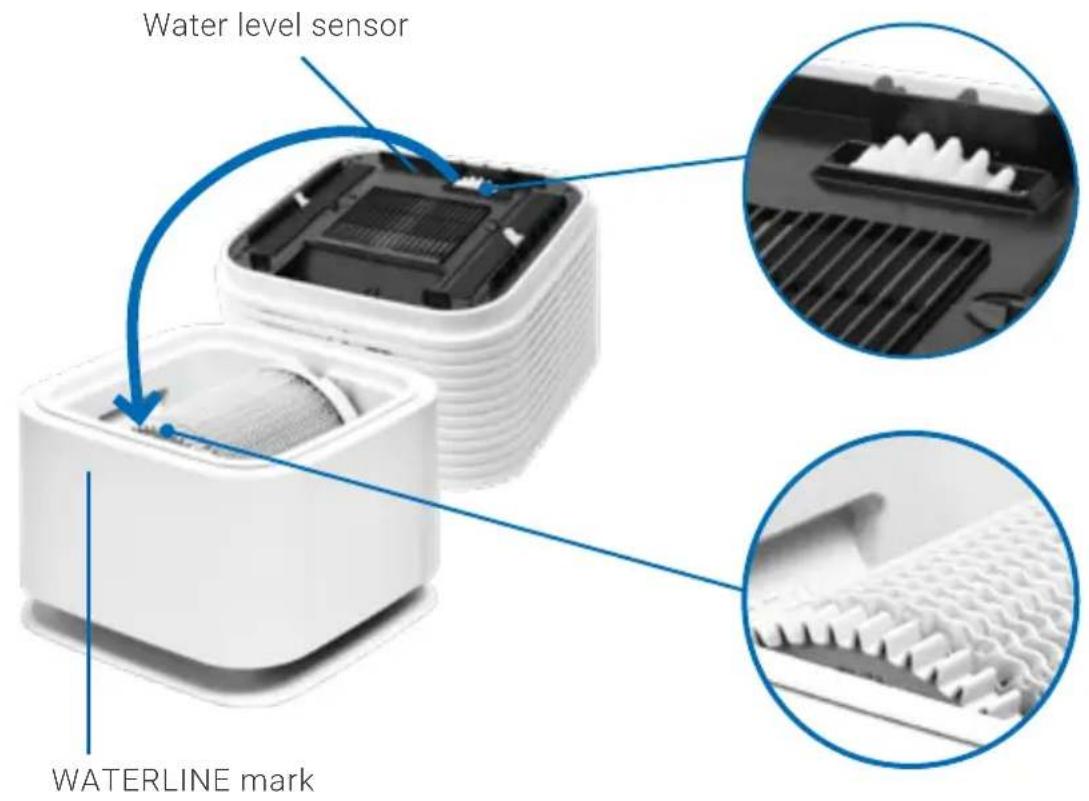

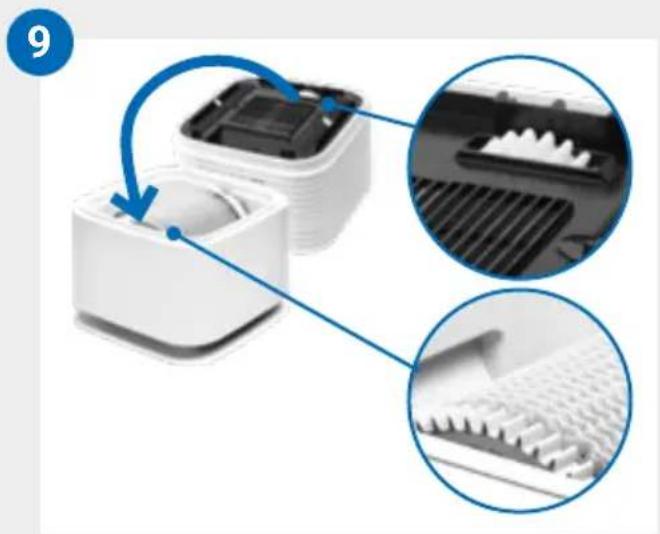

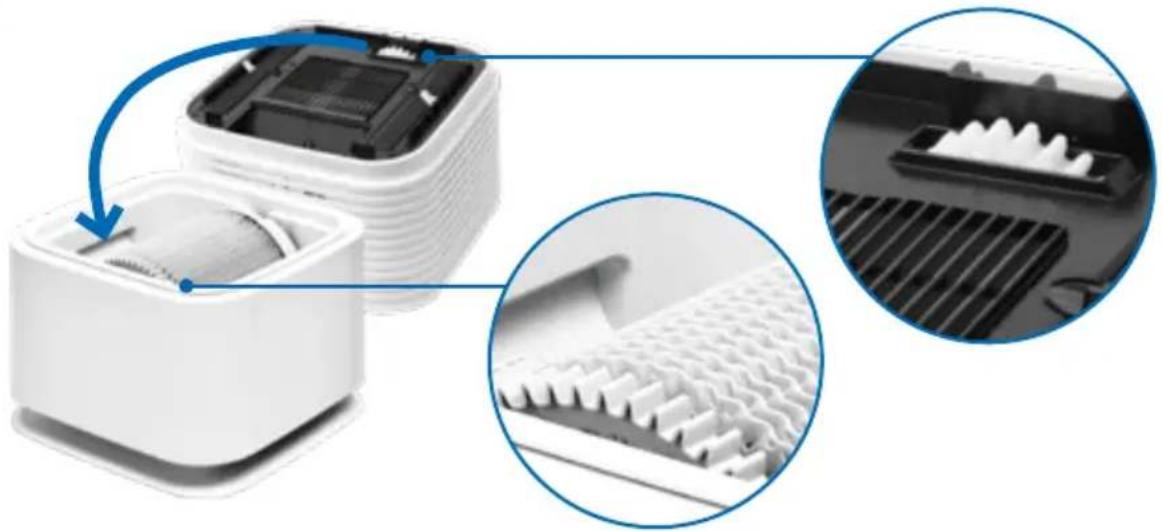

7 Place the upper part of the device (B) on the lower part so that the gear wheels of the upper and lower parts engage with each other.

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black door handle with a blue arrow indicating rotation, set on a textured surface (no text or symbols)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6
\~61->Waterline

White laboratory water dispenser with a pipette and tubing, no visible text or symbols

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

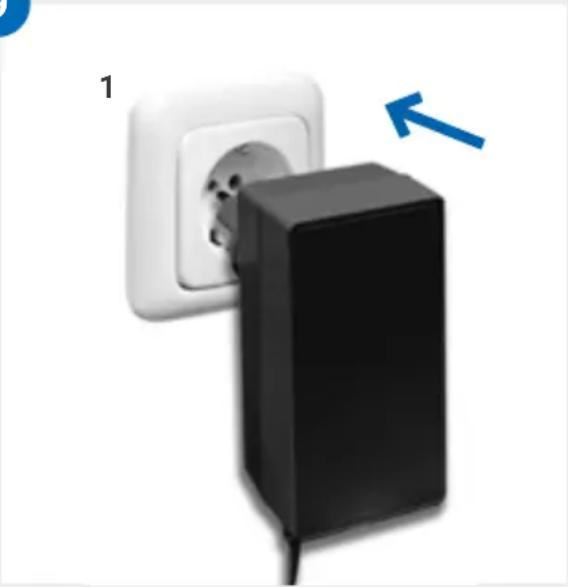

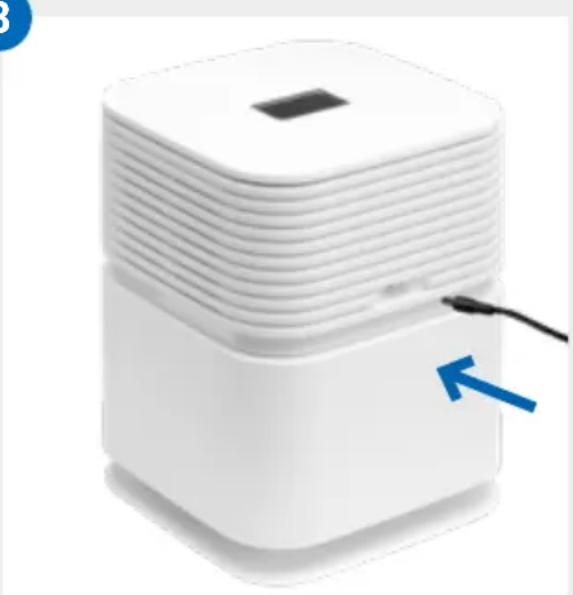

8 Connect the plug-in power supply unit to the socket on the back of the upper part of the device (B).
9 Make sure that the power supply complies with the specifications listed in the specifications. Connect the power supply unit to the mains.

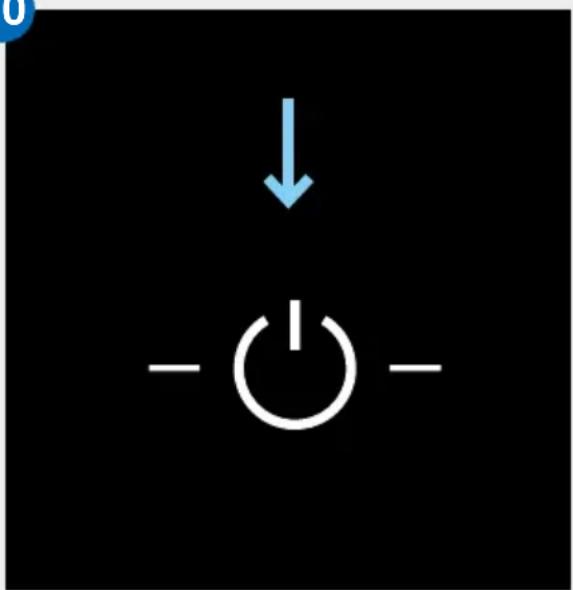

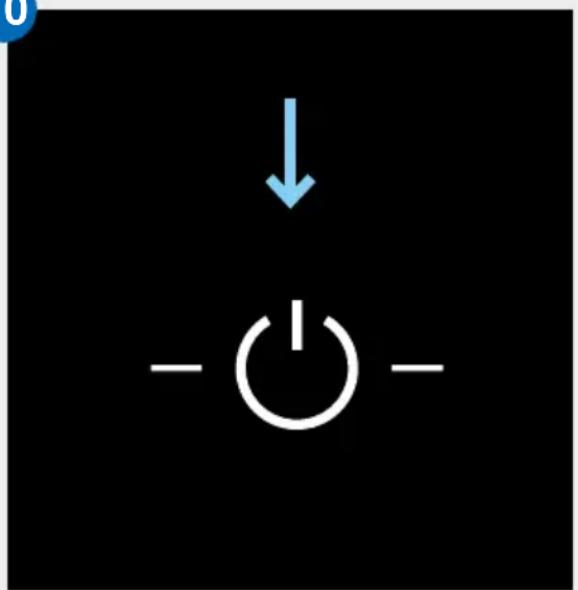

10 When the device is connected to the mains, the power button lights up to switch the device on and off. A short touch on the power button will turn the device on.

You can find out how to connect the device to your smartphone or tablet in the "Configuration of Smart Life App" section.

8

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

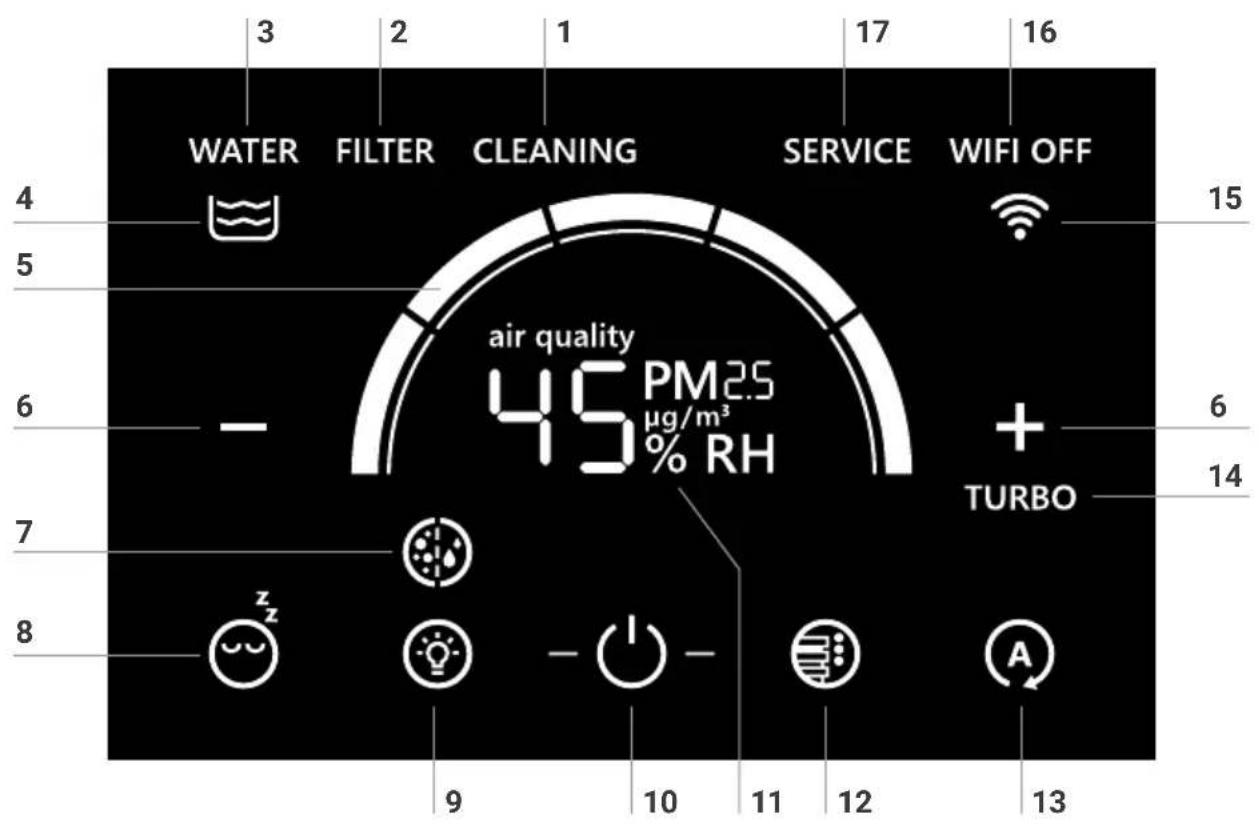

DISPLAY

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

1 Cleaning necessary
2 Filter change necessary
3 Water tray empty
4 Water level
5 Speed level / Speed display
6 Regulation of the speed level: + / -
7 Airwasher / Air Purifier mode
8 Sleep mode
9 LED band ON/OFF – regulate brightness

10 Switching the device on/off
11 Air quality / relative humidity
12 Select LED colors/AQI level
13 Automatic mode
14 Turbo mode
15 WiFi status
16 WiFi ON/OFF button
17 Regular maintenance required

OPERATION

Display Function

	Switching the device on or off (10)Briefly touching the button ⏻(10) switches the device on or off.
	Speed stage (5)Five speed levels can be activated.The speed steps are displayed as a ring segment. As the speed level increases, the next ring segment increases in a clockwise direction.Level 1 is shown here.
	Regulation of the speed level (6)Briefly touching the + button increases the fan speed. In the air cleaner mode, the turbo mode can be activated by touching the + button again.Briefly touching the - button decreases the fan speed.
	Turbo (14)The turbo speed level can only be activated in air purifier mode. TURBO mode can be activated by touching the + button again in the fifth speed level. The TURBO indicator (14) lights up continuously in the display.TURBO mode can be deactivated by touching the - button. The turbo indicator (14) in the display goes out.
	Set the desired humidity 30 - 70 %:Press and hold button Ⓐ(13) for 3 seconds. Relative humidity display (11) flashes continuously.
	Use + or - (6) to set the desired humidity (in 5 % steps).Press and hold button Ⓐ(13) again for 3 seconds until the flashing in the relative humidity display (11) stops and the measured humidity in the room is displayed again. Please make sure that the automatic mode (13) is switched on (button Ⓐ(13) in the display flashes continuously).
	Automatic mode (13)Is switched on or off by briefly touching button Ⓐ(13).On: Button Ⓐflashes continuously. Depending on the air quality (see chapter "Displaying air quality") and humidity in the room, the appliance automatically adjusts the fan speed. As soon as the desired humidity level is reached, the disk stack does not rotate and humidification is no longer carried out..Off: Button Ⓐlights up continuously. The appliance runs at the set fan level 1 - 5.

Sleep mode (8)

Switched on by a short touch 😊 and switched off again by touching for 3 seconds.

On: The unit switches to speed level 1. The LED band is switched off.

Only the Sleep mode button (8) and the on/off button (10) lights up, with reduced brightness.

By briefly touching the Sleep mode button (8), the following displays/functions are available for approx. 5 seconds:

• + and -buttons (6) for changing the speed level 1
• WiFi (15) can be switched on/off
- LED band (9) can be switched on/off and dimmed.
• LED colors (12) can be changed.

Off: To exit Sleep mode, press and hold the Sleep mode button (8) for approx. 3 seconds. All displays/functions light up in normal brightness and are available.

Airwasher / Air Purifier mode (7)

Mode can be changed by briefly touching icon.

Airwasher mode: The appliance cleans the air and humidifies it. For Airwasher mode, the water tray and the disk stack must be correctly inserted into the appliance. The TURBO function (14) cannot be activated in Airwasher mode. The button (7) shows air particles on the left and water droplets on the right.

Air Purifier mode: The appliance purifies the air but does not humidify it. The TURBO function (14) can be activated. The button (7) only shows the air particles on the left. We recommend emptying the water tray in air purifier mode to prevent water from escaping from the appliance when turbo mode is activated. The water tray can be replaced by the four support parts (G) for a higher air purification performance.

Operation with support parts for higher air purification performance:

Two white plastic storage units with a blue arrow indicating rotation or change (no text or symbols)

Remove
water tray (F)
+ disk stack (E)

Two 3D-rendered blocks with a blue arrow pointing to one, no text or symbols present.

Attach support parts (G) to the lower part

12PM25μg/m3	Air quality / humidity (11)Short touch switches between display of air quality and display of relative humidity.
	Air qualityColor display μg/m3 PM2.5 AQI US Meaning
	Green 0-12 0-50 GoodYellow 12.1-35.4 51-100 ModerateOrange 35.5-55.4 101-150 Unhealthy for sensitive personsRed 55.5-150.4 151-200 UnhealthyRed 150.5-250.4 201-300 Very unhealthyRed ≥ 250.5 301-500 Dangerous
45% RH	From a particle measured value greater than 99 μg/m3, the display shows "Hi".HumidityThe display shows the relative humidity in percent. The LED band continues to signal the air quality if this function is set (see LED colors (12)).
	LED band (9)Is switched on or off by a short touch.Set the desired brightness:Touch the LED strip button (9) and hold for approx. 3 seconds until the LED strip button (9) and the air quality indicator (11) flash. The + and - buttons (6) change the brightness in 8 levels.Touch the LED strip button (9) again and hold for approx. 3 seconds until it lights up constantly again.
	LED colors (12)Can be selected by briefly touching the icon.Retrieve the current air quality in the room (air quality):On: Touch and hold the LED colors button (12) for 3 seconds. The word "air quality" in the air quality display (11) lights up constantly. The LED band provides color information about the current air quality in the room. For the color description and its exact meaning, please refer to the table in the "Air quality" section.Off: Briefly touch the LED colors button (12) again. The "air quality" lettering in the air quality and humidity display (11) goes out. The LED strip lights up in the selected color.

Display Function

Close-up of a white industrial ventilation grille (no text or symbols visible)

Color information of the LED strip

Constant glow:

Flawless device operation.

A blue running light moves along the LED strip:

The firmware is being updated.

The LED strip flashes:

The water level is too low. Please top up with water (see chapter "Cleaning & care").

Water level (3)

The symbol shows the fill level of the water tray:

Two wavy lines: 100 %

One wavy line: 50 %

Empty tub: 0 %

The following messages appear when maintenance is required:

Display Function

WATER Water (3) The water level is too low. Refill water see chapter "Cleaning & Maintenance" section "Refilling water".

FILTER Filters (2) The filters must be changed (see chapter "Cleaning & Maintenance" section "Changing the filters").

CLEANING Cleaning (1) The water tray and the disk stack must be cleaned with Venta cleaner (see chapter "Cleaning & Care" section "Cleaning").

SERVICE Service (17) Empty the water tray, rinse the disk stack and fill the tray with fresh tap water and hygiene additive (Chapter "Cleaning & care" under section "Changing the water"). Clean the water level sensor with a slightly damp cloth.

Display Function

	WiFi connectionActivated and deactivated by briefly touching the WiFi icon (15).
	WiFi connection is activated:
	WiFi symbol (15) flashes: The WiFi connection is disconnected / The device is waiting for a WiFi connection.
	The lower two segments of the WiFi symbol (15) light up constantly, the upper two light up one after the other: WiFi connection to the cloud is established.
	WiFi symbol (15) lights up constantly: WiFi connection to the cloud successfully established.
	The VENTA device is in hotspot mode:The dot lights up continuously and the three reception bars appear in ascending order: The VENTA device is in hotspot mode and is ready for setup in the Smart Life app.
WIFI OFF	WiFi connection is deactivated:WiFi Off (16) lights up: WiFi module is not sending or receiving data and is not connected to any network or device.

CONFIGURATION & SMART LIFE APP

Hotspot mode

During initial startup, the device is automatically in hotspot mode. The hotspot mode can be activated at any time by touching and holding the WiFi symbol (15) for 3 seconds. Hotspot mode is activated when the three reception bars of the WiFi symbol light up in succession from bottom to top in the display .

Activating WLAN

Make sure your smartphone or tablet is connected to your home WLAN network and Bluetooth is turned on.

Install "Smart Life - Smart Living" App

Install the free "Smart Life – Smart Living" app on your smartphone.

Set up WiFi

After you have downloaded and installed the "Smart Life – Smart Living" app, please open the app.

• Create a user account and log in.
• Tap "Add device" if your device appears in the app. Otherwise, tap +, "Add device", "Small home appliance", "Humidifier (BLE +Wi-Fi)". Select your WiFi and enter the WiFi password.

Please make sure that ...

• the device is assigned a radio network in the 2.4 GHz band by your router. Unfortunately, radio networks in the 5 GHz band are not supported.
• Your router supports 802.11b/g/n.
• iOS version 11.0 or higher or Android version 6.0 or higher is installed. If necessary, update the operating system of your smartphone or tablet.

If problems occur during WiFi setup, please refer to the corresponding section in the "What if ...?" chapter. Further information at: www.venta-air.com

Water level sensor WATERLINE mark

CLEANING / MAINTENANCE

Caution! For all measures, make sure that the device is switched off and the power supply is disconnected from the socket! Use a protective mask and gloves! The filters must not get wet. If hygiene additive, cleaner, or water has come into contact with the filter, the filters must first dry completely before reassembly.

Refill water

The water consumption depends on the current relative humidity, the target humidity, and the operating mode. As soon as there is too little water in the water tray in Airwasher mode (7) the appliance switches off automatically and displays the message WATER (3).

1 Switch off the device.
2 Disconnect the power plug.
3 Remove the upper part of the device.
4 Fill the water tank with fresh tap water up to the WATERLINE mark.

5 Position the upper part of the appliance so that the gear wheels in the upper part engage with the gears of the disk stack.
6 Plug in the power plug and switch the unit on again.
7 The water level display is updated when the appliance is switched on again.

Change water

To ensure perfectly hygienic continuous operation, the SERVICE indicator (17) reminds you to carry out this measure every 14 days.

1 Switch off the device.
2 Disconnect the power plug.
3 Remove the upper part of the unit.
4 Empty residual water from the water tray.
5 Rinse the water tray and disk stack thoroughly with fresh tap water. Residues in the water tray and on the disk stack (white, green-yellowish or brown deposits or discoloration) do NOT impair the function of the appliance.
6 Replace the disk stack in the water tray.
7 Fill the water tray with fresh tap water up to the "WATERLINE" mark.
8 Fill the water tray with hygiene additive (for dosage, see scale LW15 on the back of the bottle).
9 Clean the water level sensor with a slightly damp cloth.
10 Place the upper part of the appliance so that the gear wheels in the upper part engage with the gear wheels of the disk stack.
11 Plug in the mains plug and switch the appliance back on.
12 Touch the SERVICE display (17) and hold for approx. 3 seconds until it goes out.

Cleaning

The water tray and the disk stack must be cleaned with VENTA cleaner approx. every 6 months. The CLEANING indicator (1) indicates when the water tray and disk stack must be cleaned.

1 Switch off the device.
2 Disconnect the power plug.
3 Remove the upper part of the unit.
4 Empty residual water from the water tray.
5 Fill the water tray with fresh tap water up to the WATERLINE mark and add 250 ml Venta cleaner.
6 Position the upper part of the appliance so that the gear wheels in the upper part engage with the gears of the disk stack.
7 Plug in the power plug and switch on the unit.
8 Allow the unit to run for approx. 2 hours at speed level 1. Recommendation: During this cleaning process, please ventilate the unit to avoid possible odors, which can arise from very heavy soiling.

9 Afterwards, switch off the unit, disconnect the power plug and remove the upper part of the unit.
10 Empty out contaminated water.
11 Thoroughly rinse the water tray and disk stack.
12 Fill the water tray with fresh tap water up to the MAX. mark.
13 Fill the hygiene additive into the water tray (for dosage, see scale LW15 on the back of the bottle).
14 Position the upper part of the appliance so that the gear wheels in the upper part engage with the gears of the disk stack.
15 Plug in the power plug and switch on the unit.
16 Touch the CLEANING display (1) and hold it for approx. 3 seconds until it goes out.

Change filter

The service life of the VENTA filter is approx. 1 year (with 24-hour continuous operation). The filter service life depends on the number of operating hours and the air quality in the room. The FILTER indicator (2) indicates when the filter needs to be changed.

1 Switch off the device.
2 Disconnect the power plug.
3 Remove the upper part of the unit.
4 The locking mechanism of the two filter trays on the upper part of the appliance unlock.
5 Remove both filters.
6 Remove the protective packaging from the new VENTA filters and insert the new filters.
7 Close the locks again.
8 Position the upper part of the appliance so that the gear wheels in the upper part engage with the gears of the disk stack.
9 Plug in the mains plug and switch on the unit.
10 Touch the FILTER display (2) and hold it for approx. 3 seconds until it goes out.

Pack the used VENTA filter in a bag and dispose of it in the household waste.

Change filter

3

Two white 3D blocks with a square top and a small circular base, each showing a blue arrow indicating rotation or transformation (no text or symbols)

4 ↑ ↑ ↑ 5

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component being inserted into a grid, with magnified insets showing internal structure (no text or symbols visible)

11 FILTER 3 Sec.

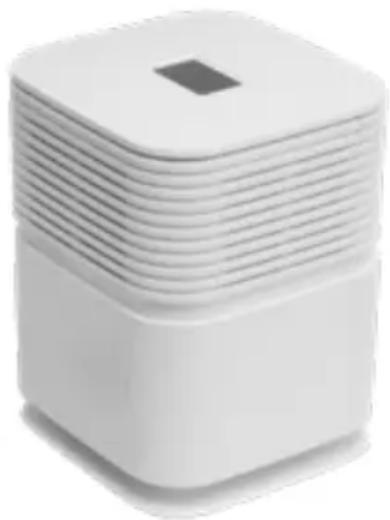

Reset menu

The maintenance actions can always be carried out if necessary, even if they are not displayed.

Touch the On/Off button ⏻(10) and hold for approx. 3 seconds until the display flashes and FILTER, CLEANING, and SERVICE appear on the display. Now touch the measures that have been carried out and hold for approx. 3 sec. until they go out.

Then touch the flashing On/Off button ⏻ (10) It now lights up continuously again. The next reminders for the measures performed are now displayed again in rotation.

CLEANING THE DEVICE

Caution! Make sure that the device is switched off and the power supply is disconnected from the socket during all measures!

Cleaning the upper part of the device

Clean the upper part of the device with a dry cloth/cleaning brush or a slightly damp cloth!

Caution! The upper part of the device must not be cleaned under running water! Please do not use any cleaning agents.

Cleaning the display

Only clean the display with a dry cloth or a display cleaning cloth!

Caution! The display must not be cleaned wet or too moist! Please do not use any cleaning agents.

TECHNICAL DATA

Model AW730/AW735
Colors white / black
Room size suitability* up to 50 m2
Interactive touch display standard
App Control / Voice assistant standard WiFi / Google, Alexa
Measurement sensors Air quality / Humidity
VENTA-Filter standard 2-fold
Power levels 5 + Automatic + TURBO + Sleep
Noise level 23 / 24 / 32 / 38 / 50 dB (SPL)
Noise level TURBO 55 dB (SPL)
Power consumption 5 / 6 / 8 / 11 / 33 W
Power consumption TURBO 60 W
Mains voltage	100-240 V~, 50/60 Hz
Water capacity	6 liters
Dimensions (L × W × H)	34 × 33 × 44 cm
Weight	approx. 7.7 kg
WLAN frequency range	2412 - 2480 MHz
WLAN transmitting power	maximal 20 dBm

* with standard 2.5 m ceilings
Room size suitability depending on the room air load:
- Indoor air pollution Light: room size suitability up to approx. 75 m² (>AQI 0 - 100).
- Indoor air pollution Moderate: room size suitability up to approx. 50 m² (>AQI 101 - 200)
- Indoor air pollution Heavy: room size suitability up to approx. 25 m² (>AQI 201 - 500)
Subject to modifications and errors.

ACCESSORIES

Accessories can be ordered by phone or online at www.venta-air.com.

DATA PROTECTION

Your data will be processed by VENTA-Luftwäscher GmbH confidentially. Further information on the subject of data protection you can find in our data protection guidelines at: www.venta-air.com

DISPOSAL

The "crossed-out wheeled garbage can" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Such equipment may contain hazardous and environmentally dangerous substances.

These devices must be disposed of at a designated collection point for the

recycling of electrical and electronic devices and must not be disposed of in unsorted municipal waste. By doing so, you are helping to protect resources and the environment. For further information, please contact your local authorities.

Make sure that all personal data is deleted before is deleted before disposing of the appliance. If you reset your networked Venta appliance to the factory factory settings and delete all saved WLAN settings and delete all saved please proceed as follows: In standby mode, press and hold the power button for 5 seconds to reset the device to factory settings.

The packaging material can be recycled. Please dispose of the packaging in an environmentally friendly manner and take it to the recycling collection.

Children must never play with plastic bags and packaging material as there is a risk of injury or suffocation. Store such material safely or dispose of it in an environmentally friendly manner.

WHAT IF...?

... the on/off button (10) does not appear in the display?

Please check whether the power supply is connected to a suitable outlet.

... the On/Off button (10) does not appear in the display although the power supply is connected to the mains?

Please check whether the power supply is connected to a suitable outlet.

... the display shows "Hi" instead of the particle measurement value (PM)?

The particle measured value is greater than 99 m/m^3 .

... white fields are visible in the background when touching the display?

The phenomenon is caused by electrostatic charges in dry rooms, does not represent a defect, and does not affect the device. The white fields disappear after a short time.

... no WiFi connection can be established?

Please make sure that the device is assigned a radio network in the 2.4 GHz band by your router. Unfortunately, radio networks in the 5GHz band are not supported. Your router should also support the IEEE 802.11b/g/n transmission standards. The operating system iOS from version 11.0 or Android from version 6.0 must be installed. If necessary, update the operating system of your smartphone or tablet.

... only the on/off button (10) and a sleeping face (8) are shown in the display?

This is not an error, but the sleep mode, in which the device should not be disturbing.. The device runs at the lowest speed and lights up with reduced brightness. Press the Sleep mode button (8) (the sleeping face) for 3 seconds. After that, the device runs normally again.

MERCI BEAUCOUP!

Configuration & application

Smart Life 63

Stacked white square electronic device with a small square top on top (no visible text or symbols)

PRÉSENTATION

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

MISE EN SERVICE

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black door handle with a blue arrow indicating rotation (no text or symbols)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

Close-up of a white industrial machine with internal components and a magnified inset showing meshing (no text or symbols visible)

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow indicating direction (no text or symbols)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

ÉCRAN

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH + TURBO 15 6 14 9 10 11 12 13

Two white square electronic devices with a blue circular arrow indicating rotation or change (no text or symbols)

Two 3D-rendered blocks with a blue arrow pointing downward from one to the other (no text or symbols)

Two white 3D blocks with arrows indicating a transformation or rotation process (no text or symbols)

Diagram showing device installation steps with labeled arrows and a magnified view of the component being inserted.

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component with three views of its internal structure, showing internal components and a grid pattern (no text or symbols visible)

11 FILTER 3 Sec.

Two electronic devices: a black bottle labeled 'Sensit' with a probe and a black rectangular device with cable (no visible text or symbols)

Stacked white square electronic device with a small square top on top (no visible text or symbols)

PANORAMICA

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

MESSA IN FUNZIONE

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black metal door handle with a blue arrow indicating rotation, set against a textured wall (no text or symbols)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

Close-up of a white industrial machine with internal components and a magnified inset showing meshing (no text or symbols visible)

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black electrical plug inserted into a white socket, with a blue arrow indicating direction (no text or symbols)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

DISPLAY

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

Two white plastic blocks with a blue arrow indicating rotation or change (no text or symbols)

Two 3D geometric shapes with a blue arrow pointing to one, no text or symbols present.

CONFIGURAZIONE E APP SMART LIFE

Modalità hotspot

Stacked 3D cube with a small square top and blue curved arrows indicating rotation or flow (no text or symbols)

White square-shaped object with a circular top and shadow, resembling a smart sink or button (no text or symbols visible)

4 ↑ ↑ ↑ 5

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

9

Close-up of a white electronic component with a blue arrow indicating rotation, alongside two magnified views showing internal structure (no text or symbols)

11

FILTER 3 Sec.

Two electronic devices: a black bottle labeled 'Sensit' and a black rectangular device with cable (no visible text or symbols)

Stacked white square electronic device with a small square top on top (no visible text or symbols)

OVERZICHT

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

INGEBRUIKNAME

Two-step diagram showing a stack of white plastic components with blue arrows indicating rotation or assembly (no text or symbols)

Close-up of a black metal door handle with a blue arrow indicating rotation (no text or symbols)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

Close-up of a white industrial machine with internal components and a magnified inset showing meshing (no text or symbols visible)

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol for a power switch with downward arrow and power button icon

DISPLAY

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

Two white square containers with a blue arrow indicating rotation or change (no text or symbols)

Two 3D cube-shaped objects with a blue arrow pointing to one (no text or symbols)

Close-up of a metallic ventilation grille (no text or symbols visible)

CONFIGURATIE & SMART LIFE-APP

Hotspot-modus

Stacked 3D blocks with a small diamond shape on top and blue arrows indicating rotation (no text or symbols)

White square-shaped object with a circular top and small curved cutout, no visible text or symbols.

Diagram showing device mounting process with labeled steps 4 and 5, highlighting a mouse cursor adjustment.

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

9

Close-up of a white plastic electronic component with a blue arrow indicating rotation, alongside two circular insets showing internal structure (no text or symbols visible)

11

FILTER 3 Sec.

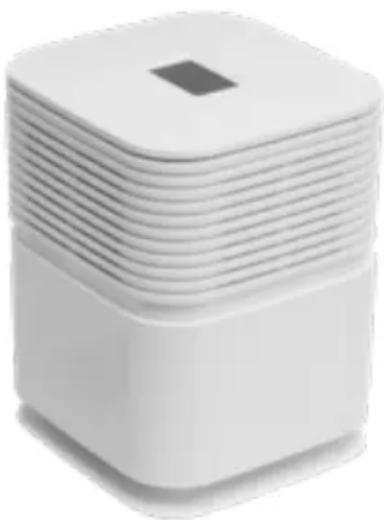

Het menu resetten

Two electronic devices: a black bottle labeled 'Sensit' and a black rectangular device with cable (no visible text or symbols)

Stacked white square electronic device with a small square top on top (no visible text or symbols)

VISTA GENERAL

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black door handle with a blue arrow indicating rotation, set against a textured wall (no text or symbols)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved clip, mounted on a textured surface (no text or symbols visible)

6

~6 l -> Waterline

7

Close-up of a white industrial machine with internal components and a magnified inset showing meshing (no text or symbols visible)

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol for a power switch with downward arrow and power button icon

PANTALLA

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH + TURBO 15 6 14 9 10 11 12 13

Two white plastic blocks with a blue arrow indicating rotation or change (no text or symbols)

3D diagram of a cube with a downward arrow pointing to its base (no text or symbols)

Close-up of a metallic ventilation grille (no text or symbols visible)

Two white 3D blocks with a square top and a circular base, showing a transformation or assembly process (no text or symbols)

Diagram showing a device with two monitors and a close-up of the interior, no text or symbols present.

Diagram illustrating a device's internal structure and component assembly, labeled with numbered steps 6, 7, 8.

Close-up of a white plastic electronic component with three views of its internal structure, showing internal components and a grid-patterned base (no text or symbols visible)

11 FILTER 3 segundos

Menú de reinicio

Product display of a white smart air conditioner unit with a battery and charging plug (no visible text or symbols)

ОБЗОР

Exploded view diagram of a white industrial machine with internal components (no text or labels)

Two 3D-printed white plastic components with blue arrows indicating rotation or assembly (no text or symbols)

2

Close-up of a black metal door handle with a blue arrow pointing to a circular opening, set against a textured wall (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved clip, mounted on a textured surface (no text or symbols visible)

White square water dispenser with a small sensor and connecting pipe, no visible text or symbols

7

Close-up of a white industrial machine with internal components and a magnified inset showing its edge to the right (no text or symbols visible)

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

ДИСПЛЕЙ

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 air quality 45 PM2.5 µg/m³ % RH + TURBO 6 14 7 8 9 10 11 12 13

Two white plastic containers with a blue arrow indicating rotation or change (no text or symbols)

Two white square blocks with a blue arrow pointing downward from one to the other (no text or symbols)

Two white electronic devices with a blue arrow indicating rotation or change, no text or symbols present.

Diagram showing device installation steps with labeled arrows and a magnified view of the component being inserted.

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component with three views of its internal structure, showing internal components and a grid pattern (no text or symbols visible)

11 FILTER 3 сек.

Меню сброса

Stacked white square electronic device with a small square top on top (no visible text or symbols)

OGÓLNY OPIS URZĄDZENIA

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

ODDANIE DO UŻYTKU

Two-step diagram showing a stack of plastic components with blue arrows indicating rotation or assembly (no text or symbols)

Close-up of a black plastic door handle with a blue arrow indicating rotation (no text or symbols)

3

White electronic device with two open compartments and blue arrows indicating upward motion (no text or symbols)

4

Diagram of a device with two screens and a base, showing downward arrows indicating process (no text or symbols present)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

Close-up of a white industrial machine with internal components and a close-up view of its internal structure (no text or symbols visible)

White square electronic device with layered top and base, showing a small black button and blue arrow pointing to it (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol for a power switch with downward arrow and power button icon

WYŚWIETLACZ

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 - air quality 45 PM2.5 µg/m³ % RH + TURBO 6 14 7 8 9 10 11 12 13

Two white plastic blocks with a blue arrow indicating rotation or change (no text or symbols)

3D diagram of a cube with a downward arrow pointing to its center (no text or symbols)

Close-up of a metallic surface with horizontal grooves (no text or symbols visible)

KONFIGURACJA I APLIKACJA SMART LIFE

Tryb hotspot

Two white 3D blocks with a square top and a small circular base, each showing a blue arrow indicating rotation or transformation (no text or symbols)

4 ↑ ↑ ↑ 5

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component being inserted into a grid, with magnified insets showing internal structure (no text or symbols visible)

11 FILTER 3 sekundy

Resetowanie menu

⚠ INSTRUCTIUNI DE SIGURANTĂ

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

PUNEREA ÎN FUNCTIUNE

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black door handle with a blue arrow pointing to a side panel, no visible text or symbols

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

~6 l -> marcajul Waterline

7

Close-up of a white industrial machine with internal components and a magnified inset showing its edge to the right (no text or symbols visible)

White square electronic device with layered top and base, showing a small black square on top (no visible text or symbols)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

AFIŞAJ

3 1 17 162 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 air quality 45 PM2.5 µg/m³ % RH + TURBO 6 14 7 8 z 9 10 11 12 13

Two white square blocks with a blue arrow indicating rotation or change, no text or symbols present.

Two 3D geometric shapes with a blue arrow pointing to one (no text or symbols)

Close-up of a metallic ventilation grille (no text or symbols visible)

Stacked 3D blocks with a small diamond shape on top and blue arrows indicating rotation (no text or symbols)

White square-shaped object with a circular top and a small curved cutout, no visible text or symbols.

Diagram showing device mounting process with labeled steps 4 and 5, highlighting a mouse cursor adjustment.

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being processed.

9

Close-up of a white plastic electronic component with a blue arrow indicating a process, alongside two circular insets showing internal structure (no text or symbols visible)

11

FILTER 3 Sec.

Meniul resetare

Two electronic devices: a black bottle labeled 'Sensit' and a black rectangular device with cable (no visible text or symbols)

Stacked white square electronic device with a small square top on top (no visible text or symbols)

PREH'LAD

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

UVEDENIE DO PREVÁDZKY

Pred prvým použitím

Two-step diagram showing a stack of white plastic components with blue arrows indicating rotation or assembly (no text or symbols)

Close-up of a black metal door handle with a blue arrow indicating rotation, set against textured fabric background (no text or symbols)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

~6 l -> Waterline

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

DISPLEJ

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH + TURBO 15 6 14 9 10 11 12 13

Two white plastic storage units with a blue arrow indicating rotation or change (no text or symbols)

Vyberte zásobník na vodu (F) + súprava diskov (E)

Two 3D-rendered blocks with a blue arrow pointing to a square cutout (no text or symbols)

Close-up of a white industrial ventilation grille (no text or symbols visible)

Two white 3D blocks with a square top and a small circular base, each showing a blue arrow indicating rotation or transformation (no text or symbols)

4 ↑ ↑ ↑ 5

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component being inserted into a grid, with magnified insets showing internal structure (no text or symbols visible)

11 FILTER 3 s

Ponuka Reset

Two electronic devices: a black bottle labeled 'Sensit' and a black rectangular device with cable (no visible text or symbols)

Stacked white square electronic device with a small square top on top (no visible text or symbols)

PŘEHLED

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

UVEDENÍ DO PROVOZU

Two-step diagram showing a stack of plastic components with blue arrows indicating rotation or assembly (no text or symbols)

Close-up of a black metal door handle with a blue arrow pointing to the handle area, no visible text or symbols.

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

~6 l -> Waterline

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

DISPLEJ

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH + TURBO 15 6 14 9 10 11 12 13

Two white square electronic components with a blue arrow indicating rotation or change (no text or symbols)

Two 3D-rendered blocks with a blue arrow pointing downward from one to the other (no text or symbols)

Close-up of a metallic ventilation grille (no text or symbols visible)

KONFIGURACE A APLIKACE SMART LIFE

Režim hotspot

Two white 3D blocks with a small square top, one showing a blue arrow and the other a curved arrow (no text or symbols)

Diagram showing device installation steps with labeled arrows and a magnified view of the component

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component with three views of its internal structure, showing internal components and a grid pattern (no text or symbols visible)

11 FILTER 3 s.

Nabídka Reset

Product photo of a white electronic device with a square base, a small battery, and a charging plug (no visible text or symbols)

YLEISKUVA

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

KÄYTTÖÖNOTTO

Two-step diagram showing a 3D printer or scanner device being rotated into a smaller internal component, with blue arrows indicating the motion direction (no text or symbols present)

Close-up of a black metal door handle with a blue arrow pointing to the lock, set against a textured surface (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

~6 l -> vesiraja

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

NÄYTTÖ

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH + TURBO 15 6 14 9 10 11 12 13

Two white plastic boxes with a blue arrow indicating rotation or change (no text or symbols)

Poista vesiastia (F) + levypino (E)

Two 3D cube-shaped objects with a blue arrow pointing downward from one to the other (no text or symbols)

Close-up of a metallic ventilation grille (no text or symbols visible)

Two white 3D blocks with a square top and a small circular base, each showing a blue arrow indicating rotation or transformation (no text or symbols)

4 ↑ ↑ ↑ 5

Diagram illustrating a device installation process with numbered steps and a magnified view of the component being processed.

Close-up of a white plastic electronic component being inserted into a grid, with magnified insets showing internal structure (no text or symbols visible)

11 FILTER 3 sekuntia.

Nollaa valikko

Product display of a smart home appliance with a battery, charging plug, and stacked unit (no visible text or symbols)

ÜLEVAADE

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

KASUTUSSE VÕTMINE

Two 3D-printed blocks with blue arrows indicating rotation or assembly (no text or symbols)

Close-up of a black metal door handle with a blue arrow pointing to the lock, set against a textured wall (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved clip, mounted on a textured surface (no text or symbols visible)

6

\~6 l -> Veeni- voo

White laboratory apparatus with a pipette inserted into a square basin, connected to a curved pipe and a cross-shaped outlet (no text or symbols visible)

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, connected to a black cable (no visible text or symbols)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

EKRAAN

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

Two white 3D blocks with a blue arrow indicating rotation or change (no text or symbols)

Eemaldage veealus (F) + kettakomplekt (E)

Two 3D blocks with a blue arrow pointing to one block (no text or symbols)

Kinnitage tugiosad (G) alu- misele osale

Close-up of a metallic ventilation grille (no text or symbols visible)

LED-riba värviteave

Pidevalt põlemine:

Two white electronic devices with a blue arrow indicating rotation or change, no text or symbols present.

Diagram showing device installation steps with labeled arrows and a magnified view of the component

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white electronic component with blue arrows indicating a process, alongside two magnified views showing internal structure (no text or symbols)

11 FILTER 3 s

Menüü lähtestamine

Two electronic devices: a black bottle with a warning label and a black rectangular device with cable (no visible text or symbols)

Stacked white square electronic device with a small square top on top (no visible text or symbols)

ЖАЛПЫ АҚПАРАТ

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

ПАЙДАЛАНУДЫ БАСТАУ

Two views of a white plastic door or holder with blue arrows indicating rotation, showing internal structure (no text or symbols)

2

Close-up of a black metal door handle with a blue arrow pointing to a circular opening, set against a textured wall (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6

\~61->Су күбыры

I -> кубыры

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, showing a small black button and blue arrow pointing to it (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol for a power switch with downward arrow and power button icon

ДИСПЛЕЙ

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH + TURBO 15 6 14 9 10 11 12 13

Two white square electronic devices with a blue arrow indicating rotation or change (no text or symbols)

Two 3D blocks with a blue arrow pointing downward from one to the other (no text or symbols)

Close-up of a metallic shelf with horizontal grooves (no visible text or symbols)

Download on the App Store

GETITON Google Play

Кіру нуктесі режимі

Two white 3D blocks with a square top and a small circular base, each showing a blue arrow indicating rotation or transformation (no text or symbols)

4 ↑ ↑ ↑ 5

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component being inserted into a grid, with magnified insets showing internal structure (no text or symbols visible)

11 FILTER 3 сек.

Қайта орнату мәзірі

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

PARUOŠIMAS NAUDOTI

Two-step diagram showing a 3D printer or scanner with blue arrows indicating rotation and assembly (no text or symbols)

Close-up of a black plastic door handle with a blue arrow pointing to the center (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved clip, mounted on a textured surface (no text or symbols visible)

6

\~6 | -> Žyma „Waterline“

I -> Żyma waterline"

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus signs, indicating current or voltage polarity.

EKRANAS

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

Two white 3D blocks with a blue arrow indicating rotation or change (no text or symbols)

Two 3D-rendered blocks with a blue arrow pointing downward from one to the other (no text or symbols)

Close-up of a metallic shelf with horizontal ridges and a clear blue edge (no text or symbols visible)

Two white 3D blocks with a small square top, one showing a blue arrow and the other a curved arrow (no text or symbols)

Diagram showing device installation steps with labeled arrows and a magnified view of the component

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component with three views of its internal structure, showing internal components and a grid pattern (no text or symbols visible)

11 FILTER 3 s

Atstatymo meniu

Product photo of a white electronic device with a square base, a small battery, and a charger (no visible text or symbols)

PĀRSKATS

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

LIETOŠANAS SĀKŠANA

Two-step diagram showing a 3D printer or scanner with blue arrows indicating rotation, no text or symbols present.

Close-up of a black plastic door handle with a blue arrow pointing to a cutout, set on a textured surface (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved clip, mounted on a textured surface (no text or symbols visible)

6
\~6 | -> Üdenslīnija

White laboratory apparatus with a pipette and tubing, no visible text or symbols

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, connected to a cable (no visible text or symbols)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

DISPLEJS

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

Two white square electronic devices with a blue circular arrow indicating rotation or change (no text or symbols)

Iznemiet ūdens tekni (F) + disku kaudzi (E)

Two 3D cube-shaped objects with a blue arrow pointing downward from one to the other (no text or symbols)

Close-up of a metallic ventilation grille (no text or symbols visible)

Two white 3D blocks with a square top and a small circular base, each showing a blue arrow indicating rotation or transformation (no text or symbols)

Diagram showing device mounting process with labeled steps and magnified view of the component

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component being inserted into a grid, with magnified insets showing internal structure (no text or symbols visible)

11 FILTER 3 sekundes

Stacked white square electronic device with a small square top on top (no visible text or symbols)

IKHTISAR

A Paparan
B Bahagian atas unit
C Penapis
D Cakera bersih
E Tindanan cakera

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

MEMULAKAN OPERASI

Two-step diagram showing a stack of white plastic components with blue arrows indicating rotation or assembly (no text or symbols)

Close-up of a black door handle with a blue arrow pointing to the lock, set against a textured surface (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved clip, mounted on a textured surface (no text or symbols visible)

6

~6 l -> Aras air

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to it (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

PAPARAN

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

Two white square electronic devices with a blue arrow indicating rotation or change (no text or symbols)

Keluarkan dulang air (F) + tindanan cakera (E)

Two 3D geometric shapes with a blue arrow pointing to one, no text or symbols present.

Close-up of a metallic ventilation grille (no text or symbols visible)

KONFIGURASI & AP SMART LIFE

Mod hotspot

Two white 3D blocks with arrows indicating a transformation or rotation process (no text or symbols)

Diagram showing device installation steps with labeled arrows and a magnified view of the component

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being inserted.

Close-up of a white plastic electronic component with three views of its internal structure, showing internal components and a grid pattern (no text or symbols visible)

11 FILTER 3 Saat

Tetapkan semula menu

Product photo of a white square electronic device with a battery and charging plug, no visible text or symbols

产品描述

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

开始使用

首次使用指南

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black metal door handle with a blue arrow indicating rotation (no text or symbols)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved handle, mounted on a textured surface (no text or symbols visible)

6
\~61-> 水位线

| -> 立线

7

Close-up of a white industrial machine with internal components and a magnified inset showing meshing (no text or symbols visible)

White square electronic device with layered top and base, showing a small black square on top (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

10

Electrical symbol for a power switch with downward arrow and power button icon

显示界面

1 17 1623 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 6 7 8 air quality 45 PM2.5 µg/m³ % RH TURBO 15 6 14 9 10 11 12 13

Two white square electronic components with a blue arrow indicating rotation or change (no text or symbols)

取出水箱(F)和滤网盘(E)

Two 3D geometric shapes with a blue arrow pointing to one, no text or symbols present.

将支架部件安装 (G) 至底部

Close-up of a metallic shelf with horizontal grooves (no visible text or symbols)

LED灯带的颜色信息

持续亮起：

表明设备运行正常。

LED灯带上有蓝色流动光：

表示固件正在进行更新。

LED灯带闪烁：

Two white 3D-rendered devices with a blue arrow indicating rotation or change, no text or symbols present.

4 ↑ ↑ ↑ 5

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being processed.

Close-up of a white plastic electronic component with blue arrows indicating process, alongside two circular insets showing internal structure (no text or symbols)

11 FILTER 3 Sec.

技术规格

Product photo of a multi-tiered smart appliance with a small bottle, charging plug, and power adapter (no visible text or symbols)

概要

Exploded view diagram of a white industrial machine with internal components (no text or symbols)

使用手順

初回使用の前

Two-step diagram showing a device being folded into a plastic housing, with blue arrows indicating the process (no text or symbols present)

Close-up of a black metal door handle with a blue arrow pointing to the lock, set against a textured wall (no text or symbols visible)

3

Stacked electronic components with blue arrows indicating upward movement (no text or symbols)

4

Diagram of a white electronic device with two open panels and blue arrows indicating downward motion (no text or symbols)

5

Close-up of a black plastic door handle with a curved clip, mounted on a textured surface (no text or symbols visible)

6
\~6 | -> 水 位線

1 -> 水 線

7

Close-up of a white industrial machine component with internal structure and close-up views of its mesh texture (no text or symbols visible)

White square electronic device with layered top and base, showing a small black cable attached to its side (no text or symbols visible)

9

Close-up of a black plastic electrical plug inserted into a white socket, with a blue arrow pointing to the outlet (no text or symbols visible)

10

Electrical symbol diagram showing a power button with downward arrow and minus sign, indicating current or voltage polarity.

ディスプレイ

3 2 1 17 16 WATER FILTER CLEANING SERVICE WIFI OFF 4 5 air quality 45 PM2.5 µg/m³ % RH + TURBO 6 14 7 8 9 10 11 12 13

Two white plastic containers with a blue arrow indicating rotation or change (no text or symbols)

Two 3D-rendered blocks with a blue arrow pointing downward from one to the other (no text or symbols)

下部にサポート部品を取り付ける (G)

空気の質 / 湿度 (11)

Stacked 3D blocks with a small diamond shape on top and blue arrows indicating rotation (no text or symbols)

White square-shaped object with a circular top and small curved cutout, no visible text or symbols.

Diagram showing device mounting process with labeled steps 4 and 5, highlighting a mouse cursor adjustment.

Diagram illustrating a device's internal structure with numbered steps and a magnified view of the component being processed.

9

Close-up of a white plastic electronic component with a blue arrow indicating rotation, alongside two circular insets showing internal structure (no text or symbols visible)

11

FILTER

3秒

メ ニュー のリセット

www.venta-air.com/Service/Service-Support/

VENTA WORLD WIDE

www.venta-air.com/en_de/Venta-worldwide/

BENELUX

Venta Benelux B.V.

1111 North Plaza Drive, Suite 715

Schaumburg, IL 60173

No. 27, Jalan PP 11/4,

Alam Perdana Industrial Park,

Taman Putra Perdana, 47130

Puchong, Selangor, Malaysia

Tel.: [phone]

Fax: [phone]

[e-mail]

RUSSIA

Venta Russia TSK IMPORT

Nihonbashi Daiei Building 7F

1-2-6 Muromachi Nihonbashi

Chuo-ku, Tokyo 103-0022

090-4129-0399

[e-mail]

www.venta-air.jp

MONGOLIA

AERIS LLC, SUITE 316, Barilga

Architecture Building, Chinggis

Avenue, Oron Suuts Street,

2nd horoo, Khan-Uul district,

Ulaanbaatar, Mongolia 17032

Tel.: [phone],

[phone]

[e-mail]

www.aeris.mn

SOUTH AFRICA

EUROCARE Wellness

5 Star Business Park, Unit 2,

Persimmon Close, Honeydew,

Johannesburg

Südafrika

Tel.: [phone]

Fax:[phone]

[e-mail]

KROATIEN

MR servis d.o.o.

Dugoselska cesta 5

10370 Rugvica, Kroatien

Tel.: [phone]

[e-mail]

mrservis.hr

SOUTH KOREA

VENTA KOREA CO., LTD.

3/F., Seojin Bldg., 754,

Seolleung-ro, Gangnam-Gu,

Seoul 135-948, Korea

Tel.: [phone]

Fax: [phone]
