USER MANUAL The Box LAURASTAR

Collection of simple line drawings of various household and personal objects (no text or symbols)

USER MANUAL AND SAFETY INSTRUCTIONS MODE D'EMPLOIT AND INSTRUCTIONS DE SECURITÉ BEDIENUNGSANLEITUNG UND SICHERHEITSHINWEISE GEBRIUKSAANWILIZING EN VEIGHEIDSOVORSCHRIFTEN MANUAL D'USO E INSTIVIZIONI DI SICUREZA INSTRUCCIONES DE USO E INDICACIONES DE SEGURIDAD MANUAL DE USO E INSTRUÇÕES DE SEGURANÇA

INSTRUKCJA OBSLUGI KULLANIM VE GÜVENLIK TALIMATLARI РУКОВОДСТРО ПО ЭКСПИРАТАЦИИ И МЕРЫ ПРЕДОСТОРОЖНОСТИ 使用説明及安全須知 说明书 사용 설명서 및 언전 사항 دَلْلِ الْإِسْتَعْمَال

Requires IGGI. Hygienic steamer sold separately.

SWISS ENGINEERING | DESIGN

www.laurastar.com

THE BOX - 616.0000.600

Congratulations! You are now the proud owner of the Box, IGGI's new companion. This steam disinfecting accessory is an extension of the Laurastar Hygienic Steamer IGGI. Together they epitomise Swiss technology and design. Please read this instruction manual carefully before using the device for the first time, as well as the safety instructions, and retain this instruction manual for future use.

WARNING: Steam. Risk of scalding.

WARNING: Your Laurastar™ product releases heat and steam. As a result, certain elements can become very hot and cause burns while in use. Very hot elements are indicated with this symbol.

WARNING: Failure to comply with this instruction manual/these safety instructions may cause the device to become dangerous. The manufacturer accepts no liability for damage to property or personal injury resulting from failure to comply with these safety instructions. Retain this instruction manual for anyone using the device.

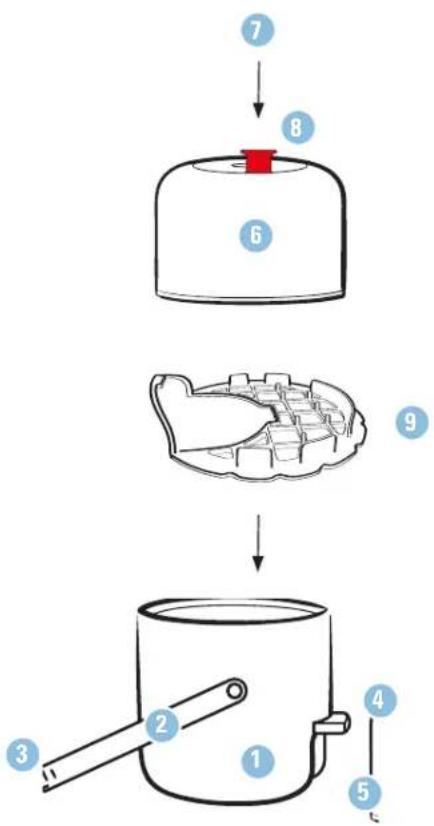

OVERVIEW AND

FEATURES

1. Items compartment
2. Strap
3. Handling ring
4. Grip
5. Pairing socket
6. Cover
7. Extraction hole
8. Holding knob
9. Grid

TABLE OF CONTENTS

OVERVIEW AND FEATURES

IMPORTANT SAFETY

INSTRUCTIONS 3

LAURASTAR'S HYGIENIC DRY

MICROFINE STEAM (DMS) 5

DISINFECTION WITH THE BOX 7

MAINTENANCE 9

TECHNICAL INFORMATION 10

PROBLEMS AND SOLUTIONS 10

CUSTOMER SERVICE 10

PLEASE NOTE: The Box is an accessory for the Laurastar hygienic steamer IGGI. For proper use and instructions, please refer to the user manual enclosed with IGGI.

READ THE ENTIRE INSTRUCTION MANUAL BEFORE USING THE PRODUCT.

Using steam requires basic precautions that should always be followed, including the following:

• This product is intended to be used in households and similar settings such as: (IEC 60335-2-15)
• staff kitchen areas in shops, offices and other working environments
  • by clients in hotels, motels and other residential-type environments
  • bed and breakfast-type environments
• Care should be taken when using the product due to the presence of steam.
• Injury can result from misuse of the product.
• The object is subject to residual heat after use.

- Contact with steam under pressure or heated element can result in severe burns.

• Do not use on heat- or water-sensitive materials. It is recommended to check the use and care instructions from the manufacturer.
• Never use the product and steam on people, animals or electrical appliances of any kind.
• Do not leave the product unattended when in contact with an electrical appliance that is connected to the mains supply or while still hot.
• This product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

safe use of the product and understand the hazards.

CAUTION: Children should be supervised to ensure they do not play

with the appliance.

• Keep the product out of reach of children when it is connected to a live appliance or cooling down.
• Cleaning and user maintenance should not be carried out by children without supervision.
• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.
• Never use the product to disinfect items containing hazardous substances (e.g. asbestos).
• The product must be placed on a stable surface.
• The electrical appliance used with the product has to be unplugged after use and before carrying out user maintenance on the product.
• The product is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Do not try to repair the product by yourself. Contact an authorized Laurastar Customer Service representative for information on repair.

Please do not dispose with household refuse.

ENVIRONMENTAL INFORMATION AND WASTE DISPOSAL MEASURES

Keep the original box in which your product was packed in a safe place for future use (transport, servicing, etc.). DO NOT dispose of the used product with normal household waste! Ask your municipal or local authorities about appropriate environmentally friendly disposal facilities.

WARNINGS

Steam. Risk of scalding or melting.

Do not direct the steam towards people or animals.

STORE THESE INSTRUCTIONS CAREFULLY

LAURASTAR'S HYGIENIC DRY MICROFINE STEAM (DMS)

With over 40 years of expertise in high-quality steaming systems, Laurastar has developed the unique and natural Dry Microfine Steam (DMS) with the power to disinfect materials.

Simple line drawing of a stopwatch and a cracked-out gear (no text or symbols)

Laurastar hygienic steam is so powerful that less than 20 seconds are needed to disinfect your material.

According to tests carried out by independent scientific laboratories with the ISO 17025 standard, IGGI and the Box kills the following without any chemical products:

Bacteria Dust mites C. Albicans Viruses
>99.99999% 100% >99.999% >99.99%
15 sec. 15 sec. 15 sec. 20 sec.

Laurastar DMS is a natural steam ensuring complete and even disinfection without using any chemical substances.

To ensure objective information and scientific rigour, our devices and the scientific tests they undergo, are all controlled by a scientific committee. For more information please refer to our website www.laurastar.com under the Lab-L section.

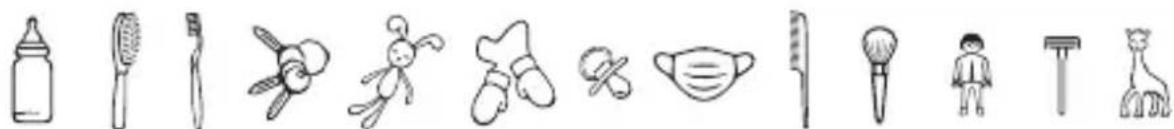

What can be treated with the Steam Sterilising Box?

TIP: Make sure your item(s) and hands are washed and clean.

PLEASE NOTE: Multiple items can be placed inside the Box at the same time.

Here is a non-exhaustive list of suggested items that IGGI and the Box can — and cannot — disinfect:

	Electronic devices or chargersBattery-powered devicesHeat- or water-sensitive items (PET)Animals, plants or living organismsMechanical watchesFragile stones / surfaces
	Keys, masks, pens, dummies, bottles, bottle teats,teething rings, comforters, toys, food jars, breastfeedingequipment, measuring cups, bibs, toothbrushes,hairbrushes, nail brushes, make-up accessories,reusable make-up remover pads, razors, shower heads,scissors, pipettes, gloves.

Illustration of various hair and makeup items including a bottle, brush, flower, rabbit, mask, brush, person, trowel, and cat (no text or symbols)

DISINFECTION WITH THE BOX

• Put the Box and IGGI on a flat, stable, heat-resistant surface (A).
• Fill IGGI with distilled or demineralised water only and switch it on (B).

NOTE: The Steam Sterilising Box has been designed for use with distilled or demineralised water.

• Open the Box and place the grid (9) properly in the compartment (1) (C).
• Place the items to be disinfected into the compartment (1) (D).
• Carefully close the cover (6) of the Box by placing the strap (2) on the extraction hole (7) (E). Unlock IGGI's spray nozzle (F).

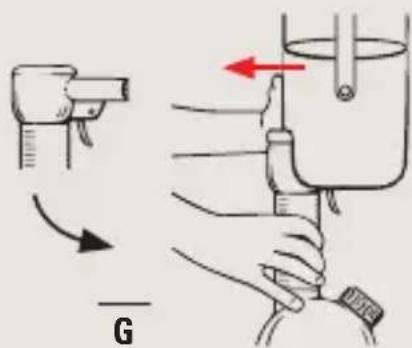

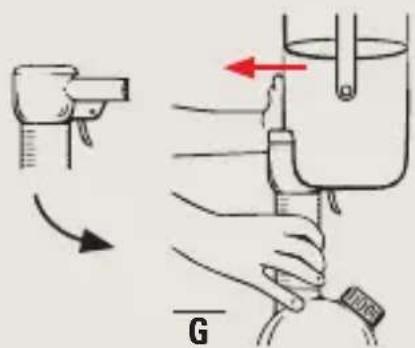

• Insert its nozzle into the pairing socket (5) of the Box (G).

IGGI the Box

A

DISTILLED WATER

B

Diagram illustrating a cooking process with labeled steps: adding liquid, adding meat, and adding a pot.

C

Illustration of a cooking step showing a hand pouring liquid into a bottle and a pot (no text or symbols)

D

Simple line drawing of a hand pouring liquid into a container with a stirring rod (no text or symbols)

E

Simple line drawing of a mechanical device with no text or symbols

F

NOTE: Never use additives (e.g. scented water), water containing chemicals or water collected from the tumble dryer, as these products will interfere with the proper functioning of your IGGI.

G

DANGER! KEEP OUT OF THE REACH OF CHILDREN. DO NOT DRINK the water after it has been inside IGGI.

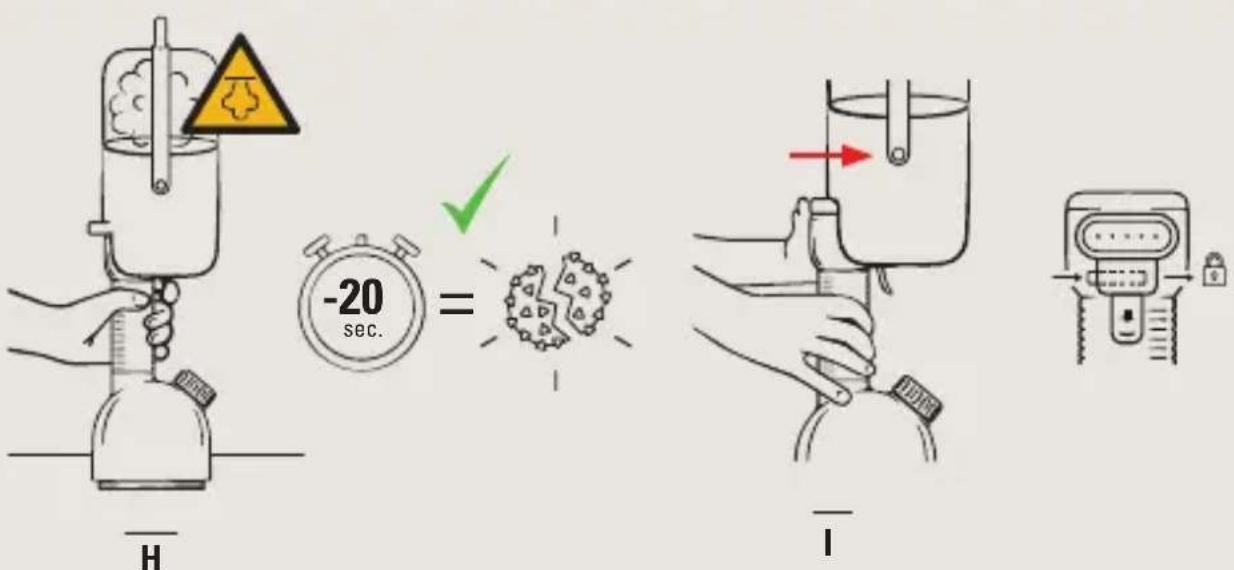

• Once the Box and IGGI have been paired, press the steam button on IGGI to activate the steam. Activate the steam continuously for 20 seconds (H).
• Remove the Box by pressing the grip (4). Lock the spray nozzle to avoid an unwanted burst of steam (I).

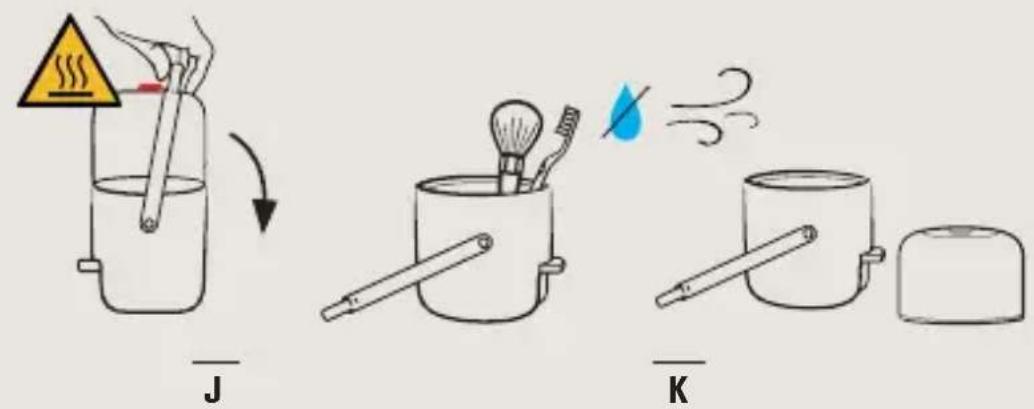

• Remove the strap (2) by lifting the handling ring (3) (J).
• Take off the cover (6) using the Box's grip (4). Leave items in the Box to dry naturally in a clean area (K).

-20 sec. H I

J K

CAUTION: Items can be hot.

PLEASE NOTE: ALWAYS remove the Box from IGGI after use. Eventual residual odours do not mean that the DMS hygienic steam has not succeeded in disinfecting.

MAINTENANCE

WARNING: Before any maintenance, UNPLUG IGGI, SWITCH IT OFF and LEAVE IT TO COOL DOWN for at least 30 minutes.

• After use, allow to air dry to avoid the proliferation of new bacterial germs.
- Store the Box in a dry, dust-free place, preferably away from light.

PLEASE NOTE: The Box has been designed using components selected for their robustness and intrinsic quality. The colour of some plastic parts may change over time without affecting the quality of disinfection.

PLEASE NOTE: Refer to IGGI's user manual for IGGI's maintenance.

TECHNICAL INFORMATION

Weight	454gr
Dimensions	134x136x257mm

PROBLEMS & SOLUTIONS

Before calling Laurastar's Customer Service, please check the following points:

Symptom Probable cause Solution

My product has developed limescale and/or is spitting out limescale particles.	The water being used is unsuitable.	Only use distilled or demineralised water not softened or tap water.
The sides are becoming dirty.	These are condensation marks that appear during use.	Wipe the inside of The Box with a clean soft cloth after each use.
Pairing with IGGI can be difficult.		Apply the required pressure when inserting the IGGI nozzle.
Steam escapes when IGGI is activated.	The handle is not closed properly.	Lift the handle to the top.

CUSTOMER SERVICE

Contact Laurastar

On our website: https://www.laurastar.com/contactus/

Referral to Customer Services

Take your purchase contract, invoice or receipt with you. Call Customer Service and follow the instructions provided.

IMPORTANT: Before any contact with Customer Service, please refer to the problems and solutions chapter.

Simple line drawing of a stopwatch and a cracked crack, no text or symbols present

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, mask, brush, person, and cat (no text or symbols)

LA DÉSINFECTION AVEC THE BOX

IGGI the Box

A

EAU DISTILLÉE

B

Diagram illustrating a cooking process with labeled steps: pouring liquid, adding sauce, and adding food into a pot.

C

Illustration of a cooking step showing a hand pouring liquid into a bottle and a pot (no text or symbols)

D

Simple line drawing of a hand holding a test tube over a container with an arrow indicating rotation (no text or symbols)

E

Diagram showing a device with a lock and labeled component 'F', likely illustrating a mechanical or electrical system.

G

Simple line drawing of a stopwatch and a broken gear (no text or symbols)

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, face mask, brush, person, brush, and cat (no text or symbols)

DESINFIZIEREN MIT THE BOX

IGGI The Box

A

DESTILLIERTES WASSER

B

Diagram illustrating a cooking process with labeled steps: adding liquid, adding meat, and adding a pot.

C

Illustration of a hand pouring liquid from a bottle into a cooking pot (no text or symbols)

D

Simple line drawing of a hand holding a tool over a container with a red mark, showing motion (no text or symbols)

E

Simple line drawing of a mechanical device with no text or symbols

F

15 sec. 15 sec. 15 sec. 20 sec.

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, face mask, brush, person, and comb (no text or symbols)

ONTSMETTING MET THE BOX

IGGI The Box

A

GEDISTILLEER WATER

B

Simple line drawing of an electrical outlet with a green checkmark indicating selection (no text or symbols)

Diagram illustrating a cooking process with labeled steps: pouring liquid, adding sauce, and adding a lid.

C

Illustration of a cooking step showing hand pouring liquid into a jar with a tool, next to a lid (no text or symbols)

D

Simple line drawing of a hand holding a test tube over a container with an arrow indicating rotation (no text or symbols)

E

Simple line drawing of a hand holding a padlock and lock, with no text or symbols present.

F

G

Simple line drawing of a stopwatch and a cracked-out gear (no text or symbols)

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, mask, brush, person, and tool (no text or symbols)

DISINFETTARE CON THE BOX

IGGI The Box

A

ACQUA DISTILLATA

B

Diagram illustrating a cooking process with labeled steps: pouring liquid into a jar, adding sauce, and adding a lid to a container.

C

Illustration of a hand pouring liquid from a bottle into a cooking pot (no text or symbols)

D

Simple line drawing of a hand holding a thermometer inside a container with an arrow indicating rotation (no text or symbols)

E

Simple line drawing of a mechanical device with a lock and directional arrows (no text or symbols)

F

-20 sec. H I

J K

Simple line drawing of a stopwatch above a cracked circular object with triangular patterns (no text or symbols)

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, face mask, brush, person, brush, and cat (no text or symbols)

IGGI The Box

A

AGUA DESTILADA

B

Diagram illustrating a cooking process with labeled steps: pouring liquid, adding sauce, and adding food into a pot.

C

Illustration of a cooking step showing a hand pouring liquid into a bottle and a pot (no text or symbols)

D

Simple line drawing of a hand holding a test tube over a container with an arrow indicating rotation (no text or symbols)

E

Diagram showing a device with a lock and labeled component 'F', likely illustrating a mechanical or electrical system.

G

Simple line drawing of a stopwatch above a cracked circular shape with triangular patterns (no text or symbols)

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, mask, brush, person, and stool (no text or symbols)

IGGI the Box

A

ÁGUA DESTILADA

B

Diagram illustrating a cooking process with labeled steps: adding liquid, adding meat, and adding a pot.

C

Illustration of a hand pouring liquid from a bottle into a pot and a lid (no text or symbols)

D

Simple line drawing of a hand holding a tool over a container with a red arrow indicating rotation (no text or symbols)

E

Simple line drawing of a mechanical device with no text or symbols

F

PROBLEMAS E SOLUÇÕES

No nosso website: https://www.laurastar.com/contactus/

Simple line drawing of a stopwatch above a cracked circular object with triangular patterns (no text or symbols)

Illustration of various household cleaning and hair tools including a bottle, brush, flower, mask, brush, person, and hairbrush (no text or symbols)

DEZYNFEKCJA Z THE BOX

IGGI The Box

A

WODA DESTYLOWANA

B

Simple line drawing of a plug inserted into a socket with a green checkmark indicating selection (no text or symbols)

Diagram illustrating a cooking process with labeled steps: pouring liquid, adding sauce, and adding food into a container.

C

Illustration of a cooking step showing a hand pouring liquid into a bottle and a pot (no text or symbols)

D

Simple line drawing of a hand holding a test tube over a container with an arrow indicating rotation (no text or symbols)

E

Diagram showing a device with a lock and labeled component 'F', likely illustrating a mechanical or electrical system.

G

PROBLEMY I ROZWIAZANIA

Simple line drawing of a stopwatch above a cracked circular object with triangular patterns (no text or symbols)

Illustration of various hair and makeup items including a bottle, brush, flower, bird, mask, brush, person, brush, and cat (no text or symbols)

THE BOX İLE DEZENFEKSİYON

IGGI The Box

A

SAF SU

B

Diagram illustrating a cooking process with labeled steps: pouring liquid into a jar, adding sauce, and adding a lid to a container.

C

Illustration of a hand pouring liquid from a bottle into a cooking pot (no text or symbols)

D

Simple line drawing of a hand holding a thermometer inside a container with an arrow indicating rotation (no text or symbols)

E

Simple line drawing of a mechanical device with a lock and directional arrows (no text or symbols)

F

-20 S.E.C. H I

J K

Illustration of various household and personal care items including a bottle, brush, flower, apple, mask, brush, person, stool, and cat (no text or symbols)

Simple line drawing of a stopwatch above a cracked circular object with triangular patterns (no text or symbols)

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, mask, brush, person, and cat (no text or symbols)

使用THE BOX消毒

IGGI The Box

A

蒸餾水

B

Diagram illustrating a cooking process with labeled steps: adding liquid, adding meat, and adding a pot.

C

Illustration of a hand pouring liquid from a bottle into a pot with a tool, no text or symbols present

D

Simple line drawing of a hand holding a tool over a container with a red mark, showing motion (no text or symbols)

E

Simple line drawing of a mechanical device with a lock and internal components (no text or symbols)

F

G

Diagram showing a hand holding a thermometer in a beaker with a warning sign and arrow indicating cooling or heating process.

J

Line drawing of a brush holder with a toothbrush and brush (no text or symbols)

Simple line drawing of a cooking pot with a handle and lid, accompanied by a blue droplet symbol (no text or labels)

K

警告：物品可能會燙手。

Image showing four symbolic icons representing food waste, including a drink stop, trash bin, and trash bin with no text or labels.

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, mask, brush, person, and cat (no text or symbols)

使用THE BOX进行消毒

IGGI The Box

A

蒸馏水

B

Diagram illustrating a cooking process with labeled steps: pouring liquid, adding sauce, and adding a lid.

C

Illustration of a cooking step showing a hand pouring liquid from a bottle onto a pot with a tool (no text or symbols)

D

Simple line drawing of a hand stirring a test tube in a container with an arrow indicating rotation (no text or symbols)

E

Diagram showing a device with a lock and labeled component 'F', likely illustrating a mechanical or electrical system.

Diagram illustrating a hand holding a tool with directional arrows indicating movement, labeled 'G' at the bottom.

-20 SCLC. H I

J K

警告：物品可能温度很高。

Simple line drawing of a stopwatch and a cracked circular object with arrows indicating motion (no text or symbols)

Illustration of various hair and makeup tools including a bottle, brush, flower, bird, mask, brush, person, and cat (no text or symbols)

THE BOX로 소독하기

IGGI The Box

A

증류수

B

Diagram illustrating a cooking process with labeled steps: adding a straw, adding a lid, and adding a pot.

C

Illustration of a hand pouring liquid from a bottle into a cooking pot (no text or symbols)

D

Simple line drawing of a hand holding a tool over a container with a red arrow indicating rotation (no text or symbols)

E

Simple line drawing of a mechanical device with no text or symbols

F

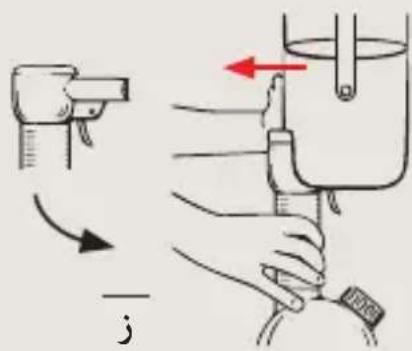

Illustration of a hand holding a tool with a red arrow pointing to a container (no text or symbols)

乙

-20 =

ی

Simple line drawing of a brush and spatula in a pot with a light bulb, no text or symbols present

Simple line drawing of a cooking pot and lid with a handle, accompanied by a droplet and a partial water symbol (no text or labels)

Diagram illustrating a cooking process with labeled steps: pouring liquid, adding a spoon, adding a cloth, and adding a pot.

c

ماه مقطر

IGGI
The Box

Simple line drawing of two laboratory apparatuses: a gas collection device and a beaker (no text or symbols)

j

Simple line drawing of a mechanical device with a lock and valve (no text or symbols)

9

Simple line drawing of a hand pouring liquid into a container with a stirring rod (no text or symbols)

[NO TEXT]

Illustration of a hand pouring liquid into a container with a lid nearby (no text or symbols)

5

Diagram illustrating a hand holding a tool with an arrow indicating motion, labeled with Chinese character 'z' and directional arrows.

Line drawings of various household and personal objects including a bottle, brush, flower, mask, and person (no text or symbols)

DRY MICROFINE STEAM بخار
