USER MANUAL traveller 5 Phil & Teds

travellerTM 2021+ instructions

for detailed instructions please visit: philandteds.com/instructions

care information

If your product is damaged in any way, or you're not sure how to use it, please consult our support team (philandteds.com/support).

• Fabrics can be sponge cleaned with warm water, using a mild natural soap. Do not use detergents or bleach.
• Dry your traveller™ thoroughly before storing.
• Remove dry dirt with a soft brush.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.

warranty

• Our products have a one year warranty from date of purchase against defects in material and workmanship.*
• When you register your product online within 30 days of purchase, you are eligible for a 2 year warranty free of charge.
• Once registered, you can further extend the warranty to 3 years by purchasing the extended warranty option within 30 days of purchase.

Please register your product purchase online now

philandteds.com/register

*You may be entitled to other terms and rights in some countries.

READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF PRODUCT. KEEP INSTRUCTIONS FOR FUTURE USE.

LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS AVANT L'ASSEMBLAGE ET L'UTILISATION DU PRODUIT. CONSERVER LES INSTRUCTIONS POUR UNE UTILISATION ULTÉRIEURE.

01 1x carry bag
02 1x cot fabric
03 1x bassinet fabric
04 1 x sheet for mattresses
05 2x mattresses (packed together)

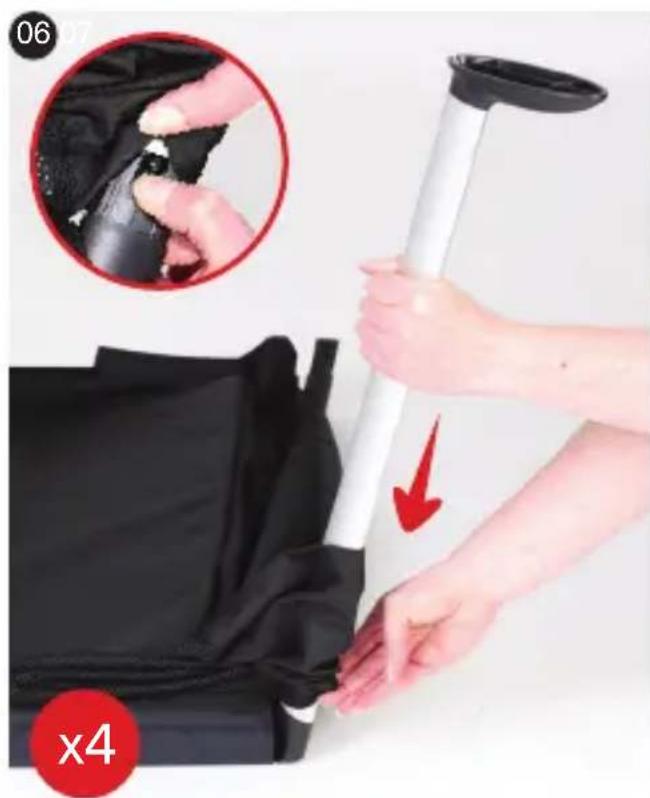

06 4x side tubes
07 4x legs
08 2 x bed attachment straps with corner covers attached
09 2x end tubes

04
05

parts:

1 x bassinet fabric
2 x bed attachment straps with corner covers attached

1 x mattress
1 x sheet for mattress
4 x legs
2 x end tubes
4 x side tubes

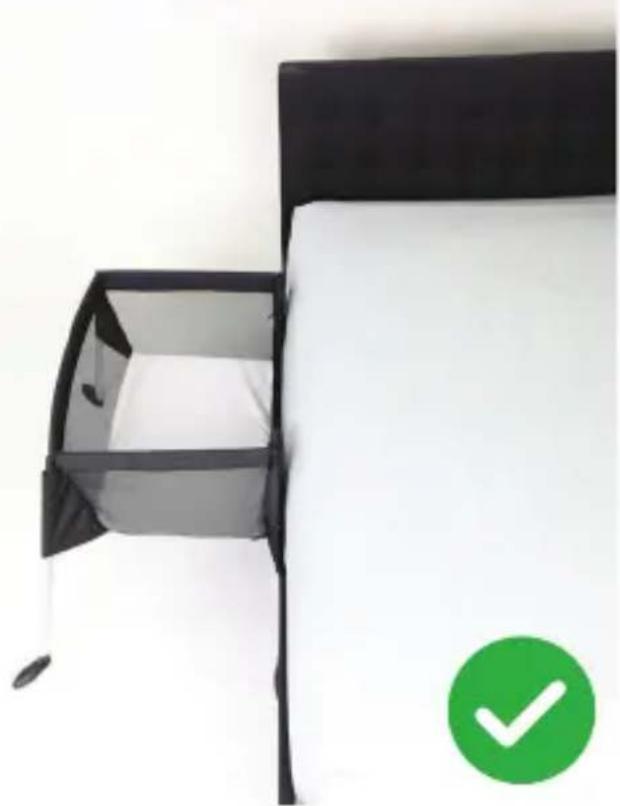

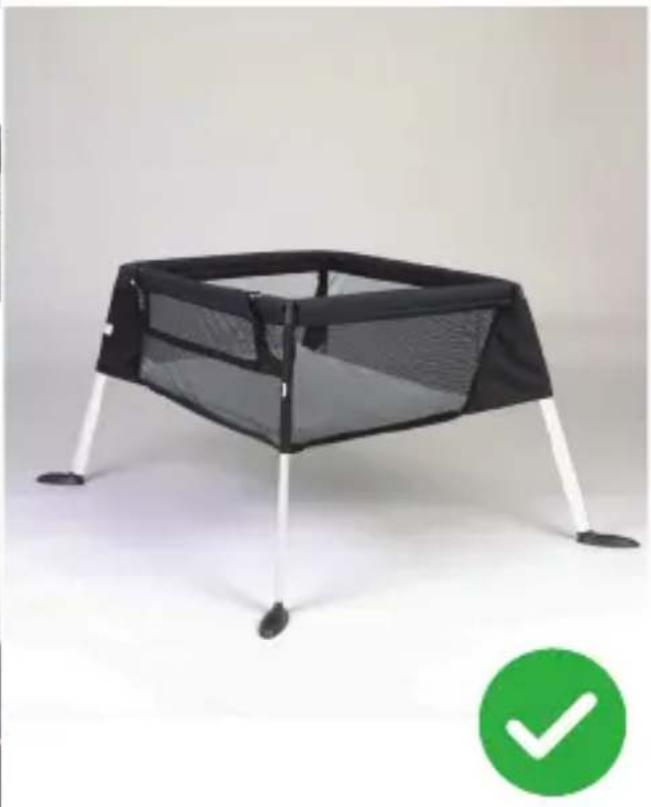

ACCEPTABLE BED FRAME IN-LINE

Mattress, Boxsprings & Frame aligned

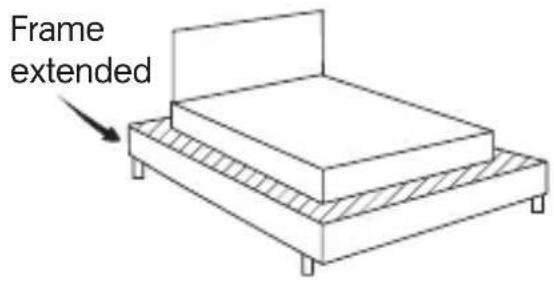

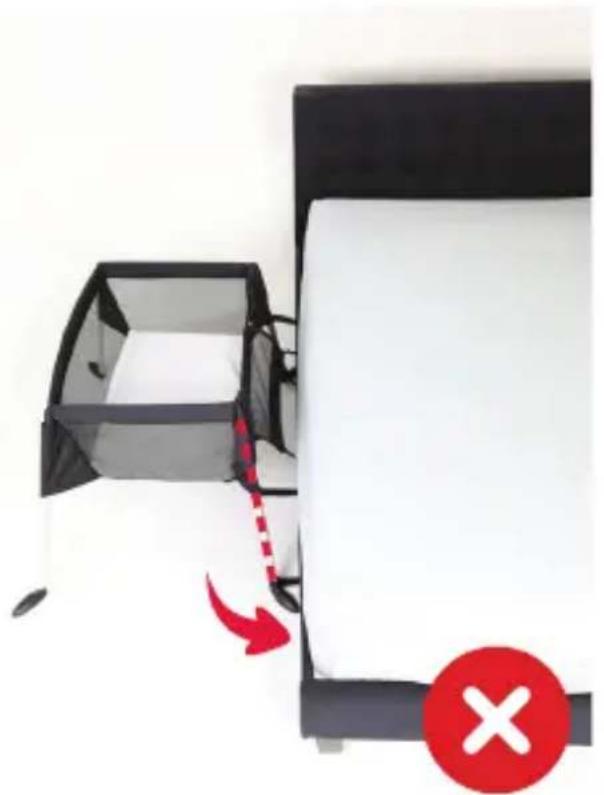

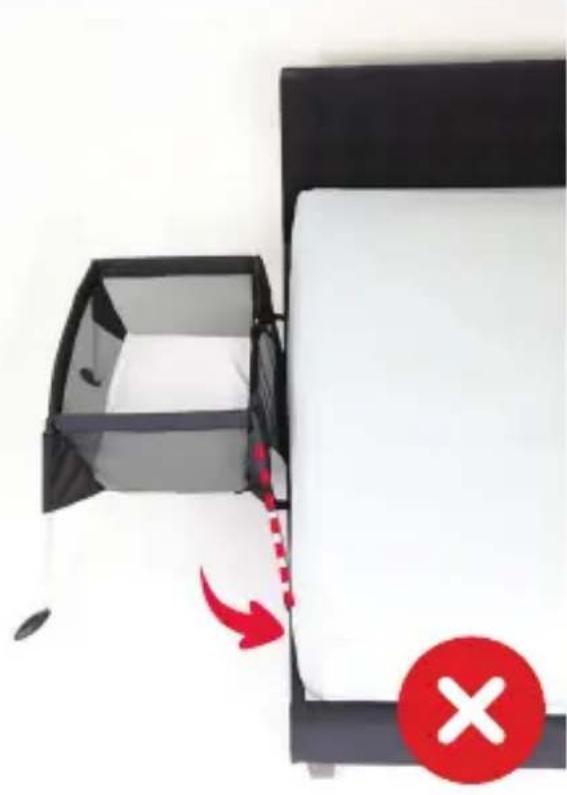

UNACCEPTABLE BED, MATTRESS, BOXSPRING & FRAME NOT IN-LINE

01

unzip to open side panel

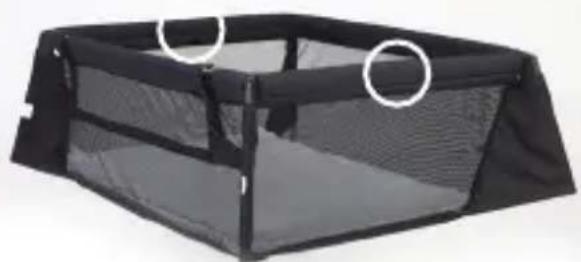

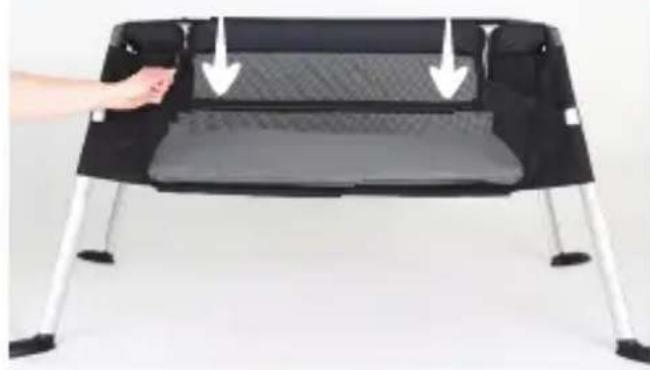

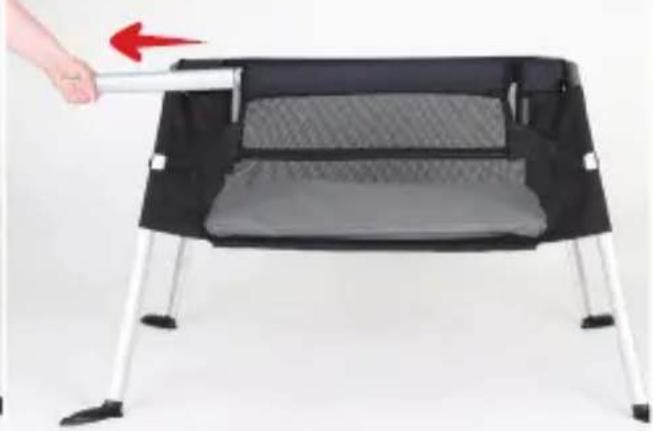

remove top rail to drop down flap

03

4 store top rail in pocket under base

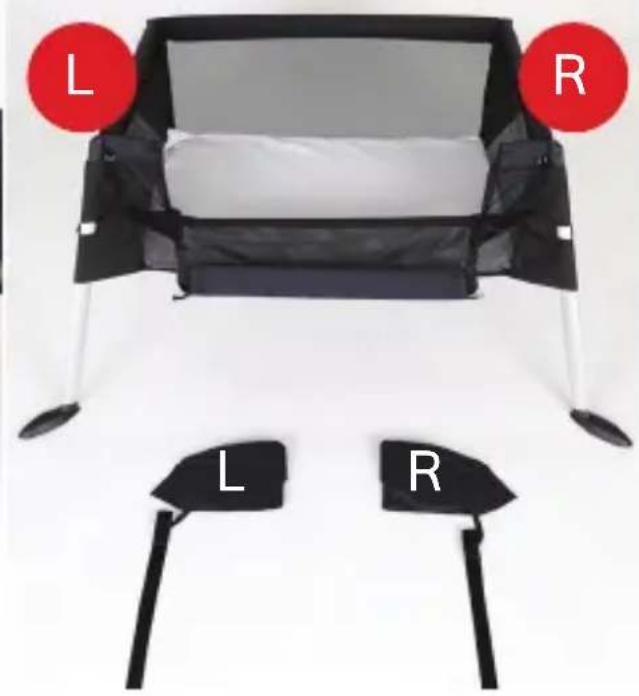

match L / R attachment strap corner covers with L / R corners

05

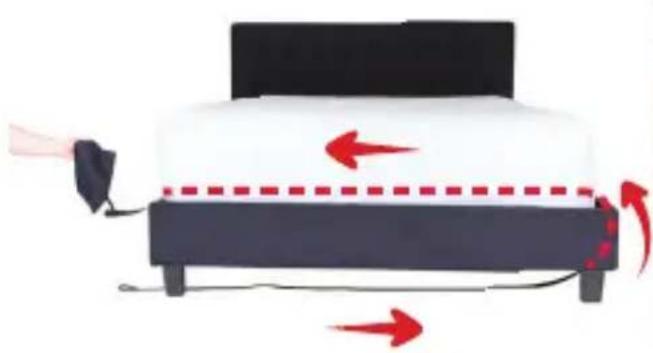

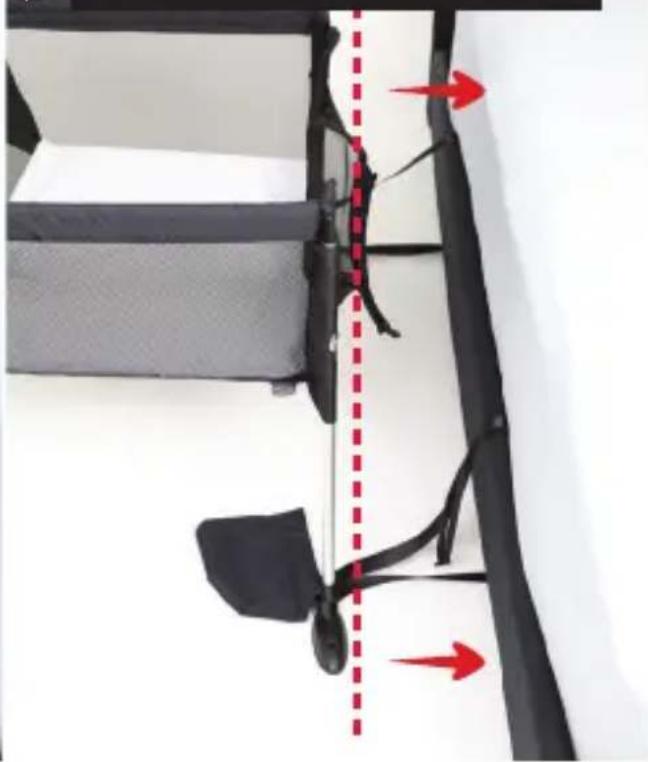

feed attachment straps under bed and between bed base and mattress

x2

07

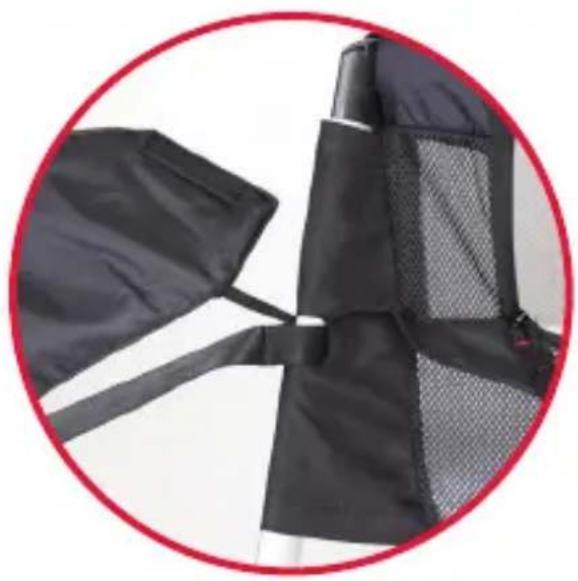

8 slide attachment strap loops onto legs

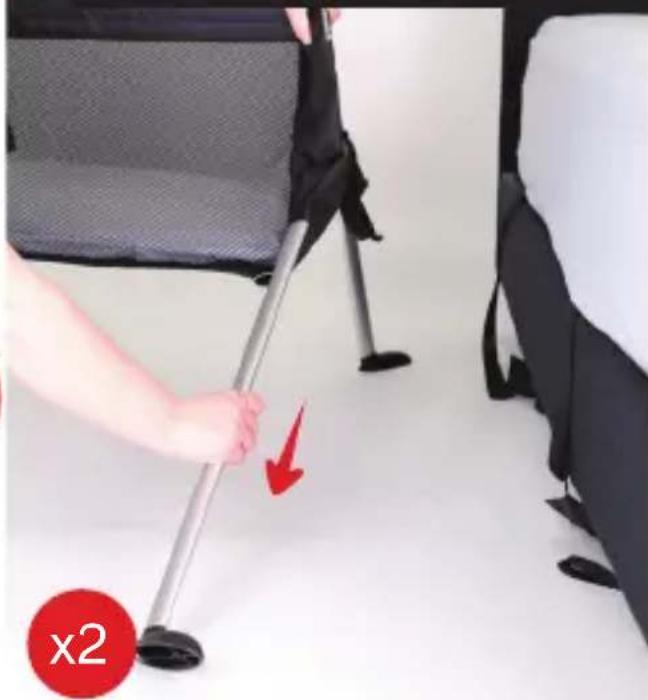

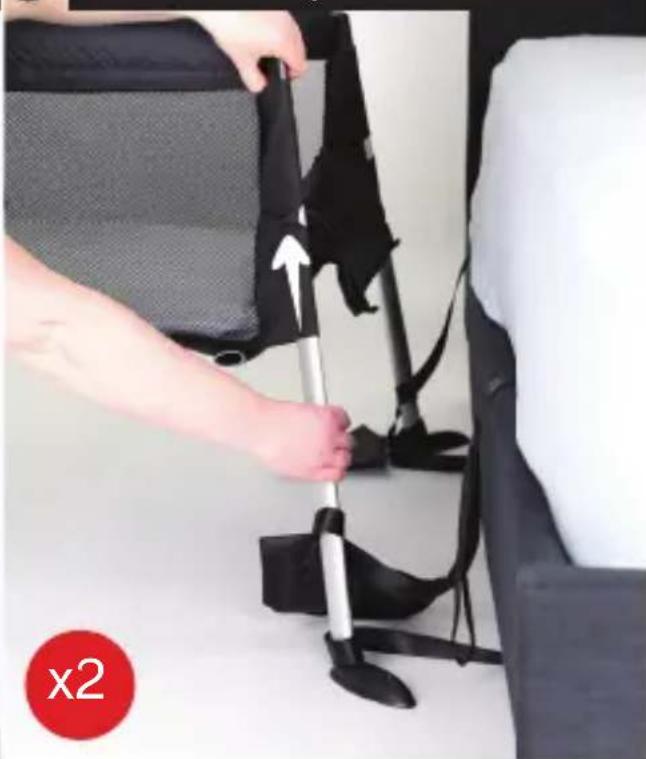

place open side facing bed. Remove both legs nearest bed

D

reattach both legs

alternative top strap attachment location for taller beds

09

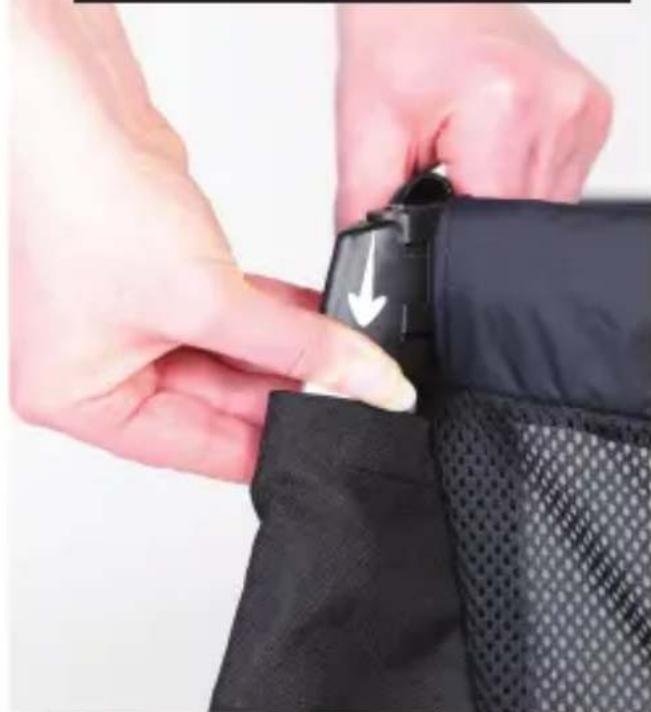

unlock hinged corner by pushing down

10

rotate both hinged corners legs shoul

pa parallel to bed

12 3

use buckle to pull both attachment straps tight

attach flap corners to thinner toggle straps to secure flap to attachment straps

14

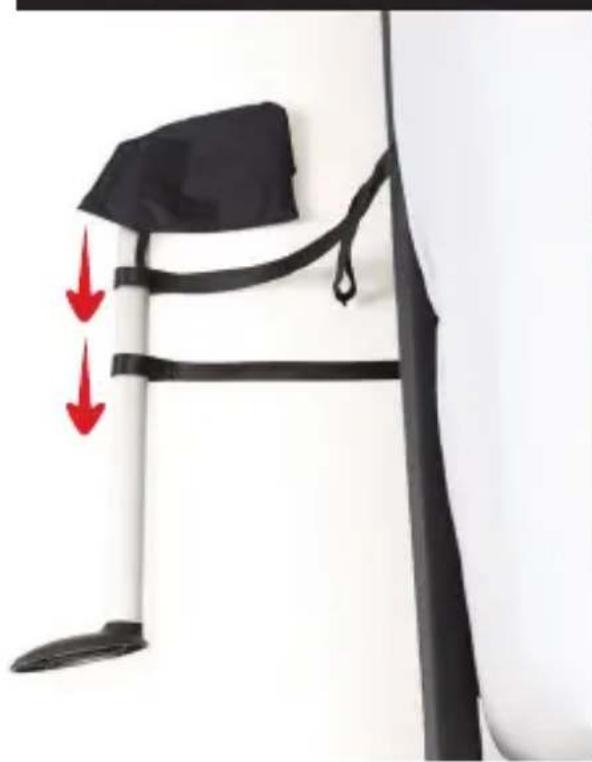

install L / R corner covers over top of legs and secure with velcro

WARNING - The attachment system must always be used in co-sleeper mode.

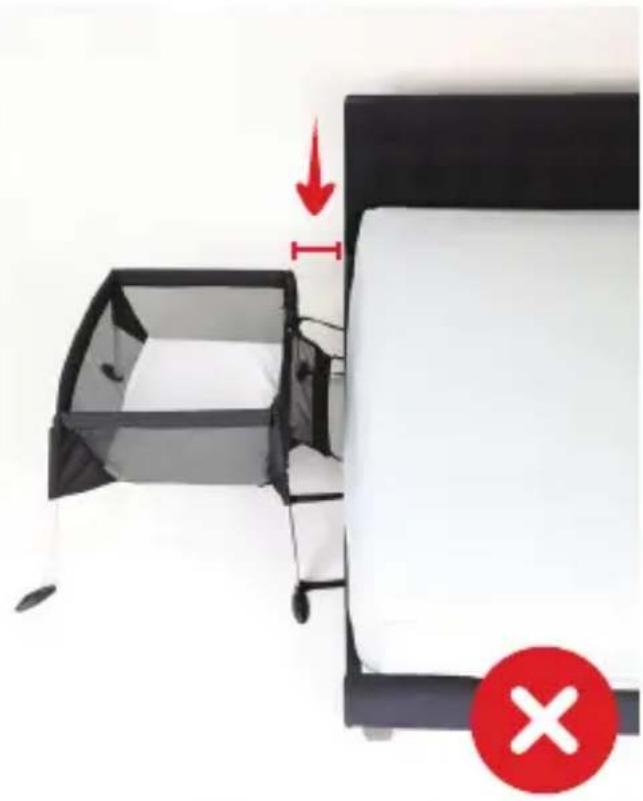

WARNING - If there is any gap between the co-sleeper and the adult bed, DO NOT use product.

European safety standard states:

IMPORTANT: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

AS A BASSINET / CO-SLEEPER:

• Do not use this product without reading the instructions for use first. Stop using the product as soon as the child can sit or kneel or pull itself up. Placing additional items in the product may cause suffocation. Do not use more than one mattress in the product. Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc. Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. in the vicinity of the bassinet. The bassinet should be placed on a horizontal floor. DO NOT use the bassinet if any part is missing, damaged or broken. Contact phil&teds for replacement parts, and instructional literature if needed. DO NOT substitute parts. Before using the bassinet, ensure all locking mechanisms are engaged. Check carefully that they are all fully engaged before use and if you leave the child unsupervised in it. Young children should not be allowed to play unsupervised in the vicinity of the bassinet. Ensure that all components of the frame are regularly checked for a

secure and tight fit, as a child could trap parts of the body or clothing (eg. strings, necklaces, ribbons for babies’ dummies etc) on loose parts, which would pose a risk of strangulation.

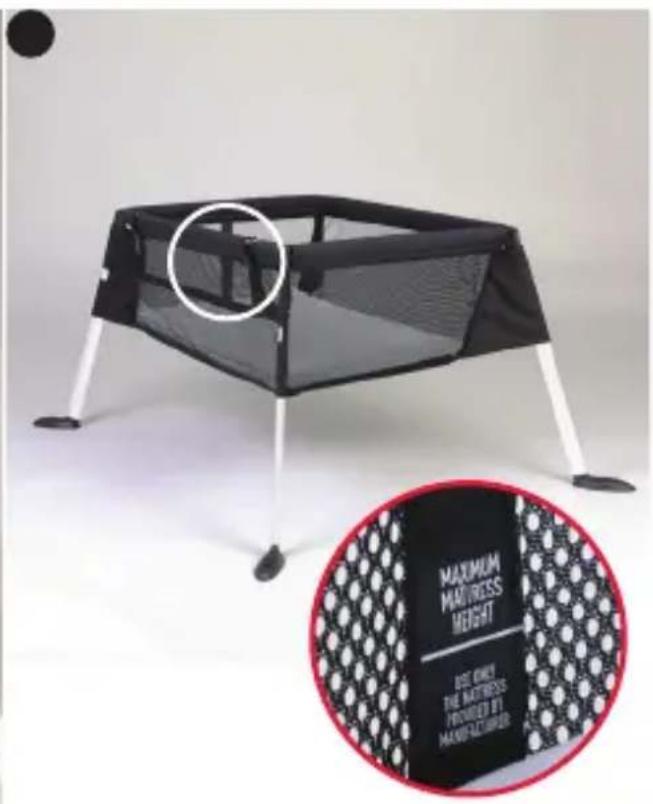

• It is recommended that the mattress supplied by the manufacturer is used. The maximum thickness (25mm) of the mattress shall be such that the internal height (surface of the mattress to the upper edge of the bassinet frame) is at least 200mm. The size (700mm x 450mm) of the mattress shall be such that there is no gap greater than 30mm between the mattress and the sides and ends of the bassinet. • Only use the bassinet with all sides raised.

AS A CO-SLEEPER:

• WARNING – To avoid hazards from the child's neck being caught on the top rail on the side that is next to the adult bed, the top rail must not be higher than the adult bed mattress.

• WARNING – To avoid the risk of your child being strangled, the attachment system to the adult's bed shall always be kept away from and out of the bassinet. • DO NOT use co-sleeper if any parts are missing, damaged, or broken. Contact phil&teds® for replacement parts and instructional literature if needed. DO NOT substitute parts. • This co-sleeper is designed for use only with adult beds that are between 47 and 76 cm from floor to top of adult mattress. • The co-sleeper is only suitable for adult beds where the mattress

and frame are aligned. • Use the attachment system provided and do not use any other attachment system. • Co-sleepers shall never be used in an inclined position. • To prevent a suffocation hazard from entrapment, the co-sleeper shall be properly secured to the adult bed using the attachment system. • There shall never be a gap between the lower side of the co-sleeper and the mattress of the adult bed. • Check the tightness of the attachment system before each use by pulling the co-sleeper in a direction away from the adult bed. • If there is any gap between the co-sleeper and the adult bed DO NOT use product. • Gaps should not be filled with pillows, blankets or other items. • DANGER! – Always completely raise all sides and ensure all top rails are installed when not attached to the adult's bed.

AS A COT:

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot. Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer. Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind / curtain cords, etc. Do not use more than one mattress in the cot. Before using the traveller,

ensure all locking mechanisms are engaged. Check carefully that they are all fully engaged before use. • If you leave the child unattended in the traveller, always make sure the side access panels are zipped closed. • Ensure that all components of the frame are regularly checked for a secure and tight fit. • To prevent injury from falls, when the child is able to climb out of the cot, the cot shall no longer be used for that child. • It is recommended that the mattress supplied by the manufacturer is used. The thickness (25mm maximum) of the mattress shall be such that the internal height (surface of the mattress to the upper edge of the cot frame) is at least 500mm. The size (900mm x 700mm) of the mattress shall be such that there is no gap greater than 30mm between the mattress and the sides and ends of the cot.

WARNING

American safety standard states:

Read all instructions before assembling and using the product. Keep instructions for future use.

AS A BASSINET / CO-SLEEPER:

• SUFFOCATION HAZARD infants have suffocated: - In gaps

between extra padding and sides of the product, and • On soft bedding. • Use ONLY mattress / pad provided by manufacturer. • If a sheet is used with the mattress / pad, use only the one provided by the manufacturer or one specifically designed to fit the dimensions of the mattress. • NEVER add a mattress, pillow, comforter or padding. • Failure to follow these warnings and the instructions could result in serious injury or death. • The product, including side rails, must be fully erected prior to use. • Strings can cause strangulation! Never place items with a string around a child's neck such as hood strings or pacifier cords. Never suspend strings over product or attach strings to toys. • NEVER place product near a window where cords from blinds or drapes can strangle a child. • Always provide the supervision necessary for the continued safety of your child. • FALL HAZARD – To help prevent falls, do not use this product when the infant begins to push up on their hands and knees or has reached 20lbs, whichever comes first. • To reduce the risk of SIDS, paediatricians recommend healthy infants be placed on their back to sleep, unless otherwise advised by your physician. • Only use the covers supplied by manufacturer. • NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh / fabric. Check before assembly and periodically during use. Contact your retailer for replacement parts. Never substitute parts. • Only use the bassinet with all sides raised.

AS A CO-SLEEPER:

WARNING- Always read and follow assembly instructions for each product use mode (co-sleeper, bassinet and cot).

WARNING - Assemble product according to manufacturer's instructions for ANY use mode - co-sleeper as well as the bassinet, cot or play yard modes.

WARNING—DONOT use co-sleeperifanyparts are missing, damaged or broken. Contact phil&teds for replacement parts and instructional literature if needed. DO NOT substitute parts.

WARNING - This co-sleeper is designed for use only with adult beds that are between 18.5 and 30 inches from floor to top of adult mattress.

WARNING – A co-sleeper is designed to provide a sleeping area for an infant until he or she begins to push up on hands and knees or approximately 5 months of age. Move your child to another sleeping product when your child reaches this stage.

WARNING - Entrapment Hazard - To prevent death from entrapment, co-sleeper must be properly secured to adult bed using the attachment system. • There must be no more than 1/2 in. gap between co-sleeper and adult bed.

• Check tightness before each use by pulling co-sleeper in a direction away from adult bed. • If gap exceeds 1 / 2 in., DO NOT use product. Do not fill the gap with pillows, blankets or other items that are suffocation hazards.

WARNING - Always use ALL required parts for each use mode. Check instruction manual for a list of required parts.

Periodically check product for loose, damaged or missing parts.

WARNING - The attachment system must always be used in co-sleeper mode.

WARNING - To avoid death from the infant's neck being caught on the top rail on the side that is next to the adult bed, the top rail must be no higher than the adult bed mattress.

ASACOT:

• NEVER LEAVE AN INFANT IN THE PRODUCT WITH THE SIDES DOWN. Infant may roll into space between pad and loose mesh side causing suffocation. · Infants can suffocate: - In gaps between a mattress too small or too thick and product sides. • On soft bedding. • NEVER add a mattress, pillow, comforter or padding. • NEVER use a water mattress with this product. • Failure to follow these warnings and the instructions could result in serious injury or death. • The product, including side rails, must be fully erected prior to use.

• Top support member must be installed prior to use. Failure to install may result in child falling out of product. • Strings can cause strangulation! Never place items with a string around a child's neck such as hood strings or pacifier cords. Never suspend strings over product or attach strings to toys.

• When the child is able to pull to standing position, remove bumper pads, large toys, and other objects that could serve as steps for climbing out. - Discontinue use of the product when child is able to climb out or reaches the height of 35" (890mm).

• NEVER place product near a window where cords from blinds or drapes can strangle a child. • Use ONLY mattress provided by manufacturer. • Always provide the supervision necessary for the continued safety of your child. When used for playing, never leave child unattended. • To reduce the risk of SIDS, paediatricians recommend healthy infants be placed on their back to sleep, unless otherwise advised by your physician.

• Only use the covers supplied by manufacturer.

• NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact phil&teds for replacement parts. Never substitute parts.

• NEVER leave child in product with side lowered. – always ensure the side access panels are zipped closed whenever child is in product.

• NEVER use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation. - Child can become entrapped and die when improvised netting or covers are placed on top of product. Never add such items to confine child in product.

WARNING

Australia / New Zealand:

ASABASSINET:

To avoid injury or death:

• SUFFOCATION HAZARD infants have suffocated: • In gaps between extra padding and sides of the product, and • On soft bedding. • Use ONLY mattress / pad provided by manufacturer.

• If a sheet is used with the mattress / pad, use only the one provided by the manufacturer or one specifically designed to fit the dimensions of the mattress.

• NEVER add a mattress, pillow, comforter or padding.

• Failure to follow these warnings and the instructions could result in serious injury or death.

The product, including side rails, must be fully erected prior to use. • Strings can cause strangulation! Never place items with a string around a child's neck such as hood strings or pacifier cords. Never suspend strings over product or attach strings to toys. • NEVER place product near a window where cords from blinds or drapes can strangle a child. • Always provide the supervision necessary for the continued safety of your child. • FALL HAZARD – To help prevent falls, do not use this product when the infant begins to push up on their hands and knees or has reached 20lbs, whichever comes first. • To reduce the risk of SIDS, paediatricians recommend healthy infants be placed on their back to sleep, unless

otherwise advised by your physician. • Only use the covers supplied by manufacturer. • NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh / fabric. Check before assembly and periodically during use. Contact your retailer for replacement parts. Never substitute parts. • Only use the bassinet with all sides raised.

AS A CO-SLEEPER:

WARNING- Always read and follow assembly instructions for each product use mode (co-sleeper, bassinet and cot).

WARNING - Assemble product according to manufacturer's instructions for ANY use mode - co-sleeper as well as the bassinet, cot or play yard modes.

WARNING—DONOT use co-sleeperif any parts are missing, damaged or broken. Contact phil&teds for replacement parts and instructional literature if needed. DO NOT substitute parts.

WARNING - This co-sleeper is designed for use only with adult beds that are between 47 and 76cm from floor to top of adult mattress.

WARNING – A co-sleeper is designed to provide a sleeping area for an infant until he or she begins to push up on hands and knees or approximately 5 months of age. Move your child to another sleeping product when your child reaches this stage.

WARNING - Entrapment Hazard - To prevent death from entrapment, co-sleeper must be properly secured to

adult bed using the attachment system. • There must be no more than 12mm gap between co-sleeper and adult bed. • Check tightness before each use by pulling co-sleeper in a direction away from adult bed. • If gap exceeds 12mm, DO NOT use product. Do not fill the gap with pillows, blankets or other items that are suffocation hazards.

WARNING - Always use ALL required parts for each use mode. Check instruction manual for a list of required parts. Periodically check product for loose, damaged or missing parts.

WARNING - The attachment system must always be used in co-sleeper mode.

WARNING - To avoid death from the infant's neck being caught on the top rail on the side that is next to the adult bed, the top rail must be no higher than the adult bed mattress.

ASACOT:

• MATTRESS SIZE This cot is made to use a mattress which is 900mm long by 700mm wide and not more than 25mm thick.
• Using the wrong size mattress may create hazardous gaps that could result in suffocation or could reduce the side height of the cot which may result in your child falling out of the cot.
• Do not leave anything in the cot (such as toys) that provide a foothold. - Do not use the cot near naked heat sources, bar heaters, open fires or exposed flames. - Keep the cot clear of trailing cables and hanging cords. - Keep medication, and

small items that a child could choke on away from the cot.

• The thickness of the mattress has been specified to ensure that the distance from the top of the mattress to the top of the lowest side or end will always be at least 500mm . This will reduce the risk of children falling out of the cot. • USE ONLY THE MATTRESS SUPPLIED BY THE MANUFACTURER, INCORRECT MATTRESSES CAN CAUSE DEATH. • Use only accessories as recommended by the manufacturer.
• Ensure the top rails and base are fully locked. • Do not use this cot if any part of the cot is broken torn or missing. • Keep children away while assembling / disassembling the cot.
• Discontinue use if the covering material of the padded rim has been bitten through.

WARNING

Canada:

AS A BASSINET:

• Do not use this bassinet if you cannot exactly follow the instructions that come with it. • Do not use this bassinet for a child who can push up onto their hands and knees or who has reached 9kg. • Do not place any cord, strap or similar item in or near this bassinet that could become wrapped around a child's neck. • Do not place this bassinet near a

window or a patio door where a child could reach the cord of a blind or curtain and be strangled. • Ensure that the sides of this bassinet are properly latched or locked in the appropriate position when a child is left unattended in it.

• Check this bassinet regularly before using it, and do not use it if any part is loose or missing or if there are any signs of damage. Do not substitute parts. Contact the manufacturer if replacement parts or additional instructions are needed.
• Use only the mattress supplied by the manufacturer with this bassinet. Do not add an additional mattress to this bassinet.
• Children can suffocate on soft bedding. Do not place pillows, comforters or soft mattresses in this bassinet. • Only use the bassinet with all sides raised.

AS A CO-SLEEPER:

WARNING- Always read and follow assembly instructions for each product use mode (co-sleeper, bassinet and cot).
WARNING - Assemble product according to manufacturer's instructions for ANY use mode - co-sleeper as well as the bassinet, cot or play yard modes.
WARNING—DONOT use co-sleeperif any parts are missing, damaged or broken. Contact phil&teds for replacement parts and instructional literature if needed. DO NOT substitute parts.
WARNING - This co-sleeper is designed for use only with adult beds that are between 47

and 76cm from floor to top of adult mattress.

WARNING – A co-sleeper is designed to provide a sleeping area for an infant until he or she begins to push up on hands and knees or approximately 5 months of age. Move your child to another sleeping product when your child reaches this stage.

WARNING - Entrapment Hazard - To prevent death from entrapment, co-sleeper must be properly secured to adult bed using the attachment system. • There must be no more than 12mm gap between co-sleeper and adult bed. • Check tightness before each use by pulling co-sleeper in a direction away from adult bed. • If gap exceeds 12mm, DO NOT use product. Do not fill the gap with pillows, blankets or other items that are suffocation hazards.

WARNING - Always use ALL required parts for each use mode. Check instruction manual for a list of required parts. Periodically check product for loose, damaged or missing parts.

WARNING - The attachment system must always be used in co-sleeper mode.

WARNING - To avoid death from the infant's neck being caught on the top rail on the side that is next to the adult bed, the top rail must be no higher than the adult bed mattress.

ASACOT:

• Do not use this crib if you cannot exactly follow the instructions that come with it. • Do not use this crib for a child who can climb out of it or who is taller than 90cm. • Do not place any cord, strap or similar item in or near this crib that could become wrapped around a child's neck. • Do not place this crib near a window or a patio door where a child could reach the cord of a blind or curtain and be strangled. • Ensure that the sides of this crib are properly latched or locked in the appropriate position when a child is left unattended in it.
• Check this crib regularly before using it and do not use it if any parts are loose or missing or if there are any signs of damage. Do not substitute parts. Contact the manufacturer if replacement parts or additional instructions are needed.
• Use only the mattress supplied by the manufacturer with this crib. Do not add an additional mattress to this crib.
• Children can suffocate on soft bedding. Do not place pillows, comforters or soft mattresses in this crib.

© 2021 Phil and Teds Design Limited.

Phil and Teds Design Limited owns the intellectual property rights in the brands, designs and inventions featured in this publication as licensed to Phil and Teds Most Excellent Buggy Company Limited. These include, without limitation, the phil&teds, adapt&survive!, &, INLINE trade marks, product names and INLINE double buggy shape and product names. phil&teds actively pursue people who infringe on its intellectual property.

guide d'entretien

© 2021 Phil and Teds Design Limited.

© 2021 Phil and Teds Design Limited.

© 2021 Phil and Teds Design Limited.

European safety standard states:

BELANGRIJK - LEES ZORGVULDIG EN BEWAR VOOR LATERE RAADPLEGING

WIEG / CODODO:

© 2021 Phil and Teds Design Limited.

© 2021 Phil and Teds Design Limited.

© 2021 Phil and Teds Design Limited.

© 2021 Phil and Teds Design Limited.

© 2021 Phil and Teds Design Limited.

Designed in New Zealand. Made in China
