USER MANUAL traveller 3 Phil & Teds

American Safety Standard states:

READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE OF PRODUCT. KEEP INSTRUCTIONS FOR FUTURE USE.

European Safety Standard states:

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.

Australian/New Zealand Safety Standard state:

IMPORTANT. BEFORE ASSEMBLING THIS COT READ AND UNDERSTAND THE INSTRUCTIONS.

Do not use mattress other than the one supplied by the manufacturer. Incorrect mattress can cause death. Use only accessories as recommend by the manufacturers. Ensure the top rails and base are fully locked. Stop using this cot if any part of the cot is broken, torn or missing.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.

Congratulations on choosing the & traveller!

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Features / Caract risiques / Produkteigenschaften / Caracter sticas / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

philandteds.com

TRAVELLER

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as Incorrect Installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

The traveller™ is intended for children from newborn to 3 years.

CLEANING & CARING

Check the traveller™ for cuts & bruises. If your traveller is damaged in any way, or you are not sure how to use it, contact your retailer immediately.

The fabric on your traveller™ is highly water resistant, but zips and seams can leak.

Caring for traveller™

• Unlike children, your traveller™ likes to stay clean.
• Dry your traveller™ thoroughly before storing.
• Remove dry dirt with a soft brush.
• Do not wash with soap, solvents, bleach, or detergents (these may harm the fabric). Store in a well ventilated space, away from moisture & direct sunlight (which can harm & fade your traveller's vibrant coat).

NOTE: Improper care will void any warranties. Do not use if deterioration is detected or suspected.

TRAVELLER

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

For rights & remedies, refer www.philandteds.com/warranty

TRAVELLER

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

The traveller complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

Europe:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the vicinity of the cot.
• Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer.

• Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.

• Do not use more than one mattress in the cot.

• Before using the traveller, ensure all locking mechanisms are engaged. Check carefully that they are all fully engaged before use.
• If you leave the child unattended in the traveller, always make sure the side access panels are zipped closed.
• Ensure that all components of the frame are regularly checked for a secure and tight fit.
• To prevent injury from falls, do not use the traveller when the child is able to climb out of the cot.
• It is recommended that the mattress supplied by the manufacturer is used. The thickness of the mattress shall be such that the internal height (surface of the mattress to the upper edge of the cot frame) is at least 500mm. The size (1150mm by 570mm) of the mattress shall be such that there is no gap greater than 30mm between the mattress and the sides and ends of the cot.

WARNINGS

America:

• Never leave an infant in the product with the sides down. Infant may roll into space between pad and loose mesh side causing suffocation.
  • Infants can suffocate:

- In gaps between a mattress too small or too thick and product sides.

- On soft bedding.

• NEVER add a mattress, pillow, comforter or padding.
• NEVER use a water mattress with this product.
• Failure to follow these warnings and the instructions could result in serious injury or death.
• The product must be fully erected prior to use.
• Strings can cause strangulation! Never place items with a string around a child's neck such as hood strings or pacifier cords. Never

suspend strings over product or attach strings to toys.

• When the child is able to pull to standing position, remove bumper pads, large toys, and other objects that could serve as steps for climbing out.
• Discontinue use of the product when child is able to climb out or reaches the height of 35in. (890mm)
• NEVER place product near a window where cords from blinds or drapes can strangle a child.
• Use ONLY mattress/pad provided by manufacturer (which must be at least 45in. long by 23in. wide and not more than 0.98in. thick).
• Always provide the supervision necessary for the continued safety of your child. When used for playing, never leave child unattended.
  • To reduce the risk of SIDS, paediatricians recommend healthy infants be placed on their

TRAVELLER

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

back to sleep, unless otherwise advised by your physician.

• Only use the covers supplied by manufacturer.
• NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact your retailer for replacement parts. Never substitute parts.
• NEVER leave child in product with side lowered. - always ensure the side access panels are zipped closed.
• NEVER use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.

WARNINGS

Australia / New Zealand:

• MATTRESS SIZE
  This cot is made to use a mattress which is 570mm wide 1150mm long and no more than 25mm thick.
• Using the wrong size mattress may create hazardous gaps that could result in suffocation or could reduce the side height of the cot which may result in your child falling out of the cot.
• Do not leave anything in the cot (such as toys) that provide a foothold.
• Do not use the cot near naked heat sources, bar heaters, open fires or exposed flames.
• Keep the cot clear of trailing cables and hanging cords.

• Keep medication, and small items that a child could choke on away from the cot.

• The thickness of the mattress has been specified to ensure that the distance from the top of the mattress to the top of the lowest side or end will always be at least 500mm. This will reduce the risk of children falling out of the cot.

• USE ONLY THE MATTRESS SUPPLIED BY THE MANUFACTURER, INCORRECT MATTRESSES CAN CAUSE DEATH.
• Use only accessories as recommended by the supplier.
• Ensure the top rails and base are fully locked.
• Do not use this cot if any part of the cot is broken torn or missing.
• Keep children away while assembling/disassembling the cot.
• Discontinue use if the covering material of the padded rim has been bitten through.

WARNINGS

Canada:

• Caregivers must ensure that the crib is safe by checking regularly, before placing the child in it, that every part is properly and securely in place.
• Do not use this crib if you cannot exactly follow the accompanying instructions.
• Do not use this crib for a child who can climb out of it or who is taller than 90cm.
• Do not place in or near this crib any cord, strap or similar item that could become wrapped around a child's neck.
• Do not place this crib near a window or a patio door where a child could reach the cord of a blind or curtain and be strangled.
• Ensure that the sides of this crib are properly latched or locked in the appropriate position when a child is left unattended in it.

TRAVELLER

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

• Check this crib regularly before using it and do not use it if any parts are loose or missing or if there are any signs of damage. Do not substitute parts. Contact the manufacturer if replacement parts or additional instructions are needed.
• Use only the mattress supplied by the manufacturer with this crib. Do not add an additional mattress to this crib.
• Children can suffocate on soft bedding. Do not place pillows, comforters or soft mattresses in this crib.

European Safety Standard:

* mesh not included 1 2 3 4 5 6 7

01 Carry bag

02 2 x silver end rails with black connectors

03 4 x silver half rails

04 4 x silver legs with feet attached

05 Fabric set

06 Mesh top cover *

07 Self-expanding mattress

Diagram of a mesh fence with a red circle highlighting a small object, no text or symbols present

Illustration of a hand holding a net with a shield, no text or symbols present

Diagram of a boat with a red arrow indicating rotation, enclosed in a red circle (no text or symbols)

Line drawing of a rectangular metal grate with a circular highlight on the side (no text or symbols)

Cross-sectional diagram of a mechanical or structural component with highlighted parts and directional arrows (no text or symbols)

TRAVELLER

Instructions / gebrauchsanweisung / instrucciones / instructies

Cross-sectional diagram of a mechanical joint or pipe section with layered materials (no text or symbols)

Simple line drawing of a rectangular panel with a red circle highlighting a small feature, labeled with number 9 (no text or symbols on the panel itself)

Illustration of a hand holding a red object with a circular arrow indicating rotation (no text or symbols)

Diagram showing a container with labeled parts and directional arrows indicating movement or flow.

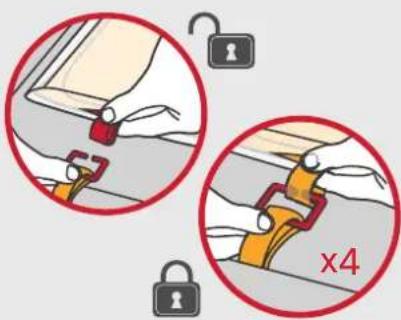

Diagram showing two steps of securing a seatbelt, with red and orange clips and a magnified view labeled 'x4'

Simple line drawing of a rectangular table with legs and a central blank space, topped with a green checkmark (no text or symbols)
