USER MANUAL Fortello LED Glatz

FORTELLO ^® LED with battery pack

EN Installation and operating instructions 22

Diagram showing two electrical circuit setups with labeled components and red arrows indicating connection points.

Technical diagram illustrating four steps of fabric bending process with numbered instructions and material specifications.

Schirm auspacken

Lieferumfang:

Diagram showing two mechanical components with red arrows indicating downward motion (no text or symbols)

Schirm öffnen

Diagram illustrating cable bending process with red arrows indicating direction of movement and structural changes

Schirm schliessen

Diagram showing two electrical circuit setups with labeled components and red arrows indicating connection points.

Diagram illustrating cable bending process with red arrows indicating direction of movement and structural changes

Welcome 23
Optional accessories 23
Technical data	23
Safety information 24
Device overview	27
Charging the battery	27
Installation and initial operation 28

Use 29

What to do if... 30

Care and maintenance 30

Disassembly 30

Warranty 31

EU Declaration of Conformity 31

Disposal 31

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the FORTEL-LO LED may also be referred to as 'the product' or 'parasol'.

Warning words used

!DANGEROUS Immediately dangerous situation which can result in death or severe injuries.

!CAUTION Potentially dangerous situation which can result in minor or moderate injuries.

!NOTICE A situation that can lead to property damage.

23

Welcome

Congratulations on the purchase of your new FORTELLO LED. You have purchased a high quality parasol. These instructions form part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your FORTELLO LED parasol will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

• Base
• Mounting plate
• Ground Socket
• Wall console
• Protective cover
• Reserve battery pack
• OSYRIION Spot

Consult your GLATZ dealer about this.

Technical data

Size [cm]	Base area m^2	Closing height [cm]	Passage height [cm]	Overall height [cm]
ø400	11.3	135	215	345
400 × 300	12	130	215	375
300 × 300	9	125	215	345
350 × 350	12.3	110	215	365
400 × 400	16	95	215	385

Details when using the ground socket

Battery type	Li-Ion
Specifications	14,8 V, 6.8 Ah, 100 Wh
Colour temperature	2,700 K
Maximum brightness	2,200 Lumen
Illumination duration at recommended brightness	10 h
Illumination duration at maximum brightness	4 h
Charging time to full charge	4 h
IP protection class	IP54
Maximum charge current	2 A
Operating temperature during charging	0 - 40 °C
Operating temperature when discharging	-20 - 40 °C

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  • Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the parasol before opening / closing it.

• Make sure there are no persons / objects in the movement area when opening / closing it. Otherwise, injuries / damage may occur.

• !DANGER Close the parasol when the wind picks up, in stormy weather conditions and / or when snow is falling.

• Always secure closed parasols with the binding belt. The binding belt must be looped over the hook provided.
• Observe the specifications concerning the maximum permissible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.
• Unattended parasols may not remain opened. Any damage is not covered by the warranty. Always secure closed parasols with a binding belt or a suitable securing system.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The parasol must be monitored during opening and closing.
• Ensure that the connection of the lower and upper pole is secure. Check the tightness of the screw from time to time and retighten if necessary Make sure that cable is not pinched (8 Nm).
• Check parasol and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled parasols should only be stored lying down.
• Mains connection: The voltage must correspond to the specifications on the rating plate of the charger.
• Do not bend or pinch the power cable or pull it over sharp edges. Check device / power cord / extension cable for damages. Never operate a defective device. Get damaged power cables replaced by the manufacturer.
• Repairs to the charger / battery should only be carried out by a qualified technician. Do not open or short-circuit the battery. Unprofessional repairs can entail serious risk to the user.
• Never place the battery / connecting cable on hot surfaces or allow them to be too close to an open fire.

• Never use the charger near water (bathtubs, wash basin, etc.). Do not expose to rain or moisture.

• If the charger/battery falls into water, before removing it first pull out the mains plug. The device must be checked by a qualified technician before being used again.

• If the battery has become wet, as a result of rain or the like, do not use until the battery and electrical contacts are completely dry.
• After charging, do not store the battery on the charger. Charge and store at room temperature (0-25°C). Storing batteries with 40 - 80% charge level (2 - 4 indicator lights) contributes to a longer battery life.
• The contacts of the lithium ion battery must not be connected or bent, as this could create a short circuit.
• Charge battery completely (approx. 4h) before first use.
• If not used for a considerable period of time and before stowing away, charge the battery to a charge level between 40 and 80%. This corresponds to 2 to 4 indicator lights on the battery display.
• Max. battery capacity will be reached only after approx. 5 charge/discharge cycles.
• A completely flat battery must be avoided at all costs. Recharge batteries to 40 - 80% (2 - 4 indicator lights) every 6 months at latest.
• Only use the originally supplied lithium ion charger for charging the lithium ion battery. Do not use the battery with other devices.
• Children and animals must not be allowed to play with the battery or charger.
• If smoke appears, switch off the unit immediately and pull out the plug.
• In case of abnormal noises, smells, overheating, smoke or leaking liquid, switch off the battery immediately, disconnect the mains plug, remove the battery from the charger and bring it into the open air.
• Do not touch or swallow leaking liquids. If contact with skin/clothing occurs, lather immediately with soap and rinse with plenty of water. If the liquid is swallowed or comes into contact with the eyes, contact a toxicological institute immediately.
• Never use or charge swollen, leaking or damaged batteries. If your battery is abnormal in any way, please contact a technician.

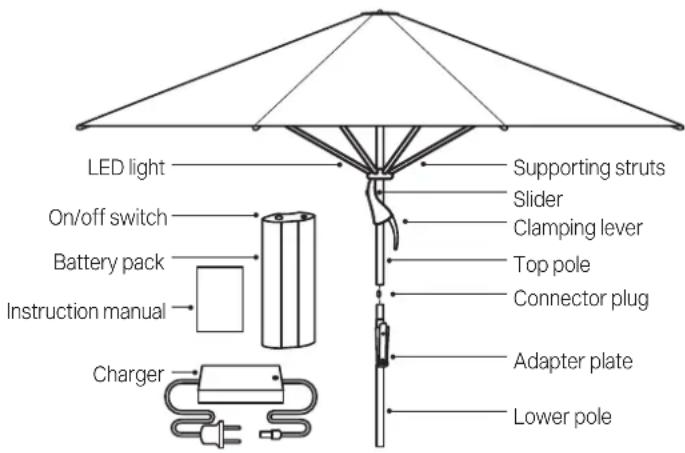

Device overview

LED light On/off switch Battery pack Instruction manual Charger Supporting struts Slider Clamping lever Top pole Connector plug Adapter plate Lower pole

Charging the battery

• Only use the originally supplied lithium ion charger for charging the lithium ion battery.
• If smoke appears, switch off the unit immediately and pull out the plug.
• In case of abnormal noises, smells, overheating, smoke or leaking liquid, switch off the battery immediately, disconnect the mains plug, remove the battery from the charger and bring it into the open air..

Simple line drawing of a plug and plug with a red arrow indicating insertion or repair (no text or symbols)

1

Connecting the charger

! Connect the battery pack to the charger

Simple line drawing of a plug inserted into a socket connected to a cable (no text or symbols)

②

Plug in charger

Connect the mains plug of the charger to a suitable socket. The mains voltage must correspond to the value on the rating plate.

Charging...

○○○○ empty

●●●●● fully charged

Assembly and commissioning Use

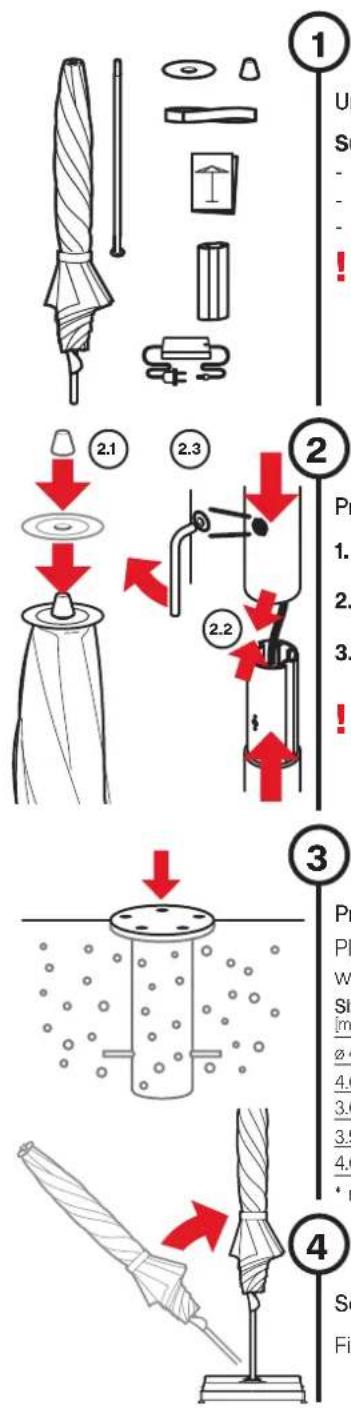

Technical diagram illustrating four steps of fabric handling or assembly process with numbered instructions and component illustrations.

Unpack the shade

Supplied with:

• shade, bottom pole, tie-rope, top, top disc
• battery pack incl. charger
• operating instructions
  ! Dispose of packaging materials properly and keep away from children. Do not install defective material. In case of damage, please inform the transport service provider immediately.

)

Pre-assemble parasol

1. At the top end of the pole, first put top disc in place and then screw top on.
2. Establish plug connection. Take care to observe the polarity of the plug.
3. Insert bottom pole into top pole and tighten screws (8 Nm).
   ! Lay the power cable in such a way that it is free of tension. Ensure that the connection of the lower and upper pole is secure. Check the tightness of the screw from time to time and retighten if necessary Make sure that cable is not pinched (8 Nm).

Prepare the floor fastening

Place the floor fastening in accordance with the separate instructions.

Size Base weight Wind speed*

[m]	[kg]	[km/h (Bft.)]
ø 4.0	>120	<85 (9)
4.0×3.0	>120	<85 (9)
3.0×3.0	>120	<100 (10)
3.5×3.5	>120	<85 (9)
4.0×4.0	>180	<75 (8)

* maximal wind speed with fixed ground anchorage

Setting up the shade

Fix shade in the base.

1 Op 1. 2. 3. 4. 5. ! 2 Ins 1. 2. !

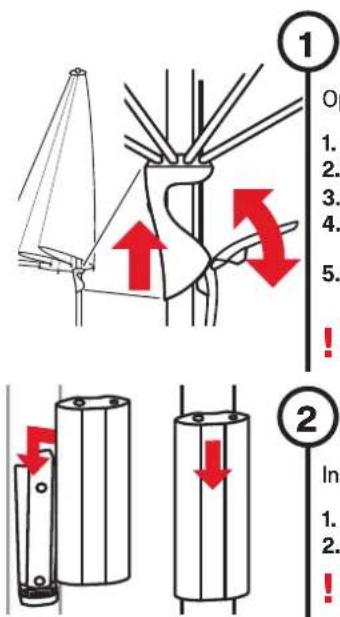

Open sunshade

1. Remove any protective cover
2. Release binding belt
3. Open parasol with the help of the slide
4. Pull down the tensioning lever and hook it in place
5. Lock the tensioning lever in the down position

! Make sure that the clamping lever is closed

Diagram showing two mechanical components with red arrows indicating downward motion (no text or symbols)

Insert battery

1. Slide battery pack onto adapter plate
2. Press the battery pack down firmly
   ! Ensure that you have a functional electrical connection.

Checking the charge status

empty fully charged

Adjusting the light

Tap when OFF:

1x recommended brightness
2x maximum brightness

Tap when ON:

1x switch off
2x maximum brightness

Tap and hold when ON:

when bright reduce brightness

when dark increase brightness

! Direction changes with each tap and hold.

charged

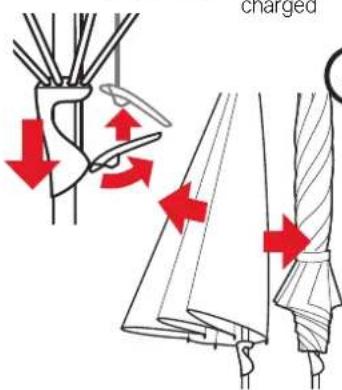

Close shade

1. Remove the battery pack and store it in a dry place. Charge if necessary.
2. Release clamping lever, close shade.
3. Pull out / wrap fabric segments
4. Apply binding belt
5. Apply protective cover if necessary
   ! Only wrap / pack completely dry parasols.

What do you have to do if...

Problem Solution approaches

The shade is hard to open. Service the rods occasionally with silicon spray.
Slip-marks on the aluminium rods.	These are normal marks of use which can be removed with a damp cloth.
No LED light Charge the battery pack and attach it correctly to the adapter plate.
Battery deeply discharged after a long period of non-use (no reaction when pressing the status button, no LED lights up).	Connect the original charger supplied to the battery pack. The LED of the charger lights up green. This process can take several hours. Afterwards, the battery pack is charged normally.

Handling and maintenance

• Allow the parasol to dry when open to prevent the formation of mould and discolouration.
• A protective sleeve protects the parasol and will extend its service life.
• Only pull the protective sleeve over the dry parasol when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Clean the parasol cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the parasol is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective parasols can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.

Disassembly

Dismantle the parasol if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE PARASOL TOPPLES OVER

1. Close and tie the parasol properly.
2. Dismantle the parasol in reverse mounting direction.
3. Store the parasol in lying position together with all accessories in a dry place.

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the parasol lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
- Inappropriate operation or maintenance of the parasol
• Damage arising from force majeure

The wind guarantee for an open parasol is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several parasols, a minimum distance of 20 cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the parasol and walls.

EC Conformity declaration

We, Glatz AG, Langfeldstrasse 113, CH-8500 Frauenfeld, SWITZERLAND, hereby declare that this product complies with the directives of the European Community. The applicable declarations of conformity can be found on our Download area at www.glatz.com.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point. The disposal of electrical and electronic equipment within the EU and in other

European countries is carried out through collection points that have systems for the separate collection of electrical and electronic equipment. By disposing of the product correctly, you will help to avoid possible environmental and health hazards that may be caused by improper treatment of waste equipment. Recycling materials helps to conserve natural resources. So please do not dispose of old electrical or electronic equipment with unsorted domestic waste.

The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.
