USER MANUAL Vita Piana Glatz

Line drawing of a simple outdoor umbrella with a flat top and base (no text or symbols)

EN Installation and operating instructions 22

Technical line drawing of a mechanical component with three views: a conical tool, a cylindrical part with a handle, and a flanged base (no text or symbols)

Schirm auspacken

Lieferumfang:

Illustration of a hand holding a tool with a red upward arrow indicating motion or force (no text or symbols)

①

Schirm öffnen

Technical line drawing of a mechanical component with multiple views and mounting features (no text or symbols)

Déballer le parasol

Illustration of a hand holding a cylindrical object with radiating lines, marked by a red upward arrow (no text or symbols)

①

Ouvrir le parasol

Optional accessories 23

Technical data 23

Safety information 24

Installation and initial operation 26

Use 28

Care and maintenance 30

Disassembly 30

Warranty 31

Disposal 31

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the VITA Piana may also be referred to as «the product» or «sunshade».

Warning words used

!DANGEROUS Immediately dangerous situation which can result in death or severe injuries.

!CAUTION Potentially dangerous situation which can result in minor or moderate injuries.

!NOTICE A situation that can lead to property damage.

23

Welcome

Congratulations on the purchase of your new VITA Piana. You have purchased a high quality sunshade. These instructions form part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your VITA Piana sunshade will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

• Base • Ground Socket
• Wall console
• Lawn spikes
• Support pipes
• OSYRION Spot

Consult your GLATZ dealer about this.

Technical data

Size [cm]	Base area [ m^2 ]	Closing height [cm]	Passage height [cm]	Overall height [cm]
ø 220	3.4	80...130	160...210	190...240
ø 250	4.4	65...115	160...210	190...240
ø 300	6.4	45...95	160...210	195...245
200×200	4.0	45...95	160...210	185...235
240×240	5.8	25...75	160...210	195...245
210×150	3.2	60...110	160...210	190...240
250×200	5.0	35...85	160...210	195...245

Details when using the ground socket

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  • Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the sunshade before opening / closing it.
• Make sure there are no persons / objects in the movement area when opening / closing it. Otherwise, injuries / damage may occur.
• !DANGER Close the sunshade when the wind picks up, in stormy weather conditions and / or when snow is falling.
• Observe the specifications concerning the maximum per-

missible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.

• Unattended sunshades may not remain opened. Any damage is not covered by the warranty. Always secure closed sunshades with a binding belt / ribbon.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The sunshade must be monitored during opening and closing.
• Check sunshade and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled sunshades should only be stored lying down.
• Improper use / storage can damage the fabric.
• When using a fixed floor anchorage, the installation must be performed by specially trained persons in accordance with the separate installation instructions.
• Do no ignite a naked flame in the proximity of, or under, the parasol.

Assembly and commissioning

Technical line drawing of a mechanical component with multiple views and features (no text or symbols)

Unpack the sunshade

Supplied with:

• Upper pole with shade canopy
• Lower pole (in upper pole)
• Support tube cover
• Tie-rope (fabric quality 4 + 5)
• Protective cover
• Operating instructions

! Dispose of packaging materials properly and keep away from children. Do not install defective material. In case of damage, please inform the transport service provider immediately.

2 2.1 2.2 2.3

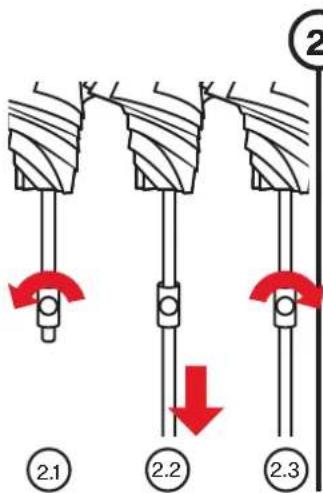

Put the sunshade together

1. Loosen clamping screw
2. Pull out the lower pole
3. Tighten the clamping screw
4. Check that it is firmly attached

3.1 3.2 3.4 3.5

3

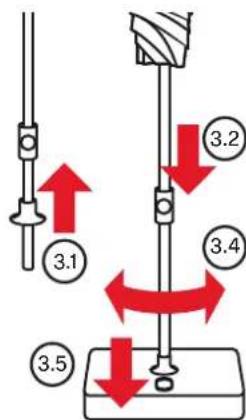

Setting up the sunshade

1. Slide the support tube cover over the lower pole
2. Slowly push the sunshade over the stand tube until it reaches the height of the locking pin
3. Lift the sunshade slightly, press the locking pin, lower the sunshade to the foot
4. Turn the sunshade until the locking pin engages in the hole at the lower pole
5. Lower the support tube cover

! Caution, do not pinch fingers during step 3.3!

Minimal base weights:

Size[cm] [kg] [km/h (Bfl.)]	minimum weight	maximum wind speed*
ø220 30 65 (8)
ø250 40 50 (7)
ø300 40 35 (5)
200x200 40 50 (7)
240x240 40 40 (6)
210x150 30 55 (7)
250x200 40 40 (6)

* maximum wind speed when it is securely anchored in the ground.

Use

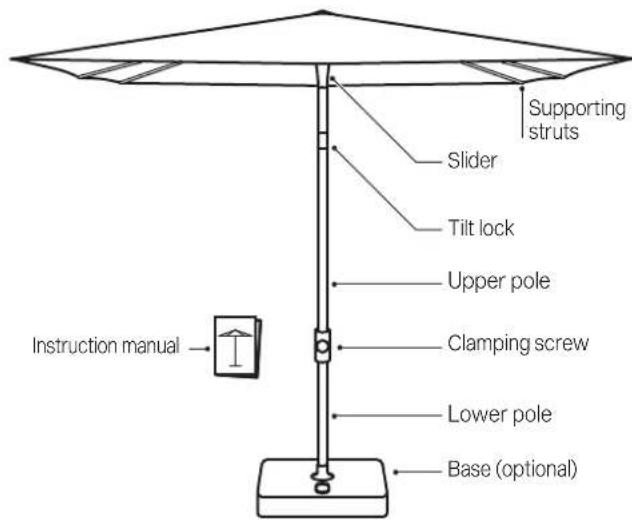

Supporting struts Slider Tilt lock Upper pole Clamping screw Lower pole Base (optional) Instruction manual

Illustration of a hand holding a cylindrical object with radiating lines, marked by a red upward arrow (no text or symbols)

1

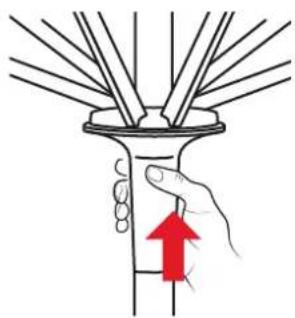

Open sunshade

1. Remove any protective cover
2. Release binding belt / ribbon
3. Pull the ribs outwards slightly
4. Slide the slider upwards
5. Slider engages audibly above

! The slider must engage audibly above.

2

2.3 2.2 2.4

Adjust the sunshade height

When adjusting the shade height, keep a firm hold on the upper pole, to prevent it lowering accidentally.

1. Hold upper pole firmly
2. Loosen clamping screw
3. Adjust shade height to suit
4. Tighten the clamping screw

! Caution: Before loosen the clamping screw, hold the upper pole firmly.

3.3 3.2

3

Tilt the sunshade canopy

1. Hold moving part firmly
2. Push tilt lock in completely
3. Tilt shade to end position (both sides possible)
   When adjusting the shade height, keep a firm hold on the moving part of the upper pole, to prevent it tipping over accidentally.

4.3 4.2 4.4

4

Align the sunshade

When aligning the shade, keep a firm hold on the upper pole, to prevent it lowering accidentally.

1. Hold upper pole firmly
2. Loosen clamping screw
3. Set the appropriate direction
4. Tighten the clamping screw
   ! Caution: Before loosen the clamping screw, hold the upper pole firmly.

5.2 5.3 5.4

5

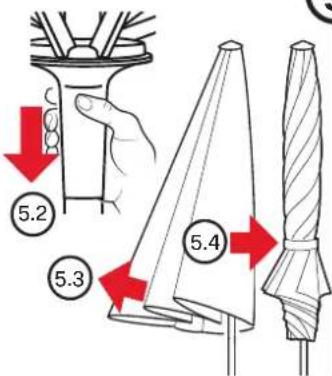

Close sunshade

1. Sunshade canopy in an upright position
2. Pull the slider downwards
3. Pull out / wrap fabric segments
4. Apply binding belt/ribbon
5. Apply protective cover if necessary

! Only wrap / pack completely dry sunshades.

Handling and maintenance

• Allow the sunshade to dry when open to prevent the formation of mould and discolouration.
• A protective sleeve protects the sunshade and will extend its service life.
• Only pull the protective sleeve over the dry sunshade when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Clean the sunshade cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the sunshade is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective sunshades can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.

Disassembly

Dismantle the sunshade if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE SUNSHADE TOPPLES OVER

1. Close and tie the sunshade properly.
2. Dismantle the sunshade in reverse mounting direction.
3. Store the sunshade in lying position together with all accessories in a dry place.

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the sunshade lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
- Inappropriate operation or maintenance of the sunshade
• Damage arising from force majeure

The wind guarantee for an open sunshade is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several sunshades, a minimum distance of 20 cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the sunshade and walls.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point. The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.
