Vita Sfera - Parasol Glatz - Free user manual and instructions

Product type	Parasol
Dimensions (canopy)	350 x 350 cm (standard model)
Total height (open)	270 cm
Total height (closed)	290 cm
Stroke length	215 cm
Use	Sun protection, private and professional use (catering/hotel industry)
Opening/Closing	By crank
Rotation	360° via swivel base with lock
Tilt	Adjustable by tilt bar with scale
Ground fixing	On base or anchor with supplied M10 bolts (5 bolts)
Included accessories	Crank handle, swivel base, tie-down strap, protective cover, Allen keys
Optional accessories	Base, fixing plates, drive-in socket, wall bracket, OSYRION LED lamp
Safety	Close in strong wind or storm; do not leave unattended; use a suitable base
Maintenance	Clean with lukewarm water and mild detergent; dry completely before storage
Warranty	24 months from date of purchase
Disposal	Do not dispose with household waste; take to recycling center

Frequently Asked Questions - Vita Sfera Glatz

How to open the Vita Sfera parasol?

Untie the tie-down strap, loosen the ribs and pull them slightly outward. Insert the crank into the housing and turn until fully open. Ensure the internal parts fit together.

How to adjust the tilt of the parasol?

Unlock the tilt bar and remove it from the mast groove. Choose the desired tilt within the scale area, then reinsert the bar into the groove. Tilt is only allowed within the scale.

How to rotate the parasol?

Pull the locking mechanism of the swivel base downward, turn the parasol to the desired position, then release the lock. Check that the parasol is securely locked and does not touch any obstacles.

What to do in case of strong wind or storm?

Close the parasol immediately and secure it with the tie-down strap. Never leave a parasol open unattended in wind or storm. If the parasol is anchored to the ground, observe the maximum allowed wind speed.

How to clean the canopy?

Use lukewarm water, mild detergent, and a sponge. Do not use bleach or sharp objects. Allow the parasol to dry completely unfolded before storing.

What accessories are available for the Vita Sfera?

GLATZ offers suitable accessories: base, fixing plates, drive-in socket, wall bracket, and OSYRION Spot LED lamp. Check with your retailer.

How to fix the parasol to the ground?

Use either a sufficiently heavy base or a ground anchor with the appropriate sleeve. The supplied M10 bolts allow fixing the swivel base to the ground fixing. Follow separate assembly instructions.

How to disassemble the parasol for winter?

Close the parasol and tie it securely. Disassemble by following the assembly steps in reverse. Store the parasol horizontally, dry, with all accessories. Use the protective cover if necessary.

What is the warranty period for the Vita Sfera?

The parasol is guaranteed for 24 months from the date of purchase. The warranty is void in case of improper use, abuse, or damage due to careless handling.

How to dispose of the parasol at end of life?

Do not dispose of the parasol with household waste. Take it to a recycling center that practices selective sorting. The packaging is recyclable. Follow local environmental and waste regulations.

USER MANUAL Vita Sfera Glatz

EN Installation and operating instructions 22

Schirm auspacken

Lieferumfang:

Schirm ablegen

Grösse [cm] [kg] [km/n (Bft.)]	minimales Gewicht	maximale Windstärke*
φ 375 180 45 (6)
300 x 300 180 50 (7)
350 x 350 180 40 (6)
400 x 300 180 40 (6)

Schirm fixieren

1

Déballer le parasol

2

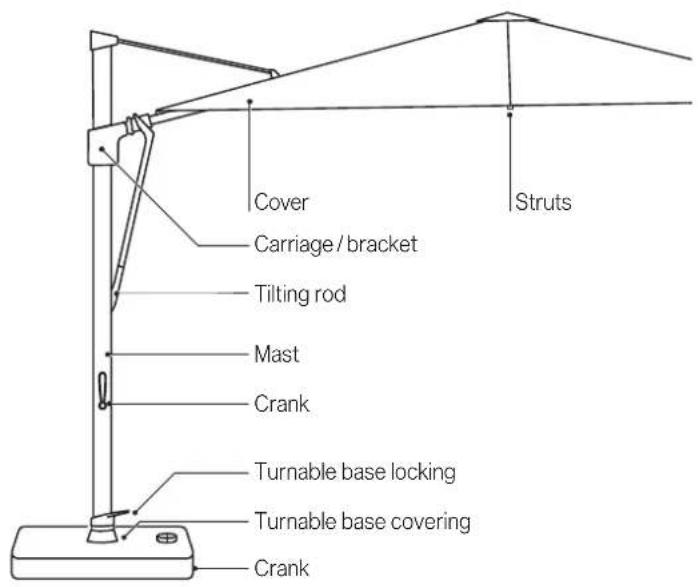

Table of Contents Welcome

Welcome 23

Optional accessories 23

Technical data 23

Safety information 24

Installation and start-up 26

Use 28

Maintenance and care 30

Disassembly 30

Warranty 31

Disposal 31

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the VITA Sfera may also be referred to as 'the product' or 'parasol'.

Warning words used

!DANGEROUS Immediately dangerous situation which can result in death or severe injuries.

!CAUTION Potentially dangerous situation which can result in minor or moderate injuries.

!NOTICE A situation that can lead to property damage.

23

Congratulations on the purchase of your new VITA Sfera. You have purchased a high quality parasol. These instructions form part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your VITA Sfera parasol will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

• Base
• Mounting plate
• Ground Socket
• Wall console
  • OSYRION Spot LED Battery Light

Consult your GLATZ dealer about this.

Technical data

Size [cm]	Base area [ m2 ]	Closing height [cm]	Passage height [cm]	Overall height [cm] closed / open
ø 375	10	130	215	305 / 270
300×300	9	55	215	265 / 260
350×350	12.2	45	215	290 / 270
400×300	12	35	215	285 / 265

Details when using the M4 ground socket

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  • Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the parasol before opening / closing it.
• Make sure there are no persons / objects in the movement area when opening / closing / tilting it. Otherwise, injuries / damage may occur.
• !DANGER Close the parasol when the wind picks up, in stormy weather conditions and / or when snow is falling.
• Observe the specifications concerning the maximum per-

missible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.

• Unattended parasols may not remain opened. Always secure closed parasols with a binding belt.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The parasol must be monitored during opening and closing.
• The crank can be left in the crank holder when the parasol is open and closed. Store the removed crank in a place that is easily accessible at all times.
• Check parasol and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled parasols should only be stored lying down.
• Improper use / storage can damage the fabric.
• When using a fixed floor anchorage, the installation must be performed by specially trained persons in accordance with the separate installation instructions.
• Do no ignite a naked flame in the proximity of, or under, the parasol.
• Do not place any objects on the parasol or attach them to the parasol.

Installation and start-up

1

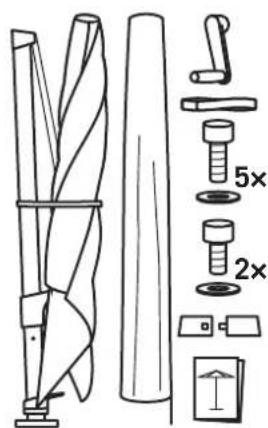

Unpacking the parasol

Scope of delivery:

• Parasol
• Crank
• Turnable base
• Tie strap (only with fabric quality 4 / 5)
• Protective cover
• 5 fixation screws M10 (ground fastenings)
• 5 washers
• 2 fixation screws M8 (fixation for turnable base)
• 2 washers
• 2 Allen keys
• Covering for turnable base
• Instructions for use

! Dispose of packaging material properly and keep away from children. Do not make use of defective material. In the event of any damage, inform the transport service provider immediately.

2

Placing the parasol down

Carefully place the parasol on a clean, horizontal surface. The parasol is very heavy. Work in a pair and hold the parasol tightly.

)

Prepare the floor fastening

Place the floor fastening in accordance with the separate instructions.

Size[cm] [kg] [km/h (Bft.)]	minimumweight	maximumwind speed*
ø 375 180 45 (6)
300 x 300 180 50 (7)
350 x 350 180 40 (6)
400 x 300 180 40 (6)

* maximum wind speed when it is securely anchored in the ground.

4

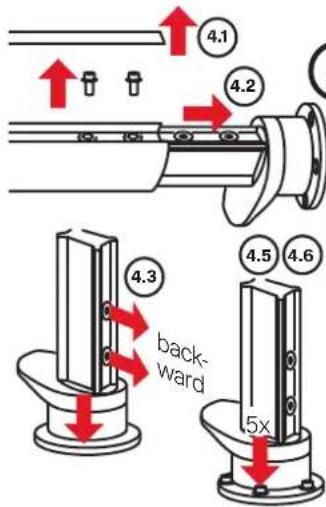

Pre-assembling the turnable base

1. Remove mast cover
2. Remove the turnable base from the mast
3. Place the turnable base on the ground fastenings. The side with the two threaded holes must face the rear (away from the parasol roof)
4. Align hole pattern / position
5. Place the 5 washers
6. Pre-assemble the turnable base with 5 fixation screws

! The side with the two thread holes must face backwards (away from the parasol).

5

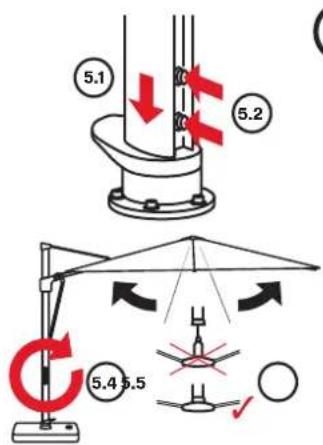

Pre-assemble parasol

1. Place parasol on turnable base
2. Screw the parasol firmly to the turntable base using 2 washers and 2 fixation screws (20 Nm)
3. Tie strap / loosen the closing strap, loosen the ribs and pull them slightly outwards
4. Insert the crank into the crank holder and open the parasol with the crank
5. Ensure that the inner parts engage with each other

! The parasol is very heavy. Work in a pair and hold the parasol tightly.

6

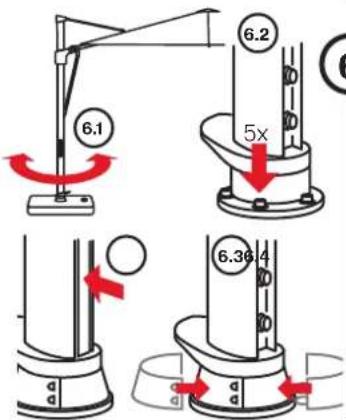

Fixing the parasol in place

1. Final alignment of the parasol position
2. Tighten the 5 fixation screws (56 Nm)
3. Slide on the covering of the turn-table base on both sides, snap into place
4. Install mast covering
5. Close the parasol

Use

1

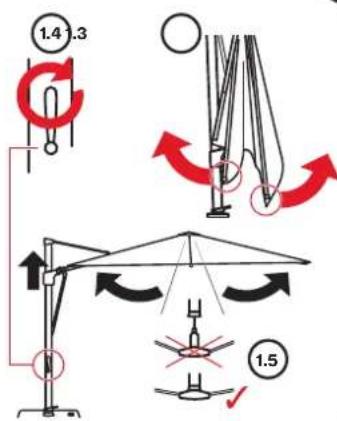

Opening the parasol

1. Remove any protective cover
2. Release binding belt / ribbon
3. Loosen the ribs and pull them slightly outwards
4. Insert the crank into the crank holder and open the parasol with the crank
5. Make sure that the inner parts are engaging

When opening/closing, do not rest your hand under/above the carriage. The parasol will be automatically aligned horizontally. For safe operation, the inner parts must be completely engaged.

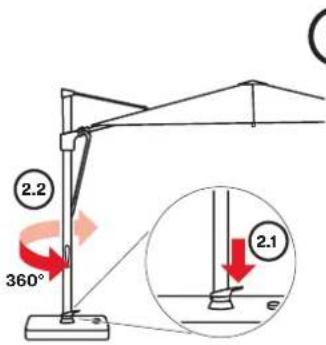

Turning the parasol

1. Push down the locking mechanism of the turnable base
2. Turn the parasol on the mast to the desired position
3. Release the locking mechanism of the turnable base
4. Ensure that the parasol is fully locked in place
   ! Make sure that the parasol does not touch anything when twisting.

3

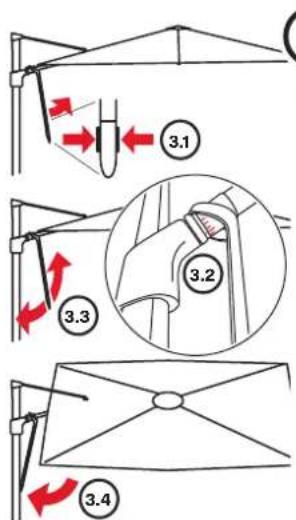

Adjusting the inclination

1. Unlock the tilting rod and pull it out of the mast groove until the support arm is uncoupled
2. Select the desired inclination in the range of the scale, engage the tilting rod there
3. Turn the tilting rod back down towards the mast. The parasol roof tilts accordingly
4. Unlock the tilting rod and insert it into the mast groove

Inclination only permissible within the scale. After adjusting the inclination, make sure that the tilting rod is securely engaged in the mast groove again.

4

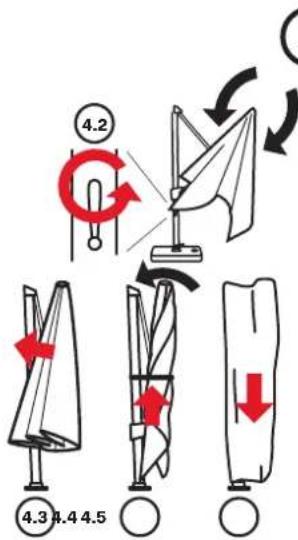

Close parasol

1. Parasol canopy in an upright position
2. Turn the crank until the parasol is closed
3. Pull out / wrap fabric segments
4. Apply binding belt/ribbon
5. Apply protective cover if necessary

! Only wrap / pack completely dry parasols.

Handling and maintenance

• Allow the parasol to dry when open to prevent the formation of mould and discolouration.
• A protective sleeve protects the parasol and will extend its service life.
• Only pull the protective sleeve over the dry parasol when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Recommendation: remove the crank before fitting the protective sleeve.
• Clean the parasol cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the parasol is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective parasols can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.

Disassembly

Dismantle the parasol if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE PARASOL TOPPLES OVER

1. Close and tie the parasol properly.
2. Dismantle the parasol in reverse mounting direction.
3. Store the parasol in lying position together with all accessories in a dry place.

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the parasol lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
- Inappropriate operation or maintenance of the parasol
• Damage arising from force majeure

The wind guarantee for an open parasol is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several parasols, a minimum distance of 20 cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the parasol and walls.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point.

The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.
