USER MANUAL Castello Pro Glatz

Line drawing of a simple outdoor umbrella with a canopy and support structure (no text or symbols)

EN Installation and operating instructions 22

Diagram illustrating a folding or re folding process of an umbrella, with labeled parts and directional arrow.

Schirm ablegen

Diagram illustrating two methods of cutting a tool, showing red arrows indicating direction of movement or change.

Schirm öffnen

Diagram illustrating the process of hairpin bending and cutting, showing before-and-after states with red arrows indicating direction.

Schirm schließen

1 D C 5x 4x

Déballer le parasol

Diagram illustrating a folding or dissection process with labeled parts and directional arrow

Poser le parasol

Diagram illustrating the use of a tool to remove or remove a plant stem, with red arrows indicating direction of movement.

Ouvrir le parasol

Diagram illustrating the process of a hairpin with red arrows indicating direction and rotation, alongside a detailed illustration of the hairpin being cut.

Refermer le parasol

Welcome 23
Optional accessories 23
Technical data	23
Safety information 24
Assembly and commissioning 26
Appliance Overview	28
Opening / closing the parasol	28
Control of light and heating 29
Change of battery on the remote 29
What do you have to do if... 30
Handling and maintenance 30
Disassembly 30
Warranty	31
EC Conformity declaration	31
Disposal 31

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the CASTELLOPro may also be referred to as 'the product' or 'parasol'.

Warning words used

!DANGEROUS	Immediately dangerous situation which can result in death or severe injuries.
!CAUTION	Potentially dangerous situation which can result in minor or moderate injuries.
!NOTICE	A situation that can lead to property damage.

23

Welcome

Congratulations on the purchase of your new Castello Pro. You have purchased a high quality parasol. These instructions form part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your Castello Pro parasol will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

• Base
• Rain gutters
• Mounting plate
• Securing systems
• Ground Socket
• Wind shield
• Protective cover
• Impact protection

Consult your GLATZ dealer about this.

Technical data

Size[cm]	Base area[m2]	Closing height[cm]	Passage height[cm]	Overall height[cm]
ø350	8.7	162	200	341
ø400	11.3	154	200	360
ø450	14.3	146	200	377
ø500	17.7	137	200	394
ø550	21.4	129	200	412
ø600	25.5	120	200	429
350×300	10.5	120	200	353
400×300	12.0	106	200	360
450×350	15.8	94	200	384
500×400	20.0	81	200	407
550×450	24.8	81	200	443
300×300	9.0	127	200	342
350×350	12.3	114	200	365
400×400	16.0	100	200	387
450×450	20.3	85	200	412
500×500	25.0	81	200	440
Colour temperature (built-in lighting)		3000 K
Maximum brightness (built-in lighting)		2500 to 4000 lumen, depending on the size
Electrical connection for parasol			Remote control
LED	230 V, 13 A, L+N+PE, 50 Hz, <0.2 kW		Battery	CR 2430
Heating	400 V, 16 A, 3L+N+PE, 50 Hz, <6.0 kW
LED + heating	400 V, 16 A, 3L+N+PE, 50 Hz, <6.2 kW
IP protection class IP68

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  • Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the parasol before opening / closing it.
• Make sure there are no persons / objects in the movement area when opening / closing it. Otherwise, injuries / damage may occur.
• !DANGER Close the parasol when the wind picks up, in stormy weather conditions and / or when snow is falling.
  • Always secure closed parasols with the binding belt. The

binding belt must be looped over the hook provided.

• Observe the specifications concerning the maximum permissible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.
• Unattended parasols may not remain opened. Any damage is not covered by the warranty. Always secure closed parasols with a binding belt or a suitable securing system.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The parasol must be monitored during opening and closing.
• Check parasol and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled parasols should only be stored lying down.
• Power supply: The voltage must correspond to the information on the charging station nameplate.
• Do not kink or pinch the power supply cable or pull it over sharp edges. Never operate defective appliances. Damaged power supply lines must be replaced by the professional.
• Never place the appliance / connecting cables on hot surfaces, never expose it to extreme heat or place it in the proximity of naked flames.
• If smoke arises from appliance, switch off immediately.

Assembly and commissioning

• The appropriate remote control is tuned in to the parasol ex works.
• The power supply line must be provided by the customer on site. It must be possible to disconnect this for installation and maintenance purposes and to secure it against unintentional reconnection.
• Set up the connection between the power supply cable and the parasol by means of the connecting plug supplied. The connector plug can be stowed away either in the support tube or in the ground sleeve.
• For connection values see the section on Technical Specifications.

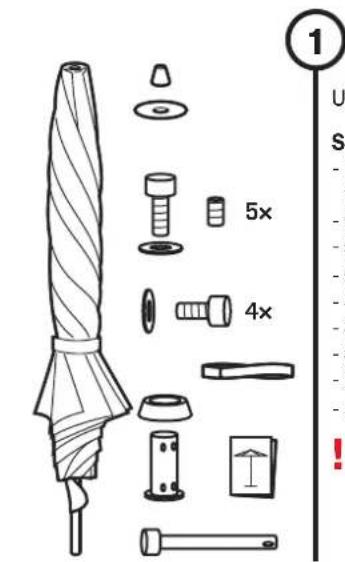

• Parasol, binding belt, support tube, top, top disc
• 5 fastening screws
• 5 support screws
• 5 stud screws for levelling
• 4 support tube fastening screws
• 4 special support screws
• Support tube cover
• Installation and operating instructions
• Safety bolt with lock

! Dispose of packaging material properly and keep away from children. Do not make use of defective material. In the event of any damage, inform the transport service provider immediately.

2 P !

Placing the parasol down

Carefully place the parasol on a clean, horizontal surface. The parasol is very heavy. Work in a threesome and hold the parasol securely.

3 P

Prepare ground fastening

Place the ground sleeve according to the separate instructions. Observe weights for base and wind resistance. Note the final alignment of the parasol (NB notch)!

4.14.5 5x 5x

4

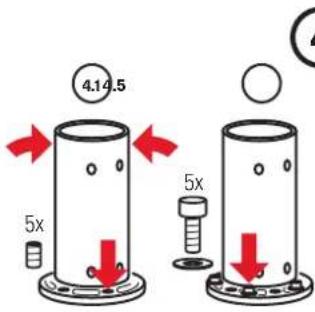

Pre-assemble support tube

1. Place support tube on ground fastening
2. Make sure the notches are aligned
3. Using the 5 stud screws, ensure that the support tube is vertically aligned
4. Place 5 support screws
5. Pre-assemble support tube with 5 fastening screws

5

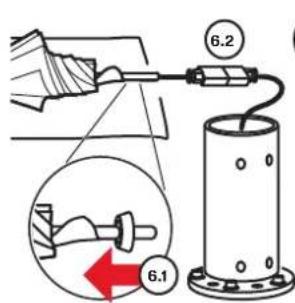

Mount parasol top

1. Place top disc in position
2. Screw on top

6.2 6.1

6

Prepare set up

1. Slide on the support tube cover
2. Establish plug connection. Observe the polarity of the plug.
   ! Position power cable so there is no strain on it. Ensure that the cable is not pinched.

7.1 7.2 7.3

7

Set up parasol

1. Lift parasol over the support tube and lower it carefully.
2. Tighten the two lower screws (34 Nm)
3. In case of need, secure parasol against theft with a lock
4. Align parasol, then tighten the 5 fastening screws (56 Nm)
5. Lower support tube cover
6. Tighten the two upper screws (34 Nm)

The parasol is very heavy. Work in a three-some and hold the parasol securely. Ensure that the electrical cable is not damaged or pinched.

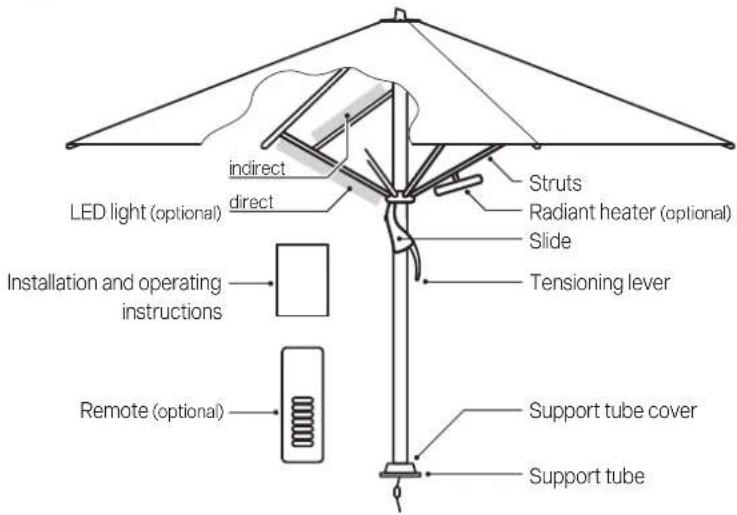

Appliance overview

LED light (optional) indirect direct Struts Radiant heater (optional) Slide Tensioning lever Installation and operating instructions Remote (optional) Support tube cover Support tube

Open / close parasol

Diagram illustrating two methods of cutting a tool, showing red arrows indicating direction of movement or change.

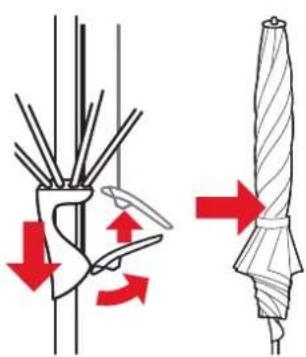

Open the parasol

1. Remove any protective cover
2. Release binding belt
3. Open parasol with the help of the slide
4. Align any heating elements
5. Pull down the tensioning lever and hook it in place
6. Lock the tensioning lever in the down position

! Make sure that the tensioning lever is locked. To engage the tensioning lever, it may be pulled downwards with force.

Diagram illustrating the process of hairpin bending and cutting, showing before and after states with red arrows indicating direction.

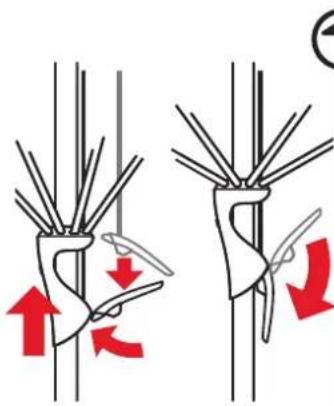

Close parasol

1. Allow any heating elements to cool down for at least 30 minutes
2. Release tensioning lever, close parasol
3. Close any heating elements
4. Pull out / wrap fabric segments
5. Apply binding belt
6. Apply protective cover if necessary

! Only wrap / pack completely dry parasols.

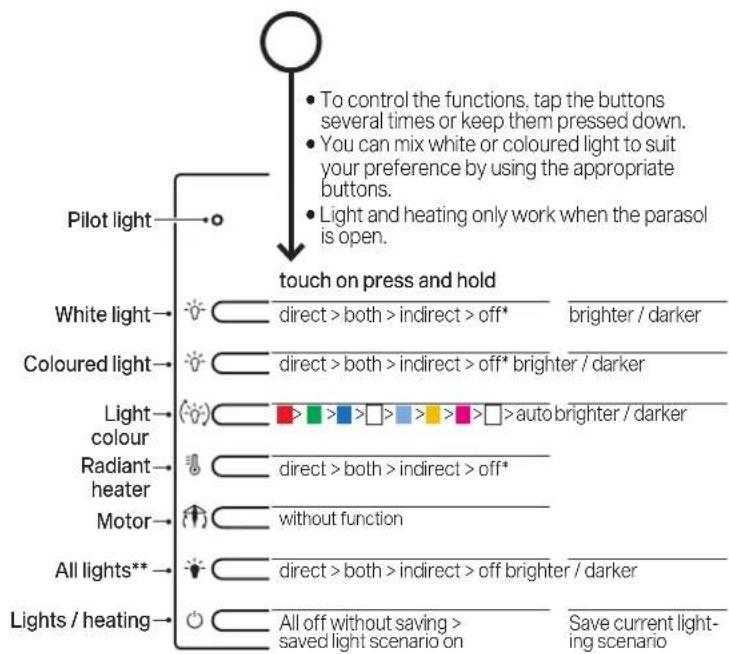

Controlling the light and heat

    B --> I["touch on press and hold"]
    C --> J["direct > both > indirect > off*"]
    C --> K["direct > both > indirect > off* brighter / darker"]
    D --> L["auto brighter / darker"]
    E --> M["direct > both > indirect > off*"]
    E --> N["without function"]
    G --> O["direct > both > indirect > off brighter / darker"]
    H --> P["All off without saving > saved light scenario on"]
    P --> Q["Save current lighting scenario"]

The last setting will be saved*
Keep button 1 or 2 pressed down to change the colour temperature **

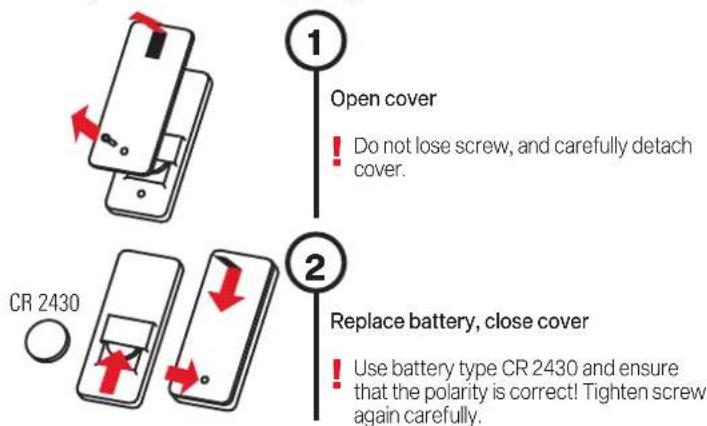

Changing the battery on the remote control

• Always keep batteries out of the reach of children. If a battery is swallowed, seek medical help immediately.
• In case of incorrect use, there is a risk of explosion.
• Always pack batteries when storing or disposing of them to prevent discharge, ignition or damage.
  • Always dispose of batteries properly in accordance with the current law.

1 Open cover ! Do not lose screw, and carefully detach cover. 2 Replace battery, close cover ! Use battery type CR 2430 and ensure that the polarity is correct! Tighten screw again carefully.

What do you have to do if...

Problem Solution / tip

Parasol is difficult to open. Treat the frame with silicon spray from time to time.
Sliding marks on the aluminium frame.	These are normal signs of wear and can be wiped off with a damp cloth.
LED light / heater does not work. Change the battery of the remote control, check the power supply to the parasol.
LED light / heater do not respond to the remote control.	Change the battery of the remote control, or reduce the distance between the parasol and the remote.

Handling and maintenance

• Allow the parasol to dry when open to prevent the formation of mould and discolouration.
• A protective sleeve protects the parasol and will extend its service life.
• Only pull the protective sleeve over the dry parasol when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Clean the parasol cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the parasol is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective parasols can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.
• Wipe the radiant heater unit from time to time with a damp, non-abrasive cloth. The radiant heater unit must not be immersed in liquids.

Disassembly

Dismantle the parasol if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE PARASOL TOP PLES OVER

1. Close and tie the parasol properly.
2. Dismantle the parasol in reverse mounting direction.
3. Store the parasol in lying position together with all accessories in a dry place.

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the parasol lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
- Inappropriate operation or maintenance of the parasol
• Damage arising from force majeure

The wind guarantee for an open parasol is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several parasols, a minimum distance of 20 cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the parasol and walls.

EC Conformity declaration

We, Glatz AG, Neuhofstrasse 12, CH-8500 Frauenfeld, SWITZERLAND, hereby declare that this product complies with the directives of the European Community. The applicable declarations of conformity can be found on our Download area at www.glatz.com.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point. The disposal of electrical and electronic equipment within the EU and in other European

countries is carried out through collection points that have systems for the separate collection of electrical and electronic equipment.

By disposing of the product correctly, you will help to avoid possible environmental and health hazards that may be caused by improper treatment of waste equipment. Recycling materials helps to conserve natural resources. So please do not dispose of old electrical or electronic equipment with unsorted domestic waste.

The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.

32

Indice

Benvenuti 33

Diagram illustrating the use of a tool to remove or remove a plant stem, with red arrows indicating direction and rotation.

Diagram illustrating the process of cutting a tool with red arrows indicating direction of movement or force.

Diagram illustrating a folding or dissection process with labeled parts and directional arrow

Sacar la sombrilla

Diagram illustrating the use of a tool to remove or remove a plant stem, with red arrows indicating direction and directional changes.

Abrir la sombrilla

Diagram illustrating the process of cutting a tool with red arrows indicating direction and rotation, alongside a detailed view of the blade being cut.

Cerrar la sombrilla

Diagram illustrating the use of a tool to remove or remove a plant stem, with red arrows indicating direction and rotation.

Scherm openen

Diagram illustrating the process of hairpin bending and cutting, showing before-and-after states with red arrows indicating direction.

Parasol sluiten

1. Eventuele verwarmingselementen minstens 30 minuten laten afkoelen
2. Spanhendel losmaken, scherm sluiten
3. Eventuele verwarmingselementen inklappen
4. Overtrek goed leggen / wikkelen
5. Breng de bevestigingsband aan
6. Beschermhoes indien nodig overtrekken
   ! Alleen volledig droge schermen wikkelen / inpakken.

5958

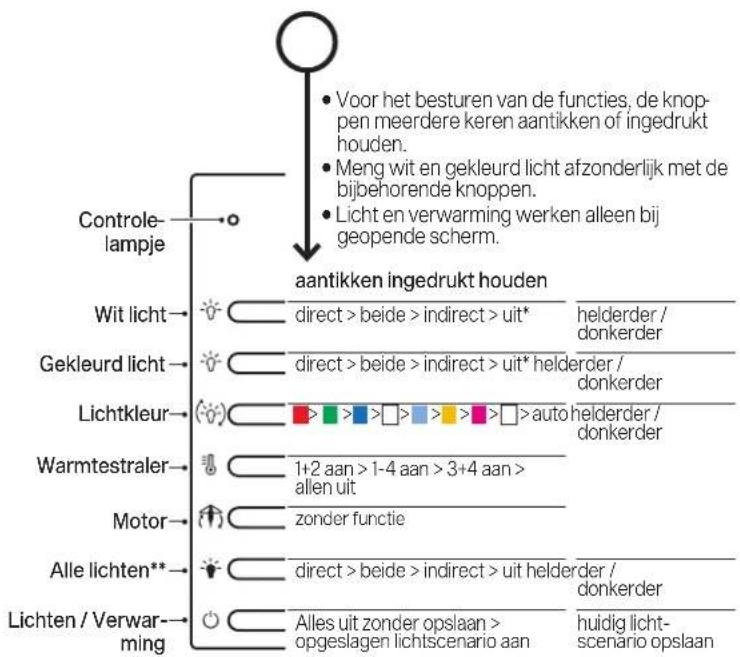

Licht en verwarming besturen

Line drawing of a simple outdoor umbrella with a canopy and support structure (no text or symbols)
