USER MANUAL Isolator Switch Socket Whale

Line drawing of a device with a circular button and a logo, no readable text or symbols present.

Line drawing of a standalone electrical enclosure unit (no text or symbols visible)

Illustration of a white industrial device with 'Whale' branding and mounting bracket (no text or symbols on body)

Line drawing of a whale-shaped device with a black vent and circular base (no text or symbols)

Mains Electric In, Mains Electric Out, Multimedia 3 in 1 and Isolator Switch Sockets

Installation and Operating Instructions

DE Easi-Slide

Mains Electric In, Mains Electric Out, Multimedia 3 in 1 and Isolator Switch

Sockets Installation and Operating Instructions

Mains Electric In Socket Pack contains:

1 x Whale Mains Electric In Socket

Mains Electric Out Socket Pack contains:

1x Whale Mains Out Socket

Multimedia 3 in 1 Socket Pack contains:

1x Whale Multimedia 3 in 1 Socket

Isolator Switch Socket Pack contains:

1x Whale Isolator Switch Socket

1x Isolator Key

In addition to all 4 packs you will need:

1x Whale Easi-Slide Lid

All work must be carried out by a competent person as defined by BS7671 PART 2/IEC 60364.

Contents

Socket Installation 23

1. Mains Electric In Socket 26
2. Mains Electric Out Socket 30
3. Multimedia 3 in 1 Socket 34
4. Isolator Switch Socket 38

External Socket Mounting Profile 43

Safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children must be supervised to ensure that they do not play with the appliance.
• Any alteration to the appliance, misuse or use of non-original Whale parts may invalidate the warranty. Non observation of the installation and operating instructions will lead to cancellation of the warranty and exclusion of liability claims. It also becomes illegal to use the appliance if incorrectly installed, and in some countries may make it illegal to use the vehicle.
• If the mains in or out supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• For use in recreational vehicles only.

Before you begin

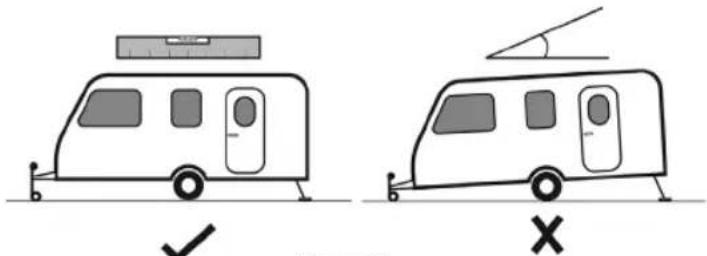

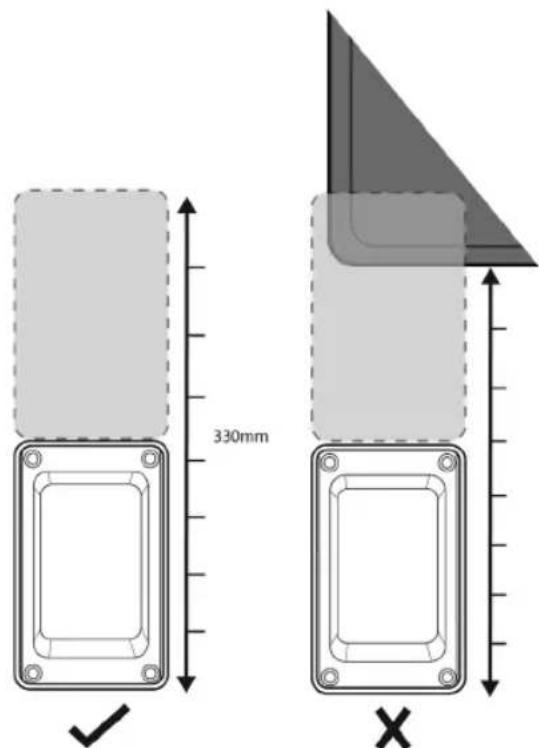

• (Figure 1) Ensure your caravan, motorhome or panel van is on a level surface and secured.

Diagram showing two scenarios of a vehicle with a roof, one marked with checkmark and the other with X, indicating correct and incorrect conditions.

Figure 1.

330mm ✓ ×

Figure 2.

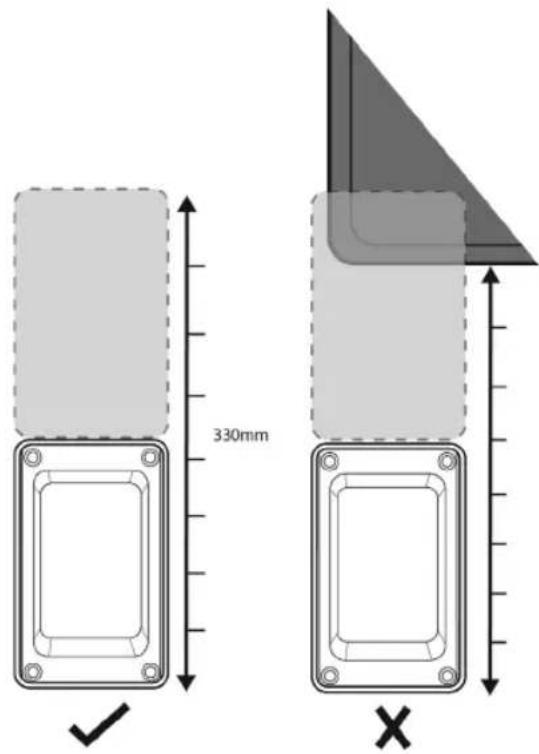

- (Figure 2) Ensure you have enough free wall space for the installation including enough clearance for the Whale Easi-Slide Lid when installing and open.

Socket Installation (▶1 - 17)

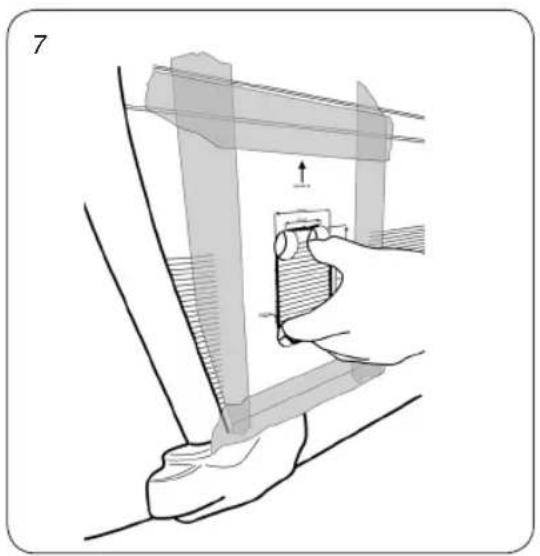

•( ▶1) Ensure you have enough free wall space for the installation including enough clearance for the Whale Easi-Slide Lid when installing and open.

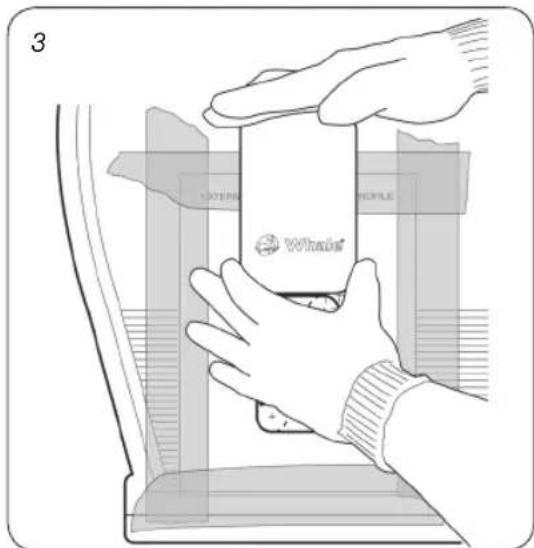

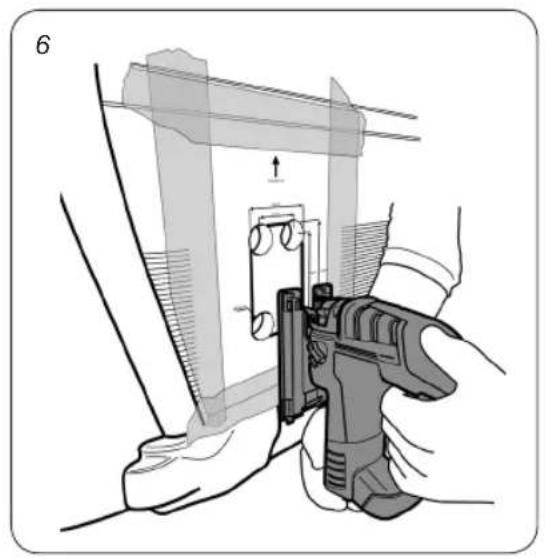

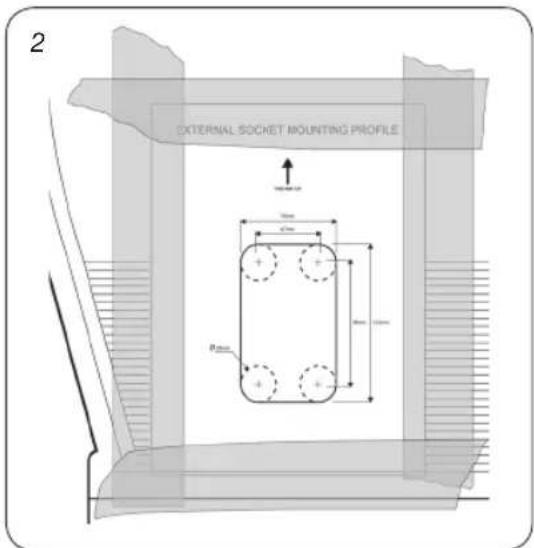

•( ▶2) Use Socket Mounting Profile on page 43 as your cutting template and fix to vehicle wall using masking tape.

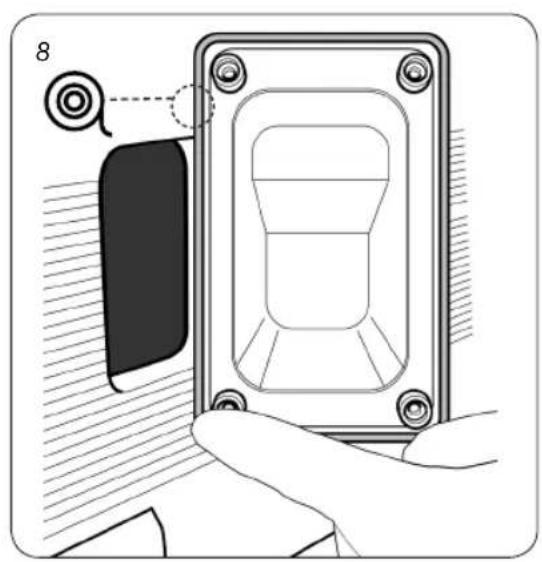

•(▶8) Masking tape should be fitted around the outside of the socket to protect the grooves.

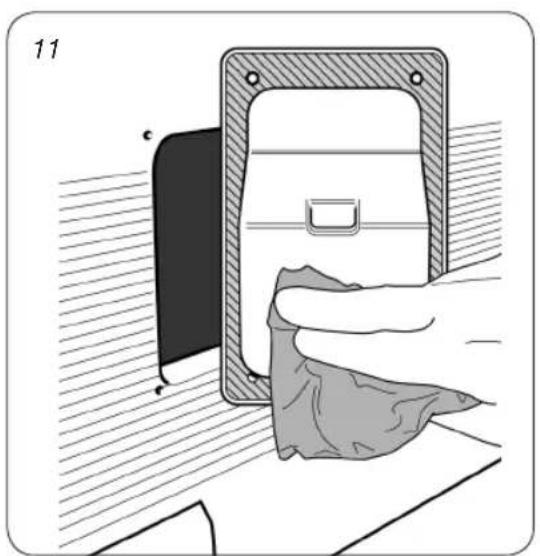

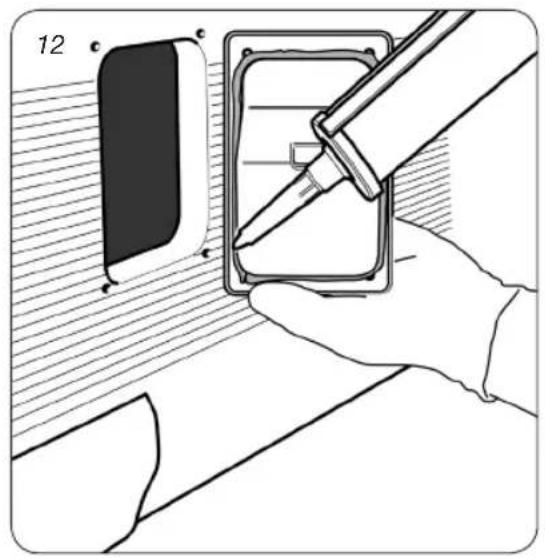

•( ▶11) Ensure the rear sealing face of the socket is clean and free from any dirt or debris to

ensure a good seal.

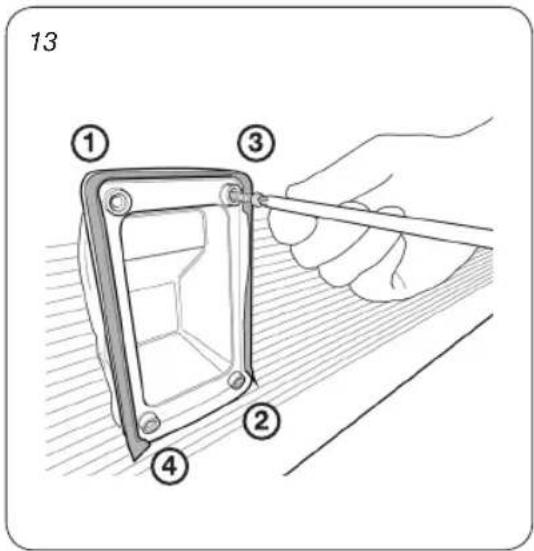

•( ▶ 13) Tighten screws evenly to avoid twisting the socket. Follow order shown.

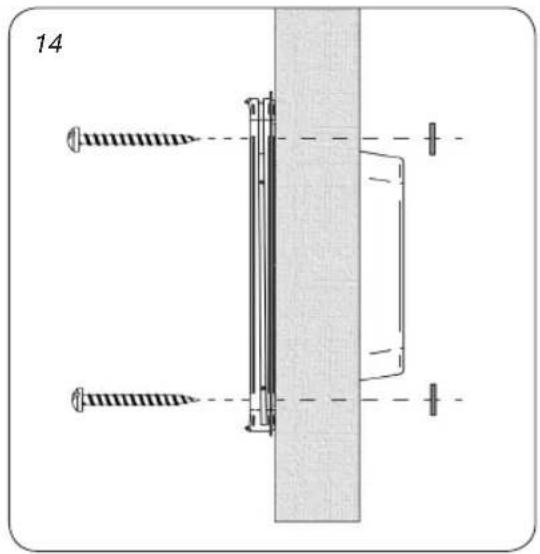

•( ▶ 14) In the instance that wall battens do not exist behind the socket cut out, use flat nuts to secure screws in place.

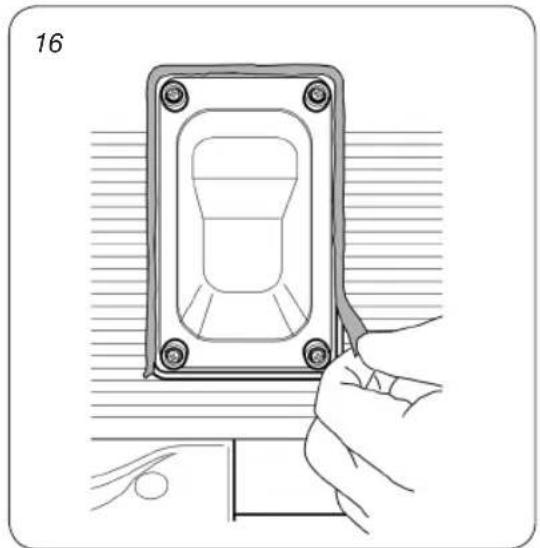

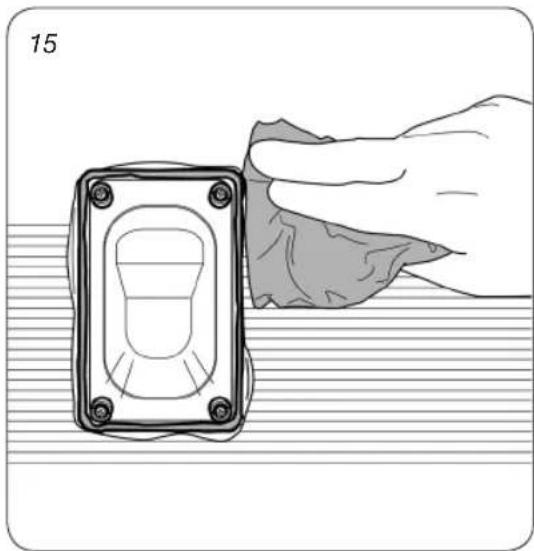

•( ▶ 15) When removing sealant from around the socket when installed, also clean the grooves to ensure protection and smooth use of socket.

Helpful Hints

• If the cover does not move freely when installed, remove it and ensure guide rails are free from sealant and debris.
• If your socket appears to be twisted when installed, slightly adjust the sealing screws.

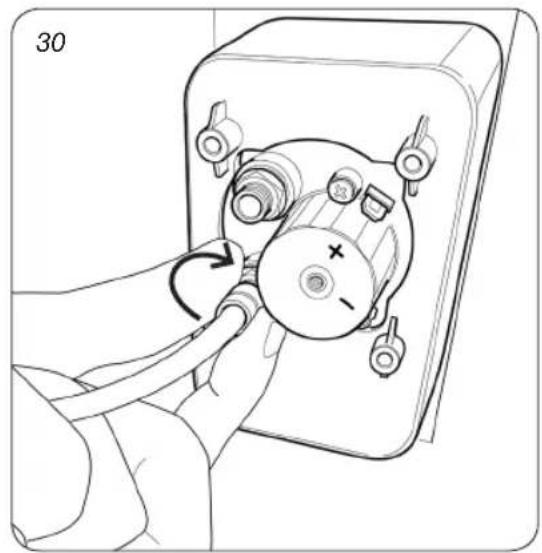

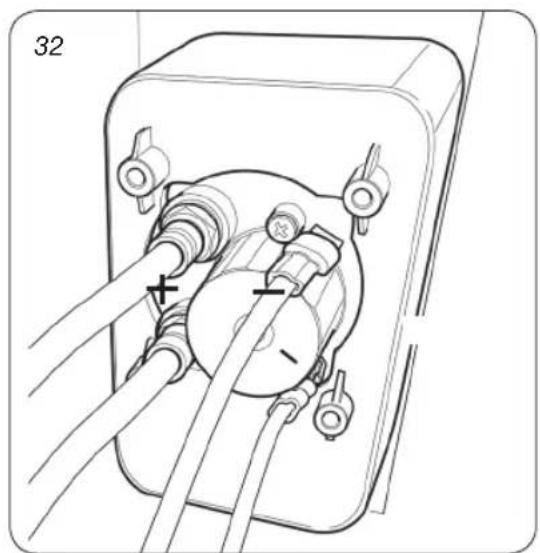

Fittings Installation (▶ 18) or (▶ 23a/23b) or (▶ 29-32) or (▶ 34-35)

• Ensure your vehicle is isolated from any power source before commencing work.
• All fittings installations are to be carried out by a competent person as defined by BS7671 Part 2/IEC 60364.

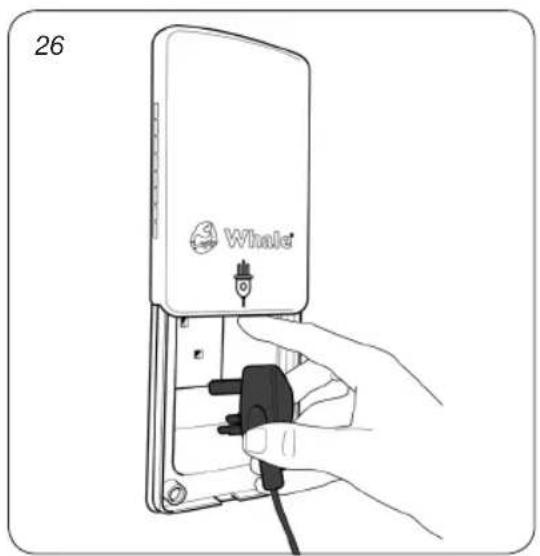

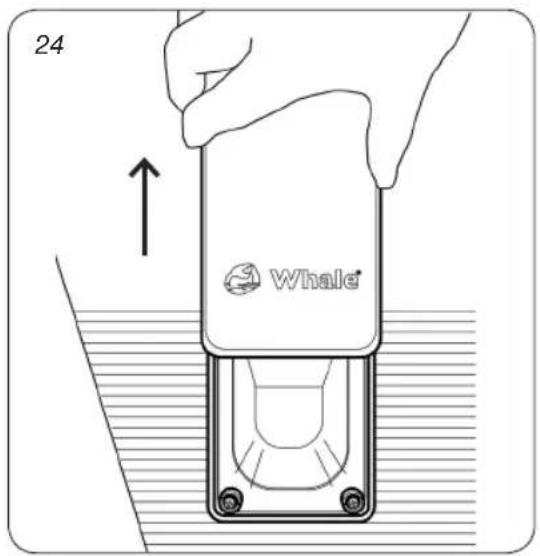

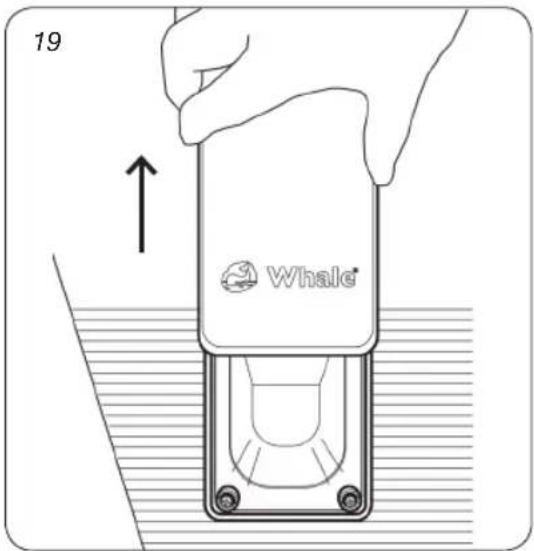

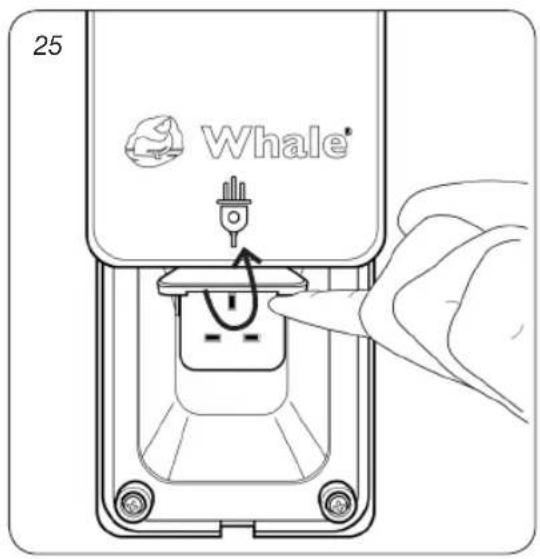

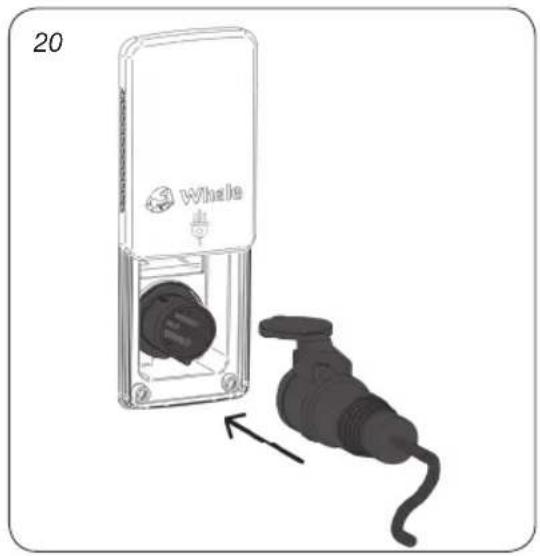

Operation (▶ 19-22) or (▶ 24 -2 8) or (▶ 33) or (▶ 36-40)

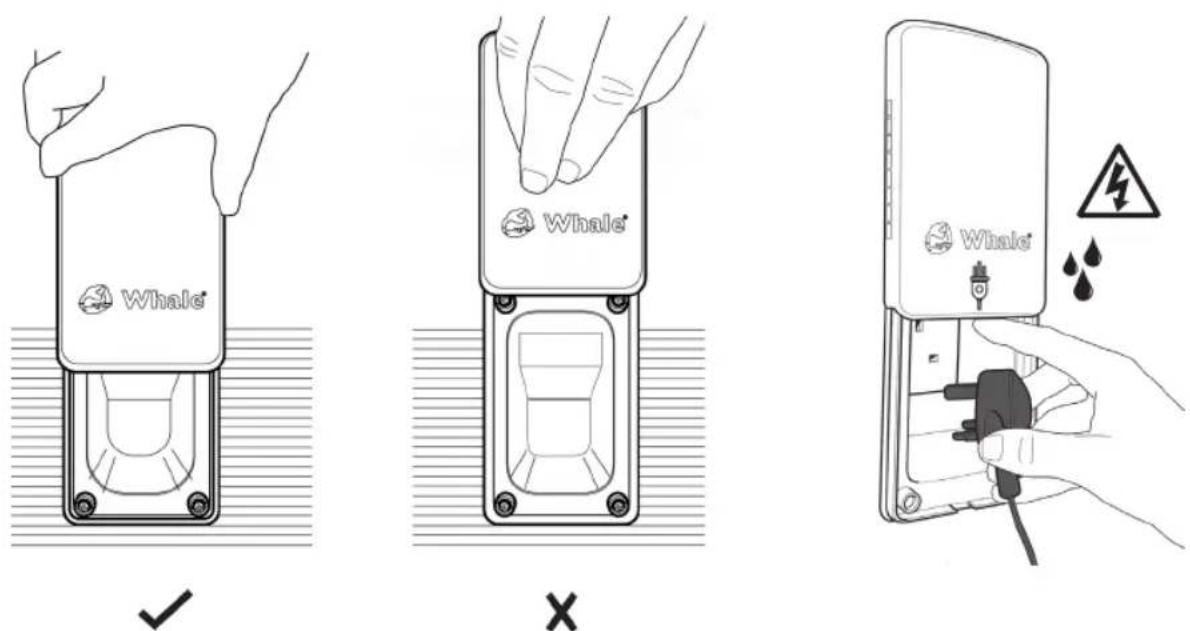

- (Figure 4.) All socket lids must remain closed when not in use. In adverse weather conditions, for example, snow, frost or heavy rain, please note risk of electrocution exists.

Whale Whale Whale Whale

Figure 3. Figure 4.

330mm ✓ ×

Abbildung 2.

Diagram showing two scenarios of a vehicle with a roof and ramp, marked with check and cross symbols indicating correct and incorrect states.

Figure 1.

330mm ✓ ×

Figure 2.

Whale Whale Whale Whale

Figure 3. Figure 4.

Diagram showing two scenarios of a vehicle with a roof, one marked with checkmark and the other with X, indicating correct and incorrect conditions.

Figura 1.

330mm ✓ ×

Figura 2.

Whale Whale Whale Whale

Figura 3. Figura 4.

Diagram showing two scenarios of a vehicle on a road, with checkmark and cross symbols indicating correct and incorrect states.

Fig.1.

330mm ✓ ×

Fig. 2.

Whale Whale Whale Whale

Fig. 3. Fig. 4.

1x Whale multimedia 3 in 1 stopcontact

330mm ✓ ×

afb. 2.

330mm ✓ ×

Bild 2.

Illustration of a hand holding a ruler inside a laptop with a 3D coordinate system (no text or symbols)

2 EXTERNAL SOCKET MOUNTING PROFILE 5mm 4mm Rmax

3 White SODA MOILE

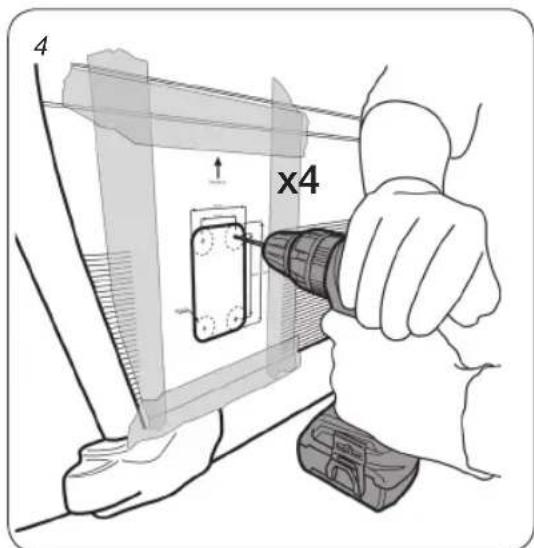

4 x4

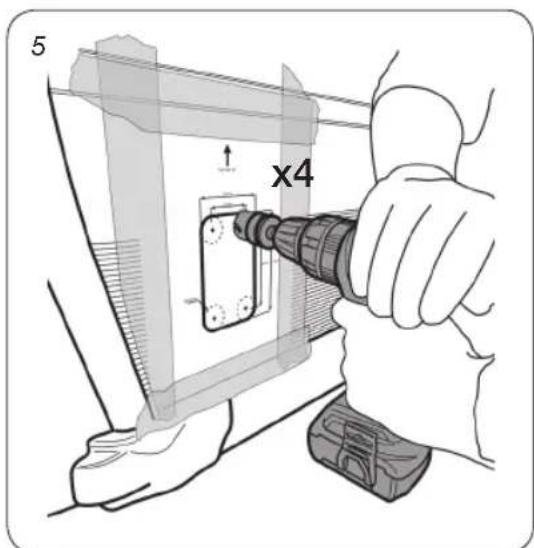

5 x4

Illustration of a hand holding a handgun with a device, no text or symbols present

Illustration of a hand holding a mechanical component with a ruler and adjustment knob (no text or symbols)

Illustration of a hand holding a device panel with a circular button and a magnified view of the internal structure (no text or symbols)

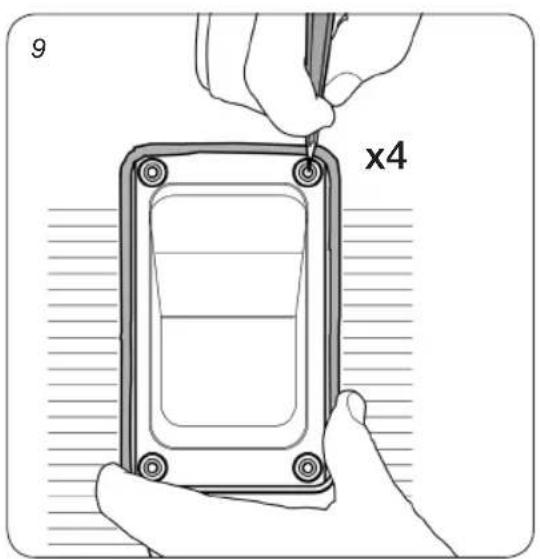

9 x4

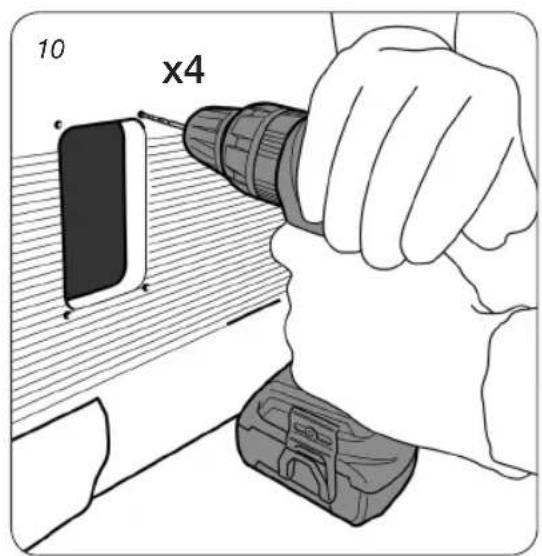

10 x4

Illustration of a hand cleaning a smartphone with a cloth, showing no text or symbols

Illustration of a hand holding a device with a pen, against a striped background (no text or symbols)

13 ① ③ ② ④

Technical diagram showing two screws inserted into a rectangular component with a dashed line indicating alignment (no text or symbols present)

Illustration of a hand pressing down on a rectangular device with a handle, against a striped background (no text or symbols)

Illustration of a hand using a tool to cut a component on a surface, no text or symbols present

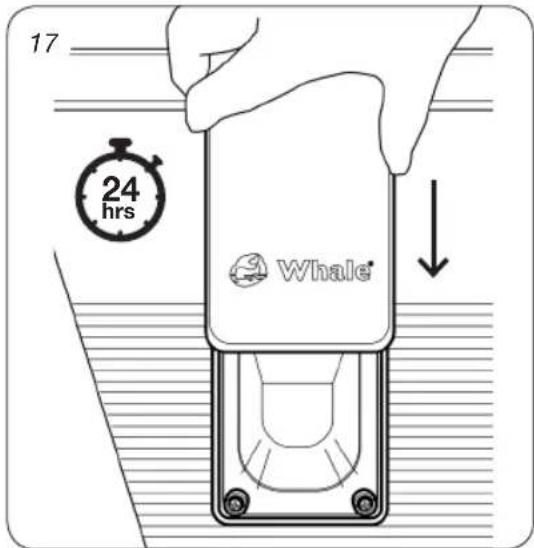

17 24 hrs Whale

1. Mains Electric In Socket

The Whale Mains Electric In Socket allows you to safely hook up 230V/16amp mains power to your caravan, motorhome or camper van while onsite.

Figure 5. Mains Electric In Socket Dimensional Drawings

DE Abbildung 5. Stromanschlussdose – Maßzeichnungen
FR Figure 5. Schémas dimensionnels de la prise d'alimentation électrique
IT Figura 5. Disegni dimensionali della presa d'ingresso dell'elettricità della conduttura principale
ES Fig. 5. Planos dimensionales de toma de corriente eléctrica de entrada
NL afb. 5. Maattekeningen stroomaansluiting In contactdoos
SE Bild 5. Dimensionsritningar för Uttag med nätström

Fittings Installation

DE Armaturen-Installation
FR Installation des raccords
IT Installazione dei raccordi
ES Instalación de elementos
NL Het installateren van de fittingen
SE Anslutningsinstallation

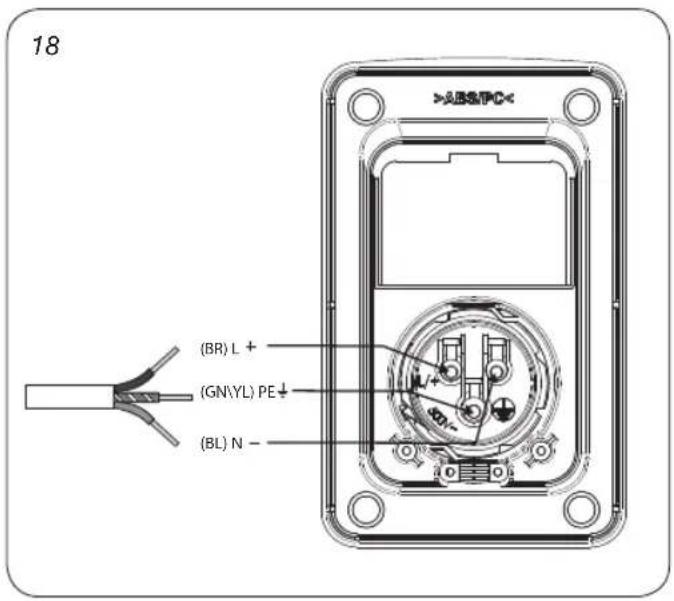

18 (BR) L + (GN\YL) PE ↓ (BL) N -

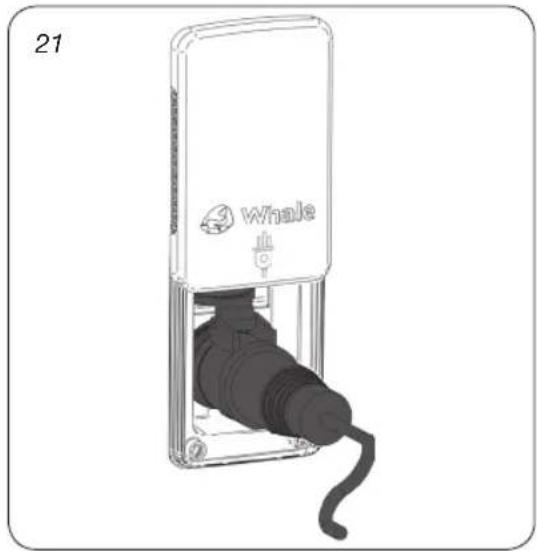

Operation

DE Betrieb
FR Fonctionnement
IT Funzionamento
ES Funcionamiento
NL Gebruik
SE Drift

19 Whale®

Illustration of a plug inserted into a plastic device labeled 'Whole' (no text or symbols on the device itself)

Illustration of a whale-shaped electrical plug with a black cable inserted, labeled '21' (no text or symbols on the diagram itself)

22 Whale

2. Mains Electric Out Socket

This easy access mains outlet socket includes a UK 3 pin or SCHUKO 2 pin socket (EU) which allows you to hook up electrical appliances to 13-amp (UK) or 16-Amp (EU) rating such as power tools, lighting, TVs or games consoles. Easi-Slide Lid can be completely closed when in use, weatherproofing the unit against the elements.

Fittings Installation

DE Armaturen-Installation
FR Installation des raccords
IT Installazione dei raccordi
ES Instalación de elementos
NL Het installateren van de fittingen
SE Anslutningsinstallation

23a - UK

SOCKET CONNECTION JST LP-03-1

RECEPTACLE CONNECTION LR-03-1

- N (BL) ± PE (GN\YL) + L (BR)

23b - EU

(BL) N — (GN\YL) PE 12 (BR) L +

Operation

DE Betrieb
FR Fonctionnement
IT Funzionamento
ES Funcionamiento
NL Gebruik
SE Drift

24 Whale®

25 Whale®

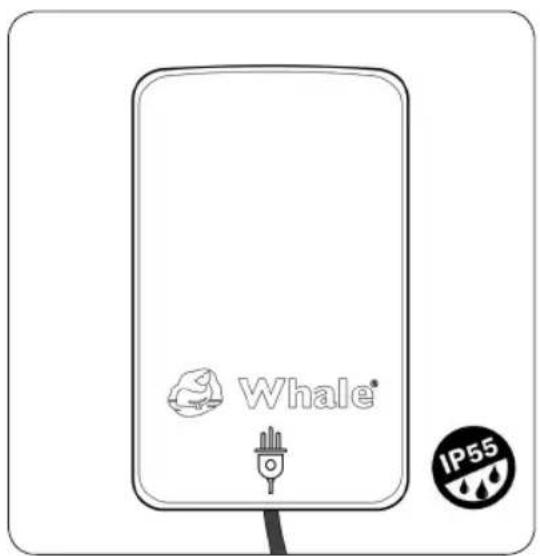

Illustration of a hand inserting a plug into a device labeled 'Whale' (no text or symbols on the device itself)

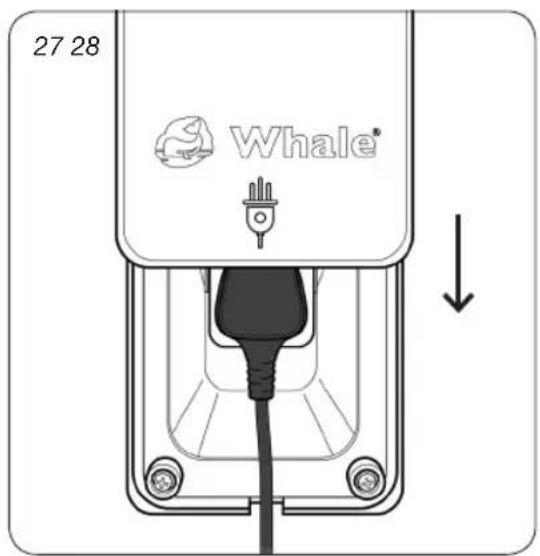

27 28 Whale®

Whale® IP55

3. Multimedia 3 in 1 Socket

Entertainment on the go with the Whale Multimedia 3 in 1 Socket. Supplies TV aerial and satellite as well as providing a 12v d.c. outlet socket to power or charge your device.

NL 3. Multimedia 3 in 1 stopcontact

Whale 12V SAT TV 164mm 270mm 12V AC 10A 103mm 66mm 85mm 124mm 75mm

Figure 7. Multimedia 3 in 1 Socket Dimensional Drawings

DE Abbildung 7. Maßzeichnungen für den 3-in-1 Multimedia-Anschluss
Figure 7. Schémas de principe de la prise multimédia 3 en 1
IT Figura 7. Disegni dimensionali presa multimedia 3 in 1
ES Fig. 7. Dibujo dimensional de la toma de corriente multimedia 3 en 1
NL afb. 7. Multimedia 3 in 1 stopcontact, tekening met afmetingen
SE Bild 7. Multimedia 3-i-1-uttag, dimensionsritningar

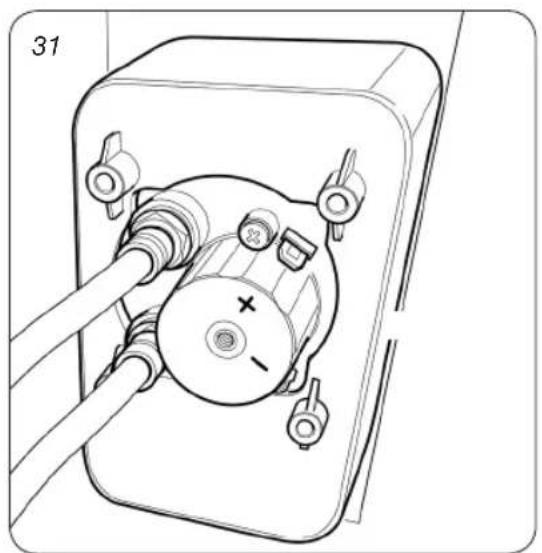

Fittings Installation

DE Armaturen-Installation

FR Installation des raccords

29 SAT TV

Line drawing of a hand holding a cable with a circular component, no text or symbols present

Technical line drawing of a mechanical assembly with a central component and pipe connection (no text or symbols)

Technical line drawing of a mechanical or electrical component with multiple wires and connectors (no text or symbols)

Operation

DE Betrieb
FR Fonctionnement
IT Funzionamento
ES Funcionamiento
NL Gebruik
SE Drift

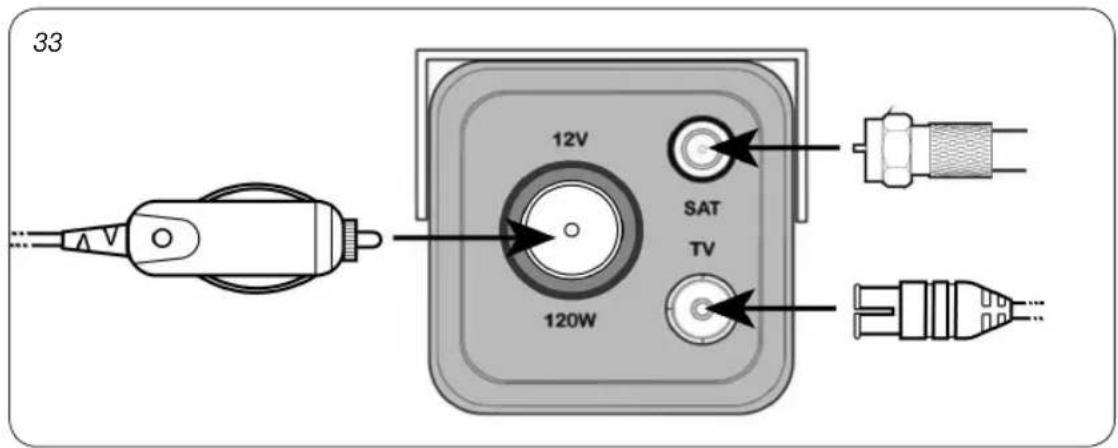

33 12V SAT TV 120W

4. Isolator Switch

The Whale Isolator Switch allows you to cut the power to your appliances saving valuable battery life.

DE 4. Trennschalter

Figure 8. Isolator Switch Socket Dimensional Drawings

DE Abbildung 8. Maßzeichnungen Trennschalteranschluss
FR Figure 8. Schémas de principe de la prise à sectionneur d'isolation
IT Figura 8. Disegni dimensionali presa con sezionatore
ES Fig. 8. Dibujo dimensional de la toma de corriente para interruptor seccionador
NL afb. 8. Hoofdschakelaar stopcontact, tekening met afmetingen
SE Bild 8. Huvudströmbrytaruttag, dimensionritningar

Fittings Installation

DE Armaturen-Installation

FR Installation des raccords

External face of socket rated to IP55 when lid closed

De Schutzklasse der Buchsenaußenseite entspricht IP55, wenn der Deckel geschlossen ist
Eindice de protection de la face extérieure de la douille correspond à IP55 lorsque le couvercle est fermé
Il tato esterno della presa è classificato come IP55 quando il coperchio è chiuso
Escara externa del enchufe tiene un grado de protección IP55 cuando la tapa está cerrada
Førterne gezicht van stopcontact IP55 met gesloten deksel
Händig sida av uttaget klassificerad till IP55 med stängt lock

DECLARATION OF CONFORMITY, STANDARDS & APPROVALS

Declare under our sole responsibility that the following apparatus:

Product description: Easi-Slide Exterior Utilities Sockets

Model name and no.: Mains Electric In Socket S03100

Brand name: Whale®

Is in conformity with the following relevant EU Legislation:

LVD directive 2014/35/EU

Based on the following harmonized standards:

EN 60335-1-2012

EN 60309 - 1 - 1999

And therefore complies with the essential requirements of those directives.

Name and position of person binding the manufacturer or authorised representative:

Name: Richard Bovill

Function: Engineering Director

Location: Munster Simms Engineering Ltd

2 Enterprise Road, Bangor, BT19 7TA

Date of Issue: 2018

Whale®

This Whale product is covered by a 2 year warranty. Please see the enclosed document for details of our Statement of Limited Warranty.

© Copyright Whale 2018 - All rights reserved. Reproduction in whole or in part without permission is prohibited.

WHALE ^ , is a registered trademark of Munster Simms Engineering Limited, Bangor, Northern Ireland trading as Whale. Whale's policy is one of continuous improvement and we reserve the right to change specifications without prior notice. Illustrations are for guidance purposes only.

Neither the accuracy nor completeness of the information contained in this or any product literature is guaranteed by the Company and may be subject to change at its sole discretion.
