USER MANUAL Onboard Tank Fill Socket Whale

Line drawing of a whale brand water dispenser with handle and control panel (no text or symbols)

Onboard Tank Fill,

Onboard Tank Fill + 12V, and Water Out Sockets

Installation and

Operating Instructions

DE Easi-Slide

Line drawing of a whale brand water heater with control buttons and mounting holes (no text or symbols)

Line drawing of a whale water dispenser with a water drop and ball inside (no text or symbols)

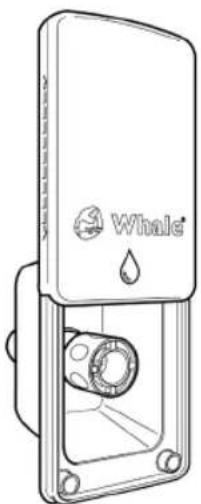

Onboard Tank Fill, Onboard Tank Fill + 12V, and Water Out Sockets

Installation and Operating Instructions

Onboard Tank Fill Socket Pack contains:

1x Whale Onboard Tank Fill Socket

OR

Onboard Tank Fill + 12V Socket Pack contains:

1x Whale Onboard Tank Fill + 12V Socket

In addition you will need the Whale Superfil water pump GP1633 - available separately

OR

Water Out Socket Pack contains:

1x Whale Water Out Socket

In addition you will need the Whale Compact Shower SO4100B (Bulk Packaging),

SO4100C (Retail) - available separately

In addition for all 3 packs you will need: 1x Whale Easi-Slide Lid

Contents

Socket Installation 23

1. Onboard Tank Fill Socket 26

2. Onboard Tank Fill + 12V Socket 30

3. Water Out Socket 34

External Socket Mounting Profile 39

Safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children must be supervised to ensure that they do not play with the appliance.

- Any alteration to the appliance, misuse or use of non-original Whale parts may invalidate the warranty. Non observation of the installation and operating instructions will lead to cancellation of the warranty and exclusion of liability claims. It also becomes illegal to use the appliance if incorrectly installed, and in some countries may make it illegal to use the vehicle.

- For use in recreational vehicles with a typical water system pressurised up to 3 bar.

Before you begin

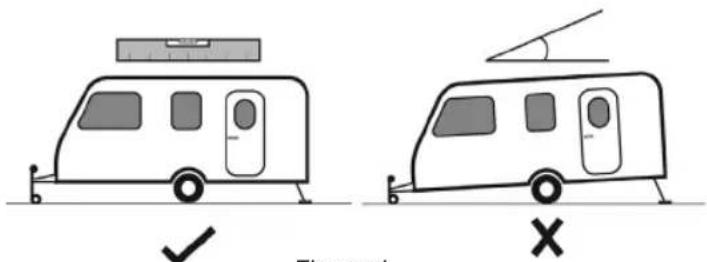

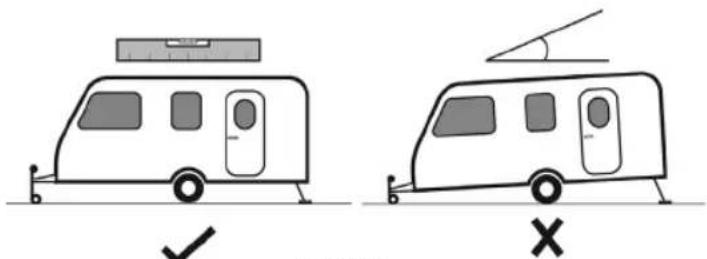

• (Figure 1) Ensure your caravan, motorhome or panel van is on a level surface and secured.

330mm ✓ ×

Figure 2.

Diagram showing two scenarios of a vehicle with a roof, one marked with checkmark and the other with cross, indicating correct and incorrect conditions.

Figure 1.

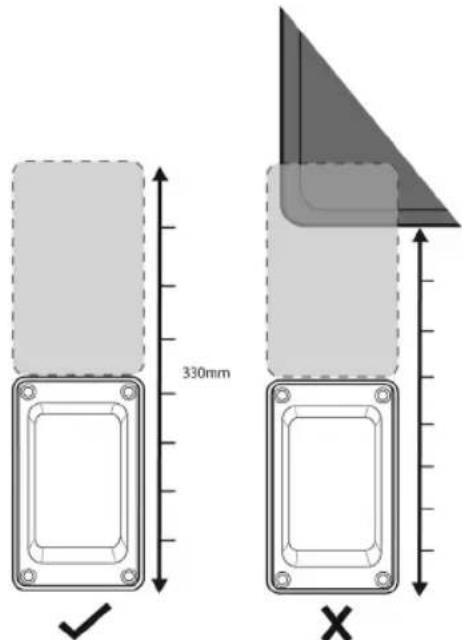

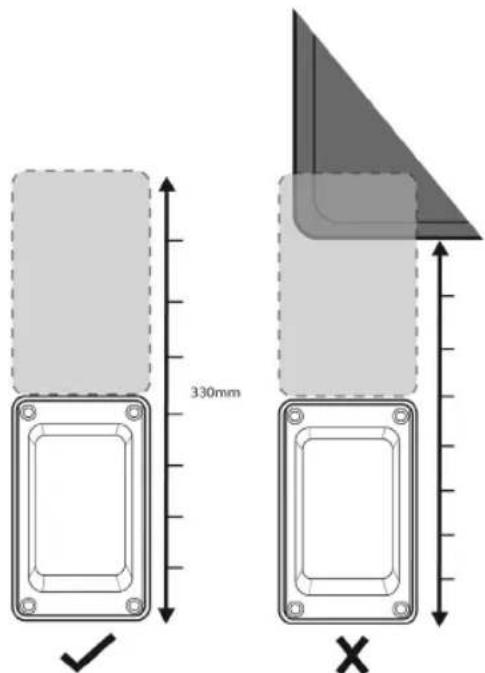

• (Figure 2) Ensure you have enough free wall space for the installation including enough clearance for the Whale Easi-Slide Lid when installing and open.

- These products are not designed for any other purpose than for supplying fresh water to a caravan, or other recreational vehicle.

- Always disconnect power sources before installing or making connections.

- With all applications, it is important that a system of safe working practice is applied to installation, use and maintenance.

- Always ensure water system is drained before commencing any work.

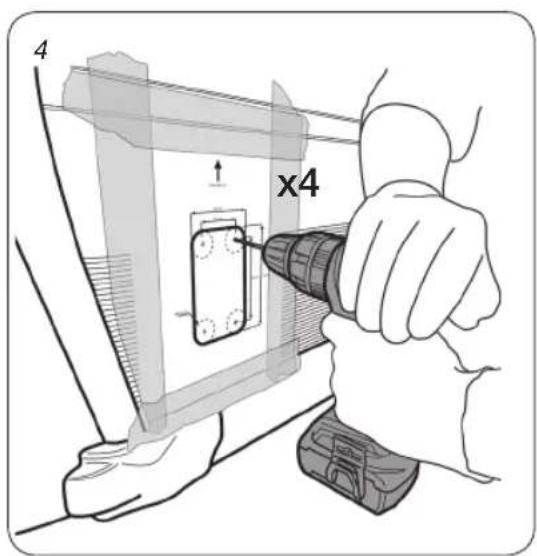

Socket Installation (▶1 - 17)

•( ▶1) Ensure you have enough free wall space for the installation including enough clearance for the Whale Easi-Slide Lid when installing and open.

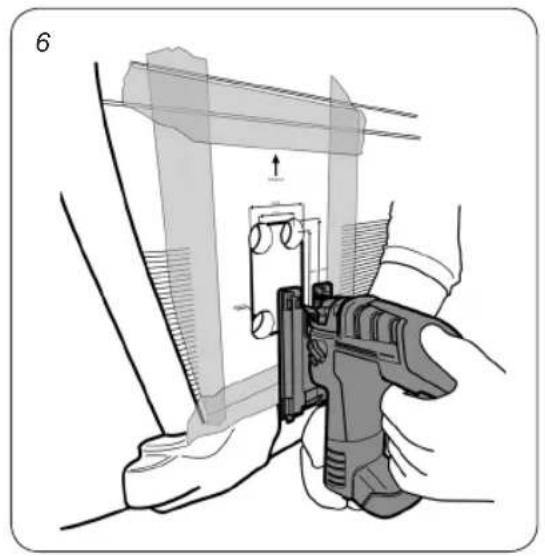

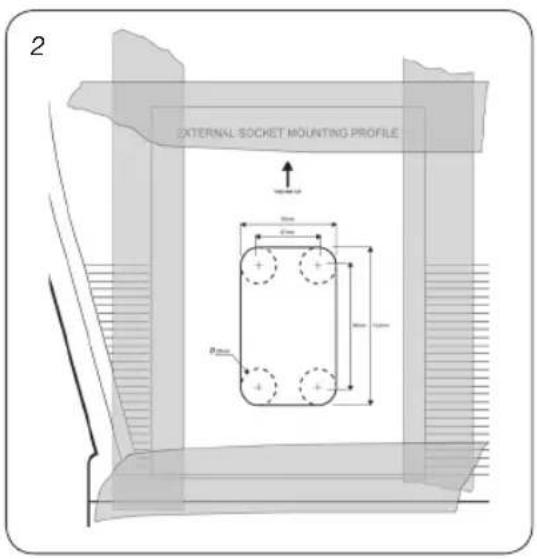

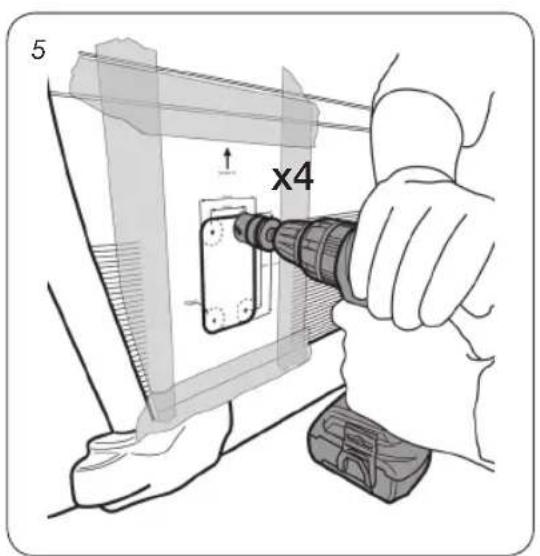

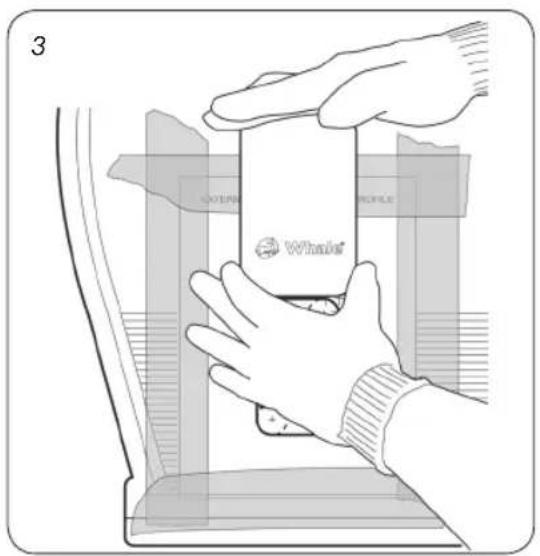

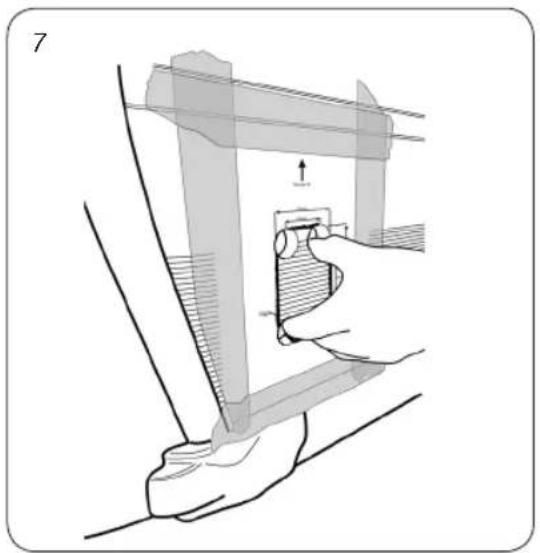

•( ▶2) Use Socket Mounting Profile on page 39 as your cutting template and fix to vehicle wall using masking tape.

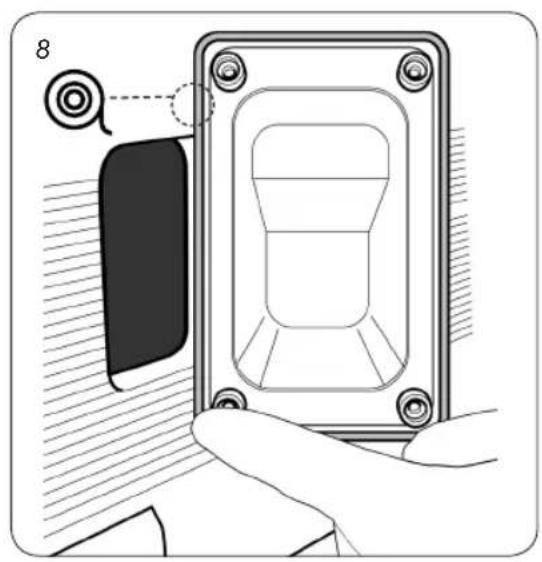

•( ▶8) Masking tape should be fitted around the outside of the socket to protect the grooves.

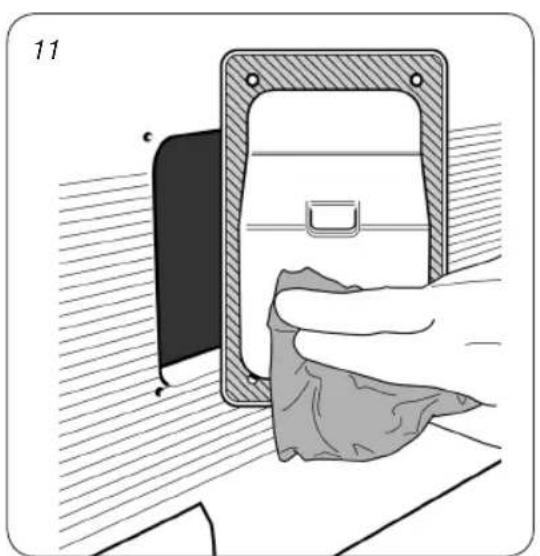

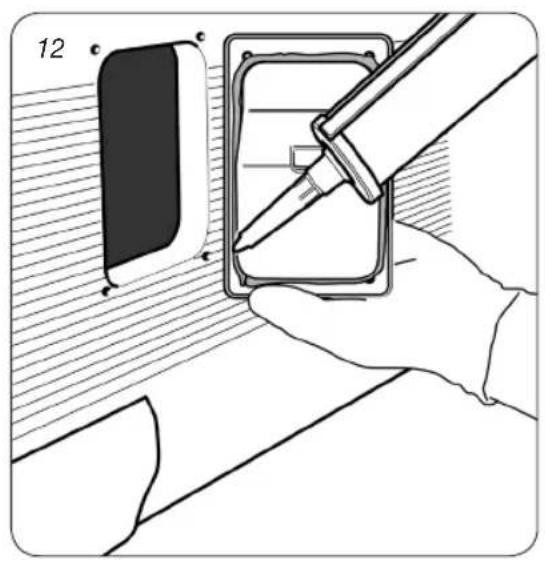

•(▶11) Ensure the rear sealing face of the socket is clean and free from any dirt or debris to ensure a good seal.

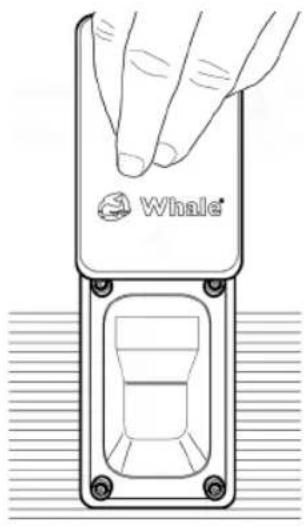

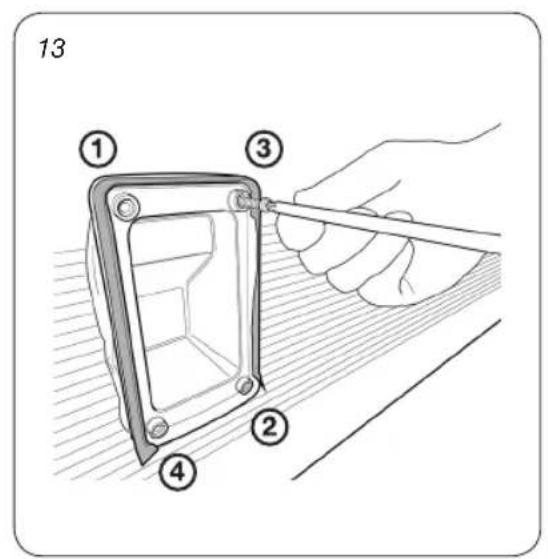

•( ▶13) Tighten screws evenly to avoid twisting the socket. Follow order shown.

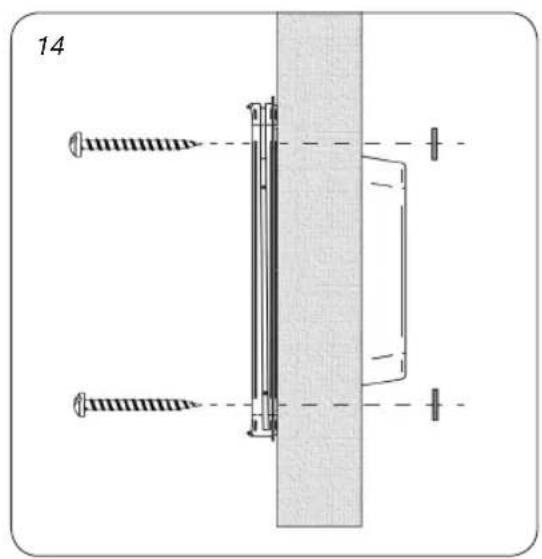

•( ▶14) In the instance that wall battens do not exist behind the socket cut out, use flat nuts to secure screws in place.

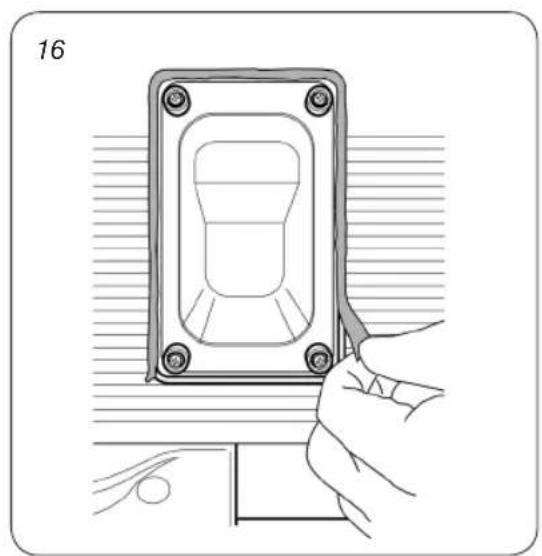

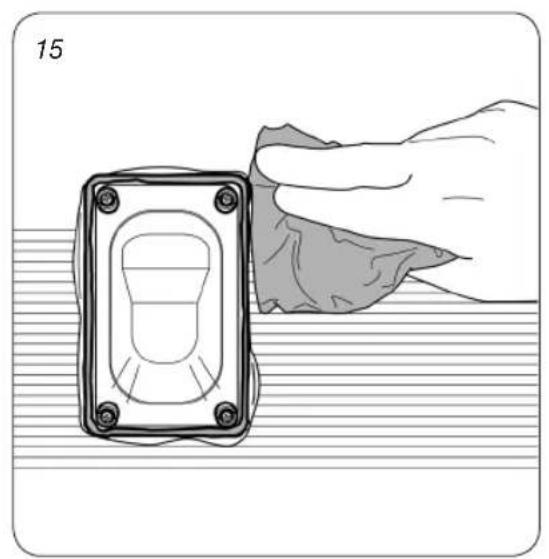

•( ▶15) When removing sealant from around the socket when installed, also clean the grooves to ensure protection and smooth use of socket.

Helpful Hints

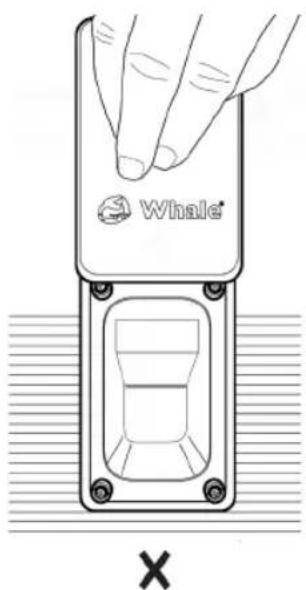

• If the cover does not move freely when installed, remove it and ensure guide rails are free from sealant and debris.
• If your socket appears to be twisted when installed, slightly adjust the sealing screws.

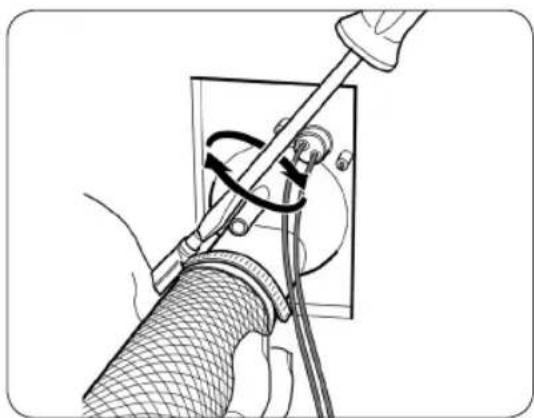

Fittings Installation

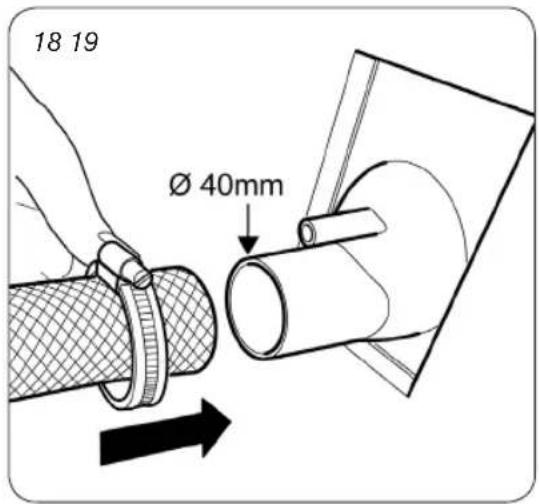

• Onboard Tank Fill Socket (▶ 18-19)
- Onboard Tank Fill + 12v Socket (▶25-27)

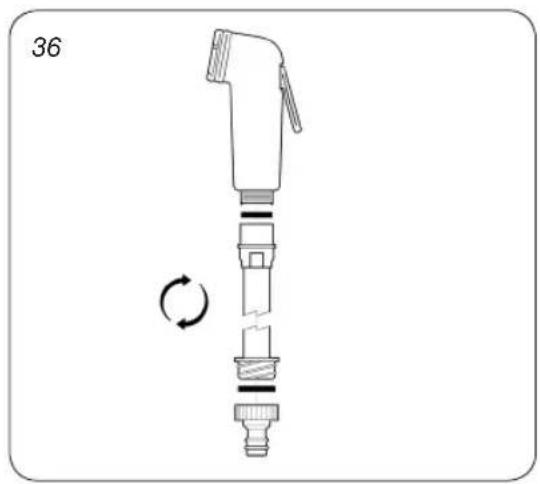

• Water Out Socket (▶35-36)

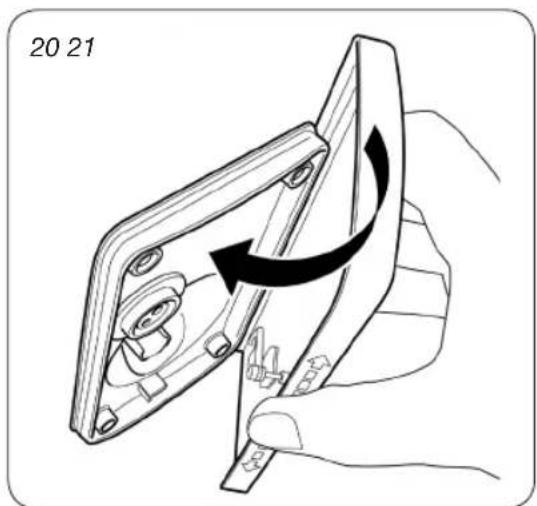

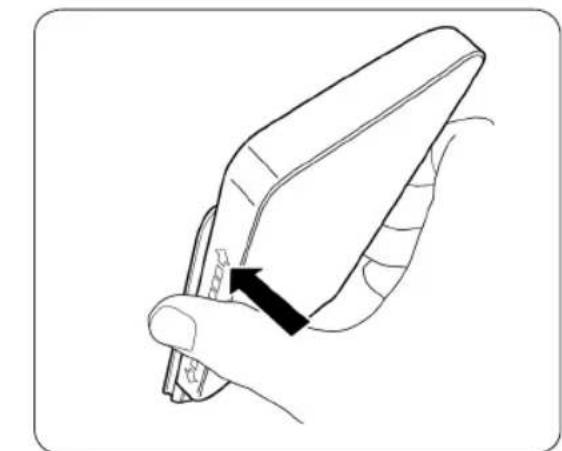

Lid attachment (▶20-21) or (▶28-29)

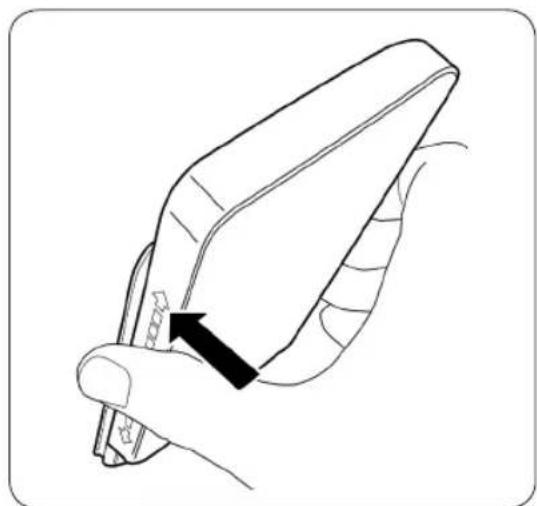

- For Onboard Tank Fill and Onboard Tank Fill + 12v Sockets, lids are to be snapped on from the side.

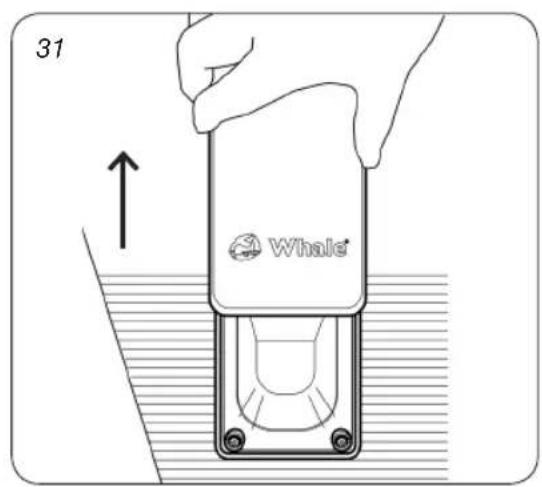

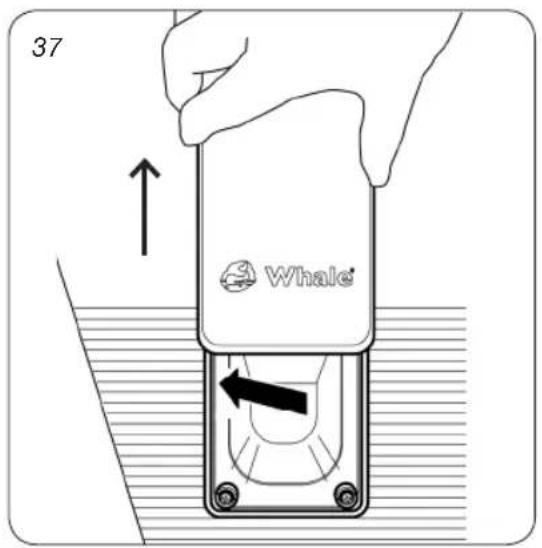

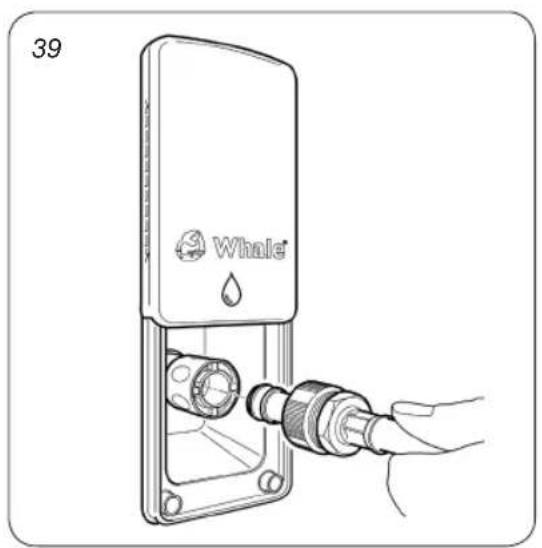

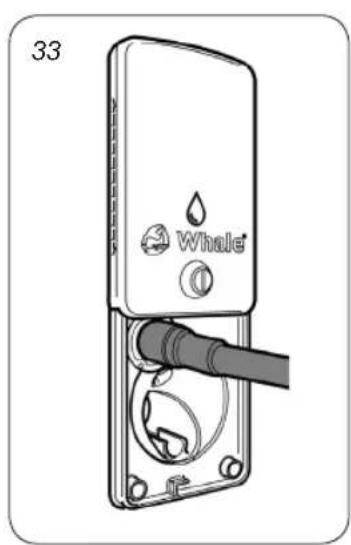

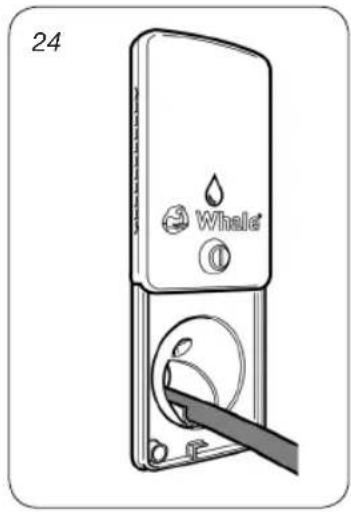

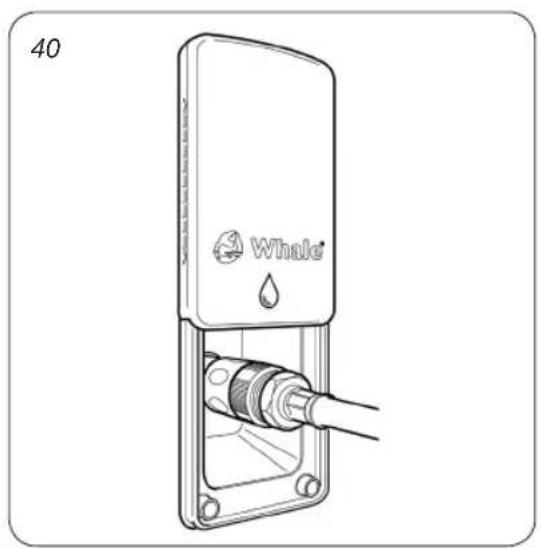

Operation (▶22-24) or (▶30-34) or (▶37-40)

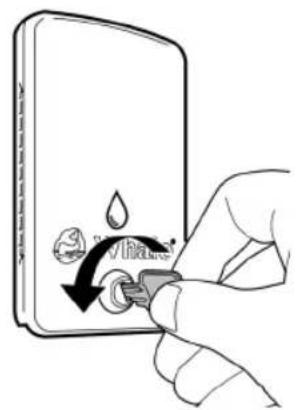

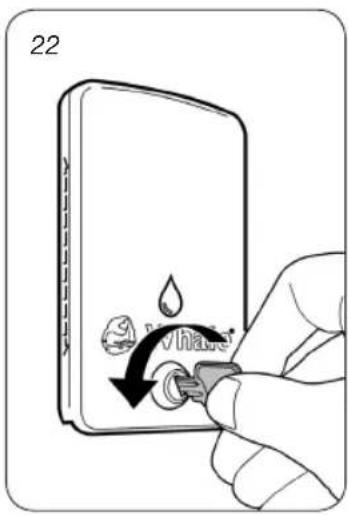

• (Figure 3) Onboard Tank Fill Socket and Onboard Tank Fill + 12v Socket lids incorporate a lock for safety and to restrict access to your fresh water supply. Turn clockwise to lock and anticlockwise to unlock the lid.
• All socket lids must remain closed when not in use.

Whal

Diagram showing a hand inserting a device into a device with a water drop and 'VHance' label, indicating fluid or water transfer.

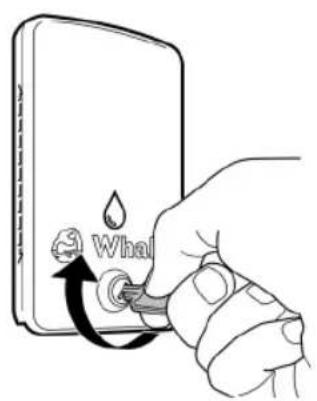

Figure 3. Locking and Unlocking Lid

Whale®

Whale® ×

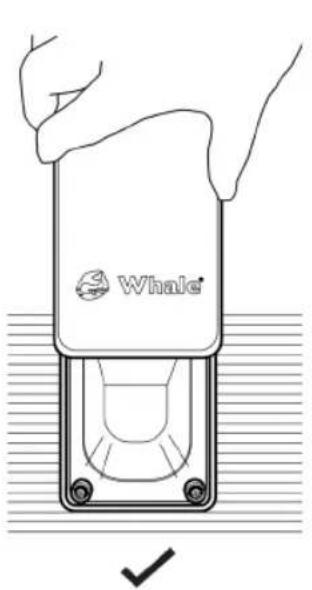

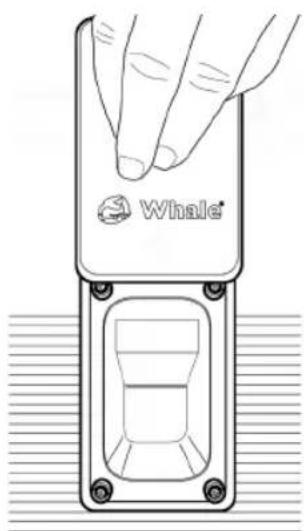

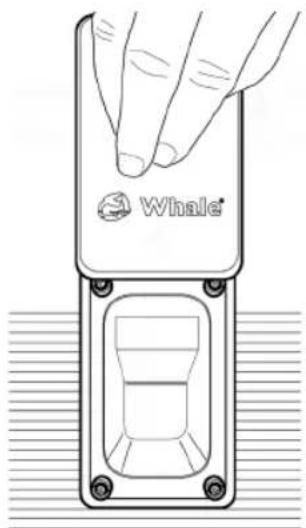

Figure 4. Opening Sliding Lid

330mm ✓ ×

Abbildung 2.

Diagram showing a hand pressing a valve with a water drop and valve labeled 'Water', illustrating fluid flow or mechanical change.

Whale Whale

330mm ✓ ×

Figure 2.

Diagram showing two scenarios of a vehicle on different sides, with checkmark and cross symbols indicating correct and incorrect states.

Figure 1.

Diagram showing a hand pressing a valve with water droplets and a valve labeled 'v/h' indicating water displacement.

330mm ✓ ×

Figuara 2.

Diagram showing two scenarios of a vehicle on a road, with checkmark and cross symbols indicating correct and incorrect conditions.

Figura 1.

Diagram showing a hand holding a device with a water droplet and valve, indicating fluid behavior change.

Line drawing of a whale brand electronic device with a hand holding the top part (no text or symbols on the device itself)

Line drawing of a whale-shaped device with a handle and screw base, no text or symbols present

Diagram showing two scenarios of a vehicle with a roof, one marked with checkmark and the other with cross, indicating correct and incorrect conditions.

Fig. 1.

330mm ✓ ×

Fig. 2.

Diagram showing a hand inserting a device into a device with a water drop and 'VHance' label, indicating fluid or water transfer.

Diagram showing a hand pressing a valve with water droplets and a valve labeled 'v/h' indicating water displacement.

Line drawing of a whale brand electronic device with a hand interacting with it (no text or symbols on the device itself)

Line drawing of a hand pressing down on a whale-shaped device (no text or symbols)

Diagram showing two scenarios of a vehicle with a roof, one marked with checkmark and the other with cross, indicating correct and incorrect conditions.

Bild 1.

Line drawing of a whale-shaped electronic device with a hand adjusting its side panel (no text or symbols visible)

Line drawing of a whale-shaped device with a handle and mounting feet, no text or symbols present

Illustration of a hand using a ruler to cut a 3D object on a flat surface, with no visible text or symbols.

2 EXTERNAL SOCKET MOUNTING PROFILE 10mm 40mm 10mm Rmax

3 White BLUE

4 x4

5 x4

Illustration of a hand holding a handgun with a device, no text or symbols present

Illustration of a hand holding a mechanical component with a tool, no text or symbols present

Illustration of a hand holding a device panel with a magnified view showing internal structure (no text or symbols)

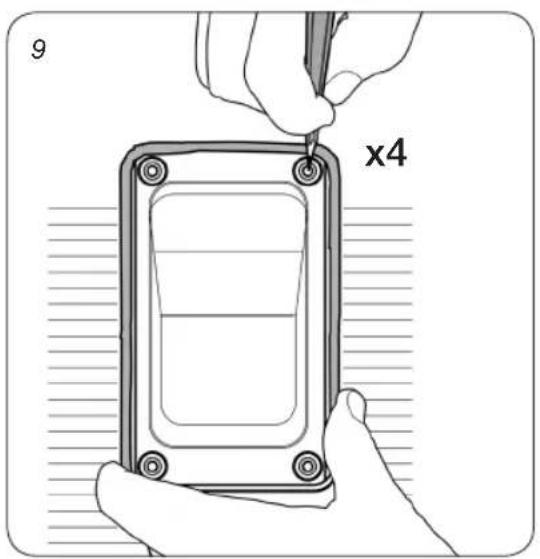

9 x4

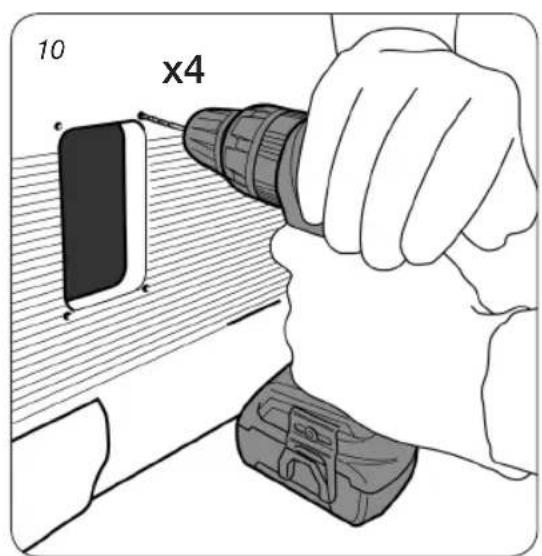

10 x4

Illustration of a hand cleaning a smartphone with a cloth, showing no text or symbols

Illustration of a hand holding a device with a pen, next to a black rectangular object on a striped surface (no text or symbols)

13 ① ③ ② ④

Technical diagram showing two screws inserted into a wall assembly with a bracket and mounting base (no text or symbols)

Illustration of a hand cleaning a rectangular electronic component with a handle, placed on a striped surface (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

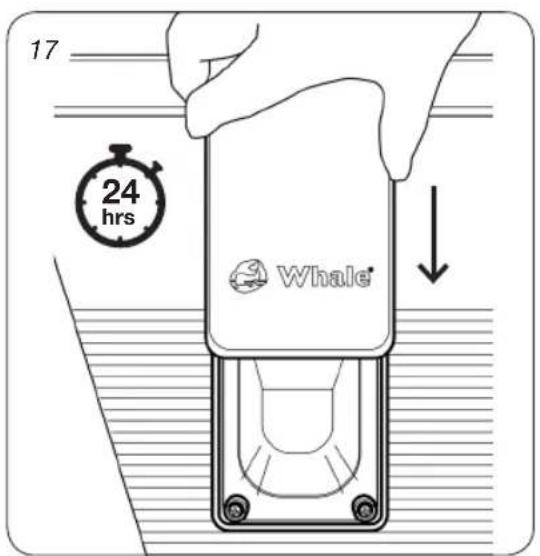

17 24 hrs Whale®

1. Onboard Tank Fill Socket

Directly fill your on-board water tank with the Onboard Tank Fill Socket. The unique secure hose clip keeps the pump in place during filling (▶24). The tank fill design incorporates a lock to protect your water supply and a vent pipe to prevent airlocks. The Onboard Tank Fill Socket is suitable for use with any standard hose and should be used with cold freshwater only.

Whale 270mm 164mm 103mm Ø 10mm Ø 40mm 66mm 124mm 75mm

Figure 5. Onboard Tank Fill Socket Dimensional Drawings

Fittings Installation

DE Armaturen-Installation
FR Installation des raccords
IT Installazione dei raccordi
ES Instalación de elementos
NL Het installeren van de fittingen
SE Anslutningsinstallation

18 19 Ø 40mm

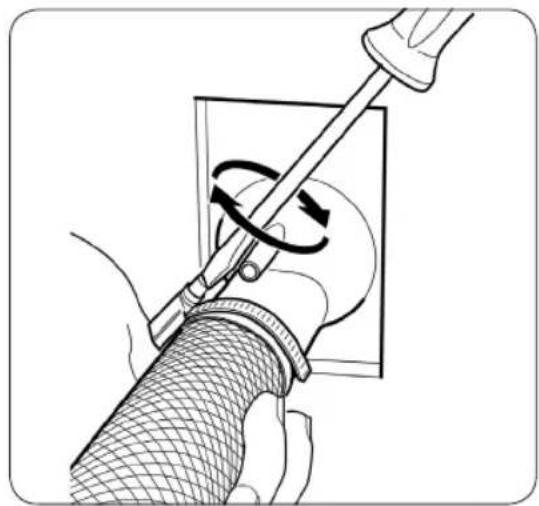

Illustration of a hand using a tool to lift a mesh pipe, showing rotational motion (no text or symbols)

Lid attachment

DE Befestigung der Abeckkappe
FR Attache du couvercle
IT Attacco coperchio
ES Fijación de la tapa
NL Het aanbrengen van de deksel
SE Lockfastsättning

Illustration of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a tool with an arrow pointing to the grip (no text or symbols)

Operation

DE Betrieb
FR Fonctionnement
IT Funzionamento
ES Funcionamiento
NL Gebruik
SE Drift

22 vVha

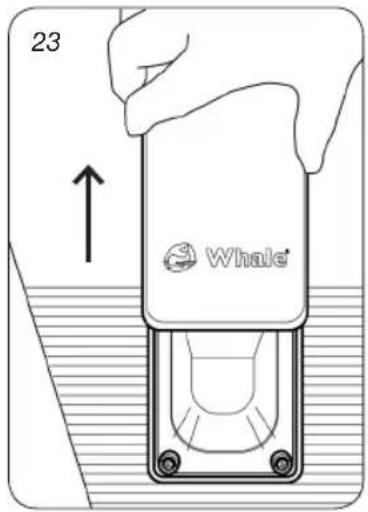

23 Whale®

24 Whale

2. Onboard Tank Fill + 12V Socket

Unique 2 in 1 design includes a 12V pump power supply and Onboard Tank Fill all in one socket. The secure hose clip keeps the pump in place during filling (▶34). The Onboard Tank Fill + 12v Power Socket incorporates a lock to protect your water supply and a vent pipe ensuring the tank is vented at all times, preventing airlocks. This socket is suitable for use with any standard hose and is to be used with cold freshwater only.

12V DC 5A 270mm 164mm Whale® Ø 10mm Ø 40mm 103mm 66mm 75mm 124mm

Figure 6. Onboard Tank Fill + 12V Socket Dimensional Drawings

Fittings Installation

25 Ø1.5mm² +

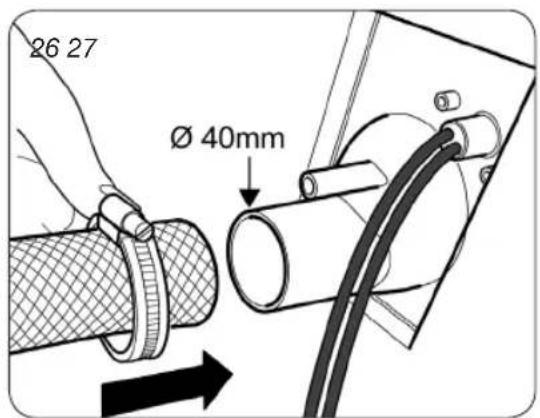

26 27 Ø 40mm

Illustration of a person using a tool to connect a cable to a wall-mounted device (no text or symbols visible)

Lid attachment

Diagram of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a pen or stylus, with a black arrow pointing to the pen tip (no text or symbols present)

Operation

DE Betrieb
FR Fonctionnement
IT Funzionamento
ES Funcionamiento
NL Gebruik
SE Drift

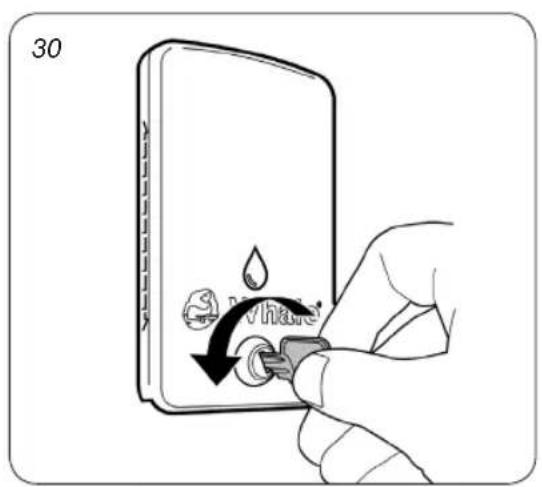

30 VHare

31 Whale®

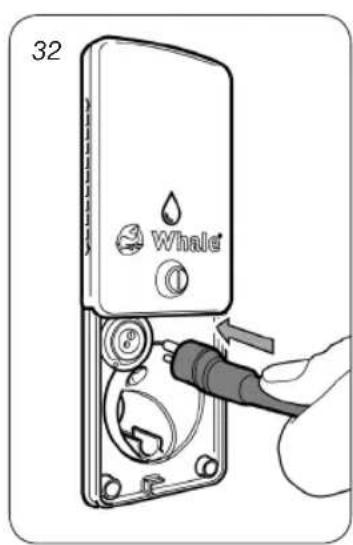

32 Whale

Diagram of a whale water heater with labeled ports and a cable, no text or symbols present

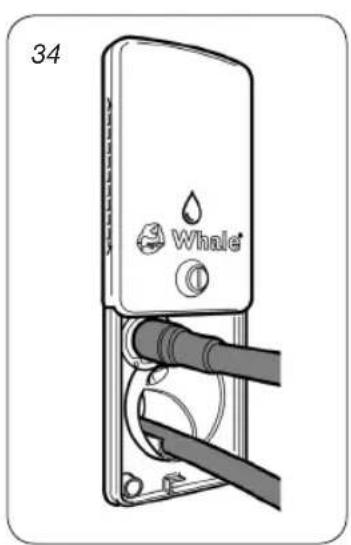

Diagram of a white whale device with attached tubing and control buttons, labeled '34' (no text or symbols on the device itself)

3. Water Out Socket

For hassle-free wash down, easily connect Whale's detachable exterior Compact Shower with easy-to-use trigger. Use with cold freshwater only.

Whale 164mm 270mm 103mm 66mm 126mm 75mm 124mm

Figure 7. Water Out Socket Dimensional Drawings

DE Abbildung 7. Maßzeichnungen für den Wasserauslassanschluss
FR Figure 7. Schémas de principe de la prise Water Out
IT Figura 7. Disegni dimensionali presa esterna per acqua
ES Fig. 7. Dibujo dimensional de la toma de corriente para salida de agua
NL afb. 7. Watertappunt, tekening met afmetingen
SE Bild 7. Vattenuttag, dimensionsritningar

Fittings Installation

DE Armaturen-Installation
FR Installation des raccords
IT Installazione dei raccordi
ES Instalación de elementos
NL Het installeren van de fittingen
SE Anslutningsinstallation

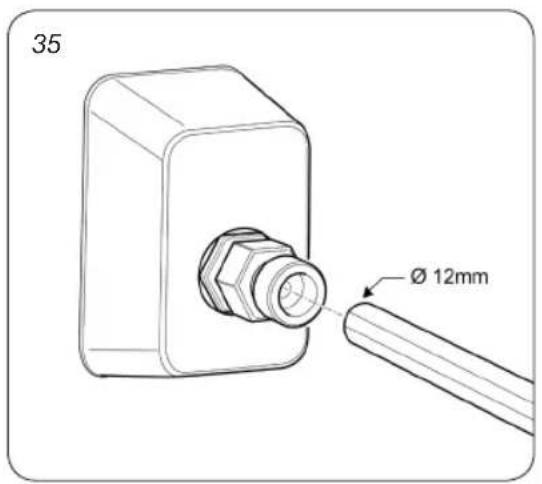

35 Ø 12mm

Diagram of a mechanical device with a rotating shaft and spring, labeled '36' (no text or symbols on the diagram itself)

Operation

DE Betrieb
FR Fonctionnement
IT Funzionamento
ES Funcionamiento
NL Gebruik
SE Drift

37 Whale®

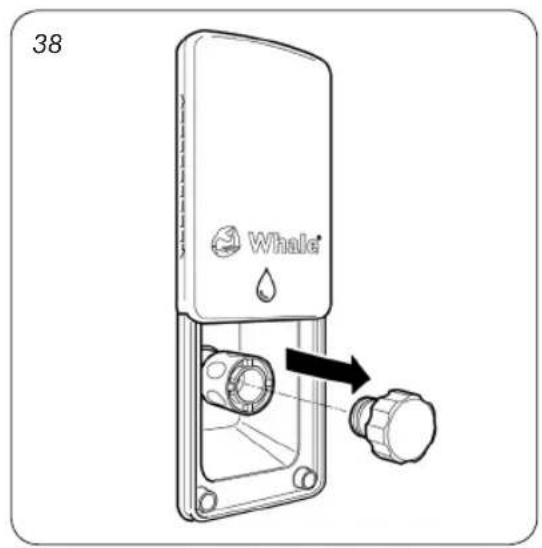

38 Whale®

Line drawing of a whale water dispenser with a hand inserting a plug into the container (no text or symbols)

Line drawing of a whale water heater with a hose inserted into a housing (no text or symbols)

Rated to IP55 when lid closed

D55-zertifiziert mit geschlossener Kappe
Cetégorie IP55 lorsque le couvercle est fermé
Grado IP55 con coperchio chiuso
Gase de protección IP55 con la tapa cerrada
N55-code als de deksel gesloten is
Klassat som IP55 med stängt lock

This Whale product is covered by a 2 year warranty. Please see the enclosed document for details of our Statement of Limited Warranty.

© Copyright Whale® 2018 – All rights reserved.

Reproduction in whole or in part without permission is prohibited. WHALE® is a registered trademark of Munster Simms Engineering Limited, Bangor, Northern Ireland trading as Whale. Whale's policy is one of continuous improvement and we reserve the right to change specifications without prior notice. Illustrations are for guidance purposes only. Neither the accuracy nor completeness of the information contained in this or any Product literature is guaranteed by the Company and may be subject to change at its sole discretion.

External Socket Mounting Profile
