USER MANUAL Roller Byron 360 NGS
WWW.NGS.EU
USER'S MANUAL


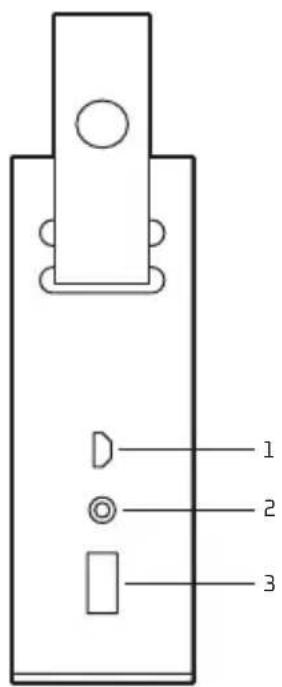

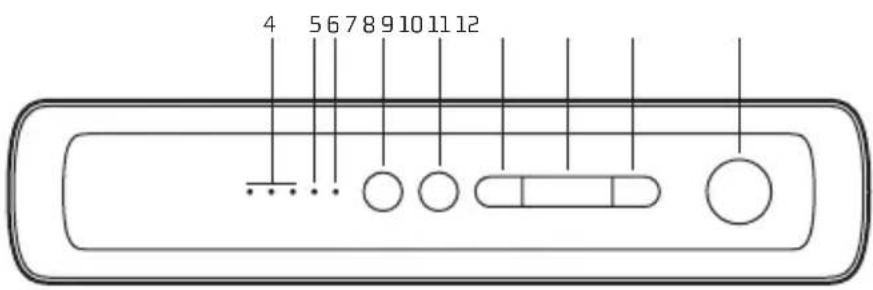

OVERVIEW
1 USB charging connection 7 Mode
2 Auxiliary input 8 Play/pause
3 USB charging port 9 Rewind
4 Charging LEDs 10 Volume +/-
5 Bluetooth LED 11 Forward
6 Auxiliary input LED 12 Power on/power off
- Connect the Bluetooth speaker's micro USB socket with the computer's USB port through USB cable.
- The red LEDs will flash to indicate that the rechargeable battery is being charged.
- The red LEDs will stop flashing when the rechargeable battery is fully charged.
- Disconnect the USB cable, and close the rubber seal cover when it is done.
BLUETOOTH SPEAKER PAIRING / RECONNECTING
- Press the ON/OFF a button for 3 seconds. The mode LED will blinking in blue; the device is turned ON and goes into searching / paring / reconnect mode for pair.
- Now, turn ON the Bluetooth function on your mobile phone.
- Search for "NGS ROLLER BYRON 360" and select it to pair (for first time pairing or pairing a new mobile device).
- The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (Depend on the of mobile phone's type and configuration, manual reconnection may require on some devices).
- If pairing is successful, a message sound; "beep" will announce from speaker and the mode LED light will keep turn on.
USER'S MANUAL
MODES
BLUETOOTH / FM RADIO
To switch between modes, press the "M" key.
BLUETOOTH SPEAKER CONTROL FUNCTION
- In playing music, press ▶button to pause music, press it once again to play.
- Press and hold the + button to increases the volume level.
- Press and hold the – button to decrease the volume level.
- Press the ▶ button to play next music file.
- Press the 🏠 button to play previous music file.
USB MODE
THE USB OUTPUT IS FOR CHARGING ONLY
If you connect your mobile phone to the USB port, the phone will be charged. The output is 5V/1A.
FM MODE
- Hold down the "M" button.
- Press and hold the ▶button to start an automatic channel search. Channels are remembered automatically.
- To skip between channels, simply press the 🎥, 🎥 buttons.
Note: For better radio reception, connect the charging cable (which also acts as an antenna) into the micro USB slot.
ENGLISH
NGS
Battery warranty: The battery is a consumer product, and as such it is under warranty for 12 months.
If at any time in the future you should need to dispose of this product please note that:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
(Waste Electrical and Electronic Equipment Directive)
HEREBY, LURBE GRUP S.A, DECLARES THAT THIS SPEAKER IS IN COMPLIANCE WITH THE ESSENTIAL REQUIREMENTS AND OTHER RELEVANT PROVISIONS OF DIRECTIVE 1999/5/EC.
MANUEL DE L'UTILISATEUR
APERÇU GENERAL
A SAÍDA USB É APENAS PARA CARREGAR
AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:
Y, POR LO TANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPED:
R&TTE DIRECTIVE 1999/5/EC
DIRECTIVA R&TTE 1999/5/EC
AUTHORIZED REPRESENTATIVE: LURBE GRUP S.A
REPRESENTANTE AUTORIZADO: POL. IND. EGUIBURUBERRI
C/EGUIBURUBERRI, 5
20100 ERRENTERIA (GUIPÚZCOA)
SPAIN
ERRENTERIA, OCTOBER 15TH, 2016 ERRENTERIA, 15 DE OCTUBRE DE 2016
SIGNED FIRMADO
PRODUCT MANAGER
LURBE GRUP S.A. ERRENTERÍA, ESPAGNE, SOUS SA RESPONSABILITÉ EXCLUSIVE, CERTIFIE LA CONFORMITÉ DU PRODUIT:
LURBE GRUP S.A. ERRENTERÍA, ESPAÑA, DECLARA SOB A SUA EXCLUSIVA RESPONSABILIDADE A CONFORMIDADE DO PRODUTO:
NGS: HAUT-PARLEUR BLUETOOTH NGS / MODÈLE: ROLLER BYRON 360
NGS: ALTO-FALANTE BLUETOOTH NGS / MODELO: ROLLER BYRON 360
A ÉTÉ TESTÉ CONFORMÉMENT AUX NORMES STANDARD EUROPÉENNES HARMONISÉES SUIVANTES :
FOI TESTADO EM CONFORMIDADE COM AS SEGUINTES NORMAS STANDARD EUROPEIAS HARMONIZADAS:
EN 60065:2002 + A1:2006 + A11:2008 + A2:2010 + A12:2011
EN 300328 V1.8.1: 2012
EN 301489-1 V1.9.2: 2011
EN 301489-17 V2.2.1: 2012
EN62479: 2010
ET RESPECTE DONC LES EXIGENCES ET LES DISPOSITIONS DES DIRECTIVES SUIVANTES DU PARLEMENT EUROPÉEN :
E, POR CONSEGUINTE, CUMPRE COM OS REQUISITOS E PROVISÕES DAS SEGUINTES DIRECTIVAS DO PARLAMENTO EUROPEU:
DIRECTIVE R&TTE 1999/5/EC
DIRECTIVA R&TTE 1999/5/EC
REPRÉSENTANT AUTORISÉ: LURBE GRUP S.A
REPRESENTANTE AUTORIZADO: POL. IND. EGUIBURUBERRI
C/ EGUIBURUBERRI, 5
20100 ERRENTERIA (GUIPÚZCOA)
SPAIN
ERRENTERIA, LE 15 OCTOBRE 2016
ERRETERIA, 15 DE OUTUBRO DE 2016
SIGNÉ
ASSINADO
PRODUCT MANAGER
