Street Force - Docking station NGS - Free user manual and instructions

Product type	Portable speaker with Bluetooth docking station
Brand	NGS
Model	Street Force
Output power	150 W (2.2 system: dual tweeter, dual subwoofer)
Power supply	5V/2A mains adapter (not included); 3.7V/4400mAh rechargeable battery
Battery life	Approximately 4 hours (3 hours at max volume, 5 hours at 50% volume)
Charging time	4 to 5 hours
Connectivity	Bluetooth, USB input, auxiliary input (AUX IN), microphone input, guitar input
Main functions	USB MP3 playback, Bluetooth mode, karaoke, 6 equalization modes (normal, rock, pop, classical, jazz, country)
Display	LED screen
Bluetooth range	10 m
Frequency response	100 Hz - 16 kHz
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products. Avoid moisture.
Safety	Do not expose to heat or water. Do not open the device. Use only the recommended adapter.
Spare parts and repairability	Contact NGS after-sales service for any parts or repairs. No standard spare parts listed.
General information	Portable docking station with karaoke function. Ideal for parties and events.

Frequently Asked Questions - Street Force NGS

How do I pair my phone via Bluetooth?

Put the speaker in Bluetooth mode by pressing the MODE button until the screen shows 'BT'. Enable Bluetooth on your phone, search for 'NGS STREET FORCE' and select it to pair. For subsequent pairings, reconnection is automatic.

How long does the battery last?

The battery life is approximately 4 hours under normal use. At maximum volume (100%), it is 3 hours; at 70% volume, 4 hours; at 50%, 5 hours.

How do I charge the speaker?

Use a 5V/2A mains adapter (not included). Plug it into the charging port. The indicator turns red during charging and turns off when the battery is full. Charging time is 4 to 5 hours.

Can I plug in a guitar or microphone?

Yes, the speaker has a guitar input (6.35 mm) and a microphone input (6.35 mm) on the side panel, allowing you to use it as an amplifier for karaoke.

How do I change the equalization mode?

Press briefly the Power/Volume/EQ button (no. 1 on the diagram) to cycle through the 6 modes: normal, rock, pop, classical, jazz, country. The screen shows the active mode.

What is the Bluetooth range?

The Bluetooth range is approximately 10 meters in open field, without major obstacles.

How do I play USB files?

Insert a USB drive containing MP3 files. The speaker starts playback automatically. Use the navigation buttons (next/previous track) to change tracks and the Play/Pause button to control playback.

What to do if the sound is low or distorted?

Check the volume level of the speaker and your source. Make sure the equalization mode is appropriate. If using the auxiliary input, check the cable. If the problem persists, try resetting the speaker by turning it off and on again.

How do I clean the speaker?

Use a soft, dry cloth to wipe the surface. Do not use chemical products, alcohol, or abrasives. Avoid getting water into the openings.

Can I use the speaker plugged into the mains without battery?

Yes, you can use the speaker connected to the mains with the 5V/2A adapter. This also charges the battery during use.

USER MANUAL Street Force NGS

ENGLISH I FRANÇAIS I ESPAÑOL I DEUTSCH

ITALIANO I PORTUGUÊS I POLSKI I NEDERLANDS

ČEŠTINA I SLOVENČINA I EΛΛΗΝΙΚΑ

www.ngs.eu

USER'S MANUAL

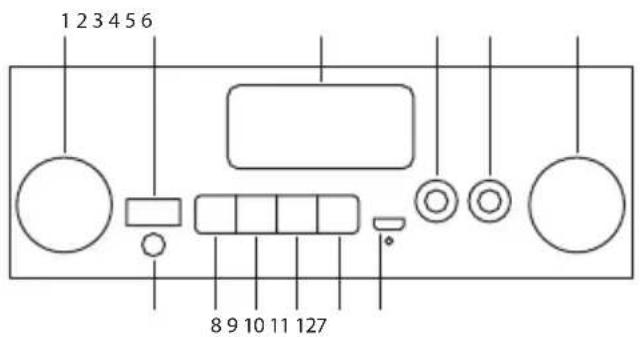

OVERVIEW

1 On / Off / Volume / Equaliser
(6 styles of music: normal, rock, pop, classic, jazz, country)
2 USB port
3 LED Display
4 Microphone input
5 Guitar input
6 Microphone volume
7 Aux In
8 Mode (Bluetooth, USB, FM, Aux-In)
9 Previous track and rewind
10 Play / Pause
11 Next track and fast forward
12 Charging port

ENGLISH

USB CARD / BLUETOOTH

USB CARD PLAYING

When power ON the product, if USB card inserted, it can play the MP3 format music from the USB. Press 1 ◄ b b b p ns to select the song you want. Press and hold to fast forward / delay the song. Press the play/pause button to pause / resume the music.

BLUETOOTH MODE

A. Press the MODE button until the screen displays the word BT. In Bluetooth mode the device goes into searching / paring / reconnect mode for pair.
B. Now, turn ON the Bluetooth function on your mobile phone.
C. Search for "NGS STREET FORCE" and select it to pair (for first time pairing or pairing a new mobile device).
D. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (depend on the mobile phone's type and configuration, manual reconnection may require on some devices).

AUX IN

You can connect the device to external multimedia audio sources via the "AUX IN" port on the side panel. After connection, press the MODE button on the device to enter into LINE IN mode on the screen. The device can play the audio files from multimedia sources like PC, mobile phone, MP3 and MP4, etc.

USER'S MANUAL

CHARGING INSTRUCTIONS

This speaker has a high capacity 3.7V/4400mAh battery. Please use a 5V/2A power adapter for charging. The charging indicator light will turn red to indicate that it is charging. It takes 4-5 hours for the battery to reach full charge. Disconnect the adaptor as soon as battery is fully charged (charge light turns off). Battery run time: 4 hours.*

* 3 hours at max volume

4 hours at 70% volume

5 hours at 50% volume

TECHNICAL SPECIFICATIONS

Power output: 150W

System 2.2

· Double Tweeter

· Double Subwoofer

Bluetooth

USB audio input

Auxiliary input

Microphone input

Guitar input

Karaoke mode

LED Display

Working range: 10m

Battery: 3.7V / 4400mAh

Battery life: 4 hours*

Frequency response: 100Hz-16kHz

(normal, rock, pop, classic, jazz, country)

ENGLISH

NGS

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

MANUEL DE L'UTILISATEUR

VUE D'ENSEMBLE

(normal, rock, pop, classique, jazz, country)

FRANÇAIS

NGS

(normal, rock, pop, clásico, jazz, country)

(normale, rock, pop, classico, jazz, country)

(normal, rock, pop, clássico, jazz, country)

* 3 horas no volume máximo

4 horas a 70% do volume

5 horas a 50% do volume

PORTUGUÊS

NGS

KAPTA USB / BLUETOOTH

ΑΝΑΠΑΡΑΓΩΓΗ ΑΠΟ USB

HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:

ETSI EN 301 489-1 V 2.1.1 (2017-02) IEC 62321-4:2013

ETSI EN 301 489-17 V 3.1.1 (2017-02) IEC 62321-5:2013

EN 55032:2015 IEC 62321-7-1:2015

EN 55035:2017 IEC 62321-7-2:2017

EN 62479:2010

EN 60065:2014+A11:2017

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

Y, POR LO TANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:

RADIO EQUIPMENT DIRECTIVE 2014/53/EU

ROHS DIRECTIVE 2011/65/EU

RAÚL MARTÍN

PRODUCT MANAGER
