QUICK INSTALLATION OVERVIEW

1. Insert battery

2. Use the Gigaset elements app for Installation

3. Open the elements app

4. Open system overview
5. choose "add smoke".

the wizard guides you through the installation

1. Fit smoke on the room ceiling

More Details on the following pages

Warning sign with exclamation mark inside a triangle

ACHTUNG!

Gray square icon with a black exclamation mark in the center (no text or symbols)

ACHTUNG

Battery icon with plus and minus signs, enclosed in a square border (no text or symbols)

Simple icon of a heart with a cross inside, enclosed in a square frame (no text or symbols)

MEDIZINISCHE GERÄTE

Icon depicting a paintbrush, paintbrush tip, and paint tube with crossed-out paint (no text or symbols)

Simple line drawing of a house with a roof and a basket on the roof (no text or symbols)

MONTAGE IM DACHGIEBEL

Symbol of flame inside a square frame (no text or numbers)

Symbol of a trash bin with no text or numbers, enclosed in a square frame (no readable text or numbers)

ENTSORGUNG

Simple line drawing of a beaker with liquid and a lid pouring liquid into it (no text or symbols)

ABSTAND VON WASSERDAMPF

Simple line drawing of a firecracker inside a fireplace with a cross symbol above (no text or labels)

ABSTAND VON FEUERSTELLE

Illustration of a propeller with five blades and a small bowl containing an X symbol (no text or labels)

Pure mechanical gear diagram without any text, numbers, or symbols

All-is-good

Hand-drawn diagram of a fire extinguisher with labeled buttons and finger pointing to the button.

1. Insert battery
2. Use the Gigaset elements app for Installation
3. Open the elements app
4. Open system overview
5. choose "add smoke".

the wizard guides you through the installation

1. Fit smoke on the room ceiling

More Details on the following pages

OPERATING AND INSTALLATION GUIDE

CONTENTS

General information 26

Installation location 27

Safety information 29

Installation and use 35

System and alarm signals 39

Function and alarm test 40

Maintenance and care 41

Alarm / battery fault muting 42

Optional accessory 43

Information on the adhesive strips 44

SMOKE ALARM smoke

GENERAL INFORMATION:

The smoke alarm alerts you early and reliably to an accumulation of fire smoke, and gives you and your family plenty of time to escape to safety.

This is of particular importance at night because when asleep we are not able to smell fire smoke, and so are exposed to the toxic gases generated by fires.

During this phase, the smoke alarm gives you a head start to escape the room safely.

Experience has shown that smoke alarms save lives.

In this respect, please also follow our instructions on using our product properly.

Delivered with the smoke alarm (including base) are this operating guide, the leaflet with important information, a permanently installed battery, a replaceable battery, 2 screws and dowels for attaching the alarm, and an adhesive pad.

OPERATING AND INSTALLATION GUIDE

INSTALLATION LOCATION

The smoke alarm is fitted to the ceiling of the room. Fitting it in the centre of the room gives the smoke alarm its optimum detection characteristics.

To provide minimum protection, smoke alarms must be installed in bedrooms, children's rooms and landings/hallways so you are woken up when an alarm is raised.

In multi-storey buildings, at least one additional smoke alarm should be positioned in the hallway on every floor.

If a smoke alarm is connected to a Gigaset base, the maximum range for DECT wireless transmission is 50 metres (indoor).

Warning sign with exclamation mark inside a triangle

NOTE!

The smoke alarm only works when securely seated into the base.

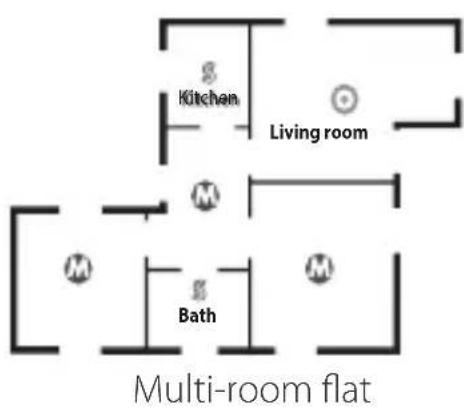

Kitchen Living room M Bath Multi-room flat

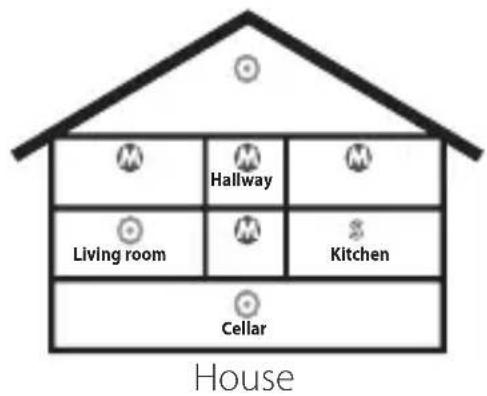

M Hallway M Living room M Kitchen Cellar House

M = MINIMUM PROTECTION

= OPTIMAL PROTECTION

S = SPECIAL PROTECTION

SMOKE ALARM smoke

INSTALLATION POSITION FOR INCLINED ROOFS

10 cm 90 cm

FOR INCLINED OR POINTED ROOFS

For installation to inclined or pointed ceilings, and rooms with an inclined ceiling, smoke alarms should be installed at least 10 cm vertically underneath the highest point, and no more than 90 cm horizontally from the highest point.

These distances also apply when multiple alarms are installed in one room. Install individual smoke alarms at appropriate distances from each other.

Simple line drawing of a rectangular frame with a small object and a 50 cm dimension label (no text or symbols beyond the measurement)

CEILING INSTALLATION

When fitting smoke alarms to the ceiling, keep a distance of at least 50 cm from a wall.

10 cm 60 cm

ANGLED CEILING

In rooms having a ceiling at an angle greater than 7 degrees (corresponds to a height difference of about 50 cm over 4 m), smoke alarms should be positioned on the ceiling in the higher part of the room.

OPERATING AND INSTALLATION GUIDE

SAFETY INFORMATION - PLEASE NOTE:

Gray square icon with a black exclamation mark in the center (no text or symbols)

NOTE

Read the safety instructions and user guide prior to use.

Battery icon with plus and minus signs, enclosed in a square border (no text or symbols)

The smoke alarm is delivered with a permanently installed battery and a replaceable battery. No rechargeable batteries or mains adapters are required to provide power.

Only insert the following batteries: Lithium Primary 3.0 Volt (CR2). Batteries with visible damage must be replaced.

Simple icon of a heart with a cross inside, enclosed in a rounded square border (no text or symbols)

MEDICAL DEVICES

The functioning of medical devices can be affected.

Bear in mind the technical conditions of the environment in question (such as a doctor's surgery).

If you use medical devices (such as pacemakers), please find out from the device manufacturer the extent to which the devices in question are immune to external, high-frequency energy.

SMOKE ALARM smoke

SAFETY INFORMATION - PLEASE NOTE:

> 50cm

CAUTION - ACOUSTIC WARNING SIGNAL

A loud, high-pitched alarm sounds when the function tests are performed (the face of the alarm is pressed).

Keep your ears at least 50 cm away from the smoke alarm.

Pure diagram of cleaning tools without any text, numbers, or symbols

DO NOT SPRAY OR PAINT OVER AN ALARM

Smoke alarms may not be coated with paint.

Simple line drawing of a house with a roof and window, no text or symbols present.

INSTALLATION IN ROOF GABLES

Installation in roof gables is only permitted when they are fitted in line with "Installation position for inclined roofs".

OPERATING AND INSTALLATION GUIDE

SAFETY INFORMATION - PLEASE NOTE:

< 50 cm >

DISTANCE FROM LIGHTS

Keep a distance of at least 50 cm between lights and smoke alarm installation position.

indoor

FOR INDOOR USE ONLY

Smoke alarms are only permitted for indoor use.

i

People have a reduced perception of fire and fire smoke especially when asleep. Smoke alarms provide an early warning so that speedy reactions are possible. Smoke alarms do not provide protection from material damage.

SMOKE ALARM smoke

SAFETY INFORMATION - PLEASE NOTE:

Symbol of a flame inside a square frame (no text or numbers)

BEAR IN MIND THE ENVIRONMENT

Do not use the devices in potentially explosive environments, such as paint shops.

Symbol of a waste sorting machine (no text or numbers present)

DISPOSAL

Do not throw (rechargeable) batteries out with household waste.

For this, observe local waste disposal regulations (available from your local authority).

In Germany: Dispose of these in the green "Gemeinsame Rücknahmesystem Batterien" (Collective return system for batteries) boxes provided at specialist retailers.

OPERATING AND INSTALLATION GUIDE

SAFETY INFORMATION - PLEASE NOTE:

All electrical and electronic devices must be disposed of at local authority sites (separate from general household waste).

If a product displays the symbol of a crossed-out rubbish bin, the product is subject to European Directive 2012/19/EU.

Proper disposal and separate collection of used equipment help to prevent potential harm to human health and the environment.

They are prerequisites for the reuse and recycling of used electrical and electronic equipment.

Consult your local authority or waste disposal firm for more comprehensive information on disposal of your old devices.

SMOKE ALARM smoke

SMOKE ALARMS MAY NOT BE AFFIXED AT THE FOLLOWING PLACES:

Simple line drawing of a bowl with liquid and a lid pouring liquid (no text or symbols)

DISTANCE FROM WATER VAPOUR

Rooms in which high levels of water vapour are generated under normal conditions (e.g. kitchen, bathroom/toilet)

Simple line drawing of a firecracker inside a fireplace with a cross symbol above (no text or labels)

DISTANCE FROM FIREPLACES

Near fireplaces and open flues

+ 60° - 10°

TEMPERATURE RANGE

Rooms having temperatures lower than -10°C or higher than +60°C

Illustration of a propeller with five blades and a small bowl containing an X symbol (no text or labels)

DO NOT POSITION IN DRAUGHTS

Near ventilation shafts (e.g. of air-conditioning or recirculation air system)

OPERATING AND INSTALLATION GUIDE

INSTALLATION AND USE

1. Insert the battery. Note the correct polarity.

Technical line drawing of a mechanical gear assembly with no visible text or symbols

1. Register smoke to your base station.

• Look for the small red registration button.
- Bring smoke into the immediate vicinity of your base.
• Start the Gigaset elements app.
- In the app, open the system overview and select "Add + smoke", then follow the instructions on the screen.
- Smoke is then connected to Gigaset elements and is shown in the system overview of the app.

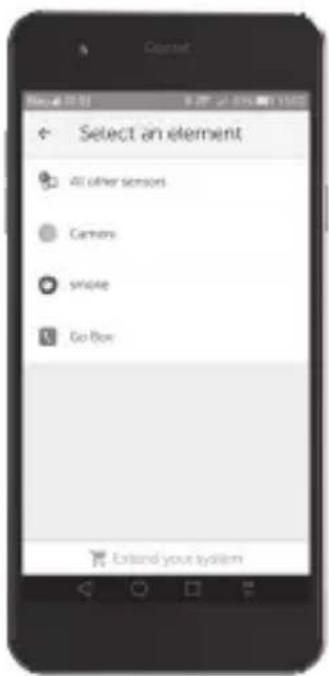

Select an element All other sensors Camera Smoke Go Box Extend your system

SMOKE ALARM smoke

1. Decide on the right location for smoke:

• Within reach of base (max. 50 m).
- If possible, in the middle of the room, with a minimum distance of 50 cm away from live wires.
- Check that no live wires run across the installation location and keep a minimum distance of 50 cm from walls and lights.

1. Ensure that the dust created from drilling cannot dirty the smoke alarm.

- Use adhesive pads for installation if you do not want to drill. For information on installing with adhesive pads see: "Optional accessory"

OPERATING AND INSTALLATION GUIDE

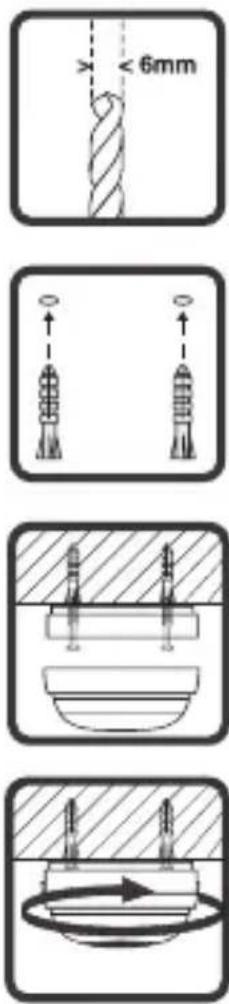

1. Use a 6 mm bit to drill two holes in the ceiling.

- You can use the lower part / base of the smoke alarm as a template.

1. Insert the dowels provided into the drill holes.

2. Use the screws supplied to attach the base of the alarm to the ceiling.

3. Place the face of the alarm onto the lower part and lock it into place by turning it clockwise.

4. The smoke alarm is activated automatically by locking it into the base.

< 6mm

SMOKE ALARM smoke

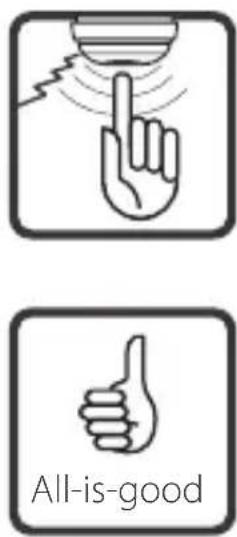

1. Perform a function test. To do this, press the face of the alarm for at least 1 second.

2. When the signal sounds, the function test is successful and the smoke alarm is working correctly.

All-is-good

OPERATING AND INSTALLATION GUIDE

SYSTEM AND ALARM SIGNALS

Acoustic signal Red LED Function / Meaning
No sound	Flashes every 344 seconds	Normal state, automatic self-test
Loud intermittent sound every 0.5 seconds	Flashes every 0.5 seconds	Alarm state
Short signal sound every 40 seconds	OFF	Battery change display, please renew the alarm
3 short signal sounds every 40 seconds	OFF	Fault/dirt, please renew the alarm
No sound	Flashes every 10 seconds	Alarm muting
Loud intermittent sound	Flashes every 0.5 seconds whilst the face of the alarm is pressed	Function test

SMOKE ALARM smoke

FUNCTION AND ALARM TEST

1. Perform a visual inspection of the smoke alarm.

In so doing, check:

• The smoke alarm is in place
• The smoke inlet openings for coarse dirt (dust, paint)
• The smoke alarm for mechanical damage

A damaged smoke alarm must be replaced immediately.

1. Perform a function test. To do this, press the face of the alarm for at least 1 second. The signal sounds if the function test is successful.

The smoke alarm is working correctly.

1. DIN 14676 stipulates that smoke alarms must be replaced with new ones after 10 years at the latest.

After every function test, alarm muting is enabled automatically for approx. 10 minutes.

NOTE!

Alarm muting has no function when the smoke alarm is tested with test aerosol.

OPERATING AND INSTALLATION GUIDE

MAINTENANCE

The state building codes in some federal states stipulate that owners of houses and flats are responsible for ensuring that smoke alarms are installed and function correctly.

Maintenance must be performed at least once a year and comprises (according to DIN 14676) a visual inspection and function/alarm test. A function test must be performed following a longer period of absence, but no later than after a year.

REPLACEMENT DATE ON THE LABEL

Replace all smoke alarms after 10 years at the latest.

The recommended date for replacement is on the label in format month/year.

Smoke alarms can be stored for a maximum period of 2 years before being used.

CARE

Wipe the device with a damp or antistatic cloth.

Do not use solvents or microfibre cloths.

Never use a dry cloth as this can cause static charging.

SMOKE ALARM smoke

ALARM MUTING

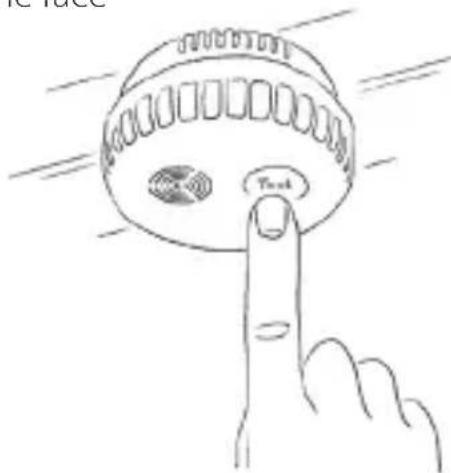

When an alarm is raised, alarm muting can be activated by pressing the face of the alarm. This reduces the response sensitivity of the alarm / increases its activation threshold. The alarm is muted if the smoke concentration in the smoke chamber is below the increased activation threshold after the face of the alarm is pressed.

If the smoke concentration is still above the increased activation threshold, muting is not activated until the smoke concentration drops below the increased activation threshold.

The smoke alarm is muted.

The smoke alarm returns to normal mode after about 10 minutes.

Fire Food

BATTERY FAULT MUTING

This function is especially useful at night. Press the test button on the face of the alarm to suppress the fault signal for about 8 hours when a battery fault occurs. After this time, the battery fault signal is sounded again and you are reminded to replace the smoke alarm.

OPERATING AND INSTALLATION GUIDE

OPTIONAL ACCESSORY

CNBOP-PIB APPROVED ADHESIVE PAD

The smoke alarm base can be attached to the ceiling using the screws and dowels supplied or with the dual-sided adhesive pad. For order request, please contact the Gigaset customer service www.gigaset.com/service.

When using the adhesive pad to fit the alarm, note the condition of the surface in question to guarantee secure adhesion of the smoke alarm. Best possible adhesive force is only attained with clean surfaces. Before using the adhesive pad, carefully check that the condition of the surface used is suitable for permanent bearing and bonding of the weight (carry out test adhesion as required).

For installation, pull the protective film from one side of the adhesive pad and stick it onto the middle of the base of the smoke alarm. Next, remove the protective film on the other side and press the base firmly to attach it to the ceiling. Then continue with the installation as described in section "Installation and use".

SMOKE ALARM smoke

INFORMATION ON THE ADHESIVE STRIPS

• Only stick the sensors onto clean, dry, grease-free surfaces which are as smooth and sturdy as possible.
  • The optimal adhesive strength is attained after about 48 hours.
  • The adhesive strips are intended for one-time use only.
  • Only use the adhesive strips provided.

Gigaset Communications GmbH assumes no liability for potential damage to surfaces caused by sticking on, setting up, installing and removing Gigaset sensors and actuators.

ANTI-TAMPER SEAL OR SAFETY SCREW

A plastic anti-tamper seal can be affixed to the smoke alarm to prevent unauthorised removal.

Instead of this seal, a safety screw can be fitted to prevent unauthorised removal of the smoke alarm.

The seal and screw are not included in the delivery and can be ordered separately. Please contact the Gigaset customer service www.gigaset.com/service.

APERÇU INSTALLATION RAPIDE

Warning sign with exclamation mark inside a triangle

ATTENTION!

M Couloir M Salon M Cuisine Cave

Maison

M = PROTECTION MINIMALE

= PROTECTION OPTIMALE

S = PROTECTION SPÉCIALE

DÉTECTEUR AVERTISSEUR DE FUMÉE smoke

EMPLACEMENT DE MONTAGE POUR TOITS INCLINÉS

10 cm 90 cm

PLAFONDS INCLINÉS OU POINTUS

Gray square icon with a white exclamation mark in the center (no text or symbols)

ATTENTION

Battery icon with plus and minus signs, enclosed in a square border (no text or symbols)

Simple icon of a heart with a cross inside, enclosed in a rounded square border (no text or symbols)

DISPOSITIFS MÉDICAUX

Pure diagram of crossed tools and a cross symbol without any text or labels

NE PAS PULVÉRISER OU PEINDRE

Simple line drawing of a house with a roof and window, no text or symbols present.

MONTAGE DANS UN PIGNON

Symbol of flame inside a square frame (no text or numbers)

TENIR COMPTE DE L'ENVIRONNEMENT

Symbol of a trash bin with no text or numbers present

MISE AU REBUT

Simple line drawing of a beaker with liquid and a lid pouring liquid into it (no text or symbols)

TENIR À DISTANCE DE LA VAPEUR D'EAU

Simple line drawing of a firecracker inside a fireplace with a cross symbol above (no text or labels)

TENIR À DISTANCE DES FOYERS

Illustration of a propeller with a fan and a cross symbol, no text or labels present

NE PAS UTILISER DANS UN COURANT D'AIR

Technical line drawing of a mechanical gear assembly with no visible text or symbols

Illustration of a hand pointing upward with sound waves, no text or symbols present

All-is-good

NOTICE D'UTILISATION ET DE MONTAGE

SIGNAUX DE FONCTIONNEMENT ET D'ALARME

Warning sign with exclamation mark inside a triangle

ATTENZIONE!

Gray square icon with a white exclamation mark in the center, no text or symbols present.

ATTENZIONE

Simple icon of a battery with plus and minus signs, enclosed in a rounded square border (no text or symbols)

Simple icon of a heart with a cross inside, enclosed in a rounded square (no text or symbols)

DISPOSITIVI MEDICALI

Pure diagram of cleaning tools without any text, numbers, or symbols

NON SPRUZZARE SOSTANZE LIQUIDE NÉ PITTURARE

Simple line drawing of a house with a roof and window, no text or symbols present.

MONTAGGIO NEL COLMO DEL TETTO

Symbol of a trash bin with no text or numbers, enclosed in a square frame (no readable text or numbers)

SMALTIMENTO

Simple line drawing of a container with liquid and a funnel above it, no text or symbols present.

DISTANZA DAL VAPORE ACQUEO

Simple line drawing of a fire inside a fireplace with a lid above it (no text or symbols)

DISTANZA DA FONTI DI CALORE

Vicino a stufe o caminetti aperti

+ 60° - 10°

TEMPERATURA LIMITE

Stanze con temperature inferiori a -10°C o superiori a +60°C

Simple line drawing of a propeller with motion lines and a small bowl containing an X symbol (no text or labels)

NON INSTALLARE IN PUNTI ESPOSTI A CORRENTI D'ARIA

Technical line drawing of a mechanical gear assembly with no visible text or symbols

All-is-good

ISTRUZIONI PER L'USO E IL MONTAGGIO

SEGNALI OPERATIVI E DI ALLARME

Warning sign with exclamation mark inside a triangle

LET OP!

De rookmelder

M = MINIMALE BESCHERMING

= OPTIMALE BESCHERMING

S = SPECIALE BESCHERMING

ROOKMELDER smoke

MONTAGE BIJ SCHUINE DAKEN

10 cm 90 cm

SCHUINE PLAFONDS OF NOKKEN VAN DAKEN

Gray square icon with a white exclamation mark in the center (no text or symbols)

LET OP

Simple icon of a battery with plus and minus signs, enclosed in a rounded square border (no text or symbols)

Simple icon of a heart with a cross inside, enclosed in a square frame (no text or symbols)

MEDISCHE APPARATUUR

WAARSCHUWINGSSIGNAAL

Pure diagram of cleaning tools without any text, numbers, or symbols

NIET BESPROEIEN OF OVERSCHILDEREN.

Simple line drawing of a house with a roof and window, no text or symbols present

MONTAGE IN DE NOK VAN EEN DAK

Symbol of a trash bin with no text or numbers, enclosed in a square frame (no readable text or numbers)

INZAMELING VAN AFVAL EN OUDE APPARATEN

Simple line drawing of a beaker with liquid and a lid pouring liquid into it (no text or symbols)

AFSTAND TOT WATERDAMP

Simple line drawing of a firecracker inside a fireplace with a cross symbol above (no text or labels)

AFSTAND TOT OPEN VUUR

Illustration of a propeller with five blades and a small bowl containing an X symbol (no text or labels)

NIET IN LUCHTSTROMEN

Pure mechanical gear diagram without any text, numbers, or symbols

All-is-good

BEDIENINGS- EN MONTAGEHANDLEIDING

BEDRIJFS- EN ALARMSIGNALEN

Warning sign with exclamation mark inside a triangle

iATENCIÓN!

Gray square icon with a white exclamation mark in the center (no text or symbols)

ATENCIÓN

Battery icon with plus and minus signs, enclosed in a square border (no text or symbols)

Simple icon of a heart with a cross inside, enclosed in a square frame (no text or symbols)

DETECTOR DE HUMO smoke

Pure safety symbols including a crossed-out tool, paintbrush, and bottle (no text or labels)

NO PULVERIZAR NI PINTAR

Simple line drawing of a house with a bowl and cross symbol (no text or labels)

MONTAJE EN TECHOS A DOS AGUAS

Symbol of flame inside a square frame (no text or numbers)

TENGA EN CUENTA EL ENTORNO

Symbol of a trash bin with no text or numbers, enclosed in a square frame (no readable text or numbers)

ELIMINACIÓN

Simple line drawing of a beaker with liquid and a lid pouring liquid into it (no text or symbols)

Simple line drawing of a firecracker inside a fireplace with a cross symbol above (no text or labels)

ALEJAR DE LAS CHIMENEAS

Cerca de chimeneas u hogares

+ 60° - 10°

RANGO DE TEMPERATURA

Illustration of a propeller with a fan and a cross symbol, no text or labels present.

EVITAR LAS CORRIENTES DE AIRE

Pure mechanical gear diagram without any text, numbers, or symbols

All-is-good

INSTRUCCIONES DE MANEJO Y MONTAJE

Hand-drawn diagram of a fire extinguisher with labeled buttons and finger pointing to the button.

ALMOHADILLAS ADHESIVAS

www.gigaset.com/service.

Manufacturer: Gigaset Communications GmbH

Issued by

Gigaset Communications GmbH

Frankenstr. 2a, D-46395 Bocholt

© Gigaset Communications GmbH 2019

Subject to availability.

All rights reserved. Rights of modification reserved.

www.gigaset.com

Black and white barcode image with vertical lines on both sides

A31008-N2517-R101-2-4X19
