E380A Care - Smart Home GIGASET - Free user manual and instructions

Product type	Cordless landline phone with automated alarm call function
Brand	Gigaset
Model	E380A Care
Dimensions (handset)	Approximately 130 x 50 x 30 mm
Dimensions (base station)	Approximately 150 x 100 x 60 mm
Weight (handset)	Approximately 110 g (with batteries)
Weight (base station)	Approximately 150 g
Power supply (base station)	230 V via supplied power adapter
Power supply (handset)	2 AAA NiMH rechargeable batteries 1.2 V / 600 mAh included
Battery life (handset)	Up to 12 h talk time, 200 h standby
Range	Up to 50 m indoors, 300 m outdoors
Main functions	Analog and VoIP telephony, digital answering machine (3 mailboxes), automated alarm call (up to 4 numbers), call waiting, conference, local directory (200 contacts), network directories and Gigaset.net, SMS, external messaging, call blocking, timer, alarm, room monitoring, calendar
Alarm call function	Triggered via the SOS button or automatically by the Gigaset smart care system, dials up to 4 numbers in hands-free mode
Integrated answering machine	Yes, 3 mailboxes with recording, customizable greeting, remote interrogation
Connections	RJ-11 phone jack (analog), RJ-45 LAN port (VoIP)
Display	Backlit display, status icons, menu navigation
Maximum number of handsets	Up to 6 handsets (manual registration)
Color	Not specified in the manual, usually white or black
Maintenance and cleaning	Clean with a soft, slightly damp cloth, do not use abrasive products or solvents
Safety	Detailed safety instructions: use only authorized batteries, do not use in explosive atmospheres, do not expose to moisture, unplug in case of fault
Spare parts and repairability	Rechargeable batteries, charger, additional handset available; repair by authorized service
Warranty	2 years (according to local legislation)
General information	Complete manual available at www.gigaset.com/manuals; compatibility with Gigaset smart care and Gigaset GO

Frequently Asked Questions - E380A Care GIGASET

How do I set up the alarm call on the Gigaset E380A Care?

Connect the base to the router, then download the Gigaset smart care app on your smartphone. In the app, create an alarm scenario and enable the Alarm call notification. Follow the instructions to store up to 4 emergency numbers.

Can I use the phone without an Internet connection?

Yes, the Gigaset E380A Care can be used on an analog phone line (PSTN) without Internet. For the alarm call function and VoIP services, an Internet connection is required.

How do I register an additional handset to the base?

On the base, press and hold the Paging button (about 3 seconds) until the LED flashes. On the handset, select Register handset from the menu. Follow the on-screen instructions.

How do I adjust the earpiece volume?

During a call, press the navigation key (up/down) to adjust the volume. Press Save to confirm. The setting applies to the current mode (handset, hands-free, or headset).

How do I activate hands-free mode?

Press the Hands-free key (speaker symbol) during a call. To deactivate, press the same key again.

How do I listen to answering machine messages?

Press and hold the 1 key on the handset. New messages are played first. You can also access the answering machine via the Answering machine menu.

How do I block unwanted calls?

Use the Unwanted call protection function with the Smart Call Block (SCB) service. You can also add numbers to the blacklist from the call log.

How do I update the phone's firmware?

When you start the VoIP assistant, the phone automatically checks for updates. If a new version is available, accept the update (duration ~6 min). You can also use the Web configurator.

What should I do if the handset displays 'Register handset please'?

The handset is not registered to the base. Follow the manual registration procedure: press and hold the Paging button on the base, then on the handset, go to Settings > Register handset.

How do I use the online directory?

Configure the online directory via the Web configurator (www.gigaset-config.com). On the handset, press and hold the navigation key (down) to open the list of network directories, then select the desired one.

USER MANUAL E380A Care GIGASET

Assistance Service Clients 129

Double appel (clignotement) ▶ appui long

8 Microphone

9 Touche Astérisque

Activation/désactivation des sonneries ▶ appui long

A Touche Inscription/Paging

Chercher les combinés ▶ appui bref

Diagram of a wall-mounted power plug connected to a cable, showing internal components and wiring (no text or symbols)

Téléphonie fixe

Pure electrical circuit lines without any symbols

Two network devices connected by USB cables, one with four Ethernet ports and the other a white back panel (no text or symbols visible)

3D rendering of a car interior showing internal compartments and battery casing (no text or symbols)

3D cutaway view of a battery internal component (no text or symbols visible)

3D rendered image of a silver remote control casing with a black arrow pointing to the interior (no text or symbols)

Base

Simple icon of a laptop with radiating lines and 'Cigarette' label (no text or symbols on the device itself)

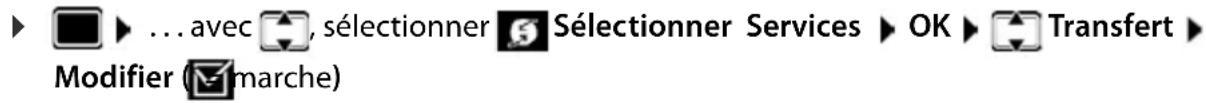

▶ Options ▶ Fin comm. active ▶ OK

Activer/désactiver ECT
