0 - WARNINGS

0.1 - GENERAL INFORMATION

First of all, we would like to thank you for choosing our appliance.

0.2 - SYMBOLS

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

0.2.1 - Editorial pictograms

	Indicates that this document must be read carefully before installing and/or using the appliance.
	Indicates that this document must be read carefully before any maintenance and/or cleaning operation.
	Indicates that there may be additional information in attached manuals.
	Indicates that information is available in the user manual or in the installation manual.
	Indicates that the assistance personnel must handle the appliance following the installation manual.
	Signals to the personnel that the operation described could cause electrocution if not performed according to the safety rules.
	It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.
	It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

0.3 - GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING:

1. This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID.

Our appliances are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.

1. Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.

2. Keep the manual carefully for future reference.

3. After removing the packaging, check that the appliance is in perfect condition. The packaging materials must not be left within reach of children as they can be dangerous.

4. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.

5. The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.

6. Before connecting, make sure that the plate data corresponds with the mains electrical supply. The data plate is located on the appliance.

7. Install it according to the manufacturer's instructions An incorrect installation can cause damage to people, animals or property for which the manufacturer accepts no responsibility.

8. Always and only use it in a vertical position . Position the appliance in an appropriate environment and on a stable and plane surface.

9. Always unreel the cable completely during use.

10. The appliance is equipped with a power cord with plug (Y-type connection). If the power cord is damaged, it must be replaced by the manufacturer, his technical service or a similarly qualified person in order to eliminate all possible risks.

11. Install it in such a way that the switches and other controls cannot be reached by persons using the bath or shower.

12. Do not use extensions, if not with particular care.

13. Keep the appliance at a distance of at least 1m from other objects (fig. 1).

14a. To avoid the risk of fire, keep the outlets and air intakes of the appliance at a distance of at least 1 m from any object, curtains, tissues or flammable materials.

1. Do not place appliance close to a radiant heat source.

2. Do not use the appliance to dry clothes.

3. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.

4. Do not allow cord to come in contact with heated surfaces during operation.

5. Do not run cord under carpeting, throw rugs or runners etc. Arrange cord away from traffic areas so that it will not be tripped over.

6. Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split.

7. Do not store appliance while it is still hot.

8. Do not use this appliance outdoors, or on wet surfaces.

9. Do not use this heater with programmer, timer or any other device that switches the heater on automatically since a fire risk exists if the heater is covered or positioned incorrectly.

10. This heater is intended for floor use only. Do not mount on ceiling or walls.

11. Do not operate the heater near curtains, as the material could be sucked into the air vents. (fig. 3).

12. Avoid spilling liquid on the appliance.

13. Children must not play with equipment.

1. The appliance may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capacities, or without the required experience or knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.

2. Children must not be allowed to clean the appliance or perform user maintenance without proper supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.

1. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
2. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
3. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
4. Some parts of this product may become very hot and could cause burns. Be very careful when children or vulnerable adults are nearby.
5. Always remove plug from the mains supply before cleaning.
6. For correct use of the appliance NEVER:

a. Place it immediately underneath a mains wall socket.
b. Pull the power cable or the appliance itself to remove the plug from the mains socket.
c. Leave it expose to atmospheric agents (rain, sun, etc.).
d. Leave it plugged in when not in use.
e. Touch it with wet or damp hands.

1. Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.

2. The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning air vents and grilles.

3. Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only.

4. Do not connect the appliance to the mains voltage until completely assembled and adjusted.

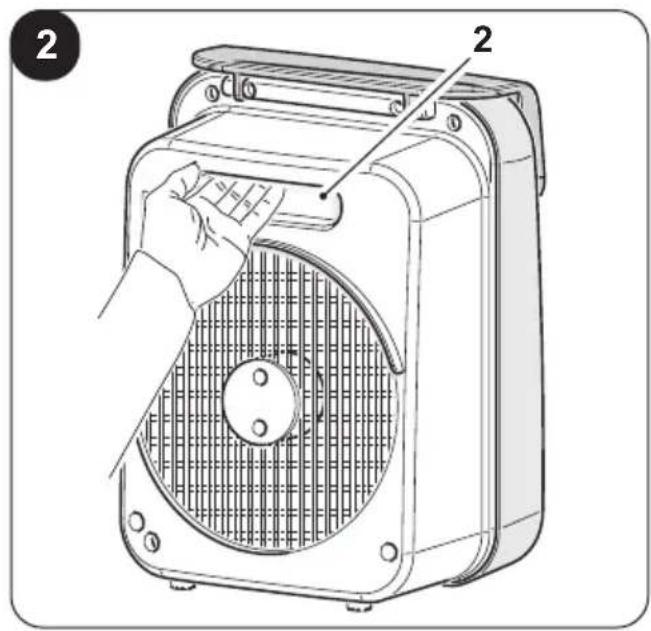

5. Switch off and use handles where provided when moving (fig. 2).
6. Do not immerse the appliance in water or in other liquids. Short circuits or fires may occur.

1. Do not let the appliance work in enclosed areas such as a cabinet since it could cause a fire.
2. If the appliance's plug is incompatible with the socket, have the socket replaced with a suitable one by a qualified technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension cables. If they cannot be avoided, however, they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.
3. Do not use the appliance in case of malfunctioning or faults, if the cord or plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance off, disconnect the plug from the socket and let it be checked by professionally qualified personnel.
4. Disassembly, repair or reconversion performed by an unauthorized person could cause heavy damages and will cancel the manufacturer warranty.
5. Neither disassemble nor modify the appliance.
6. Repairing the appliance by yourself is extremely dangerous.
7. In the presence of gas leaks from other equipment, ventilate the room well before activating the appliance.
8. Do not remove plug from power socket until the appliance has been switched off.
9. If you no longer wish to use this appliance, it must be made inoperative by cutting the power supply cable after removing the plug from the power socket.

52.

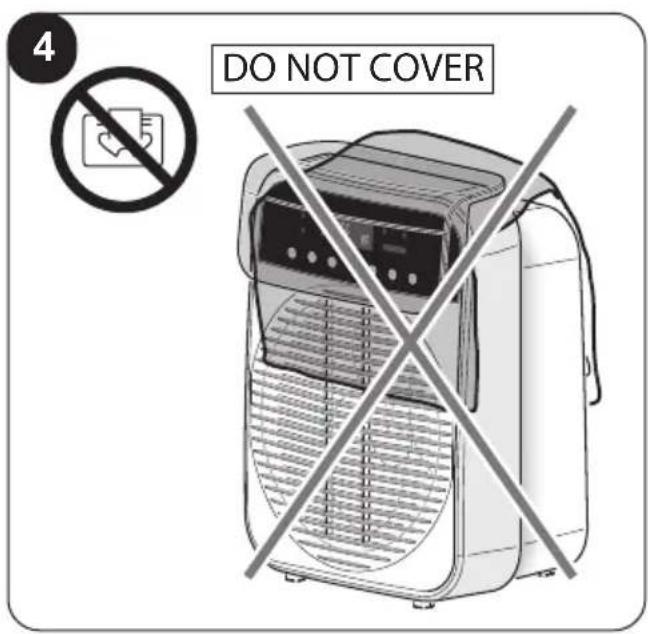

WARNING - In order to avoid overheating, do not cover the heater (fig. 4).

1. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.
2. At first use and after a long period of inactivity of the appliance, a slight noise may be heard and a slight odour may be smelled. It is a normal phenomenon which will disappear after a few minutes of operation.

0.4 - PROPER USE

1. The appliance must be use exclusively as a thermal fan with the only purpose of making the room where you are staying comfortable.
2. This appliance is only designed for domestic use or similar, not for commercial or industrial use.
3. An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility.

1. Do not use the appliance in areas in which are used or stored petrol, varnishes or other flammable liquids or in environments with the presence of flammable or explosive gases.
2. Do not use the appliance if insecticide gas has just been sprayed in the room or in the presence of burning incenses, chemical vapours or oily residues.
3. Do not use this appliance in small rooms occupied by persons which are not able to leave it autonomously unless constant supervision is supplied.

This product must be used exclusively according to the specifications indicated in this manual. Use different to that specified, could cause serious injuries.

THE MANUFACTURER IS NOT LIABLE FOR INJURY/DAMAGE TO PERSONS/OBJECTS DERIVING FROM FAILURE TO COMPLY WITH THE REGULATIONS CONTAINED IN THIS MANUAL.

1 - DESCRIPTION OF THE APPLIANCE AND OF THE COMMANDS

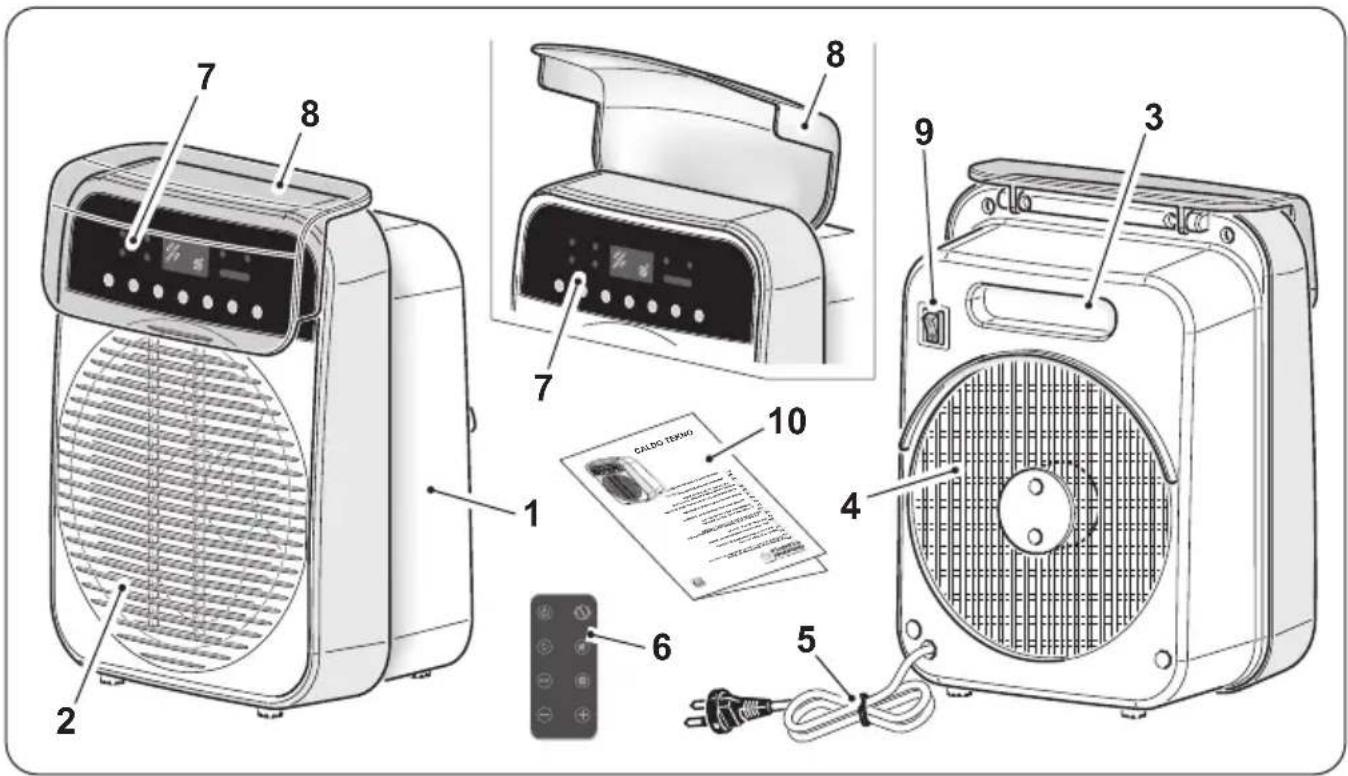

1. Appliance body
2. Air outlet grid
3. Handle
4. Air inlet grid

5. Power cord

6. Remote control

7. Control panel
8. Control panel cover

9. ON/OFF switch

10. Use and maintenance booklet

Exploded view diagram of a portable air conditioner with numbered parts and a printed cover labeled 'CALDO TEPNO'

2 - INSTALLATION

• The appliance does not require installation and must exclusively be used as a portable device.
• After removing the packaging, check that the appliance is in perfect condition; in case of doubts do not use it and refer to professionally qualified personnel.
• Entirely straighten the power cord.
• Place the appliance in an appropriate environment and on a stable and flat surface.
• Make sure that curtains or other objects do not obstruct the air flow (fig. 3).
• Leave at least 1m of free space on the sides, behind the appliance and above it (fig. 1).
• Make sure the ON/OFF switch (9) is set to "O".
• Connect the plug to the power socket.

• Make sure the mains data correspond to what is described on the data plate of the appliance.
- Arrange cord away from traffic areas so that it will not be tripped over.

3 - USE OF THE APPLIANCE

The appliance operating modes can be selected either using the remote control supplied or the control panel. The reception of the selected function is confirmed by the emission of a “beep” by the buzzer.

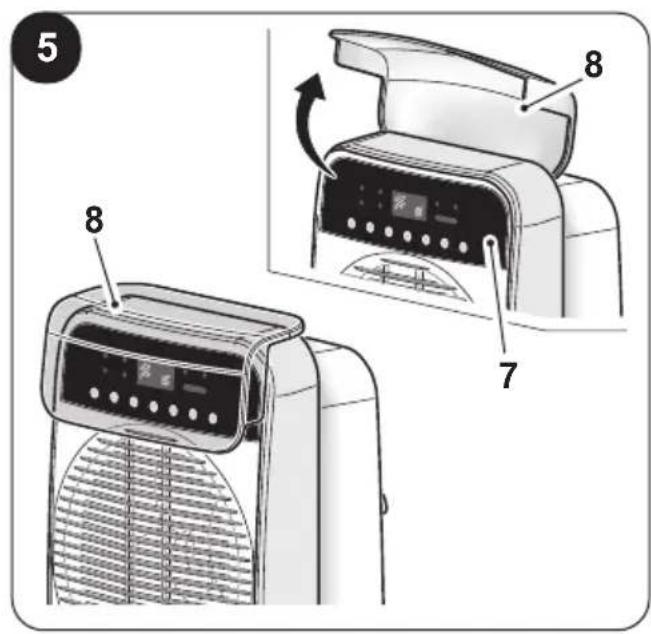

To be able to access the control panel (7), raise the cover (8) as shown in figure 5.

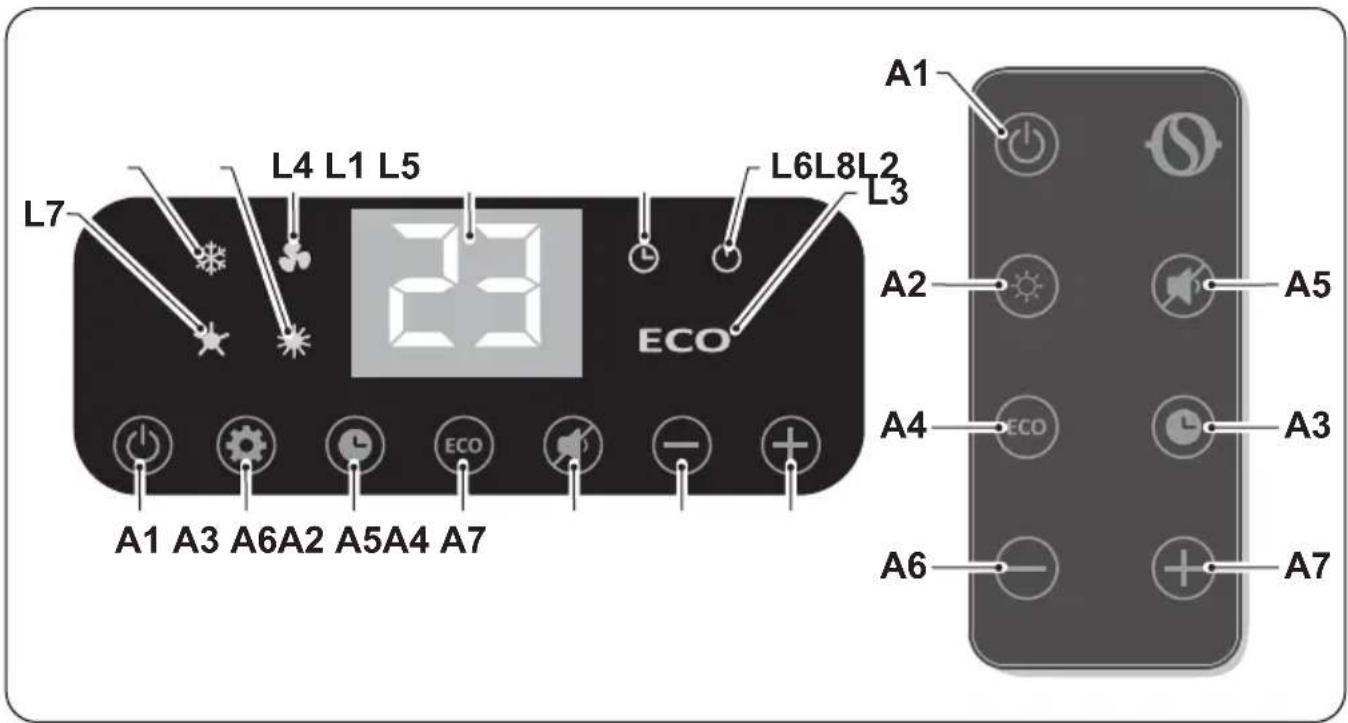

3.1 - CONTROL PANEL AND REMOTE CONTROL

L7 L4 L1 L5 L6L8L2 L3 ECO A1 A3 A6A2 A5A4 A7 A1 A3 A6A2 A5A4 A7 A2 A4 A6 A5 A3 A7

A1. ON/OFF key
A2. Mode key
A3. Timer key
A4. ECO key
A5. Silent key
A6. Timer/Temperature decrease key
A7. Timer/Temperature increase key

L1. Display
L2. Anti-frost mode LED
L3. Eco mode LED
L4. Ventilation mode LED
L5. Timer mode LED
L6. ON/OFF LED
L7. Low power operation LED
L8. High power operation LED

3.2 - USE OF THE REMOTE CONTROL

The remote control supplied with the appliance is the instrument that will allow you to use the appliance in the most comfortable way possible. It should be handled with care and in particular:

- Keep it dry (do not clean it with water or leave it outdoors in bad weather).

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

• Avoid dropping or bumping it.
• Keep it out of direct sunlight.

• The remote control operates by means of an infrared beam.
• Avoid obstacles between the remote control and the appliance during use.
• If other appliances in the room have remote controls (TV, stereo, etc...), there may be interference.
• Electronic and fluorescent lights may interfere with the transmissions between remote control and appliance.
• Remove the batteries in case of prolonged disuse of the remote control.

3.2.a - Insertion of batteries

The batteries are supplied with the machine.

To insert the batteries correctly:

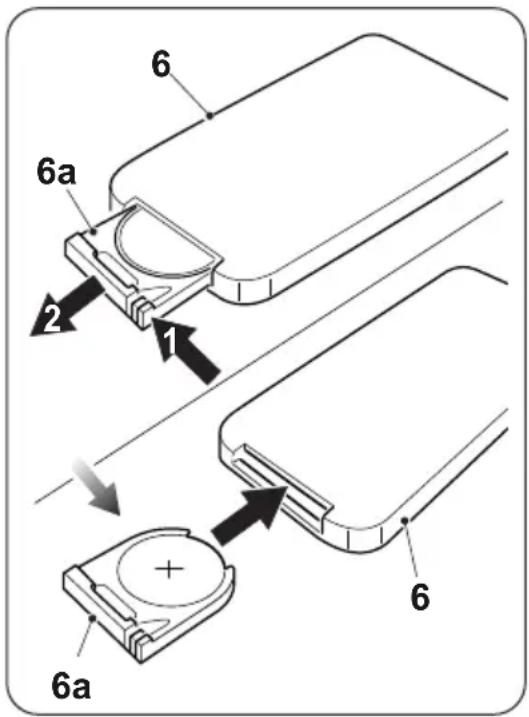

a. Remove the batteries compartment cover (6a).
b. Insert the batteries into the relevant compartment.

Check the polarity indicated on the bottom of the compartment.

c. Close the compartment correctly.

3.2.b - Replacement of batteries

Replace the batteries when you no longer hear a beep from the appliance when pressing any key on the remote control.

6 6a 2 1 6 6a

Always use new batteries. The use of old or different batteries could generate malfunctioning of the remote control.

The remote controller uses a 3,0V lithium battery (type CR 2025).

When replacing batteries, replace both and dispose of the dead batteries in the appropriate collection centres and as required by law.

- If the remote control is not used for several weeks or longer, remove the batteries. Any leaks from the batteries could damage the remote control.

Do not re-charge or disassemble the batteries. Do not throw the batteries into the fire. They can burn and explode.

3.2.c - Location of the remote control

Keep the remote control in a position from which the signal can reach the receiver of the appliance (maximum distance is approx. 4 metres - with charged batteries). The presence of obstacles (furniture, curtains, walls, etc.) between the remote control and the appliance reduces the remote control range.

3.3 - USE OF THE APPLIANCE

3.3.a - Preliminary operations

• After installing the appliance as described in the previous paragraphs, make sure the mains data correspond to what is indicated on the appliance nameplate.

- Insert the plug into the power socket and position the switch (9) to "I"; the appliance emits a "beep" and the LED (L6) lights up on the display.

3.4 - INSTRUCTIONS FOR OPERATION

The functions can be enabled or modified either from the control panel or from the remote control.

3.4.a - ON/OFF key (A1)

In stand-by mode, all the keys are disabled, except for the ON/OFF key.

Press the key (A1) to switch the appliance on/off.

When the appliance is switched off, with the mode set to Heating, the display shows a countdown from 30 to 0 seconds while the fan keeps running; wait for the display (L1) to show the value 0 and the fan ends its operation without touching other keys.

3.4.b - Timer key (A3)

Press the key (A3) to enter Timer mode, press the keys (A5) or (A6) to increase or decrease time according to this sequence:

$$ (0 h (\text { Timer off }) \dashrightarrow 1 h \dashrightarrow 2 h \dashrightarrow .. 2 3 h \dashrightarrow 2 4 h \dashrightarrow .. 0 h (\text { Timer off }) \dashrightarrow ..). $$

The desired value flashes for a few seconds, then the display (L1) returns to show the ambient temperature.

When the function is active, the LED (L5) lights up.

3.4.c - Mode key (A2)

Press the key (A2) on the panel or through the remote control to select the function; the LED in correspondence of the desired mode lights up.

High power operation mode (L8)

The appliance heats with a power equal to 2000W (high power).

Low power operation mode (L7)

The appliance heats with a power equal to 1000W (low power).

Ventilation mode (L4)

The appliance heats through operation of the fan only.

When these modes are active it is NOT possible to set the temperature.

3.4.d - Eco mode

In this mode it is possible to set the desired temperature through the keys (A6) and (A7), the value flashes for a few seconds and, once set, the display (L1) returns to show the detected ambient temperature.

When this mode is active, the appliance regularly detects the ambient temperature and automatically selects the best operating mode (high power, low power and ventilation only) to maintain the set temperature constant.

3.4.e - Silent mode (A5)

Press the key (A4) on the panel or through the remote control to activate this mode. The appliance reduces the fan speed to make the environment more comfortable.

3.4.f - Anti-frost function

This function activates when the detected ambient temperature is underneath 10 °C , allowing for correct operation of the thermostat. The Led (L2) lights up.

4 - OVERHEAT PROTECTION

- This heater is protected with overheat protection that switches off the appliance automatically in case of severe overheating. In this case:

• unplug the appliance;
• wait about 30 minutes for it to cool;
• remove any possible cause of overheating, eg. something covering the heater;
• check for damage to the appliance, the cord and the plug.

- If there is no damage:

• plug the unit back in;
• switch it on as described above.

If the heater still does not turn on, please contact Customer Service for assistance.

5 - SAFETY CONTROL (anti-overturning switch)

- If the appliance falls or overturns, the anti-overturning switch is activated and automatically turns it off.

- It is necessary to place the appliance in vertical position to resume normal operation.

6 - MAINTENANCE AND CLEANING

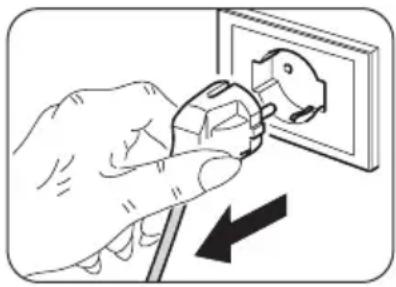

Before carrying out any cleaning or maintenance operation on the appliance, switch it off by setting the ON/OFF switch (9) to "O". Disconnect the plug from the socket and wait for the fan to stop.

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

• Use a dry cloth to clean the appliance.
• If the appliance is very dirty, it is possible to use a cloth dampened with warm water (max 50^ ) and a mild detergent to clean its external parts. Dry with a dry cloth.

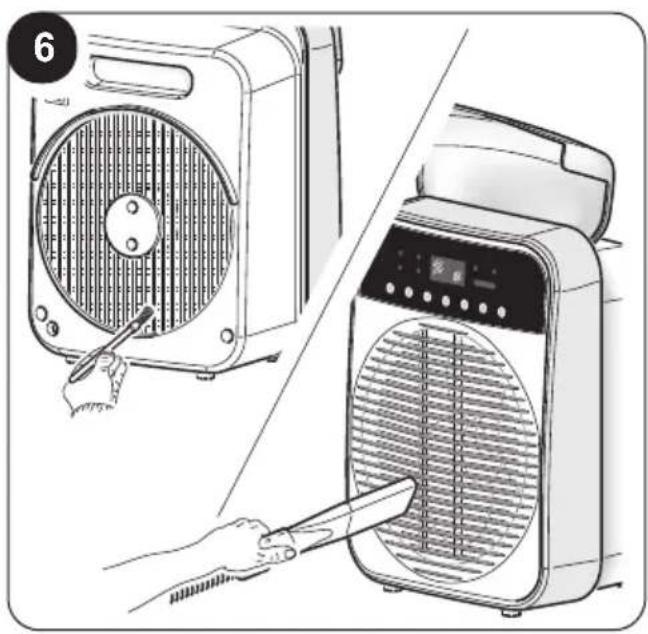

• Use a vacuum cleaner to remove dust from the air inlet/outlet grids (fig. 6).

• Make sure the appliance is completely dry before reconnecting the plug to the power socket.
• Do not use a chemically treated or antistatic cloth to clean the appliance.
• Do not use petrol, solvents, polishing pastes or similar. These products could break or deform the plastic surface.
• Do not use oils, chemical substances or abrasive products to clean the appliance.
• Neither wash nor immerse the appliance with/in water.

- In case of an appliance malfunction, do not try to disassemble it but instead refer to the retailer or to the technical assistance service.

7 - PRESERVATION OF THE APPLIANCE

- If you do not intend to use the appliance for a particularly long period of time or if operations which could produce a lot of dust must be performed, it is advised to store the appliance as follows:

• Switch the appliance off and disconnect the plug from the power socket.
• Store in a fresh and dry place away from humidity.

8 - TECHNICAL DATA

• See the table in the last pages of the manual.
• CALDO TEKNO 99241 220-240 V 50-60 Hz 1800-2000W IP21 Class II

CALDO TEKNO	Item Symbol Value Unit
Heat output
Nominal heat output	P_nom	1,8 - 2,0 kW
Minimum heat output (indicative)	P_min	1,0 kW
Maximum continuous heat output	P_max,c	2,0 kW
Auxiliary electricity consumption
At nominal heat output	el_max	0,000 kW
At minimum heat output	el_min	0,000 kW
In standby mode	el_SB	0,00013	kW

Type of heat output/room temperature control	Yes	No
Single stage heat output and no room temperature control	□	☑
Two or more manual stages, no room temperature control	□	☑
With electronic control of ambient temperature	☑	□
Electronic room temperature control plus day timer	□	☑
Electronic room temperature control plus week timer	□	☑
Other control options
Room temperature control, with presence detection	□	☑
Room temperature control, with open window detection	□	☑
With distance control option	□	☑
With adaptive start control	□	☑
With working time limitation	☑	□
With black bulb sensor	□	☑

[e-mail]

Olimpia Splendid SpAVia Industriale 1/3, 25060 Cellatica, Brescia, Italy

0 - MISES EN GARDE .... 1

0.1 - INFORMATIONS GÉNÉRALES .. 1
0.2 - SYMBOLES....1
0.3 - MISES EN GARDE GÉNÉRALES......2
0.2.1 - Pictogrammes 2
0.4 - USAGE PRÉVU....7
0.5 - USAGE NON PRÉVU ET POTENTIELLEMENT DANGEREUX....7

1 - DESCRIPTION DE L'APPAREIL ET COMMANDES....8

2 - INSTALLATION 8

3 - UTILISATION DE L'APPAREIL......9

3.1 - PANNEAU DE COMMANDE ET TÉLÉCOMMANDE......9
3.2 - UTILISATION DE LA TÉLÉCOMMANDE .... 9
3.2.a - Introduction des piles ..... 10

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALLATION

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to insert an electrical socket (no text or symbols present)

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALLATION

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

3 - USO DEL APARATO....9

Exploded diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPOO'

2 - INSTALACIÓN

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Safety warning symbols including hand gestures, hazard symbol, and warning signs with Chinese text

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALAÇÃO

Illustration of a hand holding a smartphone with five circular buttons and plus signs (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

0 - WAARSCHUWINGEN....1

0.1 - ALGEMENE INFORMATIE......1
0.2 - SYMBOLEN....1
0.2.1 - Pictogrammen ...... 1
0.3 - ALGEMEEN ADVIES....2
0.4 - EIGENLIJK GEBRUIK....7
0.5 - NIET BEOOGD EN POTENTIEEL GEVAARLIJK GEBRUIK .... 7

1 - BESCHRIJVING APPARAAT EN BEDIENINGSORGANEN......8

2 - INSTALLATIE......8

3 - GEBRUIK VAN HET APPARAAT ..... 9

3.1 - BEDIENINGSPANEELEN AFSTANDSBEDIENING ..... 9
3.2 - GEBRUIK VAN DE AFSTANDSBEDIENING....9

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALLATIE

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - ΕΓΚΑΤΑΣΤΑΣΗ

Illustration of a hand holding a rectangular device with circular buttons and plus signs (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Safety warning symbols including hand gestures, hazard symbol, and warning signs with Chinese text

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALACJA

Illustration of a hand holding a smartphone with six circular buttons and plus signs (no text or symbols on the device itself)

Illustration of a hand inserting an electrical socket into a wall socket (no text or symbols)

Safety warning symbols including hand gestures, hazard symbol, and warning signs with Chinese text

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALARE

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Safety warning symbols including hand, hazard symbol, and warning sign with lightning bolt

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALLATION

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand inserting an electrical socket into a wall socket (no text or symbols)

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TENSOL'

2 - ASENNUS

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Safety warning symbols including hand, hazard symbol, and warning sign with lightning bolt

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALLASJON

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to insert an electrical socket (no text or symbols present)

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover.

2. - TELEPÍTÉS

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALACE

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to insert an electrical socket (no text or symbols present)

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - УСТАНОВКА

Illustration of a hand holding a smartphone with five circular buttons and plus signs (no text or symbols)

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Exploded view diagram of a portable air conditioner unit with numbered parts and a printed cover labeled 'CALDO TEPNO'.

2 - INSTALLATION

A2. Knappen "Tilstand"

A3. Knappen "Timer"

A4. Knappen ECO

A5. Knappen Silent

A6. Knappen sænk "Timer/Temperatur"

Illustration of a hand holding a smartphone with five circular buttons (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances. Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal. Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product. This regulation is valid only in EU member states.
