MONTERINGSBESLAG TIL GERINGSAV DE7025, DE7030
Tillykke!
Belyder risiko for brand.
ADVARSEL: For at reducere risikoen for personskade bor du laese betjeningsvejledningen.
KOMPATIBLE PRODUKTE:
You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.
Technical Data
| DE7025 | DE7030 | |
| Length | mm | 430 |
| Height | mm | 75 |
| Maximum working load | kg 113 | 30.5 |
| Weight | kg 0.9 | 1.0 |
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
DANGER: Indicates an immmently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
Denotes risk of electric shock.
Denotes risk of fire.
WARNING: To reduce the risk of injury, read the instruction manual.
General Power Tool SafetyWarnings
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: For your own safety, read the litre saw stand instruction manual before using any accessory. Failure to heed these warnings may result in personal injury and serious damage to the litre saw stand and the accessory. When servicing this tool, use only identical replacement parts.
SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE
General Safety Instructions for Stand Accessories
WARNING: To reduce the risk of personal injury:
- ALWAYS use eye protection. All users and bystanders must wear eye protection.
- ALWAYS check the stability of the litre saw stand and the litre saw attached to it before putting the stand or the saw into use.
DO NOT mount any power tool other than a litre saw to this stand. Mounting other power tools to this stand could result in severe personal injury.
DO NOT exceed the weight these brackets can hold. Each bracket can support up to 250 lbs (113 kg) when loaded directly over the stand main beam. Do not exceed weight rating of the stand. - Follow the mounting instructions carefully. Fasten the mitre saw to the saw mounting brackets securely as instructed.
DO NOT modify or use stand for operations for which it is unintended.
ENGLISH
DO NOT use the stand on uneven surfaces. The stand is designed to be used on a flat, stable, non-slippery surface.
ResidualRisks
In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:
- Risk of personal injury by sharp edges and squeezing.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.
Wear eye protection.
Package Contents
The package contains:
2 Mitre saw mounting brackets
1 Instruction manual
1 Exploded drawing
- Check for damage to the tool, parts or accessories which may have occurred during transport.
Take the time to thoroughly read and understand this manual prior to operation.
Description (fi g. 1)
WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.
a. Mounting brackets
b. Release levers
c. Non-marring feet
INTENDED USE
Your mounting brackets have been designed to extend the versatility of your DEWALT litre saw.
DO NOT use under wet conditions or in presence of flammable liquids or gases.
These mounting brackets are professional power tools.
DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: Always observe the safety instructions and applicable regulations.
DE7025 DEWALT Mitre Saw Mounting Method (fi g. 2, 3)
WARNING: To reduce the risk of injury, turn unit off, disconnect machine from power source before assembling the mitre saw to the mitre saw stand. An accidental startup can cause injury.
WARNING: Stability Hazard. You must use the Universal Mitre Saw Mounting Method when mounting a mitre saw not manufactured by DEWALT to this mitre saw stand.
WARNING: To reduce the risk of personal injury, be sure the mitre saw is fully anchored on the stand.
WARNING: For your own safety, read and understand the litre saw instruction manual before using. Failure to heed these warnings may result in personal injury and serious damage to the litre saw and the accessory.
- Place saw in operational position with blade facing you. Align with label on the mounting bracket showing front.
- Place a spacer under one side of the mitre saw to hold the saw's mounting feet above the work surface.
- Hold a mounting bracket (a) under the saw and feed a carriage bolt (hardware bag) up through the bracket and the foot of the saw.
NOTE: See DE7025 Hardware Selection
Chart for the correct mounting hardware procedures for DEWALT metre saws. Follow all instructions properly, otherwise the metre saw's table rotation may be obstructed.
ENGLISH
| DE7025 HARDWARE SELECTION CHART | ||
| Left Side Right | Side | |
| DW703 1 1 | ||
| DW705 1 1 | ||
| DW706 1 1 | ||
| DW708 1 2 | ||
| DW712 1 2 | ||
| DW713 1 1 | ||
| DW715 1 1 | ||
| DW716 1 1 | ||
| DW717 2 1 | ||
| DW718 3 2 | ||
| DW700 4 4 | ||
| DW701 Type 1 4 | 4 | |
| DW701 Type 2 1 | 1 | |
| DW707 Type 1 4 | 4 | |
| DW707 Type 2 1 | 1 | |
| DW711 Type 1 4 | 4 | |
| DW711 Type 2 1 | 1 | |
| DW771 1 1 | ||
| DW777 1 1 | ||
| 1 = Long screw, head on bottom | ||
| 2 = Short screw, head on bottom | ||
| 3 = Long screw, head on top | ||
| 4 = Plastic pad and small screw, head on bottom | ||
- Once the carriage bolt (hardware bag) is installed per DE7025 Hardware Selection Chart, assemble a flat washer, lock washer and nut onto the bolt. Tighten the bolts finger tight.
-
Repeat procedure on the other end of the bracket.
-
Move the spacer to the other side of the saw to hold the other end of the saw up in order to access the saw base.
- Feed carriage bolts through the other bracket and the base of the saw as before. Ensure both brackets are parallel to each other.

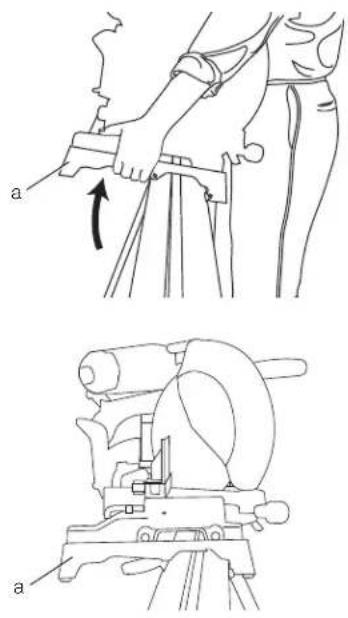

- To place the saw onto the stand, grasp and lift saw by mounting bracket assembly by the release levers. These levers do not lock the saw laterally in place but merely serve as a means of mounting the saw to the beam.
- Approach the beam with saw/bracket assembly tilting toward your body slightly. Engage the concave front lip of the mounting bracket with rounded edge of beam. One of the brackets must engage the locator clip (d) to prohibit lateral movement of the saw during use.
- When the front edge of the beam and locking locator clip are engaged, a slight downward pivot will allow secure engagement of the release levers to the back of the beam. Rock the saw gently on the brackets to verify locking in position.
- Adjust the saw position as necessary to have the blade perpendicular to the beam when in the 0 degree litre position.
- Tighten the four nuts holding the saw to the brackets securely.
WARNING: For your own safety, read and understand the litre saw instruction manual before using. Failure to heed these warnings may result in personal injury and serious damage to the litre saw and the accessory.
DE7025 Universal Mitre Saw Mounting Method (fi g. 1, 3-5)
WARNING: To reduce the risk of injury, turn unit off, disconnect machine from power source before assembling the metre saw to the metre saw stand. An accidental start-up can cause injury.
WARNING: Stability Hazard. You must use the plywood mounting method described in the following instructions when mounting a litre saw not manufactured by DEWALT to this litre saw stand.
WARNING: To reduce the risk of personal injury, be sure the metre saw is fully anchored on the stand.
ENGLISH
WARNING: For your own safety, read and understand the litre saw instruction manual before using. Failure to heed these warnings may result in personal injury and serious damage to the litre saw and the accessory.
NOTE: If you do not have a DEWALT litre saw, you must use 19 mm plywood to mount your litre saw.
The plywood must be a minimum of 101.6mm wider than the the largest width of the litre saw base. The plywood should be at least as deep as the smallest depth of the litre saw base or a minimum of 406.4mm if litre saw base is smaller. Ensure the plywood is square.

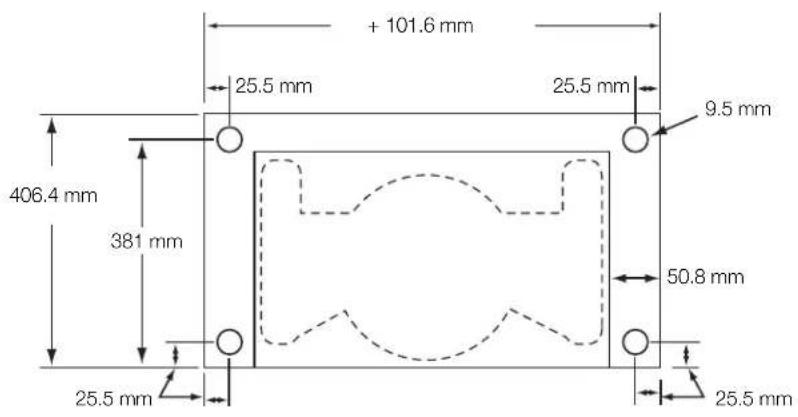

- Once the plywood size has been determined, drill 9.5mm holes 25.5mm from the front corners of plywood, 355mm apart and 25.5mm from the sides.
- Place DE7025 mounting brackets onto the stand:
a. Grasp and squeeze release levers (b).
b. Engage the concave front lip of the mounti bracket with rounded front edge of beam One of the mounting brackets must be engaged in the locator clip (d) to prohibit lateral movement of the saw during use.
- When the front edge of the beam and locator clip are engaged, a slight downward pivot will allow secure engagement of the release levers to the back of the beam. Follow same procedure with second mounting bracket at the appropriate position on the beam for the size of the plywood.
- Place plywood onto mounting brackets and align drilled holes with slots in mounting brackets. Refer to DE7025 Hardware Selection Chart and use either Method 1 to secure plywood to mounting brackets.
- Use 13 mm wrench to tighten hardware.
- The mitre saw should be mounted to the plywood using holes in the mitre saw base. The hardware size will be determined by the holes in the mitre saw base. Hardware should be 31.8mm longer than the maximum height of the mitre saw base at each mounting location.
a. Transfer location of mounting holes from mirtre saw base to plywood.
b. Drill holes accordingly to the size of the hardware chosen. NOTE: Hardware must be purchased to mount metre saw to plywood. All purchased hardware should be a minimum of Grade 5 or Class 8.8.
c. Secure litre saw to plywood as shown in Figure 5.Saw base (e),19 mm plywood (i), flat washer (f), lock washer (h) and nut (g). NOTE: Ensure a flat washer (f) is used between plywood (i) and lock washer (h).
d. Tighten all hardware.
Removing the Saw
Once the litre saw is fastened to the brackets, it can be removed by grasping the release levers, pulling up slightly to clear the beam and can be set down on the rubber feet for transportation or cleaning.
MAINTENANCE
Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Cleaning
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
Optional Accessories
WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.
Consult your dealer for further information on the appropriate accessories.
COMPATIBLEPRODUCTS
DE7023 Heavy-duty litre saw stand
DE7033 Compact litre saw stand
DE7035 Heavy-duty work stand
Protecting the Environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
DEWALT provides a facility for the collection and recycling of DeWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at:
www.2helpU.com.
GUARANTEE
DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
30 DAY NO RISK SATISFACTION GUARANTEE
If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.
- ONE YEAR FREE SERVICE CONTRACT
If you need maintenance or service for your DeWALT tool, in the 12 months following purchase, you are entitled to one service free of charge. It will be undertaken free of charge at an authorised DeWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.
- ONE YEAR FULL WARRANTY
If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or - at our discretion - replace the unit free of charge provided that:
The product has not been misused;
The product has been subject to fair wear and tear;
- Repairs have not been attempted by unauthorised persons;
Proof of purchase is produced;
The product is returned complete with all original components.
If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com.
