USER MANUAL STE1030 PHILIPS

Five different hair dryer holders with adjustable arm and necks, shown from different angles (no text or symbols visible)

Simple line drawing of an open book with a grid pattern on the left and a closed page on the right (no text or symbols)

-1

-1

1_

1

-1

1_

-1

1

English 6

Azərbaycanca 22

Bahasa Indonesia 39

Bahasa Melayu 56

Čeština 73

Dansk 89

Deutsch 106

Eesti 124

Español 140

Français 157

Hrvatski 174

Italiano 191

Latviešu 208

Lietuviškai 225

Magyar 242

Nederlands 259

Norsk 276

O'zbek 292

Polski 309

Português 326

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

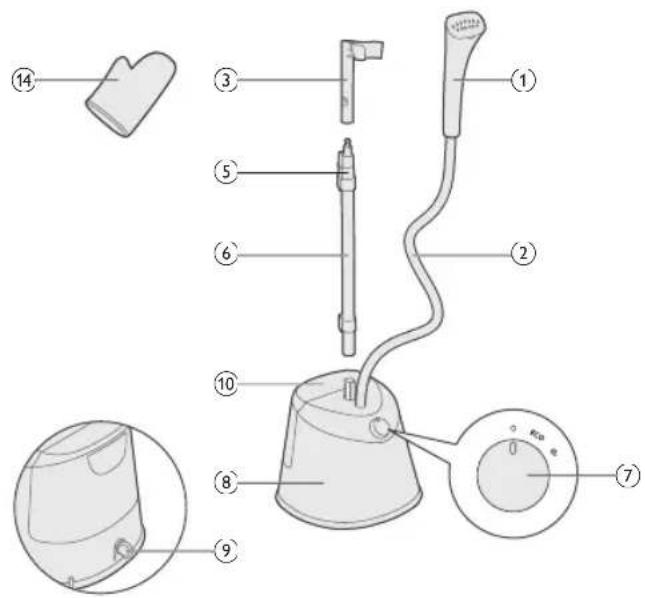

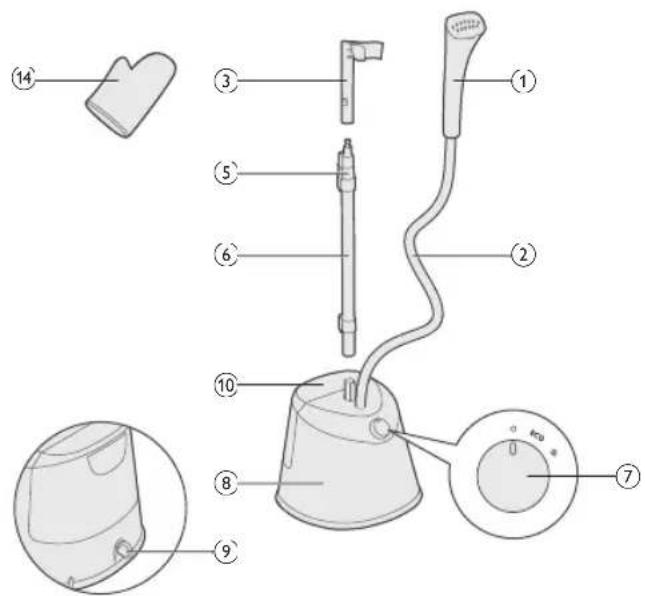

Product overview

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Steamer head
2 Steam supply hose
3 Steamer dock
4 Hanger (STE1011, STE1020, STE1030, STE1040)
5 Pole lock clip
6 Pole
7 Steam dial
8 Base
9 De-calc knob
10 Water tank

8 English

11 Board (STE1040)
12 Cover (STE1040)
13 Mat (STE1030)
14 Glove
15 Brush (STE1020, STE1030, STE1040)

Preparing for use

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Warnings

Illustration of hands using a megaphone to prevent a food safety hazard (no text or symbols present)

1 Do not place any part of the skin in direct contact with the steam.

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

2 Do not aim the steam plate towards other persons.

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

3 Do not hold your garment in a way which is in direct contact with the steam.

Diagram showing a hand holding a bag with a cross mark and a checkmark on the chest, indicating a medical or safety hazard.

4 Do not use the steamer head in a downwards direction.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

5 Do not bend the hose to steam the garment.

> 5 min. ×

6 Do not leave the stand steamer unattended for more than 5 minutes.

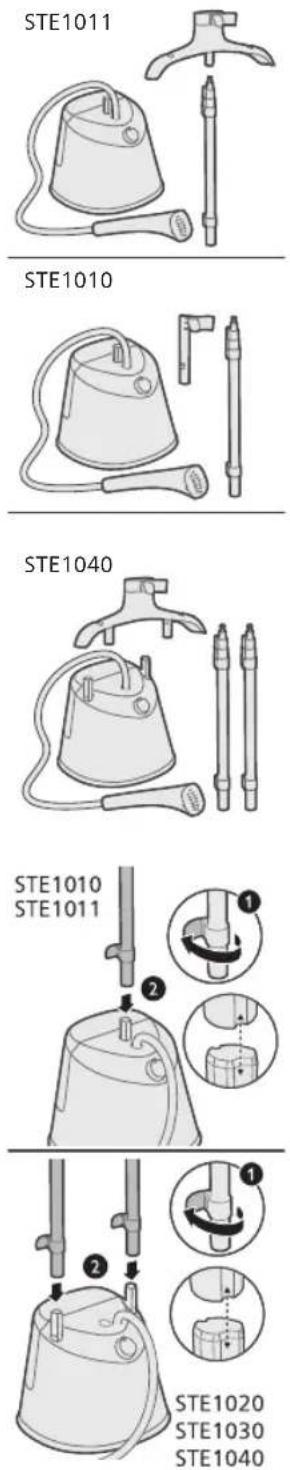

Setting up the appliance

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a handle, bulb, and two rod-like devices (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

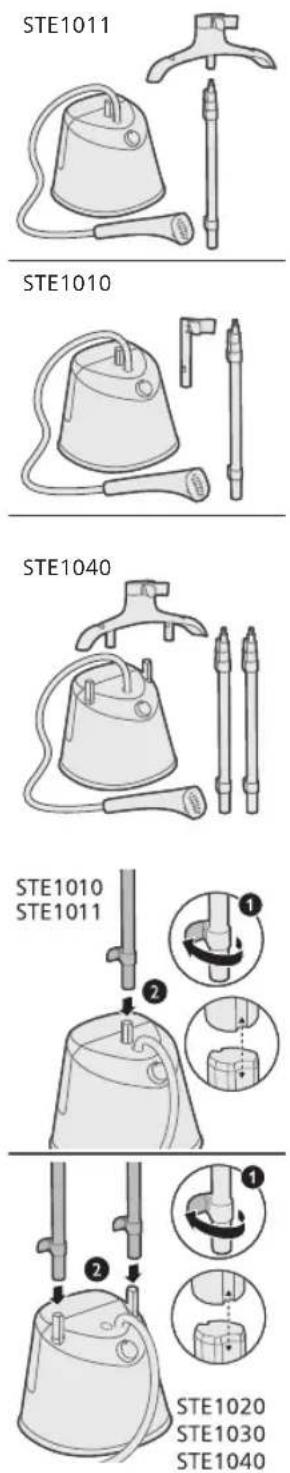

1 Take note of the parts available for your purchased appliance.

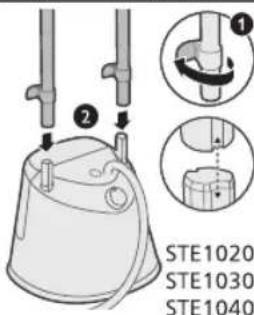

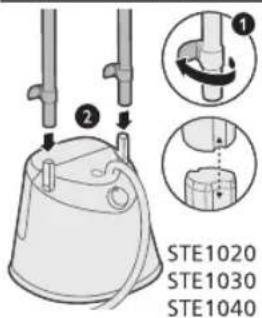

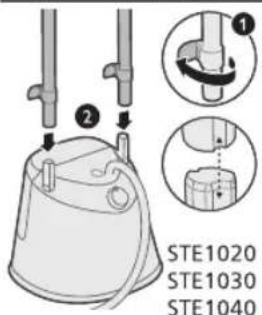

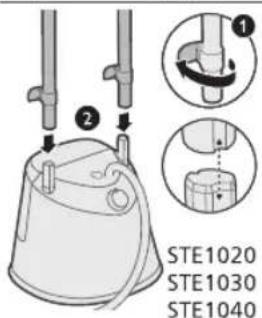

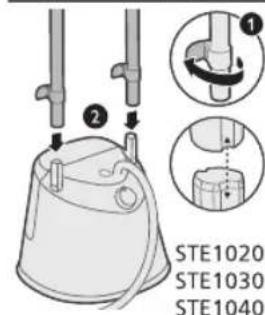

2 Unlock the bottom pole lock clips and insert the pole(s) onto the base. Ensure the profiles of the pole(s) and base pole stud(s) are aligned.

Diagram of two identical containers with ropes and a circular inset showing a curved object (no text or symbols)

3 Lock the bottom pole lock clip(s).

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Unlock the remaining pole lock clips, fully extend the pole(s) upwards and lock it.

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

5 Insert the steamer dock onto the pole(s) until it locks in place ('click').

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Place the steamer head onto the steamer dock.

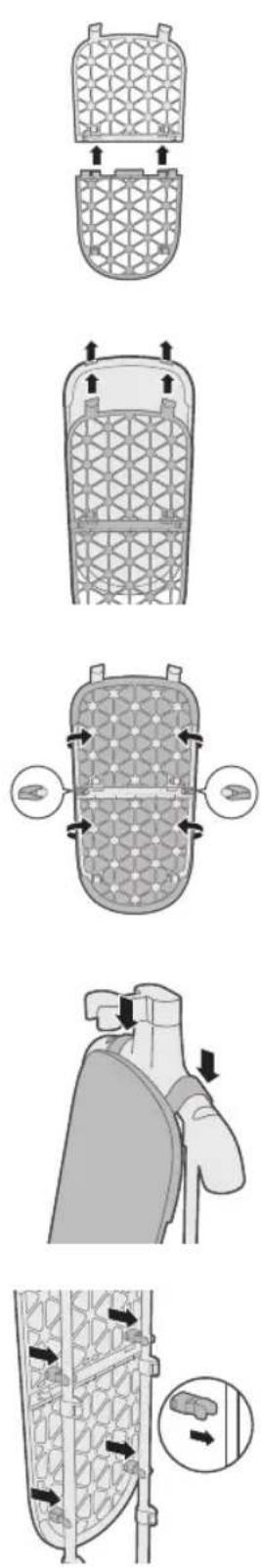

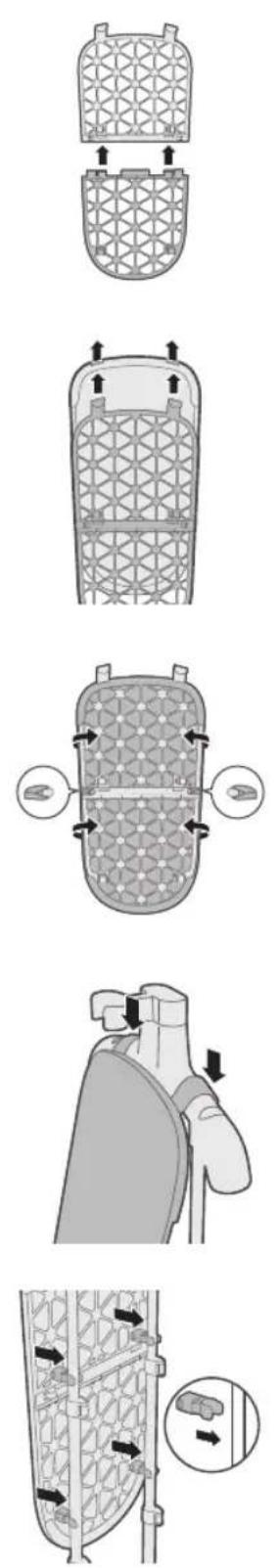

Setting up the board

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

1 Take note of the parts available for your purchased appliance.

12 English

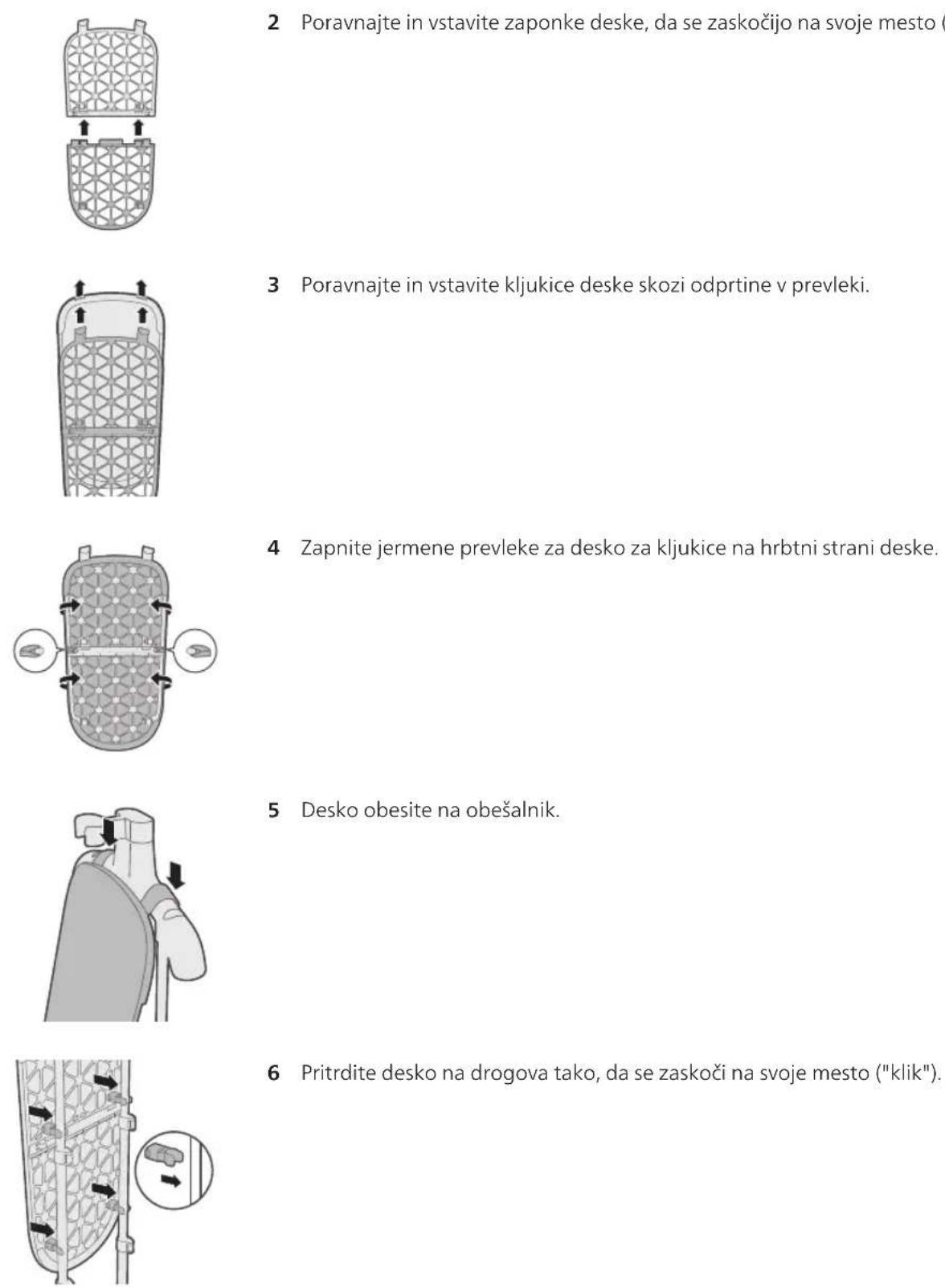

2 Align and insert the board clips until it lock in place ('click').

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

3 Align and insert the board cover through the board hooks.

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

4 Hook up the board cover straps onto the hooks at the back of the board

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 Place board onto the hanger.

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

6 Secure the board onto the poles until it lock in place ('click').

Simple line drawing of a bottle with two handles (no text or symbols)

7 You can drape your clothes using the hanger.

Line drawing of a collared shirt with button detail, shown in side profile on a mannequin (no text or symbols)

8 You can use your own hanger and place it on the steamer dock.

Line drawing of a shirt collar with two hangers (no text or symbols)

Setting the mat

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 Insert the middle strap through the steamer dock.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 Secure the 3 straps on the hook at the back of the hanger.

14 English

Diagram showing a hand pressing down on a vertical pipe with radiating lines indicating motion or force (no text or symbols present)

3 Secure the mat onto the poles until it locks in place ('click').

Simple line drawing of a cylindrical container with handles and two legs (no text or symbols)

4 You can drape your clothes using the hanger.

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Illustration of a shirt with collar and shoulder clips (no text or symbols)

5 You can use your own hanger and place it on the steamer dock.

Inserting the brush

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

1 Align the track along the top of the steamer head and snap the catch on the bottom ('click').

Illustration of hands holding a cup with steam rising from it, no text or symbols present

2 You can wear the glove and steam your clothes using the brush attachment.

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

3 Grip and pull out the catch from the bottom of the steamer head to remove the brush attachment.

Filling the water tank

Diagram of a mechanical device with a close-up inset showing a plug and a cross symbol (no text or labels)

1 Do not plug in the appliance. Remove the water tank from the base.

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 Flip the water tank with the water tank cap facing upwards.

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

3 Unscrew the water tank cap anticlockwise to remove.

16

English

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

4 Fill up the water tank.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

5 Screw the water tank cap clockwise to tighten.

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

6 Align with the hook to place the water tank back to the base.

Changing the steam settings

1 Ensure appliance is plugged in. Rotate the steam dial to the desired steam setting.

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

2 The light will turn steady to indicate the stand steamer is switched ON.

*STE1010/75

STE1011/75: \~2 min

~45 sec

3 Wait for about 45 seconds for the stand steamer to heat up and emit steam (STE1010/75, STE1011/75: about 2 minutes).

Ironing tips

Illustration of a shirt collar with a hanging hanger (no text or symbols)

1 You can use your own hanger and place it on the steamer dock.

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

2 Move the steamer head in a parallel direction with the collar.

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Move the steamer head in a horizontal direction with the yoke.

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

4 Stretch the garment. Move the steamer head in a downwards direction on the body front.

English

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

5 Move the steamer head in a upwards direction on a pocket.

Illustration of a hand using a tool to remove or clean material from a container (no text or symbols)

6 Stretch the garment. Move the steamer head in a downwards direction on the body back.

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

7 Stretch the garment. Move the steamer head in a parallel direction with the sleeve.

Cleaning and maintenance

Calc Collector

Your appliance has been designed with a Calc Collector system. You are recommended to do descaling once a month or more. This helps to maintain a strong steam performance and prevents dirt and stains coming out of the soleplate over time.

Tip: The Calc Collector system can be used at any time. If you live in a hard water area, use the function more frequently.

Performing the calc clean process

STE1020 STE1030 STE1040 STE1010 STE1011

1 Ensure that the steam dial is at the OFF position and the appliance is unplugged.

℃ >1 hour

2 Ensure that the iron has cooled down completely (> 1 hour).

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 Place the steamer close to a drain.

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

4 Turn the De-calc knob to the unlock position and remove the De-calc knob. Allow water to drain.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

5 Insert and turn the De-calc knob to the lock position.

Cleaning and storing the stand steamer

1 Ensure that the steam dial is at the OFF position and the appliance is unplugged.

℃ >1 hour

2 Ensure that the iron has cooled down completely (> 1 hour).

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

3 Wipe the steam place with a damp cloth.

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

4 Empty the water tank completely.

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 Wind the power cord around the base.

Two sequential illustrations of a person holding a pole and standing, with no text or symbols present.

6 You can carry the stand steamer by the pole.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The appliance produces no steam or irregular steam.	The steamer has not heated up sufficiently.	Let the appliance heat up for approximately 45 seconds (STE1010/75: about 2 minutes).
	Steam has condensed in the hose. Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	Low water level in the tank or the tank is not inserted properly.	Refill the water tank and insert it properly.
	Too much scale has built up in the appliance.	Perform de-calc process. Refer to Calc-Clean section.
Water droplets drip from the steamer head or the appliance produces a croaking sound.	You have left the steamer head and/or the steam supply hose in horizontal position for a long time.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	When the hose forms a U-shape, condensation in the hose cannot flow back into the water tank.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
An excessive amount of water drips out of the steamer head when the appliance is heating up.	The water in the appliance is dirty or has been left inside the appliance for a long time.	Perform de-calc process. Refer to the Calc-Clean section.
Water leaks out from the steamer base.	You have not closed the water tank cap or de-calc knob securely. The water tank is not inserted properly.	Close the water tank cap or de-calc knob securely. Insert the tank properly.

22 Azərbaycanca

Giriş

Technical diagram of a vacuum cleaner with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and a cross mark, no text or symbols present

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1040

Line drawing of a steam hood with two vertical tubes and a handle, no text or symbols present

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular inset showing a curved object (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols present)

Diagram of a vertical cylindrical structure with internal components and directional arrows, no text or symbols present.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Illustration of two hands holding a torch with smokestacks (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple line drawing of a device with a curved top and two arrows indicating rotation (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt jacket with a hanger, showing front and back views (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt collar with an upward arrow indicating movement or pressure point (no text or symbols)

Illustration of hands using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

Illustration of a person's arm and sleeve with a cross mark, no text or symbols present

Diagram showing a hand holding a bag over a shirt, with a cross mark indicating a specific area or defect.

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

5 Jangan menekuk selang untuk menguapi pakaian.

> 5 min. ×

Diagram of two identical mechanical components with ropes and a central circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing a side panel, another a flat plate, and a third empty (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with buttoned collar (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 Masukkan tali tengah melalui dok penyembur uap.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Memasang sikat

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a plug and switch (no text or symbols present)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

3 Putar tutup tangki air berlawanan arah jarum jam untuk melepasnya.

Diagram of a laboratory apparatus with a pipette inserted into a container (no text or labels)

4 lsi tangki air.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing upward arrow (no text or symbols)

Illustration of hands cleaning a wall with a tool, showing a downward arrow (no text or symbols)

Illustration of a hand holding a knife with a knifehead, showing a force or motion direction (no text or symbols)

7 Rentangkan pakaian. Gerakkan kepala penyembur uap sejajar pada lengan baju.

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and an inset showing a warning symbol for 'No Care'.

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain (no text or symbols)

4 Kosongkan tangki air.

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Two sequential illustrations of a person holding a walking stick and standing, with no text or symbols present.

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Kepala penstim
2 Hos bekalan stim
3 Dok penstim
4 Penyangkut (STE1011, STE1020, STE1030, STE1040)
5 Klip pengunci dirian
6 Dirian
7 Tombol stim
8 Tapak
9 Tombol pembersihan kerak
10 Tangki air

11 Papan (STE1040)
12 Penutup (STE1040)
13 Alas (STE1030)
14 Sarung tangan
15 Berus (STE1020, STE1030, STE1040)

Illustration of hands exchanging a substance with a 'X' mark, no text or symbols present

Illustration of a person using a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person's arm and sleeve with a cross mark, no text or symbols present

Diagram showing a hand holding a bag over a shirt, with a cross mark indicating a specific area or defect.

4 Jangan halakan kepala penstim ke arah bawah.

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1040

Line drawing of a steam hood with two vertical tubes and a handle, no text or symbols present

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular inset showing a curved object (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or tool tip with arrows indicating process flow, showing progressive lighting and cutting steps.

Three sequential illustrations of a medical or surgical device with arrows indicating motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

3 Jajarkan dan masukkan alas papan melalui cangkuk papan.

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Menetapkan alas

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 Masukkan tali tengah melalui dok penstim.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

3 Ketatkan alas pada dirian sehingga terkunci di tempatnya ("klik").

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Illustration of hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up inset showing a plug and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a procedure with labeled steps and an instructional diagram showing a hand holding a tool over a shaded area.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side panel (no text or symbols present)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to address a food item with a 'X' mark (no text or symbols on the diagram itself)

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

2 Nemiřte proudem páry na jiné osoby.

76

Čeština

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark on the chest, indicating a medical or safety hazard.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Nasadte na dok napařovače hlavici.

Sestavení prkna

Three technical illustrations of a device with mesh patterns, one side view, another close-up, and a flat plate (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Vložení kartáče

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a steaming torch, one emitting smoke or vapor (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

5 Znovu našroubujte víko.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Damphoved
2 Dampslange
3 Damperdock
4 Bøjle (STE1011, STE1020, STE1030, STE1040)
5 Spændebånd
6 Stang
7 Dampvælger
8 Base
9 Afkalkningsknap
10 Vandbeholder

11 Bræt (STE1040)
12 Betræk (STE1040)
13 Måtte (STE1030)
14 Handske
15 Børste (STE1020, STE1030, STE1040)

Klargøring

Illustration of hands using a megaphone to interact with a surface, marked with a black X (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or safety instruction on clothing.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

3 Lås läseklemmerne på den nederste stang.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a mechanical or electrical component with downward arrows indicating motion or sequence.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Sæt damphovedet i damperdocken.

Three technical illustrations of a device with mesh patterns, one showing a side panel, another a flat plate, and a third empty (no text or symbols)

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement, no text or symbols present.

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front pocket, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Isætning af børsten

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 Fyld vandtanken.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand using a tool to remove or clean material from a container (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade and a magnified view (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

4 Tøm vandbeholderen helt.

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

5 Rul netledningen rundt om basen.

Two sequential illustrations of a person holding a pole and standing, with no text or symbols present.

6 Du kan bære damperen i stangen.

Fejlfinding

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Labeled diagram of a hairdryer with numbered parts and an inset view showing internal components.

Labeled diagram of a vacuum cleaner with numbered parts and internal components shown in views.

Illustration of hands using a megaphone to prevent a food item, with a black X mark above (no text or symbols)

Illustration of a person shouting into a megaphone with a 'X' symbol above (no text or symbols present)

Illustration of a person's arm and shoulder with a cross mark, no text or symbols present

Illustration of a hand holding a bag over a shirt, with a cross mark and a small object on the chest (no text or symbols)

Illustration of a person using a hose to clean a jacket, with a cross mark indicating no text or symbols.

Diagram of two identical containers with ropes and a central rotating knob, no text or symbols present

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one side, and one rounded (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with button closure, shown in side profile against a hanger (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory apparatus with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a hand holding a jacket with arrows indicating clothing movement (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Auruti otsak
2 Auruvoolik
3 Auruti dokk
4 Riidepuu (STE1011, STE1020, STE1030, STE1040)
5 Posti lukustusklamber
6 Vars
7 Auruvalits
8 Alus
9 Katlakivi eemaldamise nupp
10 Veepaak

11 Laud (STE1040)
12 Kate (STE1040)
13 Matt (STE1030)
14 Kinnas
15 Hari (STE1020, STE1030, STE1040)

Illustration of hands holding a megaphone with a cross mark above, no text or symbols present

Illustration of a person holding a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and a cross mark, no text or symbols present

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating how to prevent a tool, showing three stages of tool application with arrows indicating process flow.

5 Sisestage auruti dokk posti(de)le, kuni see lukustub (kostub klôps).

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Asetage auruti otsak auruti dokile.

Laua valmispanek

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Mati seadistamine

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

3 Kinnitage matt posti(de)le, kuni see lukustub (kostub klôps).

Simple line drawing of a cylindrical container with handles and two legs (no text or symbols)

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder details (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up inset showing a plug and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 Täitke veepaak.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

6 Joondage konksuga, et veepaak tagasi alusele asetada.

Auruseadete muutmine

STE1020 STE1030 STE1040 STE1010 STE1011

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

4 Venitage riiet. Liigutage auruti otsakut keha esiküljel allapoole.

Illustration of a hand holding a shirt with an upward arrow, no text or symbols present

Illustration of hands cleaning a wall with a brush (no text or symbols)

6 Venitage riiet. Liigutage auruti otsakut keha tagaküljel allapoole.

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

7 Venitage riiet. Liigutage auruti otsakut varrukaga paralleelselt.

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating a hand using a tool to interact with a device, showing labeled components and warning symbols.

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person carrying a walking stick with a vertical pole, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands using a megaphone to prevent a food safety violation (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached probe and hose (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a bucket, handle, and two rod-like devices (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating how to prevent a tool, showing three stages of tool application with arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front pocket, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Illustration of hands holding a cup with steam rising from it, no text or symbols present

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up inset showing a plug and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

Simple line drawing of a bowl with a lid and side pan, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a shirt with an arrow pointing upward (no text or symbols)

Illustration of a hand holding a tool interacting with a device (no text or symbols visible)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and an inset showing a warning symbol for 'No Care'.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to address a food item with a 'X' mark (no text or symbols on the diagram itself)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person adjusting a jacket with a cross mark (no text or symbols)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point.

Illustration of a person bending over a mannequin with a cross mark indicating incorrect posture (no text or symbols present)

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Technical line drawing of a dual-chamber device with mesh patterns and a rounded rectangular plate (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Insertion de la brosse

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a steaming torch, one emitting smoke or vapor (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a container (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand using a tool to remove or clean material from a container (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a procedure with labeled steps and an inset showing a warning symbol and a hand holding a tool.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Illustration of a helmet with a black arrow pointing to the nose area (no text or symbols)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

1 Glava steamer glačala
2 Crijevo za dovod pare
3 Baza steamer glačala
4 Vješalica (STE1011, STE1020, STE1030, STE1040)
5 Kopča za fiksiranje šipke
6 Šipka
7 Regulator pare
8 Podnožje
9 Regulator De-calc
10 Spremnik za vodu

11 Daska (STE1040)
12 Navlaka (STE1040)
13 Podloga (STE1030)
14 Rukavica
15 Četka (STE1020, STE1030, STE1040)

Priprema za uporabu

Vrsta vode koju treba upotrebljavati

Illustration of hands using a megaphone to prevent a food item, with a black 'X' mark above (no text or symbols on the diagram itself)

Illustration of a person using a megaphone with a cross symbol above, no text or symbols present

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

3 Odjevni predmet nemojte držati tako da dolazi u izravan kontakt s parom.

Illustration of a hand holding a jacket with a shield and a cross mark, no text or symbols present

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

5 Nemojte savijati crijevo kako biste odjevni predmet glačali parom.

> 5 min. ×

6 Samostojeće steamer glačalo nemojte ostavljati bez nadzora duže od 5 minuta.

Postavljanje aparata

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a handle, bulb, and two rod-like devices (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

3 Fiksimajte donje kopče za fiksiranje šipke.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Otpustite preostale kopče za fiksiranje šipke, potpuno produžite šipke prema gore i fiksirajte ih.

Diagram illustrating how to prevent a tool, showing three stages of tool application with arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Glavu steamer glačala stavite na bazu steamer glačala.

Postavljanje daske

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a woven basket structure with two handles and arrows indicating measurement or orientation (no text or symbols)

3 Poravnajte navlaku za dasku i umetnite je kroz kuke na dasci.

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

4 Pričvrstite trake navlake za dasku za kuke na stražnjoj strani daske

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

6 Pričvrstite dasku za šipke tako da sjedne na mjesto („klik“).

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 Umetnite srednju traku kroz bazu steamer glačala.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

3 Pričvrstite podlogu na šipke tako da sjedne na mjesto („klik“).

Simple line drawing of a cylindrical container with handles and two legs (no text or symbols)

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

1 Nemojte ukopčavati aparat. Odvojite spremnik za vodu od podnožja.

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 Okrenite spremnik za vodu tako da poklopac spremnika za vodu bude usmjeren prema gore.

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

4 Napunite spremnik za vodu

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

2 Pomičite glavu steamer glačala paralelno s ovratnikom.

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

4 Zategnite odjevni predmet. Pomičite glavu steamer glačala prema dolje prednjom stranom odjevnog predmeta.

Illustration of a shirt with a hand holding a bag, showing a hand pressing down on the chest area (no text or symbols)

5 Na džepovima glavu steamer glačala pomičite prema gore.

Illustration of hands cleaning a wall with a brush and downward arrow (no text or symbols)

Illustration of a hand holding a knife with a knifehead, showing a blade and handle (no text or symbols)

7 Zategnite odjevni predmet. Pomičite glavu steamer glačala paralelno s rukavom.

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 Stavite steamer glačalo blizu odvoda.

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

4 Okrenite regulator za De-calc u položaj za otključavanje i odvojite ga. Pustite da voda iscuri.

Diagram illustrating safety inspection steps with labeled icons and directional arrows

5 Umetnite regulator De-calc i okrenite ga u položaj za zaključavanje.

Čišćenje i spremanje samostojećeg steamer glačala

STE1020 STE1030 STE1040 STE1010 STE1011

1 Provjerite je li regulator pare u položaju za isključivanje i je li aparat iskopčan.

℃ >1 hour

2 Provjerite je li se glačalo potpuno ohladilo (> 1 sat).

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

3 Obrišite ploču za glačanje vlažnom krpom.

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick with a vertical pole, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

Illustration of hands holding a megaphone with a cross mark above, no text or symbols present

Illustration of a person using a megaphone with a cross symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's chest (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing front view, one side view, and one top view (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a container (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Procedura Calc-Clean

STE1020 STE1030 STE1040 STE1010 STE1011

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating a hand using a tool to interact with a device, showing labeled components and warning symbols.

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a medical or anatomical structure with a black arrow pointing to a curved line, no text or symbols present.

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to prevent a food item, with a black 'X' mark above (no text or symbols on the diagram itself)

Illustration of a person using a megaphone with a cross symbol above, no text or symbols present

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and cross mark (no text or symbols)

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating how to prevent a tool, showing three stages of tool application with arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Sukas ievietošana

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 lelejiet üdens tvertnē üdeni.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a shirt with an upward arrow and a magnified inset showing the chest area (no text or symbols)

Illustration of hands using a tool to remove or clean a surface, with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 Novietojiet tvaika gludekli blakus notekai.

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating a hand using a tool to interact with a device, showing labeled components and warning symbols.

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

3 Noslaukiet tvaika izvades vietu ar mitru drānu.

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 Aptiniet strāvas vadu ap pamatni.

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

2 Nenukreipkite garinio pado j kitus asmenis.

228 Lietuviškai

Illustration of a person applying a bandage to another person's chest (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person bending over a mannequin with a cross mark indicating no change (no text or symbols present)

5 Garindami drabužj nesulenkite žarnos.

> 5 min. X

Diagram of two identical containers with ropes and a central rotating knob, no text or symbols present

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or tool with downward arrows indicating process steps.

Three sequential illustrations of a medical or surgical device with arrows indicating motion (no text or symbols)

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

1 Atkreipkite dèmesj i jsigyto prietaiso dalis.

Simple line drawing of a bottle with two handles (no text or symbols)

7 Galite pakabinti drabužius ant pakabo.

Line drawing of a men's collared shirt on a mannequin (no text or symbols)

Line drawing of a shirt collar with two hangers on top (no text or symbols)

Patiesalo tiesimas

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

4 Galite pakabinti drabužius ant pakabo.

Illustration of a jacket with collar and front pocket, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Šepečio jdėjimas

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a plug and switch (no text or symbols present)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 Pripildykite vandens bakelj.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Braukite garintuvo antgaliu horizontalia papetei kryptimi.

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a shirt with an upward arrow, no text or symbols present

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating compression (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands exchanging a tray with a megaphone and a cross mark (no text or symbols)

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and a cross mark, no text or symbols present

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat panel (no text or symbols)

248

Magyar

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction (no text or symbols present)

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

A kefe felhelyezése

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of hands holding a cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

Simple line drawing of a bowl with a lid and side pan, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt hanger with a side panel showing front view (no text or symbols)

Illustration of a person hanging from a coat with an arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a shirt with an upward arrow and a magnified inset showing the chest area (no text or symbols)

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick with a vertical pole, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Stoomkop
2 Stoomtoevoerslang
3 Stomervoet
4 Hanger (STE1011, STE1020, STE1030, STE1040)
5 Stangvergrendelingsklem
6 Stang
7 Stoomregelaar
8 Voet
9 De-calc-knop
10 Waterreservoir

11 Plank (STE1040)
12 Hoes (STE1040)
13 Mat (STE1030)
14 Handschoen
15 Borstel (STE1020, STE1030, STE1040)

Illustration of hands using a megaphone to prevent a food safety hazard (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or safety hazard.

Illustration of a person bending over a mannequin with a cross mark indicating incorrect posture (no text or symbols present)

Diagram of two identical containers with ropes and a circular inset showing a mechanical component (no text or symbols)

3 Vergrendel de vergrendelklem(men) van de onderste stang.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Ontgrendel de resterende vergrendelklemmen, schuif de stang(en) volledig omhoog en vergrendel deze.

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat panel (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

De mat plaatsen

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

De borstel plaatsen

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a container (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a small inset circle (no text or symbols)

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand using a tool to remove or clean material from a container (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side panel (no text or symbols present)

Two sequential illustrations of a person holding a pole and standing, with no text or symbols present.

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Damphode
2 Dampslange
3 Dampdokk
4 Kleshenger (STE1011, STE1020, STE1030, STE1040)
5 Stangens läseklemme
6 Stang
7 Damphjul
8 Sokkel
9 De-calc-knott
10 Vannbeholder

11 Brett (STE1040)
12 Omslag (STE1040)
13 Matte (STE1030)
14 Hanske
15 Børste (STE1020, STE1030, STE1040)

Bruksforberedelse

Illustration of hands using a megaphone to prevent a food item, with a black 'X' mark above (no text or symbols on the diagram itself)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

2 Ikke rett dampplaten mot andre personer.

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

3 Ikke hold plagget på en måte som er i direkte kontakt med dampen.

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or safety instruction on clothing.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Line drawing of a steam hood with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

3 Lås läseklemmene nederst for stengene.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating the process of welding or welding process with labeled arrows and explosion effects

5 Sett dampdokken på stengene til den låses på plass (klikk).

Three sequential illustrations of a medical or surgical device with arrows indicating motion (no text or symbols)

6 Plasser damphodet på dampdokken.

Oppsett av brett

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 Plasser brettet på kleshengeren.

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

6 Fest brettet på stengene til det låses på plass (klikk).

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Oppsett av matten

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

3 Fest matten på stengene til den låses på plass (klikk).

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Sette inn børsten

Diagram showing a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

1 Juster sporet langs toppen av damphodet, og fest den på bunnen (klikk).

Illustration of hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 Fyll opp vannbeholderen.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

2 Beveg damphodet i parallell retning med kragen.

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Beveg damphodet i en horisontal retning mot skuldrene.

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

4 Strekk plagget. Beveg damphodet nedover på forsiden av plagget.

288 Norsk

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

5 Beveg damphodet oppover på en lomme.

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

6 Strekk plagget. Beveg damphodet nedover på kroppens bakside.

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

7 Strekk plagget. Beveg damphodet parallelt med ermet.

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 Plasser dampenheten nærme et sluk.

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

4 Tøm vannbeholderen.

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 Surr ledningen rundt sokkelen.

Illustration of a person carrying a walking stick with a vertical pole, shown in two sequential poses (no text or symbols)

6 Du kan bære stativdampenheten med stangen.

Feilsøking

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Bug'latkich kallagi
2 Bug'ta'minoti shlangi
3 Bug'latkich doki
4 Ilgak (STE1011, STE1020, STE1030, STE1040)
5 Tirgak qisqich
6 Tirgak
7 Bug' murvati
8 Asos
9 Cho'kmadan tozalash murvati
10 Suv baki

294 O'zbek

11 Panel (STE1040)
12 Qoplama (STE1040)
13 To'shama (STE1030)
14 Qo'lqop
15 Cho'tka (STE1020, STE1030, STE1040)

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

1 Terining biror qismi bug'ga tegishiga imkon bermang.

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

2 Bug' plastinasini boshqa odamlarga qaratmang.

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

3 Kiyimingizni bug' bilan bevosita tegib turadigan qilib tutmang.

Illustration of a hand holding a jacket with a shield and a cross mark, no text or symbols present

4 Bug'latkich kallagini pastga qaratib ishlatmang.

Illustration of a person using a medical device to adjust equipment, marked with a black X (no text or symbols present)

5 Kiyimni bug'lash uchun shlangini egmang.

> 5 min. ×

6 Stendli bug'latkichni 5 daqiqadan ortiq qoldirib ketmang.

Jihozni sozlash

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

3 Pastki qutb qulf qisqich(lari)ni qulflang.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Qolgan qutb qulf qisqichlarini qulfdan oching, qutb(lar)ni to'liq tepaga uzaytiring va qulflang.

Diagram illustrating how to prevent a tool, showing three stages of tool application with arrows indicating process flow.

5 Bug'latkich dokini qutblarga joyiga qulflanguncha ("tiq etib tushguncha") qo'ying.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Bug'latkich kallagini bug'latkich dokiga joylang.

Plastinani sozlash

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

3 Plastina ilgaklari orqali plastina qoplamasini tekislang va qo'ying.

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

4 Plastinaning orqasiga ilgaklarni plastina qoplamasi tasmalariga ilib qo'ying

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 Plastinani ilgakka qo'ying.

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

6 Joyiga qulflanguncha ("tiq etib tushguncha") plastinani qutblarga mahkamlang.

Simple line drawing of a bottle with two handles (no text or symbols)

7 Ilgak yordamida kiyimlaringizni burishingiz mumkin.

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

To'shamani sozlash

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 Bug'latkich doki orqali o'rta tasmani qo'ying.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 Ilgakning orqasidagi ilmoqqa 3 ta tasmani mahkamlang.

300 O'zbek

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

3 Joyiga qulflanguncha ("tiq etib tushguncha") to 'shamani qutblarga mahkamlang.

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

4 Ilgak yordamida kiyimlaringizni burishingiz mumkin.

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

1 Yo'nalishni bug'latkich kallagining yuqori qismi bo'ylab tekislang va tagidan tutqichni ("tiq etib tushguncha") mahkamlang.

Illustration of hands holding a cup with steam rising from it (no text or symbols)

2 Qo'lqop kiyishingiz va cho'tkali biriktirma yordamida kiyimlaringizni bug'latishingiz mumkin.

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

3 Cho'tka biriktirmasini olib tashlash uchun bug'latkich kallagining pastki qismidan tutqichni tuting va torting.

Suv bakini to'Idirish

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

1 Jihozni ulamang. Suv bakini asosdan yechib oling.

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 Suv bakini tepaga qaratib suv bakini eging.

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

3 Yechib olish uchun suv bakini soat miliga qarshi burang.

302 O'zbek

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

4 Suv bakini to'ldiring.

Simple line drawing of a bowl with a lid and side pan, no text or symbols present

5 Qotirish uchun suv baki qopqog'ini soat miliga qarshi burang.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

6 Suv bakini asosga qaytarish uchun ilgak bilan tekislang.

Bug' sozlamalarini o'zgartirish

STE1020 STE1030 STE1040 STE1010 STE1011

1 Jihoz tarmoqqa ulanishini ta'minlang. Bug'latkich murvatini istalgan bug'lash sozlamasiga buring.

Simple line drawing of a hand holding a circular object with a small inset showing a ring (no text or symbols)

2 Stendli bug'latkich YONIQ ekanini ko'rsatish uchun chiroq sekin yonadi.

*STE1010/75

STE1011/75:\~2 min

~45 sec

3 Stendli bug'latkich qizishi va bug' chiqarishi uchun taxminan 45 soniya kuting (STE1010/75, STE1011/75: 2 daqiga vaqt olad).

Dazmollash bo'yicha tavsiyalar

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

2 Bug'latkich kallagini yoqa bilan parallel yo'nalishda harakatlantiring.

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Bug'latkich kallagini xomut bilan horizontal yo'nalishda harakatlantiring.

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

4 Kiyimni cho'zing. Bug'latkich kallagini tana oldida pastga yo'nalishda harakatlantiring.

304 O'zbek

Illustration of a hand holding a shirt with an upward arrow pointing to the pocket (no text or symbols)

5 Bug'latkich kallagini cho'ntakda yuqoriga qaragan yo'nalishda harakatlantiring.

Illustration of hands using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

6 Kiyimni cho'zing. Bug'latkich kallagini pastga yo'nalishda tana orqasi bo'ylab harakatlantiring.

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

7 Kiyimni cho'zing. Bug'latkich kallagini yengda parallel yo'nalishda harakatlantiring.

Tozalash va texnik xizmat ko'rsatish

Qasmoq kollektori

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

4 Qasmoqdan tozalash murvatini qulfdan ochish holatiga buring va Qasmoqdan tozalash murvatini oling. Suv to'kilishiga imkon bering.

Diagram illustrating safety inspection steps with labeled icons and directional arrows

5 Qasmoqdan tozalash murvatini qulf holatiga qo'ying va qulflang.

306 O'zbek

Stendli bug'latkichni tozalash va saqlash

STE1020 STE1030 STE1040 STE1010 STE1011

1 Bug'latkich murvati OFF holatda va jihoz tarmoqdan uzilganiga ishonch hosil qiling.

℃ >1 hour

2 Dazmol butunlay sovitilishini ta'minlang (> 1 soat).

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

3 Bug'latkichni joyida nam mato bilan arting.

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

4 Suv bakini butunlay bo'shating.

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 Asos atrofiga quvvat shnurini o'rab qo'ying.

Two sequential illustrations of a person holding a pole and standing, with no text or symbols present.

6 Stendli bug'latkichni qutbidan ushlab ko'tarishingiz mumkin.

Nosozliklarni aniqlash

Bu bobda jihozda uchraydigan eng keng tarqalgan muammolar umumlashtirilgan. Agar quyidagi ma'lumotga asoslanib muammoni hal qila olmasangiz, savol-javoblar ro'yxati uchun www.philips.com/support manziliga kiring yoki mamlakatingizdagi mijozlarga xizmat ko'rsatish markazi bilan bog'laning.

Muammo Ehtimoliy sabab Yechim

Jihoz bug' chiqarmaydi yoki bug' chiqishi bir maromda emas.	Bug'latkich yetarli darajada qizimayapti.	Jihozni taxminan 45 soniya qizdiring (STE1010/75: 2 daqiga vaqt olad).
	Bug' shlangda kondensatsiyalangan.	Shlangni vertikal tekislash uchun bug'latkich kallagini ko'taring. Bu kondensatsiyaning qaytib oqib ketishiga imkon beradi.
	Bakda suv miqdori oz yoki bak to'g'ri o'rnatilmagan.	Bakni to'ldiring va to'g'ri joylang.
	Jihozda juda ko'p miqdorda cho'kmalar hosil bo'lgan.	Cho'kmalardan tozalash jarayonini bajaring. Qasmoqdan tozalash bo'limiga qarang.
Bug'latkich kallagidan suv tomchilamoqda yoki jihoz qurillagan tovush chiqarmoqda.	Siz bug'latkich kallagini va/yoki bug' ta'minoti shlangini uzoq vaqt horizontal holatda qoldirgansiz.	Shlangni vertikal tekislash uchun bug'latkich kallagini ko'taring. Bu kondensatsiyaning qaytib oqib ketishiga imkon beradi.
	Shlang U-shakl hosil qilganda, shlangdagi kondensatsiya suv bakiga qaytib oqib tusha olmaydi.	Shlangni vertikal tekislash uchun bug'latkich kallagini ko'taring. Bu kondensatsiyaning qaytib oqib ketishiga imkon beradi.

308 O'zbek

Jihoz qizishni boshlaganida bug’latkich kallagidan ko’p miqdordagi suv oqib tushmoqda.	Jihoz ichidagi suv ifloslangan yoki uzoq vaqtdan beri jihoz ichida qolgan.	Cho’kmalardan tozalash jarayonini bajaring. Qasmoqdan tozalash bo’limiga qarang.
Bug’latkich asosidan suv sizib chiqmoqda.	Siz suv baki qopqog’i yoki cho’kmadan tozalash murvatini mahkam yopmagansiz. Suv baki to’g’ri o’rnatilmagan.	Suv baki qopqog’ini yoki cho’kmadan tozalash murvatini mahkam yoping. Bakni to’g’ri joylang.

Wstep

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly or assembly process with numbered steps and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Wkładanie szczotki

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a steaming torch, one emitting smoke or vapor (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt jacket with a hanger, showing front and back views (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Labeled diagram of a hair dryer with numbered parts and an inset view of the device's interior components.

Illustration showing a hand holding a megaphone with a cross mark and scattered particles, indicating a chemical or biological process.

Illustration of a person shouting into a megaphone with a cross symbol (no text or symbols present)

Illustration of a person's arm and hand holding a shirt, with a black X mark indicating a specific area (no text or symbols present)

Illustration of a hand holding a shield over a shirt, with a cross mark and a medical device nearby (no text or symbols)

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Illustration of a portable water dispenser with a bucket and handle, alongside a tripod stand (no text or symbols)

STE1010

Line drawing of a portable water dispenser with handle, hose, and stand (no text or symbols)

STE1040

Illustration of a steam hood with attached tools and tubing (no text or symbols)

Diagram of two identical containers with ropes and a magnified inset showing a circular object (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a mechanical or electrical component with downward arrows indicating motion or force direction.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three simple line drawings of a device with mesh patterns, no text or symbols present

Diagram of a container with mesh pattern and two upward arrows indicating top and bottom ports (no text or symbols)

3 Alinhe e insira a capa da tábua através dos ganchos da tábua.

Diagram of a device with mesh pattern and directional arrows indicating movement or flow (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 Coloque a tábua no cabide.

Diagram of a vertical structure with internal components and directional arrows, no text or symbols present

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a collared shirt on a mannequin (no text or symbols)

Illustration of a shirt collar with button design and hanger handle (no text or symbols)

Illustration of a hand holding a piece of paper or tape, with a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 Prenda as 3 fitas no gancho à parte de trás do cabide.

Diagram showing two vertical poles with arrows indicating forces or motion, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Line drawing of a jacket with collar and front pocket, shown in two-quarter view (no text or symbols)

334 Português

Line drawing of a sleeveless shirt with collar and shoulder details (no text or symbols)

Diagram showing a biological or mechanical structure with numbered annotations and directional arrows indicating flow or movement.

Illustration of two hands holding a cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and directional arrows indicating movement or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple line drawing of a rectangular container with a curved top and two arrows indicating rotation (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a container with liquid and a piping bag, no text or symbols present

Simple line drawing of a bowl with a lid and side supports (no text or symbols)

Português

Diagram of a mechanical device with a handle and lever mechanism (no text or symbols)

Simple line drawing of a hand holding a circular object with a small inset showing a magnified view (no text or symbols)

Illustration of a shirt hanger with a jacket partially visible, no text or symbols present

Illustration of a hand hanging a jacket with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a bag with an upward arrow inside, next to a shirt (no text or symbols)

Illustration of hands cleaning a wall-mounted device with a tool, showing a downward arrow (no text or symbols)

Illustration of hands holding a knife with a magnified view of the blade (no text or symbols)

Illustration of a hand cleaning a knee joint (no text or symbols)

Illustration of a container pouring liquid into a sink with a circular drain (no text or symbols)

Diagram of a mechanical component with a black arrow pointing to a curved section (no text or symbols)

Illustration of a person using a walking walk-in device, showing front and side views (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person bending over a mannequin with a cross mark indicating incorrect posture (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached probe and hose (no text or symbols)

STE1040

Illustration of a steam cooker with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

3 Bloqueie o(s) clipe(s) de travamento da haste inferior.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating how to prevent a tool, showing three stages of tool application with arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Coloque o bocal do vaporizador sobre a base do vaporizador.

Montagem da tábua

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

3 Alinhe e insira a capa da tábua de passar através dos ganchos da tábua.

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 Coloque a tábua no cabide.

Diagram of a mechanical or electrical component with directional arrows indicating movement, no text or symbols present.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Mechanical device with a valve and connector, showing internal components and a close-up of a plug (no text or symbols visible)

Simple line drawing of a rectangular container with a curved top and side ports, no text or symbols present.

Simple line drawing of a rectangular container with a lid and side blades (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

2 A luz se acenderá para indicar que o vaporizador vertical está LIGADO.

*STE1010/75

STE1011/75:\~2 min

~45 sec

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a sleeve, showing a pocket area with an upward arrow (no text or symbols)

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating compression (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade and a magnified view (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and an inset showing a warning symbol for 'No Care'.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands using a megaphone to prevent a food safety hazard (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating a defect or mark (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a medical or safety hazard.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Line drawing of a steam hood with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular inset showing a mechanical component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing front view, one side view, and one top view (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front pocket, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Introducerea periei

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a container (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating compression (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to prevent a food item, with a black 'X' mark above (no text or symbols on the diagram itself)

Illustration of a person using a megaphone with a cross symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a medical or safety hazard.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1040

Line drawing of a steam hood with two vertical tubes and a handle, no text or symbols present

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat panel (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's collared shirt with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Futja e furçës

Diagram showing a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Illustration of hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple line drawing of a rectangular object with a curved top and two curved arrows indicating rotation (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

Simple line drawing of a bowl with a lid and side pan, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt jacket with a hanger, showing front and back views (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a shirt with an upward arrow pointing to the pocket (no text or symbols)

Illustration of hands using a tool to clean or store items, with a downward arrow indicating compression (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 Mbështilleni kordonin elektrik rreth bazamentit.

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands using a megaphone to prevent a food safety violation (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

3 Oblačil ne držite na mestu, ki je v neposrednem stiku s paro.

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or safety hazard.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

5 Med parnim likanjem oblačil ne zvijajte cevi.

> 5 min. ×

Diagram of two identical containers with ropes and a circular inset showing a mechanical component (no text or symbols)

3 Spodnjo zaklepno sponko(-e) na drogu(-ovih) zaklenite.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Sprostite preostale zaklepne zaponke na drogu(-ovih), drog(-ova) povsem izvlecite navzgor in ga/ju zaklenite.

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's collared shirt with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Namestitev podlage

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 Ostale 3 jermene pritrdite na zaponke na hrbtni strani obešalnika.

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Namestitev krtače

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

1 Poravnajte utor na zgornji strani glave parne enote in zataknite zaponko na spodnji strani ("klik").

402 Slovenščina

Illustration of two hands holding a cup with steam rising from it, no text or symbols present

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a plug and switch (no text or symbols present)

1 Aparata ne priključujte na električno vtičnico. Iz podstavka odstranite posodo za vodo.

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

3 Pokrovček odvijte v levo in ga snemite.

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 Napolnite posodo za vodo.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

5 Privijte pokrovček posode za vodo in ga zatisnite.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

6 Posodo za vodo poravnajte z zaponko in jo vstavite v podstavek.

Spreminjanje nastavitev pare

STE1020 STE1030 STE1040 STE1010 STE1011

1 Aparat priključite na električno vtičnico. Gumb za izbiro pare obrnite na želeno nastavitev pare.

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt jacket with a hanger, showing front and back views (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Glavo parne enote pomikajte vodoravno z ovratnikom.

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a sleeve, showing a pocket area with an upward arrow (no text or symbols)

5 Nad žepom pomikajte glava parne enote navzgor.

Illustration of a hand using a tool to remove or clean material from a container (no text or symbols)

6 Oblačilo raztegnite. Na hrbtni strani stana pomikajte glavo parne enote navzdol.

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and base (no text or symbols)

3 Parni likalnik postavite blizu odtoka.

Diagram illustrating a medical procedure with labeled steps and an inset showing a warning symbol for 'No Care'.

Diagram illustrating a safety inspection or repair procedure with labeled steps and warning symbols

5 Vstavite gumb za izpiranje in ga obrnite v zaklenjeni položaj.

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

3 Šobe za paro obrišite z vlažno krpo.

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Illustration of a helmet with a black arrow pointing to the nose area (no text or symbols)

Illustration of a person carrying a long pole with a basket, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

1 Naparovacia hlavica
2 Hadica na prívod pary
3 Parný dok
4 Vešiak (STE1011, STE1020, STE1030, STE1040)
5 Svorka zámku tyče
6 Tyč
7 Parný ovládač
8 Základňa
9 Gombík Odstraňovač vodného kameňa
10 Zásobník na vodu
11 Doska (STE1040)
12 Kryt (STE1040)
13 Podložka (STE1030)
14 Rukavica
15 Kefka (STE1020, STE1030, STE1040)

Illustration showing a hand holding a megaphone with a cross mark and scattered particles, indicating a chemical or biological process.

1 Vyhnite sa akémukol'vek priamemu kontaktu pary s pokožkou.

Illustration of a person shouting into a megaphone with a 'X' symbol above (no text or symbols present)

2 Zabezpečte, aby parná plocha nesmerovala na iné osoby.

Illustration of a person's arm and hand holding a shirt, with a black X mark indicating a specific area (no text or symbols present)

Illustration of a hand holding a shield over a shirt, with a cross mark and a medical device nearby (no text or symbols)

4 Nepoužívajte naparovaciu hlavicu smerom nadol.

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

5 Pri naparovaní odevu hadicu neohýbajte.

> 5 min. X

Illustration of a portable water dispenser with a bucket and handle, alongside a tripod stand (no text or symbols)

STE1010

Illustration of a portable steam cooker with attached tool and bulb (no text or symbols)

STE1040

Illustration of a steam purifier with attached tools and a clamp (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a rotating mechanism (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a mechanical or electrical component with downward arrows indicating motion or force direction.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Umiestnite naparovaciu hlavicu na parný dok.

Nastavenie dosky

Diagram of two plastic containers with mesh patterns, one larger and one smaller, connected by a line (no text or symbols)

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

3 Zarovnajte a zasuňte kryt dosky cez háčiky dosky.

Top-down diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating force direction (no text or symbols)

5 Umiestnite dosku na vešiak.

Diagram of a mechanical or structural assembly with directional arrows and a magnified inset showing internal components (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a collared shirt on a mannequin (no text or symbols)

Illustration of a shirt collar with button design and hanger handle (no text or symbols)

Illustration of a hand holding a finger with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Line drawing of a jacket with collar and front pocket, shown in side profile (no text or symbols)

Slovensky

Line drawing of a sleeveless shirt with collar and shoulder details (no text or symbols)

Diagram showing a biological or mechanical structure with numbered annotations and directional arrows indicating flow or movement.

Illustration of two hands holding a cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple line drawing of a rectangular container with a curved top and two arrows indicating rotation (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical device dispensing liquid into a container (no text or symbols)

Simple line drawing of a bowl with a lid and side supports (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Simple line drawing of a hand holding a circular object with a small inset showing a magnified view (no text or symbols)

Illustration of a shirt jacket hanging from a hanger, showing front and back views (no text or symbols)

Illustration of a hand adjusting a jacket with arrows indicating direction (no text or symbols)

2 Naparovaciu hlavicu pohybujte v rovnobežnom smere s golierom.

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Naparovaciu hlavicu pohybujte v horizontálnom smere pomocou jarma.

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with hands holding a cup and an upward arrow, no text or symbols present

5 Pohybujte naparovacou hlavicou smerom nahor po vrecku.

422 Slovensky

Illustration of hands cleaning a wall with a tool, showing a downward arrow (no text or symbols)

Illustration of hands holding a knife with a cloth inside, showing a motion or force (no text or symbols)

7 Napnite odev. Pohybujte naparovacou hlavicou v rovnobežnom smere s rukávom.

Čistenie a údržba

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

3 Miesto na paru utrite vlhkou utierkou.

Illustration of a container pouring liquid into a sink with a circular drain (no text or symbols)

Diagram of a mechanical component with a black arrow pointing to a curved section (no text or symbols)

Illustration of a person carrying a walking stick with a vertical bar, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

1 Glava aparata za peglanje parom
2 Crevo za dovod pare
3 Baza aparata za peglanje parom
4 Vešalica (STE1011, STE1020, STE1030, STE1040)
5 Hvataljka za fiksiranje šipke
6 Šipka
7 Regulator pare
8 Postolje
9 Regulator za uklanjanje kamenca
10 Rezervoar za vodu

428 Srpski

11 Daska (STE1040)
12 Navlaka (STE1040)
13 Podloga (STE1030)
14 Rukavica
15 Četka (STE1020, STE1030, STE1040)

Pre upotrebe

Tip vode koji bi trebalo koristiti

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

1 Nemojte da dovodite nijedan deo kože u direktan kontakt sa parom.

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

2 Ploču za nanošenje pare nemojte da okrećete prema drugim osobama.

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and a cross mark, no text or symbols present

4 Nemojte da koristite ploču za nanošenje pare okrenutu nadole.

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

5 Nemojte da savijate crevo da biste parom tretirali odevni predmet.

> 5 min. ×

6 Nemojte da ostavljate stojeći aparat za peglanje parom bez nadzora duže od 5 minuta.

Podešavanje aparata

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1040

Line drawing of a steam hood with two vertical tubes and a handle, no text or symbols present

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

3 Fiksirajte donje hvataljke za fiksiranje šipke.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Otpustite preostale hvataljke za fiksiranje šipke, potpuno izvucite šipke nagore i fiksirajte ih.

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Postavite glavu aparata za peglanje parom na bazu.

Podešavanje daske

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a woven basket structure with two handles and arrows indicating measurement or orientation (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating movement or force (no text or symbols)

4 Zakačite trake navlake daske na kukice sa zadnje strane daske

Illustration of a human shoulder joint with arrows indicating movement or force direction (no text or symbols)

Diagram of a vertical container with internal structures and directional arrows, no text or symbols present

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Podešavanje podloge

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 Umetnite srednju traku kroz bazu aparata za peglanje parom.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 Zakačite 3 trake na kukice sa zadnje strane vešalice.

434 Srpski

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

Simple line drawing of a cylindrical container with handles and two legs (no text or symbols)

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder details (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

1 Poravnajte ivicu duž gornje strane glave aparata za peglanje parom i zakačite kopču sa donje strane („klik“).

Illustration of two hands holding a torch with smokestacks (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

3 Uhvatite i povucite kopču sa donje strane glave aparata za peglanje parom da biste uklonili dodatak sa četkom.

Punjenje rezervoara za vodu

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

1 Nemojte da priključite aparat. Uklonite rezervoar za vodu sa postolja.

Simple line drawing of a rectangular object with a curved top and two curved arrows indicating rotation (no text or symbols)

2 Okrenite rezervoar za vodu, tako da poklopac rezervoara bude okrenut nagore.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

3 Okrećite poklopac rezervoara za vodu suprotno od smera kazaljke na satu da biste ga uklonili.

436 Srpski

Diagram of a laboratory apparatus with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

5 Zavrnite poklopac rezervoara za vodu u smeru kazaljke na satu da biste ga pritegnuli.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

6 Poravnajte sa kukom da biste vratili rezervoar za vodu na postolje.

Menjanje postavki pare

STE1020 STE1030 STE1040 STE1010 STE1011

1 Uverite se da je aparat priključen na napajanje. Okrenite regulator pare na željenu postavku pare.

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

2 Svetlo će početi da svetli, što ukazuje na to da je stojeći aparat za peglanje parom uključen.

*STE1010/75 STE1011/75: \~2 min

~45 sec

3 Sačekajte približno 45 sekundi da se stojeći aparat za peglanje parom zagreje i da počne da emituje paru (STE1010/75: približno 2 minuta).

Saveti za peglanje

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

2 Pomerajte glavu aparata za peglanje parom paralelno sa kragnom.

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Pomerajte glavu aparata za peglanje parom horizontalno u odnosu na rameni umetak.

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

4 Rastegnite odevni predmet. Pomerajte glavu aparata za peglanje parom nadole sa prednje strane.

Illustration of a hand holding a shirt with an upward arrow pointing to the pocket (no text or symbols)

5 Pomerajte glavu aparata za peglanje parom nagore na džepovima.

Illustration of hands using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

6 Rastegnite odevni predmet. Pomerajte glavu aparata za peglanje parom nadole sa zadnje strane.

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

7 Rastegnite odevni predmet. Pomerajte glavu aparata za peglanje parom paralelno sa rukavima.

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 Postavite aparat za peglanje parom blizu odvoda.

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

5 Umetnite i okrenite regulator za čišćenje kamenca u zaključan položaj.

440 Srpski

Čišćenje i odlaganje stojećeg aparata za peglanje parom

STE1020 STE1030 STE1040 STE1010 STE1011

1 Proverite da li je regulator pare u isključenom položaju i da li je aparat isključen sa napajanja.

℃ >1 hour

2 Uverite se da pegla potpuno ohladila (> 1 sat).

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

3 Mesto gde izlazi para obrišite vlažnom krpom.

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

6 Stojeći aparat za peglanje parom možete da nosite za šipku.

Rešavanje problema

U ovom poglavlju ukratko su navedeni najčešći problemi do kojih može da dode sa aparatom. Ako ne uspete da rešite problem pomoću informacija navedenih u nastavku, posetite www.philips.com/support da biste pronašli listu najčešćih pitanja ili se obratite centru za korisničku podršku u svojoj zemlji.

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to address a food item with a 'X' mark (no text or symbols on the diagram itself)

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or safety hazard.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing a side panel, another a flat plate, and a third empty (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Alustan asentaminen

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Harjan asentaminen

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a container (no text or symbols)

4 Täytä vesisäiliö.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a small inset showing a ring (no text or symbols)

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a hand using a tool to interact with a device, showing labeled components and directional arrows.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to prevent a food item, with a black 'X' symbol above (no text or labels)

Illustration showing a person using a megaphone with a cross symbol indicating rejection or cancellation

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Line drawing of a steam hood with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

1 Notera de tillgängliga delarna till din köpta apparat.

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly or assembly process with numbered steps and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing a side panel, another a flat plate, and a third empty (no text or symbols)

1 Notera de tillgängliga delarna till din köpta apparat.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Montera borsten

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a steaming torch, one emitting smoke or vapor (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a container (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a small inset showing a ring (no text or symbols)

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and an inset showing a warning symbol for 'No Care'.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to prevent a food safety violation (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a mechanical component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram showing three different types of hair tool tips with downward arrows indicating compression or disassembly (no text or symbols present)

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a computer mouse with mesh patterns, shown from top, front, and side views (no text or symbols)

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 Treo ván ủi lên móc treo.

Diagram of a mechanical or structural assembly with directional arrows indicating movement, no visible text or symbols.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's collared shirt with collar and button details (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a sleeve, showing a pocket area with an upward arrow (no text or symbols)

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating compression (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade and a magnified view (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Medical illustration showing a hand holding a tool with an arrow and labeled parts, accompanied by a magnified view of a device with warning symbols.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Illustration of a helmet with a black arrow pointing to the nose area (no text or symbols)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to interact with granular material, no text or symbols present

Illustration of a person shouting into a megaphone with a cross symbol above (no text or symbols present)

Illustration of a person's arm and sleeve with a cross mark, no text or symbols present

Diagram showing a hand holding a bag over a shirt, with a cross mark indicating a specific area or defect.

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached probe and hose (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a bucket, handle, and two rod-like parts (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Technical line drawing of a mechanical component with two views: top view shows a meshed part, bottom view shows a rounded base (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's collared shirt with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Matın ayarlanması

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

Simple line drawing of a cylindrical container with handles and two legs (no text or symbols)

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder clips (no text or symbols)

Fırçanın takılması

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a procedure with labeled steps and an inset showing a warning symbol and a hand holding a tool.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

1 Bug çykarýan ujy
2 Bug üpjünçilik slangy
3 Bugly ütügiň esasy
4 Asgyç (STE1011, STE1020, STE1030, STE1040)
5 Sütüne berkidiji gysgyç
6 Sütün
7 Bugy düzyän nurbat
8 Esas
9 Çökündileri ayyrmakda ulanylyan nurbat
10 Suw gaby

11 Tagta (STE1040)
12 Örtük (STE1040)
13 Düşekçe (STE1030)
14 Ellik
15 Çotga (STE1020, STE1030, STE1040)

Ulanyşa taýyarlamak

Illustration of hands holding a megaphone with a cross mark above, no text or symbols present

Illustration of a person shouting into a megaphone with a 'X' symbol above (no text or symbols present)

2 Bug çykarýan plastinasyny başga adamlara gönükdirmän.

512 Türkmençe

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

3 Geýimiňizi bug bilen gönümel galtaşar yaly edip tutmaň.

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or safety instruction on clothing.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

5 Geyimi bug bilen ütüklemek üçin slangy eplemän.

> 5 min. ×

6 Aýakda durýan bugly ütügi 5 minutdan köp gözegçiliksiz galdyrmaň.

Enjamy sazlamak

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

1 Satyn alan enjamyñyz üçin elýeter bölekleri belläp alyn.

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Line drawing of a steam hood with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a central rotating knob, no text or symbols present

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a hairpin tool with downward arrows indicating process flow

5 Bugly ütügiğ esasyny yerine oturyança ("şyrk" sesi) sütün(ler)e geýdiriň.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

6 Bug çykarían ujuny bugly ütügiğ esasyna yerleşdiriğ.

Tagtany sazlamak

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

1 Satyn alan enjamyñyz üçin elýeter bölekleri belläp alyn.

Türkmençe 515

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 3 gaÿysy tagtanyñ arkasyndaky gaÿyrçaga berkidiñ.

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

4 Asgyjy ulanmak arkaly geýimleriňizi asyp bilersiňiz.

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Çotgany dakmak

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

1 Gönükdirijini bug çykaryan ujuň depesine gabatlaň we ilgiji iň aşagyna ildiriň ("şyrk" sesi).

518

Türkmençe

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

2 Ellik geýip we çotga nasadkasyny utanmak bilen geýimleriñizi bugly ütükläp bilersiñiz.

Diagram showing a hand holding a textured object with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

1 Enjamy toga dakmaň. Suw gabyny esasdan aýryň.

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 Suw gaby yokary seredip duran yagdayda suw gabyny dolduryň.

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft inserted into a container (no text or symbols)

4 Suw gabyny dolduryň.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Bug çykarýan ujuny manžet bilen kese ugurda hereket etdiriň.

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating compression (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Arassalamak we abatlamak

Çökündini ýygnaýjy

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

4 Çökündileri ayyrmakda ulanylyan nurbady gulpy açylan yagdaya aylaň we çökündileri ayyrmakda ulanylyan nurbady aýryň. Suwuň akmagyna maý beriň.

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

4 Suw gabyny doly boşadyň.

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 Elektrik kabelini esasyň daşyna saraň.

524 Türkmençe

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

6 Aýakda durýan bugly ütügi sütüninden tutup göterip bilersiňiz.

Näsazlyklary anyklaýys

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to address a food item with a 'X' mark (no text or symbols on the diagram itself)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's chest area, marked with a black X (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1040

Line drawing of a steam hood with two vertical tubes and a handle, no text or symbols present

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular arrow indicating rotation or movement (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a hairpin tool with downward arrows indicating process flow

Three sequential illustrations of a medical or surgical device with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

532 Ελληνικά

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Line drawing of a jacket with collar and front pocket, shown in side profile (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a torch with smokestacks (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple line drawing of a device with a curved top and two arrows indicating rotation (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

Simple line drawing of a hand holding a circular object with a small knob (no text or symbols)

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a shirt with an arrow pointing upward (no text or symbols)

Illustration of hands using a tool to clean or store items inside a container (no text or symbols visible)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands using a megaphone to prevent a food waste (no text or symbols present)

Illustration of a person shouting into a megaphone with a cross symbol (no text or symbols present)

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a mechanical component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a plug and switch (no text or symbols present)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 Поставете уреда за пара близо до отходен канал.

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a tank with a drain outlet (no text or symbols)

Diagram of a medical or anatomical structure with a black arrow pointing downward, no visible text or symbols

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hairdryer with numbered parts and close-up views of the device's internal structure.

1 Буулагычтын башы
2 Буу жеткируyyчү шланг
3 Буулагычты кармагыч
4 Илгич (STE1011, STE1020, STE1030, STE1040)
5 Таякчаны бекитүүчү кыпчытма
6 Таякча
7 Бууну жөнгө салуу бурагычы
8 Шаймандын түбү
9 Кебээрден тазалоо бурагычы
10 Суу челеги

11 Такта (STE1040)
12 Капкак (STE1040)
13 Төшөлмө (STE1030)
14 Мээлей
15 Щётка (STE1020, STE1030, STE1040)

Колдонууга даярдоо

Illustration of hands holding a megaphone with a cross mark above, no text or symbols present

Illustration of a person using a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and cross mark (no text or symbols)

4 Буулагычтын башын ылдый каратып колдонбонуз.

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a handle, bulb, and two rod-like devices (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a welding or welding process with downward arrows indicating sequence

Three sequential illustrations of a medical or surgical device with arrows indicating motion (no text or symbols)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Төшөлмөнү орнотуу

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

3 Төшөлмену тирөөчкө ордуна келгиче ("чықылдагыча") салыңыз.

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a steaming cup with steam rising from it (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up inset showing a plug and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

STE1010

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

Illustration of hands using a megaphone to prevent a food item, with a black 'X' mark above (no text or symbols)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and cross mark (no text or symbols)

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a handle, bulb, and two rod-like devices (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular inset showing a mechanical component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple line drawing of a rectangular container with a curved top and side ports, no text or symbols present.

Simple line drawing of a rectangular container with a lid and side blades (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible internal components and a cord (no text or symbols)

Diagram illustrating a procedure with labeled steps and an inset showing a warning symbol and a hand holding a tool.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands holding a megaphone with a cross mark above, no text or symbols present

Illustration of a person shouting into a megaphone with a 'X' symbol above (no text or symbols present)

Illustration of a person holding a jacket with a cross mark and bandage, no text or symbols present

Illustration of a hand holding a jacket with a shield and cross mark (no text or symbols)

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a handle, bulb, and two rod-like devices (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a welding or welding process with downward arrows indicating sequence

Three sequential illustrations of a medical or surgical device with arrows indicating motion (no text or symbols)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a garment sleeve with two arrows indicating measurement or adjustment points (no text or symbols present)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Размещение коврика

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Illustration of hands holding a cup with steam rising from it, no text or symbols present

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt collar with an arrow indicating upward motion (no text or symbols)

Illustration of hands using a tool to clean or store items, with a downward arrow indicating compression (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and directional arrows

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person performing a walking exercise with a stick (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Labeled diagram of a hairdryer with numbered parts and an inset showing internal components including a handle, bulb, and dial.

Illustration of hands exchanging a substance with a 'X' mark, no text or symbols present

Illustration of a person shouting into a megaphone with a 'X' symbol above (no text or symbols present)

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person adjusting equipment with a cross mark (no text or symbols)

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

3 Кулф(хо) барои мустахкам кардани сутунро кулф кунед.

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Кулфхо барои мустахкам кардани сутуни бокимондаро кушоед, сутун(хо)-ро ба боло дароз кунед ва онро махкам кунед.

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a computer mouse with mesh patterns, shown from top, front, and side views (no text or symbols)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

3 Матро ба сутунхо то он даме, ки дар чои худ баста шавад, махкам кунед ("клик").

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder clips (no text or symbols)

Чойгиркунии чутка

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 Зарфхон обро бо сарпўши зарфи об ба боло тоб дихед.

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

2 Чароғ устуворона фурўзон мешавад, ки нишондихандаи он аст, кидарзмоли буғй фавол аст.

622 Точикий

*STE1010/75 STE1011/75: \~2 min

~45 sec

3 Такрибан 45 сония мунтазир шавед, ки дарзмоли буғй гарм шавад ва буғ хорич кунад (STE1010/75, STE1011/75: 2 дакиқа мегирад).

Маслихатхо барои дарзмолкуни

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Сараки дарзмоли буфиро бо хамут ба самти уфукй харакат кунед.

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt collar with an upward arrow and a hand holding the sleeve (no text or symbols)

Illustration of a hand using a tool to clean or store items, with no visible text or symbols

6 Либосро кашед. Сараки дарзмоли буғиро ба самти поён ба қағои бадан қаракат дихед.

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

7 Либосро кашед. Сараки дарзмоли буғиро бо остин ба самти параллел харакат дихед.

Тозакунй ва нигохдорй

Чамъкунандаи карахш

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

4 Клапани De-calc-ro ба кушоед ва клапани De-calc-ro хорич кунед. Обро холй кунед.

Diagram illustrating safety inspection steps with labeled icons and directional arrows

5 Клапани De-calc-ро кулф кунед ва тоб дихед.

Тоза кардан ва нигахдории дарзмоли буғй

STE1020 STE1030 STE1040 STE1010 STE1011

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands holding a megaphone with a cross mark above, no text or symbols present

Illustration of a person using a megaphone with a cross symbol above, no text or symbols present

Illustration of a person's arm and wrist with a cross mark, no text or symbols present

Diagram showing a hand holding a bag over a shirt, with a cross mark indicating a specific area or defect.

Illustration of a person using a handheld device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1040

Illustration of a steam iron with attached components including a handle, bulb, and two rod-like devices (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating the process of welding or welding process with labeled arrows and explosion effects

Three sequential illustrations of a medical or surgical device with arrows indicating motion (no text or symbols)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing a biological structure with labeled parts and directional arrows, likely illustrating a process or transformation.

Illustration of hands holding a cup with steam rising from it, no text or symbols present

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a hand holding a shirt with an upward arrow and a cloth (no text or symbols)

Illustration of a hand using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a vacuum cleaner with numbered parts and close-up views of the device's internal structure.

Illustration of hands using a megaphone to prevent a food item, with a black 'X' symbol above (no text or labels)

Illustration of a person using a megaphone with a cross symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark on the chest, indicating a medical or safety hazard.

Illustration of a person bending over a mannequin with a cross mark indicating incorrect posture (no text or symbols)

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Line drawing of a steam hood with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical joint with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Щетканы салу

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from it, no text or symbols present

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 Су ыдысын толтырыңыз.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

Illustration of a hand using a tool to remove or clean material from a container (no text or symbols)

Illustration of hands holding a knife with a magnified view of the blade (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a medical procedure with labeled steps and an inset showing a warning symbol for 'No Care'.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

3 Бу орнын дымқыл шуберекпен сүртіңіз.

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Two sequential illustrations of a person holding a pole and standing, with no text or symbols present.

Uwnwuph nunhwunin punipawqhn

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

1 Cnqtawnnnlyh qjhuhy
2 9n1nn2ni uwwunwlywnwnpnu wu dhywuhny
3 Cnqtwnnnilyh ytphu hwnpawu
4 Чушунз (STE1011, STE1020, STE1030, STE1040)
5 36uwlytph utnuiw
6 361w4
7 9n1nn2nl ywnqwylnnh2
8 Rhip
9 iDe-calc-h pnüwyl
10 2nh unwpw

664 Ruijtntu

11 Upnnluyu utnwu (STE104X)
12 Όωδιγη (STE1040)
13 Swlnh (STE1030)
14 2tnung
15 lunquùwù (STE1020, STE1030, STE1040)

Lwhwwwnwnwnnli

hùn unuwgh qinn wtpnp 5 oqunwqnndt

Uwnpn hwnufwn t δnpwuh gnnu oqunwqnδuwi hwufwn: Uwlywjü, btaf nniip wynniú ti p wjuwuh unwnwδpniú, npuntn gnh lynzunnipajwu wunhǎwùn pwnàn t, hunphnnn tup unwju dnnpwuh gninp hwnutui pannwò ywiú ntúhútnwihqwguwò gnh htun hwulwwwn puwuwlynipajwúr: Tu lywuhh tuwnuwóph lynuwlynniú u ltynlywnwgúh uwnph yjwùpn:

Uh wultiwgntp odwutihp, znpwungh gnn, pwgwfu, oulu, uwnylwoph uwpnuiwu, wnnnilyuwu odwunwly uhongutn, phuhwlywu uhongutpnnyi uwpnylwdo gnn lyuufi phuhwlywu wjl yjnyatn, pwuh nn nnpup lwwnn tü wnwgwutl qnh gwjuntn, 2wqwulwlywqnyu potn lyuufi lwwutl atn uwnpn:

2qn12wgniuutn

Illustration of hands holding a megaphone with a cross mark above, no text or symbols present

1 Uh hwtp qnnn2hù uw2yh nnu5 hwnuqwdhù:

Illustration of a person using a megaphone with a 'X' symbol above, no text or symbols present

2 Uh nünntp 2nqtwnnnliyu wjl uwnnywug ninnniajwup:

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating a defect or mark (no text or symbols present)

3 Uh wuhtp atn hwqniwnn qninn2ni ninhh 2hph utnpn:

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or safety hazard.

4 Uh oqunwqnδtρ 2nqtiwnnnlih qihuhη ηθωh utnplu ninnημεjωμρ:

Illustration of a person bending over a mannequin with a cross mark indicating incorrect posture (no text or symbols)

Illustration of a steam purifier with a handle and base, no text or symbols present

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Illustration of a steam purifier with attached clamp and two vertical tubes (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

4 Awgtp htüwlyh üüwgwö utnüwlyüttn, wúpnησημεjωύρ tŋlywnwgntp htüwly(utn)η ntüwh utn u chwyltp wju:

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

5 Cnqtiwnnniuh ytinhù hwnpawlyn untqnwnntip htüwly(ütn)h ynw u wju hn untnnniú wúnpwngntip («zhulng»):

Three sequential illustrations of a medical or surgical device with arrows indicating motion (no text or symbols)

6 Cnqtwnnnilyh qjhuhyn untnwnntp hwnpwlyh ynw:

Unnilyuwi utnwuh utwnynni

1 Čwūnpawgtpān qùwò uwnph hwuīwn huuwutjīh úwutjīh hūn:

Three technical illustrations of a device with mesh patterns, one showing top, one bottom, and one flat (no text or symbols)

668 Ruijtntu

2 3wulwwuntgntp u untnwnptp utnwuh utnúwlyutnp u wju hn untnniú wúnwgntp («shuŋg»):

Diagram of a woven basket structure with two handles and arrows indicating measurement or orientation (no text or symbols)

3 3wylwwwnbgtap u utnwuh ytinhylutph uhqnul utnwnntap utnwuh dwylngn:

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

4 Utnwuh dwolyngh qunhutpui wupwgntp utnwuh hunuh hwunuwodniu qunulnn ytanhutph ynui:

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 Utnwun utwnntp ywhuhsh ynw:

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

6 Utnuiu wupwqntp htuwlyutnh ynw u wju hn utnniu wupwqntp («shuling»):

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's collared shirt with collar and button (no text or symbols)

8 7nip lwwnn tip oqunwqnpti atin ubchwlywù ywhuhpn` ywhutlnu wjù 2nqtwnnnliyh utphù hwnpwlyhg:

Line drawing of a shirt collar with two hangers (no text or symbols)

Swlnhh untnwnnniu

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 Uhghù qunhù wùglywqntp 2nqtwnnnliyh qltnhù hwnpwlyh uhqnú:

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 3 qunhùtnù wúnwgntp yuuhzh htunlù āwuniú qunùlnn ytinhyh ynw:

670 Ruijtntu

Diagram showing a mechanical joint with arrows indicating motion or force direction, no text or symbols present

3 Swlnhnu wunwqntp htiuwlyutnh ulnu («zhuling»):

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

4 7nip lwwnn tpr lwhutl atn hwqnwnn lwhuhhg:

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

5 7nip lywnn tip oqunwqnnti atn utihwlywù ywhuhn` ywhutinu wjù 2nqtiwnnnlih qtnhù hwnpwlyhg:

Honquwlyh untwnnniw

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

1 lonquwyn hwnwwwnwswh utnwnntp 2nqtiwnnnih qihuhh utnhu hwnulwoh tnlywjupnu u utnpluniutnutp pnuwyn («shyng»):

Illustration of hands holding a cup with steam rising from it, no text or symbols present

2 'nup lwwnn tip hwqutl âtrüngn u qnnn2hnu wwnniylt âtn hwqnwnn' oqnwnqnndlnu hunqwùwlyh lgnnnn:

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

3 fonquwuhgh ygnnnh hwutni hwuwn 2nqtiwnnniuh qihuhuh unwuhg pnutap lu nninu pw2tp pnuwyn:

Ωnh υωρωμη χρισιν

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

1 Uh uhwqnp uwnpn: 3wutp qnh unwnwu hhuphg:

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 Cngtp qnh unwnwù ywwhnynn nàwù h qtn:

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

3 2nh unwnwjh lwwhnynn hwubini hwuwn wunutp wju dwuwgnjgh uwph hwlqwnwly nunnynajwup:

672 Ruijtntu

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

4 2n1n lgntp unwnwjh ubg:

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

5 2nh unwnwjh ywihnyjn wufnwgutjni hwufwn wynuntip wju dwuwgnjgh ulwph nunnnyajwup:

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

6 2nh unwnwù ünphg hhúph ynw uttnwnntbni hwuwn hwulwwwnwzwh uttnwnntp wju ytzhlyh ynw:

9n1nn2ni 4wnqwuhnuu u hnuhnhunlajniu

STE1020 STE1030 STE1040 STE1010 STE1011

1 3wúnqultp, np uwnpn úhwgulwð jhùh: Πunutp qnnnn2ni lwnqnwlnnhyn átn gwúlywgwð gtpníuwuinhǎwùh ynw:

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

2 Lnyun ywjniu lqnwnuw` gnyg unwlnj, nn 2nqtwnnniyn uhwguwò t:

*STE1010/75

STE1011/75: \~2 min

~45 sec

3 Uwwutp únn 45 úwjnljuwù, úhùzì 2nqtiwnnniŋn unwpuàw l u qnīnnzh wpàwlyh (STE1010/75, STE1011/75. únn 2 pnwl):

łunnhhinnútąn wwnnilyúwù htün łyWWYUWÓ

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

1 'nip lwwnn tip oqnwnqndti atn utihwlywù ywhuhzn' ywhutinu wjù 2nqtwnnnih utnhù hwnpewlyhg:

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

2 Oàhpù wùnnìyītǐnì huòuàn 2nqtiwùnnìyìh qìjuhǔn untnwzundtip qīnw qniqwhīn nùnniējwūp:

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 Nwwwhwnylwdtu wnnnilytini hwuwn 2nqtwnnnilyh qjhuhyn untnw2wndtp nnu hnhqnüwlywù ninnniajwúp:

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

4 2qtp hwqnwnn: Uwnuuh wnwguwduwuh wnnnilyfuwu hwuwn 2nqtwnnnilyh qihuhyn untnw2wndtp ntuw h ywn:

674 Ruijtntu

Illustration of a shirt with a hand holding a bag, showing a pointing arrow (no text or symbols)

5 9puyuutgh wnqnlyuwu hwuiwn 2nqtiwnnnlqh qjhuhyn untnw2wndtp nthyh ytn:

Illustration of a hand holding a tool inside a container with a downward arrow indicating action (no text or symbols)

6 2qtp hwqnwnn: Utgph hwnuqwsh wnnnilyfuwu hwuwn 2nqtwnnnnyh qihuhyn untnw2wndtp ntuwh ywn:

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

7 2qtp hwqnwn: 0utnù wnnnilytni hwúwn 2nqtwnnnliyh qjhuhyn ntnw2wndtp nhwug qniqwhtn ninnniajwup:

Uwpnniú u unthuúhlywlyu uwwuuwnyniu

Calc Collector

2tn uwnpn hwúwŋnuð 5 Calc Collector hwúwlywnqnj: hnphnnn 5 npnuñu 5 wunluðph úwpnniú ywnwnnti wúhun úthy lywú wultih wúqwiú: 7w oquniú 5 wuhwjuðtī qninn2ni lww úwnuwlywnwniún u lywúhuniú 5, nnwbuqh tpywn 2whwqnpnδniúhg htunn lθtnn u pōtín nnnnu quù wnnniúh unwlh hwunluðhg:

funnphnnn. Calc Collector hwúwlywnqn lywnn 5 oqnuwqnnδutl gwúlywgud dwúwùwú: tptb wuynniú tþ wjùwhuh unwpwδpniú, nnuntn qnh lynzunníajwù wuuenhǎwùn pwnàn 5, wju \$niúlyghwù wultjh hwǎwhu oqnuwqnnδtþ:

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 Cnqtiwnnnln nntp gnuhtnwguiwu unun:

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

4 @tptp «De-calc» pnüwyn ηbuh wuywnηwúwú nhnpn, wuw hwutp «Decalc» pnüwyn: @nyl unutp, nn gnnn jawuhh:

Diagram illustrating safety inspection steps with labeled icons and directional arrows

5 Stwnntp u pptp «De-calc» pnuwyn ndwih ynwwuwu nhnpn:

Cnqtwnnnilyh uwpnniu u wwhwuniu

STE1020 STE1030 STE1040 STE1010 STE1011

1 3wùnqùtāp, nn qnìnn2ni lyuqnqulnnhṣn qunùuh «OFF/wǔqwnuqlwō» nhhnpniū, húy uwnpù wǔqwnuqlwō jhùh hnuwùphg:

℃ >1 hour

2 Uwwutp uhülu wnnnilyn jhwndtp uwush (> 1 dwü):

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

3 Unptp qnlnn2ni wugptnn hunuuu2nnnu:

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

4 Uúpnnqniəjwiúp ηωιωημίτρ gnh υωημύ:

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

5 Φωρωρατρ hnuωμρh lωηρ hhuρh 2ning:

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

6 7nip ywnnn tp unwutl2nqtiwnnniyn' pnutiny hbtuwlyhg:

Uuuuynipniutph niyniu

Uju qjhuniú útnlywjwgluwð tǔ wútúwùnwnpuðluwð huùnhnúttnp, npnúp lqwnnn tǔ hwùnhwúti uwnph oqnwwqnndóuwù dwúwúwú: ʒrát sýp lqwnnnwúniú huùnhnn iniðti uunnpl ptnljuð utnbtywnunlnjnuwù oqünipjwúp, wjgbíbp www.philips.com/support hwǎwhuwlyh unpnnn hwpgtnh hwúwn lyuú nhútp ðátn tnlynniú qnpönn 3wǎwhunpnntutph uwwuwwnyúwù lytúwnpnù:

Hunh Ruwwnwnn wwnawin Lnöniú

Uwnpn qninnzh zhúwunwlywnwnniú lyuú wùlywùnú§ úwunwlywnwnniú:	Çnqtwnnniún pwwlwljuwúwzwhsh unwpugti:	Pnntp, nnwtuqh uwnpnunwpuìw únunwlnnwuwtiu 45lwljnywù (STE1010/75 . únn 2nnuì):
	Qninnzhù lynùntbùwwgulti §ǎlywuhnyh útnuniú:	Fwnànwqntp 2nqtwnnnilyhqjhuln` álywihnlýu ninnwhuwjwgnhnpnu ninntajni hwiúwn: Ujunhnpnuí wúpnng lynùntbùwwunnünphg lyhnuḥ gnh unwpujh útg:
	Swnwjh ʒnh úwlywnnwlyn gwòn§ lyuú unwpnuì lwnqhùuntwnnnylwò §:	Lgntp gnh unwpnuì l u wju ăh2unntwnntp:
	Uwnpnui ŝwuhwquwǔg 2wun‘uunulwóp § lynunwylulti:	Gwnwnptp ̈uuunlwdoph ðwpnniú:Stü Calc-Clean powdhùn:
Çnqtwnnnliyh qjhuhlyhg gnni §lywəniú, lyuú uwnphg nlŋingħàwju § qwihu:	Çnqtwnnnliyh qjhuhln l/uyuìqnlnp2ni úwunwlywnwnúwùǎlywuhln tnlywn dwuśwùwlyqnùuṭl bù hnphqnùwylwùnhnpniú:	Fwnànwqntp 2nqtwnnnliyhqjhuhln` álywihnlýu ninnwhuwjwgnhnpnu ninntajni hwiúwn: Ujunhnpnuí wúpnng lynùntbùwwunnünphg lyhnuḥ gnh unwpujh útg:
	Bnp ālywuhnlýu ñùnniùnui § U-wàlu ubup, lynunwylwólynùntbùwwwn p sh lywnnnwùniúhtun hnutl ʒnh unwpujh útg:	Fwnànwqntp 2nqtwnnnliyhqjhuhln` álywihnlýu ninnwhuwjwgnhnpnu ninntajni hwiúwn: Ujunhnpnuí wúpnng lynùntbùwwunnünphg lyhnuḥ gnh unwpujh útg:

Ruijtntu

tnp uwnpn unwpwuniú 5,2nqtiwnnnilyh qihuhjhgzwwhquwug 2wnn gnin 5 ywjanui:	Uwnph gninn ytnunnun 5 ywuftnlywn dwuwuwy uwuwti 5uwnph utnuniú:	Ywnwntp uwnulwoph uwpnniu:Stú Calc-Clean pudhùn:
Qnh wnunwhnup 2nqtiwnnnilyhhhúphg:	Qnh wnwnwjh ywwwnhynhwyluwò 5 ywu De-Calc-hywwhnynn untwnwnnuwò 5: Qnhwnwnwù ahzun untwnwnnuwò 5:	Φwlytp qnh wnwnwjh ywwwnhynywu nntp De-Calc-h ywwhnynn: Dh2un untwnwntp wnwnwù:

ข้อมูลเบื้องต้น

Labeled diagram of a hairdryer with numbered parts and an inset showing internal components

STE1010

Labeled diagram of a hairdryer with numbered parts and an inset showing internal components

Illustration of hands using a megaphone to prevent a food waste (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a hand holding a jacket with a cross mark and dotted pattern (no text or symbols)

Diagram showing a hand holding a jacket with a checkmark and a cross mark, indicating a warning or inspection point.

Illustration of a person adjusting a jacket with a cross mark, no text or symbols present

Line drawing of a steam purifier with handle and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Line drawing of a portable steam cooker with attached standers (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular inset showing a curved arrow (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram showing three stages of a tool or device with downward arrows indicating motion, no text or symbols present.

Diagram showing three stages of a medical or surgical procedure with arrows indicating direction (no text or symbols present)

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram of a mechanical or fluidic device with directional arrows indicating flow or movement (no text or symbols present)

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with button detail (no text or symbols)

Line drawing of a shirt collar with two hangers on top (no text or symbols)

การจัดเตรียมผ้ารอง

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating rotation or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical pipe with radiating sparks (no text or symbols)

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder clips (no text or symbols)

การใส่แปรง

Diagram showing two labeled parts (① and ②) with arrows indicating direction of movement or process, possibly illustrating a biological or mechanical process.

Illustration of two hands holding a steaming torch, one emitting smoke or vapor (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple line drawing of a rectangular container with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular container with a small object on top (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 เติมน้ำลงในแท้งค์

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanger (no text or symbols)

Illustration of a person adjusting a jacket with a hand holding a bag, no text or symbols present

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a downward arrow indicating compression (no text or symbols)

Illustration of a shirt collar with an arrow indicating upward motion, no text or symbols present

Illustration of a hand using a tool to clean or store items, with no visible text or symbols

Illustration of hands using a tool to lift a curved object with a white substance inside (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning icons

Diagram illustrating safety inspection steps with labeled icons and warning symbols

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a sink with a circular drain (no text or symbols)

Diagram of a helmet with a black arrow pointing to the rope (no text or symbols)

5 พันสายไผรอบฐาน

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Technical diagram of a hair dryer with numbered parts and close-ups of the device's internal components.

Illustration of hands using a megaphone to prevent a food item, with a black 'X' symbol indicating no text or symbols.

Illustration of a person holding a megaphone with a cross symbol above, no text or symbols present

Illustration of a person applying a bandage to another person's jacket, with a black X mark indicating the bandage area (no text or symbols present)

Diagram showing a hand holding a bag with a cross mark and a checkmark, indicating a warning or inspection point on a shirt.

Illustration of a person bending over a mannequin with a cross mark indicating incorrect posture (no text or symbols present)

Illustration of a steam purifier with handle, bulb, and lever (no text or symbols)

Line drawing of a portable steam purifier with attached probe and hose (no text or symbols)

Illustration of a steam purifier with attached tools and a labeled component (STE1040), no text or symbols present.

STE1010 STE1011

1 2 STE1020 STE1030 STE1040

Diagram of two identical containers with ropes and a circular arrow indicating rotation or movement (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating direction (no text or symbols present)

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

Diagram of a woven basket structure with two handles and arrows indicating measurement or orientation (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a garment sleeve with two arrows indicating measurement or adjustment points (no text or symbols present)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

7 _0 _1 _2 _3 _4 _5 _6 _7 _8 _9 _10

Line drawing of a button-up shirt on a mannequin (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

2 305678910

704 ปูดมอนุกง ๑๖๖

Diagram showing mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a cylindrical container with handles and two legs (no text or symbols)

4 066583dmnb 0070m3g0s 153n989 d92ndmnss.

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a torch with smokestacks (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple line drawing of a rectangular object with a curved top and two curved arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical component with a cylindrical shaft inserted into a bowl (no text or symbols)

Simple line drawing of a bowl with a lid and side pan, no text or symbols present

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

6 30716mngon 3071, mson bymnlu fng8f3y5mn obg3 dss8g dmsousbmon.

Simple line drawing of a hand holding a circular object with a small circular inset (no text or symbols)

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt collar with an upward arrow indicating movement or pressure, held by a hand (no text or symbols)

Illustration of hands using a tool to clean or store items, with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to apply material or cleaning (no text or symbols visible)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a procedure with labeled steps and warning symbols, including a hand holding a tool near a device.

Diagram illustrating safety inspection steps with labeled icons and directional arrows

5 หุลกนก ๑๕ ๒๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๑๏

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a sink with a pipe (no text or symbols)

Diagram of a helmet with a black arrow pointing to the neck area (no text or symbols)

Illustration of a person performing a walking exercise with a pole and umbrella (no text or symbols)

phosphorus phosphate

	fmmyδ dmsbgl sgl, „U” gmmd, zmbqgblusgnls dmsbgdn slns sgl bymnls ozda n gqnbdgdnls udysmgtds.	subngon mmonjmnls yomlu onszn qo zgmhynzymgthdmgmdsmgmdsn guslbmfgon dngnn. gl bgonlduŋm zmbqgblusgnls yssb gqnbdgdnls udysmgtds sdmggl.
fmmqgbls g dmbymdonnmd s ongds, qonp hsmqgbmnon bysums dmcnnl mnondmnl yomlu onsznpsb.	dmbymdonnmdsn bysumn fgyunsbns sb qonp bbnl gsbdszmmdsn qsmhls dmbymdonnmdsn.	dgslmyggn sbsgdnls dmynmgdnls zfmgjln. gzybsbn sbsgdnls dmynmgdnls onzls.
mfondmnls yomlu dnfnqgsb bysumn gmbszl.	lsndgcmpe sf posbyfgn sbymnls ozdnls oszlsbyfmn sb bsgdnls dmynmgdnls qnmztn. bymnls ngbgfngfyn smlubfmncos hsldymn.	lsndgcmpe posbyfgn sbymnls ozdnls oszlsbyfmn sb bsgdnls dmynmgdnls qnmztn. lbfmdsg hslznn fgbgfrzgsmn.

产品简介

Labeled diagram of a hairdryer with numbered parts and an inset showing internal components

STE1010

Labeled diagram of a hair dryer with numbered parts and an inset showing internal components

Illustration of hands using a megaphone to prevent a food item, with a black 'X' symbol above (no text or labels)

Illustration of a person using a megaphone with a cross symbol above their head (no text or symbols present)

2 切勿将蒸汽面板对准他人。

简体中文

Illustration of a person's arm and shoulder with a cross mark, no text or symbols present

Illustration of a hand holding a jacket with a shield and a cross mark, no text or symbols present

Illustration of a person using a medical device to adjust equipment, with a cross symbol indicating no change (no text or labels present)

Diagram of two identical containers with ropes and a circular inset showing a mechanical component (no text or symbols)

3 将底部衣架锁夹锁定。

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Diagram of two meshed plastic containers with triangular patterns and a separate oval-shaped object, no text or symbols present.

1 记下您所购买产品配备的部件。

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

3 将熨衣板护盖与熨衣板挂钩对齐并将其插入。

Diagram of a perforated or meshed object with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 将熨衣板放到挂架上。

Diagram illustrating a mechanical or fluidic device with directional arrows indicating flow or movement, and an inset magnified view showing internal components.

Simple line drawing of a bottle with two handles (no text or symbols)

7 您可以用挂架披挂您的衣物。

Line drawing of a men's collared shirt with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

安装熨衣垫

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 将中间的绑带穿过熨烫机支架。

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a hand pressing down on a vertical structure with radiating lines, no text or symbols present

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

4 您可以用挂架披挂您的衣物。

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

插入毛刷

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 翻转水箱，使水箱盖朝上。

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

3 逆时针旋下水箱盖以将其取下。

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 为水箱加水。

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

5 顺时针拧紧水箱盖。

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt collar with a hanging hanger (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

4 拉伸衣物。熨烫衣物正面时将蒸汽熨烫机蒸汽喷头向下移动。

Illustration of a shirt with a hand holding a bag, showing a pointing upward arrow (no text or symbols)

Illustration of hands cleaning a wall with a tool, showing a downward arrow (no text or symbols)

6 拉伸衣物。熨烫衣物背面时将蒸汽熨烫机蒸汽喷头向下移动。

Illustration of hands using a tool to lift or spread material, showing a curved blade and handle (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 将熨烫机放在靠近排水口的地方。

Diagram illustrating a hand using a tool to adjust or remove a surface, with labeled steps and directional arrows.

Diagram illustrating safety inspection steps with labeled icons and warning symbols

5 装回除垢旋钮并将其转至锁定位置。

清洁和存放挂烫机

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

3 用湿布擦拭蒸汽面板。

Illustration of a container pouring liquid into a basin with a drain outlet (no text or symbols)

4 完全倒空水箱。

Diagram of a helmet with a black arrow pointing to the side of the head (no text or symbols present)

5 将电源线缠绕在底座上。

Two sequential illustrations of a person carrying a long pole, viewed from the side (no text or symbols)

6 您可以握住衣架杆来搬动挂烫机。

故障排除

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Labeled diagram of a hair dryer with numbered parts and an inset view of the device's internal components.

Illustration of hands using a megaphone to prevent a food defect, with a black 'X' symbol indicating the defect (no text or labels present)

1 請勿讓皮膚的任何部位直接接觸蒸氣。

Illustration of a person using a megaphone with a cross symbol above, no text or symbols present

2 請勿將蒸氣板對準他人。

Illustration of a person's arm and shoulder with a cross mark, no text or symbols present

Illustration of a person's shirt with a hand holding a triangular object and a cross mark, no text or symbols present.

4 請勿朝下使用蒸氣噴頭。

Illustration of a person bending over a device with a cross mark, no text or symbols present

5 請勿彎曲膠管來蒸氣熨燙衣物。

> 5 min. X

Line drawing of a steam purifier with handle, bulb, and lever (no text or symbols)

STE1010

Line drawing of a portable steam cooker with attached lever and handle (no text or symbols)

STE1040

Illustration of a portable steam cooker with attached stand and bulb (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

1 請記下您購入產品適用的零件。

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

3 鎖定底部掛桿鎖固定夾。

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a welding or welding process with downward arrows indicating sequence

Three sequential illustrations of a medical or surgical device with arrows indicating downward motion (no text or symbols present)

6 將蒸氣噴頭放在蒸氣機固定架上。

安装熨烫板

Three technical illustrations of a device with mesh patterns, shown from top, front, and side views (no text or symbols)

1 請記下您購入產品適用的零件。

736 繁體中文

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

3 將熨燙板套對準並穿過熨燙板掛鉤。

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

5 將熨烫板放在衣架上。

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

7 您可以使用衣架掛起衣物。

Line drawing of a men's blouse with collar and button (no text or symbols)

Line drawing of a shirt collar with two hangers (no text or symbols)

安装熨衣垫

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

1 將中間的帶子穿過蒸氣機固定架。

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a cylindrical container with handles and side legs (no text or symbols)

4 您可以使用衣架掛起衣物。

Illustration of a jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

装入毛刷

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow.

Illustration of hands holding a cup with steam rising from it, no text or symbols present

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

2 翻轉水箱，讓水箱蓋朝上。

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

3 逆時針旋開水箱蓋以取下。

740 繁體中文

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 為水箱加水。

Simple line drawing of a bowl with a lid and side legs, no text or symbols present

5 順時針旋緊水箱蓋。

Diagram of a mechanical device with a lever and handle, showing no text or symbols

6 對準掛鉤，將水箱放回底座。

變更蒸氣設定

STE1020 STE1030 STE1040 STE1010

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a shirt hanger with a jacket partially visible, no text or symbols present

Illustration of a person adjusting a jacket with a hand pointing to the pocket (no text or symbols)

2 以與衣領平行的方向移動蒸氣噴頭。

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

3 以和抵肩呈水平的方向移動蒸氣噴頭。

Illustration of a person adjusting a shirt with a hand holding the sleeve (no text or symbols)

Illustration of a shirt with a hand holding a bag, showing a pointing up arrow (no text or symbols)

5 在口袋處向上移動蒸氣噴頭。

Illustration of a hand using a tool to clean or store items, with no visible text or symbols

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

3 將蒸氣機靠近水槽。

Medical illustration showing a hand performing a procedure with labeled steps and a magnified view of the procedure.

Diagram illustrating a safety inspection or hazard warning on a vehicle, with labeled parts and a magnified view showing hazard symbols.

5 將除鈣旋鈕插入並轉至鎖定位置。

744 繁體中文

清潔與收納直立式蒸氣機

STE1020 STE1030 STE1040 STE1010

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

3 用濕布擦拭蒸氣口。

Illustration of a container pouring liquid into a basin with a pipe outlet (no text or symbols)

4 完全清空水箱。

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 將電源線捲繞於底座。

Two sequential illustrations of a person carrying a walking stick and holding a curved object, no text or symbols present.

6 您可以握住掛桿來搬運直立式蒸氣機。

疑難排解

Technical diagram of a hair dryer with numbered parts and close-up insets for detail

STE1010

Labeled diagram of a hairdryer with numbered parts and an inset showing internal components

Illustration of hands using a megaphone to interact with a surface, marked with a black X (no text or symbols present)

Illustration of a person shouting into a megaphone with a 'X' symbol above, no text or symbols present

Illustration of a hand holding a shirt with a cross mark, no text or symbols present

Illustration of a person's shirt with a hand holding a triangular object and a cross mark, no text or symbols present

Illustration of a person bending over a device with a cross mark, no text or symbols present

Illustration of a steam purifier with a handle and lever, no text or symbols present

STE1010

Line drawing of a steam purifier with attached tool and stand (no text or symbols)

STE1040

Line drawing of a steam hood with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

Diagram of two identical mechanical components with a circular inset showing a curved component (no text or symbols)

Diagram illustrating three-step mechanical assembly steps with numbered components and directional arrows

Diagram illustrating three stages of a tool or device with downward arrows indicating process flow.

Diagram showing three stages of a medical or surgical procedure with arrows indicating downward motion (no text or symbols present)

Diagram of two meshed plastic containers with triangular patterns, one larger and one smaller, connected by a central rod (no text or symbols)

Diagram of a meshed container with two handles and arrows indicating upward movement (no text or symbols)

Diagram of a perforated or meshed device with directional arrows indicating flow or movement (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram illustrating a mechanical or structural assembly with directional arrows and a magnified inset showing a component detail.

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a men's collared shirt with collar and button details (no text or symbols)

Line drawing of a shirt collar with two hangers on top (no text or symbols)

매트 설치

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a cylindrical container with handles and two side legs (no text or symbols)

Illustration of a men's jacket with collar and front button, shown in line drawing style (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing two labeled parts (① and ②) of a biological structure with arrows indicating direction or flow, possibly illustrating a process or transformation.

Illustration of two hands holding a cup with steam rising from it, no text or symbols present

Diagram showing a hand holding a device with labeled parts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross symbol (no text or labels)

Simple diagram of a device with a curved top and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

Diagram of a laboratory setup with a pipette inserted into a container (no text or labels)

4 물 탱크를 채우십시오.

Simple line drawing of a bowl with a lid and side legs, no text or symbols present.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Simple line drawing of a hand holding a circular object with a central dot, no text or symbols present

Illustration of a mannequin hanging from a hanger with a collar shirt (no text or symbols)

Illustration of a person hanging from a coat with arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a garment with a cloth (no text or symbols)

Illustration of a person adjusting a shirt collar with a hand holding the sleeve (no text or symbols)

Illustration of a shirt collar with an arrow indicating upward movement, no text or symbols present

Illustration of hands using a tool to clean or store items inside a container (no text or symbols visible)

Illustration of hands using a tool to lift or spread material, showing a curved blade with a magnified inset (no text or symbols)

Illustration of a steam iron with visible blade and handle (no text or symbols)

Diagram illustrating a safety inspection procedure with labeled steps and warning symbols

Diagram illustrating a hand using a tool to interact with a device, showing labeled components and warning symbols.

Illustration of a hand cleaning a curved surface with a cloth (no text or symbols)

Illustration of a container pouring liquid into a basin with a small sink (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

5 본체에 전원 코드를 감으십시오.

Illustration of a person carrying a walking stick with a backpack, shown in two sequential poses (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts and close-up insets for detail

STE1010

Labeled diagram of a hair dryer with numbered parts and an inset showing internal components.

الجهاز البخاري

م الإصداد بالbxcar2

ة الجهاز البخاري 3

4(STE1040 .ST

ئېك قفل العمودى5

العمود

قرص البخار 7

القاعدة 8

نتاح إزالة الكلىس 9

خزان المياه 100

11(STE1040) لوح

12(STE1040) طاء

13(STE1030) ٢٥

14القفار

15(STE1040 .ST

التحضير للاستخدام

Illustration of hands using a megaphone to prevent a food item, with a black X mark above (no text or symbols)

Illustration of a person holding a megaphone with a cross symbol above, no text or symbols present

‘شخاص آخرین 2.

العربية 765

Illustration of a person's arm holding a jacket with a cross mark, no text or symbols present

ل مباشر بالbxcar 3.

Illustration of a hand removing a bag into a shirt, with a cross mark indicating the product (no text or symbols present)

ري نحو الأسفل 4.

Illustration of a person bending over a device with a cross mark, no text or symbols present

الملابس بالbxcar.5

> 5 min. ×

کثر من 5 دقائق.

766 العربية

إعداد الجهاز

از الذي اشتریته.

Diagram of two identical containers with ropes and a magnified inset showing a circular object (no text or symbols)

لي لقال العمود.

Diagram illustrating three-step mechanical assembly or assembly process with numbered steps and directional arrows

مل لأعلى و[qفلها.4

Diagram illustrating three stages of a mechanical or electrical component with downward arrows indicating motion or force direction.

Diagram showing three stages of a medical or surgical procedure with arrows indicating direction (no text or symbols present)

1. جهاز البخاري

Three technical illustrations of a computer mouse with mesh patterns, shown from top, front, and side views (no text or symbols)

إعداد اللوح

از الذي اشتریته.

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

Diagram of a perforated or meshed object with directional arrows indicating movement or force (no text or symbols)

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram of a mechanical or biological structure with directional arrows, no visible text or symbols

Simple line drawing of a bottle with two handles (no text or symbols)

Line drawing of a shirt collar with a mannequin silhouette (no text or symbols)

Illustration of a shirt collar with two trousers, shown in side profile (no text or symbols)

1. الجهاز البخاري

إعداد البساط

1. جهاز البخاري

Illustration of a hand holding a pen or ruler with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

1. لفي من العلّاقة.

770 العربية

Diagram showing a mechanical joint with arrows indicating motion or force direction, next to a vertical rod (no text or symbols present)

Simple line drawing of a cylindrical container with handles and legs (no text or symbols)

Line drawing of a men's jacket on a mannequin (no text or symbols)

Line drawing of a sleeveless shirt with collar and shoulder clips (no text or symbols)

Diagram showing a mechanical or biological structure with numbered annotations and directional arrows indicating flow or movement.

1. ("نقرة") م写着

متخدام العلاقة.

عَالجهاز البخاري.5.

إدخال الفرشاة

في الجزء السفلي

."نقرة")

العربية 771

1. ملحق الفر筛查

، ملحق الفرشاة.

تعبئة خزان المياه

مياه عن القاعدة.1.

ه يتجه صعوداً.

بKBالساعة لزالته.

Illustration of two hands holding a cup with a steaming cup (no text or symbols visible)

Diagram showing a hand holding a textured object with numbered callouts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple line drawing of a container with a curved lid and two arrows indicating rotation (no text or symbols)

Simple line drawing of a bowl with a small object on top (no text or symbols)

772 العربية

Illustration of a laboratory setup with a pipette inserted into a container (no text or symbols visible)

ملا خزان المياه 4.

Simple line drawing of a bowl with a lid and side pan (no text or symbols)

ب surveillance ل Covidه.5.

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

1. indoor في الqaoudة

STE1020 STE1030 STE1040 STE1010 STE1011

Simple line drawing of a hand holding a circular object with a small inset (no text or symbols)

بخاري العمودي.2.

*STE1010/75 STE1011/75: \~2 min

~45 sec

العربية 773

3:STE1011/75

حوالى دقيقتين.

Illustration of a shirt jacket with a hanger, showing front and back views (no text or symbols)

نصائح للكي

1. جهاز البخاري

Illustration of a person hanging clothes with arrows indicating direction (no text or symbols)

1. مواز مع طوق

Illustration of a hand holding a jacket over a garment, with arrows indicating fabric direction (no text or symbols)

بمحاناة الطوق 3.

Illustration of a person adjusting a shirt with a hand pointing to the chest area (no text or symbols present)

ي من الملابس 4.

774 العربية

Illustration of a hand holding a shirt with an upward arrow and a magnified inset showing the sleeve (no text or symbols)

Illustration of a hand holding a tool inside a container with a downward arrow indicating motion (no text or symbols)

Illustration of hands holding a knife with a knife being cut (no text or symbols)

أعلى على جيب.5.

ي من الملابس.

1. مواز مع الكم

التنظيف والصيانة

أداة جمع الكلىس

تم HIM: ي milestone avoidance of the global economy in Africa. En la Canada, I am a national government, and it is a national government.

العربية 775

Illustration of a steam iron with visible blade and handle (no text or symbols)

Medical illustration showing a hand holding a device with warning labels and an inset diagram illustrating safety hazard.

Diagram illustrating a safety hazard warning with labeled parts and directional arrows, including a magnified circular warning symbol.

ن ساعة واحدة) 2.(

نظام التصريف 3.

بتصريفプライه 4.

ي 示وّع القّل 5.

776 العربية

STE1020 STE1030 STE1040 STE1010 STE1011

℃ >1 hour

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a sink with a pipe outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick and holding a backpack, with no text or symbols present.

Technical diagram of a vacuum cleaner with numbered parts and close-up insets for detail

STE1010

Labeled diagram of a hair dryer with numbered parts and an inset showing internal components.

سر بخارشOU

ئىلنىڭ تأمين بخار 2

پایه بخارشو3

4(STE1040 b.S

5 پایه آويز لباس 5

پایه آويز لباس 6

پیج تنظيم بخار 7

۸ ظرف اصل

يَج رسوب زدایی 9

مخزن آب 10

11(STE1040) اتو

12(STE1040)

13STE1030)مت

14 دستكىش

15(STE1040) p.S

Illustration of hands using a megaphone to remove granular material, with a black X mark above (no text or symbols)

لگر هدف نگیرید. 2.

Illustration of a person holding a megaphone with a cross symbol above, no text or symbols present

781 فارسی

Illustration of a person's arm holding a jacket with a cross mark, no text or symbols present

يم با بخار باشد.

Illustration of a hand removing a bag into a shirt, with a cross mark indicating the product (no text or symbols present)

, استفاده نكنید. 4.

Illustration of a person bending over a garment with a cross mark indicating no change (no text or symbols present)

نگ را خم نکنید.5

> 5 min. ×

توجه رها نکنید.6

782 قارسی

راه اندازی دستگاه

داشته باشید.

Illustration of STE1011 equipment including a bucket, hose, and tripod (no text or symbols)

STE1010

Line drawing of a portable shower with a conical shade, hose, and stand (no text or symbols)

STE1040

Illustration of a steam iron machine with attached tools (no text or symbols)

STE1010 STE1011

STE1020 STE1030 STE1040

پروفيل های میله 2

Diagram of two identical containers with ropes and a magnified inset showing a circular object (no text or symbols)

يئن را ققل کنید.

Diagram illustrating three-step mechanical assembly or assembly process with numbered steps and directional arrows

ئيید و قفل کنید. 4.

Diagram illustrating three stages of a mechanical or electrical component with downward arrows indicating motion or force direction.

(«کلیک کنید»)

Diagram showing three stages of a medical or surgical procedure with arrows indicating direction (no text or symbols present)

ارشو قرار دهید.6

Three technical illustrations of a device with mesh patterns, one showing top, one side, and one rounded (no text or symbols)

تنظيم تخته اتو

1. ه داشته باشد.

784 قارسی

2.(«کلیک») شود

Diagram of a container with mesh pattern and two upward arrows (no text or symbols)

تحته وارد کنید. 3.

Diagram of a perforated or meshed object with directional arrows indicating movement or force (no text or symbols)

تحته وصل کنید 4

Illustration of a shoulder joint with two arrows indicating movement or force direction (no text or symbols)

Diagram of a container with internal structures and directional arrows, no text or symbols present

6.(«کلیک کنید»)

785 فارسی

خود را بيوشانيد. 7.

Simple line drawing of a bottle-like object with two handles (no text or symbols)

Line drawing of a collared shirt on a mannequin (no text or symbols)

Illustration of a collared shirt with two hangers on top (no text or symbols)

ارشو قرار دهید. 8

تنظيم مت

دارشو وارد کنید.

Illustration of a hand holding a pen or tool with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

آويز محكم کنید.

Diagram showing a mechanical joint with arrows indicating motion or force direction, next to a vertical rod (no text or symbols present)

3.(«کلیک کنید»)

Simple line drawing of a cylindrical container with handles and legs (no text or symbols)

خود را بپوشانيد.4

Line drawing of a men's jacket on a mannequin (no text or symbols)

ارشو قرار دهید.5

Line drawing of a sleeveless shirt with collar and shoulder details (no text or symbols)

Diagram showing a mechanical or biological process with labeled parts and directional arrows indicating flow or movement.

قراردان برس

1.««کلیک کنید»).

787 فارسی

برس بخار کنید. 2.

Libya جدا شود.

پرکردن مخزن آب

ازپایه جدا کنید.1.

رو به بالا باشد.2.

ئيد تا جدا شود.

Illustration of two hands holding a steaming cup with steam rising from the cup (no text or symbols)

Diagram showing a hand holding a textured object with numbered callouts and an upward arrow indicating motion or force.

Diagram of a mechanical device with a close-up view showing a component and a cross mark (no text or symbols)

Simple line drawing of a container with a curved lid and two arrows indicating rotation (no text or symbols)

Simple line drawing of a bowl with a small object on top (no text or symbols)

788 قارسی

Illustration of a laboratory setup with a pipette inserted into a container (no text or symbols visible)

ن آب را پر کنید. 4.

Simple line drawing of a bowl with a lid and side pan, no text or symbols present

د تا سفت شود. 5.

Diagram of a mechanical device with a lever and handle, showing motion or assembly (no text or symbols)

به پایه بازگردد.6.

STE1020 STE1030 STE1040 STE1010 STE1011

Simple line drawing of a hand holding a circular object with a small inset (no text or symbols)

ده روشن است. 2.

789 فارسی

*STE1010/75

STE1011/75:\~2 min

~45 sec

3p.STE1010/75

Illustration of a shirt jacket with a hanger, showing front and back views (no text or symbols)

قه جرکت دلهید. 2.

Illustration of a hand hanging clothes on a jacket with arrows indicating direction (no text or symbols)

ni حرکت دهید. 3.

Illustration of a hand adjusting a garment with arrows indicating fabric direction (no text or symbols)

نه حرکت داهید.4

Illustration of a person adjusting a shirt with a hand pointing to the sleeve (no text or symbols present)

790 قارسی

Illustration of a shirt with a hand holding a cup, showing a pointing upward arrow (no text or symbols)

ب igrکت دهید.5

Illustration of a hand holding a tool inside a container with a downward arrow indicating motion (no text or symbols)

ب حركت دهید.6

Illustration of hands holding a knife with a magnified view of the blade (no text or symbols)

بن حرکت دهید.7

2.(ش از 1 ساعت)

℃ >1 hour

کش قرار دهید. 3.

Illustration of a steam iron with visible blade and handle (no text or symbols)

Medical illustration showing a hand performing a procedure with labeled steps and an instructional diagram.

Diagram illustrating a safety hazard warning with labeled parts and directional arrows, including a magnified circular warning symbol.

۴۰۱۶۲۱۶ De.

Illustration of a hand holding a cloth or towel over a curved object (no text or symbols)

Illustration of a container pouring liquid into a sink with a pipe outlet (no text or symbols)

Diagram of a helmet with a black arrow pointing to the side of the helmet (no text or symbols present)

Illustration of a person carrying a walking stick and holding a backpack, with no text or symbols present.

عيب يابى

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

2025 © Versuni Holding B.V.

642001008786 (06/2025)
