USER MANUAL 303530 Bearware

Indoor Temp 26.4°C TEMP ALERTS OUT OFF Humi 30%

Simple line drawing of a battery with a black segment on one side and white outline (no text or symbols)

Niedrige Batterie:

Outdoor Temp 26.4 TEMP ALERTS OUT OFF Humi 30%

Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to get the most from the product that you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Weather station
• User manual

2. Technical data

Power supply	Main unit: Three 1.5V AAA batteries or alternatively one DC 4.5 V, 150 mA power adapter with coaxial connector (3.5 mm / 1.25 mm) / Polarity: - ---(o--- + Sensor: Two 1.5V AAA batteries
Temperature range	Main unit: -9.9°C to 50°CSensor: -50°C to +70°C
Transmission power (EIRP)	-11.01 dBm
Frequency range 433 MHz
External sensor protection class	IP43
Features	Date displayAlarm function (alarm)Indoor and outdoor temperatureOutdoor sensorHumidity displayAir pressure displayWeather forecast pictogramSnooze function12/24-hours displayMoon phases displayTrend display

3. Additional information about this device

Check that the product and the components are intact and if the device is working properly when using it for the first time. The outdoor sensor is splash-proof and should not be exposed to continuous and direct rain. An ideal location would therefore be covered and in the shade. Do not use this device if it is damaged. Do not expose the base station and outdoor sensor to moisture or direct sunlight. Before using the product, ensure that the available supply voltage corresponds to the operating voltage indicated on the specification plate. Make sure that the cables are not damaged.

The device must be connected to an easily accessible socket so that it can be disconnected in case of an emergency.

This product is suitable only for use with the mains adapter supplied. It is intended only for private use and not for medical purposes or for public information.

Caution!

Keep the batteries and the device out of the reach of children. Batteries contain harmful acids. Weak batteries should be replaced as soon as possible to prevent leakage! Do not use new and old batteries or batteries of different types together. Never throw batteries into a fire and do not short-circuit them. Do not recharge the batteries or take them apart. There is a risk of explosion!

4. Buttons

Symbol Button
	MODE:Press the "MODE" button in the default screen to select between the different display modes. If you do not press any button within 10 seconds, the weather station switches back to the default screen).
	SET:Press the "SET" button in the default screen to select between °C and °F. Alternatively, you can set the date and time by pressing for 2-3 seconds in the time mode.
	ALARM:Press the "ALARM" button in the default screen to switch the Alarm 1/2 on or off.
	CHANNEL:Press the "CHANNEL" button in the default screen to change between the radio channels 1, 2 and 3. Hold the button to delete the previously displayed values. The deletion is confirmed with a beep.
	DOWN:Use the button to change the values in the settings.
	UP:Use the button to change the values in the settings. Press the button in the default screen to change between the current, minimum and maximum temperature display. Press the button for about 2-3 seconds to reset the temperature displays.
	SNOOZE/LIGHT:When operating the device with batteries, press the "SNOOZE / LIGHT" button to turn on the backlight for 5 seconds.When operating the device using a power adapter, you can choose between four different brightness levels (Light Off, Level 3, Level 2, Level 1) using the "SNOOZE/LIGHT" button.You can press the "SNOOZE/LIGHT" button as soon as the alarm goes off to put the device in snooze mode for 5 minutes. The alarm goes off once again after 5 minutes.

5 1 Outdoor Temp°C 26.4 3 Humid Pressure Trend Pressure 10 02 °C Indoor Temp 26.4 Humid 30° Moon 0:24 °C MON 1 D 1 M MON 6 2 4

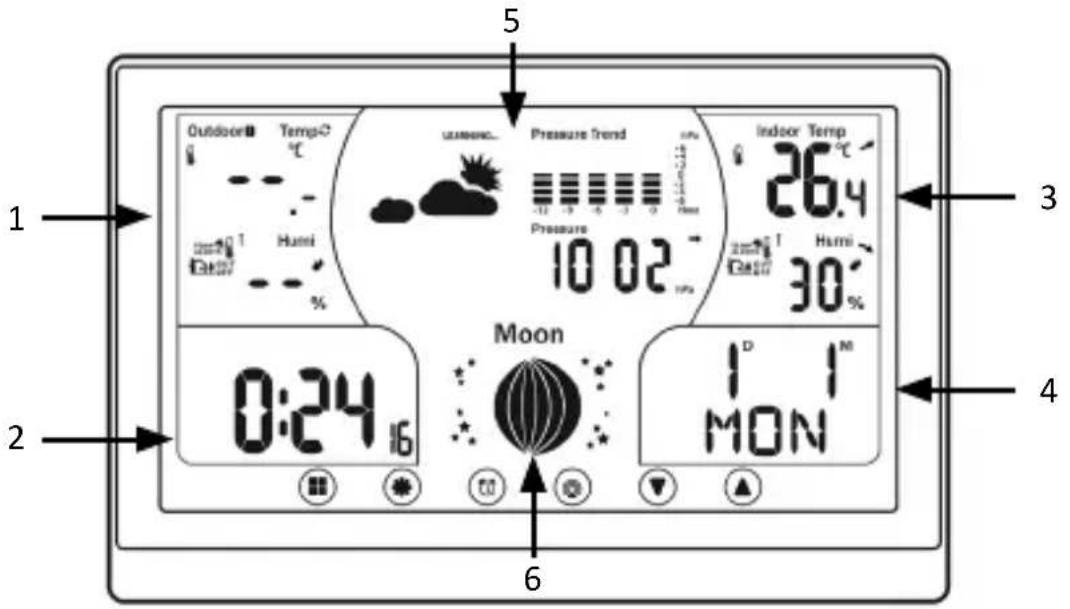

No. Display area
1 Outdoor temperature	display
2 Time display
3 Indoor temperature display
4 Day and date display
5 Weather forecast and air pressure display
6 Moon phases display

Simple diagram of two vertical oval shapes inside a rounded rectangle (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Wall mounting hanger

Battery com- partment cover

"CHANNEL" switch

5. Initial use

Take the product out of the package and remove all the packaging material. Open the battery compartment of the outdoor sensor and insert two 1.5V AAA batteries and select the desired channel at the “Channel switch.” Then open the battery compartment on the back of the main unit and insert three 1.5V AAA batteries. Alternatively, you can use the supplied coaxial power adapter for operation. For this purpose, plug the mains adapter into a properly installed socket and then connect it to the coaxial connector of the main unit.

Note: If you want to use the device with batteries, then the backlight is not permanently switched on. The backlight of the display is continuously switched on only when operated with the enclosed power adapter.

The weather station then attempts to establish connection with the outdoor sensor. Ensure that both devices are within each other's range. The connection symbol " [ ] " flashes in the "Outdoor temperature display" of the main unit. If the main unit cannot establish a connection with the outdoor sensor within 5 minutes, then it stops searching. The connection icon stops flashing and the temperature display shows "-._°C" and "--%" on the display.

In most cases, the connection cannot be established due to specific factors such as reinforced walls or too great a distance between the sensor and the main unit. In this case, position the sensor and the main unit closer to each other. To restart scanning, press and hold the "Channel button" on the front of the main unit for 3 seconds until the connection symbol in the display starts flashing.

6. Display

Time display:

0:24 16

The time can be displayed in a 12-hour or 24-hour format. The current time is received via the outdoor sensor!

D M MON

Date and day:

The weather station comes with a date and day display. The date is displayed in the top section and the day in the bottom section. The pre-configured language is German. If you want to change the language, please refer to section "Basic settings" for more information.

MOON

Phases of the moon:

The current phase of the moon is shown in the display of the weather station as follows:

The part of the moon which is not lit is represented as dark in the display.

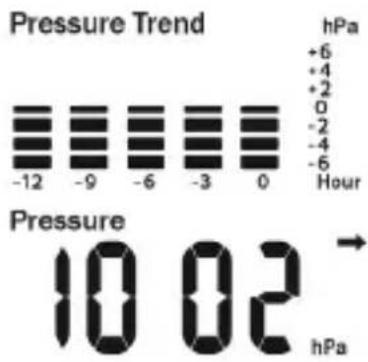

Barometric pressure display

The current atmospheric pressure is displayed in the bottom section of the pressure display. You can view the trend of the last 12 readings (12 hours) in the "Pressure Trend" field.

Trend display:

The trend display is updated every hour. The rise or fall is determined by the atmospheric pressure or by the temperature and the humidity. If the readings change in the measurement period, for example, by at least 2 hPa (= 0.06 inHg), or at least 1°C (= 1.8°F), or the humidity changes by at least 5%, then it is taken into account in the trend.

Weather forecast:

LEARNING...

The weather station calculates a weather forecast for about 12 hours, which is based on the air pressure trend. Naturally, this forecast cannot be compared with satellites or high-performance computers. The forecast shows only an approximation of the current trend.

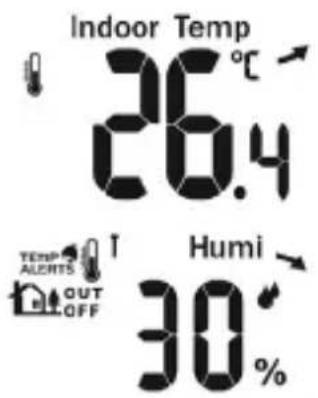

Indoor temperature display and humidity

Indoor Temp 26.4°C TEMP ALERTS OUT OFF Humi 30%

The indoor temperature is measured by the base station and is shown to an accuracy of one tenth of a degree. The configured temperature unit is displayed to the right of the measured value. The temperature unit can be changed between °C and °F. To do this, press the "SET" button on the weather station.

This display shows the current air humidity experienced by the weather station.

Low battery:

If the battery symbol appears below the temperature display, then the inserted batteries will soon be empty and should be replaced with new batteries as soon as possible. This applies to the outdoor sensor as well as to the base station.

Simple line drawing of a battery with a black segment indicating discharge (no text or symbols)

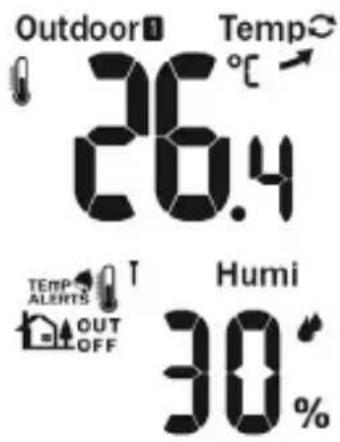

Outdoor temperature display:

Outdoor Temp 36°C 26.4 TEMP ALERTS OUT OFF Humi 30%

The outdoor temperature is measured by the outdoor sensor and shown to an accuracy of one tenth of a degree. The configured temperature unit is displayed to the right of the reading. The temperature unit can be changed between °C and °F. To do this, press the "SET" button on the weather station.

This display shows the current air humidity experienced by the weather station.

Channel display

Outdoor Temp

The weather station receives the signal of the outdoor sensor automatically after all settings have been configured. You can switch between the different channels using the "Channel" button. The channels of the outdoor sensor can be selected on the sensor directly using a toggle switch.

1, 2, 3: Outdoor sensor channel

: Automatic channel change after 4 seconds

8. Basic settings

Note: Firmly touching the top of the housing will switch on the backlight. After the "SNOOZE/SLEEP" button is touched, the backlight switches off again after 5 seconds. Please note that the base station does not respond to 2 buttons at the same time. Therefore, it is advisable to always press just one button.

Press the "Mode" button briefly to display the time and date. To change the basic settings, press and hold the "SET" button until the time zone starts to flash. With the "UP" and "DOWN" buttons, you can change the values accordingly. Confirm the settings by briefly pressing the "SET" button and you can then access the next setting option.

In this way, you can change and customise the following settings in the sequence mentioned below:

• Time zone
• Language setting - To set the day on the display. The following codes can be configured and selected using the "UP" and "DOWN" buttons: GER (German), FRE (French), ITA (Italian), DUT (Dutch), SPA (Spanish), DAN (Danish), ENG (English)
• Year
• Day/month format
• Month
• Day
  • 12 or 24 hour display
  • Hour
• Minute
• Second

8.1 Altitude correction settings

This weather station can configure different operating altitudes, as the pressure varies depending on the altitude. The default altitude is 0m above sea level.

1. in the default screen, press the "MODE" button 3 times to access the altitude adjustment mode. The screen displays only the altitude value.
2. Press and hold the "SET" button for about 3 seconds in the altitude adjustment mode to configure the altitude correction setting. The configured altitude flashes in the display.
3. Press the "UP" and "DOWN" buttons to change the altitude correction value.
4. During the setup, you can press the "MODE" button to change the current altitude unit. The air pressure unit which is displayed in the default screen changes along with the length unit to "M/hPa" or "Ft/inHg".

The altitude correction range is -90m to 1990m.

When the setup is complete, press the "SET" button to confirm the altitude correction setting or wait for 10 seconds until the menu closes automatically.

8.2 Temperature alarm

It is possible to define a temperature range for the outdoor sensor and for the indoor temperature. With the temperature alarm, the base station will sound an alarm if the reading is outside this temperature range.

1. Press the "MODE" button 4 times consecutively in the default screen, so that only the indoor and the outdoor temperatures are displayed. Then press and hold the "SET" button for about 2-3 seconds until the temperature to be configured starts flashing.
2. Then press the "UP" or the "DOWN" button to select the minimum temperature of the desired range (LO). Confirm the value by pressing the "SET" button.
3. You can then select between "ON" and "OFF". This selection option determines whether the corresponding alarm should be switched on or off. Confirm your selection using the "SET" button.
4. Then press the "UP" or the "DOWN" button to select the maximum temperature of the desired range (HI). Confirm the value by pressing the "SET" button.
5. You can then select between "ON" and "OFF". This selection option determines whether the corresponding alarm should be switched on or off. Confirm your selection using the "SET" button.
6. After configuring the outdoor sensor, you can define the newly configured values for the indoor temperature as well. Repeat the previous steps for the indoor temperature for your desired temperature values.

If the outdoor sensor measures a temperature outside the previously configured range, an alarm is emitted for about one minute from the base station. This alarm can be muted by pressing a button on the weather station. The temperature which triggered the alarm will start flashing in the display.

To turn off the temperature alarm, go to the temperature alarm settings. After selecting the temperature for the corresponding alarm, you must select "OFF" (see above, paragraph 3).

8.3 Alarm setting

The weather station can store up to 2 alarm settings, which can be turned on and off separately.

Setting the alarm

1. Press the "MODE" button two times in the default screen to access the alarm mode. Only the alarm time is shown in the display.
2. Press and hold the "SET" button in alarm mode for 2-3 seconds until the alarm time starts to flash.
3. Press the "UP" and "DOWN" buttons to configure the values. Confirm the entry using the "SET" button. Once you have configured ALARM 1, you have to configure ALARM 2 as well. Confirm your entry again by pressing the "SET" button.

Enabling the alarm

Press the "ALARM" button in the default screen. An alarm icon is subsequently displayed above the current time. This means that the alarm is turned on. To disable alarm 1 and to enable alarm 2, press the "ALARM" button again. Pressing the "ALARM" button again enables alarm 1 and alarm 2. Both alarm symbols are shown in the display.

Both are disabled by pressing the "ALARM" button again. The symbols then disappear from the display.

Switching off the alarm

The alarm is activated at the configured time. The alarm is active for 2 minutes and 30 seconds before it turns off automatically.

Press the "SNOOZE/LIGHT" button to cancel the alarm. If a snooze symbol is shown on the display, this means that the snooze function is activated and the alarm will go off again in 5 minutes.

Press any button to switch off the alarm.

9. Stored data

Maximum and minimum temperatures

Press the "UP" button to view the maximum indoor and outdoor temperatures as well as the maximum humidity. "max" appears on the display. Press the "UP" button again to view the minimum measured values. "min" appears on the display. After about 15 seconds, the current reading is displayed.

Note: The min/max temperatures are measured from the total operating time of the weather station. Press and hold the "UP" button for about 3 seconds to delete the stored maximum/minimum values.

Atmospheric pressure

The atmospheric pressure is automatically measured every hour and shown in the display. The table shows the approximate trend of the atmospheric pressure.

10. Additional settings

14 day Learning mode

Whenever you do an electrical reset (remove batteries from the battery compartment and disconnect the mains adapter), the weather station will switch to a 14-day learning mode to ensure a more accurate weather forecast trend. As long as the weather station is in the learning mode, "Learning ..." is shown in the display above the weather forecast.

Receiving the outdoor sensor signal

The outdoor sensor sends a signal twice per minute, which is automatically received by the base station. You can also manually enable the signal reception. Press the "CHANNEL" button repeatedly until you reach the channel that was selected using the switch in the battery compartment of the corresponding outdoor sensor. Alternatively, you can also activate the automatic channel switching. Here, the weather station switches through all the channels, even through the ones not used by the external sensors.

Caution!

11. Safety instructions and disclaimer

Never try to open the device to carry out repairs or to make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.

Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which are not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be separately sent for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

13. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303530 complies with the fundamental requirements and all other relevant stipulations of the guideline 2014/53/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, https://model.ganzeinfach.de/303530
